Calculating the Median in Excel Pivot Tables: A Step-by-Step Guide

In the demanding landscape of data analysis, the median serves as a cornerstone measure of central tendency. It frequently offers a more reliable and robust reflection of a dataset’s true center compared to the traditional average (or mean), particularly when dealing with skewed data or extreme outliers. While Microsoft Excel provides exceptional tools for data summarization and reporting, a persistent challenge arises when users attempt to calculate the median directly within a Pivot Table. Unlike straightforward calculations such as sum, count, or average, Excel’s native Pivot Table functionality does not include the median as a standard aggregation option. This inherent limitation can severely impede the efficient analysis of group-wise data distributions.

Fortunately, sophisticated analytical techniques exist to bypass this restriction, leveraging the power of Excel’s array formula capabilities in conjunction with Pivot Tables. This proven methodology involves first pre-calculating the conditional median for every category within the source data using an advanced formula, effectively creating a dedicated “helper column.” This helper column is then seamlessly integrated into the Pivot Table structure. This comprehensive guide details the precise, step-by-step process required to accurately determine the median value for distinct groups within your datasets, enabling you to unlock deeper and more statistically sound insights from your information.

Understanding the Median, Mean, and Pivot Table Limitations

Before implementing the technical solution, it is vital to establish a clear statistical understanding of the median and how it differs from other measures. The median is defined as the exact middle value of a dataset once that data has been meticulously ordered from the lowest value to the highest. If the number of observations is odd, the median is the single middle value; if the number is even, it is conventionally calculated as the average of the two central values. This characteristic makes the median an essential tool for analyzing datasets containing outliers or non-normal distributions, as its value is far less influenced by extreme scores compared to the mean (arithmetic average).

The functional difficulty with Pivot Tables in Microsoft Excel arises from their method of data aggregation. While Pivot Tables are highly optimized for summarizing data based on categorical dimensions, their default summary functions are generally restricted to simple arithmetic operations. For instance, summarizing the total sum, the count of records, or the arithmetic average for points scored by each team is straightforward. However, calculating the median fundamentally requires sorting the specific subset of data belonging to a particular group and then finding the center point—a complex, conditional operation that is not directly available in the standard Pivot Table interface’s list of summary functions. Consequently, users cannot simply drag a field into the “Values” area and select “Median” from the dropdown list.

To successfully circumvent this inherent limitation, we must adopt a precise two-stage workflow. First, we must utilize an advanced array formula to compute the conditional median for every relevant group directly within the source data table. This creates a highly specific “helper column” where every row contains the median value corresponding only to the group that row belongs to. Second, we integrate this newly calculated helper column into the Pivot Table, employing a strategic configuration to ensure the correct median value is displayed for each category. This powerful technique marries the dynamic reporting capabilities of Pivot Tables with the precise statistical measurement offered by the median.

Step 1: Data Preparation and the Conditional Median Formula

The foundational step in any robust data analysis process is the effective organization and structuring of raw data. For this conditional median calculation, clean and consistently structured data is absolutely non-negotiable. To illustrate this technique, we will use a dataset containing basketball statistics, specifically points scored by players across several distinct teams. This scenario is ideal for demonstrating how to calculate a group-wise median—we aim to find the median points achieved by each unique team.

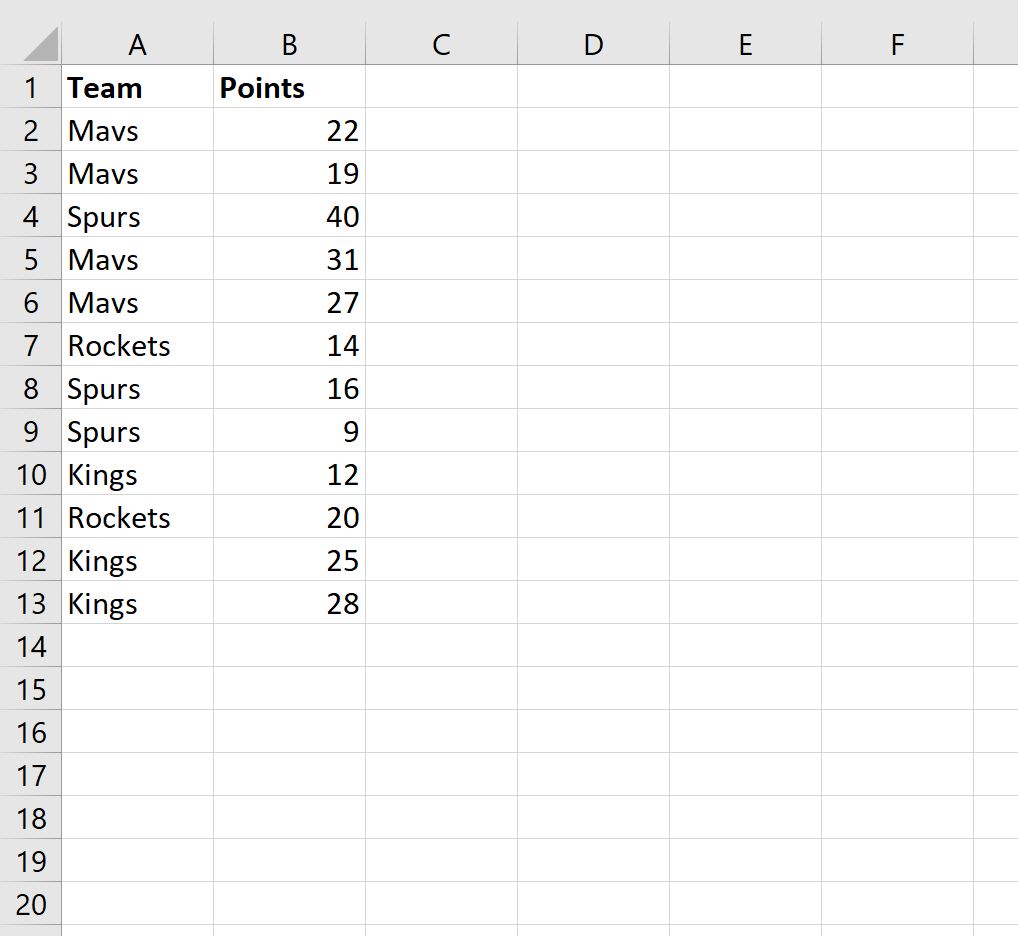

Begin by entering your data into a new worksheet. It is critical that your data includes clear, descriptive headers for every column, as these headers will be essential for both the formula construction and subsequent Pivot Table field recognition. In our example, we require columns labeled “Team” and “Points.” The following visual representation confirms the structured data layout that will be utilized throughout this tutorial:

Once the raw data is prepared, the next crucial phase is the creation of the helper column using the specialized array formula. Since Excel does not inherently offer a MEDIANIF function (a conditional median), we must construct one ourselves by combining the MEDIAN function with the IF function. This powerful combination enables us to conditionally filter the data points—selecting only those that match a specific criterion (e.g., belonging to “Team A”)—and then calculate the median exclusively on that filtered subset.

We will enter this formula into the first cell of a new column (e.g., C2), which we will name “Median Points.” Here is the exact formula structure:

=MEDIAN(IF($A$2:$B$13=A2,$B$2:$B$13))

The formula operates as follows:

• $A$2:$B$13: This fixed range refers to your entire data table, encompassing both the ‘Team’ and ‘Points’ columns. The use of absolute references (the dollar signs) is essential here, ensuring the range remains constant when the formula is copied down across all rows.
• A2: This is the specific team name in the current row. The IF function performs a logical test, comparing every cell in the ‘Team’ column ($A$2:$A$13) against the value in A2.
• $B$2:$B$13: This range contains the ‘Points’ data. If the logical test is true (the team names match), the corresponding value from the ‘Points’ column is included in the array that is passed to the MEDIAN function. If the test is false, the formula passes `FALSE`, which the MEDIAN function is designed to ignore, effectively filtering the data.

For users running older versions of Excel, this formula must be confirmed by pressing Ctrl + Shift + Enter, which signals to Excel that it should treat it as an array formula and wraps it in curly braces (`{}`). While modern Excel versions often handle dynamic array behavior automatically, confirming with Ctrl + Shift + Enter remains the reliable method for ensuring calculation consistency before dragging the formula down the column. Once implemented, this “Median Points” column will display the exact median score for the team associated with that row. Every row belonging to “Team B,” for instance, will display the identical, calculated median value for Team B. This standardized, pre-calculated value is the key element that our Pivot Table will subsequently aggregate.

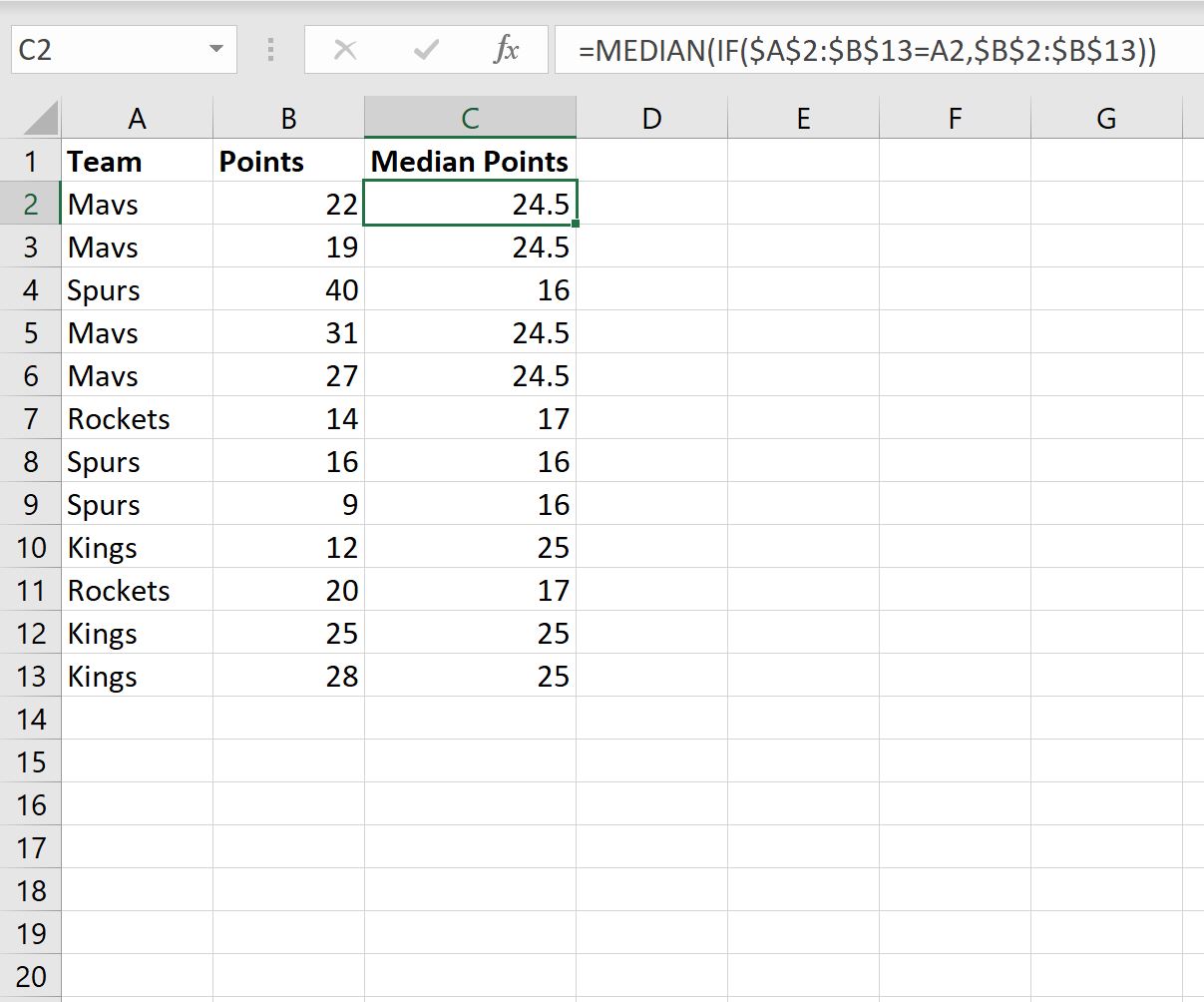

The outcome of applying this formula is demonstrated in the following image, showing the new helper column populated with the correct conditional median values:

Step 2: Constructing and Configuring the Pivot Table

With the “Median Points” helper column successfully integrated into the source data, we can now proceed to build and configure the Pivot Table. This dynamic tool is crucial for summarizing and presenting the calculated median data in a digestible report format. The Pivot Table will enable us to transform the row-level calculations into a clean, group-level summary.

To start the Pivot Table creation process, follow these sequential steps:

1. Select the Data Range: Click anywhere within your complete dataset. This must include all original columns plus the newly created “Median Points” helper column.
2. Insert Pivot Table: Navigate to the Insert tab, located on the Excel Ribbon at the top of the interface.
3. Execute Command: In the “Tables” group, click the PivotTable icon to launch the “Create PivotTable” dialog box.

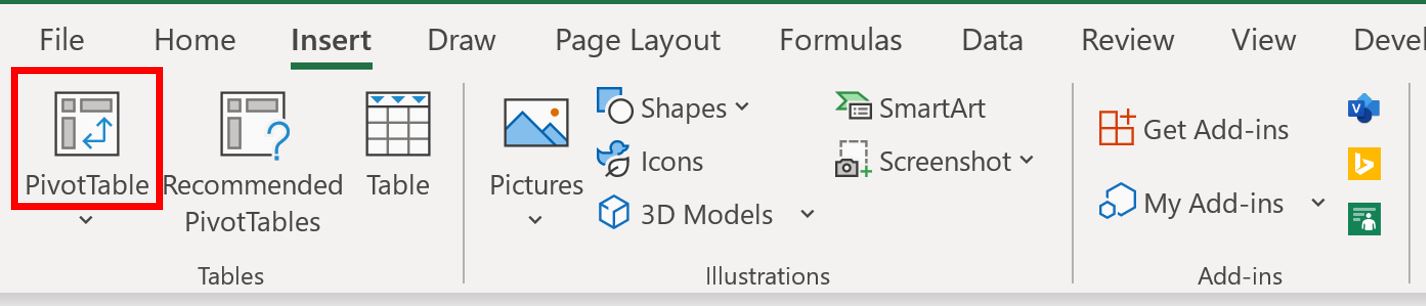

The visual reference below indicates the location of the PivotTable tool on the Insert tab:

Within the “Create PivotTable” dialog box, you must confirm two critical parameters. First, ensure that the “Select a table or range” field accurately covers the entire dataset, including the helper column (e.g., A1:C13). Second, select “Existing Worksheet” and specify a starting cell, such as E1, to place the resulting report conveniently near your source data.

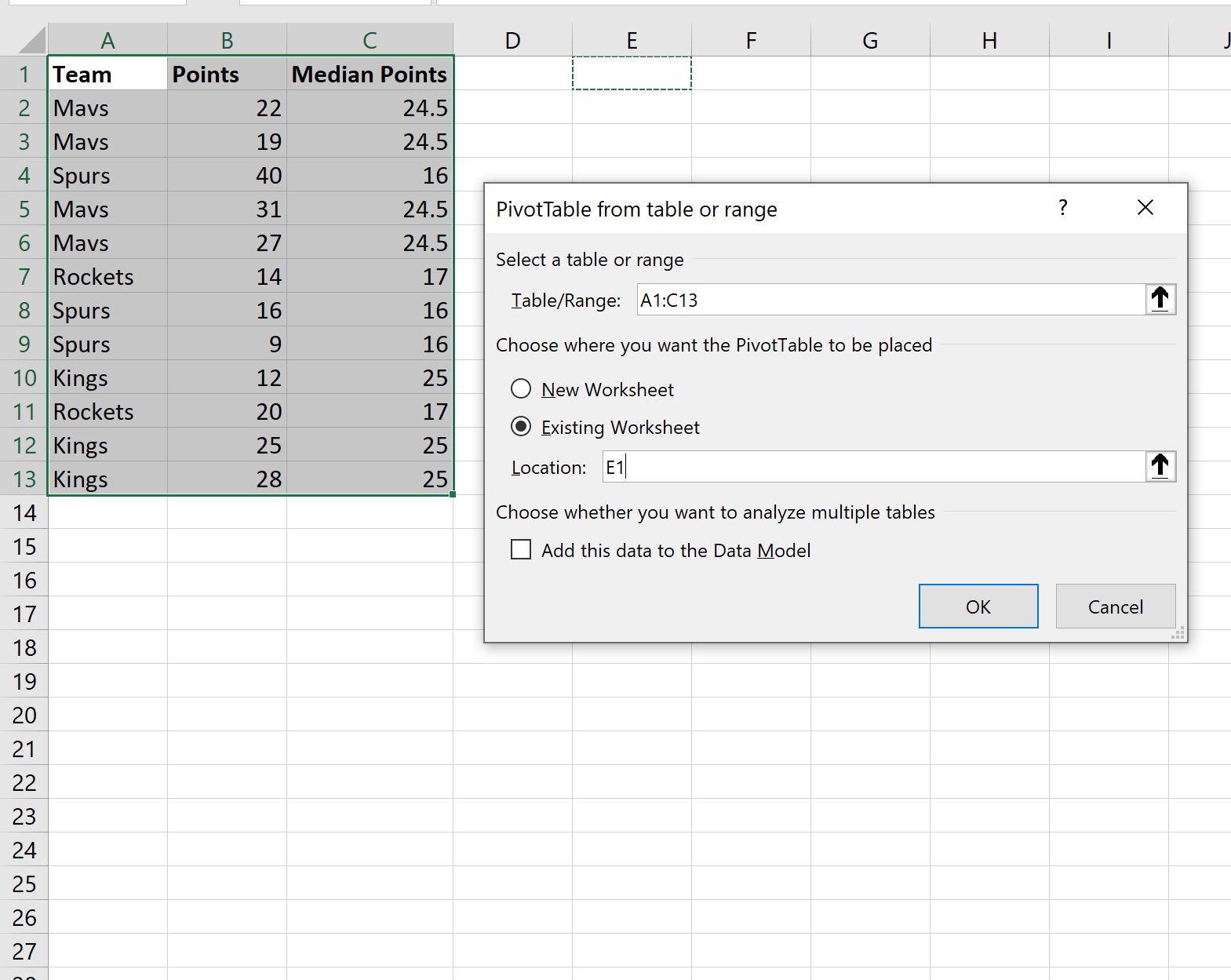

Review your settings against the following screenshot before clicking OK:

After the empty Pivot Table canvas appears, the PivotTable Fields panel will open, serving as your control center. Populate the Pivot Table structure by dragging fields into their appropriate areas:

• Drag the Team field to the Rows area. This defines the categories for our report.
• Drag the original Points field to the Values area. This typically defaults to “Sum of Points.”
• Crucially, drag the new Median Points helper column to the Values area as well. This field will initially appear as “Sum of Median Points,” which we will correct in the final step.

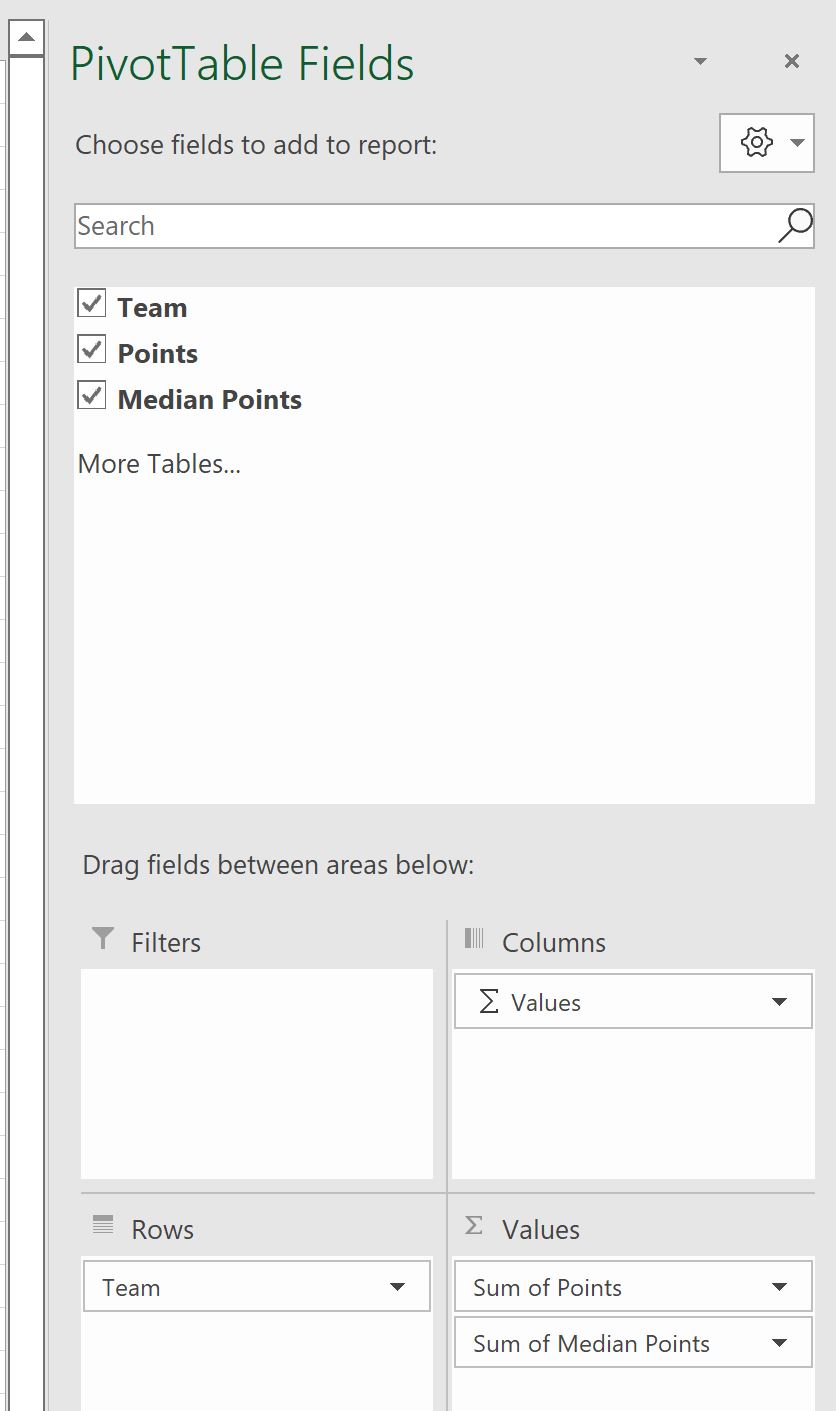

Your PivotTable Fields panel should now reflect this configuration, setting the stage for the final calculation refinement:

Step 3: Customizing Value Field Settings for Accurate Median Display

The final and most ingenious step of this workaround involves adjusting the aggregation method for the “Median Points” field. Currently, the Pivot Table is attempting to calculate the sum of values in the helper column (“Sum of Median Points”). Since the helper column already contains the *correct, pre-calculated median* for every row belonging to a specific team, any simple summary function applied to these identical values will return the median itself. Therefore, selecting the Average summary function is the clever trick that yields the correct result. Averaging a set of identical numbers (e.g., 15, 15, 15) simply returns that number (15).

To modify the field settings, execute the following actions:

1. Access Value Field Settings: In the Values section of the PivotTable Fields panel, click the dropdown arrow next to “Sum of Median Points.”
2. Open Configuration: Select Value Field Settings from the context menu to open the customization dialog box.

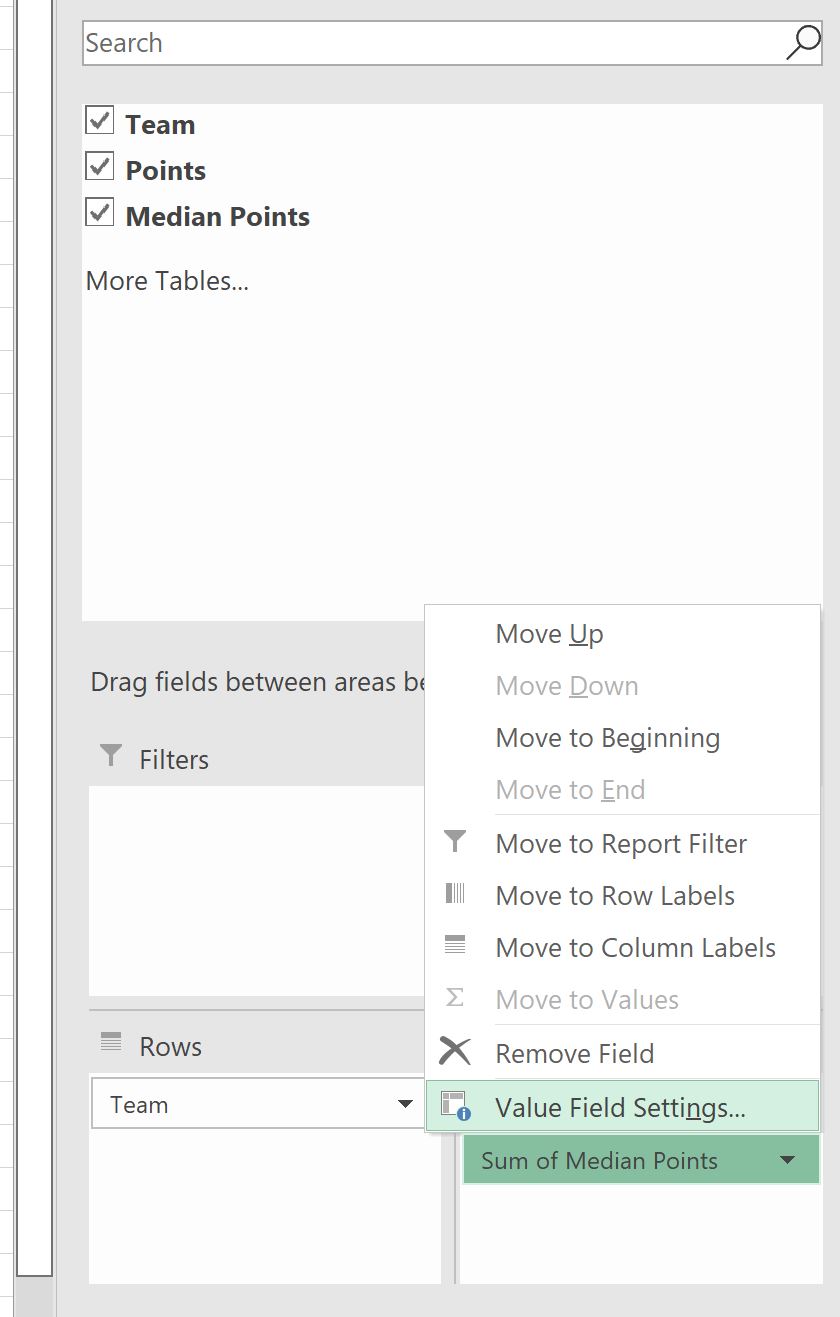

This screenshot guides you to the Value Field Settings menu:

Within the Value Field Settings dialog box, perform these two essential modifications:

• Name Refinement: Change the “Custom Name” from the default “Sum of Median Points” to a clearer label, such as Median Pts. This significantly enhances report readability.
• Aggregation Selection: Under the “Summarize value field by” options, select Average. As explained, calculating the average of the pre-calculated, identical median values for a given team successfully returns the conditional median for that group.

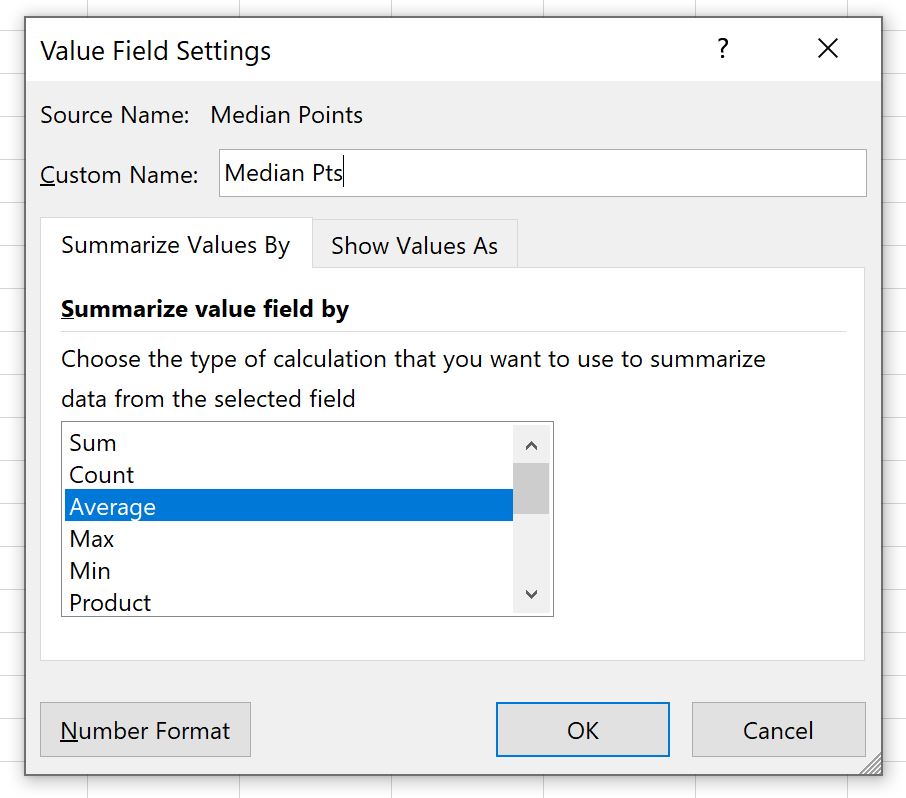

The image below confirms the necessary changes made inside the Value Field Settings dialog:

Click OK to apply these settings. Your Excel Pivot Table will instantly update, now correctly displaying the calculated median points for each team alongside the sum of their scores.

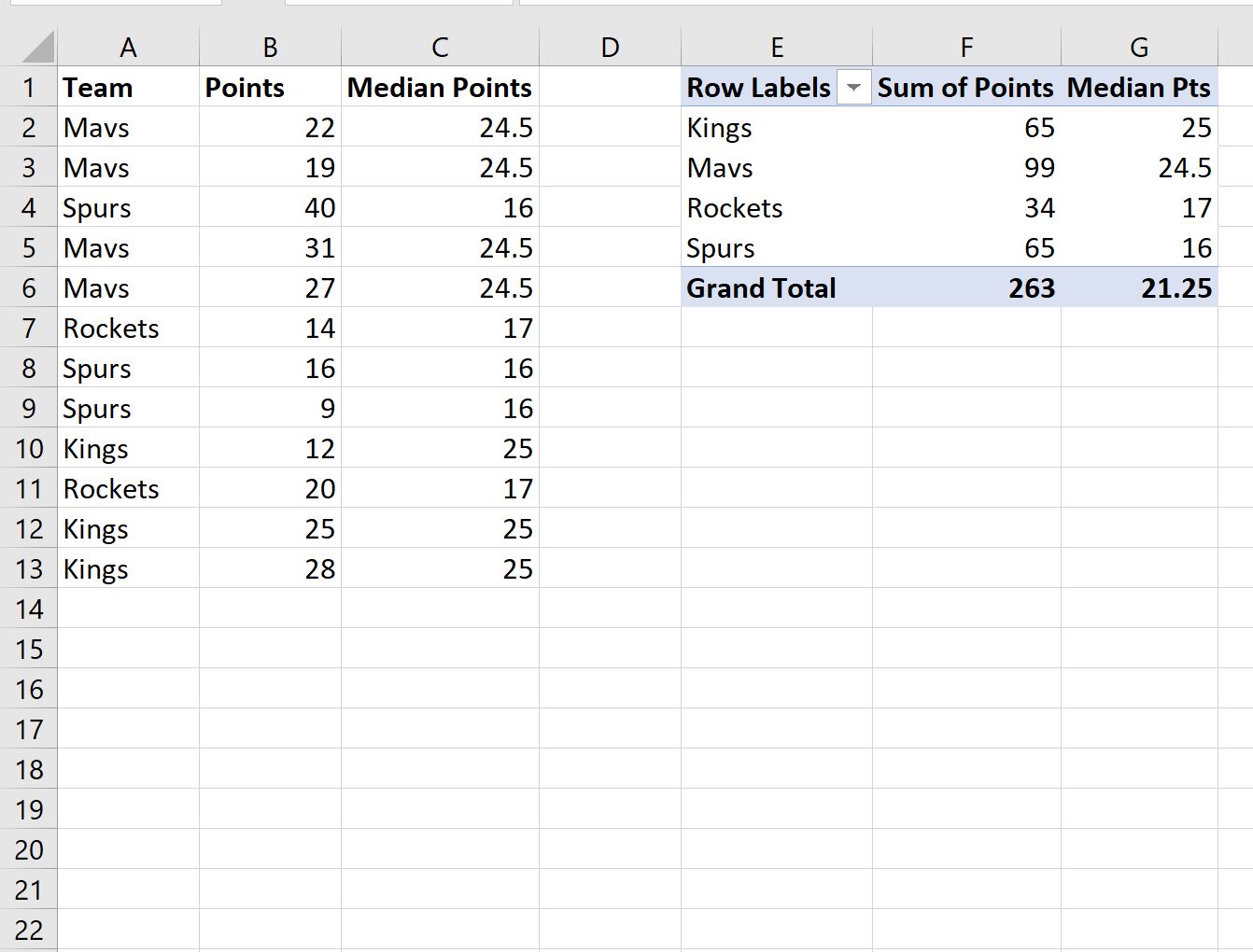

The finished Pivot Table provides a comprehensive and statistically rich summary of the data:

This final report offers a robust analytical view, clearly presenting:

• Each distinct team name, forming the core categories of the analysis.
• The sum of all points, providing a total performance metric.
• The group-wise median points, offering a stable measure of central tendency that is highly valuable for comparative analysis.

Conclusion: Unlocking Deeper Insights with Median in Pivot Tables

Although Excel Pivot Tables lack a direct “median” button, the methodology detailed in this guide provides an exceptionally robust and efficient workaround. By strategically utilizing the conditional MEDIAN IF array formula to integrate a pre-calculated helper column into your source data, you can successfully display accurate, group-wise median calculations within dynamic Pivot Table reports. This approach not only addresses a major functional gap in Excel’s native features but significantly enhances your capacity to perform more detailed and nuanced statistical analysis, especially crucial when managing datasets prone to skewness or containing influential outliers.

The ability to rapidly visualize and compare median values across varied categories within a Pivot Table is an invaluable asset for informed, data-driven decision-making. Whether your focus is on tracking sales performance, assessing educational outcomes, or compiling complex sports statistics, understanding the median alongside metrics like the mean and sum ensures you capture a complete and reliable picture of your data distribution. We strongly encourage all analysts to incorporate this technique into their routines, confident that they can now extract richer, more statistically sound insights from their Excel projects.

Further Exploration and Advanced Applications

To continue developing your Excel expertise and explore how to apply similar advanced solutions to other statistical challenges, consider extending your knowledge into related functionalities. Mastering array formulas and strategic data preparation methods can unlock powerful possibilities beyond standard aggregation.

These advanced techniques provide practical guidance on various common tasks and can further empower your data analysis capabilities, transforming complex statistical requirements into manageable and dynamic reporting features within Excel.
