Calculating the Mode in Excel Pivot Tables: A Step-by-Step Guide

Gaining meaningful insights from raw datasets is the fundamental goal of data analysis. Among the measures of central tendency, the mode stands out as the statistical measure identifying the most frequently occurring value within a distribution. While Excel provides a vast toolkit for summarizing and manipulating data, calculating the mode directly within a grouped summary tool like the PivotTable presents a significant challenge, as there is no native aggregation option for this specific function.

This limitation requires an innovative, multi-step workaround. By strategically combining the MODE function and IF function into a powerful array formula, we can first calculate the mode for defined groups within the source data. This guide provides a comprehensive, step-by-step methodology to integrate these calculations, enabling you to display the true grouped mode within an Excel PivotTable, thereby significantly enhancing your ability to analyze categorical data efficiently.

Understanding the Mode in Statistical Analysis

In the realm of descriptive statistics, the mode is defined as the observation that occurs with the greatest frequency in a dataset. Unlike the mean (which calculates the average value) or the median (which identifies the middle value when data is ordered), the mode is essential for datasets where we need to pinpoint the most common category or outcome.

The utility of the mode becomes particularly apparent when dealing with discrete variables or qualitative, non-numeric data, such as product choices, survey responses, or, in our example, discrete point totals. If a statistical distribution is highly skewed, the mode often provides a more representative measure of the typical observation than the mean, which can be heavily influenced by outliers. Therefore, mastering its calculation, even within complex tools like PivotTables, is critical for thorough data interpretation.

For our practical demonstration, we will analyze basketball scoring data. By calculating the mode of points scored for different teams, we can quickly identify the most frequent individual scoring contribution level for players within each team. This provides valuable insight into typical performance patterns, moving beyond simple team averages to understand the dominant scoring behaviors.

Step 1: Preparing Your Source Data

The success of this technique hinges upon the initial organization and structure of your source data within the Excel worksheet. Before attempting any complex calculations or PivotTable creation, ensure your dataset is clean, consistent, and logically arranged. For this tutorial, we are using a sample dataset that tracks individual player points grouped by their respective basketball teams.

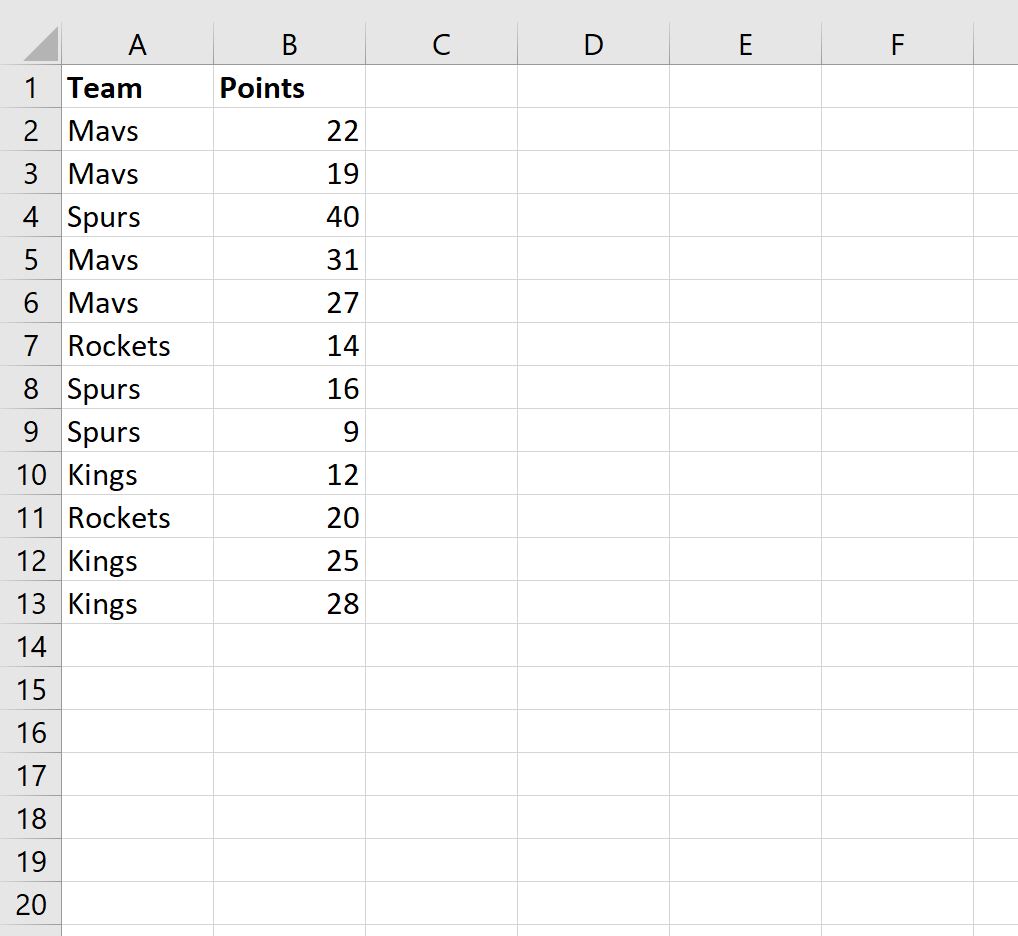

You must begin by inputting your data into adjacent columns, ensuring that each column has a clear, descriptive header. These headers will become the field names utilized when setting up the PivotTable later. The data should look similar to the structure below, featuring one column for the grouping variable (Team) and another for the numerical variable you wish to analyze (Points).

This structured foundation is non-negotiable. Any inconsistencies in team names or incorrect data entries will inevitably lead to erroneous results in the subsequent mode calculation. Once the data entry is verified, we can proceed to the advanced calculation phase, addressing Excel’s native limitations head-on.

Step 2: Calculating the Mode by Group Using Array Formulas

Since the PivotTable feature lacks a built-in function to aggregate data using the mode, we must pre-calculate this value for every row based on its associated group. This is accomplished using a powerful combination known as an array formula, which allows Excel to perform calculations on multiple items in a range simultaneously, rather than processing them individually.

Introduce a new column next to your ‘Points’ data—label it clearly, perhaps ‘Mode of Points.’ In the second row of this new column, enter the following formula. This formula is designed to dynamically filter the ‘Points’ column based on the corresponding ‘Team’ name in the current row and then calculate the mode only from that filtered subset of data:

=MODE(IF($A$2:$B$13=A2,$B$2:$B$13))

Understanding the internal logic of this complex formula is essential. The core functionality relies on the IF function, which constructs a temporary array. The condition $A$2:$B$13=A2 checks every cell in the ‘Team’ column against the team name in the current row (A2). If a match is found, the corresponding ‘Points’ value from the $B$2:$B$13 range is returned to the temporary array; otherwise, the function returns a FALSE value. The MODE function then efficiently processes this resulting array, ignoring all FALSE values, and returns the most frequent score for that specific team.

Crucially, for older versions of Excel (pre-2021/365), you must commit this formula using the specific key combination Ctrl + Shift + Enter. This action tells Excel to treat the calculation as an array operation, resulting in curly braces {} appearing around the formula in the formula bar. Modern versions of Excel featuring dynamic arrays handle this automatically, requiring only the standard Enter key. Once entered, drag the formula down to calculate the group mode for every single row in your dataset.

The result of this calculation step is a fully populated ‘Mode of Points’ column, where every player belonging to the same team will have the same calculated mode value listed next to their data entry. This is the calculated source data we will feed into our PivotTable for summary display.

Step 3: Generating the PivotTable Structure

With the grouped mode successfully calculated in the source sheet, the next phase involves utilizing the power of the PivotTable to aggregate and present this information in a clear, summarized format. PivotTables are indispensable tools for quickly summarizing large volumes of data and dynamically changing the perspective of your data analysis.

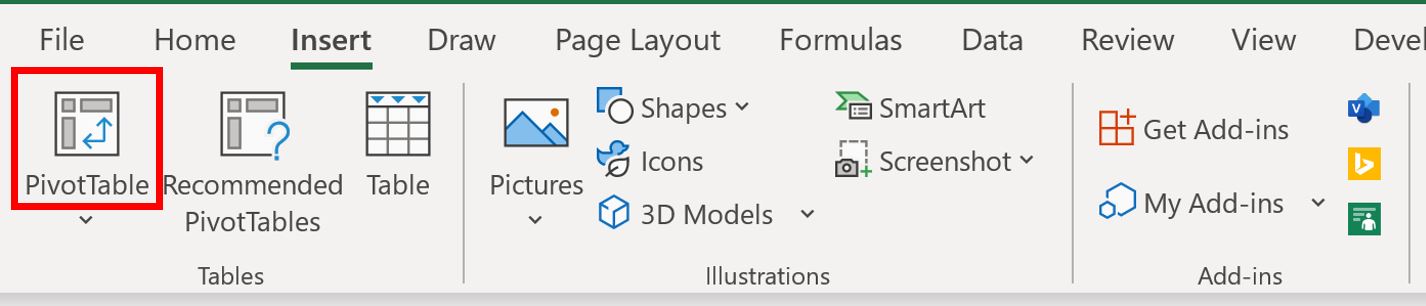

To begin, select any cell within your structured source data (e.g., A1). Navigate to the Insert tab on the Excel ribbon, and then click the PivotTable icon. This action initiates the PivotTable creation wizard, which prompts you to define the data range and specify the placement of the resulting table.

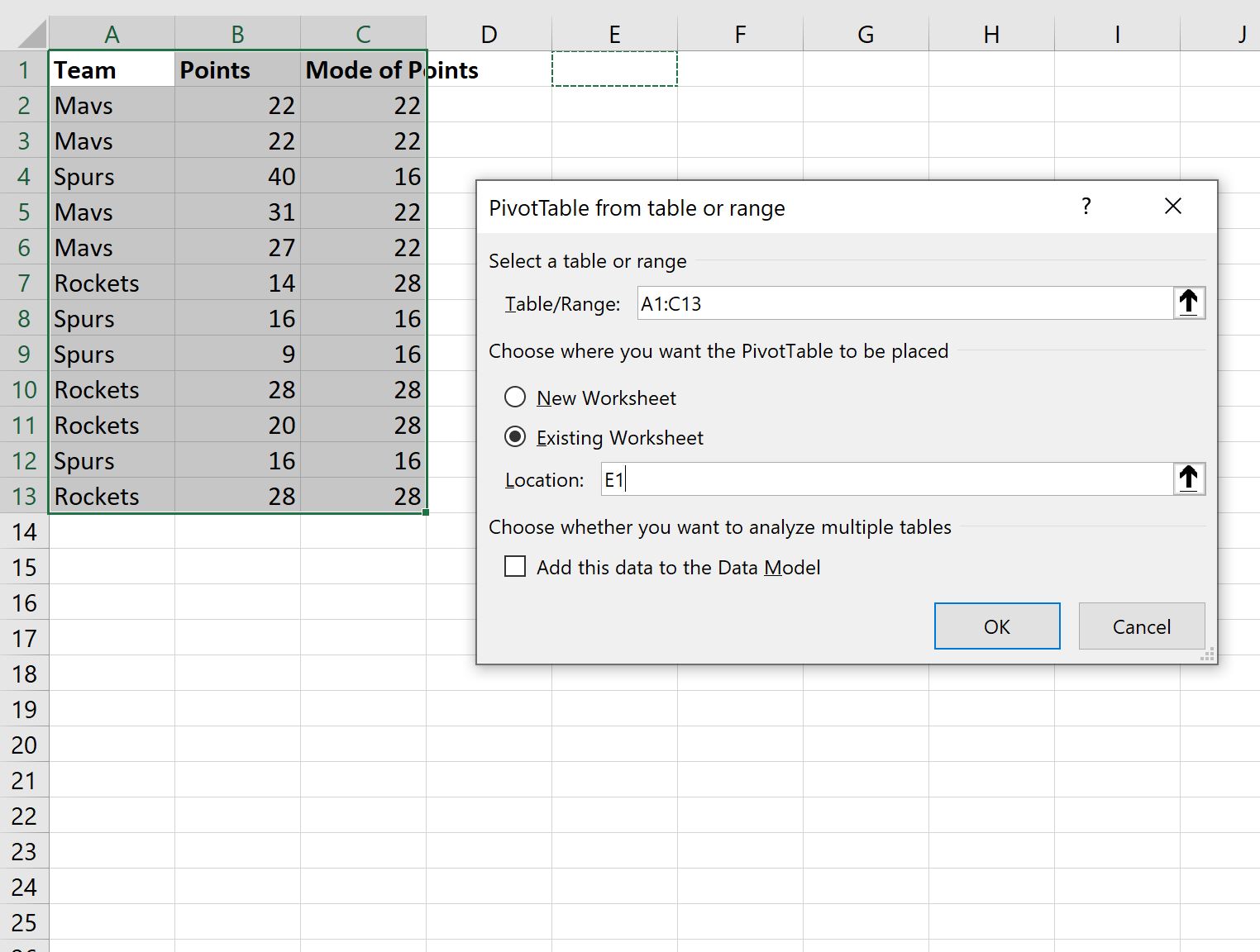

In the “Create PivotTable” dialog box, ensure that the entire range, including the newly created ‘Mode of Points’ column, is selected. For our example, the range should be A1:C13. For placement, selecting an Existing Worksheet and choosing a starting cell like E1 is often the most convenient choice, placing the PivotTable adjacent to your source data. Confirm these settings by clicking OK. This will generate the empty PivotTable canvas and open the “PivotTable Fields” pane.

Step 4: Customizing Aggregation Settings for Accurate Mode Display

The final, critical step involves configuring the PivotTable fields to correctly summarize the data. The “PivotTable Fields” pane allows you to drag the descriptive fields into the Rows area and the quantitative fields into the Values area for aggregation.

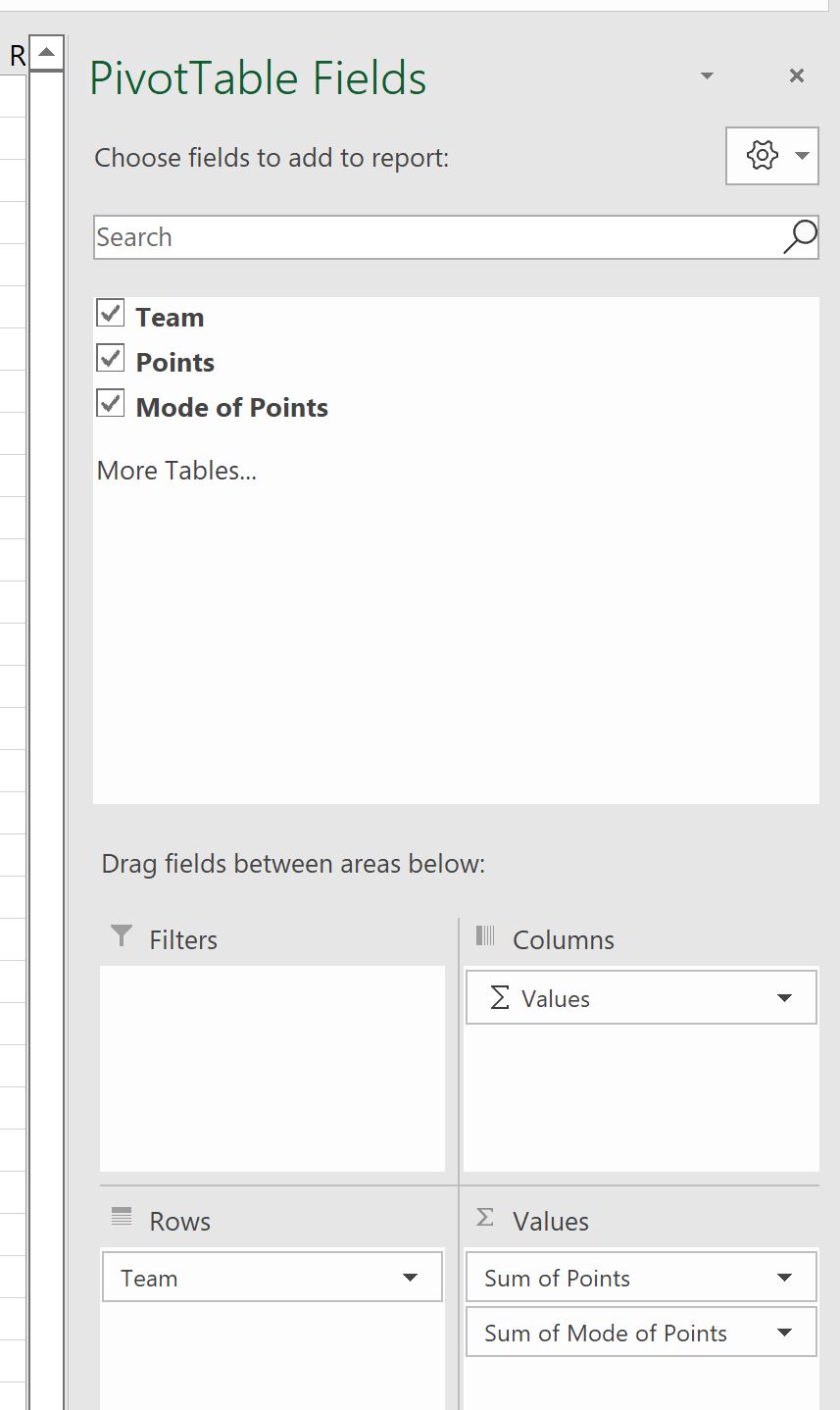

Start by dragging the Team field into the Rows area. This defines the groups for which we want to see the summary statistics. Next, drag both the Points field and the pre-calculated Mode of Points field into the Values area. By default, Excel will apply the “Sum” function to both, resulting in “Sum of Points” and “Sum of Mode of Points.” While “Sum of Points” is useful for showing total team scores, the “Sum of Mode of Points” is incorrect, as it sums the mode value multiple times (once for each row it appeared in the source data).

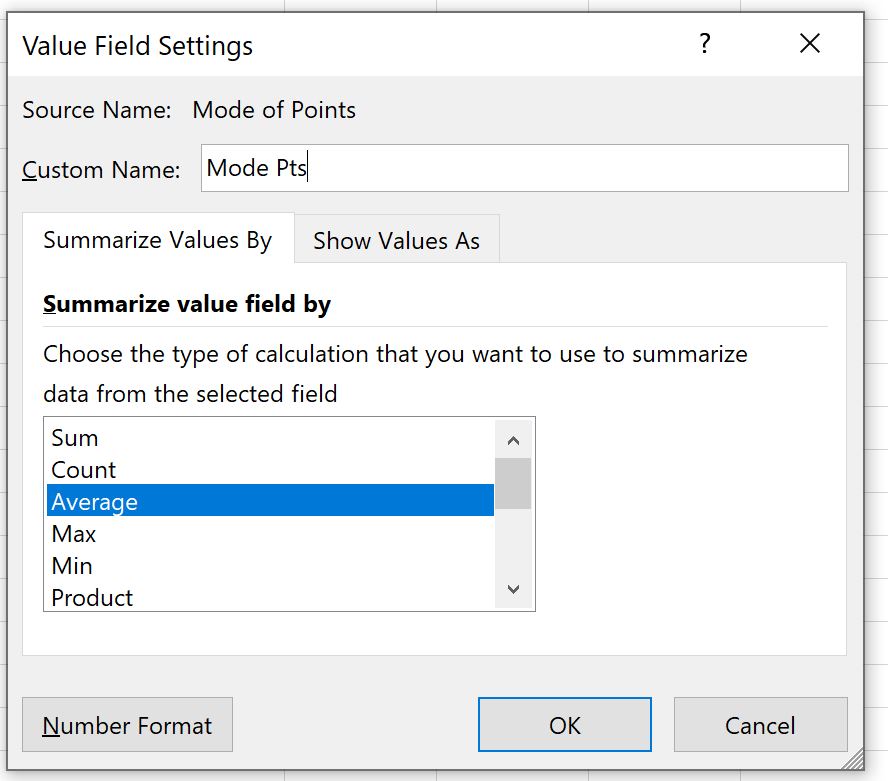

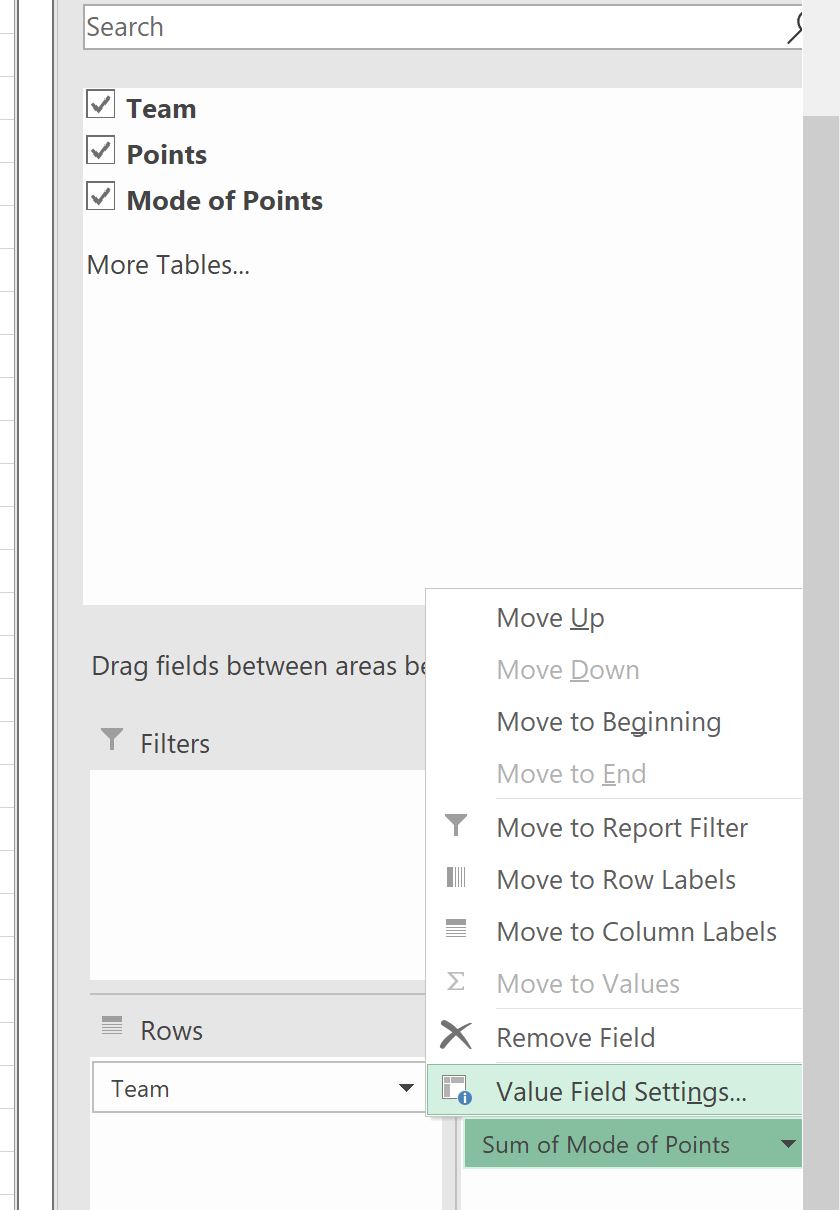

To rectify this, we must change the aggregation setting for the ‘Mode of Points’ field. Click the dropdown arrow next to Sum of Mode of Points in the Values box, and select Value Field Settings. Within the subsequent dialog box, first rename the field to a clearer label, such as Mode Pts. More importantly, under the “Summarize value field by” options, select Average.

This selection requires careful explanation: we choose Average because every row belonging to a specific team already holds the identical, pre-calculated mode value (calculated in Step 2). Therefore, calculating the arithmetic mean (average) of these identical values for a given team will simply return that single, correct mode value. This clever use of the Average function serves as a display mechanism for the pre-grouped calculation.

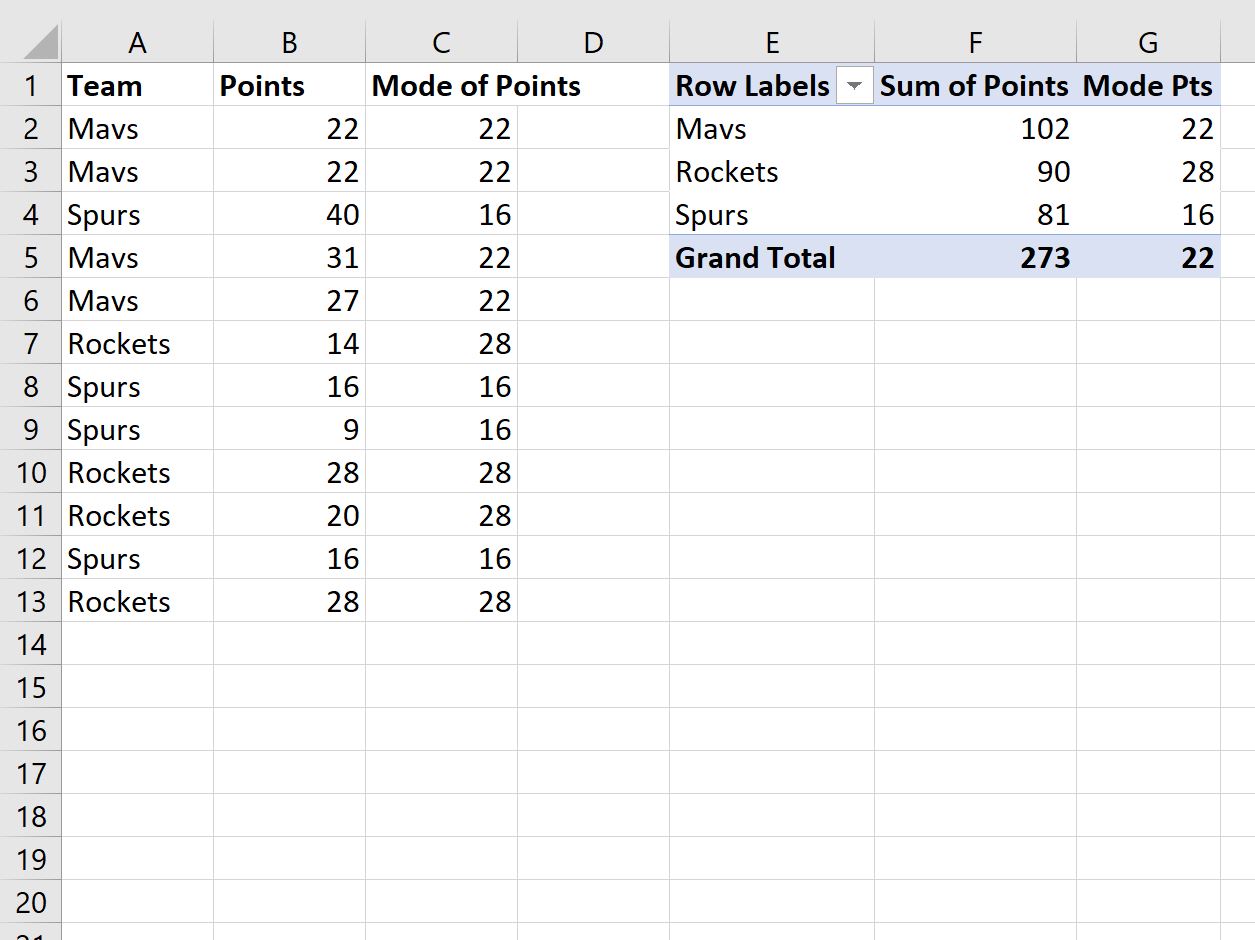

After applying these settings and clicking OK, the PivotTable instantly updates. It now accurately displays the mode of points scored alongside the total points for each team, providing the detailed, categorized statistical summary we aimed for.

Interpreting and Leveraging the Results

The resulting PivotTable is the culmination of our advanced calculation and aggregation efforts. By successfully bypassing Excel’s native limitations regarding statistical functions in PivotTables, you have generated a highly informative summary that provides critical data analysis perspectives.

This comprehensive summary table now contains three crucial elements for each unique team: the Total Points (an aggregate performance measure), and the Mode Pts (the most common individual scoring performance). This arrangement moves beyond simple averages, providing a nuanced understanding of team dynamics. For instance, a team might have a high total score, yet a low mode, indicating that scoring is dominated by a few high-performing players rather than consistent contribution across the board.

This method of calculating and displaying the grouped mode is an invaluable technique when analyzing qualitative or discrete variables summarized by categories. It allows analysts to efficiently identify dominant trends and typical observations within distinct segments of the data, reinforcing the power of Excel as a tool for advanced statistical reporting.
