Applying Conditional Formatting with Date Ranges in Microsoft Excel: A Step-by-Step Tutorial

Conditional Formatting in Excel is an exceptionally powerful tool designed to automatically apply visual treatments—such as specific colors, font changes, or icon sets—to cells based on the contents or values they hold. This capability is absolutely fundamental to effective Data Analysis, enabling users to transform large, complex datasets into immediate, actionable insights by highlighting critical information, trends, or outliers instantly. One of the most common and essential applications is visually distinguishing cells that fall precisely within a defined temporal window. This comprehensive tutorial will guide you through the exact steps required to construct and implement this highly useful rule, ensuring that your data visualization is both dynamic and accurate.

Whether your primary focus is managing meticulous project timelines, analyzing quarterly sales performance, or tracking inventory expiration dates, the ability to visually isolate entries within a specific time window dramatically improves efficiency and accelerates decision-making. The technique we will employ leverages Excel’s advanced functionality, specifically the creation of a New Rule accessible via the Conditional Formatting dropdown menu located within the Home tab of the Excel ribbon. We will demonstrate this process using a practical sales data example, ensuring a clear and effective understanding of the implementation details for creating a custom logical formula.

The subsequent sections will meticulously detail every phase of the setup, beginning with the necessary data preparation and culminating in the construction of the specific formula required for accurate date-based conditional formatting. By the conclusion of this guide, you will possess the expertise to apply dynamic formatting rules that automatically adapt in real-time whenever your specified start and end date parameters are modified. This method provides superior data management capabilities compared to manually filtering or sorting large spreadsheets.

Understanding Conditional Formatting: The Power of Automation

Before delving into the technical specifics of highlighting date ranges, it is paramount to firmly grasp the core mechanism of conditional formatting rules. Essentially, this feature permits the user to define one or more conditions that, when satisfied by the value of a cell or a range of cells, trigger an immediate and predefined visual transformation. This instantaneous visual feedback is invaluable for analysts, allowing them to rapidly identify key data points without the tedious manual labor of sifting through thousands of rows. For instance, a user might define a condition to highlight sales figures that exceed a quarterly target, mark tasks that are critically overdue, or, pertinent to this tutorial, isolate data entries that fall squarely within a designated time period.

The primary benefit of conditional formatting lies in its inherent automation and dynamism. Once a rule is established and applied, Excel takes over, continuously monitoring the underlying data. If a cell’s value changes and subsequently meets the defined criteria, the formatting is applied instantly; conversely, if the cell no longer satisfies the condition, the formatting is automatically removed. This dynamic capability represents a significant time-saver, eliminating the need for constant manual review and guaranteeing that your reports, dashboards, and analyses are consistently up-to-date and visually informative. It effectively converts static spreadsheet data into highly responsive, interactive dashboards, making data interpretation substantially more intuitive for all stakeholders.

While Excel provides numerous built-in conditional formatting presets—such as data bars, color scales, and icon sets, which are perfect for straightforward tasks like identifying top values or duplicates—complex requirements necessitate a custom solution. To determine if a cell’s date resides between two specified dates, we must construct a custom rule utilizing a formula. This advanced approach grants the user the maximum flexibility to define virtually any logical condition that can be expressed using standard Excel functions and operators, establishing it as an indispensable tool for sophisticated data management and visualization tasks.

The Challenge: Identifying Data Within a Specific Date Range

In nearly all business, financial, and analytical contexts, the requirement to isolate data entries that transpired during a specific time frame is a recurring necessity. Consider a scenario involving a vast dataset comprising transactions, events, or records, each meticulously logged with an associated date. The manual labor involved in scanning this extensive list to find, for instance, all transactions that occurred during the last fiscal quarter or within a particular promotional window would be prohibitively time-consuming and highly susceptible to human error. This is precisely the operational gap that date-based conditional formatting is designed to fill with precision and speed.

The technical challenge is to devise a single rule capable of simultaneously verifying two distinct conditions: first, the date must be greater than or equal to the defined start date, AND second, the date must be less than or equal to the defined end date. Excel’s underlying date system simplifies this comparison because all dates are internally managed as sequential serial numbers, which allows for direct numerical comparisons. However, translating this dual requirement into a functional conditional formatting rule demands careful configuration of cell references and the appropriate use of logical operators, specifically the AND function.

Our overarching objective is to engineer a dynamic system where the start and end dates can be easily adjusted in external cells, causing the formatting to update automatically without requiring any modification to the rule itself. This specific application of conditional formatting is particularly advantageous for monitoring key project milestones, dissecting sales performance across different fiscal or calendar periods, tracking the age of inventory, or segmenting customer interactions based on the date of engagement. By visually isolating these date-specific entries, analysts can rapidly focus their attention on the most relevant data, thereby accelerating decision-making and significantly enhancing the overall clarity of their spreadsheets.

Setting Up Your Data for Dynamic Date Formatting

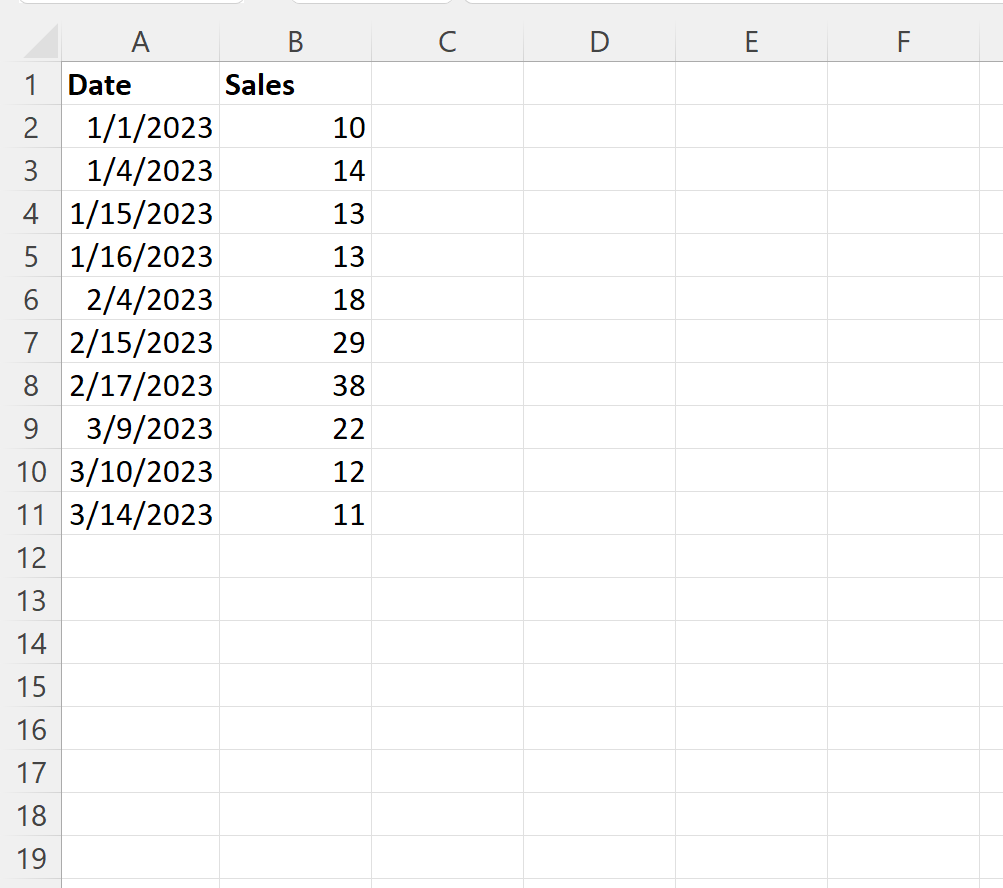

To effectively demonstrate this procedure, we will utilize a typical sales dataset structure. Imagine a spreadsheet where one column records the specific date of a sale and an adjacent column records the quantity of units sold on that day. Maintaining clearly organized data, ensuring that all dates are stored in a consistent format, is the foundational and most critical step before attempting to apply any advanced or custom formatting rules.

Our stated goal is to highlight every row within this dataset where the sale date falls inclusively between January 15, 2023, and February 15, 2023. A cornerstone of creating a truly dynamic and maintainable conditional formatting rule is defining these start and end dates in separate, dedicated cells outside of the main data range. This superior approach allows the user to alter the date range criterion without ever having to edit the conditional formatting formula itself, which dramatically boosts flexibility and reduces maintenance overhead associated with frequent data updates.

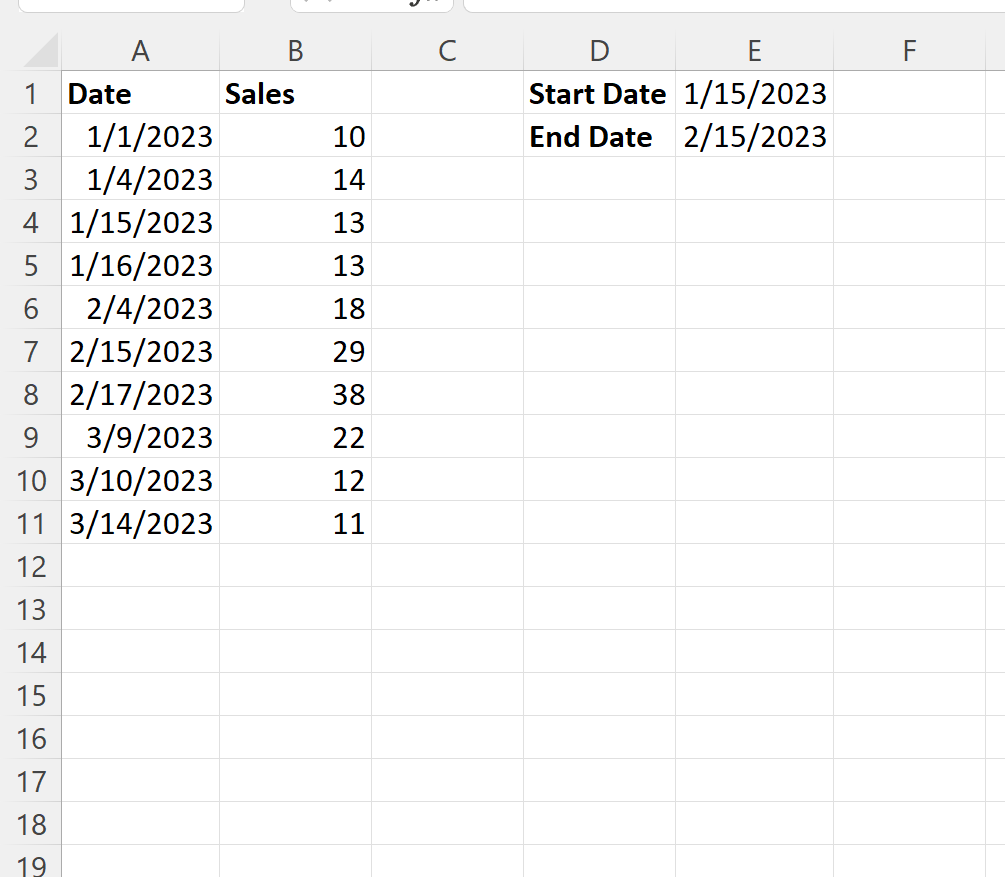

For the purpose of this example, we will strategically designate cell E1 to hold our start date (1/15/2023) and cell E2 for our end date (2/15/2023). This centralized setup is highly recommended as it provides a single, easily accessible location for modifying your criteria. Should your analysis require shifting the focus to a different quarter or month, you simply update the values in cells E1 and E2, and the conditional formatting will automatically cascade and adjust across the entirety of your dataset. This methodology is far superior and significantly more efficient than hard-coding the dates directly into the formula, which would necessitate editing the rule every single time the date parameters change.

Step-by-Step Guide: Implementing the Conditional Formatting Rule

With our data organized and the dynamic reference dates established in cells E1 and E2, we are now prepared to proceed with the application of the conditional formatting rule. This structured process involves several crucial steps executed within Excel’s intuitive interface.

1. Select the Target Range: The first action is to precisely highlight the range of cells to which the formatting should be applied. Since our objective is to highlight entire rows based on the date found in column A, we must select the range that covers all relevant data columns. In our specific example, select the range A2:B11, which encompasses both the date and sales columns for every relevant data entry, starting from the first data row.

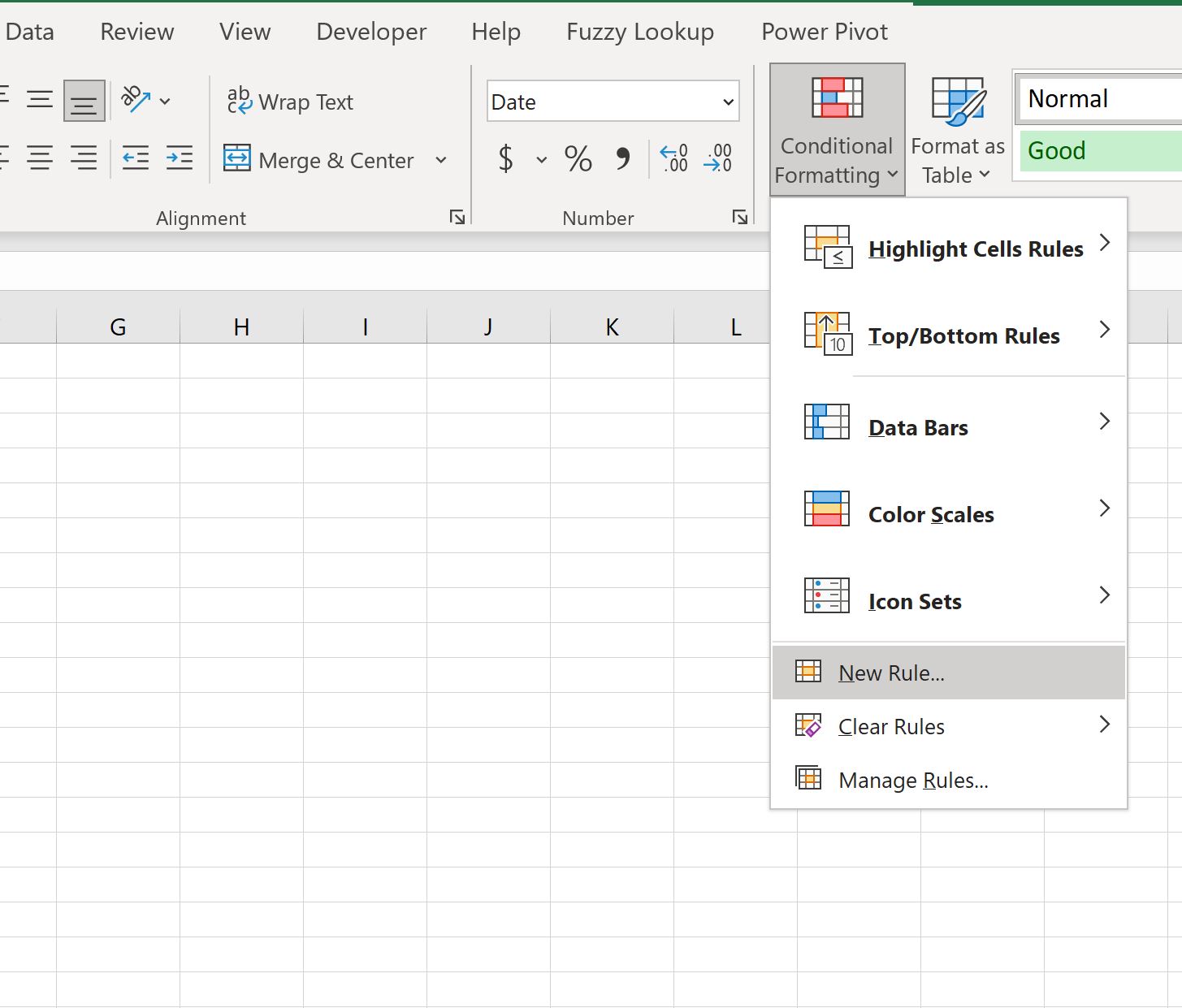

2. Access Conditional Formatting: Navigate to the Home tab situated on Excel’s ribbon. Locate the Styles group, and click on the Conditional Formatting dropdown menu. From the subsequent list of options, select New Rule to launch the New Formatting Rule dialog box.

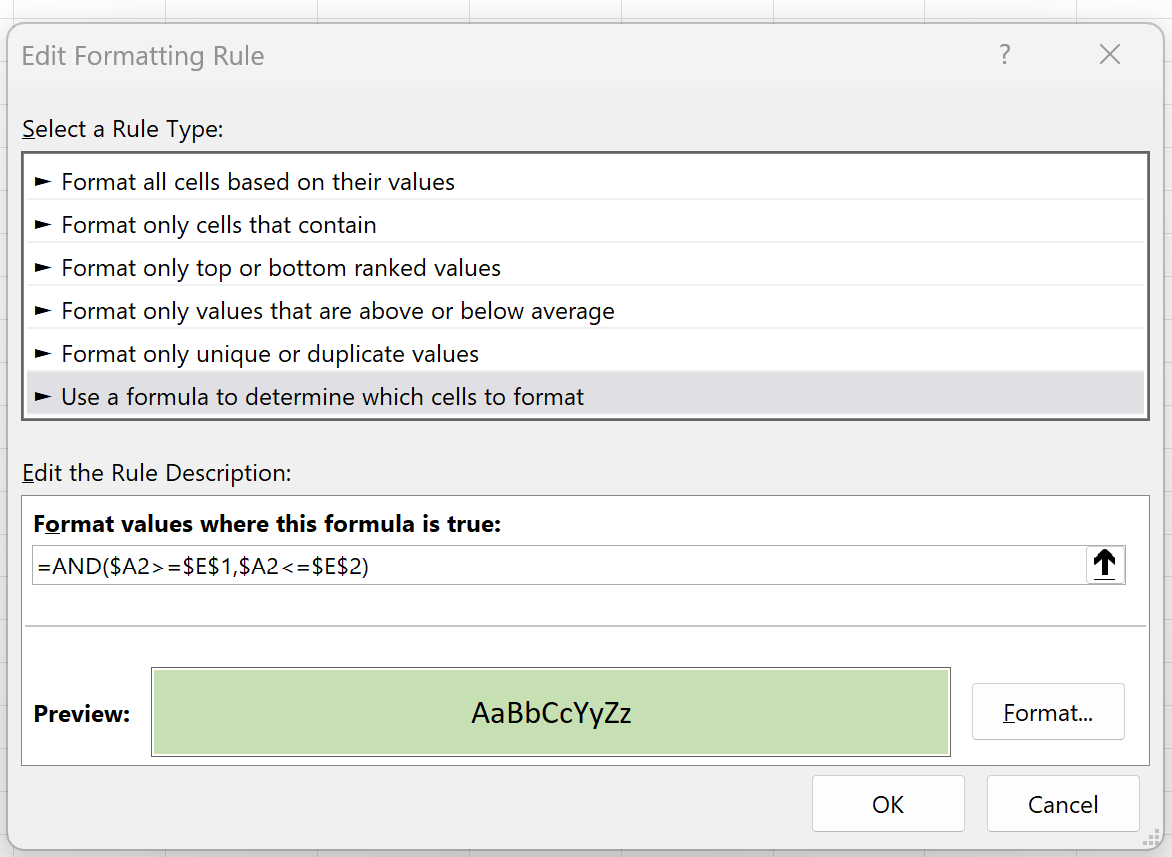

3. Choose a Formula Rule Type: Within the New Formatting Rule window, you will be presented with several options for defining the rule type. For this complex date range requirement, select the final option: Use a formula to determine which cells to format. This choice provides the necessary flexibility to incorporate our dual-condition date logic.

4. Enter the Formula: In the designated “Format values where this formula is true” input field, accurately type the following formula:

   =AND($A2>=$E$1,$A2<=$E$2)

   . This formula represents the logical core of our conditional formatting rule, effectively combining two distinct tests to guarantee the date falls inclusively within the specified range. The components and mechanics of this formula will be dissected in detail in the subsequent section on cell referencing.

5. Define Formatting: After inputting the formula, click the Format button. This action opens the Format Cells dialog box, where you select the desired visual style. You may choose a specific fill color, modify the font style or color, apply borders, or utilize any combination of these options. For demonstration purposes, select a distinct fill color (e.g., a light green) to ensure the highlighted rows are instantly identifiable. Once the format is chosen, click OK.

6. Apply the Rule: Returning to the New Formatting Rule window, confirm that both your formula and the selected format are correctly displayed, then click OK. Excel will then immediately process and apply the conditional formatting across your selected range based rigorously on the logical criteria defined in the formula.

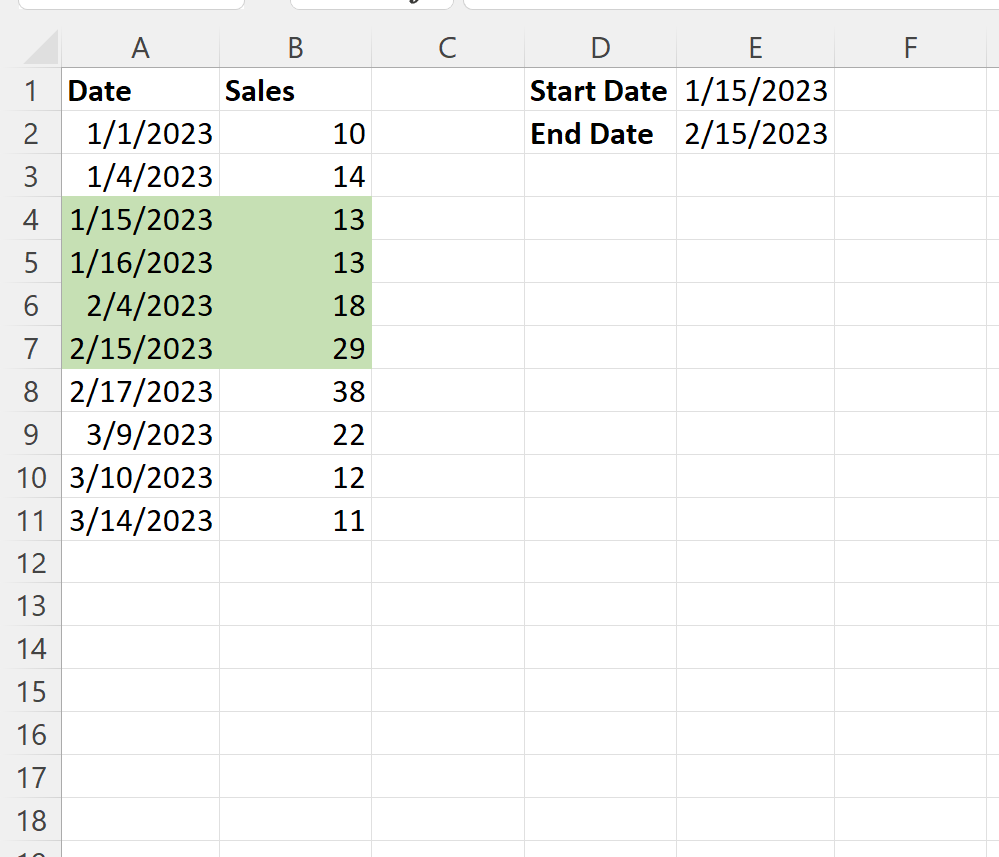

Upon successfully applying the rule, you will observe that every row within your dataset where the recorded date falls between January 15, 2023, and February 15, 2023, is instantly highlighted with your chosen format. This immediate visual confirmation verifies the successful and accurate application of your dynamic conditional formatting rule.

Deconstructing the Formula: =AND($A2>=$E$1,$A2<=$E$2)

A thorough comprehension of the formula used in conditional formatting is paramount for mastering its application and efficiently troubleshooting any potential issues. The specific formula we used,

=AND($A2>=$E$1,$A2<=$E$2)

, intricately combines several essential Excel concepts regarding logical operations and cell referencing strategies.

The foundation of this logic is the AND function. As a core logical function in Excel, the AND function verifies whether all supplied arguments evaluate to TRUE. It returns TRUE only if every single argument is true, and FALSE if even one argument is false. This operational principle is a cornerstone of Boolean logic. For our date range rule, we mandate that two conditions must be simultaneously true for any given cell to receive the highlighted formatting:

• The date value found in column A must be greater than or equal to the start date stored in E1.
• The date value found in column A must be less than or equal to the end date stored in E2.

The AND function perfectly encapsulates and enforces this essential dual requirement, ensuring that only dates fully contained within the specified boundary are formatted.

Crucially, we must examine the specific cell references used within the AND function:

• $A2>=$E$1: This constitutes the first logical test. It checks if the date in cell A2 is greater than or equal to the start date defined in E1. Note the critical use of the dollar sign ($) to establish absolute and mixed referencing. The $E$1 ensures that regardless of which cell Excel is formatting (A2, B2, A3, B3, etc.), it always looks back to E1 for the starting date. The $A2, conversely, fixes the column (A) but allows the row number (2) to change (A3, A4, A5) as the rule is applied down the selection. This mixed reference is vital for applying the formatting correctly to entire rows based on a single column’s criterion.
• $A2<=$E$2: This is the second logical test, operating under the same referencing principles. It confirms if the date in cell A2 is less than or equal to the end date in E2. Again, $E$2 is absolutely referenced for consistency, while $A2 is mixed to ensure row adaptability as the rule propagates through the selected range.

When this formula is applied to a range like A2:B11, Excel evaluates the formula starting at the top-left cell (A2). Due to the strategic use of $A2, Excel automatically adjusts the row reference for subsequent evaluations (checking $A3 for row 3, $A4 for row 4, and so on). If the formula resolves to TRUE for any particular row—meaning the date in that row’s column A meets both conditions—the specified formatting is applied to all cells within that row that fall within the selected range, provided all your date entries are in a valid date format that Excel can recognize as a numerical value.

Dynamic Updates and Maximizing Flexibility

The most significant operational benefit derived from using external cells (E1 and E2 in our scenario) to define the start and end dates is the unparalleled flexibility and dynamism introduced to your conditional formatting setup. This methodology effectively transforms a static rule into an agile, highly adaptive analytical tool that responds instantly and effortlessly to evolving reporting requirements without needing manual formula adjustments.

Imagine a common business scenario: you successfully highlight sales between January 15, 2023, and February 15, 2023. Subsequently, the analytical scope changes, and you are requested to extend the analysis to include all sales up to March 15, 2023. With our current, dynamically linked setup, adjusting the criteria is trivially simple. Instead of navigating back through the Conditional Formatting Rules Manager, locating the specific rule, and manually editing the complex formula string, you merely need to change the date value in cell E2 from 2/15/2023 to 3/15/2023.

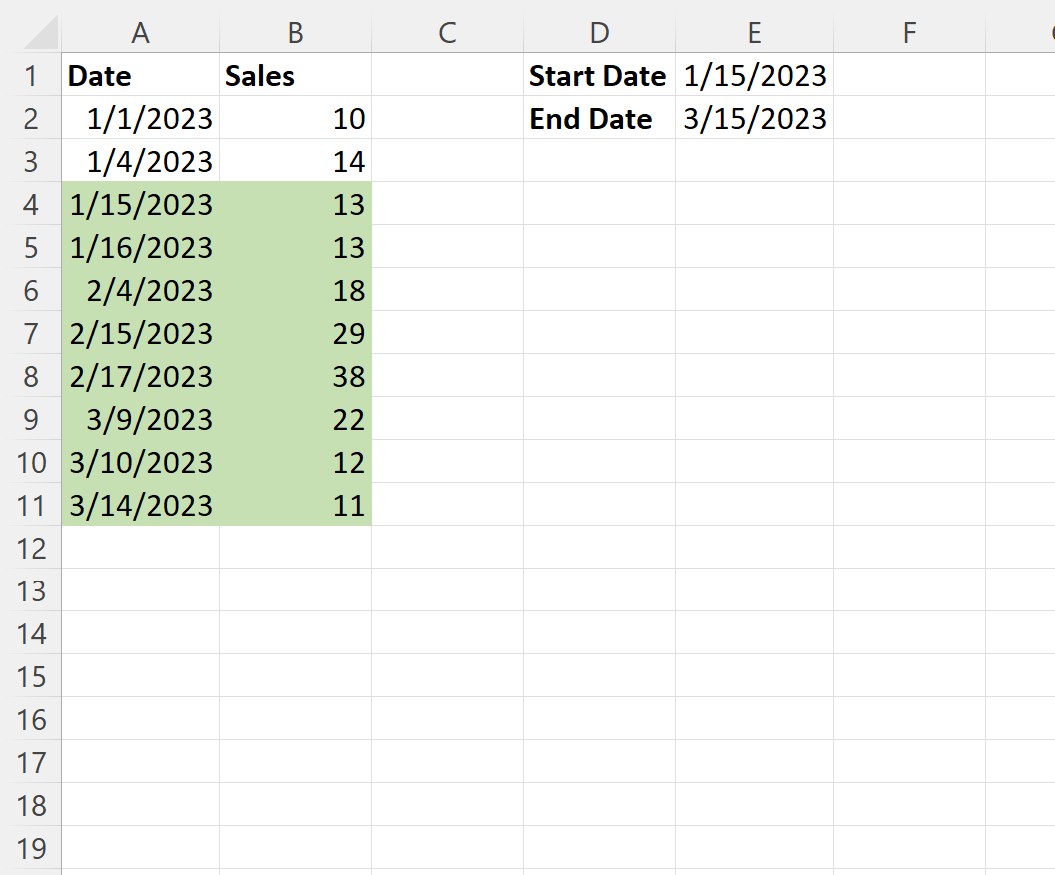

The instant you update cell E2, Excel automatically triggers a re-evaluation of the conditional formatting rule across the entire selected range. Immediately, all rows corresponding to dates between 1/15/2023 and 3/15/2023 will be highlighted, powerfully demonstrating the true efficiency of this dynamic linking mechanism. This practice saves substantial time and drastically minimizes the risk of formula errors associated with manual rule editing. Furthermore, it enhances the user-friendliness of your spreadsheet, enabling colleagues without advanced Excel knowledge to easily adjust the date parameters for their own reporting needs using a simple input cell.

This fundamental principle of utilizing external cells for criteria extends far beyond date ranges; it is equally applicable for dynamic numerical ranges, frequently changing text-based conditions, or any other criteria that requires regular modification. While we selected a light green fill for this example, always remember that you have complete freedom to choose any color, font style, or combination of formatting options available in the Format Cells dialog box to best align with your visual preferences and specific reporting standards. The determining factor for the formatting decision always remains the underlying, robust logical formula.
