Learning Conditional Formatting in Excel: A Step-by-Step Guide to Highlighting Data

The Power of Conditional Formatting in Data Analysis

Conditional Formatting stands as a cornerstone feature within Microsoft Excel, fundamentally changing how users interact with and interpret large datasets. It moves beyond static presentation by enabling the dynamic application of visual treatments—such as specific font colors, custom background fills, or the integration of sophisticated visuals like data bars and icon sets—to individual data points. These visual cues are applied only if the content of the cell satisfies a predefined logical condition. This capability is paramount for rapid data visualization, immediately directing the analyst’s focus to critical metrics, and transforming standard spreadsheets into highly insightful, dynamic analytical tools. By automating the visual identification of patterns, trends, and outliers, conditional formatting drastically streamlines the data review and interpretation process.

Among the extensive applications of this powerful feature, one of the most vital is the ability to define and visually enforce thresholds for numerical data. Whether the task involves inventory management, evaluating financial projections, or conducting statistical analysis, the efficiency gained from quickly identifying values that fall below, above, or exactly meet a specific limit cannot be overstated. This guide focuses specifically on the precise technique required to apply custom formatting to any cell containing a value that is precisely less than or equal to a defined numerical threshold. We will achieve this by utilizing the flexible New Rule option, which is conveniently accessed via the Conditional Formatting dropdown menu found within the Home tab of the Excel ribbon interface, ensuring a robust, maintainable, and highly professional analytical workflow.

While Excel offers several built-in, simplified rules—such as the “Highlight Cells Rules” for “Less Than”—these preset options are typically static, demanding that the user manually enter the threshold value directly into the rule. For constructing truly professional and easily maintainable worksheets, it is essential to employ a custom, formula-based rule that references a separate, external cell for the threshold definition. This advanced method ensures that the entire formatting scheme adjusts automatically and instantaneously whenever the cutoff value is modified, transforming the analytical process from a tedious, rule-editing exercise into a seamless, dynamic adjustment. This focus on leveraging dynamic cell references is a fundamental principle necessary for achieving advanced Excel proficiency.

Defining the Scenario: Analyzing Performance Metrics

To effectively demonstrate this powerful conditional formatting technique, we will employ a practical, hypothetical dataset designed for tracking the performance scores of several athletes across three distinct competitive events. This structure, which involves numerical metrics requiring rapid assessment, is highly representative of data analysis challenges encountered in fields ranging from sports management to corporate performance evaluation. Our primary analytical objective is to visually isolate and emphasize any individual performance score that falls at or below a predetermined minimum benchmark. By visually tagging these specific data points, we ensure they are instantly visible, prompting immediate investigation, reporting, or corrective action by the stakeholders.

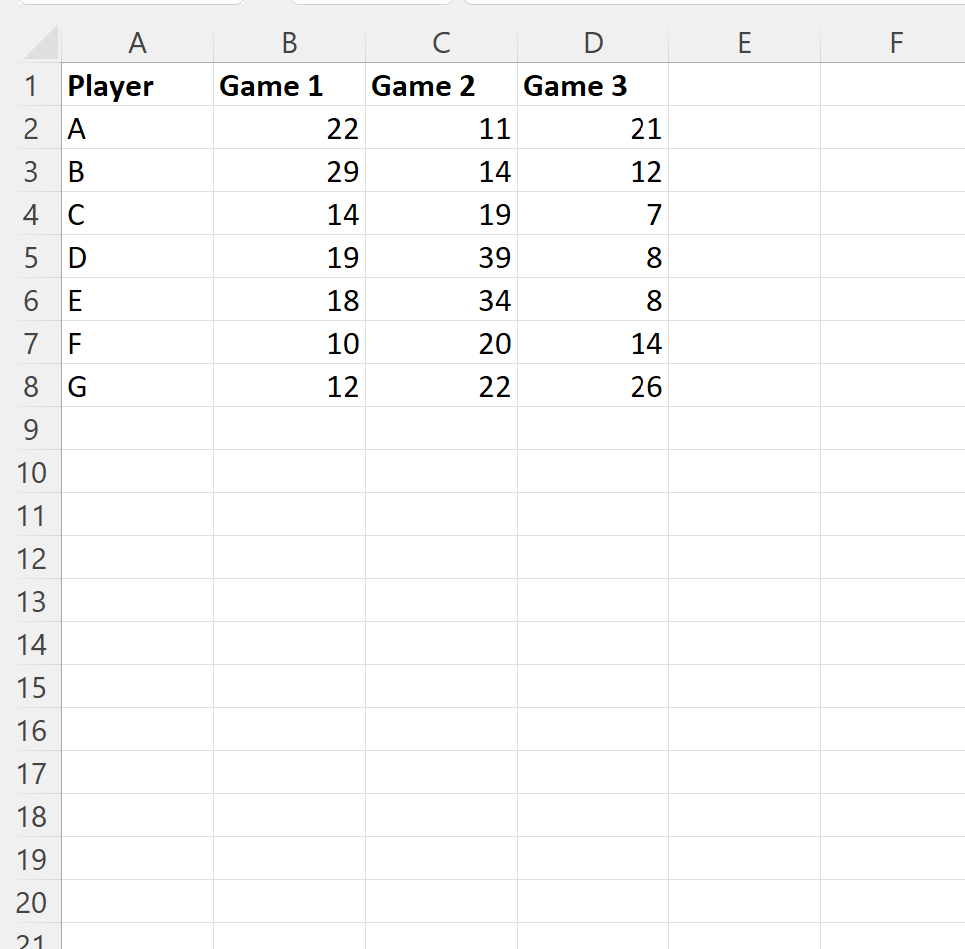

The table displayed below constitutes our raw sample data. Each row meticulously tracks a unique player, and the columns labeled “Game 1,” “Game 2,” and “Game 3” contain the numerical scores achieved in those respective contests. In the absence of conditional formatting, reviewing this table to locate scores below a specific number would necessitate laborious, line-by-line scrutiny—a process highly susceptible to human error, particularly when dealing with extensive datasets. The strategic application of a dynamic, formula-based formatting rule allows us to bypass this manual effort entirely, enabling immediate and accurate visual discernment of scores that meet our specified criteria, thereby dramatically streamlining the overall data review workflow.

For the explicit purpose of this demonstration, we are tasked with applying conditional formatting to visually highlight every score within the numerical data range that contains a value less than or equal to 20 points. This threshold of 20 points represents the critical benchmark; identifying scores at or below this level could signify an underperforming game, indicate a potential area requiring specialized coaching intervention, or serve as a key variable in overall player evaluation metrics. By visually emphasizing these specific entries, we guarantee that management or coaching staff can swiftly focus their valuable attention on the critical areas of performance that demand immediate analysis, optimizing resource allocation and strategic planning.

Strategic Preparation: Setting Up a Dynamic Threshold Reference

Prior to diving into the configuration of the conditional formatting rule itself, establishing a clear, external, and flexible comparison value is considered essential best practice for robust spreadsheet design. Instead of the less flexible approach of hard-coding the threshold value (20) directly into the formatting rule, we will adopt a more sophisticated method by placing this critical number in its own dedicated, external cell. This intelligent structure significantly enhances the flexibility and maintainability of the spreadsheet, empowering analysts to adjust the cutoff threshold instantly without ever needing to access and modify the complex conditional formatting rule settings—a tremendous efficiency gain in fast-paced or dynamic reporting environments.

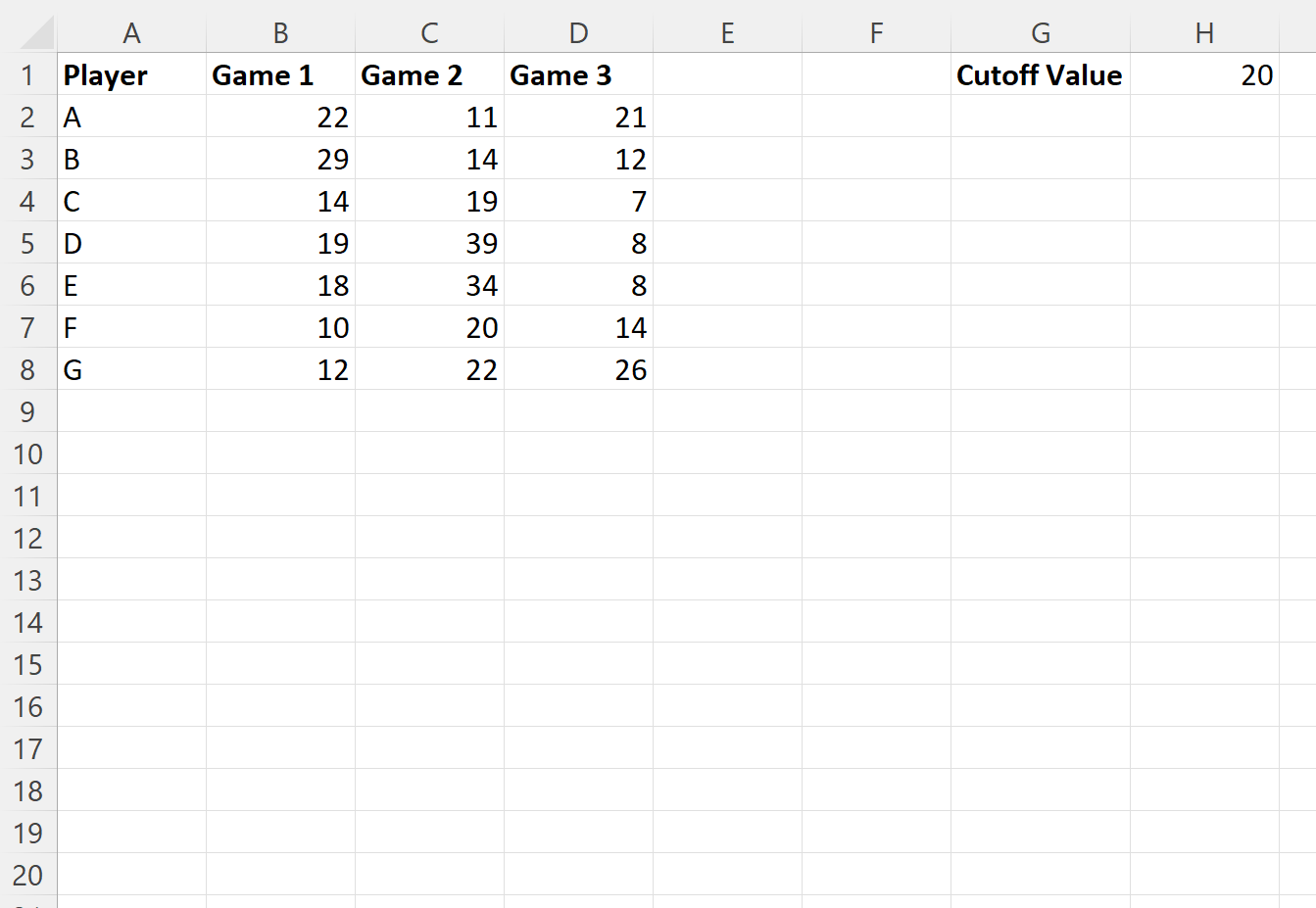

To initiate this preparation step, first locate an empty cell positioned outside the primary numerical data range. For the context of this specific example, we will strategically choose cell H1 for this designation. Once located, proceed to type the value 20 into cell H1. This particular cell now officially functions as our dynamic threshold reference; the conditional formatting logic will be expertly constructed to reference the content of H1, rather than the static number 20 itself.

The overarching benefit derived from utilizing a dedicated cell for the threshold is the unparalleled simplicity it provides for updates and modifications. Consider a scenario where the required performance benchmark changes frequently; perhaps the analytical focus shifts to scores less than or equal to 25, or even a stricter limit of 15. Instead of laboriously navigating the complex menus to edit the rule, the user simply modifies the numerical value contained within cell H1. The conditional formatting rule, which is configured to look directly at H1, will automatically and instantaneously adjust its highlighting across the entire selected data range, achieving maximum responsiveness and solidifying this technique as a cornerstone for creating highly robust, maintainable, and dynamic Excel worksheets.

Implementing the Rule: A Step-by-Step Configuration Guide

With our dynamic threshold value securely established in cell H1, the subsequent critical phase involves precisely selecting the target data and initiating the formal conditional formatting process within the Excel environment. Precision during the selection of the data range is absolutely essential to ensure that the rule is applied accurately and comprehensively to every relevant numerical score, while explicitly excluding any headers, labels, or descriptive text that should not be evaluated.

1. Select the Data Range: Initiate the process by carefully highlighting all the cells within your dataset that require conditional evaluation. For our illustrative example, this corresponds specifically to the numerical scores spanning the range B2 to D8. It is crucial at this stage to confirm that only the raw numerical scores are included in the selection, explicitly leaving out the textual labels such as player names (Column A) and the game headers (Row 1).

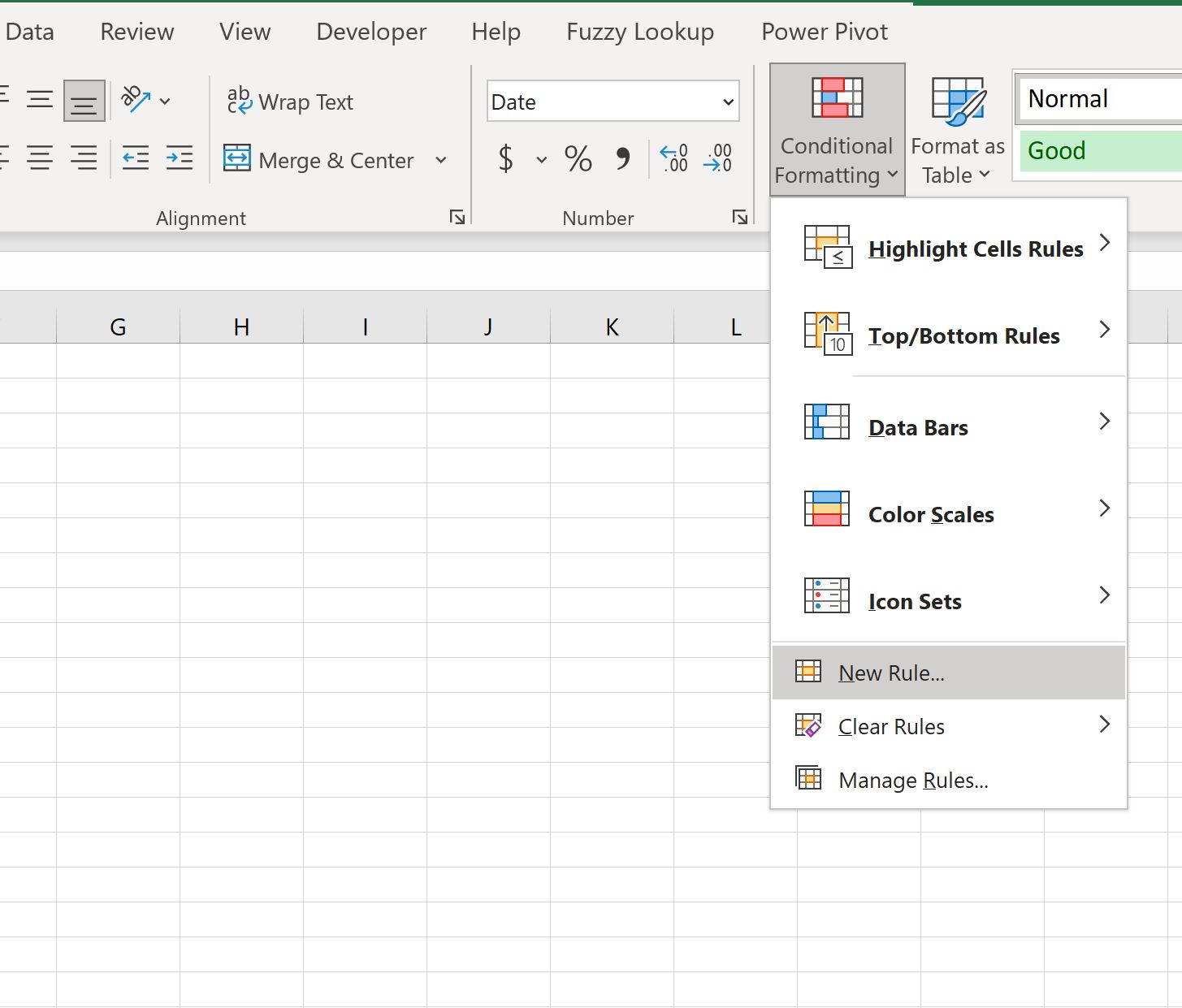

2. Navigate to Conditional Formatting: Once the precise data range has been secured, shift your focus to the Home tab located prominently on the Excel ribbon. Within the Styles group, locate and click the main Conditional Formatting dropdown menu. This action reveals a comprehensive list of predefined and custom formatting options.
3. Create a New Rule: From the displayed list of options, select New Rule. Selecting this option immediately opens the “New Formatting Rule” dialog box, which serves as the necessary gateway to define custom and highly specific formatting conditions that Excel will evaluate sequentially against your chosen data block.

The “New Formatting Rule” dialog box is the control center for establishing complex visual logic. While many users instinctively rely on the simpler option, “Format only cells that contain,” that method severely limits flexibility and prevents the essential dynamic reference we require. To establish a rule that correctly compares every single cell in the selected range (B2:D8) against a fixed external reference (H1), we must bypass the simplified options and instead choose the most versatile rule type: utilizing a custom formula.

Formula Configuration: Mastering Relative and Absolute References

The effectiveness of this advanced technique hinges entirely on constructing the correct logical formula that Excel will evaluate sequentially for every cell in the selected range. This step demands a solid understanding of how Excel manages cell references—specifically, differentiating between relative and absolute references—to ensure the comparison operates flawlessly across the entire block of data.

1. Select Rule Type: Within the “New Formatting Rule” window, ensure you click on the option labeled Use a formula to determine which cells to format. This selection opens up the crucial input field where our custom logical expression will be entered.
2. Enter the Formula: In the designated input box titled “Format values where this formula is true:”, precisely input the following formula: =B2<=$H$1. This concise formula is the core engine driving the dynamic threshold comparison.
   • B2 (Relative Reference): This reference points specifically to the upper-left cell of your selected data range (B2:D8). Because neither the row nor the column is preceded by a dollar sign, this is designated as a relative reference. Crucially, Excel will automatically adjust this reference as it applies the rule across the range (e.g., when evaluating cell C5, the internal formula effectively becomes =C5<=$H$1).
   • <= (Logical Operator): This is the standard operator signifying “less than or equal to.” It perfectly fulfills our requirement to highlight scores that fall at or below the numerical threshold defined externally.
   • $H$1 (Absolute Reference): This represents an absolute reference to cell H1, the location where our dynamic threshold value (20) is stored. The dollar signs before both the column letter (H) and the row number (1) are mandatory. They ensure that, regardless of which cell within the range B2:D8 the rule is being evaluated for, the comparison always refers back to the fixed content of H1.

3. Choose Formatting: Immediately after inputting the formula, click the Format button. This opens the “Format Cells” dialog box. Navigate to the Fill tab and select a highly visible and distinct fill color (e.g., a light yellow or soft red) to ensure the qualifying cells are instantly recognizable as critical data points. You may also adjust font attributes or borders if desired. Once the desired format is configured, click OK.

After meticulously configuring both the precise comparison formula and the specific visual formatting options, finalize the implementation by clicking OK in the “New Formatting Rule” dialog box. Excel will immediately execute the newly created conditional formatting rule, applying the specified visual treatment to the entire selected data range based on the dynamic comparison logic we have successfully established.

Immediate Visual Impact and Dynamic Responsiveness

Upon successful confirmation of the rule by clicking OK, the visual transformation of your worksheet will be instantaneous and profound. The chosen formatting—in our case, the light yellow fill color—will be immediately applied to all scores within the designated range B2:D8 that contain a value that is less than or equal to 20. This compelling visual feedback is exceptionally powerful for immediate data analysis, enabling analysts to rapidly identify and focus their efforts on those critical data points that meet the underperformance criteria without the laborious necessity of manually scanning through the raw numerical entries.

The true demonstration of efficiency and elegance inherent in this dynamic methodology becomes apparent when the analytical criteria must be modified. If the focus of the analysis shifts, perhaps requiring the cutoff value to change from 20 to 30 points, the maintenance process is remarkably simple and fast. The user merely needs to navigate to the external threshold cell, H1, and modify the numerical content from 20 to 30. Critically, no rule editing or navigation through complex menus is required whatsoever.

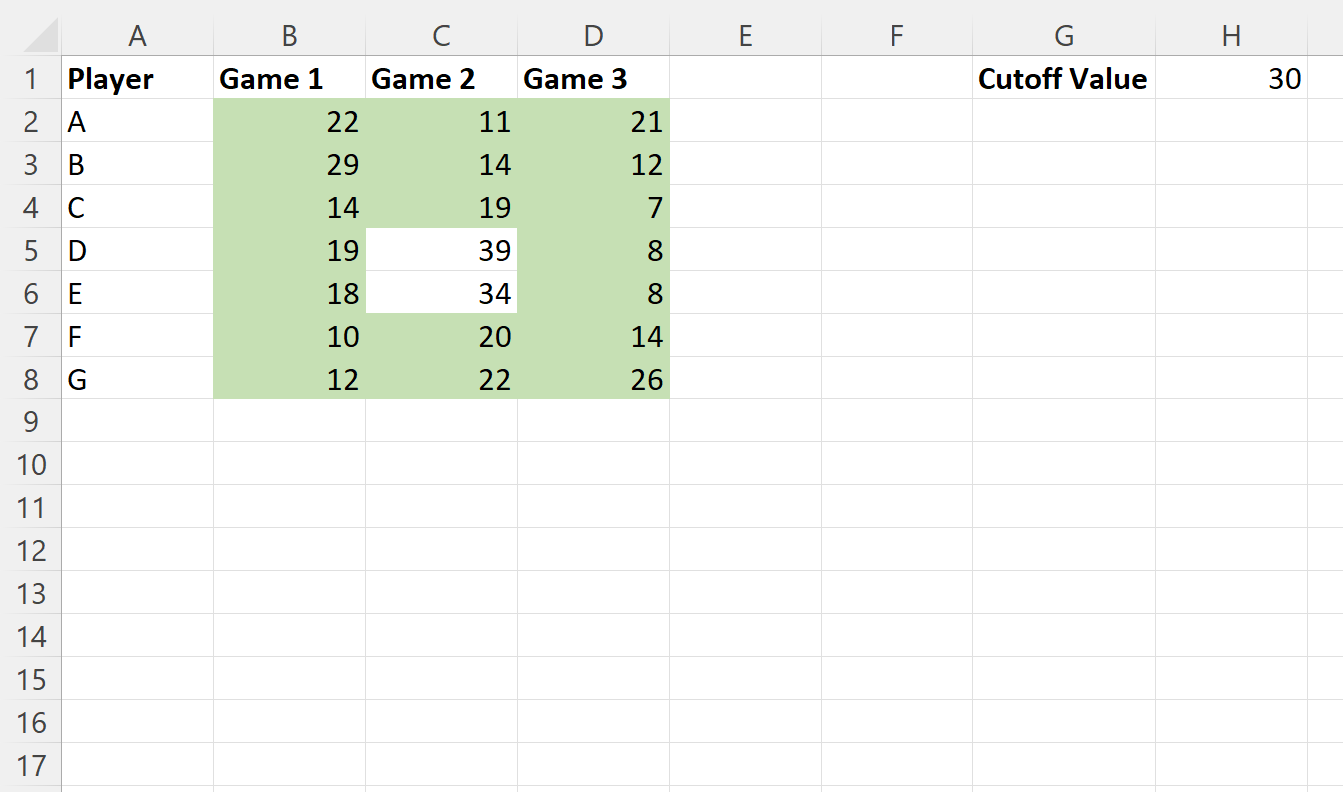

Following this simple numerical change in H1, Excel automatically and instantaneously triggers a re-evaluation of the conditional formatting rule across the entire selected data range. Consequently, the highlighting dynamically adjusts to exclusively emphasize those cells that now contain values less than or equal to 30, reflecting the new analytical focus without any manual intervention. This inherent dynamic responsiveness is the defining characteristic that elevates conditional formatting from a mere presentation tool into an indispensable asset for advanced, efficient, and flexible data manipulation and analysis, showcasing true mastery of Microsoft Excel.

Core Benefits and Professional Applications

Mastering conditional formatting using formula-based rules, particularly those that incorporate a dynamic cell reference for the threshold, provides substantial advantages over traditional static formatting methods. This sophisticated methodology significantly enhances data readability, ensuring that data points meeting crucial analytical criteria are identified immediately, thereby accelerating the entire decision-making process. The technique proves invaluable across a vast spectrum of professional environments that demand quick analysis and effective reporting, offering practical benefits in scenarios such as those listed below:

• Financial Performance Tracking: Automatically identify monthly sales figures falling below established targets, highlight investments consistently performing below the expected rate of return, or flag expenditures that exceed predefined budgetary limits, enabling swift corrective action and budgetary control.
• Inventory and Logistics Management: Instantly draw attention to specific inventory items whose stock levels have dipped beneath critical reorder points, effectively preventing costly stockouts and ensuring seamless supply chain operation and efficiency.
• Academic and HR Reporting: Swiftly highlight student grades that do not meet a passing threshold, or flag employee performance metrics that fall into a category requiring immediate review or focused training intervention to improve organizational outcomes.
• Quality Control and Manufacturing: Mark product measurements or critical test results that deviate significantly and fall outside acceptable tolerance ranges, thus guaranteeing that high-quality standards are consistently met and maintained across all production batches.

By gaining proficiency in this sophisticated yet highly accessible technique, users can effectively transform static sheets of raw numerical data into interactive, visually responsive, and highly informative analytical dashboards. This empowerment leads directly to more efficient data management, significantly faster analysis cycles, and ultimately, more informed and strategic decision-making across the organization. Conditional formatting, when combined with dynamic cell references, moves the spreadsheet beyond a simple repository of numbers, turning it into a powerful and responsive analytical engine indispensable for modern data science.

Additional Resources for Advanced Formatting

To further build upon the skills acquired in this tutorial and expand your proficiency in Excel’s powerful and versatile features, we highly recommend exploring tutorials on other common and advanced conditional formatting tasks. These resources offer deeper insights that can further enhance your data analysis, presentation capabilities, and overall efficiency:
