Learn to Create a Pie Chart from Counted Values in Excel

When performing analytical tasks using Excel, translating raw categorical data into an intuitive visual format is essential for effective communication. A critical component of data visualization is learning how to generate a pie chart that accurately reflects the frequency distribution or count of unique entries within a designated column. This robust approach provides immediate clarity regarding the proportional contribution of each distinct category relative to the overall total data volume, making complex data immediately digestible.

Consider a practical scenario where a large dataset has been compiled, containing statistical information about basketball players. This comprehensive data structure includes various attributes, such as names, positions, and, crucially for this exercise, the specific teams they represent. Analyzing the frequency of these team names is vital, as it allows stakeholders to swiftly identify distribution patterns, such as which teams are most or least represented in the sample.

Our primary objective is to construct a pie chart that visually illustrates the prevalence of each team name listed in the source data. Such a visualization quickly highlights which teams possess the greatest or fewest player entries, offering rapid insight into the composition of the dataset. The following detailed guide provides a precise, step-by-step methodology for executing this frequency-based chart creation within Excel, ensuring accuracy and efficiency at every stage.

Structuring and Preparing the Source Data

The initial and most fundamental phase of this visualization project involves correctly structuring the raw information within your Excel worksheet. To facilitate accurate frequency counting, it is imperative that your categorical data—the specific values you intend to tally—be neatly organized and contained entirely within a single column. In the context of our running example, we must input the basketball player information, focusing exclusively on the team names, into the designated sheet.

The initial raw dataset must be meticulously entered as shown in the image below, serving as the essential input foundation from which we will later extract the unique values and calculate their corresponding frequencies. Achieving this preliminary organization is a crucial prerequisite for constructing an accurate and representative pie chart later in the process.

Ensuring the data is correctly entered and organized is paramount. Before proceeding to the analytical stages, verify that the data is free of inconsistencies, such as extra spaces, misspellings, or unintended formatting that would disrupt the counting process. This attention to data cleanliness prevents calculation errors when generating frequency counts based on the vertical column structure.

Isolating Unique Categories Using the UNIQUE Function

Once the raw data is properly prepared, the next essential step is to isolate and list every unique team name present in the column of interest. Excel provides the powerful UNIQUE function, which efficiently returns a dynamic array containing only the distinct values from a specified input range, thereby eliminating all duplicate entries automatically.

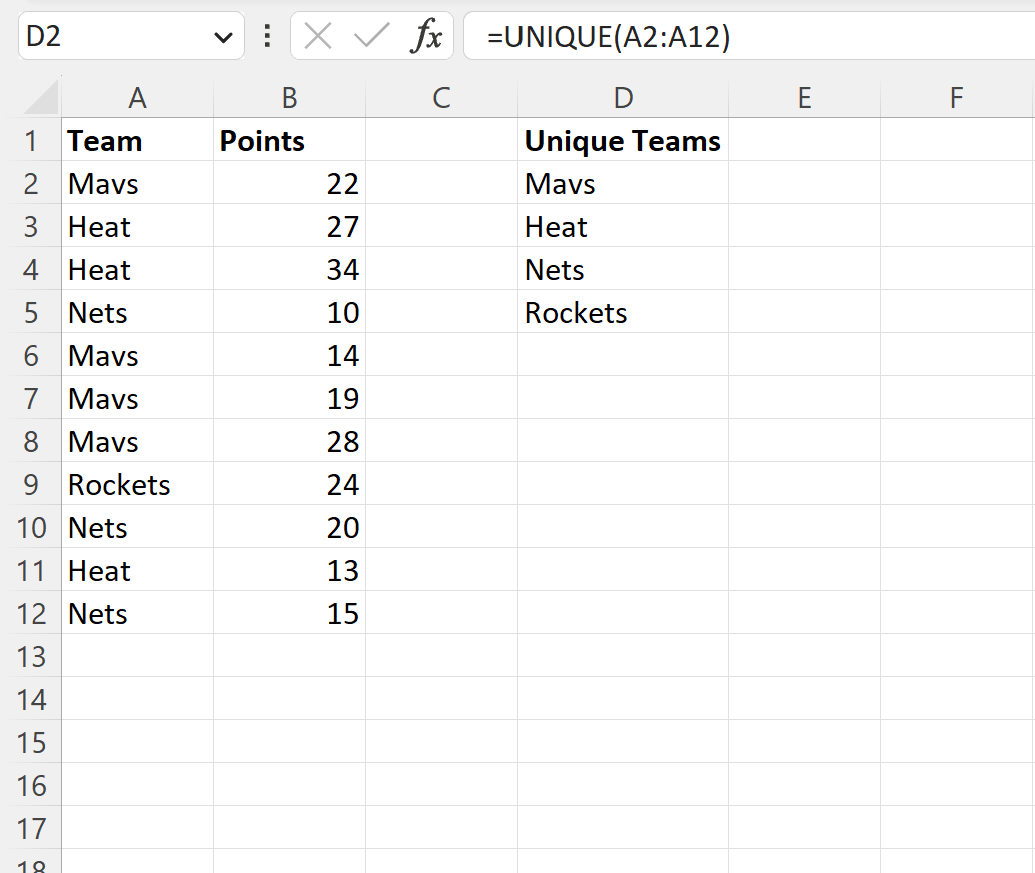

To utilize this highly effective feature, locate an empty cell—for instance, D2—and input the following formula. This command specifically targets the range containing the original team names, which is A2:A12 in our sample dataset. Leveraging the UNIQUE function dramatically streamlines the process of preparing accurate category labels for the subsequent chart creation.

=UNIQUE(A2:A12)

After confirming the formula in cell D2, Excel utilizes its dynamic array capabilities to automatically “spill” the distinct list of team names found in column A into the subsequent rows of column D. This dynamically generated list of unique values forms the definitive set of labels that will be displayed on your final pie chart, ensuring every category is represented exactly once.

Calculating Category Frequencies with COUNTIF

With the comprehensive list of unique team names now established in column D, the subsequent phase requires determining the exact frequency, or total count, of each unique team name within the original raw dataset. The COUNTIF function is the optimal tool for this aggregation, as it allows users to count cells within a specified range that meet a defined criterion.

Navigate to cell E2, which is adjacent to the first unique team name, and input the formula provided below. This formula instructs Excel to search the fixed source range, $A$2:$A$12, and tally every occurrence that matches the criterion located in cell D2 (the first unique team). The use of absolute references (indicated by the dollar signs) for the counting range is critical, ensuring the formula consistently references the correct source data when copied down to other rows.

=COUNTIF($A$2:$A$12, D2)

Once the formula is confirmed in E2, drag the fill handle (the small square at the bottom-right corner of the cell) down through the remaining rows in column E. This action automatically applies the COUNTIF function to calculate the frequency for every unique team name listed in column D. The result is a clean, aggregated table, perfectly structured for the final visualization step.

Generating the Pie Chart Visualization

With the data successfully aggregated—unique categories listed and their corresponding counts calculated—you now possess all the necessary components to generate the pie chart. This graphic representation will visually partition the total player count according to the exact proportion each team represents.

To initiate the charting process, highlight the complete data range containing both the unique team names and their derived counts. In this specific tutorial, the required range is D2:E5. After selecting this area, navigate to the Insert tab located prominently on the top Ribbon interface of Excel.

Within the Charts group on the Insert Ribbon, locate and click the Pie icon. Select the desired chart format, typically the standard 2-D Pie, to instantly generate the visualization. Upon selection, Excel automatically renders the pie chart based on the highlighted frequency data. Each resulting slice directly corresponds to a unique team, with its size accurately scaled to its proportion of the total count.

Customizing for Clarity and Professional Presentation

While the chart generated in the previous step accurately displays the data distribution, subsequent customization is essential to maximize its readability and professional appeal. Excel offers extensive formatting tools that allow you to transform a basic visualization into an insightful analytical graphic suitable for stakeholder reports.

The first critical customization involves adding a descriptive chart title that clearly summarizes the visualization’s purpose and content, moving beyond the default title. Furthermore, integrating data labels directly onto each pie slice is highly recommended. These labels provide precise numerical context, displaying either the exact frequency count or the percentage share for each category, which complements the visual proportions.

The customized pie chart, as depicted above, now features clear data labels that explicitly state the total player count contributed by each team. This added layer of detail ensures that your audience can efficiently interpret both the overall distribution pattern and the specific numerical values for every category. Advanced customization options include adjusting color schemes, font styles, and border properties to ensure the chart adheres to specific presentation guidelines or branding requirements.
