Learn to Highlight Excel Cells Based on List Membership

Introduction and the Necessity of Dynamic Highlighting

In the modern professional landscape, particularly when managing vast and complex datasets, the ability to effectively manipulate and visually interpret information within Microsoft Excel is not merely a convenience—it is a critical skill. A frequently encountered requirement for analysts and data managers is the need to instantaneously highlight cells whose values align precisely with entries found in a separate, predetermined reference list. This capability is paramount for sophisticated data analysis, empowering users to rapidly identify shared entries, pinpoint critical discrepancies, or confirm matching records across disparate and expansive spreadsheets.

The solution to this challenge is elegantly provided by Excel’s powerful, integrated feature known as Conditional Formatting. By leveraging its “New Rule” functionality, users are able to define highly dynamic criteria that trigger the automatic application of specific formatting styles—such as distinct background colors, specialized font treatments, or borders—to cells based solely on whether they satisfy a defined condition. This includes the complex but essential task of cross-referencing values against a separate lookup table.

This comprehensive guide offers an authoritative, step-by-step methodology for executing this robust technique. We will meticulously focus on constructing a precise formula, utilizing the highly efficient COUNTIF function, thereby ensuring that your spreadsheets become not only functionally robust but also visually articulate and immediately easy to interpret, drastically streamlining your workflow and decision-making processes.

Understanding the Core Function of Conditional Formatting

Conditional Formatting stands as a foundational feature within the Excel environment, specifically engineered to automate the visual presentation of data based on criteria meticulously defined by the user. Instead of relying on manual, tedious review of countless rows and columns, this feature instantly draws immediate attention to critical values, highlighting emerging trends, or flagging important discrepancies through the automatic deployment of chosen formatting styles, such as color scales, icon sets, or data bars.

This automated capability is absolutely vital for accelerating effective data visualization, significantly enhancing the overall readability and actionability of even the most complex data structures. Whether the primary goal is to swiftly identify high-priority financial transactions, mark regulatory compliance thresholds, or simply distinguish matching records, conditional formatting acts as a powerful transformer, converting raw, static data into dynamic, insightful, and actionable reports. This fundamentally streamlines the process of analysis and greatly supports rapid, informed decision-making.

While Excel offers a selection of convenient pre-set formatting rules (for instance, highlighting values above or below a specified average), the highest degree of necessary customization is only achieved through the advanced option labeled “Use a formula to determine which cells to format.” This powerful setting unleashes the complete potential of Excel’s built-in functions, permitting users to define the highly precise and logically complex conditions required for specialized tasks, such as accurately cross-referencing cell values against a secondary, external reference list.

Leveraging COUNTIF for Accurate List Matching

The COUNTIF function serves as the central, indispensable mechanism for successfully executing this advanced highlighting technique. At its core, the COUNTIF function is designed specifically to calculate the total number of cells within any designated range that successfully meet a specific, predefined condition or criterion. Its standardized syntax is remarkably straightforward: COUNTIF(range, criteria). For example, applying the command =COUNTIF(B5:B20, "Overdue") would return a numerical count of every cell within the B5:B20 range that contains the exact text string “Overdue.”

When this function is seamlessly integrated into a Conditional Formatting rule, the true strategic utility of COUNTIF becomes strikingly apparent. Our specific strategy involves using the individual cell currently being tested (the value we want to check) as the criterion, and the comprehensive lookup list (the list we are checking against) as the fixed range. By subsequently checking if the numerical result of this count is strictly greater than zero (>0), we establish a clear Boolean condition: if the count is true (i.e., >0), it unequivocally signifies that the tested value was successfully found at least once within the lookup list, thereby instantly triggering the desired formatting action.

This methodology represents an exceptionally efficient and elegant solution, successfully eliminating the historical need for complex, resource-intensive array formulas or the unnecessary creation of auxiliary helper columns within your active workbook. A complete and firm understanding of how to correctly apply the COUNTIF function is absolutely pivotal to mastering all advanced list-based conditional formatting techniques in Microsoft Excel.

Practical Case Study: Identifying Subset Matches

To fully solidify the understanding of this essential process, let us examine a detailed, practical, and highly relatable real-world scenario. Imagine you are tasked with managing two distinct lists of key data points—in this specific example, a list of professional basketball team names—within your Microsoft Excel sheet. The first list, conventionally titled “All Teams,” is intended to be comprehensive, whereas the second, comparatively smaller list, “Good Teams,” contains a curated subset of only the high-performing or favored teams. Your primary objective is to visually differentiate and highlight every team name in the “All Teams” list that also simultaneously makes an appearance in the “Good Teams” reference list.

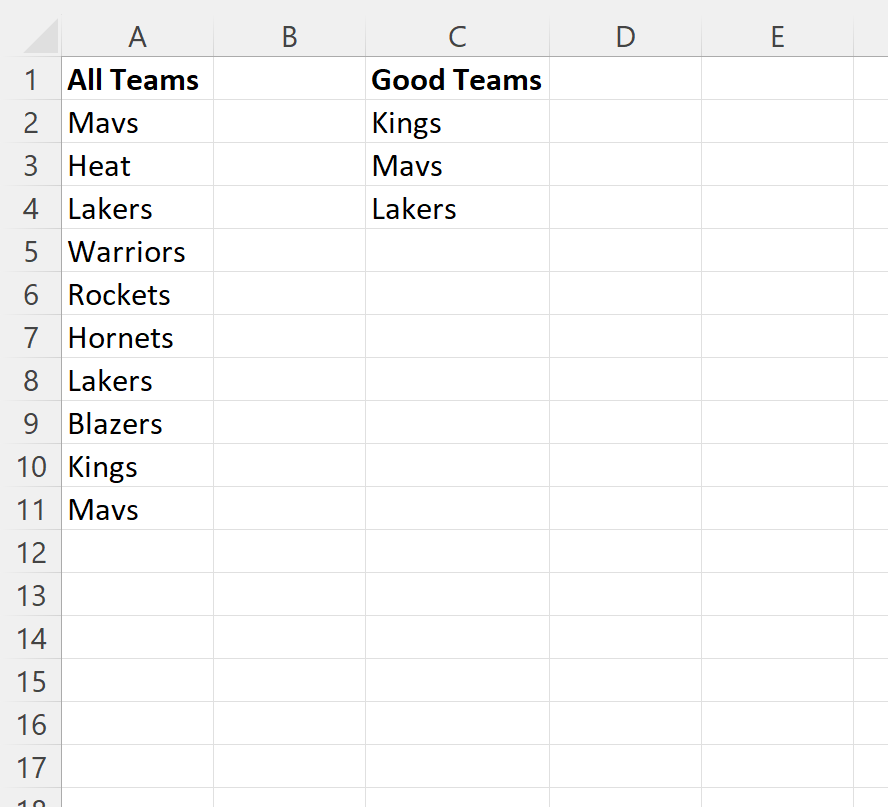

Review the carefully structured data setup illustrated immediately below:

The immediate and central goal is to apply a very specific visual highlight—for instance, a distinctive green background fill—to the team names meticulously listed in Column A (“All Teams”) if, and only if, those exact team names are also confirmed to be present in the designated reference list located in Column C (“Good Teams”). This instantaneous visual feedback mechanism will dramatically improve the overall speed of data identification, validation, and subsequent reporting.

Step-by-Step Implementation Guide for COUNTIF Rule

Execute the following detailed, precise instructions exactly as written to correctly configure and apply the conditional formatting rule utilizing the powerful COUNTIF function:

1. Define the Target Range: The crucial initial step necessitates selecting the entire, contiguous range of cells where the formatting rule must be rigorously evaluated and subsequently applied. In the precise context of our demonstration example, this target range corresponds to the “All Teams” list, meticulously encompassing cells A2:A11. This definitive selection establishes the complete set of values that will be individually tested against the lookup criteria.

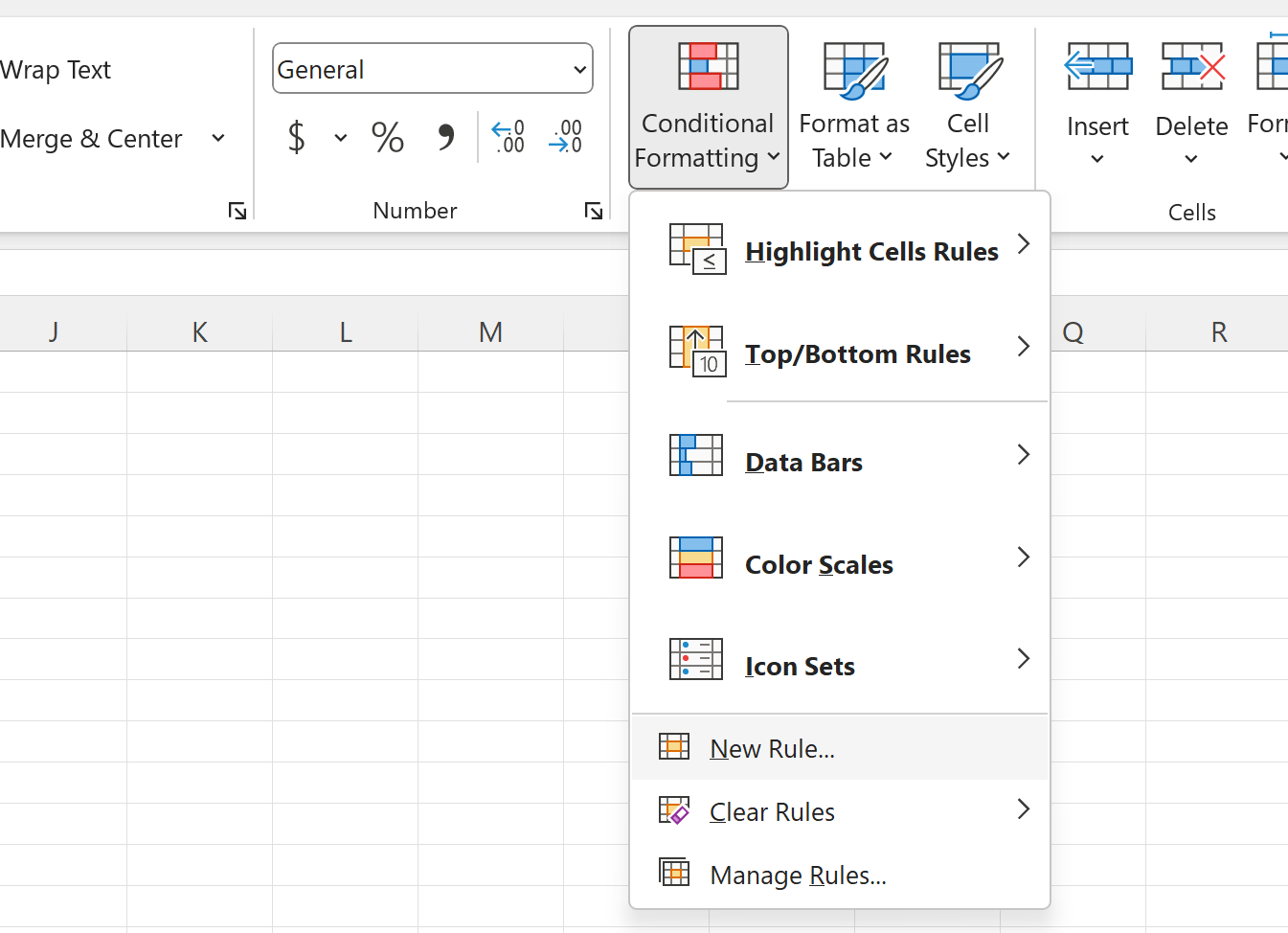

2. Access the Conditional Formatting Menu: Navigate to and click the Home tab prominently situated on the Excel ribbon interface. Within the designated Styles command group, select the Conditional Formatting icon. From the resulting drop-down menu that appears, proceed directly to select the New Rule… option.



3. Specify Formula-Based Formatting: Once the “New Formatting Rule” dialogue box is displayed, choose the final, most flexible option, which is clearly labeled Use a formula to determine which cells to format. This critical selection successfully enables the necessary input of a custom logical condition essential for accurate list matching.

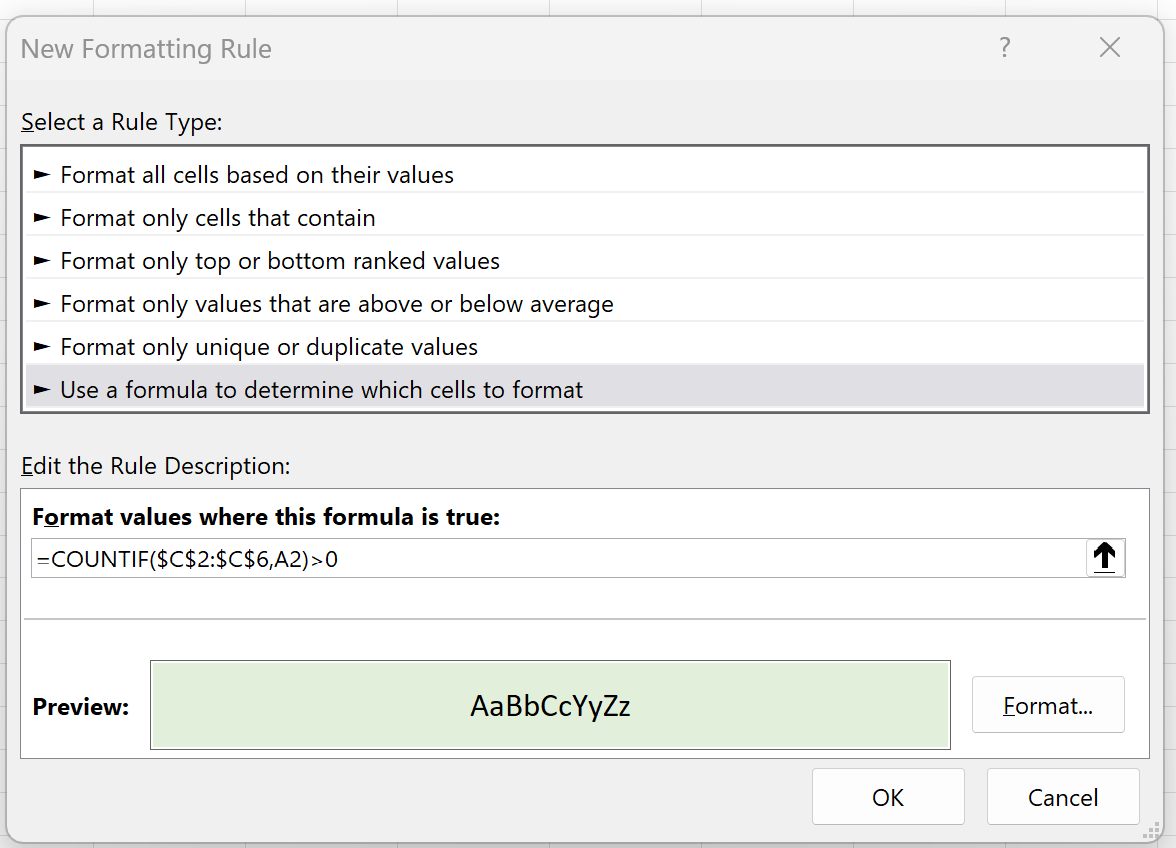

4. Input the Conditional Formula: In the designated text field labeled “Format values where this formula is true:”, carefully and precisely enter the following essential formula:

   =COUNTIF($C$2:$C$6,A2)>0

   This formula is designed to systematically evaluate every single cell within your initially selected range (A2:A11) against the exact contents of the “Good Teams” reference list (C2:C6). Let us break down the functional significance of the key components:

   • $C$2:$C$6: This pivotal segment defines the static, unchanging lookup range—our “Good Teams” list. The mandated inclusion of dollar signs (`$`) generates an absolute reference, guaranteeing that this specific range definition remains entirely fixed and unshifted as the rule iterates across all cells in the target selection.
   • A2: This refers exclusively to the first cell within your selected target range. As the conditional formatting rule is processed and applied to the entire selection, this reference adjusts dynamically (A3, then A4, A5, and so forth) due to its defined nature as a relative reference.
   • >0: This critical final condition dictates that the conditional rule is only deemed true if the COUNTIF function successfully identifies at least one instance (a count strictly greater than zero) of the current cell’s value (e.g., A2) within the single, fixed lookup list (C2:C6).

5. Configure the Formatting Style: Click the Format… button strategically located within the “New Formatting Rule” dialogue box to open the comprehensive “Format Cells” settings window. Navigate directly to the Fill tab and select your desired highlight color. For maximum clarity in this practical demonstration, a light green shade is chosen to clearly and effectively distinguish the matching entries.



   Affirm your choice by clicking OK to close the “Format Cells” dialogue box.

6. Final Rule Application: Conclude the process by clicking OK in the primary “New Formatting Rule” dialogue box. This final action instantly applies the newly constructed conditional formatting rule across the entirety of the initially selected range (A2:A11).

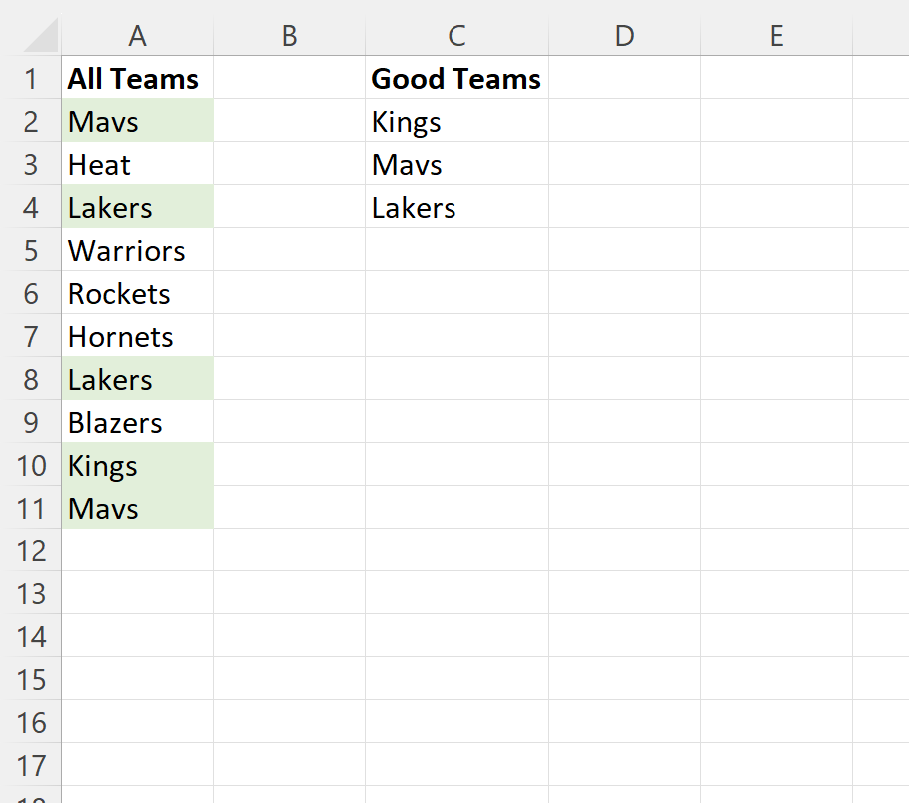

Immediately following the application, the calculated results will be visually displayed. Every cell in the “All Teams” column whose value successfully matches an entry found in the “Good Teams” list will be automatically highlighted in light green, providing immediate, highly effective visual confirmation of all identified matches:

The Critical Role of Absolute and Relative References

The fundamental success, reliability, and necessary scalability of any advanced conditional formatting formula depend critically upon the accurate distinction and precise application of absolute and relative references. In the context of our specific formula, =COUNTIF($C$2:$C$6,A2)>0, recognizing the operational difference between these two reference types is absolutely paramount for correct functionality.

The defined lookup range, explicitly represented by $C$2:$C$6, is meticulously established using absolute references. The deliberate inclusion of the dollar sign (`$`) preceding both the column identifier (C) and the relevant row numbers (2 and 6) ensures that this specific range is permanently locked and unchangeable. Irrespective of which particular cell in the target range (A2:A11) the rule is currently evaluating, the reference to the lookup list remains fixed, constant, and identical. This mandatory constancy is essential for guaranteeing accurate and consistent comparison across the entire dataset.

Conversely, the reference A2 is purposefully established as a relative reference. When the powerful conditional formatting engine begins its iteration process through the target range (moving from A2 all the way down to A11), Microsoft Excel automatically and dynamically adjusts this reference based precisely on the row of the current cell being evaluated. For example, when the engine applies the rule to cell A5, the underlying formula is seamlessly interpreted as =COUNTIF($C$2:$C$6,A5)>0. This crucial, dynamic adjustment enables the formula to effectively check the content of each individual cell against the single, fixed lookup list, ensuring high accuracy and maximum efficiency throughout the entire selection process.

Broadening the Scope: Advanced Applications

Although the demonstration utilized a simple list of basketball teams, the core methodology of highlighting cells based on membership in a lookup list possesses immense and extensive utility across virtually every type of professional and personal data management task. This powerful technique delivers immediate, high-impact data analysis benefits when dealing with numerous complex, real-world scenarios:

• Supply Chain and Inventory Management: Use this method to swiftly identify products marked as “critical stock” or “discontinued” by accurately comparing a comprehensive master parts list against up-to-date status lists derived from warehouse tracking systems.
• Financial Tracking and Auditing: Instantly highlight specific, key transactions within a large general ledger that are strictly associated with a particular project code, a high-priority vendor, or a designated expense category requiring immediate review.
• Human Resources Management: Efficiently flag employee names within a vast organizational directory who are currently mandated to be enrolled in specialized training, or who are confirmed to be part of an active, specialized project team needing communication.
• Quality Control and Data Integrity: Systematically spot potential data entry errors or blacklist items by meticulously checking incoming data inputs against a fixed list of known problematic, deprecated, or outdated values.

By learning and effectively implementing this highly powerful feature within Microsoft Excel, users can dramatically improve their overall organizational efficiency, successfully transforming static, overwhelming data sheets into highly interactive, readily informative, and immediately actionable data resources capable of supporting rapid, data-driven decision-making.

Furthering Your Excel Proficiency

Achieving true mastery in Microsoft Excel is fundamentally an ongoing, evolutionary process that demands continuous learning, rigorous practice, and dedicated exploration of its deep and complex feature set. The robust list-highlighting technique detailed thoroughly here serves as an outstanding, tangible example of precisely how complex data challenges can be elegantly solved using simple, reliable, and built-in functions.

To further develop your advanced spreadsheet management skills and ensure you are prepared for even more intricate data manipulation tasks, it is highly recommended that you actively explore additional advanced topics related to comprehensive data validation, complex array formulas, and mastering advanced pivot table techniques.
