Excel: Group Values in Pivot Table by Range

Welcome to this comprehensive guide focused on unlocking the advanced analytical potential of Excel. This tutorial provides a detailed, step-by-step methodology for transforming granular numerical data within a PivotTable into structured, interpretable categories. Mastering the ability to group values by custom ranges is a powerful technique in data analysis, enabling users to categorize continuous variables—such as age, income, or measurement metrics—into discrete intervals. This capability is essential for generating concise reports and deriving clearer business insights from complex datasets.

Introduction: The Strategic Value of Grouping Numerical Data

The PivotTable remains one of Excel‘s most robust features, designed specifically to summarize, explore, and present large volumes of data efficiently. It allows analysts to swiftly transpose and aggregate information, moving beyond tedious manual calculations. However, when working with numerical data that spans a wide distribution—for instance, a column containing hundreds of unique sales figures or square footage measurements—the default PivotTable display can become overly detailed. Presenting every single unique value as a row item often obstructs the ability to visualize overall trends and patterns, making clear interpretation difficult for stakeholders.

This challenge is elegantly solved by implementing the concept of grouping by range. Instead of treating each numerical entry as distinct, this technique permits the combination of these entries into meaningful, analyst-defined intervals. Examples of practical applications include creating age groups (18-24, 25-34), income brackets, or, as we will demonstrate, categories based on store size (square footage). By consolidating granular details into high-level groups, this grouping method simplifies complex numerical distributions, providing the summarized perspective necessary for effective decision-making and reporting across virtually any industry.

In the subsequent sections of this guide, we will meticulously walk through the required setup steps, starting with the preparation of the source data and the initial construction of a basic PivotTable. Following this foundational work, we will focus on the critical process of applying custom grouping parameters to a numerical field. This standardized approach ensures that the resulting analysis is structured, clear, and actionable, making this a fundamental skill for advanced data analysis in Excel.

Preparing Your Source Data for Analysis

Successful PivotTable creation, especially when utilizing advanced features like grouping, hinges entirely on the quality and structure of the source data. For Excel to effectively process and analyze information, the data must be arranged in a pristine tabular format. This means the first row must contain unique, descriptive headers, and every subsequent row should represent a single, unique record or observation. In our working example, we will simulate a dataset tracking the performance metrics of 15 different retail stores, incorporating their unique identifiers, physical square footage, and total sales figures.

To follow along accurately, please open a fresh Excel worksheet and input the following data exactly as shown in the image below. The column headers—Store ID, Sq. Feet, and Sales—must reside in row 1, defining the characteristics of the data below. This consistent, structured layout is absolutely essential for Excel to correctly identify the scope and nature of the data source when the PivotTable utility is initiated.

We emphasize the importance of meticulous accuracy during this data entry phase. Any inconsistency, such as text mixed with numeric values in the square footage column, could disrupt the subsequent grouping process, leading to unexpected or incorrect results in the PivotTable. Once your dataset is confirmed to be accurate and correctly formatted, you will be prepared to transition seamlessly into the construction phase of the PivotTable itself, leveraging this clean base for powerful analysis.

Constructing the Initial PivotTable Foundation

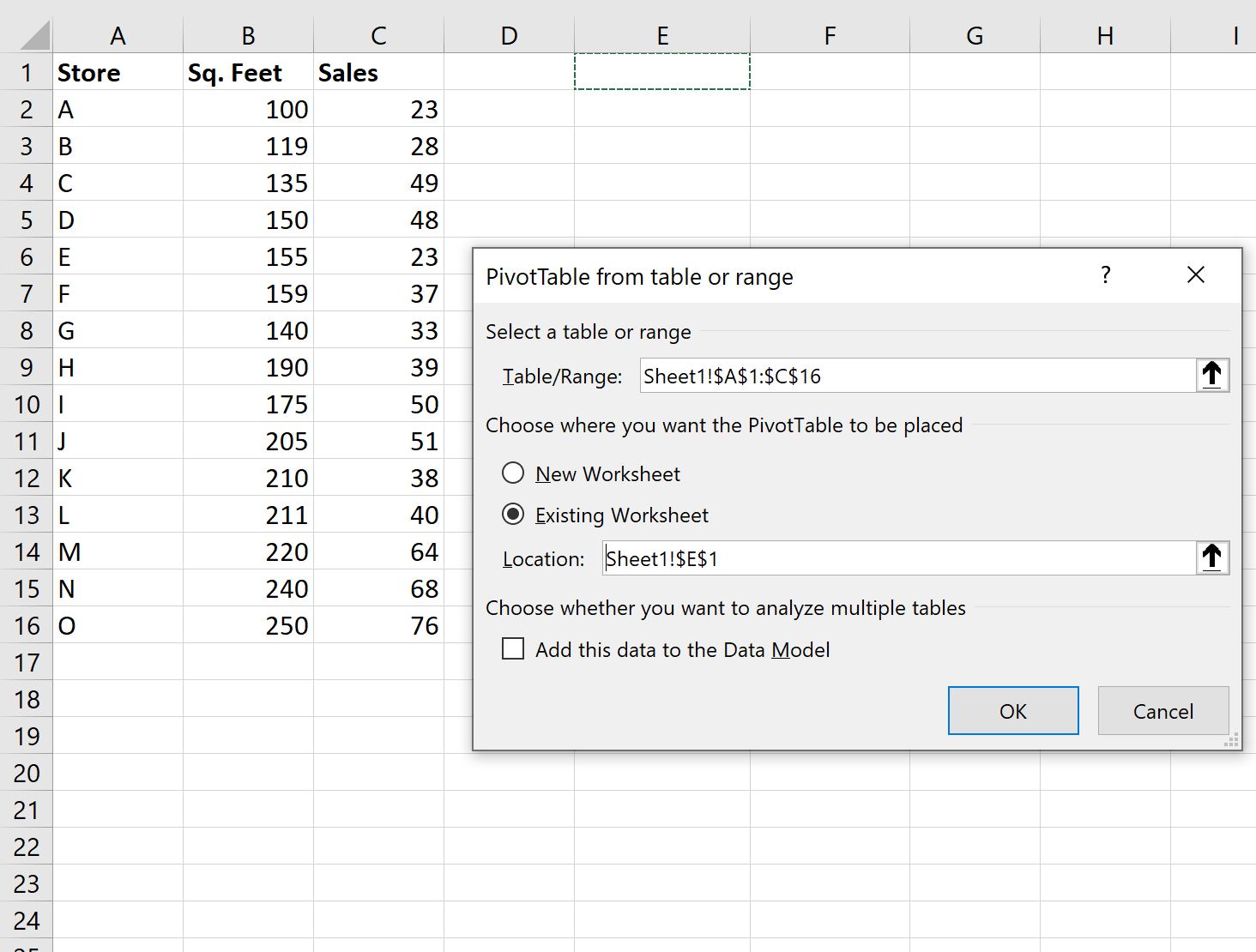

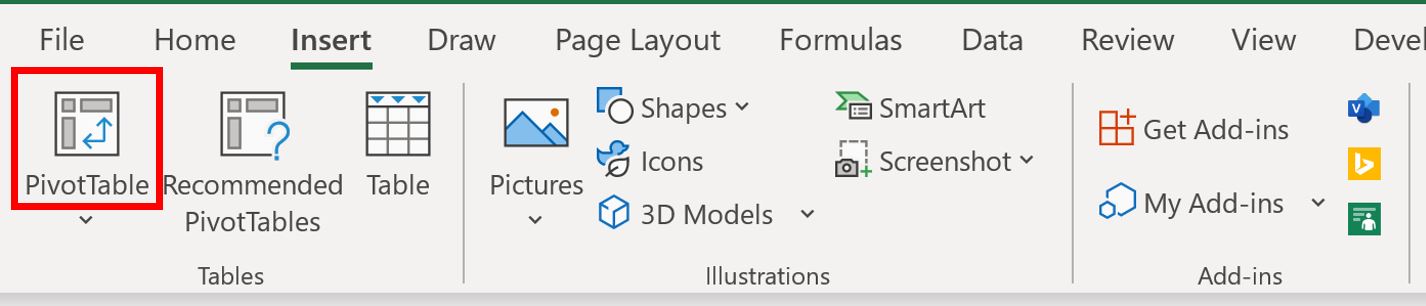

With the source data properly structured, the next phase is to initiate the PivotTable creation, transforming the static raw data into a dynamic analytical tool. To begin, first click anywhere within your data range (A1:C16). Then, navigate to the Insert tab located at the top of the Ribbon interface in Excel. Within this tab, locate and click the prominent PivotTable icon, which immediately prompts the “Create PivotTable” dialog box to appear.

The “Create PivotTable” window requires two essential configurations: confirming the source data range and defining the placement of the new table. For our specific case, the correct source range is A1:C16, which captures all headers and records. Crucially, we will choose to place the PivotTable in the Existing Worksheet, specifying cell E1 as the starting location. This placement choice keeps the source data and the analytical result visible side-by-side, enhancing ease of reference during development.

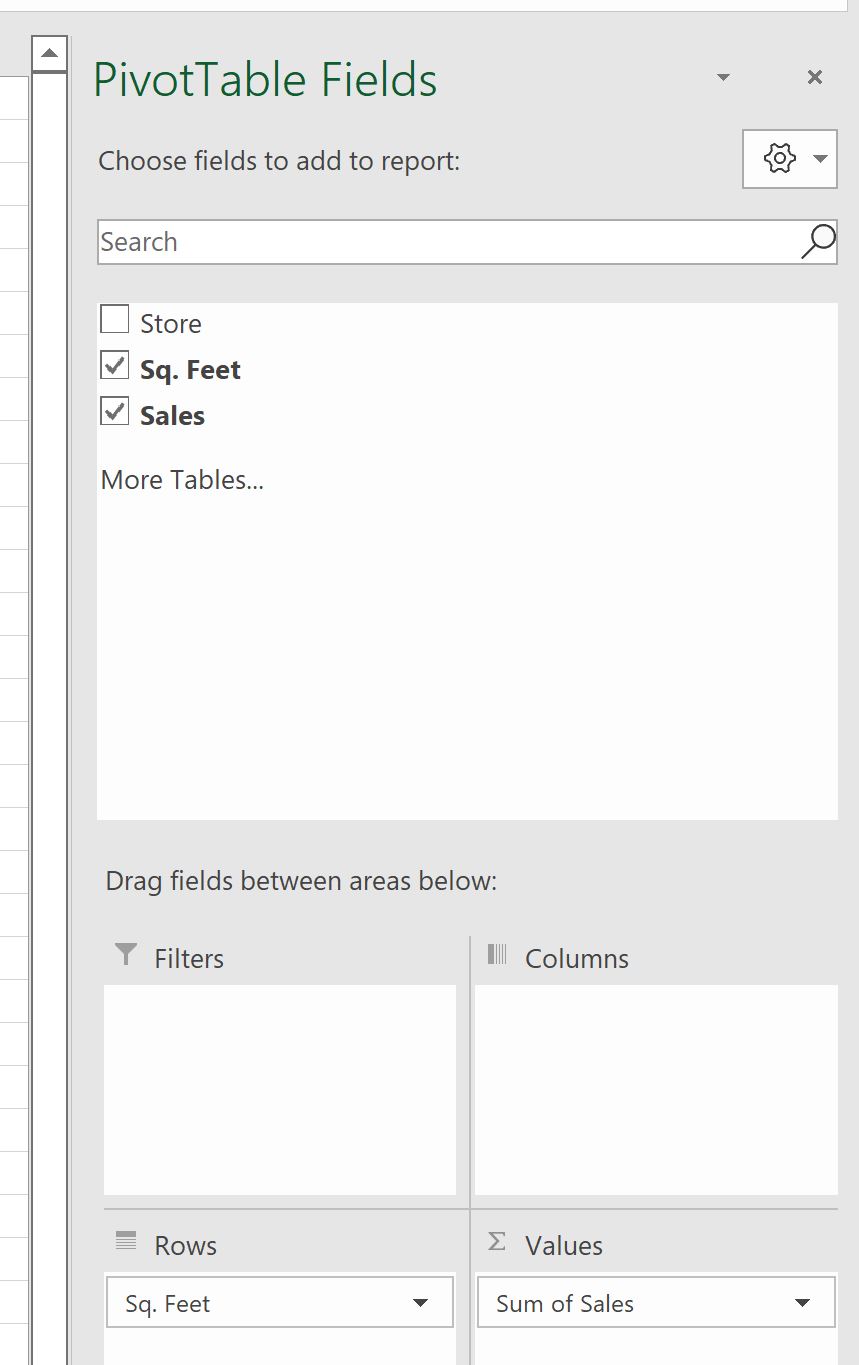

Once you confirm these settings by clicking OK, Excel generates the blank PivotTable structure and concurrently opens the PivotTable Fields panel. This panel serves as the interface for dragging and dropping your data fields into the necessary reporting areas. To set up the analysis, drag the Sq. Feet field into the Rows area, which lists every unique store size as a row label. Next, drag the Sales field into the Values area. By default, Excel will calculate the sum of sales for each unique square footage value.

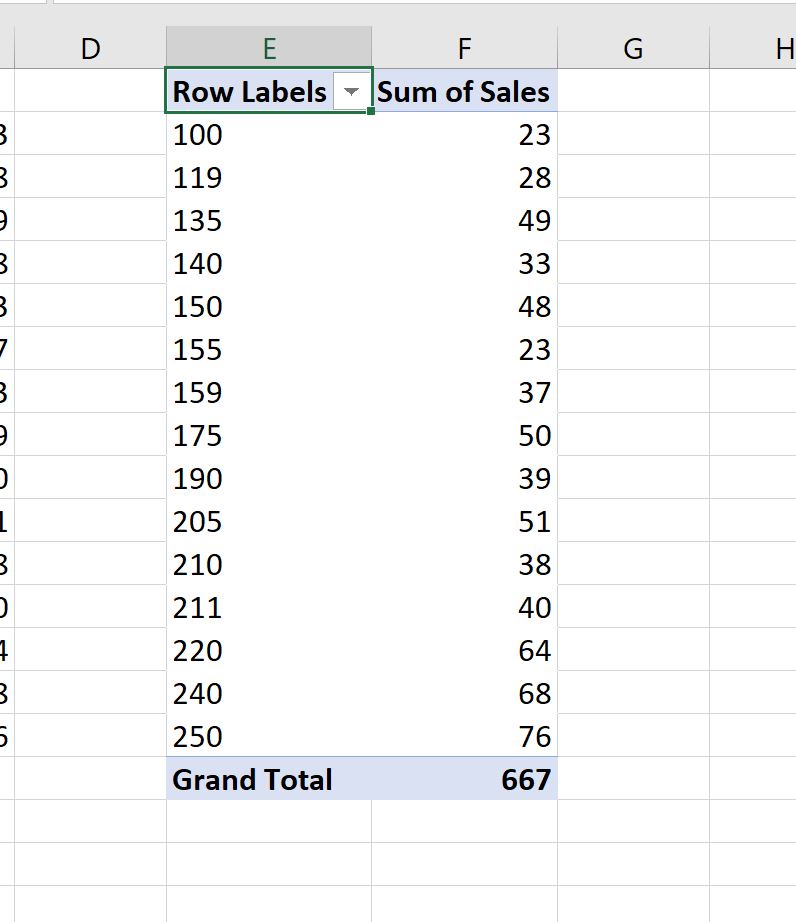

The resulting initial view, displayed in cell E1, is a list of every distinct square footage size paired with the total sales generated by stores of that size. While factually correct, this granular representation often contains too many unique entries to be useful for high-level comparative data analysis. This dense list immediately illustrates the necessity for simplification, which we will achieve through the strategic grouping of these numerical values into custom, manageable ranges.

Implementing Range Grouping in Your PivotTable

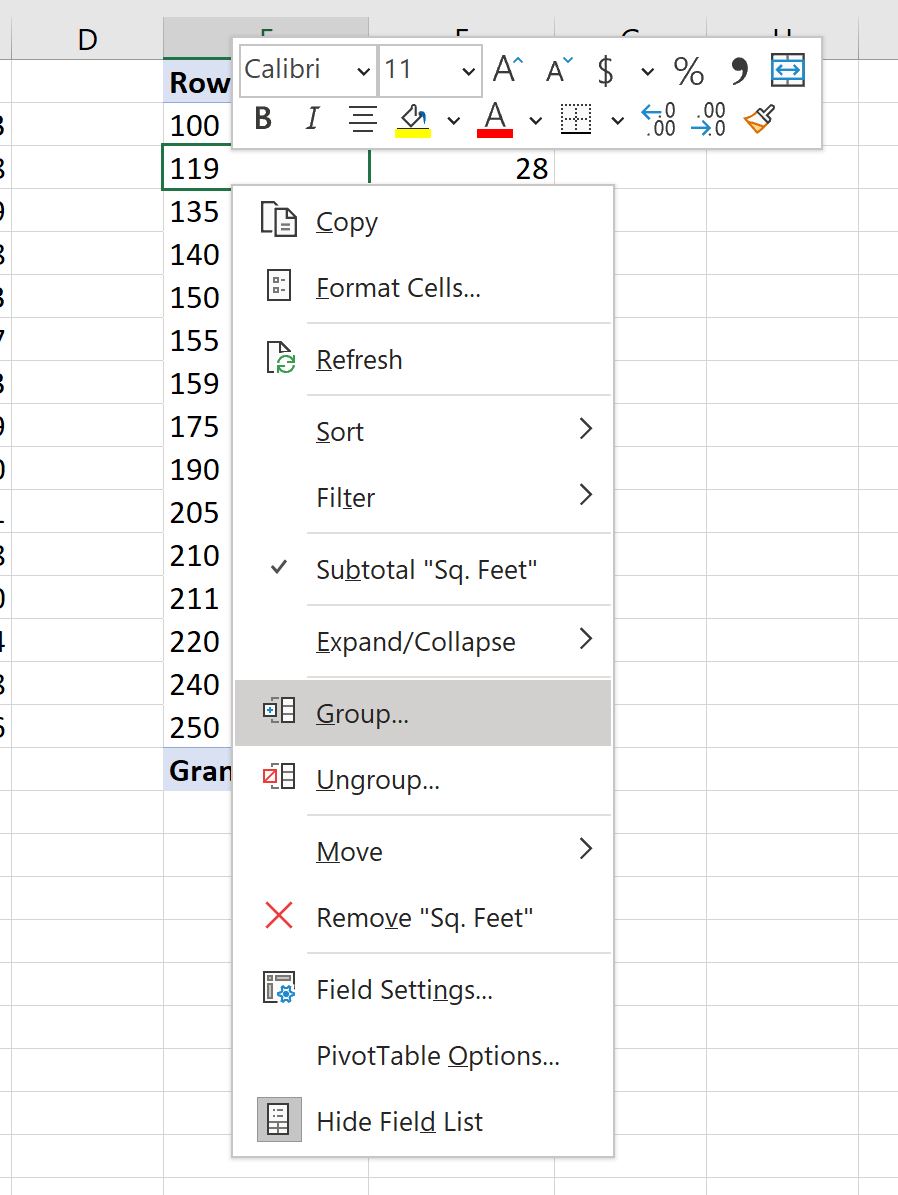

The most powerful step in this analytical process is the application of custom data grouping. This action will condense the numerous individual square footage entries into a finite set of business-relevant intervals. To initiate the grouping feature, simply right-click directly on any numeric value within the first column of your PivotTable (the column containing the square footage entries). From the resulting context menu, select the Group option. This menu item is the gateway to defining custom quantitative segments within your analysis.

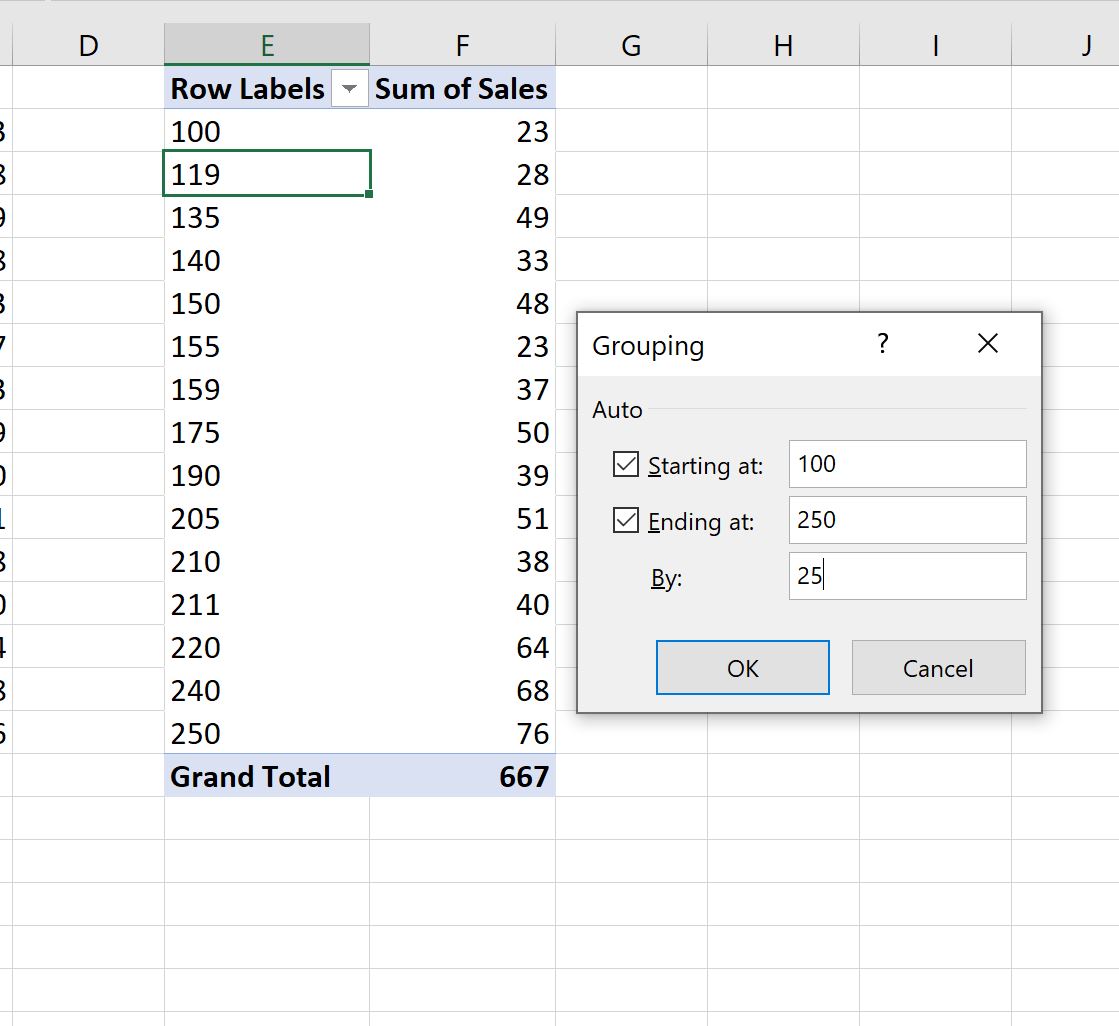

The “Grouping” dialog box provides precise control over how Excel segments the numerical data. Here, you must define three critical parameters: Starting at (the lowest boundary of the first group), Ending at (the highest boundary of the last group), and By (the size or interval length of each group). For this specific retail example, we aim to categorize stores based on 25 square-foot increments. Therefore, we will set the parameters as follows: we want to start grouping at the value 100, conclude grouping at the value 250, and set the interval length By 25. This configuration will generate distinct, non-overlapping ranges such as 100-124, 125-149, 150-174, and so on, until the 250 limit is reached.

The moment you click OK, the PivotTable will instantly refresh and display the grouped results. The individual square footage values are replaced by the defined ranges, presenting a highly condensed and summarized view of the sales performance across different categories of store sizes. This transformation drastically improves the readability of the analysis, moving from a detailed transaction-level report to a strategic summary that highlights performance trends based on scale.

Interpreting the Grouped PivotTable Results

The true benefit of grouping becomes apparent when you interpret the reorganized PivotTable output. Each row now represents a distinct range, and the corresponding “Sum of Sales” value reflects the combined sales contribution of every store whose square footage falls within that specific interval. This aggregation allows for immediate, high-level comparisons and trend spotting.

To demonstrate the clarity gained, let us analyze the specific results from our example:

• The range 100-124 indicates that all stores falling within this smallest size bracket collectively achieved a sum of sales equal to 51. This sets the baseline performance for the smallest category.
• The next interval, 125-149, shows total sales of 82. The increase from the previous range provides initial evidence suggesting that slightly larger store sizes may correlate with increased sales volume.
• The 150-174 range continues this trend, reporting a total sales sum of 108. This progressive growth across size categories strongly suggests a positive relationship between the physical size of the store and its overall sales output within this dataset.

This structured view allows analysts to quickly identify high-performing segments—or, conversely, underperforming segments—that might warrant deeper investigation. For example, if a large store range (e.g., 225-249) were to show sales comparable to the smallest range, it would immediately signal an operational inefficiency or a strategic misstep requiring immediate attention. The grouping feature thus acts as a filtering mechanism, prioritizing which data segments are most critical for business intervention.

Conclusion: Leveraging Grouped PivotTables for Strategic Data Analysis

We have successfully navigated the process of grouping values in an Excel PivotTable by defining custom numerical intervals. This technique transcends simple formatting; it is a fundamental tool of quantitative data analysis that transforms complex, continuous metrics into clear, discrete categories. By grouping continuous fields, you gain an unparalleled ability to conduct effective comparative analysis, swiftly revealing underlying relationships and trends that would be impossible to spot in a raw, unaggregated view.

The operational and strategic benefits of mastering this grouping feature are vast. It enables clearer, more intuitive reporting for executive audiences, facilitates the objective identification of best and worst-performing segments, and ultimately provides a more intuitive understanding of how different quantitative levels influence overall performance metrics. Whether your application involves financial reporting, academic grading, or demographic studies, grouping by range empowers the user to extract maximum value from their numerical data.

We strongly encourage you to apply this powerful methodology to your own datasets. Remember that the choice of range lengths and boundaries is flexible and highly dependent on the context of your business question. Experimentation with wider or narrower intervals, as well as different start and end points, will help you discover the ideal segmentation that yields the most pertinent insights for your specific analytical objectives. The versatile nature of Excel’s PivotTable grouping capability is a cornerstone of advanced spreadsheet analysis.

Further Excel Resources and Advanced Techniques

For those dedicated to deepening their expertise in Excel and further optimizing their PivotTable usage, there are many supplementary techniques that build upon the foundation of range grouping. Understanding how to integrate calculated fields or items, for instance, allows you to perform custom mathematical operations on your grouped metrics, providing even richer context. Similarly, mastering date grouping (by month, quarter, or year) applies the same conceptual framework to temporal data, streamlining workflow for time-series analysis.

The following resources offer valuable insights into other common and advanced PivotTable tasks. These tutorials are highly recommended for tackling various data challenges and continuing to streamline your overall analytical workflow, ensuring you can efficiently manage and report on complex information within your worksheet environment.
