Excel: Group Values in Pivot Table by Uneven Intervals

This comprehensive guide provides a powerful solution for data analysts using Microsoft Excel. While Excel’s built-in tools are excellent for standard analysis, grouping numerical data in a pivot table by non-uniform or uneven intervals often requires specialized techniques. Standard grouping features are restricted to consistent ranges, but business requirements frequently demand customized segmentation. This tutorial outlines a precise, step-by-step methodology utilizing a dedicated helper column. This approach enables flexible and highly customized data categorization, which is essential for detailed business intelligence and accurate reporting.

Step 1: Preparing Your Data for Analysis

The success of any advanced data manipulation technique in Excel hinges upon the quality and organization of the raw data. Before we proceed to construct the pivot table, it is crucial to ensure our source data is structured correctly. For this demonstration, we will analyze a dataset comprising information on 15 distinct retail stores, including their unique identifiers, physical square footage, and recorded sales figures. Our primary analytical goal is to correlate sales performance with varying store size categories, especially those categories that do not follow a standard numerical progression.

To begin, enter the following sample data into your Excel worksheet, starting typically in cell A1:

It is imperative that your data includes clear, descriptive headers for each column, such as “Store ID,” “Sq. Feet,” and “Sales.” These headers will be automatically recognized as fields when you initiate the process of creating the PivotTable, facilitating easier drag-and-drop manipulation within the PivotTable Fields panel later on.

Step 2: Defining Uneven Groups Using a Helper Column

A primary limitation encountered when using Excel‘s native pivot table grouping function is its strict reliance on uniform interval lengths. To bypass this restriction and introduce custom, business-driven categories, we must integrate a helper column into our source data. This dedicated column will serve to pre-classify each data point (in this case, each store) into a specific, predefined size segment based on its square footage. Our reporting requirements necessitate the following distinct, uneven intervals for grouping sales:

• 100-124 sq. feet (25-unit span)
• 125-149 sq. feet (25-unit span)
• 150-199 sq. feet (50-unit span)
• 200+ sq. feet (Open-ended span)

Since these segments vary significantly in size, they cannot be created using the standard pivot table grouping tool. The helper column provides the necessary flexibility by allowing us to assign a text label (the group name) to each numerical value, effectively transforming a quantitative measure into a categorical one that respects our customized boundaries.

To achieve this categorization, we will employ a powerful nested IF formula. This formula sequentially tests multiple conditions and returns a corresponding group label as soon as the first condition is satisfied. Insert a new column next to your data (e.g., Column D) and label it “Sq. Feet Group.” In the first data row of this new column (D2, assuming data starts in row 2), input the following precise formula:

=IF(B2<125, "100-124", IF(B2<150, "125-149", IF(B2<200, "150-199","200+")))

Understanding the structure of this IF formula is essential for customization. The logic operates on an exclusionary basis:

• The initial check, B2<125, captures all stores falling into the first group (“100-124”).
• If a value fails the first check (meaning it is 125 or greater), the formula proceeds to the second condition: B2<150. If true, it is assigned “125-149.”
• If the value is 150 or greater, the formula moves to the third condition, B2<200, which captures the “150-199” range.
• Finally, any value that reaches the concluding argument must be 200 or greater, automatically receiving the “200+” label.

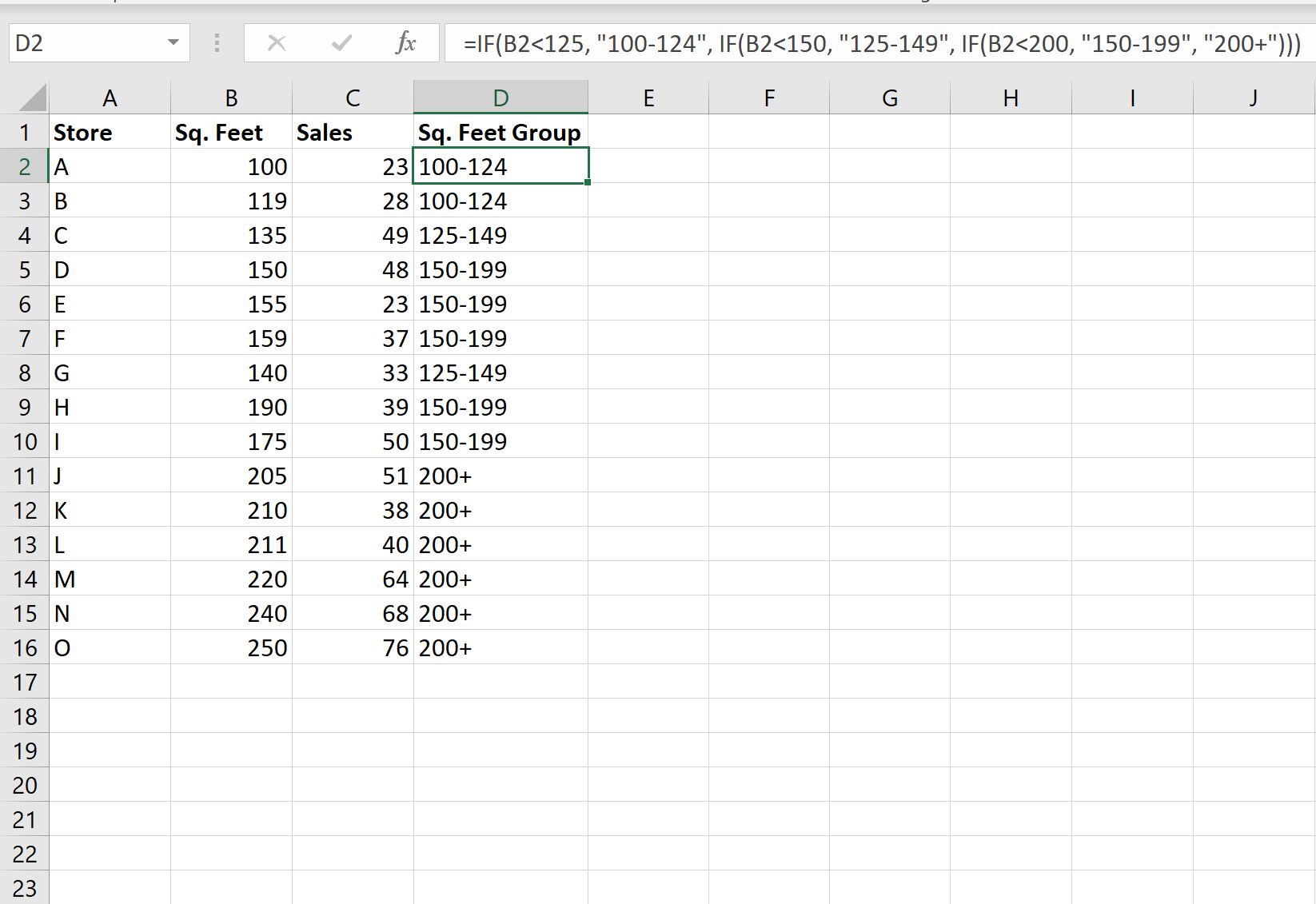

After entering the formula in the first cell, drag it down to automatically populate the rest of the column. The resulting “Sq. Feet Group” column provides the definitive classification for each store, preparing the data for the next phase of analysis. The successful implementation of the helper column is visually confirmed in the following image:

Step 3: Building the Pivot Table Using Custom Groups

With the customized grouping data generated by our helper column, we are ready to leverage the powerful aggregation capabilities of the pivot table. Pivot tables are the cornerstone of dynamic analysis in Excel, providing a rapid means to summarize, explore, and present complex datasets without altering the underlying raw data.

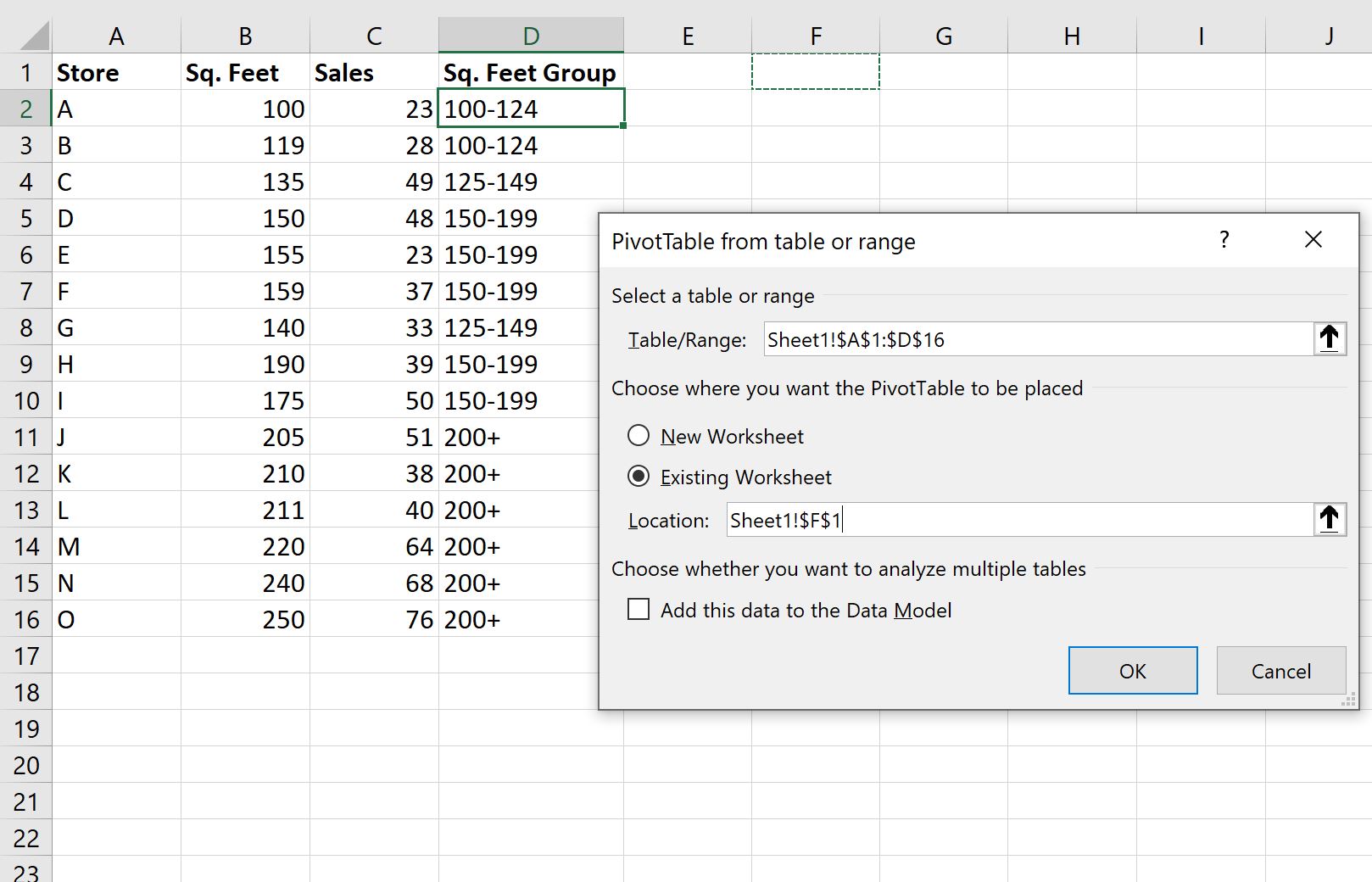

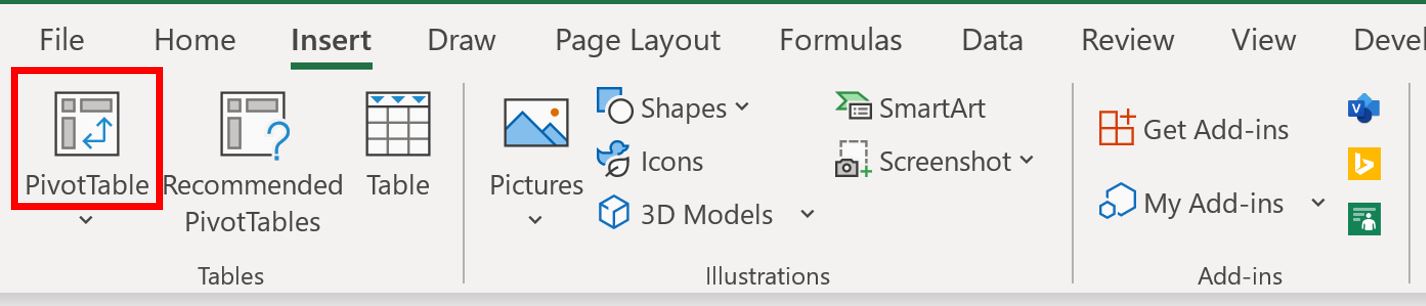

To begin the construction process, first ensure that any cell within your data range (including the new “Sq. Feet Group” column) is actively selected. Navigate to the Insert tab on the Excel ribbon, and locate the “Tables” group. Click the PivotTable icon to open the “Create PivotTable” dialog box. Excel typically detects the full range of your data automatically; confirm that this range correctly encompasses all columns, including our specialized grouping column.

For optimal organization and clarity, select the “New Worksheet” option under “Choose where you want the PivotTable to be placed.” Clicking OK will generate a new sheet, displaying the empty pivot table structure and activating the critical PivotTable Fields panel on the right-hand side. This panel is the control center where you assign fields to the four key areas: Filters, Columns, Rows, and Values.

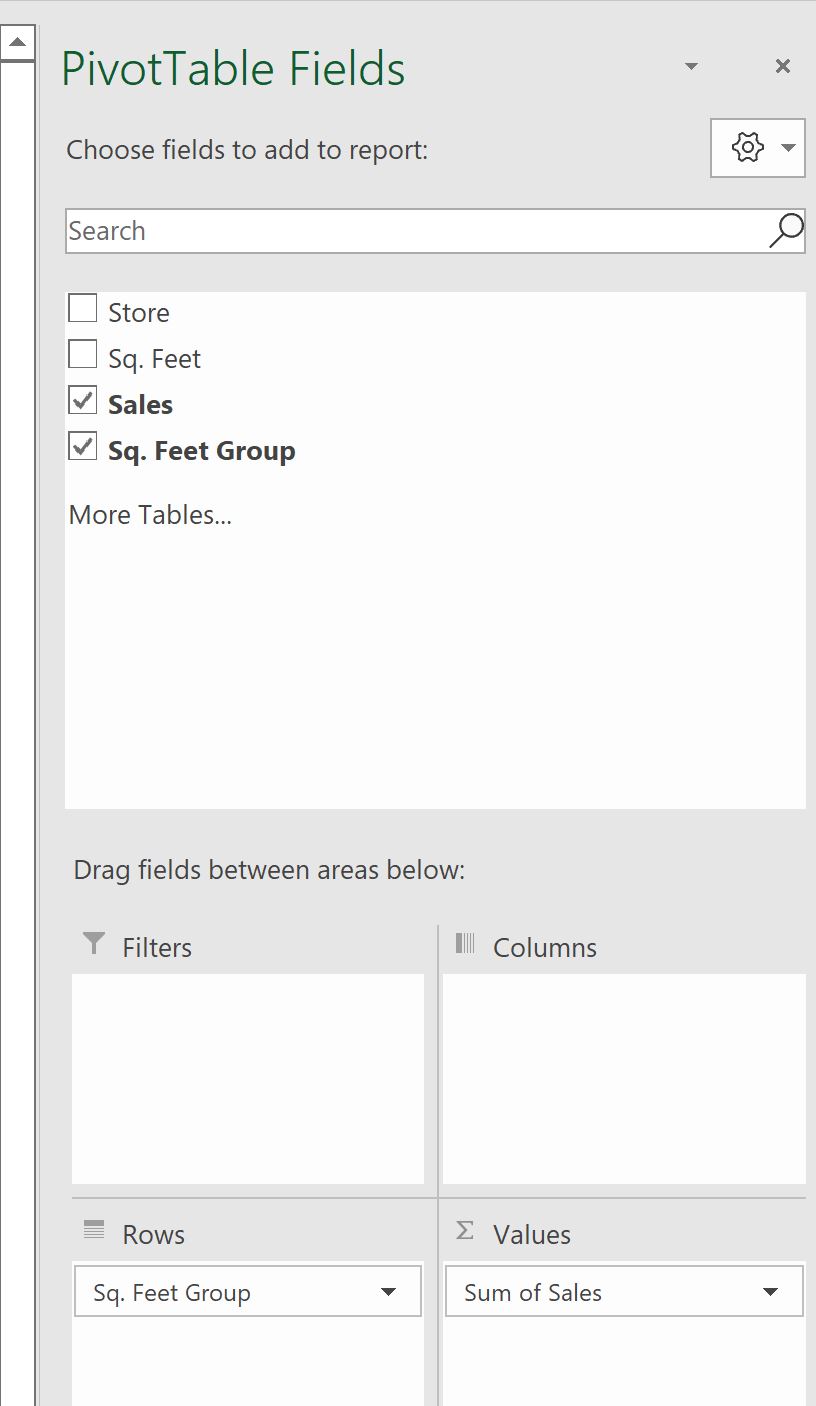

To structure the analysis and display the total sales aggregated by our customized store size categories, drag the fields as follows within the PivotTable Fields panel:

1. Drag the Sq. Feet Group field (our custom grouping column) into the Rows area. This defines the primary categorization displayed vertically in the resulting table.
2. Drag the Sales field into the Values area. By default, Excel will typically apply the “Sum” function to numerical data, calculating the total sales for each group. If necessary, ensure the aggregation method is set to “Sum” via the Value Field Settings menu.

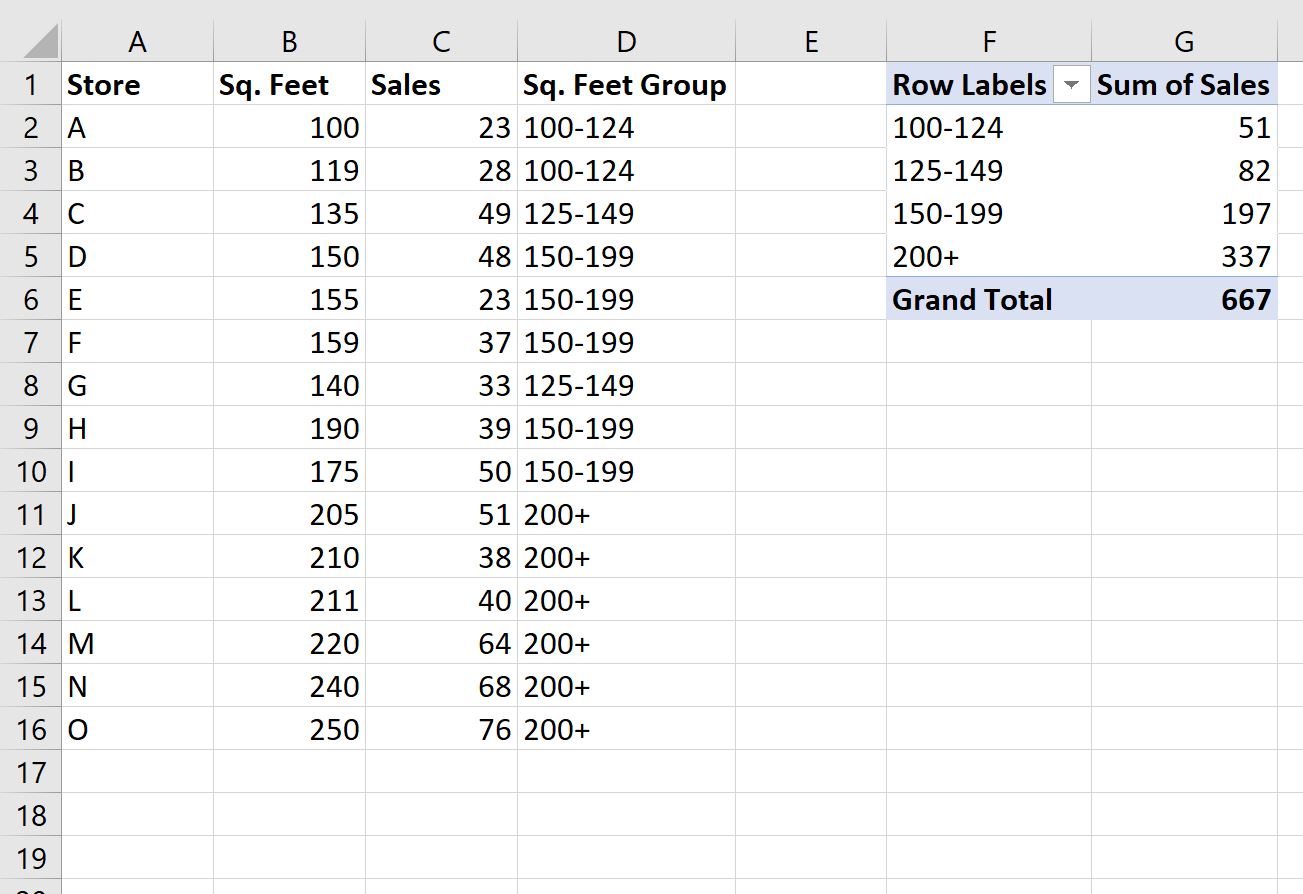

Once these fields are placed, the pivot table immediately updates, displaying the summarized sales data precisely categorized according to the defined uneven intervals:

Step 4: Analyzing Results from Custom Uneven Intervals

The final pivot table provides a highly actionable summary of the sales performance, segmented exactly by the uneven intervals we established using the helper column. This method is invaluable for business analysis where simple arithmetic grouping fails to capture the nuances of operational or market segmentation. Interpreting the results shown in the table allows us to derive specific insights:

• The Sum of Sales for stores categorized in the smallest size bracket, 100-124 sq. feet, totals 51. This represents the cumulative sales performance for all stores within this specific footprint.
• Stores falling into the 125-149 sq. feet interval contributed a collective sales figure of 82, showing a higher sales volume than the smaller category.
• The sales total for the 150-199 sq. feet range is 72.
• The largest category, 200+ sq. feet, generated the highest total sales, amounting to 103.

This approach—grouping by uneven intervals via a helper column—is fundamentally superior when analytical requirements are driven by non-standard categories, such as strategic market definitions, capacity limitations, or tiered pricing models. The combined use of a nested IF formula and the pivot table functionality grants analysts the necessary flexibility to create virtually any custom grouping structure, thereby transforming raw data into highly specific and relevant business insights within Excel.

Additional Resources for Advanced Excel Proficiency

Developing mastery over Excel’s sophisticated features, particularly the dynamic capabilities of pivot tables, is essential for maximizing data analysis efficiency. To further refine your skillset and explore techniques beyond basic grouping, consider engaging with the following advanced topics and tutorials. These resources will enable you to execute more complex reporting and analytical tasks with greater ease:

• Advanced Pivot Table Metrics: Learn how to implement advanced functionality such as utilizing multiple value fields simultaneously, calculating percentages of totals, or creating custom calculated fields to derive complex business metrics directly within the pivot table environment.
• Slicers and Timelines: Integrate interactive graphical filter controls into your reports, allowing users to dynamically filter pivot table data based on categories or time periods, enhancing overall user experience and data exploration.
• Conditional Formatting: Apply visual rules—such as data bars, color scales, or icon sets—to highlight critical trends, identify outliers, or emphasize key performance indicators directly within the summarized data presented by the pivot table.
• GETPIVOTDATA Function: Master this unique function to reliably extract specific summarized values from a pivot table, which is vital for building custom, flexible executive dashboards that are linked directly to your aggregated data source.
• Data Integrity and Validation: Focus on best practices for ensuring the accuracy and consistency of source data before its ingestion into pivot tables, thereby preventing analytical errors and ensuring trustworthy results.

By integrating these specialized techniques, you can fully harness the power of Excel, converting raw numerical lists into powerful, actionable insights and compelling analytical reports.
