Excel: Plot Multiple Data Sets on Same Chart

Introduction: Mastering Comparative Data Visualization in Excel

In modern data analysis, the ability to effectively compare different metrics or groups is paramount.
One of the most powerful tools for achieving this comparison is plotting multiple
data sets on a single chart in
Excel. This technique allows
analysts and decision-makers to quickly identify trends, divergences, and correlations between variables that
might otherwise be obscured in tables of raw numbers. Visualizing related series together, as demonstrated in the chart below,
provides immediate context and clarity, transforming complex data relationships into an easily digestible graphical format.

This comprehensive tutorial is designed to guide you through the process of merging two distinct quantitative
series onto one cohesive visualization. We will use a standard
scatter plot
as our primary example, as it is ideally suited for displaying the relationship between two numerical variables
(X and Y) across multiple groups. By following these precise, step-by-step instructions, you will learn the necessary
data structuring and chart manipulation techniques required within the Excel environment.

The resulting visualization, which plots two distinct teams’ performance metrics against a common independent variable,
serves as a clear illustration of this capability. Before diving into the technical steps, it is essential to understand
that proper initial setup of your data ranges is crucial for successful chart creation. We will ensure that both
series are organized in a manner that Excel can easily interpret when generating the graphical output.

The subsequent sections will detail the exact procedure, starting from data entry and progressing through the initial
chart creation, the crucial step of adding the second series, and finally, best practices for chart customization to
maximize interpretability.

Step 1: Organizing and Entering the Data Sets

The foundation of any robust visualization in Excel
is well-structured source data. For plotting multiple series on the same axis, it is generally recommended to organize
your data in adjacent columns, maintaining clear separation between the X-values (often the independent variable, common
to both series) and the distinct Y-values (the dependent variables) for each group. This structure simplifies the process
of selecting the correct ranges during the chart creation phase.

In this specific example, we are tracking the performance of two hypothetical entities, “Team A” and “Team B,” over a shared
measurement period (represented by the X-axis). We must input the raw data into the spreadsheet as shown below. Note
how the X-values for Team A and Team B are identical or sequential, but their respective Y-values (Performance Scores)
are separated into distinct columns (B and E, respectively). This layout is optimal for initiating the chart creation
process by selecting one series first.

We will use the following two datasets. Team A’s data resides in columns A and B, while Team B’s data resides in columns D and E.
It is important to ensure that the headers (e.g., “Observation,” “Team A Score”) are correctly labeled to facilitate
easier identification when manipulating the series later on. Accurate data entry minimizes errors and streamlines the
subsequent plotting steps, ensuring that the visual representation accurately reflects the numerical relationships.

Before proceeding, double-check that all numerical values are correctly entered and formatted. Inconsistent formatting
(e.g., text vs. number) can lead to unexpected results when Excel attempts to generate the
scatter plot. Maintaining data integrity
at this stage saves significant time in troubleshooting chart discrepancies later.

Step 2: Plotting the Initial Data Set

Once the data is correctly structured, the next step involves generating the base chart using the first
data set. In our case, we will begin by plotting
the data for Team A. This initial chart serves as the canvas onto which the subsequent series will be added.
Starting with a single series simplifies the initial setup and ensures that the chart type is correctly established.

To initiate the plot for Team A, execute the following steps precisely: first, highlight the cell range that contains both
the X and Y values for Team A, which is typically A2:B12 in the provided dataset. Next, navigate to the
main menu ribbon and click the Insert tab. Within the various chart options available, locate the
Charts group—this section houses all the visualization tools available in Excel.

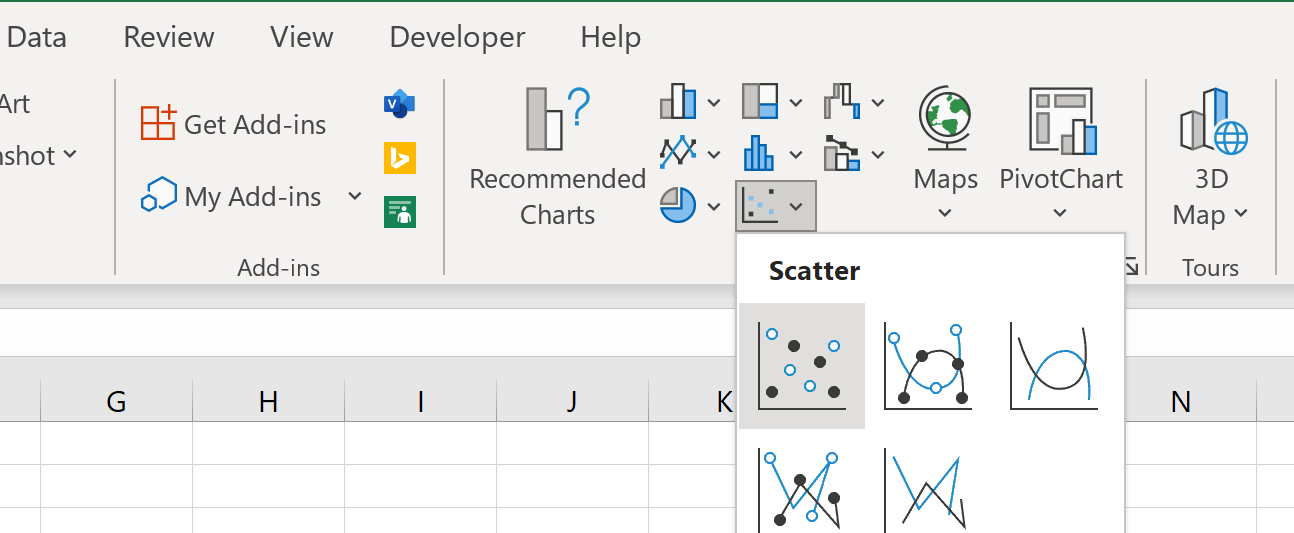

Within the Charts group,
select the appropriate chart type. Since we are comparing quantitative pairs, click on the Scatter option
(often represented by a small group of dots). Excel will immediately generate a basic scatter plot
using the highlighted range. This plot visualizes the relationship between the independent variable (X) and the dependent
variable (Team A’s Score).

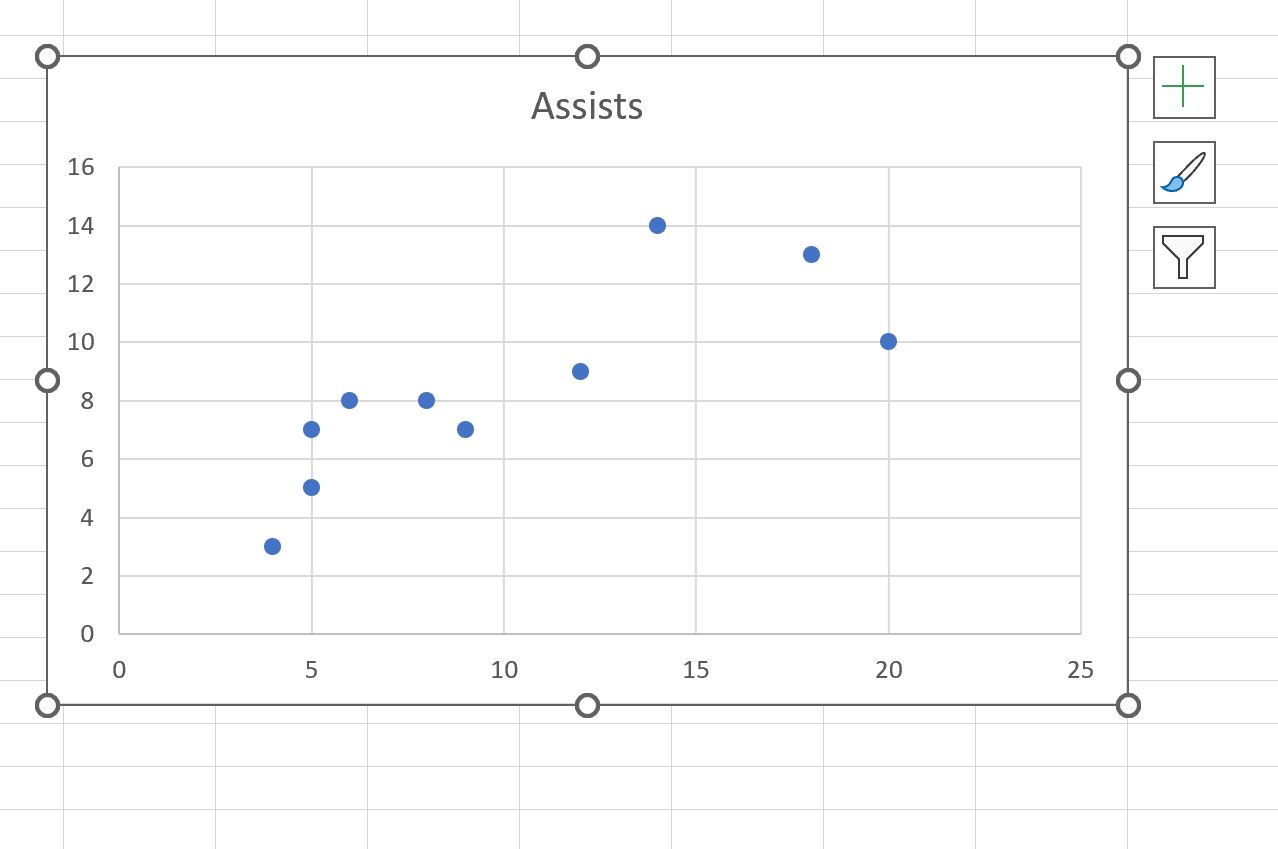

Upon selecting the scatter option, the following preliminary chart will appear directly on your worksheet. It is important
to verify that the axes are correctly scaled and that the data points accurately reflect the values entered for Team A
in columns A and B. This chart now provides the visual framework for integrating the second series, Team B.

Step 3: Integrating the Second Data Set (Team B)

The most critical step in creating a multi-series chart is correctly instructing Excel to overlay the second
data set (Team B) onto the existing plot.
This is accomplished through the Select Data Source dialog box, which allows granular control over
which ranges correspond to which visual series. This method ensures that both teams share the same axis scaling,
making direct comparison valid and effective.

To access the necessary configuration menu, right-click anywhere on the newly created scatter plot. A context menu
will appear. From this dropdown list, select the
Select Data
option. This action opens the dialog box where you can manage all data series currently feeding the chart.

In the Select Data
Source window, you will see the existing series (Team A) listed under the Legend Entries (Series) box on the left-hand side.
To introduce Team B, click the Add button located below this box. This action prompts the
Edit Series dialog box, where you define the parameters for the new series.

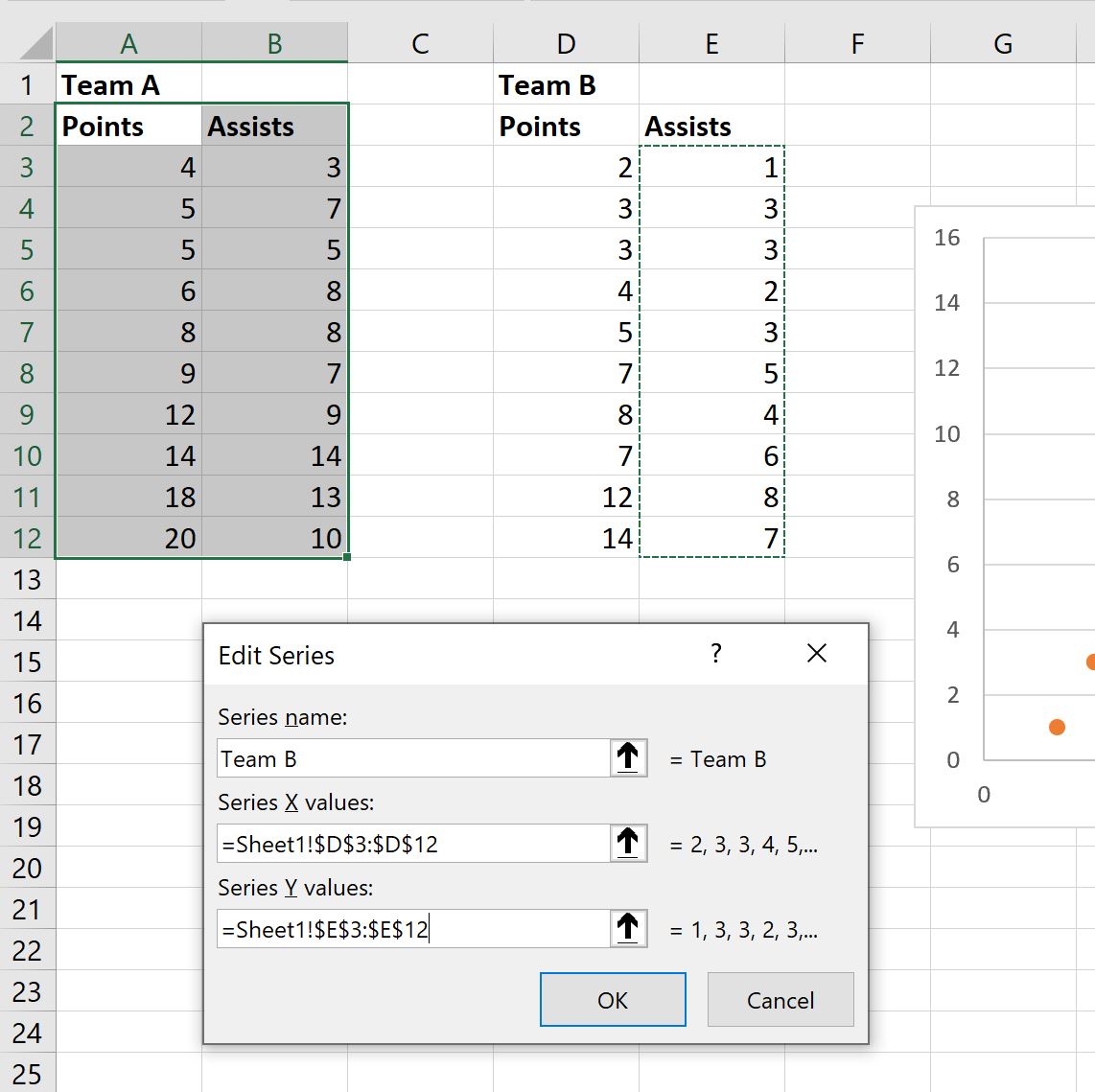

In the Edit Series window, precise range selection is vital:

1. For the Series Name, type “Team B.” This label will appear in the chart’s legend.
2. For the Series X Values, select the range corresponding to the X-axis data for Team B.
   Based on our initial data setup, this range is D3:D12. Ensure you exclude the header row if
   you included it in the initial data selection.
3. For the Series Y Values, select the range corresponding to the performance scores for Team B.
   This range is E3:E12.

After defining these ranges, click OK to close the Edit Series box, and then click OK again
to close the Select Data Source window.

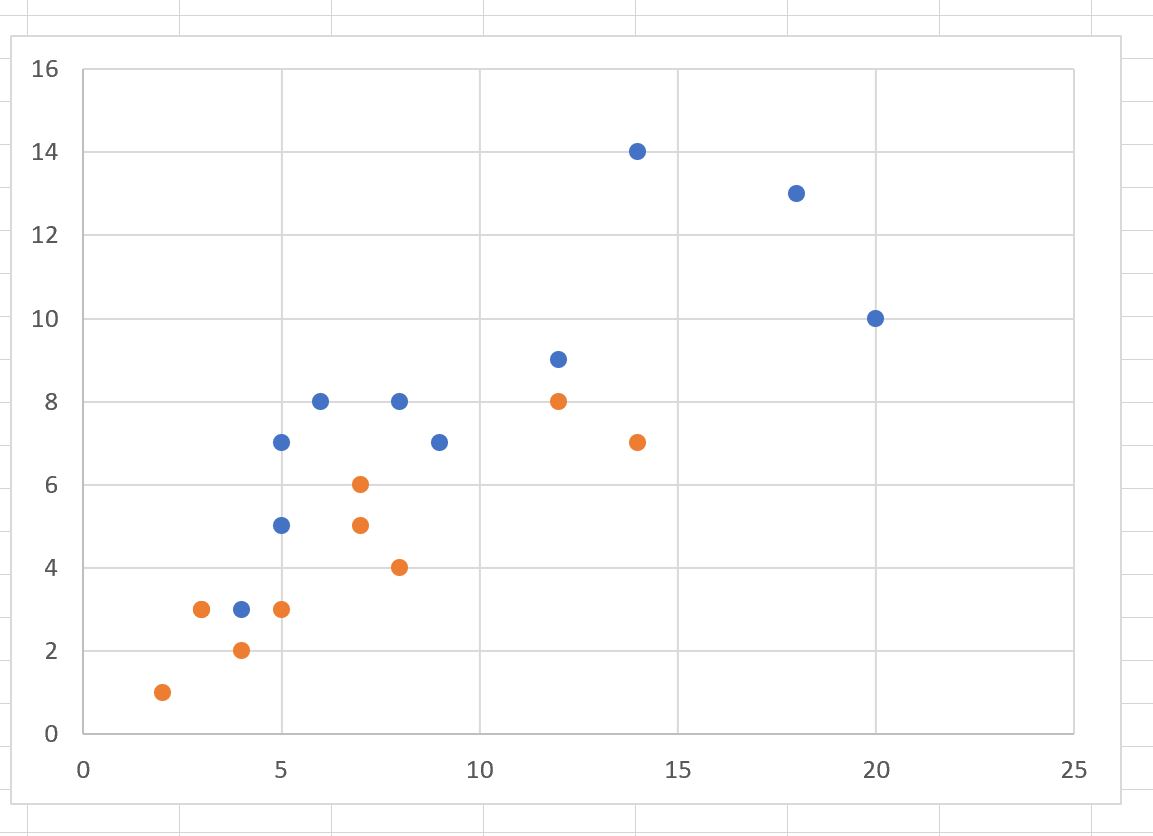

Team B’s data points will now be plotted alongside Team A’s, typically represented by a different color or marker style
to ensure visual distinction.

Step 4: Customization and Enhancing Chart Interpretability

While the chart now successfully plots both data sets,
it is rarely complete without thoughtful customization. A well-designed chart transcends mere data plotting; it tells a clear,
unambiguous story. This optional, yet highly recommended, step involves refining the visual elements to maximize clarity
and professional presentation.

Customization should focus on several key areas, accessible via the Design and Format tabs that appear when the chart is selected:

• Chart Title: Add a descriptive title (e.g., “Comparative Performance Scores: Team A vs. Team B”)
  to immediately inform the viewer of the chart’s focus.
• Axis Titles: Label both the X-axis (e.g., “Observation Period”) and the Y-axis (e.g., “Score”)
  to define the measured variables. This prevents misinterpretation of the data scales.
• Legend: Ensure the legend is present and clearly identifies which color or marker corresponds to
  “Team A” and “Team B.” Since we manually entered “Team B” in Step 3, this should be accurate.
• Color and Markers: Modify the colors or marker shapes to improve visual contrast. For example,
  you might use solid circles for one team and hollow squares for the other, especially important for accessibility
  or printing in grayscale.

The ultimate goal of these modifications is to create a visualization that is intuitive and reduces cognitive load for the reader.

For instance, applying customizations yields the finalized chart below, which is significantly more informative than the raw
scatter plot generated in Step 2. The clear labels and
distinct visual representation of each series allow for immediate comparative analysis—we can instantly see how the two
teams’ performance trajectories diverge or converge over time.

Advanced customization might also include adding trendlines (regression lines) to each series to show the overall direction
of the data, or using secondary axes if the Y-values of the two series differ vastly in magnitude (though this should be
used judiciously to avoid confusion). Mastery of these customization features ensures that your Excel
charts are not just functional, but truly professional analytical artifacts.

Conclusion: Summary of Multi-Series Charting Proficiency

The technique of plotting multiple series on a single chart is an indispensable skill for anyone performing analytical work
in Excel. By following the detailed workflow—from
structuring your source data sets correctly, initiating
the base plot, and meticulously defining subsequent series using the
Select Data
dialogue box—you gain the ability to create dynamic, comparative visualizations. This method is applicable not only to scatter
plots but also to line charts, bar charts, and other chart types where direct comparison between categories or time series
is required.

Understanding how to navigate the Legend Entries and correctly assign X and Y ranges prevents the common error
of Excel defaulting to sequential plotting (where it treats your X-values as just index numbers). By asserting control
over the data source definition, you ensure the integrity and accuracy of your comparative graphs. We strongly encourage
practicing this technique with varying data structures to solidify your proficiency.
