Plot Mean and Standard Deviation in Excel (With Example)

Visualizing crucial statistical measures, such as the mean and standard deviation, is a fundamental requirement for effective and insightful data analysis. When managing diverse groups of information in Excel, crafting a chart that clearly articulates both the central tendency (mean) and the dispersion (standard deviation) provides invaluable insight into group performance and inherent variability. This expert guide offers a precise, step-by-step methodology for generating such a powerful visualization, mirroring the high-quality, professional presentation demonstrated in the final chart example below.

This comprehensive tutorial will detail the exact process required to plot the mean and standard deviation for multiple distinct groups using the sophisticated charting capabilities native to Excel. We will utilize a practical example, ensuring that you can replicate these techniques effortlessly for your own datasets. Mastering this visualization technique is crucial for presenting statistical findings clearly and impactfully.

Step 1: Structuring and Preparing Your Raw Data

The preliminary, and arguably most important, phase in any statistical analysis workflow is the accurate and logical organization of your source material. For this specific guide, we will employ a sample dataset tracking the total points scored by individual basketball players distributed across three distinct teams (Team A, Team B, and Team C). Establishing a clear, logical data structure within your Excel worksheet is essential for guaranteeing the precision of subsequent calculations and the eventual visualization output.

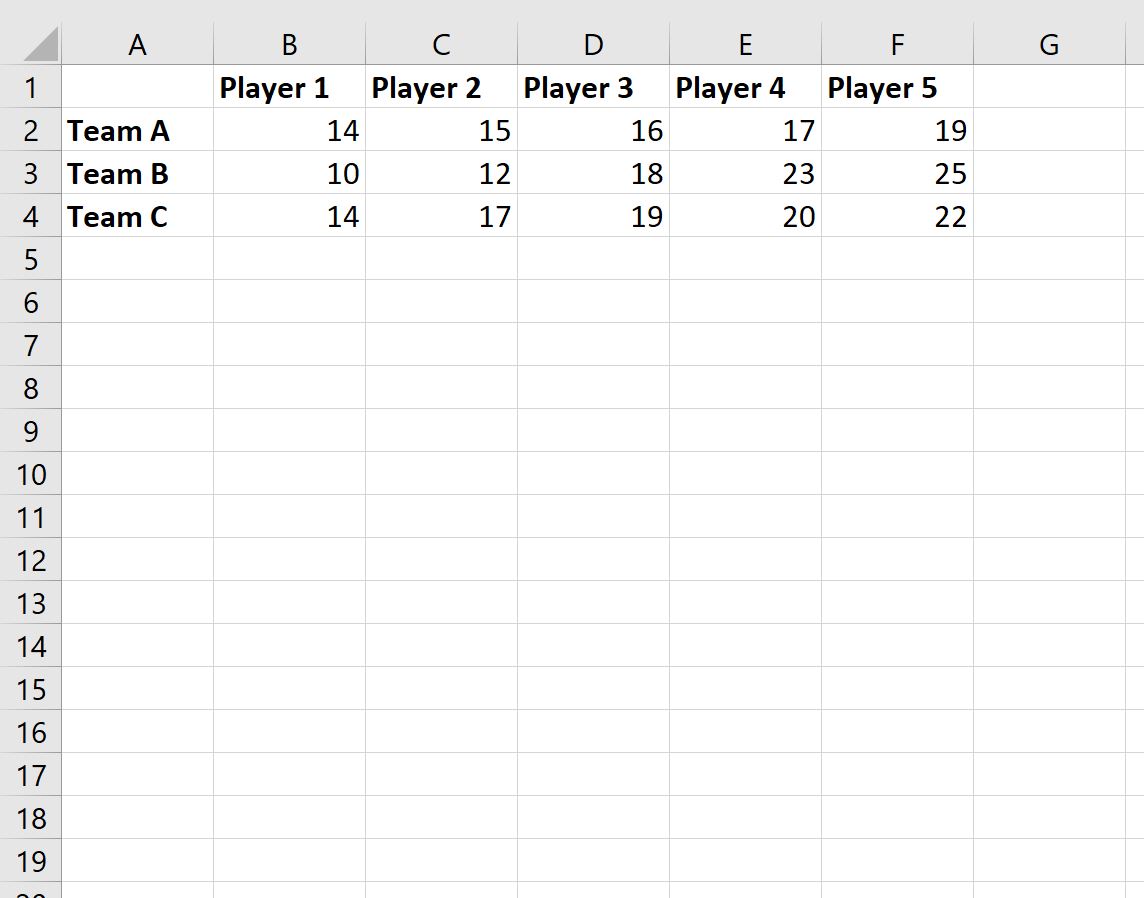

To commence, open a fresh Excel workbook and carefully input the raw scores as illustrated in the figure below. The structure dictates that each row must represent a unique team, while the corresponding columns contain the individual player scores. This deliberate horizontal arrangement simplifies the application of statistical functions, such as those used to calculate the mean and standard deviation across each team’s performance metrics.

It is imperative to maintain proper data entry hygiene at this stage to prevent calculation errors later in the process. We strongly recommend double-checking all numerical entries to ensure utmost accuracy. Even minor transcription errors can significantly skew your results, leading to an incorrect representation of the underlying trends within your dataset and compromising the integrity of your data analysis.

Step 2: Calculating Central Tendency and Dispersion Metrics

Once the data is accurately structured, the immediate subsequent step is to compute the statistical measures necessary for plotting: the mean and the standard deviation for every team. The mean, commonly understood as the average, serves as a measure of central tendency, offering a quick indication of the typical performance score for a team. Conversely, the standard deviation provides a crucial quantification of the amount of variability—the scatter or dispersion of scores—around that calculated mean, offering insight into the consistency of player points within each team.

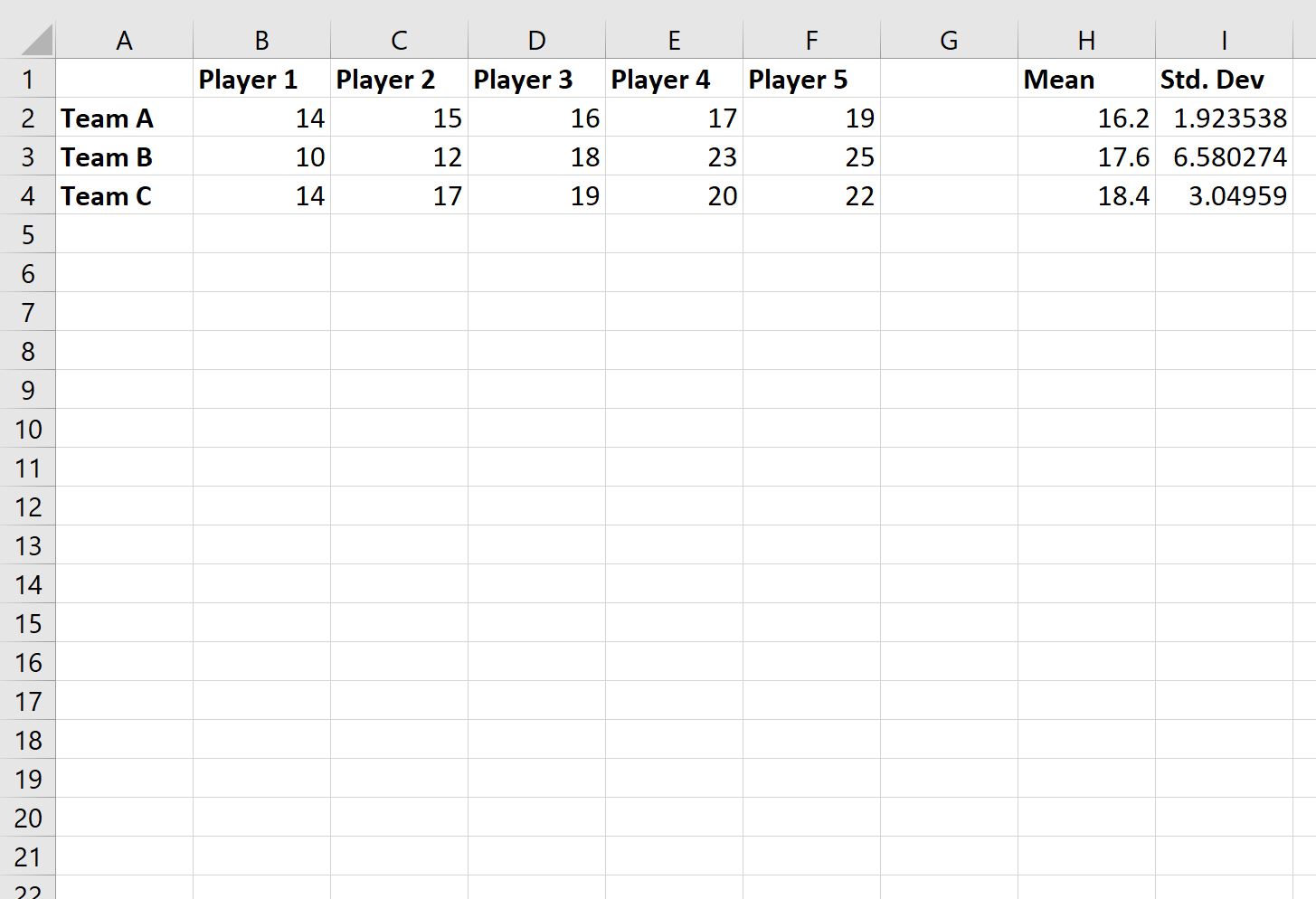

Excel streamlines these calculations through the use of powerful, built-in functions. To prepare for these statistics, introduce two new, dedicated columns adjacent to your raw data, labeling them clearly as “Mean” and “Standard Deviation.” You will then apply the relevant formulas to the corresponding range of scores for each team. Upon successful calculation, your extended table should resemble the illustration below, displaying the derived statistics for Team A, Team B, and Team C side-by-side with the raw scores.

For clarity, the precise Excel formulas used to derive these statistical values for the first team (Team A), assuming the data starts in row 2, are listed here:

• To calculate the mean, input this function into Cell H2: =AVERAGE(B2:F2)
• To calculate the standard deviation, input this function into Cell I2: =STDEV(B2:F2)

A major efficiency benefit of using Excel is the ability to quickly extrapolate these calculations. After entering these formulas for the first team, simply select cells H2 and I2. Then, grab the small green square located at the bottom-right corner of the selection—known as the fill handle—and drag it downwards. This action automatically populates the formulas for the subsequent rows, simultaneously adjusting the cell references (e.g., from B2:F2 to B3:F3), thereby guaranteeing accurate mean and standard deviation calculations for every team in your statistical analysis.

Step 3: Visualizing the Mean and Standard Deviation

The transition from numerical data to graphical representation is the most effective way to communicate your findings. In this step, we will construct a column chart to visualize the mean scores, and critically, we will then append Error Bars to graphically depict the standard deviation for each team. This integration allows for an immediate and powerful comparison of both central performance and the associated spread.

3.1 Establishing the Base Column Chart

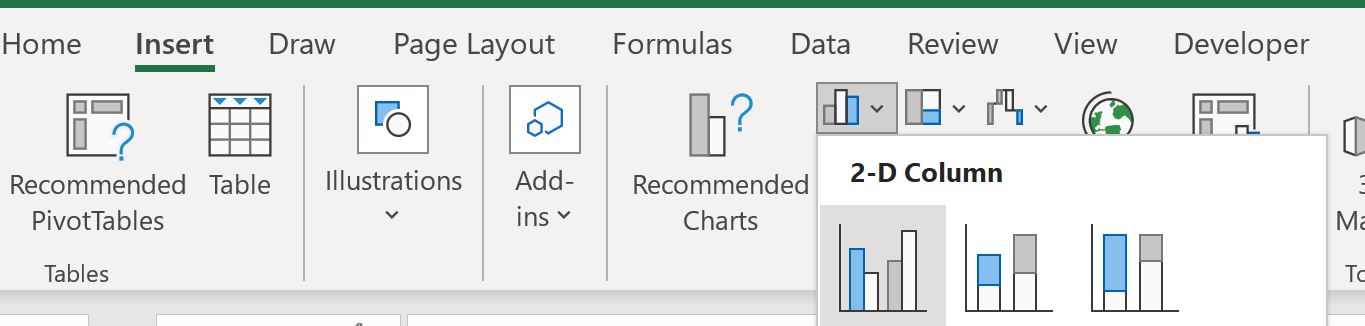

To initiate the chart creation process, select only the range containing your newly calculated mean values. According to our example structure, this corresponds to the cell range H2:H4. With the data selected, navigate to the Insert tab located on the main Excel ribbon. Within the Charts grouping, select the icon designated for a Clustered Column chart. Executing this step generates the foundational graphical representation, where the height of each bar is directly proportional to the mean score of the respective team.

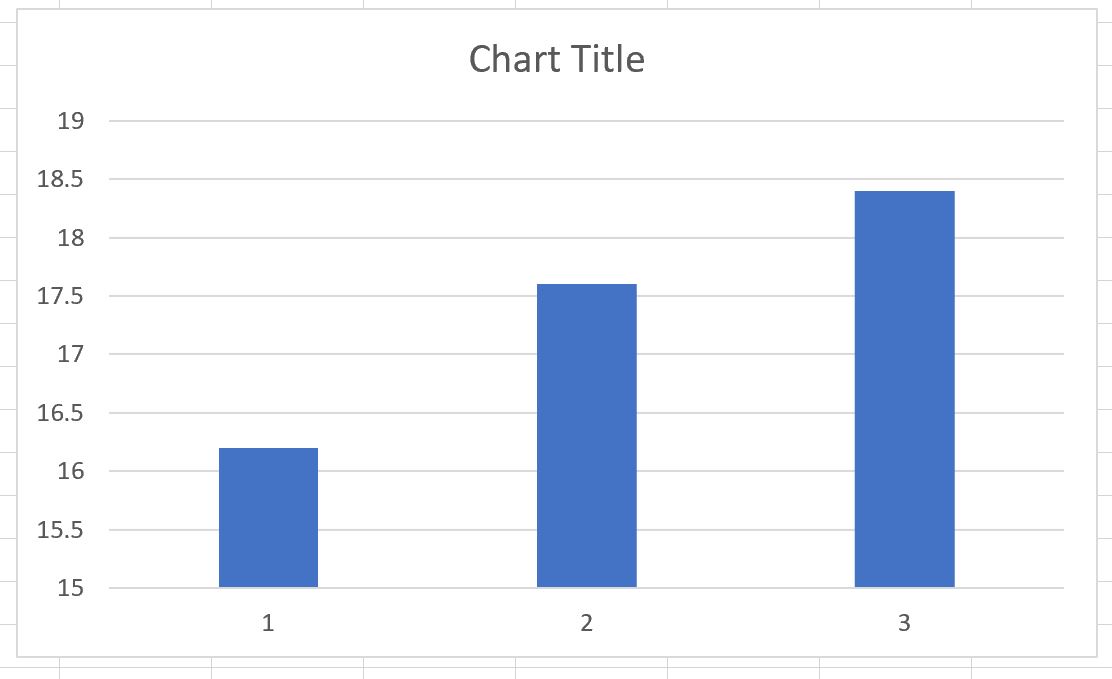

The resulting bar chart will instantaneously populate your worksheet. This initial visual structure provides an immediate comparative overview of the average points scored by each team, setting the stage for the inclusion of variability metrics.

3.2 Integrating Custom Error Bars for Standard Deviation

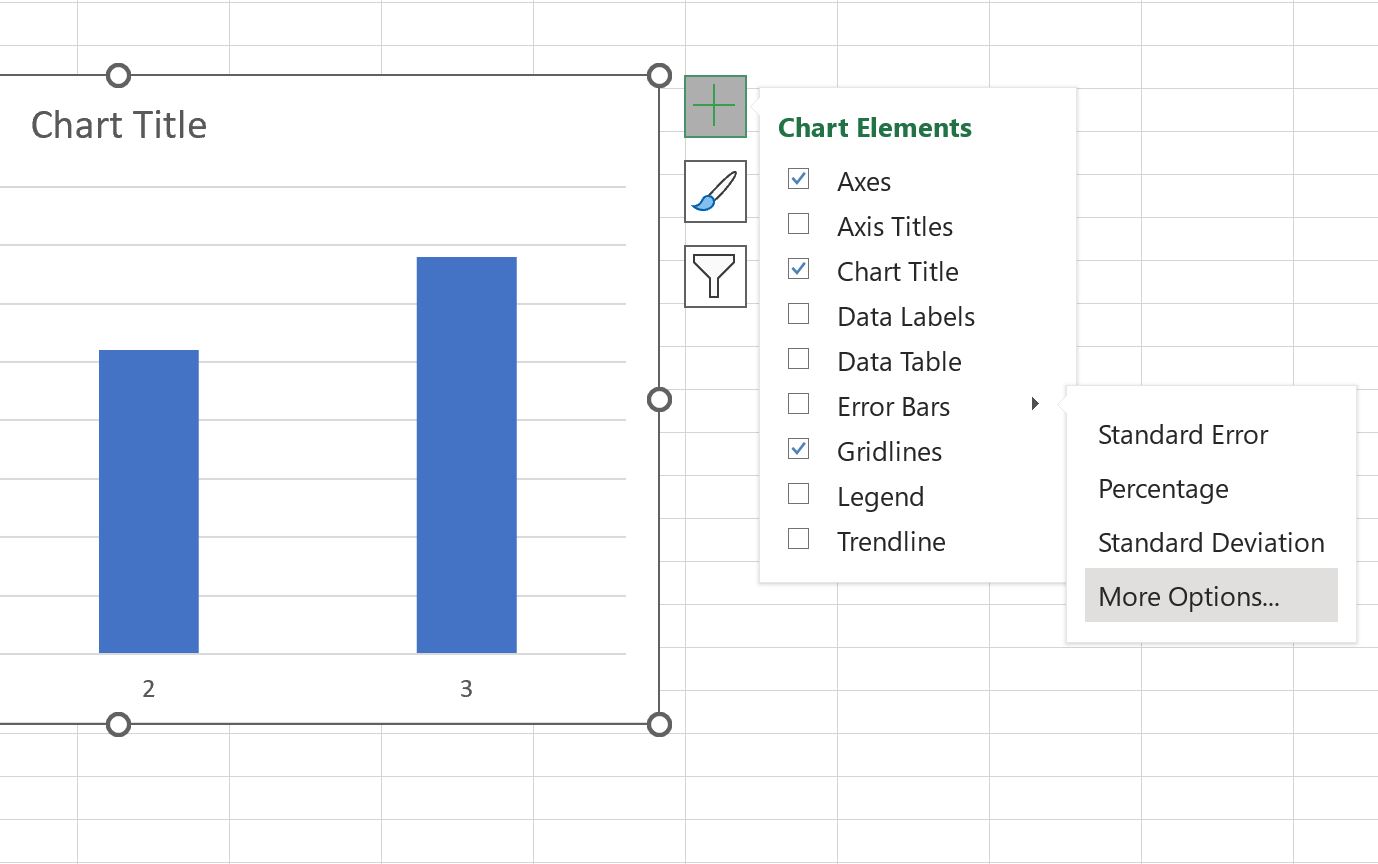

The critical next step is enhancing the visual by incorporating Error Bars, which are indispensable for correctly illustrating the magnitude of the standard deviation. First, select the existing chart. Next, locate the “Chart Elements” button (represented by a plus sign icon) positioned near the upper-right corner of the chart area. Click this icon and ensure the checkbox corresponding to Error Bars is selected. This initial selection typically adds default, often irrelevant, error bars to the visualization.

To customize these default representations to accurately reflect your calculated standard deviations, click the small arrow adjacent to Error Bars within the Chart Elements menu. From the subsequent options, choose More Options…. This action will prompt Excel to open the dedicated “Format Error Bars” task pane on the right side of your screen, granting granular control over their appearance and values.

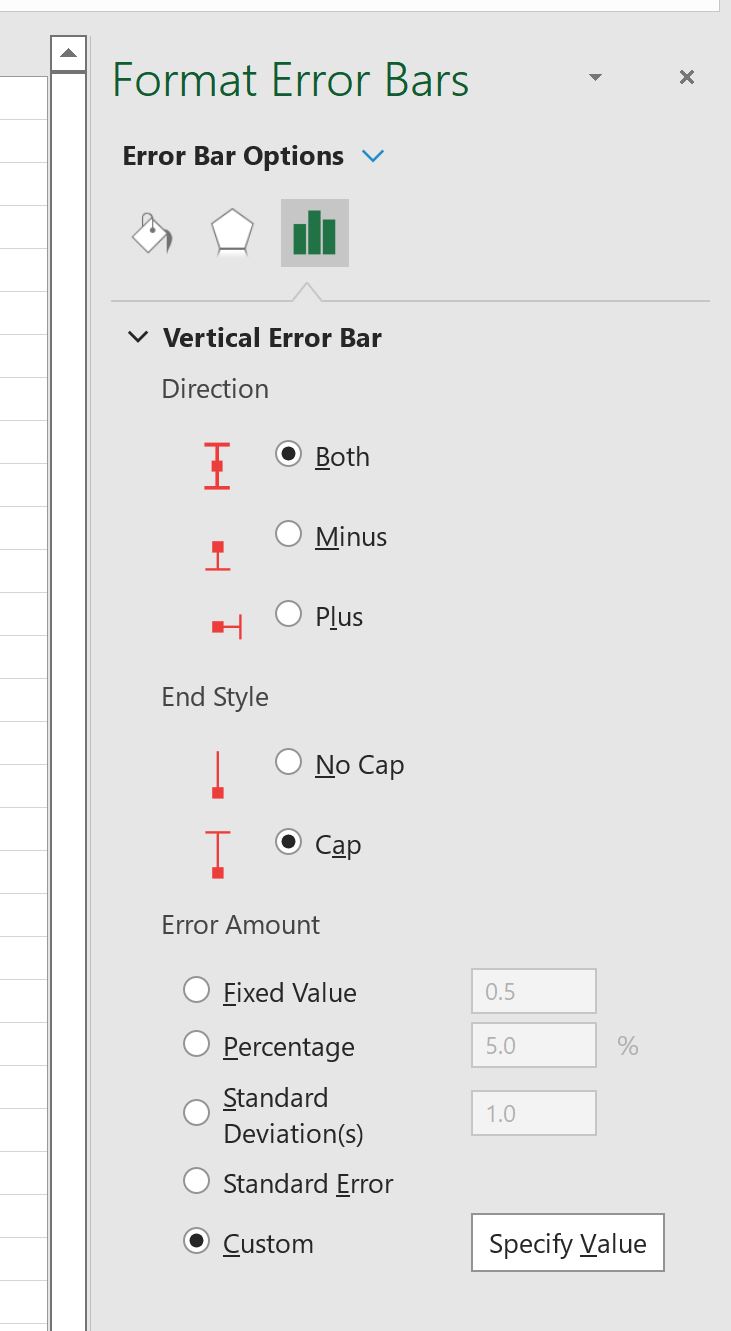

Within the “Format Error Bars” panel, confirm that you are viewing the “Error Bar Options” tab (the icon resembling a bar chart with an error line). Scroll down to the Error Amount section. Here, you must select the Custom radio button, followed immediately by clicking the Specify Value button. This sequence prepares Excel to accept the manual input of the specific standard deviation ranges you previously calculated.

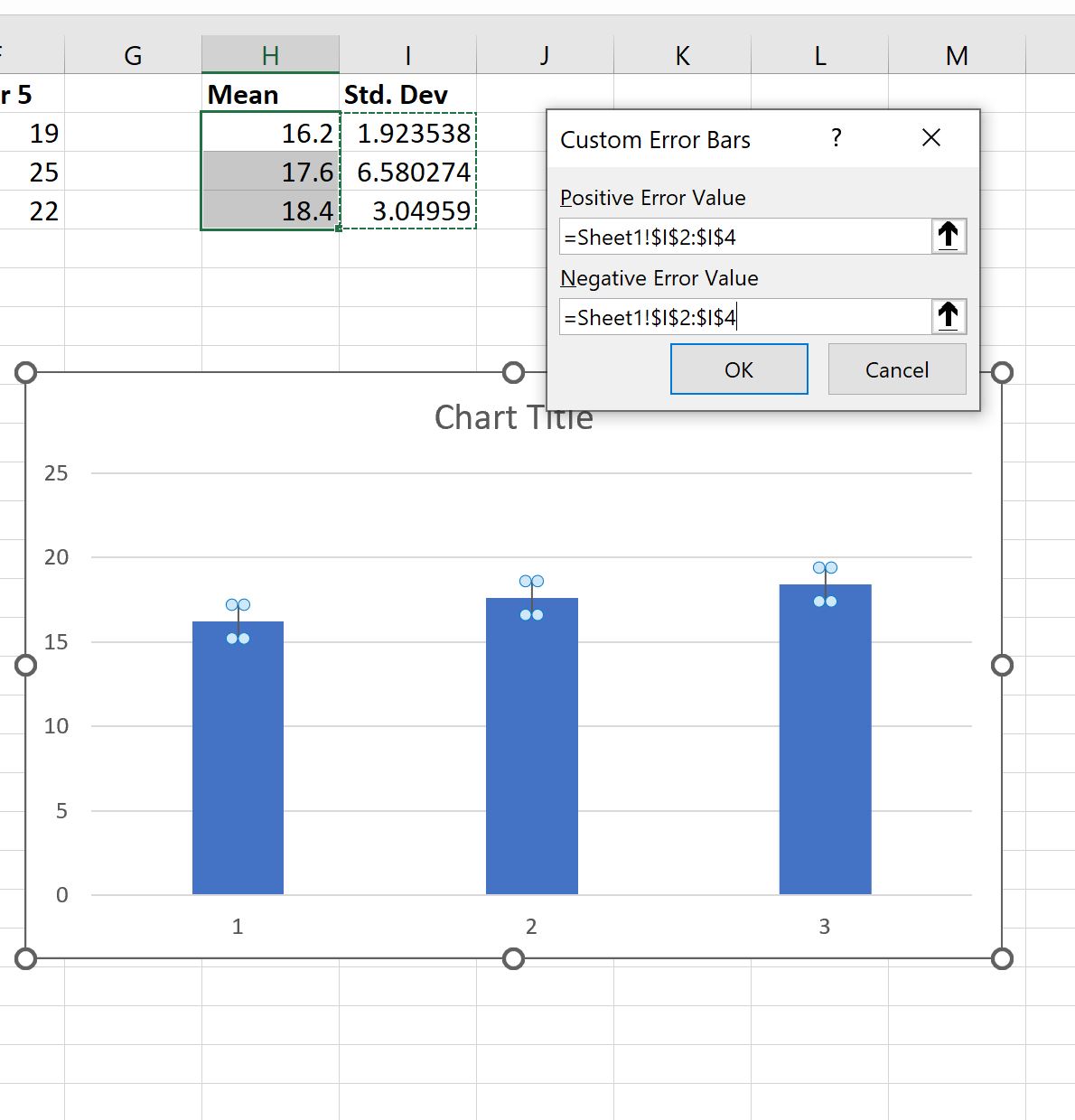

A new input window titled “Custom Error Bars” will appear. For both the Positive Error Value field (the upper bound) and the Negative Error Value field (the lower bound), you must select the exact cell range I2:I4. This range contains your calculated standard deviations. By specifying this range for both positive and negative values, you ensure that the error bars extend symmetrically above and below the mean, accurately representing the spread of scores for each team.

After clicking OK to confirm your selection, the customized Error Bars, scaled precisely to your standard deviations, will be seamlessly integrated into each column on the chart. This action fundamentally completes the statistical visualization, providing a dual representation of both central tendency and variability in one coherent graphic.

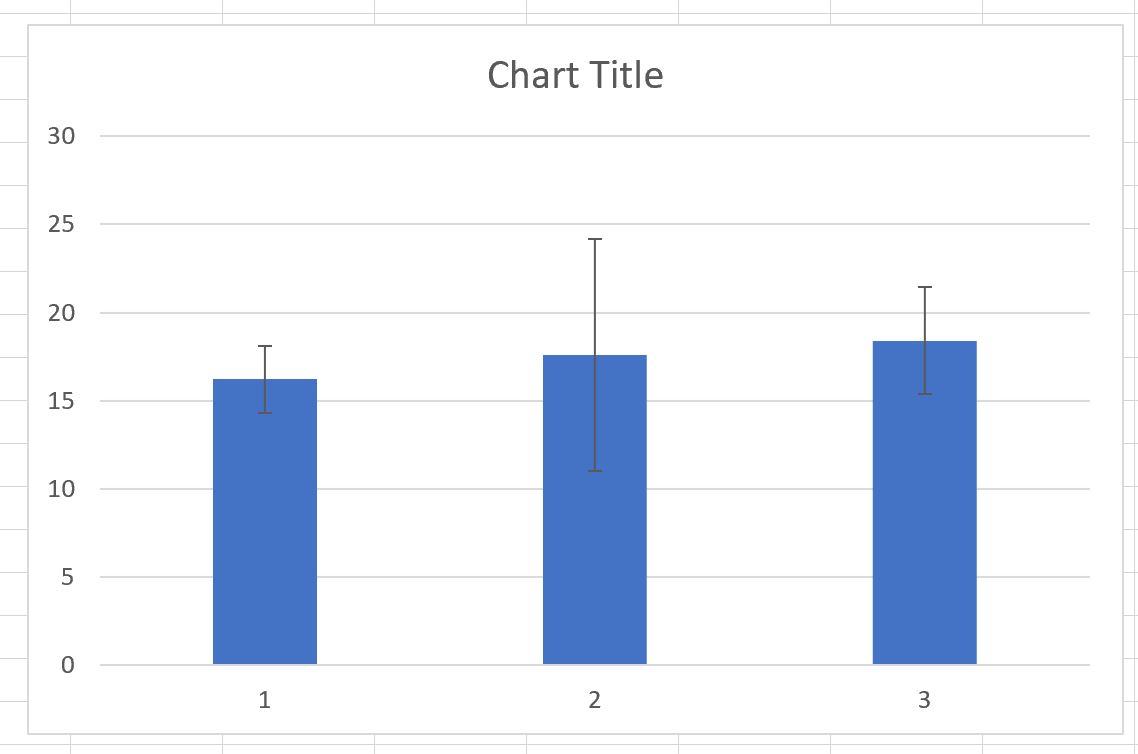

In the resulting graphical output, the peak of each blue column precisely marks the average (or mean) points scored by the corresponding team. The slender black lines extending vertically from these bars, the Error Bars, visually represent one standard deviation unit above and below the mean. Interpreting this visualization is straightforward: a longer error bar indicates a significantly greater spread or variability in scores within that team, while a shorter bar suggests higher consistency and tighter clustering of performance metrics around the mean.

Step 4: Refinement and Professional Customization

Although the chart now contains all the necessary statistical information, the final stage involves customization to maximize readability and ensure a professional aesthetic suitable for formal reports or presentations. Excel provides a comprehensive suite of formatting tools designed to help you tailor the chart to meet specific visual standards and audience needs.

Essential refinements include adding a descriptive and highly informative chart title, such as “Comparative Mean Points and Standard Deviation per Team,” which instantly conveys the chart’s primary objective. Furthermore, meticulous labeling of both the horizontal (Category) and vertical (Value) axes (e.g., “Team” and “Points Scored”) is paramount. These labels eliminate ambiguity and ensure that your audience can effortlessly interpret the visualized metrics.

Beyond titles and labels, consider adjusting elements such as the column colors, modifying the font styles and sizes for better legibility, or altering the background and gridlines to align with your organization’s design standards. These seemingly minor adjustments contribute significantly to the overall impact and clarity of your data visualization. The fully polished and refined chart, ready for submission or presentation, should closely resemble the exemplary final product shown below.

Ultimately, a well-designed statistical chart serves a dual purpose: it not only accurately conveys complex information but also makes that information instantly accessible and engaging for the viewer, effectively transforming raw numerical calculations into compelling and actionable insights.

Conclusion: Mastering Statistical Visualization in Excel

Successfully plotting the mean and standard deviation in Excel represents a highly effective and versatile technique for performing group comparisons and gaining a deeper understanding of score distribution. By meticulously following the preparation, calculation, and visualization steps outlined in this guide, you can consistently produce visually informative and statistically sound charts that significantly enhance your data analysis and presentation capabilities. This methodology is universally applicable across numerous domains—from rigorous scientific research and educational assessment to detailed business and financial reporting—whenever comparing groups while accounting for inherent variability is essential.

We encourage those seeking to further advance their proficiency in Excel and specialized statistical analysis to explore additional resources and tutorials. Expanding your knowledge base in data manipulation and advanced visualization techniques within Excel will cement your status as a proficient data communicator.
