Excel: Plot Time Over Multiple Days

Effectively visualizing time values that span across multiple days in Excel is an essential capability for anyone seeking to understand chronological trends and complex patterns in their operational data. Whether you are rigorously tracking sales cycles, monitoring continuous sensor readings, or analyzing intricate operational metrics, a precise graphical representation is invaluable. Raw tabular data often obscures critical insights, but a well-constructed chart can immediately highlight anomalies, growth phases, and cyclical behavior. This comprehensive guide will meticulously walk you through the exact procedures required to transform disparate date and time entries into a single, chronologically accurate data stream, culminating in a powerful time-series visualization, similar to the final example presented below.

By adhering to this step-by-step tutorial, you will gain proficiency in preparing your raw data, strategically manipulating spreadsheet cells, and configuring advanced chart settings. This technique is specifically designed to accurately plot time-series data where the specific hour and minute of an event are just as critical for analysis as the day on which it occurred. Mastering this combination of data management and charting ensures that your analysis is both robust and highly informative.

Step 1: Structuring and Preparing Raw Data for Chronological Analysis

The integrity of any high-quality data visualization in Excel rests entirely on the meticulous preparation of the source data. For this demonstration, we will utilize a simulated scenario involving retail sales figures recorded at specific intervals across several days. Plotting this type of data chronologically presents a unique challenge, as Excel must correctly interpret both the date component (the day) and the time component (the hour/minute) simultaneously to maintain proper sequence. If these elements are treated separately, the resulting chart will fail to represent the continuous timeline accurately.

To begin, you must input your raw observations into an Excel worksheet. It is a fundamental best practice to initially separate the date and time components into distinct columns. For example, dedicate column A strictly for the date of the observation and column B for the exact time the observation or event occurred. The quantitative measure you wish to plot—in this case, the number of sales—should reside in a third column, such as column D. This structured input allows for greater control during the manipulation phase, ensuring that Excel correctly recognizes and processes each component.

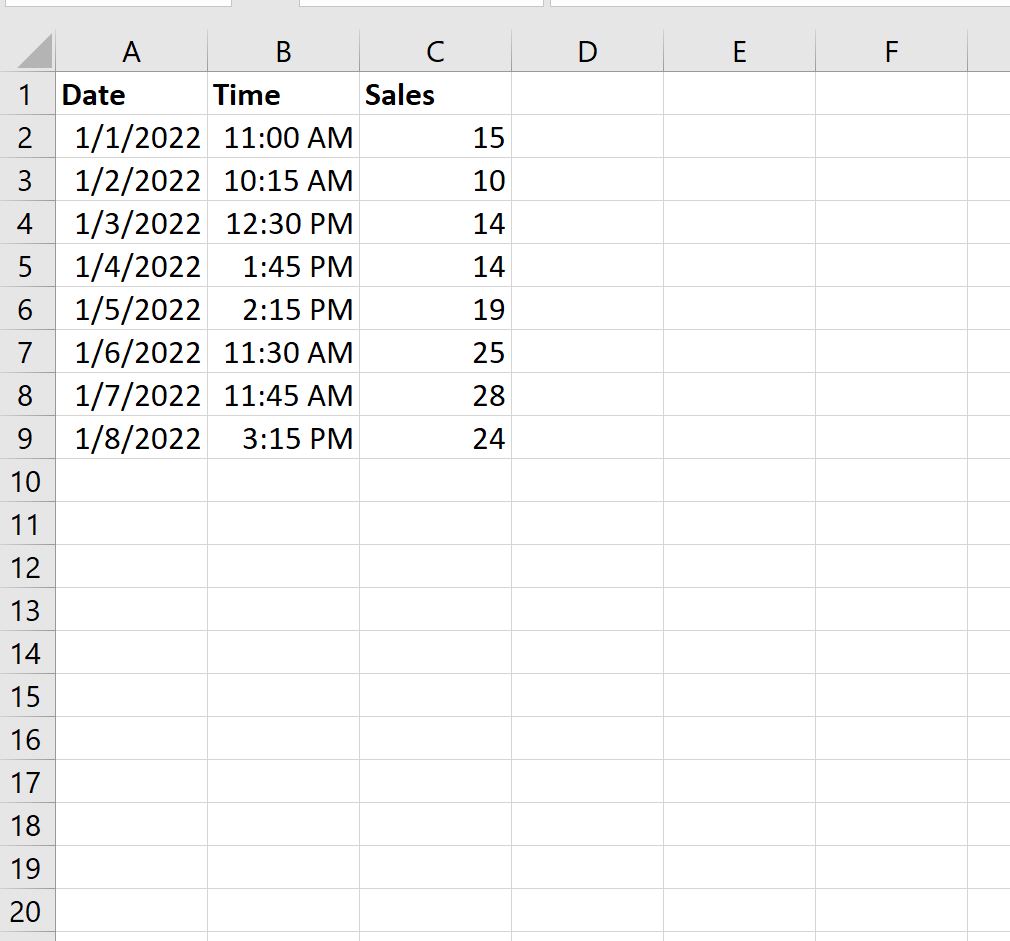

The data structure should closely mirror the table illustrated below, which tracks various sales observations throughout a multi-day period. Notice how the date and time entries are clearly separated, preparing them for the subsequent combination step. This initial separation is crucial because it prevents Excel from making assumptions about the data type before you explicitly combine them using a specific mathematical operation.

Having your date and time in distinct columns, such as column A for the date and column B for the time, is a common and recommended practice. This separation allows for greater flexibility in data manipulation and ensures that Excel correctly interprets each component before they are combined for plotting. The sales figures, in this case, would reside in a third column, ready to be plotted against the combined date-time sequence.

Step 2: Unifying Date and Time into a Single Chronological Value

To allow Excel to properly interpret your data as a continuous timeline suitable for chronological plotting, it is absolutely essential to merge the separate date and time fields into a single, unified data point. This process relies on Excel’s internal method of handling date and time values. Excel stores dates as integers, counting the number of days elapsed since January 1, 1900. Conversely, it stores time values as decimal fractions, where 0.5 represents noon (half a day). Because both components are stored numerically, they can be mathematically added together to form a unique numerical value representing a specific moment in time (date + time).

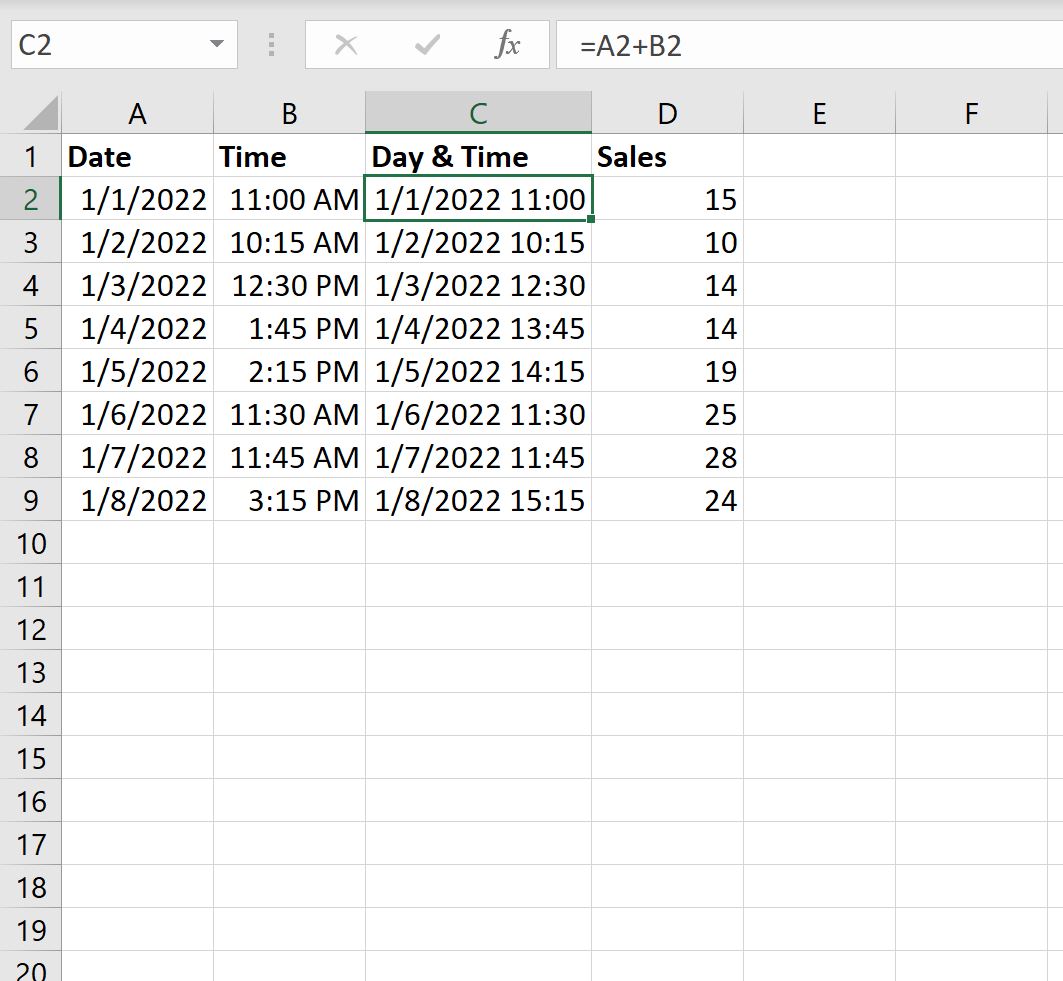

In an empty cell—we will use C2 for this example—input the following straightforward formula:

=A2+B2

This simple addition leverages the underlying numerical structure of Excel’s time system. By summing the integer value of the date in cell A2 and the decimal fraction value of the time in cell B2, you generate a precise numerical identifier for that specific observation. After typing the formula into C2, press Enter. Initially, the result might appear as a large numerical value or a default, generic date format, which is expected at this stage.

To efficiently apply this calculation across your entire dataset, utilize the fill handle. Click on cell C2, then click and drag the small square located at the bottom-right corner of the cell down to the last row containing data. Alternatively, if column D is populated, a quick double-click on the fill handle will instantly propagate the formula. This action will populate Column C with the combined date-time numerical values, ensuring every row has its unique chronological identifier, as visually confirmed in the image below.

Step 3: Applying Custom Formatting for Readability

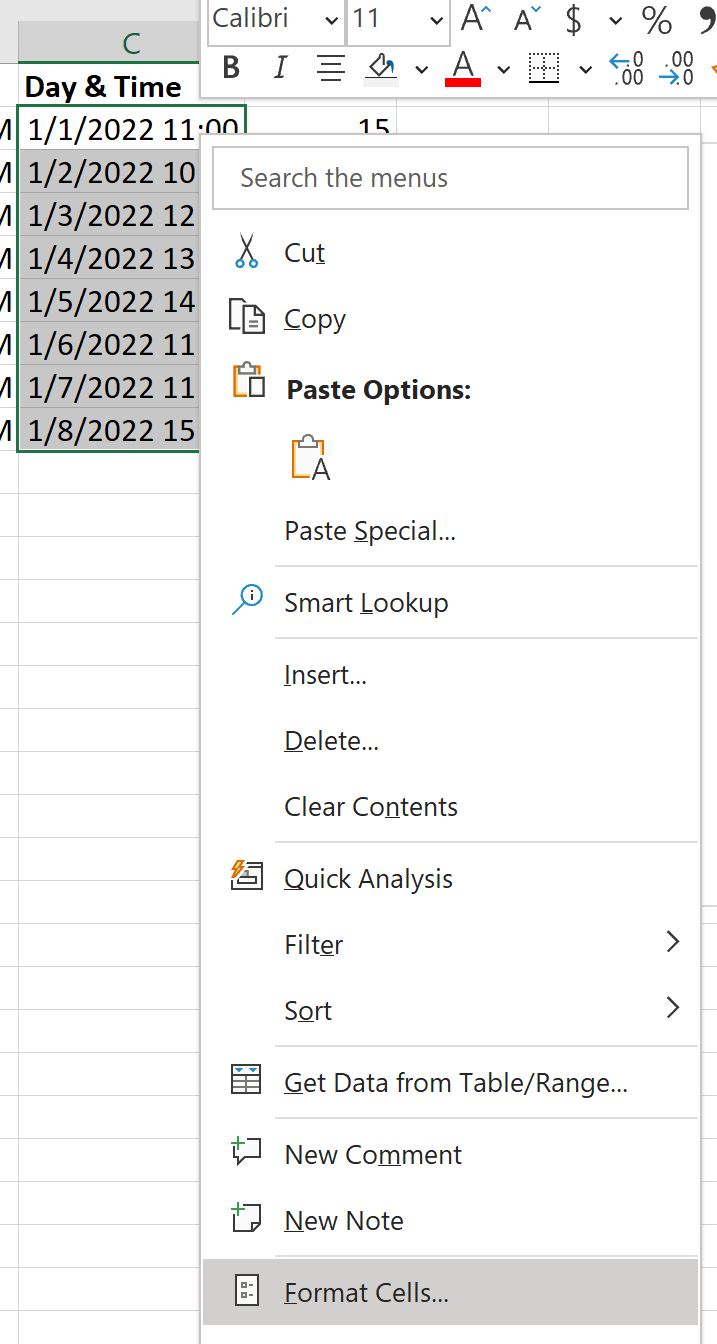

Although the combined values in Column C are mathematically correct, their current numerical or generic display format is suboptimal for human readability and analytical presentation. To ensure these critical chronological points are displayed clearly and intuitively, we must apply a specific custom format. Begin by selecting the entire range of cells that contain your newly combined date-time values (e.g., C2:C9). Right-click anywhere within the selected range, and choose the Format Cells… option from the context menu. This action opens the powerful Format Cells dialog box, which provides extensive control over how numerical data is displayed.

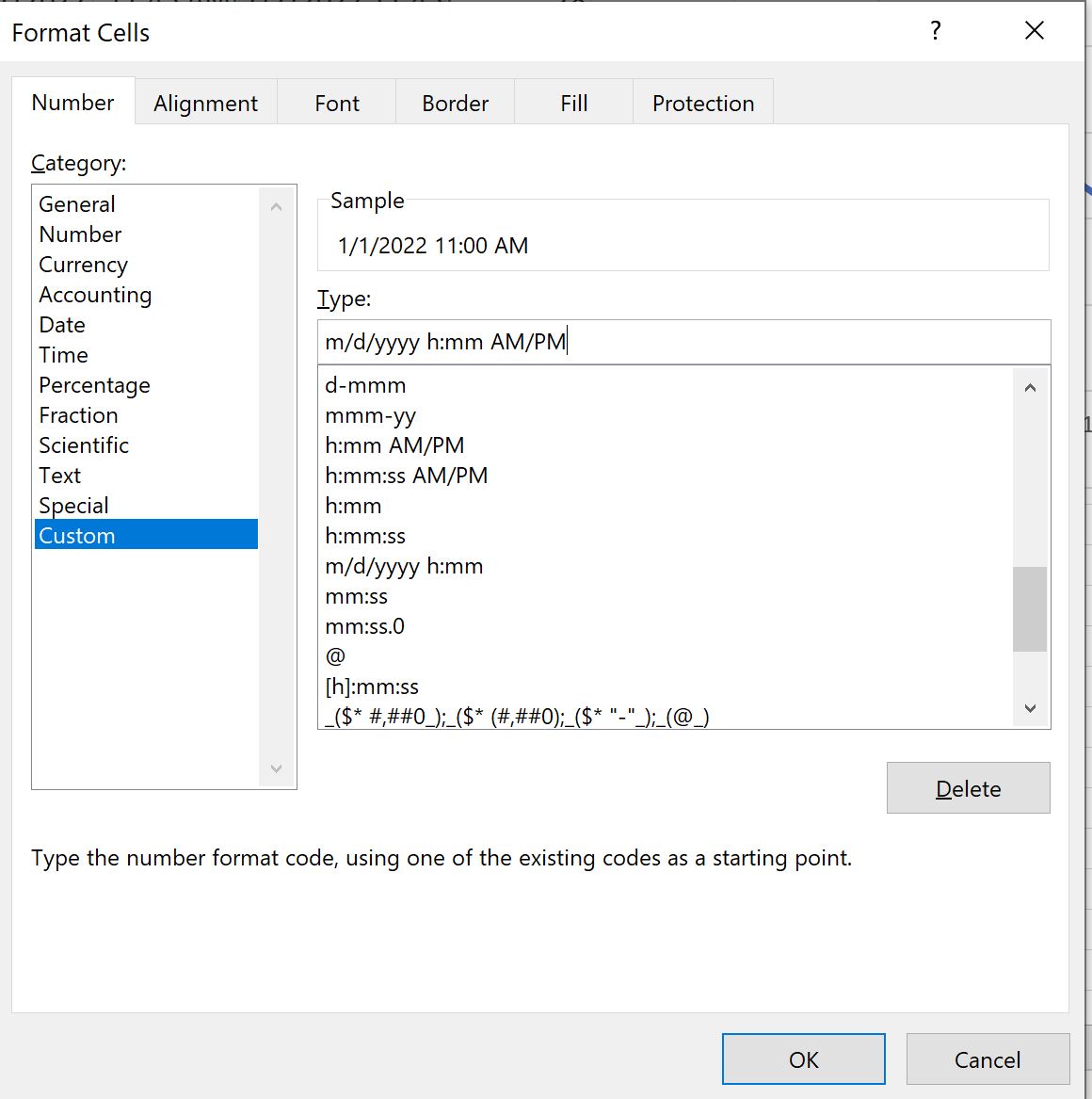

Inside the Format Cells dialog box, navigate to the Number tab and select Custom from the list of categories. In the Type input field, enter the following specific custom format string: m/d/yyyy h:mm AM/PM. This particular string is designed to provide maximum clarity: ‘m/d/yyyy’ displays the full date, while ‘h:mm AM/PM’ ensures the time is shown with minutes and an essential 12-hour indicator. This level of detail is paramount when plotting data points that are close together chronologically across different days.

m/d/yyyy h:mm AM/PM

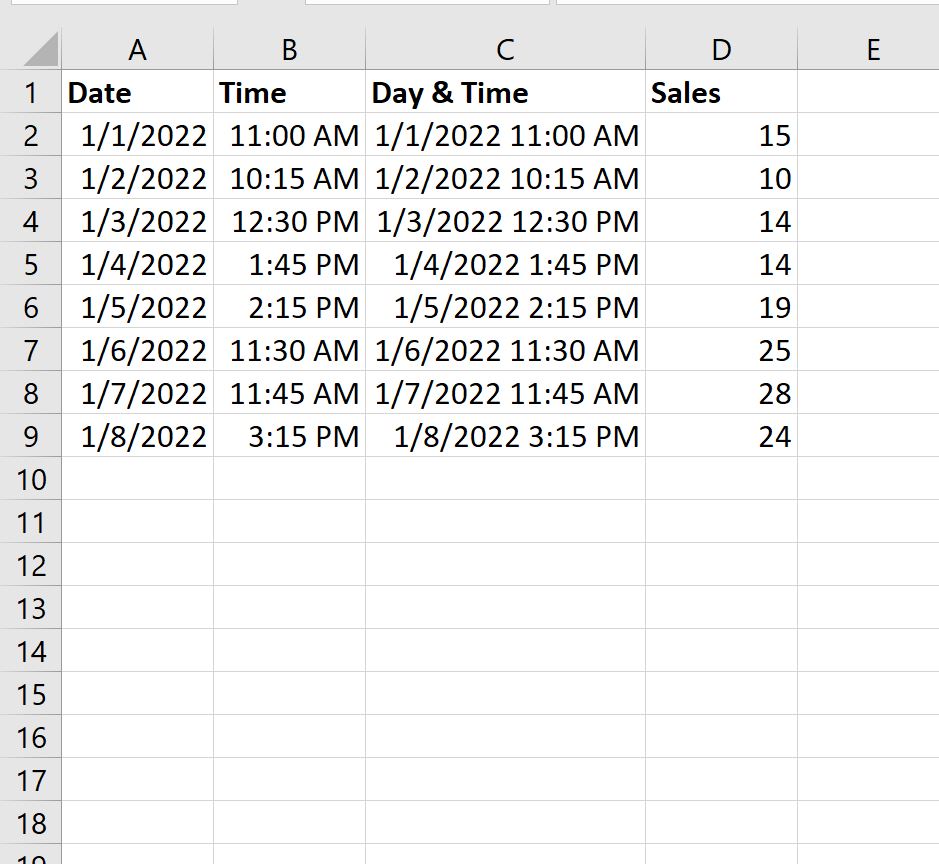

After clicking OK, the cells in Column C will immediately refresh, displaying the combined date and time in the specified, highly readable custom format. Each entry now clearly delineates the specific day and the precise time of the observation. This formatted column is now perfectly prepared to serve as the independent variable (the time axis) for your time-series visualization, ensuring accurate chronological sequencing.

Step 4: Generating the Initial Line Chart Visualization

With the combined date and time data now accurately calculated and formatted in Column C, the next step is to introduce the visual component by creating a line chart. This specific chart type is universally recognized as the best method for visualizing data trends over a continuous timeline, making it the perfect choice for tracking fluctuations in sales across specific hours spanning multiple days. Line charts excel at illustrating progression, identifying volatility, and highlighting overall patterns or anomalies within the dataset.

To initiate the chart creation process, you must carefully select the entire range of data that includes both the independent variable (the combined date-time values) and the dependent variable (the sales figures). Based on our example structure, this selection should encompass the range from cell C2 through D9. Ensuring the correct range is selected is paramount, as this tells Excel exactly which values to plot and against which axis.

Once the data range is highlighted, navigate to the Insert tab located on the Excel ribbon. In the Charts group, click on the **Insert Line or Area Chart** icon, and select the basic 2-D Line chart option, typically presented as the first selection. Excel will immediately generate a preliminary chart. While this initial visualization correctly plots the sales data, you may observe that the X-axis labels are not yet displaying the granular date and time detail that we formatted in the previous step, often showing generic date intervals instead.

This output provides a strong foundation, but for accurate time-series analysis spanning multiple days, we need to enforce the specific chronological labels we created. The final crucial step involves configuring the X-axis type to ensure it respects the custom formatting and sequence of your combined date-time entries, thereby maximizing the analytical utility of the visualization.

Step 5: Customizing the X-Axis for Granular Time Display

The most common hurdle when plotting time data across multiple days is ensuring the horizontal axis (the X-axis) accurately reflects every single observation point. If left to default settings, Excel often attempts to treat the combined date-time values as a continuous “Date axis,” leading to automatic intervals that might skip specific times or days, resulting in a misleading graph. To gain precise control and display the custom format we established in Step 3, we must manually refine the axis settings.

To begin this refinement, right-click directly on any of the values or labels currently displayed along the X-axis of your newly created chart. A context menu will appear; select the Format Axis… option. This action opens the dedicated Format Axis pane, typically located on the right side of the Excel interface, providing access to all configurable properties of the selected axis.

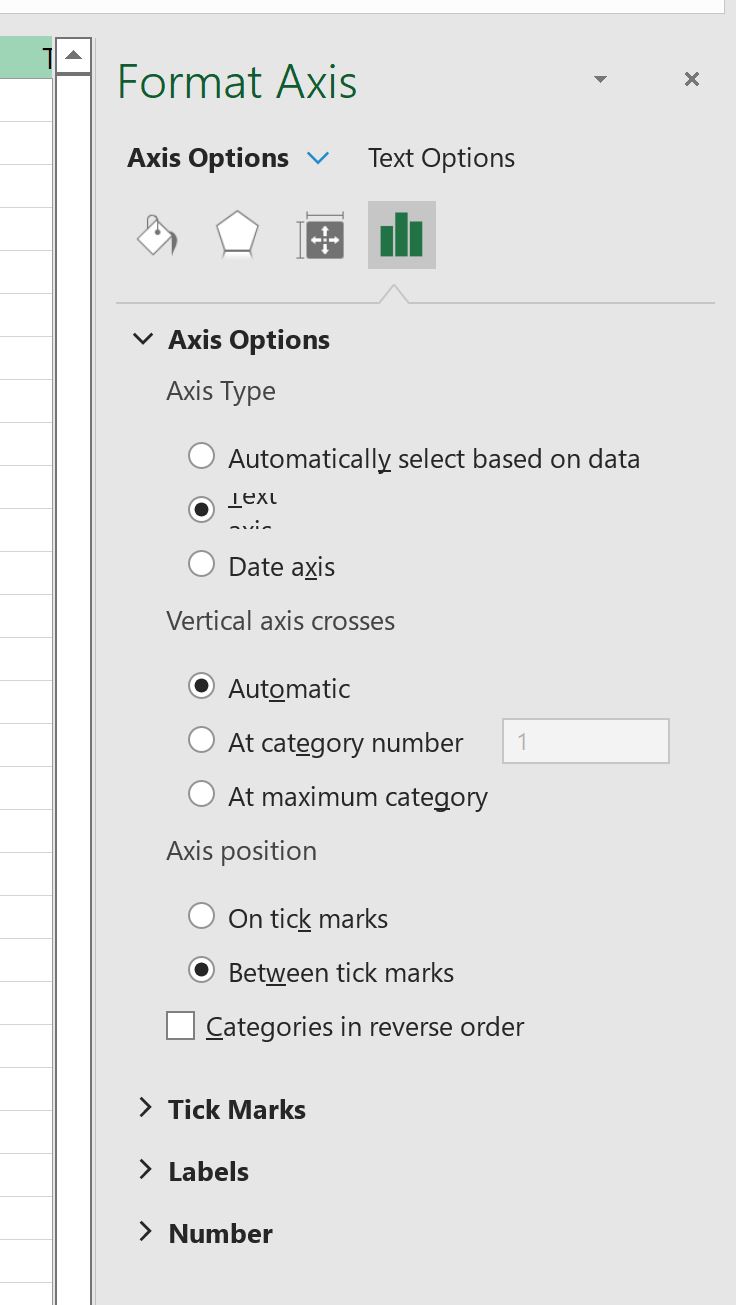

Within the Format Axis pane, locate and select the Axis Options tab, which is often represented by a column chart icon. Scroll down to the section defining the axis type. Crucially, you must change the axis setting from its current state (likely “Automatic” or “Date axis”) to Text axis. By selecting the Text axis option, you are instructing Excel to treat each combined date-time value as a distinct, ordered label rather than attempting to scale them based on numerical time intervals. This ensures that every single data point is plotted sequentially and labeled precisely according to your custom format.

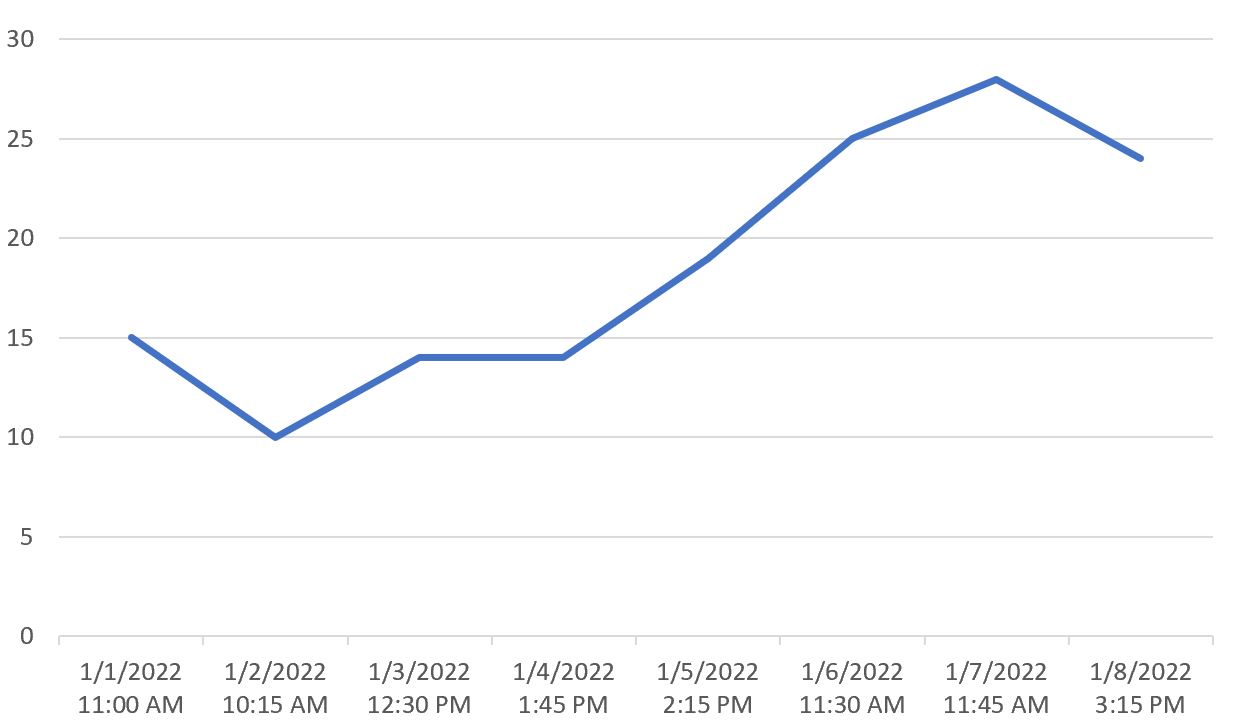

Upon selecting the Text axis option, the chart will immediately update. The X-axis labels will now accurately and clearly display the exact date and time (m/d/yyyy h:mm AM/PM) for each corresponding sales observation, precisely reflecting the custom format applied in Step 3. This final, highly granular visualization allows for clear identification of trends, fluctuations, and peak activity across the entire multi-day period.

Conclusion: Mastering Multi-Day Time-Series Visualization

Successfully generating a detailed line chart that accurately plots time-series data spanning multiple days in Excel is a fundamental skill that significantly elevates data analysis capabilities. This process is far more nuanced than simple plotting, requiring specific knowledge of how Excel handles numerical date and time values, coupled with precise axis configuration. By diligently following the required sequence—from ensuring separate data input to merging the date and time components via addition, and finally, switching the axis type—you successfully transform raw data into a compelling and actionable visual report.

The ability to clearly view granular trends, such as sales performance hour-by-hour across several consecutive days, unlocks a deeper level of analytical insight. This method is indispensable for identifying high-frequency patterns, analyzing the immediate impact of marketing campaigns, tracking resource utilization fluctuations, or monitoring performance inconsistencies. The clarity provided by this robust visualization technique allows decision-makers to react swiftly and accurately to observed data anomalies.

This comprehensive approach ensures that your visualization is not just aesthetically pleasing but also chronologically sound, with every data point precisely mapped to its moment in time. Mastering these Excel techniques provides the necessary foundation for advanced data analysis and professional reporting, significantly boosting your capacity to derive meaningful and reliable insights from complex operational datasets.

Further Exploration and Advanced Charting Techniques

To further solidify your proficiency in spreadsheet analysis and explore the full potential of advanced data visualization in Excel, we highly recommend delving into additional specialized tutorials and resources. The techniques covered here represent the foundation for time-series plotting, but Excel offers a wealth of tools for enhancing presentation and interactivity.

Expanding your knowledge base in the following areas will allow you to handle increasingly complex data challenges and create highly professional, dynamic reports:

• Understanding and utilizing different chart types for diverse data sets.
• Advanced formatting options for axes, data labels, and chart titles.
• Working with large datasets and implementing dynamic ranges for charts.
• Exploring functions related to date and time for more complex calculations.
• Techniques for creating interactive dashboards and reports in Excel.
