Learn How to Display Percentages in Excel Stacked Column Charts

In the professional world of data analysis and clear presentation, the ability to effectively visualize proportional data is absolutely essential for conveying actionable business insights. A particularly robust and frequently utilized method involves constructing a stacked column chart within Microsoft Excel. While Excel expertly generates these charts to illustrate the overall magnitude of quantities, explicitly embedding percentage labels within each individual segment dramatically enhances the clarity and interpretability of the data. This crucial addition allows stakeholders and decision-makers to rapidly and accurately grasp the proportional contribution of every component relative to the overall total, moving analysis beyond simple visual estimation to quantitative certainty.

This comprehensive, step-by-step tutorial is specifically structured to guide both seasoned analysts and advanced novices through the precise, technical process required to generate a high-impact stacked column chart that incorporates accurate percentage labels directly within each bar segment. This sophisticated technique is often overlooked but transforms standard raw numerical data into a compelling visual narrative, similar to the professional example illustrated below, showcasing segment proportions with exceptional precision and communicative power necessary for high-stakes reporting.

We will meticulously delve into the practical and technical steps necessary to achieve this advanced level of data visualization in Excel. Our goal is to ensure that your data narratives are fundamentally accurate, compliant with analytical best practices, and immediately understandable to a broad and diverse audience.

Step 1: Structuring and Preparing the Source Data

The foundation of any successful complex chart, particularly one involving proportional calculations, rests entirely upon the quality and meticulous organization of the underlying data structure. For the detailed purpose of this demonstration, we will establish a robust working dataset tracking hypothetical quarterly sales figures that are distributed across four distinct retail regions. This specific data structure is ideally suited for a stacked column chart, as it enables us to clearly visualize the proportional contribution of each individual region to the cumulative total sales volume achieved within any specific quarterly period.

To begin this process, the analyst should open a new, clean worksheet in Microsoft Excel. Input the raw data meticulously, ensuring that the layout precisely mirrors the tabular structure presented below. It is critical to define clear and concise column headers (e.g., Quarter 1, Quarter 2) and row labels (e.g., Region 1, Region 2), as these descriptive titles will be automatically adopted by Excel to populate your chart’s axis labels and legend entries. Maintaining absolute precision during this initial data entry phase is paramount, as errors introduced here will compound and complicate subsequent calculation and chart generation steps.

This organized tabular format serves as the foundational bedrock for our entire multi-stage analysis. Once your sales data is accurately entered and mirrors the provided example, we can confidently proceed to the next essential phase: calculating the precise proportional contributions of each segment relative to the quarterly totals, which is the key metric we aim to visualize.

Step 2: Calculating Proportional Percentage Contributions

Following the successful structuring and entry of the raw sales data, the next critical phase involves transforming these absolute monetary values into meaningful proportional figures. To achieve the objective of displaying percentage labels directly on our stacked column chart, we must first calculate the precise percentage contribution of each region’s sales relative to the total sales volume accomplished in its respective quarter. This calculation generates the necessary secondary data set that will serve as the source for our chart labels, providing immediate, quantitative clarity alongside the visual bars.

To maintain crucial data integrity and organizational standards, it is best practice to create a new, dedicated section in your worksheet specifically for housing these percentage calculations, ideally starting from cell B7. Separating the raw input data from the derived metric data significantly enhances the auditability and clarity of your spreadsheet model. This disciplined approach ensures that any modifications, checks, or troubleshooting efforts can be performed efficiently without risking the corruption of the original raw sales figures.

The formula required to accurately compute the percentage for an individual sales figure against the total quarter sales must employ a carefully constructed expression utilizing mixed referencing. Navigate to cell B7, and input the following expression to calculate the proportion of Region 1 sales in Quarter 1:

=B2/SUM($B2:$E2)

Understanding the structure of this formula is fundamental to its efficient application across the entire dataset. The numerator, B2, represents the individual sales value for Region 1 in Quarter 1. The denominator utilizes the powerful SUM function to calculate the total sales for Quarter 1 across all regions. Crucially, the dollar signs used within the range $B2:$E2 denote absolute references for the columns (B and E), while the row (2) remains a relative reference. This sophisticated application of mixed references ensures that as the formula is dragged horizontally, the column range for the sum calculation remains fixed on the current quarter’s total, but when dragged vertically down, the row reference automatically adjusts (e.g., to row 3, 4, or 5) to correctly sum the corresponding quarter for each subsequent region. This feature allows for rapid and error-free calculation across the entire percentage matrix.

Once the formula is entered correctly into cell B7, you can efficiently populate the rest of your percentage table using the Excel fill handle. First, utilize the fill handle (the small square at the bottom-right corner of the cell) to drag the formula horizontally across cells C7, D7, and E7, applying the calculation to Quarters 2, 3, and 4. Next, select the entire calculated row (B7:E7) and drag the fill handle downwards to row 10. This action extends the calculations to Region 2, 3, and 4, completing the entire percentage table accurately.

With all proportional values successfully calculated, the final preparation step is to format them correctly for optimal readability and visualization. Currently, these values appear as decimal numbers (e.g., 0.25), which must be converted into the intuitive percentage format (e.g., 25%). To execute this essential formatting step:

1. Highlight the entire range of cells containing your calculated percentages, specifically selecting the range from B7 to E10.
2. Navigate to the Home tab located on Excel’s top ribbon interface.
3. Within the dedicated Number group, locate and click the % (Percentage Style) symbol. This action instantly converts all selected decimal values into percentages, automatically including the percent sign and, typically, two decimal places, which can be easily adjusted using the adjacent increase/decrease decimal buttons.

This crucial formatting step is essential because these are the exact values that will ultimately be displayed as data labels on your chart. Ensuring they are correctly presented now streamlines the final chart customization process and guarantees immediate comprehension for anyone reviewing your final visual output.

Step 3: Generating the Initial Stacked Column Chart Structure

With both the raw data and the calculated percentages meticulously prepared and formatted, the logical progression is to visualize the primary dataset by constructing the initial stacked column chart. This specific chart format is exceptionally effective for illustrating how individual components contribute to a total across various distinct categories, making it the ideal and correct choice for comparing regional sales contributions within each quarterly period.

To initiate the chart creation process in Microsoft Excel, follow these precise steps, focusing solely on selecting the raw sales figures, as this defines the scale and magnitude of the chart:

1. Select the Raw Data Range: Highlight the cell range encompassing your original sales data, specifically from A1 to E5. This vital range must include the quarter headers, the region row labels, and the absolute sales figures themselves. It is paramount that you select the raw data here, not the percentages, as this range defines the fundamental visual structure and vertical scale of your chart.
2. Access the Chart Insertion Tools: Navigate to the Insert tab, which is prominently located on the top ribbon of the Excel interface. This tab provides access to all tools necessary for embedding various objects, including charts, into your active worksheet.
3. Choose the Stacked Column Chart Type: Within the Charts group on the Insert tab, click the icon dedicated to column charts. From the resulting dropdown menu, select the option for a Stacked Column chart (usually the second option). Executing this step will instantly generate a basic stacked column chart on your worksheet, visually representing the absolute sales volumes for each region stacked appropriately within their respective quarters.

Although the chart now effectively visualizes the sales magnitudes and their relative sizes, it still critically lacks the proportional insight we aim to provide. The subsequent and most advanced steps are dedicated entirely to integrating the pre-calculated percentages as custom data labels, thereby transforming the chart into a complete, highly insightful, and fully analytical communication tool.

Step 4: Integrating Custom Percentage Labels into the Chart

The core objective of this entire procedure is the accurate display of percentage labels directly within every segment of your stacked column chart. This crucial step leverages an advanced Excel feature that allows you to link the chart’s data labels to the custom values derived from your percentage calculation table, rather than relying on the chart’s default raw data display. This functional enhancement dramatically increases the chart’s ability to communicate proportional information instantly and without ambiguity.

We will now execute the meticulous steps required to configure these custom data labels for each individual data series in your chart. This methodology ensures that your audience can immediately identify the exact proportional share contributed by each region to the quarterly total, eliminating the need for manual calculation or cross-referencing external tables, thus maximizing efficiency in reporting.

To begin the linking process, you must first access the specific formatting options for the data labels of a selected series. Follow these instructions carefully:

1. Select a Data Series: Click precisely on any segment of one of the stacked bars in your chart. For example, click on one of the yellow segments, which typically represents ‘Region 1’ sales. This action selects the entire corresponding data series for that region.

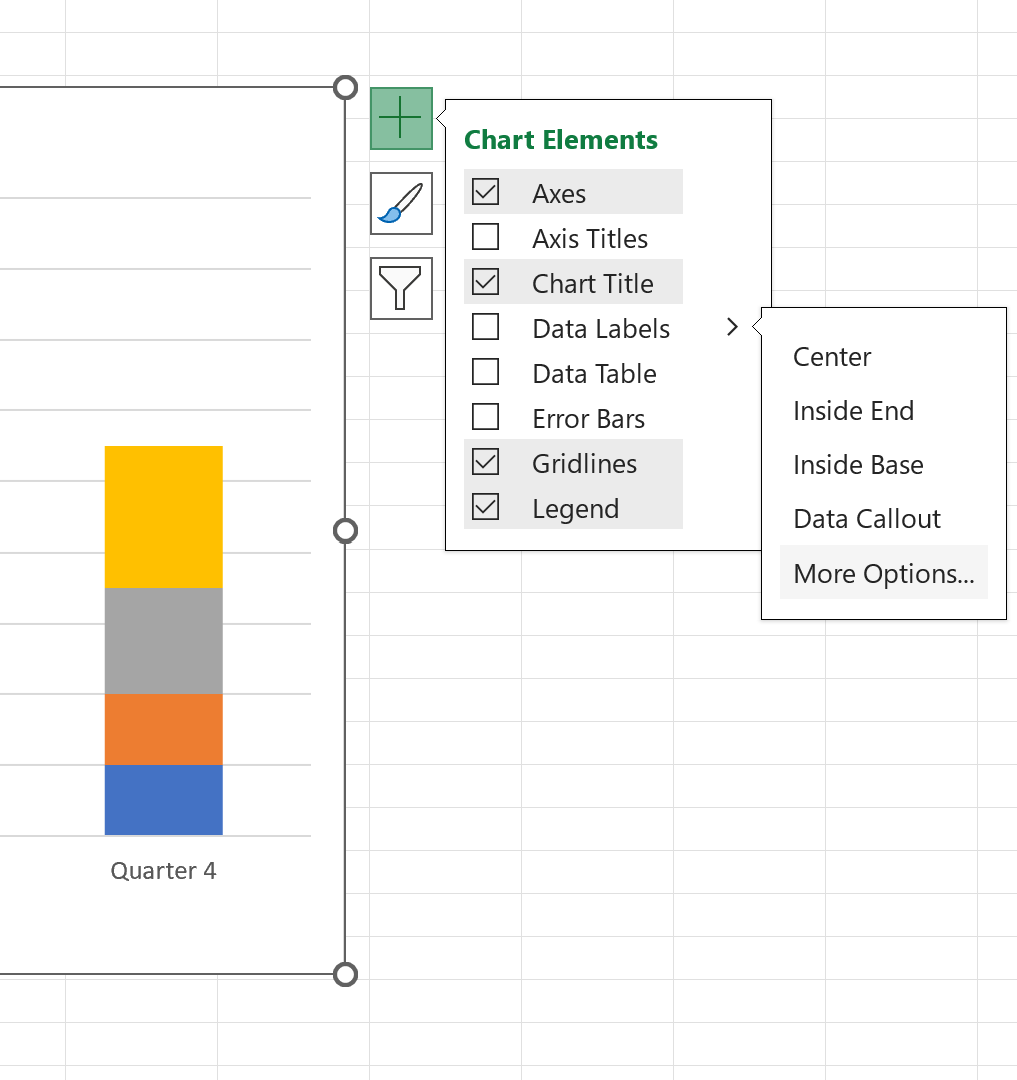

2. Open the Chart Elements Menu: A small green plus sign icon, designated as the Chart Elements button, will appear near the top-right corner of your selected chart. Click this button to reveal a menu containing various chart customization options.
3. Navigate to Data Label Options: In the Chart Elements menu, hover over or click the dropdown arrow adjacent to Data Labels. From the expanded submenu that appears, select More Options…. This action will open the comprehensive Format Data Labels panel on the right side of your Excel window, granting granular control over label appearance and sourcing.

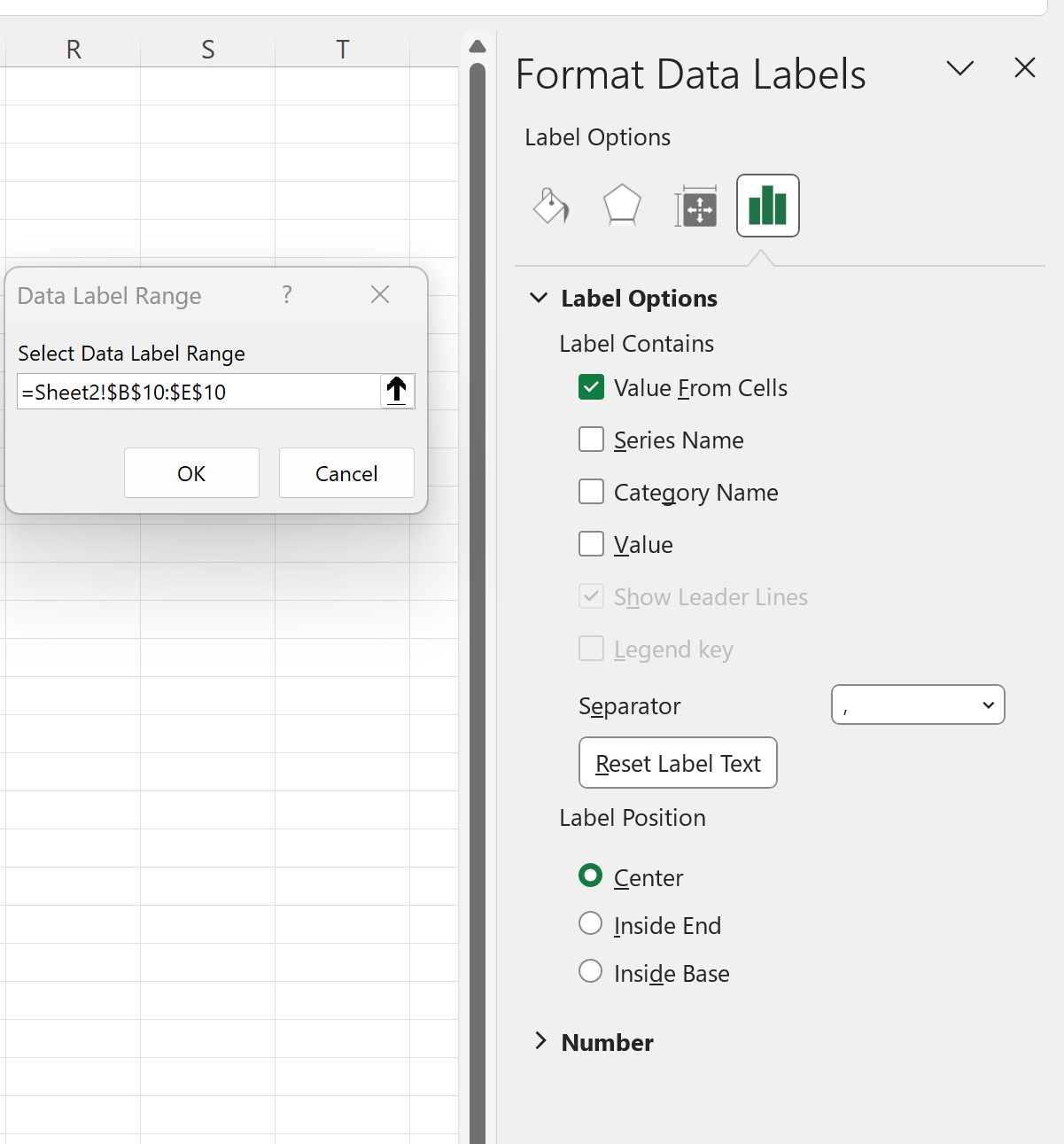

The Format Data Labels panel acts as the control center for this specialized customization, allowing us to effectively override Excel’s standard labeling function and insert our pre-calculated percentage values. Within this panel, locate the section related to label content. To successfully link our derived percentage figures:

1. Disable Default Values: First, ensure that the checkbox labeled Value is unchecked. This critical step prevents the chart from displaying the raw numerical sales figures as labels, which is the default setting and conflicts directly with our objective of showing proportions.
2. Enable Custom Values from Cells: Next, locate and activate the checkbox labeled Value From Cells. This selection prompts Microsoft Excel to pull the required label values from a specific defined range within your worksheet.
3. Select the Percentage Range: Upon checking Value From Cells, a dialog box titled ‘Select Data Label Range’ will immediately appear. You must carefully highlight the corresponding percentage values for the currently selected data series. For instance, if you are formatting the bars representing Region 1, select the percentage range B7:E7. It is absolutely essential to select the correct row of percentages that aligns precisely with the data series you are currently formatting. Once the range is highlighted, click OK.

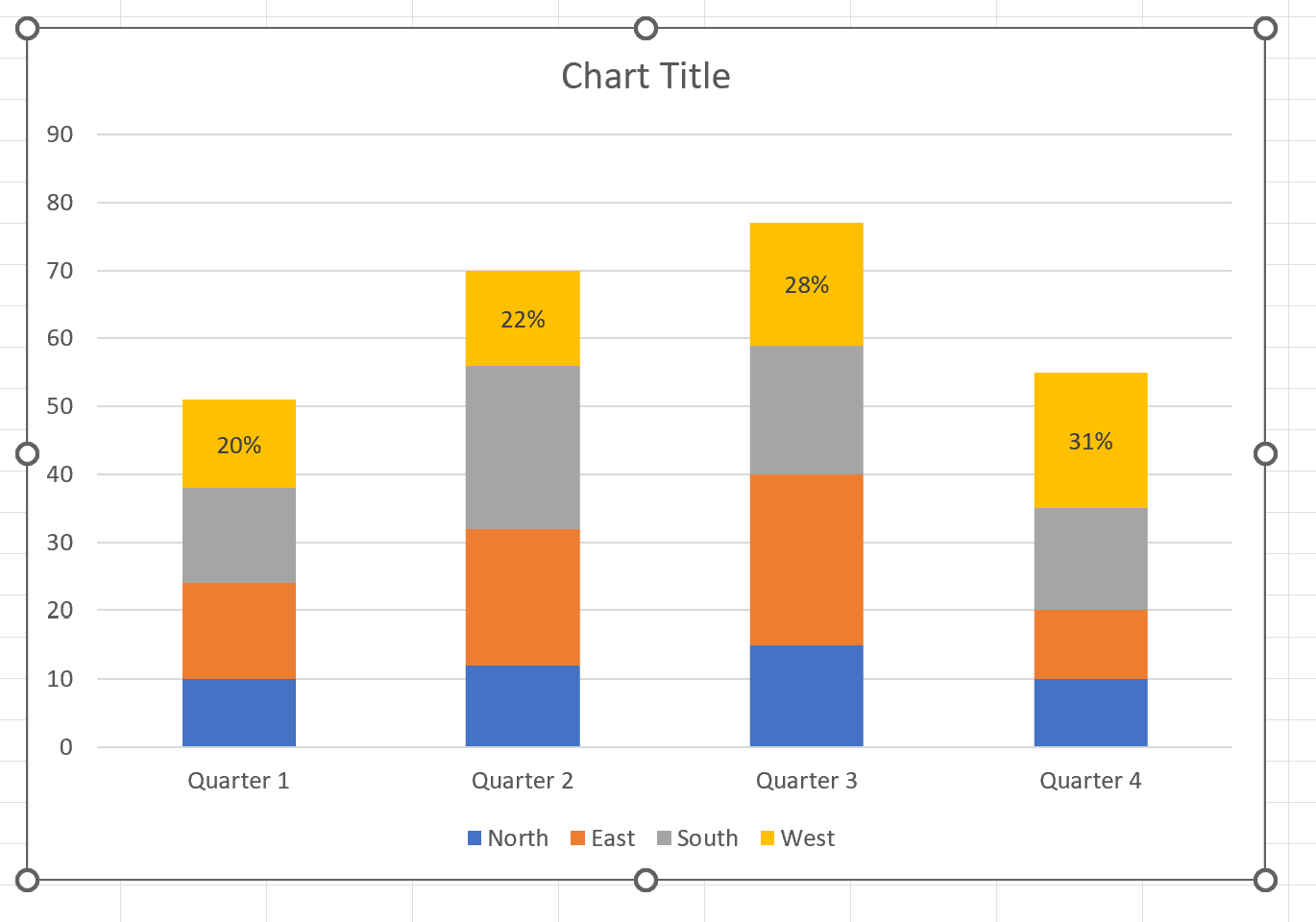

Immediately upon confirming your selection, the labels on the selected data series will transform from raw sales numbers to the precise percentage values calculated and formatted earlier in Step 2. This direct mapping ensures that your visual representation is perfectly consistent with your underlying analytical insights, thereby increasing trustworthiness.

The customized percentage label linking process must be methodically repeated for every individual data series present within your stacked column chart. Although this step is repetitive, it guarantees that every segment of your visualization accurately displays its proportional contribution, ensuring complete data transparency across the board. Proceed by:

1. Clicking on the next data series (e.g., the grey bars representing ‘Region 2’).
2. Re-opening the Format Data Labels panel.
3. Unchecking Value and subsequently checking Value From Cells.
4. Selecting the appropriate percentage range for that specific series (e.g., B8:E8 for ‘Region 2’).
5. Clicking OK to confirm the link.

You must repeat this exact sequence for ‘Region 3’ (using range B9:E9) and ‘Region 4’ (using range B10:E10). Upon the completion of linking all regions, your stacked column chart will be fully populated with comprehensive percentage labels across every segment, as depicted in the image below. This finalizes the functional implementation of proportional data display, rendering your chart highly insightful and entirely self-explanatory.

Step 5: Refining Chart Aesthetics for Maximum Readability

While the essential functional requirement of displaying percentages is now met, the communicative potential and overall readability of your stacked column chart can be vastly improved through strategic aesthetic customization. This final step, though technically optional, is strongly recommended as effective data visualization transcends mere data representation; it fundamentally involves crafting a clear, polished, and compelling data story for your intended audience.

To professionally elevate your chart’s design and ensure it meets high presentation standards, consider focusing critically on the following key aspects:

• Chart Title Refinement: A title must be clear, descriptive, and immediately convey the chart’s core message without ambiguity, such as “Quarterly Sales Proportional Distribution by Region.” Access the title controls via the Chart Elements menu (the green plus sign) and ensure the title is prominent, accurate, and concise.
• Color Selection for Optimal Contrast: Move beyond Excel’s often dull default color scheme. Customize the colors of each data series to maximize contrast, facilitating easy visual differentiation between regions, and align the palette with any existing corporate branding or presentation theme. Right-click a segment, select Format Data Series…, and use the Fill & Line options to define new, distinct, and high-contrast colors.
• Font Optimization and Consistency: Adjust the font size and style for all text elements—axis labels, legend entries, and particularly the percentage labels. The overriding goal is to ensure maximum legibility at a glance without the labels becoming overly large, crowded, or cluttering the visual space. Formatting adjustments for labels are managed within the Text Options tab of the Format Data Labels panel.
• Data Label Positioning: Experiment methodically with different internal positions for your percentage labels within the bars. Options such as Center, Inside End, or Inside Base can significantly impact readability, especially when dealing with segments of widely varying sizes. Adjust this setting within the Format Data Labels panel under the Label Position section to find the optimal arrangement.

By dedicating the necessary time and attention to these detailed customization options, you will dramatically improve the aesthetic appeal and communicative strength of your chart, resulting in a professional and compelling output that effectively tells the underlying data story.

Conclusion: Mastering Proportional Data Presentation

Mastering the technique of displaying accurate percentage labels within a stacked column chart in Microsoft Excel is an indispensable and highly valuable skill for any professional engaged in rigorous data analysis and formal presentation. This comprehensive tutorial has provided a precise, thorough, and technically sound guide, covering every necessary phase from the initial organization of raw data and the advanced calculation of proportional contributions to the creation of the core chart and the detailed customization of its linked labels.

Successfully implementing these steps allows the analyst to transform complex, multi-layered numerical data into clear, intuitive, and visually compelling insights for any audience. This capability is vital across numerous professional disciplines, spanning from business intelligence and sophisticated financial reporting to detailed academic research, ensuring your reports and presentations are maximally impactful, easy to digest, and analytically sound. Furthermore, the advanced techniques reinforced here—such as utilizing mixed references in formulas and manipulating complex chart elements—significantly strengthen your foundational Excel proficiency, preparing you confidently for more complex analytical challenges.
