How to Filter Data by Multiple Cell Colors in Microsoft Excel

While the native functionality of Microsoft Excel provides essential tools for data management, users frequently encounter frustrating limitations when attempting highly specific tasks. A common requirement that often proves cumbersome is the need to filter a dataset based on multiple cell background colors simultaneously. Many professionals rely heavily on color-coding schemes as a critical visual aid to categorize and track information—whether denoting priority levels, task statuses, or distinct data groupings. Unfortunately, the default “Filter by Color” feature typically restricts selection to only one color at a time, making it nearly impossible to generate a consolidated, comprehensive view of data spanning several different color criteria.

This detailed, expert guide introduces a robust, programmatic methodology designed specifically to overcome this inherent built-in limitation. The foundation of this solution rests upon leveraging a custom-written VBA (Visual Basic for Applications) function. This function serves to programmatically extract the unique numerical codes associated with your color-coded cells. Once these colors are successfully quantified as standard numerical data points, users can then seamlessly utilize Excel’s native filtering mechanisms to achieve the desired simultaneous multi-color selection. This flexible approach not only grants the essential versatility needed for complex data analysis but also provides a deeper, foundational understanding of how Excel manages and stores fundamental cell properties, transforming what appears to be an advanced, daunting task into a straightforward, efficient workflow.

Over the course of this tutorial, we will meticulously walk through every necessary phase, beginning with the initial preparation of your color-coded dataset and progressing through the process of scripting the required VBA code, applying the custom function, and accurately interpreting the resulting filters. By the time you conclude this guide, you will possess the specialized technical skill set required to efficiently segment and filter your data based on any combination of colors, thereby significantly elevating your data analysis and visualization capabilities within the Excel environment. This enduring solution ensures that color-coding becomes a powerful analytical asset rather than a filtering hindrance.

Understanding Excel’s Internal Color Representation

Before diving into the practical implementation of the multi-color filtering solution, it is vital to establish a clear understanding of the internal architecture governing how Excel handles visual colors. While human perception processes color visually, the application itself stores and references these attributes as specific numerical values. Specifically, the ColorIndex property is the core numerical representation, corresponding to one of the 56 standard colors available within Excel’s predefined color palette. Every distinct color you apply—such as red, yellow, green, or blue—is assigned a unique integer value. This explicit numerical assignment is what makes programmatic solutions, particularly those written in VBA, capable of interacting with, identifying, and reliably categorizing cells based on their background color.

This underlying numerical assignment is the absolute cornerstone of our advanced filtering method. It facilitates the essential conversion of a purely visual attribute—the background color of a cell—into a quantifiable, filterable data point that Excel’s native processing and filtering tools can readily understand and manipulate. Without this crucial numerical structure residing beneath the visual surface, programmatically distinguishing between various colors and using them as rigorous, complex criteria for advanced filtering would be significantly more challenging, if not impossible. Consequently, our custom VBA function is precisely engineered to serve as a vital bridge, translating the cosmetic color applied by the user into its corresponding, highly filterable ColorIndex value.

By effectively extracting these specific integer values and placing them into a dedicated, adjacent column within the spreadsheet, we are fundamentally creating a new data field that explicitly defines the color characteristic of each row. This newly created field then functions identically to any other standard column within the dataset, allowing it to be filtered using Excel’s conventional, built-in mechanisms. This powerful technique permits us to select multiple, specific color codes simultaneously within the filter dropdown, thereby enabling accurate filtering for multiple cell colors. This method successfully bypasses the critical limitations inherent in the direct, single-select “Filter by Color” option, providing a powerful, flexible, and enduring solution for sophisticated, color-based data segmentation.

Step 1: Preparing Your Dataset for Custom Filtering

The initial and perhaps most essential step in implementing this sophisticated filtering technique is ensuring your data is properly structured and prepared within your Excel worksheet. For the purposes of this technical tutorial, we will utilize a practical, simple list of tasks that have been visually color-coded to denote their current completion status. This method of using visual cues is exceptionally common for data organization, but it absolutely requires the right technical tools to be leveraged programmatically. Therefore, ensure your data is organized efficiently, complete with a clearly defined header row, as this structure is non-negotiable for subsequent filtering operations and accurate data extraction.

Consider a practical, real-world scenario where a project manager’s tasks are color-categorized as follows: the color green consistently indicates a status of “Completed,” yellow signifies the task is “In Progress,” and red definitively marks the task as “Overdue.” Our specific objective is to gain the capability to instantly filter this list to display, for example, only tasks that are currently both “In Progress” (yellow) and “Overdue” (red) at the very same time. This initial setup provides the necessary, practical context for applying our multi-color filtering technique, clearly demonstrating its immense utility and efficiency in practical, demanding data management situations.

To begin the practical application, please accurately enter the following example list of tasks into your Excel sheet. The colors displayed in the illustrative image below are representative of how your actual data might appear, with different background colors intentionally applied to the cells in column A corresponding precisely to their status. This distinct visual differentiation, which we aim to quantify and filter, is the key characteristic that we will systematically leverage for our advanced filtering operation. Ensure that the colors are applied via standard cell formatting.

Step 2 & 3: Accessing the VB Editor and Creating the FindColor Function

With your color-coded dataset prepared and correctly formatted, the next crucial step involves accessing the VB Editor (VBE). The VBE serves as the integrated development environment (IDE) for VBA, and it is the essential space where you will write, edit, and manage the custom functions and macros needed to extend and automate Excel’s native capabilities. The VBE is a powerful gateway that unlocks a new dimension of customization within your spreadsheets, enabling the creation of User Defined Functions (UDFs).

To quickly launch the VB Editor, utilize the standard keyboard shortcut combination: Alt + F11. Executing this command will open a separate, dedicated window where all custom VBA code is scripted. If you are unfamiliar with the VBE, do not worry; the process is straightforward. Within the VBE, you will see several standard panes, including the Project Explorer (listing components of your open workbooks) and the Code Window. After opening the VBE, you must insert a new Module. A module functions as the critical container for your VBA code, especially for custom functions and subroutines that you intend to make available for use as an Excel formula across your entire workbook. To insert this module, click the Insert tab within the VBE’s menu bar, and then select Module from the resulting dropdown menu. A new, blank code window will promptly appear, ready for you to input your custom Function.

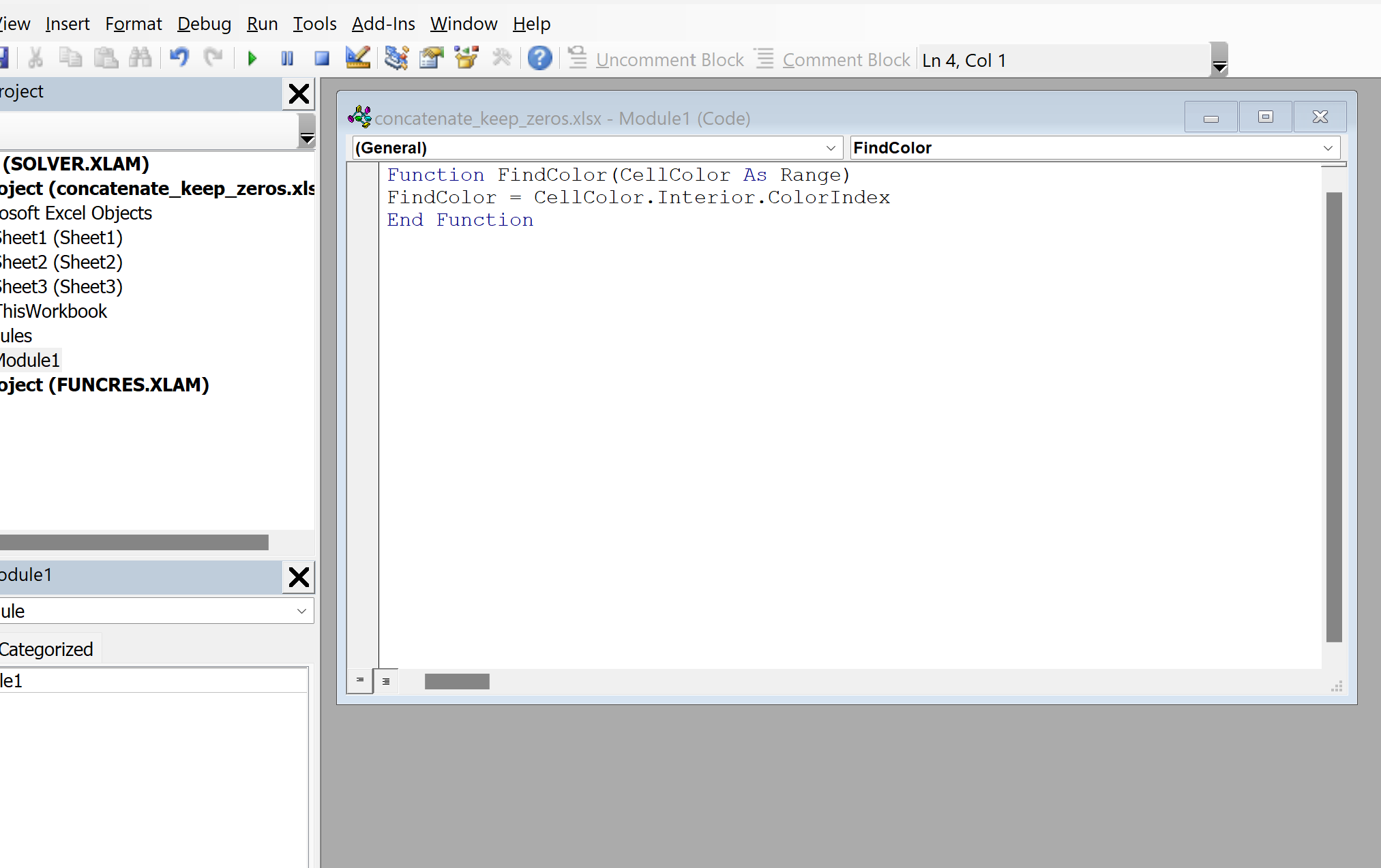

Now that the blank module is properly open, it is time to script the core of our solution: the custom FindColor function. This Function is specifically designed to accept a cell reference as its input argument and return the corresponding numerical index of that cell’s background color. Type the following concise yet powerful VBA code exactly as shown into the module window. This snippet defines a function that retrieves the crucial ColorIndex property of any supplied cell. The line FindColor = CellColor.Interior.ColorIndex assigns the numerical color of the input cell’s interior (background) to the function’s return value, making it available for use as a standard formula on your worksheet.

Function FindColor(CellColor As Range)
FindColor = CellColor.Interior.ColorIndex
End Function

This code successfully creates a custom function named FindColor that can be utilized directly within your Excel worksheets, functioning precisely like any other built-in formula. Once the code has been accurately entered, no explicit “save” action is required within the module itself; closing the VB Editor or saving your workbook will automatically preserve the module and its code. After typing the function, you can simply close the VBE window by clicking the ‘X’ or by pressing Alt + Q. The custom function is now fully active, compiled, and available for immediate use in your current Excel workbook. The following screenshot visually confirms the correct placement of the function within your newly created module.

Step 4: Implementing the FindColor Function in Your Worksheet

With our custom FindColor Function now successfully defined and accessible, the critical next step is to apply it directly to your raw data. This involves creating a new, dedicated column that will display the numerical color index for each corresponding task row. This new column is absolutely essential to the process because it transforms the purely visual color information into filterable, quantifiable data points, making it fully compatible with Excel’s standard, powerful filtering capabilities.

Begin by adding a new column header—you may choose a descriptive label such as “Color Code” or simply “Color”—immediately adjacent to your existing color-coded data. In the context of our running example, if your tasks are located in column A, you would place this new header in cell B1. This action provides a clear, descriptive label for the integer values that will soon populate this column. Next, in the cell situated directly below your new header (i.e., cell B2), you will enter the custom Excel formula that calls our FindColor function.

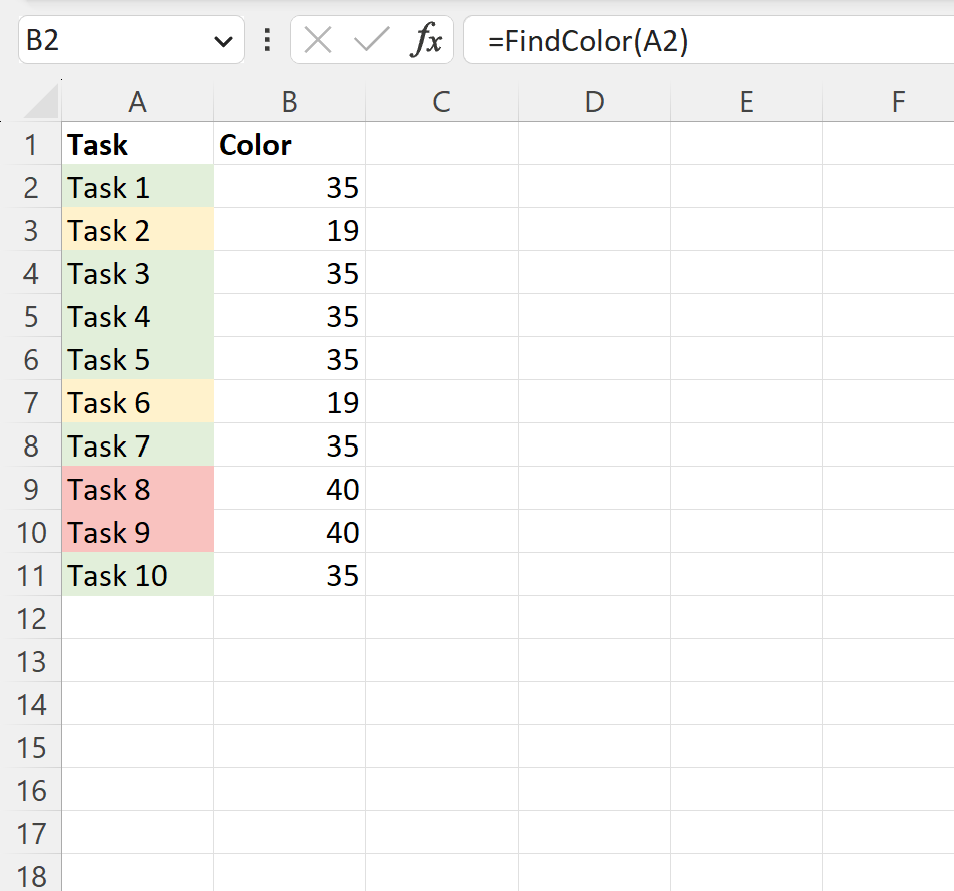

Type the following formula precisely into cell B2: =FindColor(A2). This formula instructs Excel to execute our custom function, passing the reference to cell A2 (the first task in our list) as the input Range argument. The function will then successfully return the numerical ColorIndex of cell A2‘s background color. After entering the formula, press Enter to view the immediate result. An integer value (such as 35 for green or 6 for yellow) should instantly appear in cell B2, accurately representing the color of the adjacent cell A2.

=FindColor(A2)

Once the formula is correctly established in B2, you can efficiently apply it to the entirety of your dataset. Simply use the fill handle (the small square located at the bottom-right corner of cell B2) and drag it down to the last row containing data. This action automatically copies the formula down the column, ensuring that the cell reference is correctly adjusted relative to each row (e.g., A3, A4, etc.). As a result of this operation, column B will now display the background color (as a precise integer value) for every corresponding cell in column A, thereby completing the essential digitization of your color-coded information into filterable data.

Step 5: Applying Filters Using Numerical Color Codes

With a dedicated column now fully and accurately populated with the numerical color codes for each of your tasks, we have successfully transformed visual metadata into quantifiable, actionable data. This critical achievement allows us to fully leverage Excel’s powerful Excel filtering capabilities in a way that was previously impossible using direct color filtering alone. We can now precisely filter our data rows based on these integer values, making the selection of multiple color criteria simultaneous, transparent, and straightforward.

To begin the filtering process, first select the entire range of your data, ensuring that you include the header row. For our ongoing example dataset, this would involve selecting the cell range A1:B11. Highlighting the entire range guarantees that the filter will be applied uniformly across all relevant columns, allowing the filter to operate effectively based on the new “Color Code” column while maintaining the complete integrity of your original task data. Once the range is selected, navigate to the Data tab located on Excel’s top ribbon. Within the Sort & Filter group, locate and click the Filter icon. This action will immediately add dropdown arrows to each of your column headers, visually signaling that filtering functionality is now fully active across your dataset.

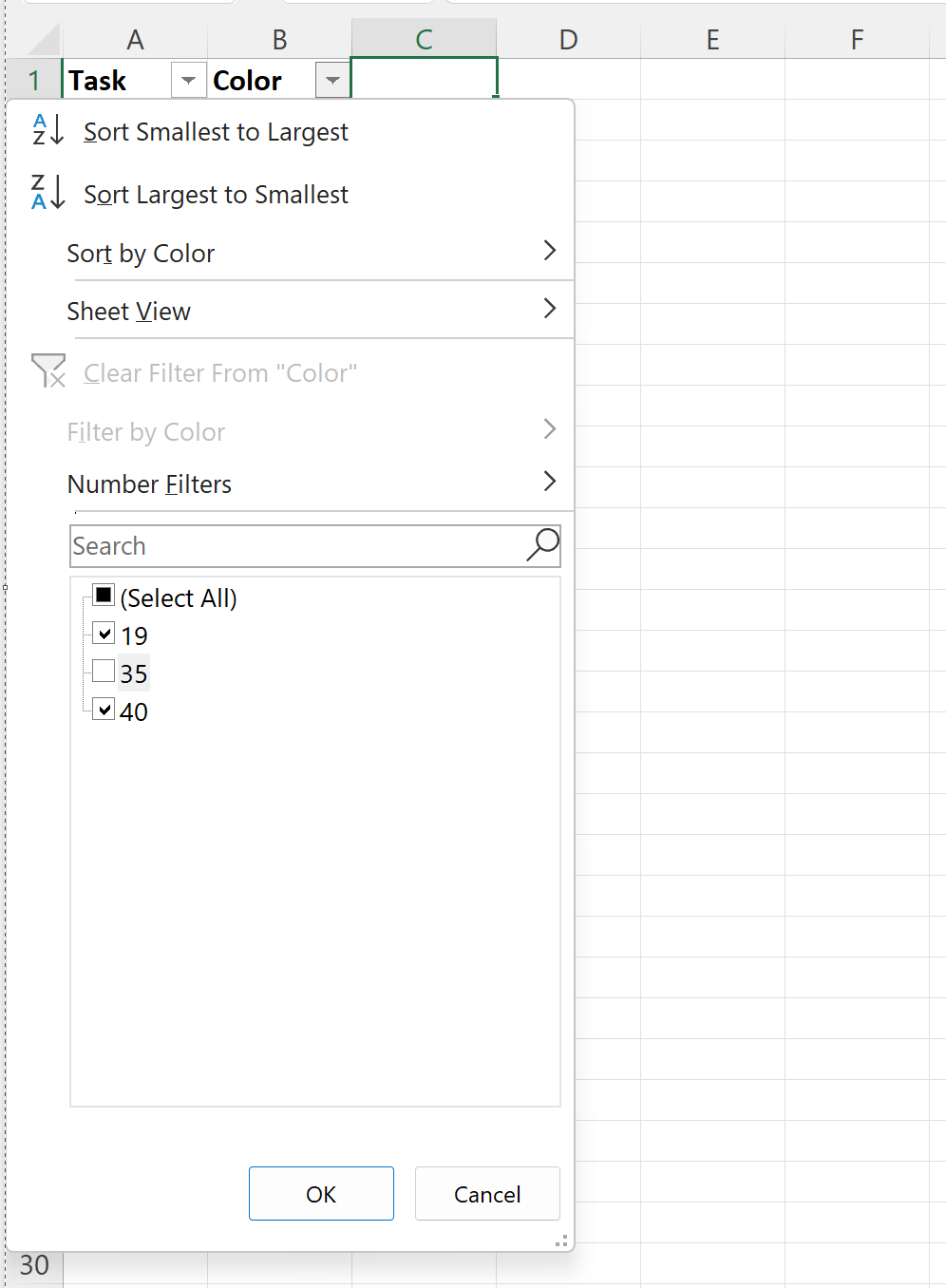

Next, click the dropdown arrow associated with your “Color Code” column header (located in cell B1). This action opens a filter menu that displays a comprehensive list of all unique numerical color code values present in your data. By default, all unique values are likely checked. To effectively filter by multiple colors, you must strategically uncheck the boxes corresponding to the color codes you wish to specifically exclude from your current view. For instance, if your analytical goal is to view only yellow and red tasks, and you know that the color code ’35’ represents green (completed), you would uncheck the box next to 35. This action leaves only the codes for yellow and red selected, thereby enabling the highly sought-after multi-color filter.

Step 6: Interpreting the Filtered View and Customization

Once you have precisely selected your desired color codes and clicked OK within the filter menu, Excel will instantly apply the filter to your entire dataset. All rows that do not match the criteria of your selected color codes will be temporarily hidden, leaving only the rows that correspond to the specific colors you intended to display. This immediate visual confirmation verifies that your multi-color filter has been successfully executed, showcasing the immense power achieved by seamlessly combining custom VBA functionality with standard, robust Excel features.

Continuing with our example, after strategically deselecting the color code ’35’ (which represents green/completed tasks), your worksheet will now exclusively display tasks that are either yellow or red. This means you have successfully refined your data view to show tasks marked as “In Progress” and “Overdue,” providing a highly focused and actionable perspective of the information most critical to your immediate analysis or reporting needs. As a visual cue, notice that the row numbers on the left-hand side of the sheet will change color, typically to blue, which is Excel’s standard visual indicator that a filter is currently active and certain rows are hidden from view.

The core strategic advantage of utilizing this method lies in its inherent flexibility and permanent reusability. You are not rigidly confined to filtering out just one color; instead, you possess the freedom to select any desired combination of color codes from the filter dropdown menu to tailor your view precisely to your current analytical needs. Whether your requirement is a view showing only completed tasks, or a complex mix of in-progress and completed ones, the selection process in the “Color Code” filter is easily and dynamically adjustable. To swiftly revert to the full, unfiltered dataset view, simply click the filter dropdown again and select the option “Clear Filter from ‘Color Code'” or re-check all the available boxes.

Conclusion: Enhancing Data Analysis with VBA and Color Filtering

By diligently and accurately following these comprehensive steps, you have successfully implemented a robust and highly efficient method for filtering data by multiple colors in Excel, a sophisticated capability that is not natively provided through the application’s standard filtering interface. This powerful technical technique clearly demonstrates the immense capacity of VBA to significantly extend Excel’s core functionality, enabling you to transform visual cues like cell colors into definitive, actionable data points suitable for complex, advanced analysis and comprehensive reporting. The acquired ability to accurately extract and filter data based on numerical color codes fundamentally opens up new dimensions for managing and interpreting complex, color-coded datasets.

This programmatic approach provides a uniquely flexible, enduring, and efficient way to handle demanding scenarios where visual categorization is paramount to quickly understanding data status or urgency. Whether your professional work involves tracking detailed project statuses, highlighting critical data anomalies, or simply organizing large volumes of information efficiently, the ability to dynamically filter by multiple colors simultaneously will significantly streamline your workflow and enhance both the quality and speed of your decision-making processes. Furthermore, the custom FindColor function is a highly valuable, reusable asset that can be easily implemented across various workbooks and projects, establishing it as a permanent and essential tool in your advanced Excel arsenal.

Ultimately, mastering this specialized filtering technique not only resolves a challenging, common filtering constraint but also establishes a solid, practical foundation for exploring further customization and deep automation possibilities within Excel through VBA programming. We strongly encourage you to experiment confidently with different color combinations, apply this robust methodology to your own complex datasets, and fully appreciate its versatility and significant positive impact on your overall data management and analytical practices.
