Learning Excel: Conditional Formatting with IF Statements to Change Cell Color

In modern data analysis, particularly within Microsoft Excel, the automation of data visualization is paramount for efficient and timely insights. Data management professionals and analysts frequently need to flag critical data points instantly. This necessity often translates into applying a visual alert, such as altering a cell’s background color, whenever a specific numerical or textual criterion is satisfied. While many users instinctively search for a direct “color-changing IF function,” the most effective and powerful feature for this task is known as Conditional Formatting (CF). This robust feature allows users to define and apply formatting rules—covering everything from font styles and borders to cell fills—based on the evaluation of underlying data. Crucially, CF effectively simulates the decision-making process of an IF statement without requiring complex formula nesting directly within the data cells themselves.

The capability to dynamically modify the visual appearance of cells based on their content dramatically enhances the readability and overall interpretability of extensive datasets. Consider a financial sales report: values that fall significantly below the predefined target can be automatically highlighted in red, immediately signaling that attention is required. Conversely, high-performing metrics can be automatically colored green. This instant visual feedback mechanism transforms a static spreadsheet into a dynamic dashboard, enabling stakeholders to rapidly identify critical trends, anomalies, and potential risks without the tedious process of manually scrutinizing every single data point. Mastering the leverage of CF rules, especially those driven by custom formulas, is a fundamental skill for anyone aiming to excel in data presentation.

This comprehensive guide is dedicated to demonstrating the precise methodology required to implement a formula-driven approach within Conditional Formatting. Our goal is to illustrate how to turn a cell red if it successfully meets a predefined numerical criterion. This essential process involves defining a new formatting rule via the Excel interface, constructing a simple Boolean logic test, and then coupling that test with the appropriate visual output (the red fill). By mastering this detailed technique, users gain fine-grained, automated control over their data presentation, ensuring that critical information is visually prioritized and never overlooked.

Understanding Conditional Formatting as an IF Statement

At its core, when Microsoft Excel processes a cell’s value against a rule established within Conditional Formatting (CF), it executes the equivalent of an IF statement. The operational logic is remarkably straightforward: IF the specified condition evaluates to TRUE, THEN the formatting is applied; OTHERWISE, the cell remains unchanged (or the application proceeds to the next rule in the established hierarchy). This underlying mechanism is what grants CF its exceptional versatility. Unlike a standard cell formula, which is designed to return a calculated value or text string, a CF formula is only required to return a simple TRUE or FALSE result, which directly dictates whether the defined visual style should be enforced.

It is vital to draw a distinction between Excel’s standard, pre-built CF rules (such as “Highlight Cells Rules” for “Greater Than” or “Between”) and the highly flexible custom formula rules. While the built-in options capably handle basic comparisons, using a custom formula unlocks the ability to perform sophisticated comparisons involving external cells, integrate complex logical operators (like AND, OR, and NOT), and incorporate other advanced functions. For the objective of coloring a cell based on a specific numerical threshold—the central theme of this tutorial—the custom formula methodology offers the highest level of clarity, control, and perfect alignment with logical testing structure.

The syntax required for these custom formulas must consistently evaluate to a Boolean logic outcome (TRUE or FALSE). When constructing the rule, you must reference the top-left cell of the selected application range using relative referencing. For example, use B2 instead of $B$2 or $B2. Maintaining this relative reference is absolutely critical because Excel must automatically adjust the formula for every subsequent cell within the applied range. If the reference were mistakenly anchored as absolute, every cell in the selection would be formatted solely based on the fixed value of that single cell (B2), completely undermining the dynamic nature of conditional formatting across a large dataset.

Step-by-Step Guide: Implementing the Red Cell Rule

To effectively illustrate the power of this formula-driven technique, we will utilize a practical, common scenario involving performance data. Imagine we are analyzing data for basketball players, specifically tracking their points scored. Our primary goal is to immediately flag any player whose score falls critically below 20 points by visually highlighting the corresponding cell in the Points column in bright red. This real-world application clearly demonstrates how to apply IF statement logic visually for immediate data scrutiny.

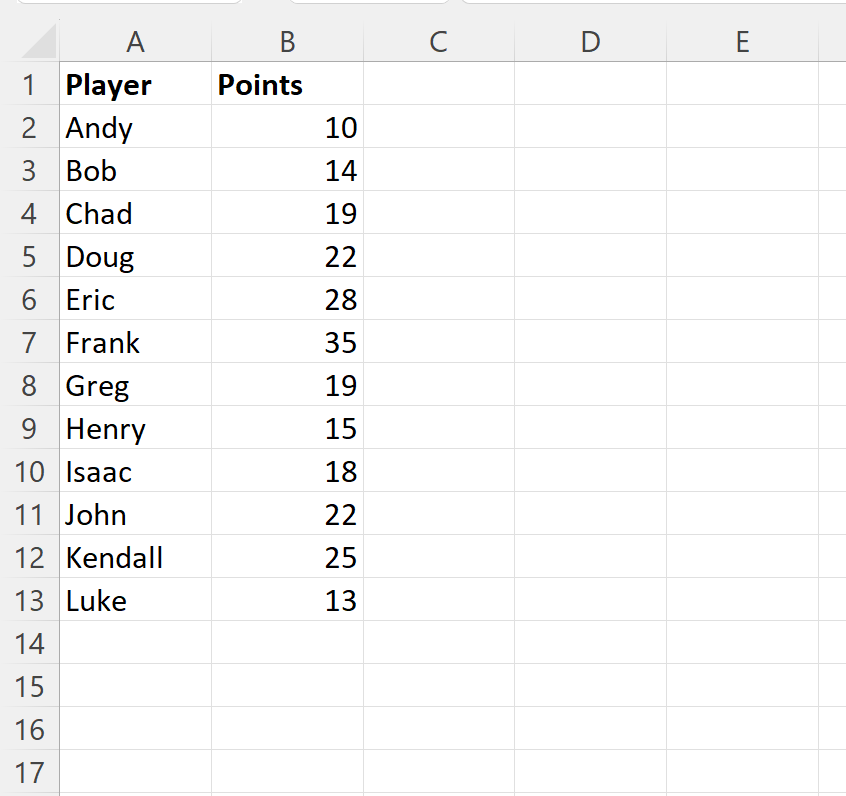

We begin by examining the initial dataset structure within Microsoft Excel. This data table contains the performance scores that require our conditional analysis and flagging:

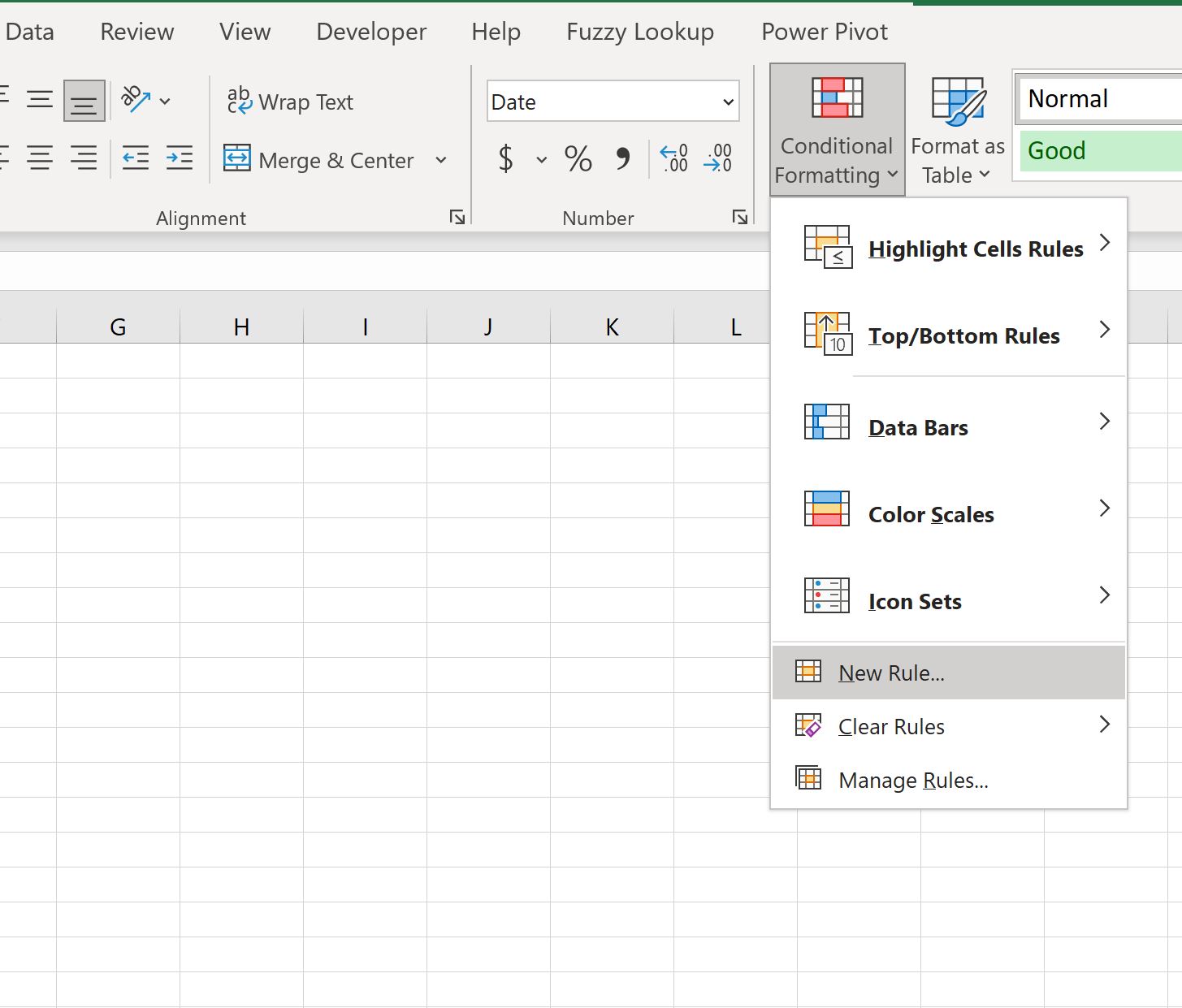

The first critical action is defining the scope of the rule. You must highlight the specific cells that the formatting rule will govern, which in this case is the range B2:B13. This selection determines which cells Excel will continuously monitor and potentially format. After selecting the range, navigate to the Home tab on the Excel ribbon, locate the Styles group, and click the Conditional Formatting dropdown menu. From the subsequent list of options, select New Rule to launch the comprehensive formatting configuration dialog box.

Inside the New Formatting Rule window, you must declare the specific rule type. Select the final option: Use a formula to determine which cells to format. This instruction informs Excel that the formatting application will be governed by a custom logical test, which serves as our virtual IF statement structure. In the dedicated formula input box, precisely type the required logical test: =B2<20. It is essential to remember that we reference cell B2, which is the very first cell in our selected range, and the formula checks if the numerical value held within that cell is strictly less than 20.

Once the condition is defined, the next step is specifying the resulting visual action. Click the Format button to open the Format Cells dialog box. Navigate to the Fill tab and select a highly visible red color for the background fill. This step clearly dictates the visual change that will occur only when the condition (B2<20) evaluates to TRUE. Confirm your formatting selection by clicking OK in the Format Cells dialog, and then click OK again in the New Formatting Rule dialog to finally apply the newly created rule across the entire selected range.

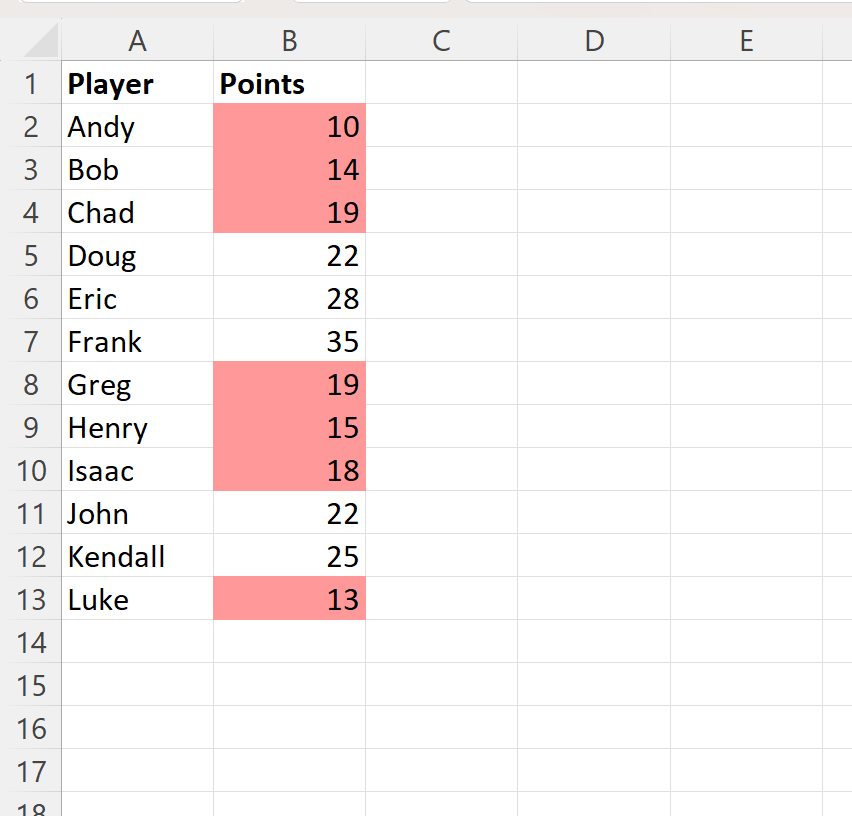

The application of the rule is immediate and fully automatic upon clicking OK. Every cell within the target range B2:B13 that contains a numerical value less than 20 is instantaneously highlighted with the designated red fill. This automated visual confirmation system provides immediate, actionable insight into which players failed to meet the minimum score threshold. This outcome confirms the successful and robust implementation of the formula-based Conditional Formatting rule, effectively replicating the behavior of a sophisticated conditional check across the entire dataset.

Leveraging Advanced Conditions and Custom Formulas

While the preceding tutorial focused on a simple inequality check (<20), the true immense power and flexibility of formula-based Conditional Formatting reside in its capacity to manage highly complex logical requirements. You are not restricted to solely checking the value of the cell that is being formatted; you possess the capability to construct formulas that analyze values in entirely different columns or rows. This enables the creation of sophisticated cross-referencing and multi-criteria alerting systems that go far beyond basic threshold checks. For example, one might need to highlight a score in column B red only if two distinct conditions are simultaneously satisfied: the score must be less than 20 AND the player’s primary position (located in column A) must be ‘Guard’.

To successfully implement such multi-criteria checks, it is necessary to integrate Excel’s built-in logical functions, such as the AND or OR functions, directly into the conditional rule structure. For the dual condition example (Score < 20 AND Position = ‘Guard’), the formula applied to the target range B2:B13 would be structured as follows: =AND(B2<20, A2=”Guard”). Only when both logical elements enclosed within the AND function evaluate simultaneously to TRUE will the overall formula return TRUE, consequently triggering the specified red formatting. This demonstrates precisely how a single IF statement logic can be powerfully expanded to encompass and enforce rigorous data validation requirements across a dynamic dataset.

Beyond numerical comparison, custom formulas can also be expertly employed to format cells based on the presence of specific text, date criteria, or even system errors. For instance, to instantly highlight any cell containing the text string “Error” within a reporting column, the formula would require the use of the SEARCH or FIND function combined with the ISNUMBER function. The required formula is: =ISNUMBER(SEARCH(“Error”, B2)). If the specified text “Error” is located within cell B2, the search function returns a number (its starting position), ISNUMBER consequently returns TRUE, and the cell is immediately formatted. This advanced technique significantly broadens the scope of visual alerting, moving well past simple numerical checks toward comprehensive, automated data quality assurance across the entire spreadsheet.

Troubleshooting and Best Practices for Rule Management

When developing and maintaining rules using Conditional Formatting, consistency in application and meticulous management are paramount to success. A very common issue encountered by new users is incorrect cell referencing. As previously detailed, always ensure that when you define the formula (e.g., =B2<20), the row number is specified relatively (without a dollar sign prefix) unless your explicit intention is for every single cell in the selected range to be evaluated strictly against the fixed value located only in cell B2. Incorrect cell anchoring is statistically the number one cause of unexpected or non-functional formatting results when applying rules across large ranges in Microsoft Excel.

A secondary but equally important best practice involves the management of rule hierarchy. When multiple distinct rules are configured to apply to the exact same cell range, Excel adheres to the order in which they are listed within the Conditional Formatting Rules Manager. If one rule evaluates to TRUE and applies its formatting, subsequent rules might be skipped entirely if the “Stop If True” checkbox has been activated for the successful rule. Therefore, it is absolutely crucial to arrange your rules logically, typically progressing from the most specific condition to the least specific. Alternatively, ensure that non-mutually exclusive rules are correctly ordered to prevent one rule from unintentionally overriding another necessary format. Always utilize the Rules Manager interface to easily review, edit, or reorder rules and thereby maintain optimal performance and visual accuracy throughout your data visualization.

Finally, a highly recommended method for proactive quality assurance is to test your complex custom formulas in a blank, temporary cell before officially implementing them in the Conditional Formatting interface. If you input the formula =B2<20 into cell C2 and then drag that formula down, the resulting column C should populate with a clear series of TRUEs and FALSEs. These results must perfectly mirror exactly where the formatting should appear in column B. If this test column (C) accurately displays the correct Boolean logic outcomes, the formula itself is sound, and any subsequent formatting failure is most likely attributable to an incorrect range selection or a conflict arising from rule management hierarchy issues. This proactive testing measure significantly minimizes future troubleshooting time.

Conclusion and Summary of Automation Benefits

The proven technique of utilizing formula-driven Conditional Formatting to dynamically change cell color represents the most efficient and robust way to implement complex IF statement logic for critical visual alerting within Excel. This powerful method instantly converts raw, static data into immediately actionable information by providing continuous visual cues regarding vital thresholds, data anomalies, or compliance statuses. Whether your task involves tracking high-volume performance metrics, managing complex inventory levels, or conducting detailed quality control checks, the ability to implement dynamic cell coloring is truly indispensable for modern analysis.

The profound automation benefits derived from mastering this specific skill extend far beyond simple aesthetic improvements. By rigorously setting up these conditional rules only once, you effectively establish a robust, self-updating data visualization system. As new transactional data is subsequently pasted or entered into the spreadsheet, the pre-defined conditional rules are instantly re-evaluated and applied. This eliminates the persistent need for time-consuming manual review or coloring, substantially reduces the risk of costly human error, and guarantees that data presentation remains consistently professional and accurate across all reports generated from the source sheet.

We have clearly demonstrated that while a dedicated “IF color” function does not exist, the New Rule feature within Conditional Formatting, when correctly combined with a custom logical formula, perfectly executes the desired conditional coloring requirements. This refined technique is a foundational cornerstone of advanced data analysis in Microsoft Excel, empowering all users to move beyond outdated static data presentation and embrace fully dynamic, intelligent reporting capabilities.
