Excel Tutorial: How to Use SUMIF with Horizontal Data Ranges

The SUMIF function in Excel is an indispensable tool, typically employed to aggregate values located in a vertical column based on criteria defined in an adjacent vertical range. While this vertical orientation is standard for database structures, real-world data often presents complexities, requiring aggregation where the criteria are organized horizontally—spanning across a row rather than down a column. This specific challenge frequently arises in complex financial reports or transactional logs where data headers, such as “Q1 Sales,” might be repeated or spread out. Successfully applying the SUMIF function in this horizontal manner allows expert users to efficiently condense voluminous transactional data by accurately matching values to corresponding, dispersed column headers.

This comprehensive tutorial delivers a step-by-step methodology on how to harness the inherent flexibility of the SUMIF function to sum data based on criteria evaluated against a horizontal range. Mastering this advanced technique is vital for data analysts who regularly encounter data structures that deviate significantly from the conventional vertical database layout. By avoiding complex array formulas or time-consuming manual calculations, this approach ensures far more efficient and scalable data processing, transforming challenging spreadsheet layouts into manageable, actionable insights.

Understanding the Syntax and Application of SUMIF

The core structure of the SUMIF function relies on three mandatory arguments: SUMIF(range, criteria, sum_range). In most routine applications, all three of these arguments reference vertical arrays. Crucially, however, the function’s internal definition does not impose a restriction that prevents the range (where the criteria validation occurs) and the sum_range (the values designated for summation) from being defined as horizontal arrays. The only requirement for this horizontal application is that the two ranges must share the same dimension and orientation—meaning they must span the same number of columns horizontally.

When deploying this function with a horizontal criteria range, the most critical aspect to manage is the precise handling of absolute cell references. Since the ultimate goal is typically to drag the formula down to apply it to numerous rows of transactional data, the criteria range (the fixed horizontal headers) must be locked using absolute references (e.g., using the dollar sign $). Conversely, the sum_range (which represents the current row of data being processed) must maintain relative row references. This essential duality ensures the formula consistently checks the fixed header criteria while dynamically adjusting to sum the values relevant to each new transaction row it processes.

Although modern functions like SUMIFS are available for summing based on multiple criteria, and complex combinations involving INDEX and MATCH can yield similar aggregated results, the standard SUMIF function remains the simplest, most elegant, and computationally lightest method available for aggregating data based solely on a single condition matched across column headers.

Scenario Setup: Analyzing Dispersed Sales Data

Imagine a retail corporation that diligently tracks sales across various store locations: East, West, North, and South. Due to the inherent design of their data logging or export system, sales entries related to a single transaction ID are recorded horizontally across multiple columns within the same row. This results in a dataset where the key criteria—the store names—are spread out horizontally in the header row, and the corresponding monetary sales figures are distributed across the subsequent data rows.

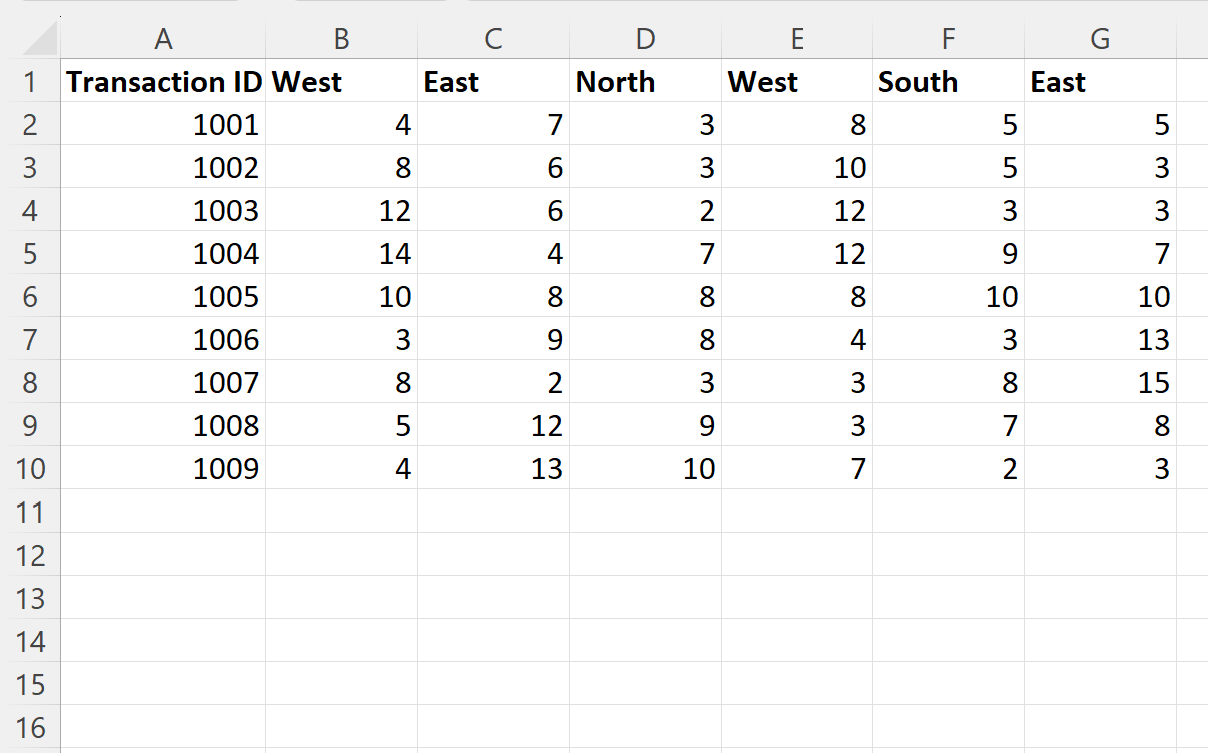

For illustrative purposes, consider the snapshot provided below. Each row clearly corresponds to a unique transaction, and Columns B through G contain highly specific sales figures tied to individual retail locations. Our challenge is to consolidate this dispersed information.

Our immediate objective is to accurately calculate the total sales generated by a specific subset of stores—for instance, aggregating all figures associated with “East” locations—for every individual transaction listed. Achieving this requires instructing Excel to look across the header row (B1:G1), identify every occurrence of the criterion “East,” and then sum the corresponding values found in the current data row (e.g., B2:G2 for the first transaction). This aggregated result must then be automatically repeatable for all subsequent transactions without any need for manual intervention or restructuring the data.

This specific data arrangement perfectly illustrates a classic scenario where the range argument within the SUMIF function must be horizontal, while the application and dissemination of the resulting formula itself remains vertical, cascading down the entire dataset to provide row-by-row aggregation.

Step-by-Step Implementation: Summing Sales for “East” Stores

We will now proceed with the precise calculation, targeting the aggregated total sales achieved by all stores designated as “East” for each individual transaction. The calculated result will be placed in Column I, beginning in cell I2.

The primary technical hurdle here is ensuring that the criteria range (Row 1) remains absolutely fixed as we copy the formula down the rows, while simultaneously allowing the data range (the sales figures) to shift dynamically to capture the correct inputs for the current transaction row. This critical balance is achieved through the meticulous use of the dollar sign ($) for absolute cell references, locking the header row in place.

To accurately calculate the sum of values in the first transaction row (Row 2) where the corresponding store name in the horizontal header (Row 1) matches “East,” we must enter the following formula structure directly into cell I2:

=SUMIF($B$1:$G$1, "East", B2:G2)

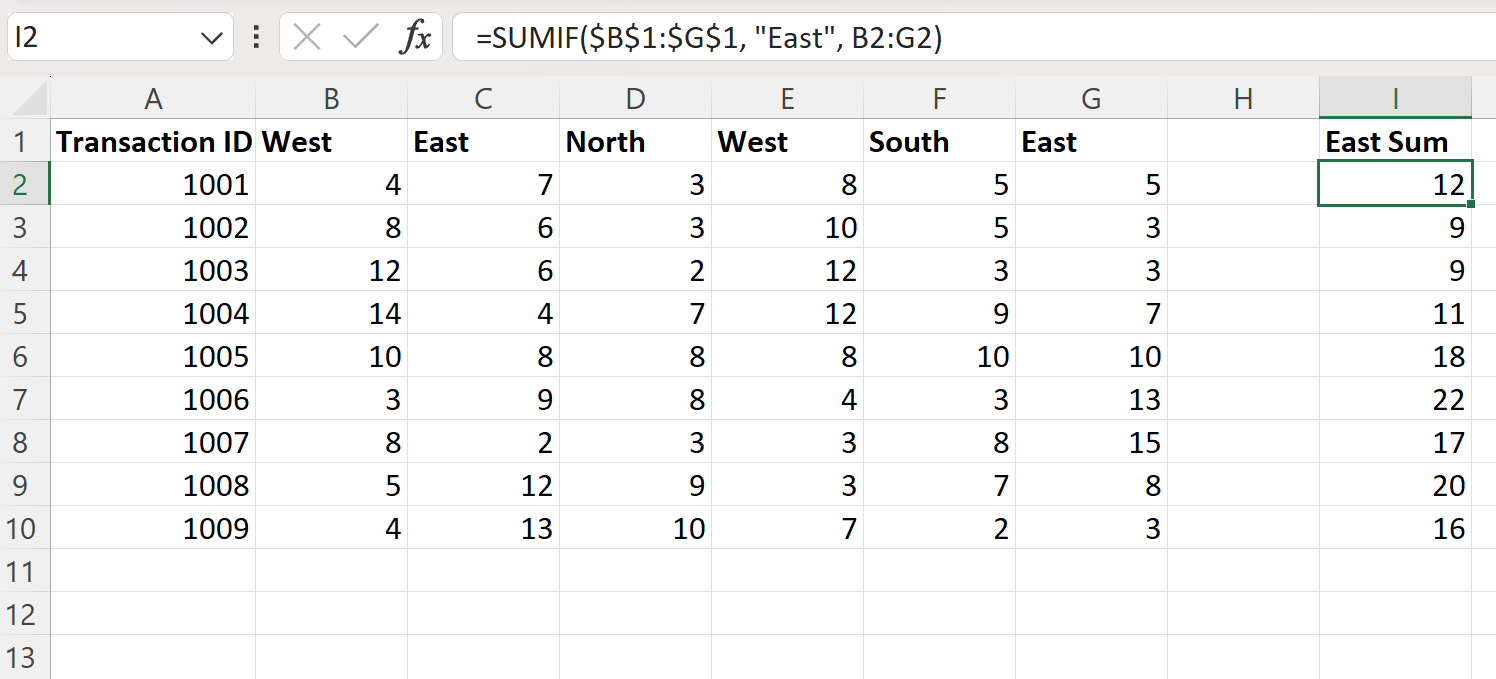

Once this powerful formula is correctly entered in I2, it calculates the sum for the initial transaction. The next crucial step involves efficiently applying this logic to the rest of the dataset. Because we thoughtfully constructed the formula using mixed references—an absolute lock on the criteria range and relative references for the sum range—we can simply use the fill handle (the small square at the bottom right of cell I2) and drag it down the column to the last row of data.

Column I now successfully displays the aggregated sum of sales specifically for all “East” stores for every single transaction listed. For immediate validation and confirmation of the results, we can manually check the source inputs for the first few transactions:

• The sum of East sales for transaction 1001 (Row 2 data: 7 and 5) is: 7 + 5 = 12
• The sum of East sales for transaction 1002 (Row 3 data: 6 and 3) is: 6 + 3 = 9
• The sum of East sales for transaction 1003 (Row 4 data: 6 and 3) is: 6 + 3 = 9

This technique provides a highly effective and dynamic methodology for managing horizontally structured data criteria, an indispensable skill for advanced data manipulation in Excel.

Dissecting the Absolute and Relative References

To gain a complete understanding of why this formula operates seamlessly and effectively across the entire vertical dataset, we must meticulously analyze the specific role of each argument and, most importantly, the strategic impact of the cell reference types utilized.

1. Criteria Range: $B$1:$G$1
   This range holds the headers—the store names (East, West, North, etc.)—which serve as the comparison points. By prepending the dollar sign ($) to both the column letters and the row number, we explicitly define this as an absolute cell reference. This critical locking action guarantees that regardless of whether the formula is copied down from I2 to I3, I4, or further, the criteria range will always remain fixed precisely on the header row (Row 1).
2. Criteria: "East"
   This argument explicitly dictates the exact text string the function must successfully match within the defined criteria range. While this example uses a hard-coded text value (enclosed in quotation marks), for maximum flexibility and ease of modification, this criteria could alternatively be referenced from an external cell (e.g., $H$1), allowing users to instantly change the target store without editing the core formula structure.
3. Sum Range: B2:G2
   This range contains the numerical values that correspond dimensionally to the criteria range and are designated for summation. Crucially, this range employs a standard relative reference. Consequently, when the formula is copied down to cell I3, this range automatically shifts to B3:G3. This ensures that the calculation is performed on the sales data specific to the third transaction row. This dynamic, relative adjustment is the mechanism that renders the single formula highly reusable and essential for processing the entire column of transaction data.

The successful application of conditional aggregation functions like SUMIF in non-standard scenarios hinges entirely upon understanding the strategic interplay between these absolute (fixed) and relative (shifting) references.

Adapting the Formula for Alternative Criteria

One of the greatest advantages of this precisely structured approach is its inherent adaptability and ease of modification. Should the analytical requirement shift—for instance, if the management team requires the total sales for “West” locations rather than “East”—the necessary adjustment to the formula is minimal and straightforward.

To calculate the total sum of sales specifically for “West” stores, we only need to modify the criteria argument within the existing, robust formula structure. Assuming the result is still placed in Column I, the new formula to be entered into cell I2 would be:

=SUMIF($B$1:$G$1, "West", B2:G2)

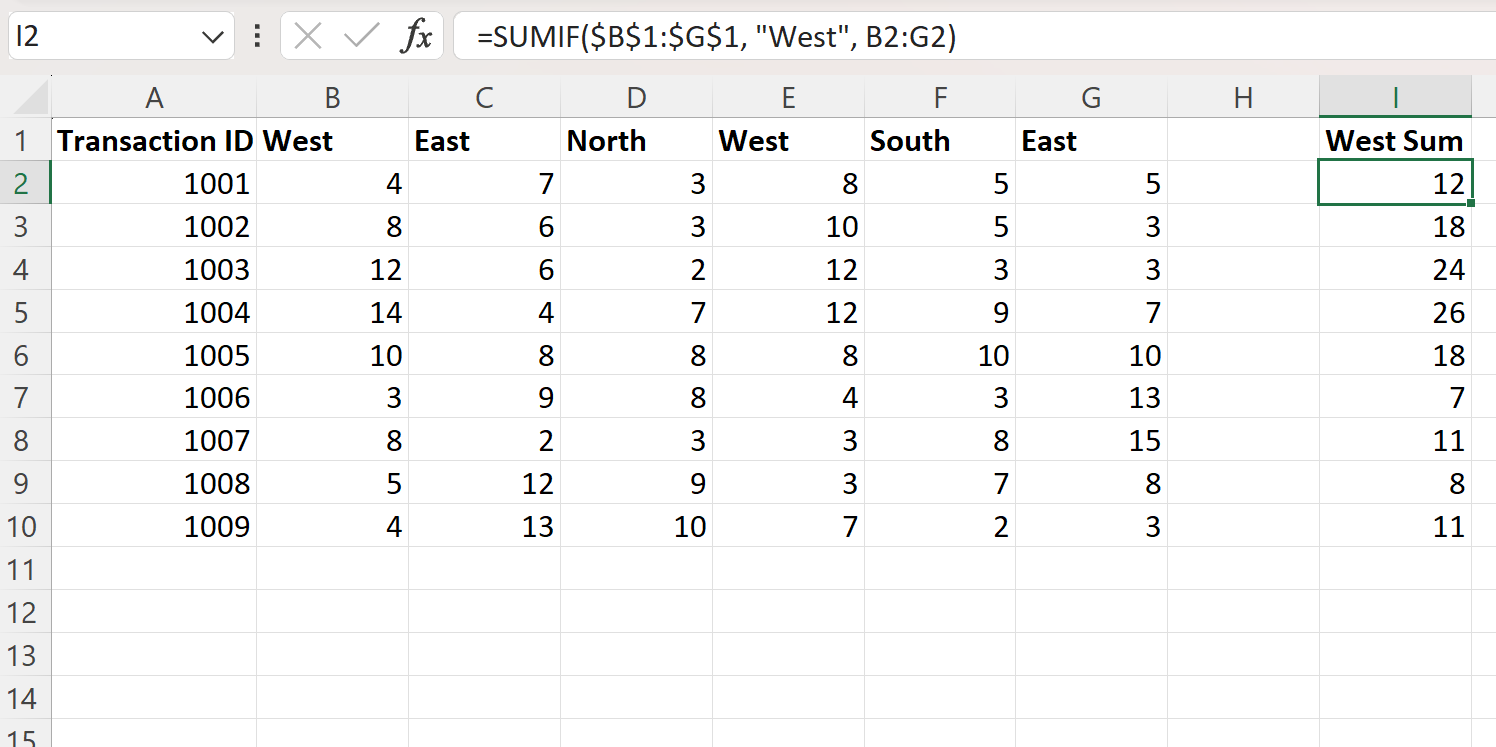

Once this simple change is implemented, the formula can immediately be dragged down Column I, just as before. Since the absolute cell reference for the criteria range ($B$1:$G$1) and the relative reference for the sum range (B2:G2) remain perfectly structured, the entire calculation mechanism functions flawlessly, providing the new aggregation results instantaneously.

Column I now accurately reflects the sum of sales in each row where the corresponding store name in the header row is “West.” This vividly demonstrates the efficiency and powerful generalization of the SUMIF function when handling complex, non-standard data layouts within Excel.

Comparing SUMIF to Other Aggregation Functions

While the SUMIFS function is often the analyst’s preferred choice for handling scenarios involving multiple complex criteria, it is primarily designed to act on potentially different criteria ranges. In the specific context of this tutorial—where we have a single criterion (the store name) applied to a single, horizontal range (the header row)—the standard SUMIF function emerges as the clearly superior choice due to its inherent simplicity, streamlined syntax, and notably lower processing overhead.

Alternative computational methods, such as utilizing SUMPRODUCT for array multiplication or employing TRANSPOSE in conjunction with FILTER (in modern Excel versions), can certainly resolve this problem. However, these techniques often introduce significant complexity. For example, SUMPRODUCT formulas can be notoriously difficult to debug and audit, while TRANSPOSE usually requires either physically altering the data layout or relying on complex array formulas which demanded the restrictive Ctrl+Shift+Enter command in older versions of Excel. The direct, strategic application of SUMIF, capitalizing on its capacity to process horizontal ranges, provides the most straightforward, readable, and maintainable solution for this common data aggregation task.

Another function sometimes brought up in discussions regarding horizontal data lookup is HLOOKUP. It is essential to understand that HLOOKUP is fundamentally designed to retrieve only a single corresponding value based on a horizontal match, not to calculate the sum of multiple matching values. If the requirement were merely to find the sales figure for the first “East” store encountered, HLOOKUP might suffice. Since our specific need is to aggregate all instances of “East” sales figures, the conditional summation power unique to the SUMIF function is absolutely necessary.
