A Tutorial on Opening CSV Files Using VBA in Excel

Automating complex data workflows within Excel is a core function of VBA (Visual Basic for Applications). A fundamental and frequently required task for any data import routine is opening external files, particularly structured data stored in a CSV file (Comma Separated Values). To efficiently integrate this external data, developers rely on the powerful built-in method: Workbooks.Open. This reliable method provides a direct mechanism to load a specified file into an Excel workbook object, regardless of the accessible file path.

While the command itself is concise, achieving robust automation requires a deep understanding of its context and precise implementation. This guide will meticulously examine the exact syntax needed to successfully open a standard CSV file, followed by detailed, practical examples demonstrating how this critical capability functions within the VBA environment. Mastering this method is the first step toward building sophisticated data processing scripts.

The Core Functionality of Workbooks.Open

The Workbooks.Open method serves as an essential gateway within the Excel Object Model. It is explicitly designed to manage the loading or creation of existing workbooks. When this method encounters a text-based file extension, such as .csv, Excel intelligently invokes its internal Text Import Wizard. By default, standard settings are applied to parse the delimited data, though these can be overridden by specific parameters. For the most basic and common operation, only the Filename argument is mandatory.

The most straightforward implementation of this method involves supplying the complete, unambiguous file path—known as the absolute path—to the target file. This technique is highly effective for internal scripts or processes running in controlled environments where the exact file location is static and guaranteed to remain consistent.

Below is the fundamental structure of a VBA macro specifically engineered to open a CSV file using the Workbooks.Open method:

Sub OpenCSV()
Workbooks.Open "C:UsersbobDocumentsteam_info.csv"
End Sub

In this simple yet powerful example, the macro successfully locates and opens the designated file, team_info.csv, based on the specific location provided on the local machine. This command forms the foundational layer upon which more complex data processing workflows are constructed, enabling seamless integration of external data sources into Excel for subsequent reporting, analysis, or transformation routines.

Exploring Optional Parameters and Advanced Control

While the previous example demonstrated the mandatory use of the Filename argument, the Workbooks.Open method possesses a wide array of optional parameters that grant developers precise control over the opening process. Understanding these additional arguments is paramount for professional VBA development, especially when addressing concerns related to data integrity, file security, or managing external dependencies.

The comprehensive syntax often incorporates critical arguments such as UpdateLinks (essential for controlling how external references are managed upon opening), ReadOnly (useful for preventing accidental modifications to the source file), Format (necessary for explicitly defining the file type if the extension is non-standard), and Password (required for accessing protected files).

When dealing specifically with a standard, comma-delimited CSV file, Excel typically handles the necessary text import settings automatically. However, for scenarios involving highly complex delimiters, non-standard character encoding, or unusual column structures, developers might need to bypass Workbooks.Open and instead utilize the more explicit control offered by the Workbooks.OpenText method or the QueryTables object.

Nonetheless, for the vast majority of simple data import tasks involving standard CSVs, relying exclusively on the mandatory Filename argument remains the most efficient practice. This simplicity is why Workbooks.Open is the default and preferred command for rapid data automation routines, allowing VBA scripts to leverage Excel’s inherent ability to correctly identify and format basic text data.

Step-by-Step Practical Implementation

Let us walk through a typical business scenario: a need to regularly import transaction data stored in a CSV file into a standardized reporting template. To ensure the VBA routine executes flawlessly, the script must reliably locate and access the data source.

For this demonstration, we assume the existence of a CSV file named team_info.csv, which contains essential data about various sports teams. This file is permanently situated at the following specific location on the local system:

C:UsersbobDocumentsteam_info.csv

Our primary objective is to construct a macro that opens this file directly into an active Excel session. The procedure involves opening the VBA Editor (accessible via Alt + F11) and inserting a new module, which will house the procedure definition.

The code snippet below defines the necessary procedure, utilizing the Workbooks.Open command and wrapping the complete file path within double quotation marks:

Sub OpenCSV()
Workbooks.Open "C:UsersbobDocumentsteam_info.csv"
End Sub

Upon successful execution of this routine, the specified CSV file is automatically loaded into a new workbook instance. This automated process is virtually instantaneous and eliminates the need for any manual intervention, underscoring the efficiency of the Workbooks.Open method for data import automation tasks.

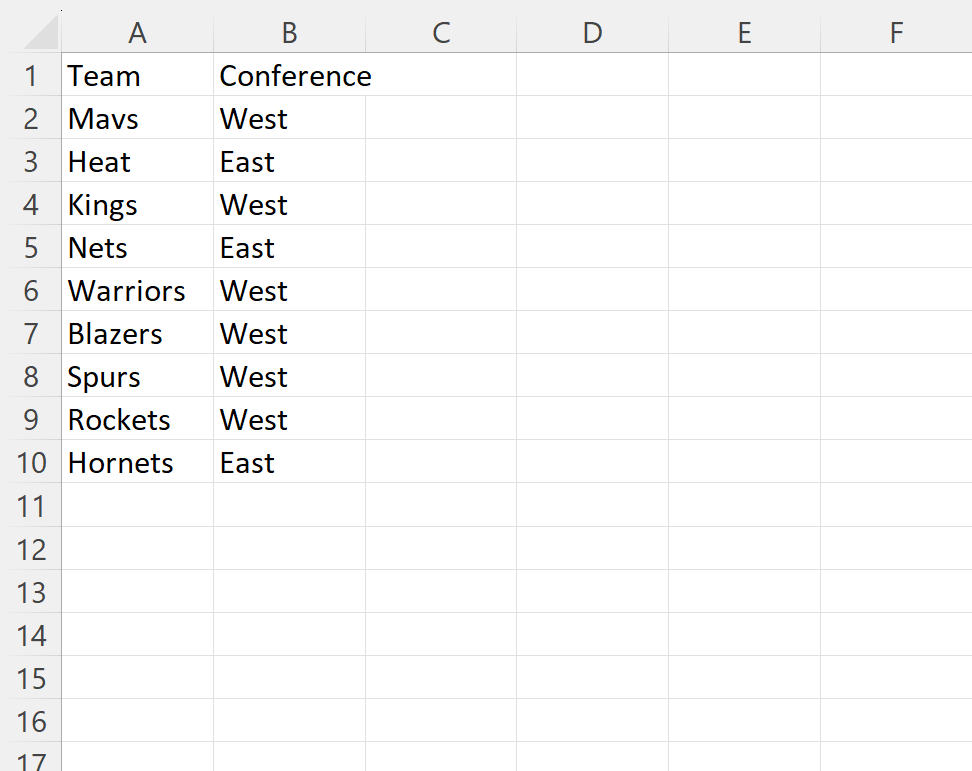

The immediate result of running this procedure is the successful visualization of the imported data, structured neatly within the new workbook:

As the image confirms, the opened workbook contains organized information detailing various basketball teams, which is now immediately available for analysis or ready for further programmatic processing by subsequent VBA routines.

Critical Considerations for Path Management and Portability

A leading cause of failure when employing the Workbooks.Open command is the incorrect specification of the file path. The operation’s success hinges entirely on the script’s ability to locate the file precisely as the path string dictates.

It is vital for developers to distinguish clearly between absolute paths (which provide the full path starting from the root directory) and relative paths (which locate a file relative to the current workbook’s location). The examples demonstrated above use an absolute path, ensuring location clarity as long as the file remains at C:UsersbobDocumentsteam_info.csv.

However, hardcoding absolute paths, particularly those referencing specific user directories (e.g., ‘bob’s’ folder), is generally considered poor practice in shared development environments. If the project is deployed across multiple user machines, such hardcoded paths will inevitably fail, leading to non-portable code and run-time errors.

To enhance portability and robustness, developers should implement strategies to determine file locations dynamically. These strategies include leveraging built-in Excel functionality such as ThisWorkbook.Path to construct relative paths, or utilizing advanced objects like Application.FileDialog to prompt the user to select the required file interactively, thereby eliminating the risk associated with hardcoded names entirely. Furthermore, meticulous attention must be paid to ensuring that path separators (backslashes ) are used consistently and correctly according to the operating system’s requirements.

Troubleshooting: Handling the “File Not Found” Error

When the file path supplied to the Workbooks.Open method is inaccurate, or if the target file has been moved, renamed, or deleted, the VBA execution environment will immediately cease operation and trigger a run-time error 1004, universally known as the “File Not Found” error. This type of critical error breaks the sequential flow of any automation script.

To illustrate this frequent programming pitfall, consider an attempt to open a non-existent file named team_info2.csv in the previously specified folder:

Sub OpenCSV()
Workbooks.Open "C:UsersbobDocumentsteam_info2.csv"
End Sub

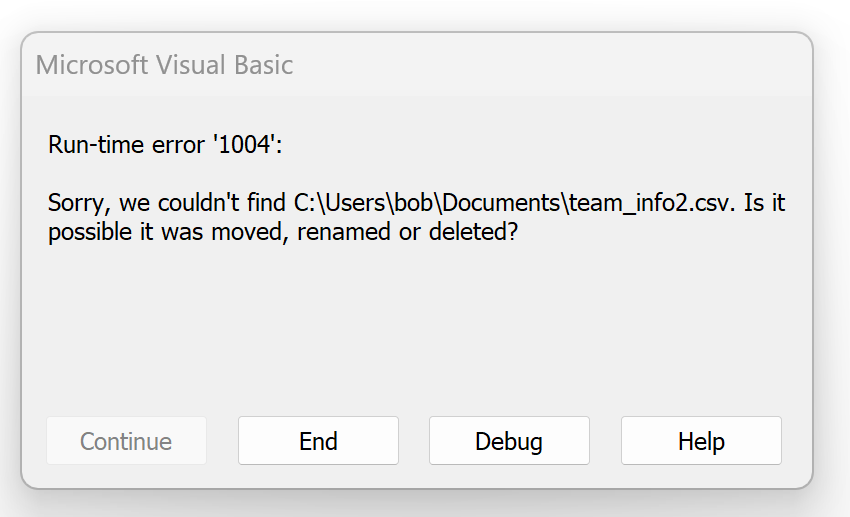

Attempting to execute the code snippet above results in an immediate and disruptive failure. The VBA debugger intervenes and presents a clear error message that explicitly pinpoints the source of the malfunction:

This explicit error message confirms the absolute necessity of rigorous path verification before attempting any file operation. For production-level code, developers must incorporate structured error handling mechanisms, such as implementing statements like On Error GoTo Handler, or proactively checking for file existence using the Dir() function. This preemptive checking approach prevents unexpected program termination, ensuring a significantly smoother and more professional user experience.

Best Practices for Robust VBA File Operations

To transition from basic scripting to creating truly robust and professional automation tools, developers must adopt specific best practices related to file handling when working with VBA. These guidelines promote stability, maintainability, and resource management.

• Use Variables for Paths: Instead of embedding the file path string directly within the Workbooks.Open command, it is best practice to assign the path to a dedicated string variable. This technique dramatically improves code readability, streamlines maintenance, and simplifies updating the script if the file location changes.
• Implement Comprehensive Error Handling: Always enclose file operations within robust error handling constructs. This ensures the script can gracefully manage anticipated problems, such as the “File Not Found” error, providing the user with informative feedback rather than crashing unexpectedly.
• Explicitly Close Workbooks: Once the imported CSV file data has been opened, processed, and utilized, ensure the corresponding workbook object is properly closed and subsequently released from memory. Use syntax like Workbooks("team_info.csv").Close SaveChanges:=False. Failure to explicitly close workbooks can lead to resource contention, memory leaks, and unpredictable behavior in subsequent macro executions.
• Referencing the Workbook Object: It is highly recommended to assign the newly opened workbook to a specific object variable (e.g., Set wbData = Workbooks.Open(...)). This practice allows all subsequent lines of code to refer to the data clearly and unambiguously, which is essential when multiple external files or workbooks are open simultaneously.

Mastering the Workbooks.Open method, coupled with diligent path management and structured error handling, is unequivocally fundamental to achieving effective and reliable data automation using VBA.

For developers seeking comprehensive details regarding all available optional parameters, return values, and advanced usage scenarios, the complete official documentation for the Workbooks.Open method is accessible through Microsoft’s authoritative resources.

Additional Resources for Advanced Automation

To further expand your capabilities in automating diverse tasks within Excel, it is highly beneficial to explore tutorials and documentation focused on related file management and data processing topics. These supplementary resources are crucial for advancing skill sets from basic script execution to sophisticated application development.

Consider exploring guides that cover these common, yet essential, file management tasks in VBA:

• Techniques on how to save a workbook programmatically and manage file formats.
• Methods for efficiently looping through and processing multiple files located within a specific folder structure.
• Advanced procedures for checking if a file exists using the Dir() function before attempting the opening operation.
• Detailed guides on advanced text parsing, including the use of the Workbooks.OpenText method for handling custom or complex delimiters and encoding standards.
