Learning VBA: A Tutorial on Opening PDF Files

Introduction to External File Handling in VBA

Working within Microsoft Excel often necessitates interacting with resources that reside outside the immediate workbook environment, such as external databases, documents, or specialized files. One of the most common requirements is the ability to programmatically access locally stored files, particularly those saved in the Portable Document Format (PDF). While Excel provides basic linking features, leveraging the power of VBA (Visual Basic for Applications) delivers the automation and precision required to execute such commands reliably. This scripting approach ensures that specific documents, regardless of their location on the local network or hard drive, can be opened efficiently using a predefined Macro, thereby streamlining complex data management workflows and ensuring instantaneous access to supplementary information.

The fundamental mechanism employed for this operation involves instructing the Excel application to treat a local file path as if it were an external web address or standard hyperlink. This ingenious method avoids the need for complex interactions with the Windows API, relying instead on a robust, built-in function designed for navigation. Implementing this functionality is remarkably straightforward, demanding minimal code to identify the target path and initiate the opening sequence. This technique is invaluable for developers who are building comprehensive reporting tools or archival systems that must present supporting documentation directly upon a user’s command, guaranteeing a seamless integration between tabular spreadsheet data and critical reference material.

For this action to execute successfully, the user must meticulously define the exact file path, including the full file name and extension. Furthermore, it is essential to ensure that the operating system’s default program for handling PDF files is correctly configured. If the defined path is incorrect, or if the target file has been moved or deleted, the script will typically encounter a runtime error and halt execution. This outcome underscores the critical importance of proper file path management and robust error handling, essential topics that will be discussed in greater detail in the subsequent sections of this guide.

Understanding the FollowHyperlink Method

The most reliable and direct technique for instructing Excel to open an external file, such as a PDF document, is by utilizing the FollowHyperlink method. This powerful method is a core component of the ActiveWorkbook object, meaning the instruction is executed relative to the workbook currently open and active within the Excel application. While the function’s name suggests it is strictly for web links, its primary strength lies in its ability to follow any specified hyperlink address, which critically includes local file paths (often technically referred to as Uniform Resource Identifiers or URIs). When a valid local file path is supplied, the operating system receives the instruction to open that specific file using the application associated with its file extension, such as Adobe Acrobat Reader or a modern web browser for PDF documents.

The syntax required for this method is exceptionally simple, demanding only the string containing the path of the target file as its primary argument. This method offers high versatility, capable of opening not only PDFs but also other common document types, including Word documents, plain text files, or even launching specific folders within the system’s file explorer. This comprehensive utility solidifies FollowHyperlink as an indispensable tool in the VBA developer’s arsenal for managing automated interactions between the Excel environment and the underlying operating system’s file structure.

Presented below is the foundational code structure demonstrating how this method is typically applied within a standard VBA module, targeting a specific, fixed PDF file location. This example clearly illustrates the clean and explicit nature of the command, emphasizing the requirement for the full, absolute path to guarantee correct execution, irrespective of the current location of the Excel workbook itself.

Sub OpenPDF()
ActiveWorkbook.FollowHyperlink "C:UsersbobDocumentsbasketball_data.pdf"
End Sub

In the provided code snippet, the ActiveWorkbook object is tasked with initiating the hyperlink process, pointing directly to the file named basketball_data.pdf. It is essential to recognize that this macro is location-specific, meaning any change in the target file’s physical path necessitates a corresponding update to the hardcoded path within the script. This simple, direct execution flow is precisely why the FollowHyperlink method remains the preferred initial choice for straightforward, reliable file access needs in VBA.

Practical Implementation: Building the PDF Opener Macro

To fully grasp the practical application of the FollowHyperlink method, let us detail a specific scenario. Imagine a comprehensive performance report for a basketball league has been recently compiled and saved as a Portable Document Format (PDF) file. To facilitate quick reference, the objective is to embed a button within our primary Excel dashboard that automatically opens this report upon clicking. For this illustration, we assume the document, named basketball_data.pdf, is housed in a specific, known folder on the user’s primary hard drive.

For the purpose of this detailed example, the exact absolute file path is defined as:

C:UsersbobDocumentsbasketball_data.pdf

Our goal is to construct a simple yet highly effective VBA macro that, when activated, executes the necessary command to open this specific document. This process requires standard procedural steps: navigating to the VBA Editor (accessible via Alt + F11), inserting a new module, and then inputting the following code structure. This identical macro serves as the precise implementation of the FollowHyperlink method tailored to this specific file path, ensuring the target document is promptly opened using the system’s default PDF reader application.

Sub OpenPDF()
ActiveWorkbook.FollowHyperlink "C:UsersbobDocumentsbasketball_data.pdf"
End Sub

Upon the successful execution of this macro, the responsibility for launching the file transitions entirely to the operating system. It is critical to reiterate that the efficacy of this command relies absolutely on the accuracy of the file path provided within the quotation marks. Even a minor typographical error, a missing backslash, or an incorrect file extension will cause the macro to fail in locating and opening the intended PDF file, making meticulous and precise path definition a necessary prerequisite for achieving reliable automation.

Navigating Excel’s Security Warnings

When attempting to run a VBA macro that accesses external resources or local files, particularly those situated outside of designated trusted locations, Microsoft Excel is engineered to trigger a crucial security mechanism. This built-in system is designed to shield the user from potential malicious code or unwarranted access to sensitive system files. Consequently, immediately following the attempt to execute the OpenPDF macro detailed above, users are highly likely to encounter a prominent dialog box known as the Microsoft Excel Security Notice.

This notice typically informs the user that the hyperlink being followed points to a location that Excel deems potentially unsafe or untrusted, and it demands explicit confirmation before proceeding with the action. This step is a necessary precautionary measure integrated into Excel’s Trust Center settings. Although the appearance of this warning can sometimes seem inconvenient to the end-user, it functions as a vital safeguard, especially in organizational environments where workbooks may be shared across various systems or external networks. To allow the code to complete its external navigation task, the user must actively acknowledge and accept the risk associated with following the link.

The prompt displayed will generally resemble the image shown below, necessitating that the user confirms their intent to proceed with the action:

Once the user carefully reviews the notification and clicks the Yes button, Excel grants permission for the execution of the FollowHyperlink method to continue. Subsequently, the operating system takes over, launching the default application associated with the .pdf extension, and the targeted document is displayed on the screen. It should be noted that this confirmation is typically a one-time step per session or per file, depending on the user’s specific security configurations, forming an essential part of the user experience when dealing with external file manipulation via automated scripts.

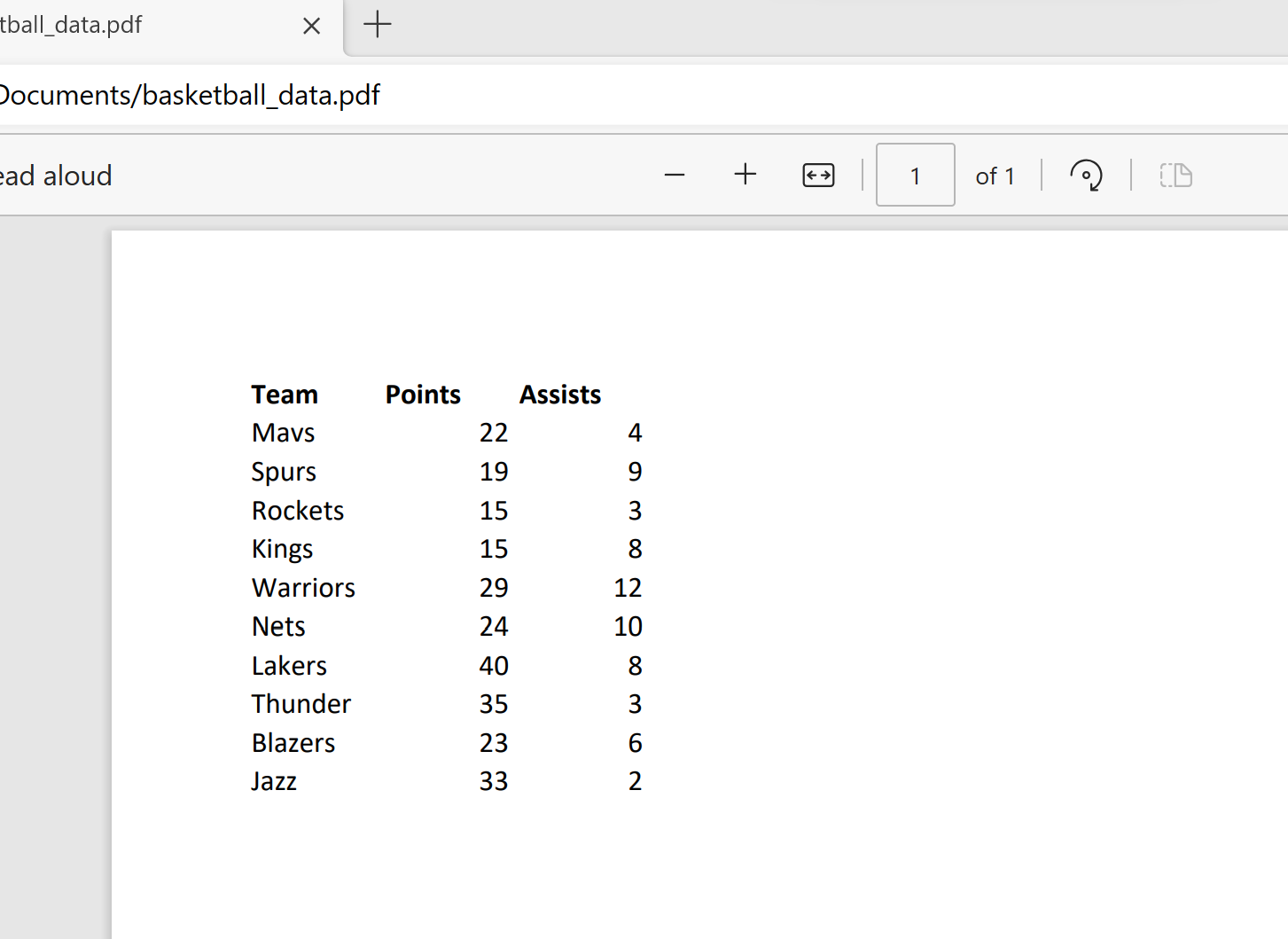

Following successful confirmation, the PDF document is opened and ready for immediate viewing. In our example scenario, the resulting view confirms the retrieval and display of the basketball data report:

This particular PDF file contains a concise dataset regarding basketball players across various teams, thereby confirming the reliable execution and file opening process initiated successfully by the VBA macro.

Advanced Path Management and Error Handling

While the FollowHyperlink method is undeniably simple and highly effective for scenarios involving fixed file paths, professional VBA development frequently demands more robust and scalable solutions. A significant limitation of the fundamental example provided is the reliance on a hardcoded, absolute file path (e.g., C:UsersbobDocuments…). In environments that involve shared resources or corporate networks, file locations are rarely static or uniform, making the use of relative paths or dynamic path construction a vastly superior and necessary practice. Developers should therefore consider utilizing the ThisWorkbook.Path property to construct a path that is relative to where the Excel file itself is stored, thereby guaranteeing portability and functionality across diverse user machines and network drives.

Furthermore, truly reliable macros must incorporate comprehensive error handling procedures. If the specified PDF file is moved, renamed, or deleted, the FollowHyperlink method will inevitably trigger a runtime error (such as runtime error 28 or similar application-specific errors), causing the VBA execution to halt abruptly and unexpectedly. To mitigate this risk, developers should employ the On Error Resume Next statement coupled with a preceding file existence check (typically achieved using the Dir function) before the attempt to follow the hyperlink is made. This proactive approach ensures that the user receives a helpful, descriptive notification if the file cannot be located, rather than encountering an application crash or an unexpected stoppage.

An alternative, powerful approach to external file manipulation is the use of the Shell command. The Shell command empowers the VBA code to execute an external program directly, passing the file path as an argument. While this method is slightly more complex to implement—as it requires knowing the full path to the default PDF reader application (such as Adobe Acrobat or a system browser like Edge)—the Shell command offers superior control over how the document is opened and can sometimes bypass specific Excel security warnings related to hyperlinks entirely. Nevertheless, for the majority of basic automation requirements, the simplicity, elegance, and integrated nature of the FollowHyperlink method ensure it remains the preferred standard choice.

Summary of VBA File Automation Techniques

Mastering external file interaction is a crucial skill for leveraging the full automation capabilities inherent in VBA. The FollowHyperlink method provides a clean, highly efficient, and well-integrated mechanism for opening various external documents, including PDF files, directly from within an Excel macro. While its syntax is minimal, its effective deployment demands careful attention to file path accuracy and a full anticipation of the potential security prompts issued by Microsoft Excel’s protective measures.

By understanding how to correctly implement this fundamental method and, crucially, how to manage the inevitable security notifications that arise, developers can construct reliable and user-friendly tools that significantly enhance efficiency and accessibility. The ability to seamlessly integrate Excel data with relevant external reference documents represents a fundamental professional skill set that dramatically improves the overall utility and professionalism of any automated reporting system built using VBA.
