Learning Multiple Linear Regression in Excel for Predictive Modeling

The ability to forecast future outcomes is paramount in modern data science and business intelligence. When performing Multiple Linear Regression (MLR) analysis, the ultimate objective is to construct a robust model that can accurately predict the outcome, or response value, for data points previously unseen by the training set. This predictive capability is indispensable for strategic decision-making, optimizing resource allocation, and advancing scientific research.

Microsoft Excel, despite being a general-purpose spreadsheet application, offers surprisingly powerful and accessible tools for executing this complex statistical procedure. Unlike simpler univariate forecasting methods, MLR allows analysts to simultaneously account for the influence of several predictor variables, resulting in predictions that are far more accurate, nuanced, and reflective of real-world relationships.

Generating predictions based on a fitted MLR model in Excel is a streamlined process, provided the powerful array function, LINEST, has been deployed correctly to extract the model parameters. This comprehensive guide details the necessary steps, from setting up the initial dataset and calculating the model coefficients to scaling the final predictions across numerous new observations efficiently.

Structuring the Data for Multiple Linear Regression

The foundational step in any statistical regression analysis is the meticulous preparation and organization of the input data. For a Multiple Linear Regression, we must have a well-defined structure: at least one outcome variable (Y, the response variable) and two or more input variables (X1, X2, etc., the predictor variables). To illustrate this process clearly, we will begin by simulating a synthetic, yet representative, dataset directly within an Excel worksheet.

The arrangement of the data is crucial for Excel functions to interpret the ranges correctly. Convention dictates that columns represent the individual variables, while each row constitutes a distinct observation or data point. In our scenario, we hypothesize that the dependent variable Y is influenced linearly by two independent predictors, X1 and X2. This structure facilitates the array processing capability of Excel’s statistical functions.

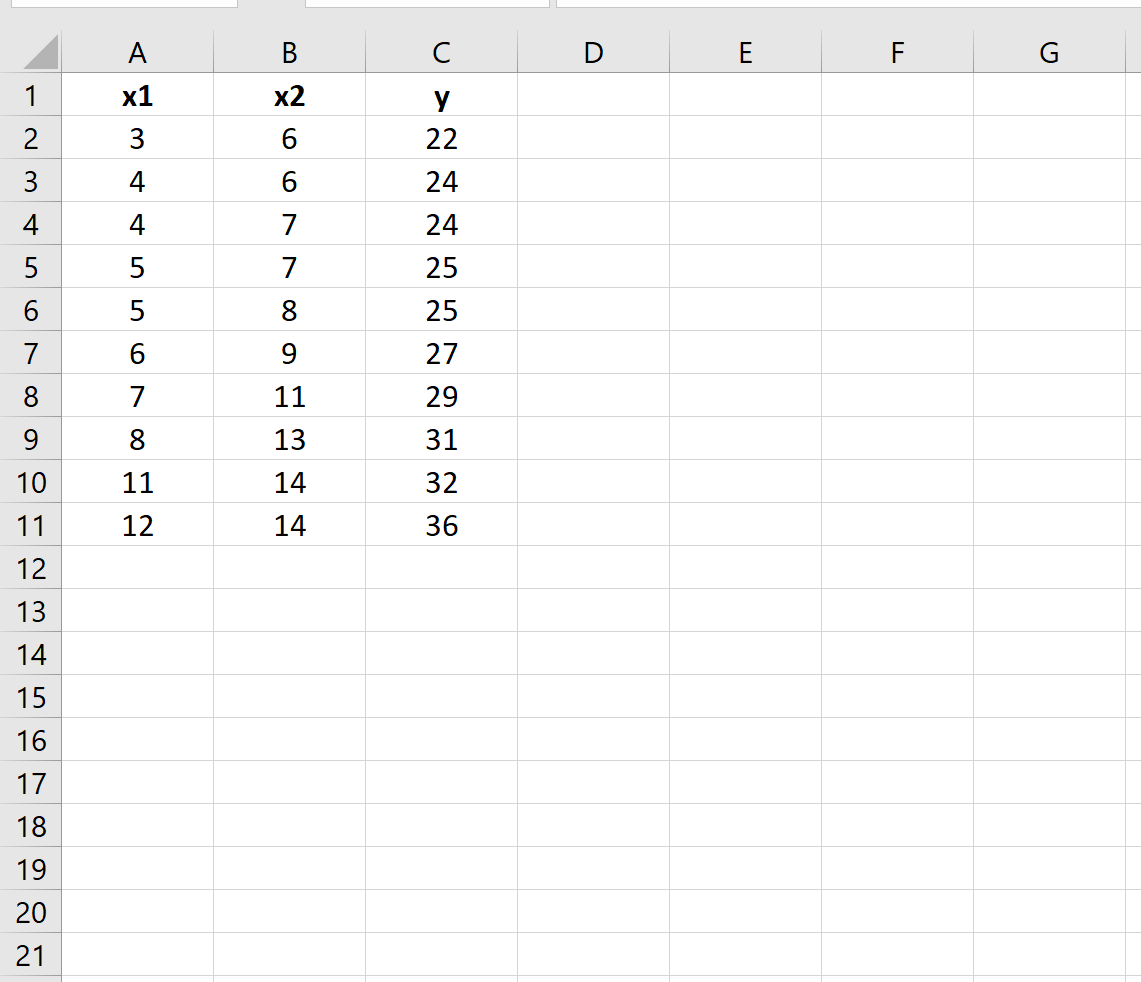

For training the Multiple Linear Regression model, clear and explicit labeling of the variables is essential. Proper labeling ensures that during the formula application stage, the correct ranges are referenced for the known Y values and the known X values. The image below displays the synthetic dataset used for model training, highlighting the need for organized input data.

Calculating Model Parameters Using LINEST

With the training data properly structured, the subsequent phase involves calculating the regression coefficients. These coefficients—often denoted as beta weights—quantify the linear relationship between the predictors and the response, thereby establishing the mathematical core of our predictive model. In Excel, the most direct and efficient method for deriving these parameters is through the use of the specialized array function, LINEST.

To fit a Multiple Linear Regression model using X1 and X2 as the independent variables and Y as the dependent variable, we must understand the syntax of the function: LINEST(known_y’s, known_x’s, [const], [stats]). Since we are dealing with multiple predictors (X1 and X2) plus the mandatory intercept (constant), the function will return three values. Therefore, before entering the formula, the user must select an output range consisting of three adjacent horizontal cells to accommodate all calculated coefficients.

When inputting the formula, the known_x’s argument must combine the ranges for both X1 and X2 into a single, contiguous array (e.g., A2:B11 if X1 is in A and X2 is in B). Because LINEST is inherently an array function, it historically required confirmation using the combination of Ctrl+Shift+Enter. While modern versions of Excel (Microsoft 365) often handle this automatically with just Enter, using the array confirmation shortcut ensures compatibility and proper execution across all environments.

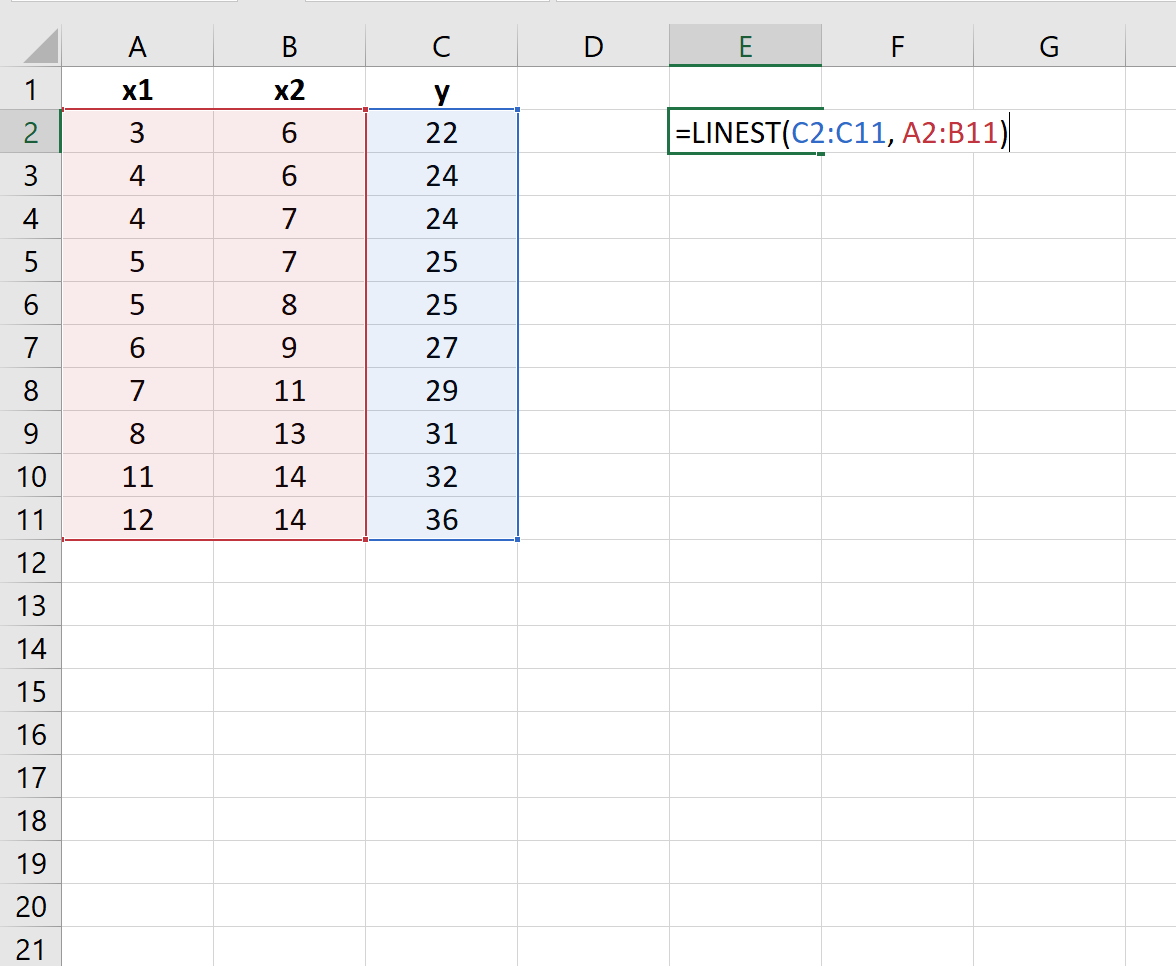

Assuming the Y values reside in column C and the combined X predictors are in columns A and B, the specific formula entered into the selected three-cell output range is shown in the formula bar below. This step links the raw data to the statistical engine of the LINEST function.

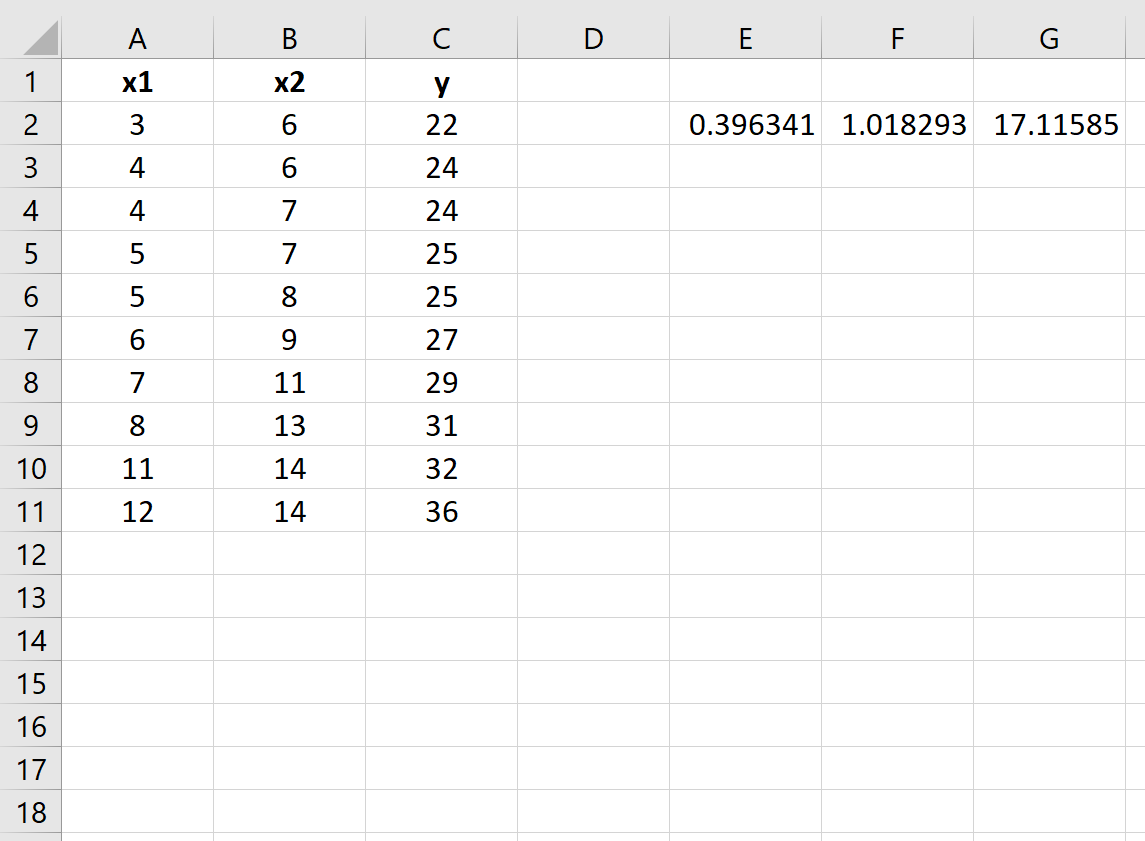

Upon successful array execution, the calculated parameters populate the chosen output cells. It is critical to note that Excel returns the regression coefficients in reverse order of the input predictors: the coefficient for the rightmost X variable (X2) appears first, followed by the coefficient for X1, and finally, the intercept (constant term). Understanding this output sequence is vital for accurately constructing the regression equation.

Deriving the Predictive Regression Equation

The numerical results generated by the LINEST function immediately provide the necessary components to formulate the mathematical equation of the fitted Multiple Linear Regression model. This equation serves as the definitive mathematical blueprint for all subsequent predictions and interpretations.

The standard algebraic form for an MLR equation involving two predictor variables is: Y_predicted = b0 + b1(x1) + b2(x2). Here, b0 represents the intercept (the predicted Y value when all predictors are zero), and b1 and b2 are the respective regression coefficients associated with predictors X1 and X2.

Based on the specific coefficients derived from the example in the previous step (where the intercept b0 = 17.1159, the coefficient b1 for X1 = 1.0183, and the coefficient b2 for X2 = 0.3963), our unique fitted model is explicitly defined as: Y = 17.1159 + 1.0183(X1) + 0.3963(X2).

A crucial step in analysis is interpreting these coefficients. Each coefficient indicates the estimated change in the response variable (Y) that occurs for every one-unit increase in its corresponding predictor, provided that all other predictors in the model are held constant (the principle of ceteris paribus). This interpretation is foundational to understanding the relative contribution and influence of X1 and X2 on the predicted outcome Y.

Implementing Prediction for a Single Data Point

The practical value of fitting the MLR model is fully realized when the derived equation is applied to forecast outcomes for new observations that were not used during the training phase. Imagine a scenario where we have new input values for the predictor variables but need an accurate estimate of the corresponding response value.

For demonstration purposes, let us consider a new observation with the following characteristics for our input variables:

• X1 value: 8
• X2 value: 10

To manually calculate the predicted Y value, we would substitute these inputs into our equation: Y_predicted = 17.1159 + 1.0183(8) + 0.3963(10). However, in Excel, manual substitution is inefficient and prone to error. The highly recommended practice is to use dynamic cell references for both the coefficients (from the LINEST output) and the new X values.

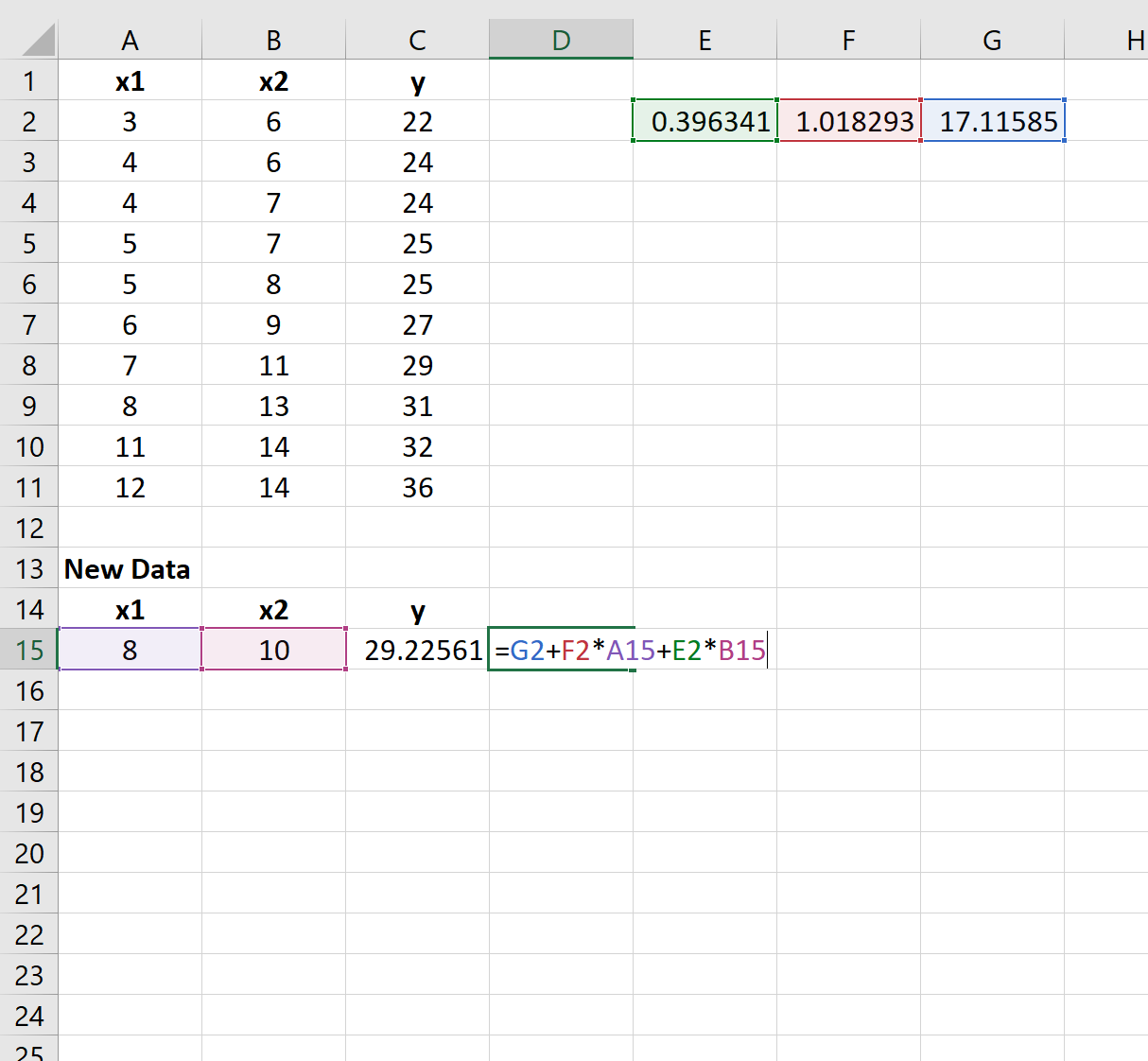

The prediction formula should be structured by multiplying the cell containing the coefficient (e.g., b1) by the cell containing the corresponding new predictor value (e.g., X1), and then summing these products, plus the intercept cell (b0). This method ensures that if the underlying model coefficients are updated, the prediction recalculates automatically. The following visual illustrates the cell-based calculation for this specific new data point:

Applying the derived Multiple Linear Regression model to the inputs X1=8 and X2=10 yields a predicted value for Y of 29.22561. This figure is the model’s best statistical estimate for the response variable given these specific input conditions.

Scaling Prediction Across Multiple Observations Using Absolute References

While calculating a single prediction confirms the methodology, the true efficiency of Excel lies in its capacity to scale complex calculations across massive datasets. If we need to forecast the outcome for a long list of new observations (multiple rows of X1 and X2 values), manually re-entering or adjusting the prediction formula for every single row is impractical.

To automate the scaling process, we must leverage the concept of absolute cell references. The key challenge is that when a formula is dragged down across rows, we want the references to the new X values to shift (relative reference), but the references to the fixed regression coefficients (the output of the LINEST function) must remain locked in their original cells.

An absolute reference is achieved by prefixing both the column letter and the row number of the cell with a dollar sign ($), for example, referencing the intercept as $E$1. Conversely, the cells containing the new X values should use relative references (e.g., A15, B15). This ensures that when the prediction formula is copied from row 15 to row 16, the X values correctly update (to A16, B16) while the coefficients (b0, b1, b2) remain fixed and accurately pointing back to the results of the LINEST calculation.

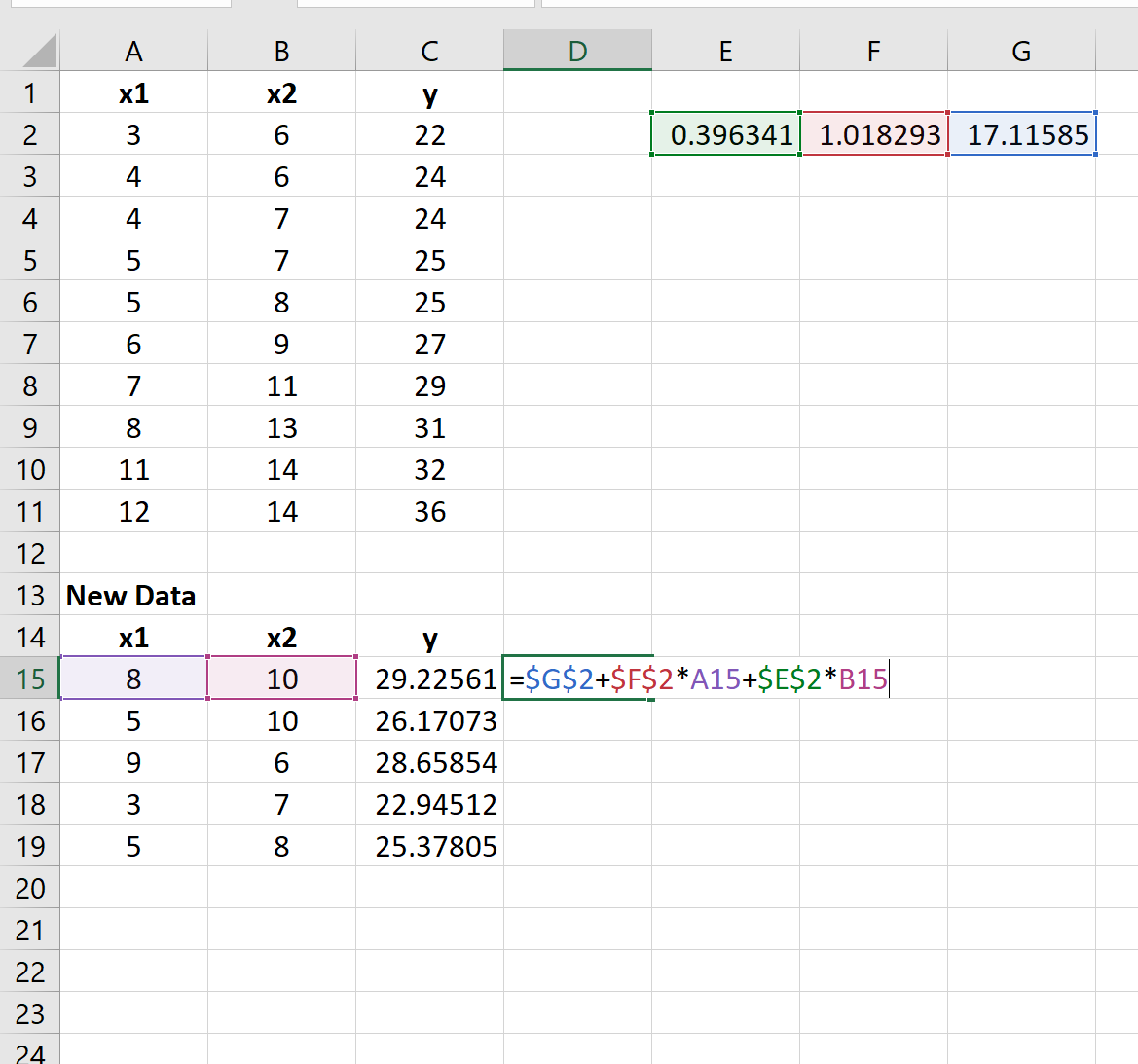

By employing this absolute cell reference technique, the predictive model can be instantly applied to hundreds or thousands of new data points. This transformation allows spreadsheet users to transition from single-point calculation to high-volume, data-driven forecasting rapidly, as demonstrated in the resulting table where the formula is dragged down:

Conclusion and Recommendations for Further Study

The complete workflow for fitting and applying a Multiple Linear Regression model in Excel provides a powerful, accessible mechanism for sophisticated data-driven forecasting, even without specialized statistical software. By mastering the execution of the LINEST array function and understanding the necessity of appropriate cell referencing (both absolute and relative) when constructing the final predictive equation, users gain the ability to generate meaningful, actionable forecasts.

This structured methodology—moving from initial data organization to coefficient calculation, model equation interpretation, and finally to scaled prediction—is a fundamental skill set for analysts seeking to leverage the statistical power latent within spreadsheet applications for advanced modeling.

To enhance the reliability and interpretability of the results derived from the MLR model, further investigation into related statistical concepts is highly recommended. Key areas for supplementary study include the interpretation of the R-squared value (R²), conducting hypothesis testing for individual regression coefficients (t-tests), and validating the underlying assumptions of the linear model, such as linearity, normality of residuals, and homoscedasticity.
