Learning Dynamic Range Summation in Excel: A Tutorial Using SUM and OFFSET Functions

The core challenge in advanced spreadsheet management often revolves around handling data that constantly shifts location. When working with large reports or complex financial models in Excel, the traditional reliance on fixed cell ranges quickly becomes inefficient. Dynamic range referencing is the solution, providing the flexibility required to adapt calculations automatically. By masterfully combining the SUM function with the powerful OFFSET function, users can create robust formulas that aggregate data from a block of cells defined solely by its relative distance from a stable starting point. This technique is indispensable for generating scalable reports where data integrity must be maintained despite frequent structural changes, such as insertions or deletions of rows and columns.

This comprehensive tutorial aims to demystify the syntax and practical application of the SUM and OFFSET pairing. We will demonstrate precisely how to define a target range based on specific row and column offsets, followed by specifying the exact height and width of the data block to be included in the calculation. By the end of this guide, you will be equipped to construct highly adaptable summaries that automatically adjust to evolving data layouts, enhancing the reliability and efficiency of your spreadsheet modeling.

The Essential Anatomy of the SUM and OFFSET Combination

The OFFSET function is specifically designed to return a reference to a range that is displaced a given number of rows and columns from a designated reference point. When embedded within the SUM function, it allows for the aggregation of values within this dynamically determined area. Constructing a reliable dynamic formula hinges on a clear understanding of the five arguments required by OFFSET, each playing a critical role in defining the final range reference.

The standard formula structure is clearly defined: =SUM(OFFSET(Reference, Rows, Cols, [Height], [Width])). The Reference argument serves as the immovable anchor, establishing the origin (0, 0) from which all subsequent movements are measured. The Rows and Cols arguments dictate the vertical and horizontal distances, respectively, that the function must traverse from the anchor to locate the upper-left corner of the desired range. Crucially, the [Height] and [Width] arguments, though technically optional, are almost always necessary when defining a specific dynamic data block, as they inform the outer SUM function precisely which dimensions to aggregate.

To illustrate this concept, we will focus on a specific formula designed to calculate the total values within a targeted block of data embedded in a larger dataset. The implementation below targets a precise area relative to the anchor cell, demonstrating the exact syntax we will analyze throughout the remainder of this article:

=SUM(OFFSET(A1, 6, 2, 5, 1))

This particular configuration dictates that the resulting range to be summed will be 5 rows high and 1 column wide. This dynamic range starts at a position that is offset 6 rows down from the initial anchor (A1) and 2 columns to the right. This powerful mechanism enables the user to isolate a specific, consistently sized block of cells that maintains its positional relationship to a fixed starting cell reference, irrespective of changes occurring elsewhere in the worksheet, such as row insertions above the anchor point.

Practical Application: Calculating Specific Team Totals

To fully appreciate the utility of combining SUM and OFFSET, let us consider a typical data tracking scenario. Imagine we are managing a spreadsheet that records game points scored by basketball players, structured consistently by team and player position. This format, where data subsets (teams) maintain a fixed, predictable size (e.g., five players each), represents the ideal application for precise dynamic range referencing.

The following table serves as our primary dataset, listing various players and their scores:

Our specific goal is to calculate the aggregated score total exclusively for the players belonging to the “Spurs” team. It is essential to note the structure: Row 1 contains the headers, and each team occupies exactly five consecutive rows of data. Because the ‘Spurs’ data block begins six rows below the header row (A1) and their scores are located two columns past the Team Name column, we can leverage the formula discussed previously to isolate their scores programmatically.

By inputting the dynamic formula directly into an output cell, such as E2, we execute the calculation without needing to manually define the range C7:C11. The formula remains consistent and precise:

=SUM(OFFSET(A1, 6, 2, 5, 1))

The efficiency of this implementation lies in its automated range location. It instructs Excel to derive the necessary range reference relative to the fixed starting point A1, rather than relying on a hard-coded range like C7:C11. This adaptive methodology is crucial for models where the specific starting row of the data might frequently change due to external data feeds or filtering, provided the inherent five-player structure per team is strictly maintained.

Analyzing the Dynamic Calculation Result and Verification

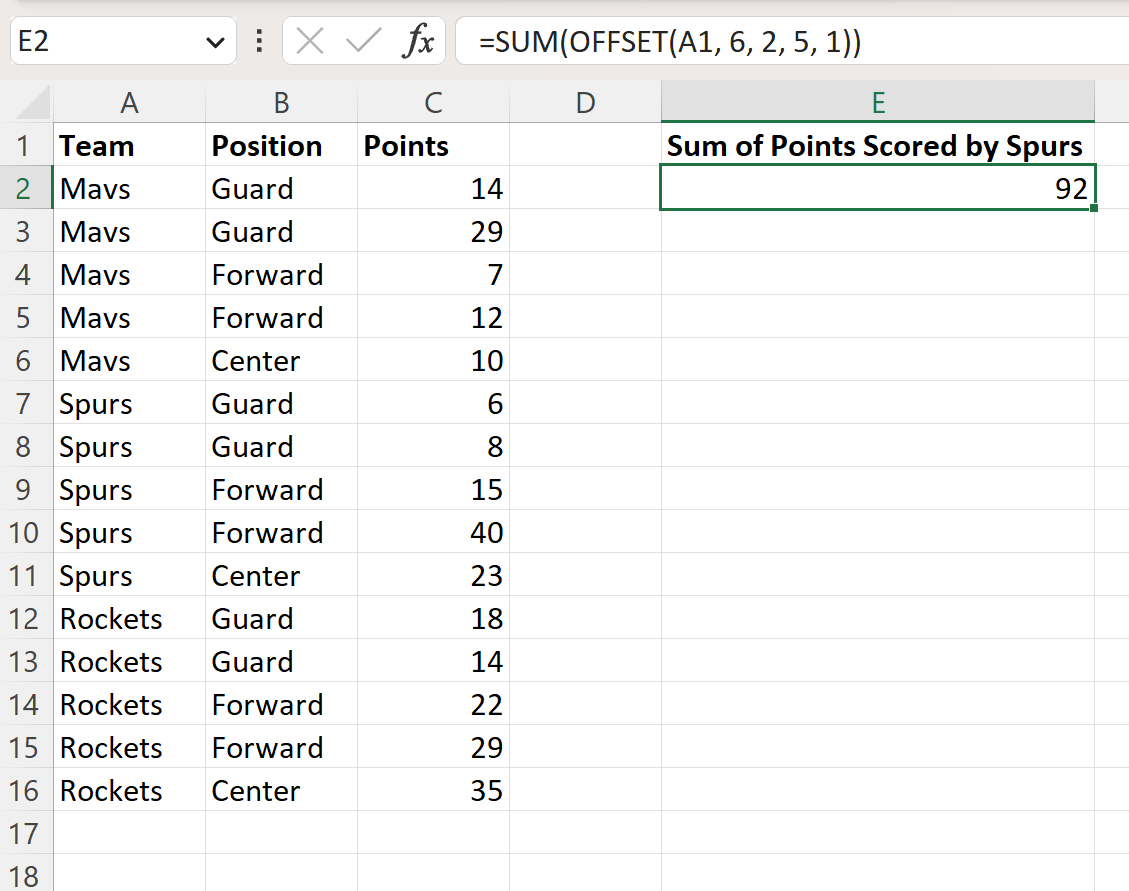

Upon execution, the formula immediately performs the calculation, returning the total points for the dynamically targeted range. The image below confirms the final result achieved by the formula in cell E2:

As shown in the output cell, the formula successfully returns a value of 92. This value represents the summation of the point values belonging to the five players listed under the Spurs team. Before integrating dynamic formulas into critical reports, it is always a best practice to manually verify the calculation against the visual data to ensure the arguments were set correctly.

A manual summation of the points allocated to the Spurs players confirms the dynamic calculation’s accuracy. These values are found in rows 7 through 11 (6, 8, 15, 40, and 23). The arithmetic verification is straightforward:

• Sum of Points for Spurs: 6 + 8 + 15 + 40 + 23 = 92.

This successful verification confirms two key points: first, the arguments specified within the OFFSET function correctly identified the precise starting point, height, and width of the desired data block (C7:C11); and second, the outer SUM function correctly aggregated the numerical values located within that dynamically determined dataset reference.

Detailed Step-by-Step Formula Execution Flow

Achieving mastery over nested functions requires a clear understanding of the flow of execution. Let us meticulously detail how Excel processes and executes the formula =SUM(OFFSET(A1, 6, 2, 5, 1)), using the designated initial cell A1 as the fixed reference point for all subsequent positional calculations.

The visual diagram below provides a clear map, translating each argument into a physical movement and boundary definition across the spreadsheet grid:

The calculation unfolds through a precise, six-stage sequence:

1. Start Reference (A1): The execution begins by establishing the fixed anchor point at cell A1. This cell is treated as the coordinate origin (0, 0) for all calculated displacements.
2. Row Offset (6): The function then calculates a vertical displacement of 6 cells downward from the anchor A1. This movement positions the calculation on Row 7.
3. Column Offset (2): Subsequently, the function calculates a horizontal displacement of 2 cells to the right. Moving two columns right from Column A results in Column C. The top-left corner of the target range is thereby identified as cell C7.
4. Height Definition (5): The function specifies that the newly located dynamic range must vertically span 5 rows, extending the reference from Row 7 down to Row 11.
5. Width Definition (1): The function specifies that the dynamic range must horizontally span only 1 column, confining the entire reference within Column C. The reference returned by OFFSET is thus the range C7:C11.
6. Aggregation (SUM): As the final action, the outer SUM function receives the fully defined dynamic reference C7:C11 and performs the aggregation of all contained numerical values, resulting in the final total of 92.

The deliberate choice of A1 as a static, non-relative starting point is paramount to the formula’s reliability. Even if the data structure begins much lower on the sheet, using a fixed cell in a corner ensures that the offsets are always calculated from a consistent origin, guaranteeing a predictable and robust dynamic reference regardless of data shifting.

Performance Considerations and Non-Volatile Alternatives

While the combination of SUM and OFFSET offers exceptional flexibility for dynamic range definition, power users must be acutely aware of a significant operational drawback: volatility. The OFFSET function is classified as a volatile function within Excel. This classification means that every single time any cell in the entire workbook is edited or modified, the function forces a complete recalculation of the entire workbook, even if the change does not directly affect the inputs of the OFFSET formula itself.

In smaller workbooks or for isolated reporting tasks, this volatility generally presents no performance concern. However, when implemented extensively across large, sophisticated financial models or within massive datasets containing thousands of calculations, the overuse of OFFSET can severely degrade performance. This often results in noticeable and frustrating delays every time a user simply enters or modifies data. Therefore, analysts must carefully weigh the significant benefit of dynamic referencing against the potential overhead costs associated with persistent recalculation.

For contemporary Excel development, non-volatile alternatives are frequently the preferred solution for constructing dynamic ranges. Specifically, the INDEX and MATCH combination delivers functionally identical results without incurring the performance penalty associated with volatility. Moreover, modern versions of Excel now feature powerful dynamic array functions, such as FILTER, which can often eliminate the need for complex offset logic entirely by efficiently managing conditional data aggregation. Nonetheless, the SUM and OFFSET methodology remains a foundational and necessary technique, particularly in environments requiring legacy compatibility or when specific height and width parameters must be explicitly driven by external, calculated inputs.

Conclusion and Recommended Resources

The ability to manipulate cell references dynamically is a cornerstone of advanced spreadsheet proficiency. By understanding the arguments and execution flow of the SUM and OFFSET functions, users gain unparalleled control over data aggregation, regardless of structural changes.

For professionals seeking to deepen their expertise in dynamic reporting and advanced data aggregation techniques, focusing on the following areas is highly recommended:

• Gaining a comprehensive understanding of the operational differences between volatile and non-volatile functions in Excel.
• Mastering the implementation of the INDEX and MATCH combination for highly efficient dynamic lookups and range definitions.
• Exploring the use of array formulas and modern dynamic array functions for powerful conditional aggregation and filtering.

These skills collectively form the foundation necessary for building robust, scalable, and high-performance spreadsheets.
