Learning XLOOKUP with IF Statements: A Comprehensive Guide to Conditional Lookups in Excel

The Evolution of Conditional Lookups in Excel

The core requirement of effective data analysis is the ability to retrieve specific data points based on defined criteria. For decades, users of Excel relied heavily on functions such as VLOOKUP and the more robust INDEX/MATCH combination to achieve these lookups. While functional, these methods often presented limitations, particularly when dealing with complex conditional requirements, such as looking up a value only if a secondary condition was met. This complexity typically necessitated nesting traditional lookup functions within a structured IF statement or employing cumbersome array formulas.

The introduction of the modern XLOOKUP function fundamentally changed this paradigm. XLOOKUP offers superior flexibility, allowing users to look up a value in one array (or column) and return a corresponding value from another array, regardless of column order, effectively solving many of the directional limitations inherent in VLOOKUP. More importantly, XLOOKUP is designed with native array handling capabilities that allow it to incorporate conditional logic directly into its structure, streamlining complex filtering operations.

This guide focuses on integrating conditional logic directly into the XLOOKUP syntax. By leveraging the function’s ability to process arrays of Boolean logic results, we can perform powerful filtered lookups based on single or multiple criteria without resorting to explicit IF statement nesting. This technique transforms XLOOKUP into a dynamic, conditional retrieval tool that significantly enhances data analysis efficiency within any robust dataset. We will explore the mechanics behind this approach and provide two clear methodologies for implementation.

Deconstructing XLOOKUP for Advanced Conditional Logic

To successfully implement conditional lookups using XLOOKUP, one must first grasp how its core arguments can be manipulated to accept a logical test rather than a raw data range. The standard syntax requires three primary components: a lookup_value, a lookup_array, and a return_array. When introducing criteria, the transformative step is redefining the lookup_array to be a logical expression that evaluates the data against the required conditions.

This pivotal innovation relies on the concept of array evaluation and coercion within Excel. Instead of pointing the lookup_array to a column of text or numbers, we define it as a comparison, such as A2:A16="Criteria". When this expression is processed, Excel internally generates an array composed entirely of Boolean logic results: TRUE or FALSE. A TRUE result signifies that the criteria were met in that specific row, while FALSE indicates a mismatch.

The genius of the conditional XLOOKUP technique lies in how we utilize the lookup_value. We instruct the function to search this newly generated logical array for the expected outcome of the test. For single criteria, we search for the first instance of TRUE. For multiple criteria, where arithmetic multiplication is used to combine conditions, we search for 1 (since TRUE numerically evaluates to 1). By setting the lookup_value accordingly, XLOOKUP performs an iterative search through the logical results. Once it encounters the required match (TRUE or 1), it stops and retrieves the corresponding item from the designated return_array, offering a clean, intuitive, and non-volatile alternative to legacy array formulas.

Method 1: Implementing Single Criteria Lookup (Searching for TRUE)

The most straightforward application of a conditional XLOOKUP involves filtering results based on a single condition, such as identifying the first row where a column value equals a specific text string or number. This method is characterized by setting the primary lookup_value to the Boolean logic value TRUE.

By explicitly setting the lookup_value to TRUE, we are instructing the XLOOKUP function to search the conditional lookup_array for the very first instance where the defined criterion is satisfied. The lookup_array itself is defined by the conditional expression (e.g., Range=Criteria), which evaluates against the required criteria cell by cell, returning a TRUE value only when the condition is met. The efficiency of this method comes from XLOOKUP‘s inherent ability to handle these array operations without requiring the user to press Ctrl+Shift+Enter, as was necessary with older array formulas.

The following formula structure provides a clear template for single-criteria filtering. It efficiently searches the specified range A2:A16 for a value equal to “Spurs.” When it finds the first match (i.e., the condition evaluates to TRUE), it returns the corresponding value located in the C2:C16 range. This is a highly efficient and readable method for applying conditional filtering:

=XLOOKUP(TRUE,A2:A16="Spurs",C2:C16)

Practical Example 1: Finding the First Single Match

To illustrate Method 1, we will utilize a sample sports dataset detailing basketball players, including their Team, Position, and Points scored. Our objective is to retrieve the points scored by the first player whose team name exactly matches the criterion, “Spurs.”

The foundational dataset used for this and subsequent examples is structured as shown below, clearly defining the ranges for our conditional lookup (Column A) and the resulting return value (Column C):

Applying Method 1, we input the formula into cell E2. This function dynamically searches the team column (range A2:A16) for the first occurrence of “Spurs” and returns the associated value from the points column (range C2:C16):

=XLOOKUP(TRUE,A2:A16="Spurs",C2:C16)

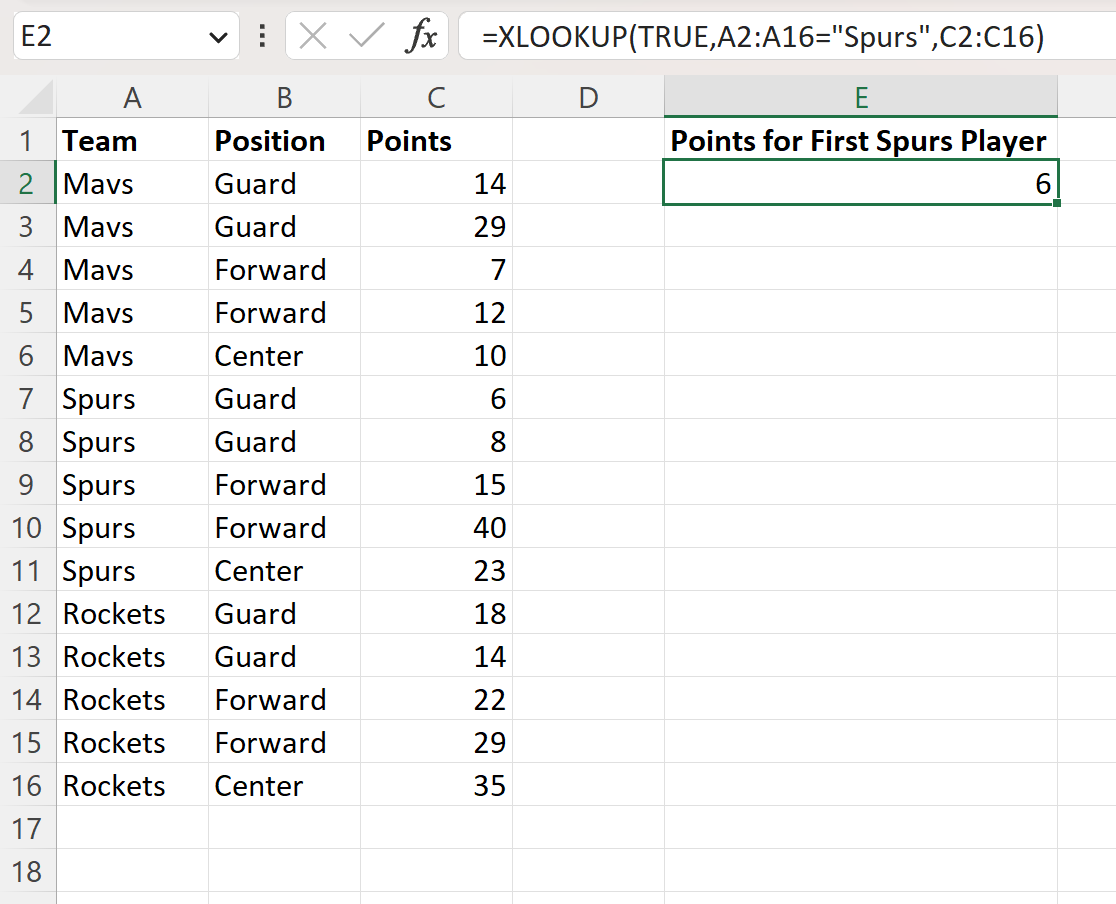

The execution of this formula is visualized in the output below. The function effectively identifies the first row that satisfies the TRUE condition (where the team column equals “Spurs”) and retrieves the corresponding points value:

The result is 6, which accurately reflects the points value associated with the first row where the team column contained “Spurs.” It is critical to reiterate the underlying mechanism: the expression A2:A16=”Spurs” generates an array of Boolean logic results—returning TRUE for every matching row and FALSE otherwise. The XLOOKUP function then efficiently locates the first occurrence of TRUE within that calculated array and returns the corresponding data point.

Method 2: Handling Complex Multi-Criteria Lookups (Searching for 1)

Data retrieval often requires satisfying two or more independent conditions simultaneously—an operation analogous to a logical AND statement. When using XLOOKUP for this purpose, we must move beyond simply searching for TRUE. This requires a mechanism to logically combine the individual criteria tests and ensure that the resulting array yields a single positive indicator only when all conditions are met for a given row.

In Excel, this multi-criteria combination is achieved through mathematical coercion. We convert the Boolean logic results (TRUE/FALSE) into their numerical equivalents (1/0) and then multiply them. Because TRUE is treated as 1 and FALSE as 0 in arithmetic operations, the product of multiple criteria expressions will only equal 1 if and only if every single criterion was TRUE (1 * 1 * … = 1). If even one condition is FALSE (0), the result of the multiplication is 0, effectively replicating the behavior of a logical AND operation.

The generalized structure for this powerful multi-criteria approach is concise: =XLOOKUP(1, (Criterion 1) * (Criterion 2) * ..., return_array). This technique is far simpler and more readable than complex, traditional array formulas and does not require the special array entry sequence. Since the combined logical expression generates an array of 1s (match) and 0s (no match), we set the lookup_value to 1, instructing XLOOKUP to find the first row where all conditions converged successfully.

The following formula exemplifies this technique, searching for the first row where the value in range A2:A16 equals “Rockets” and the value in range B2:B16 equals “Forward.” If both conditional tests multiply to yield a numeric 1, the corresponding value from the range C2:C16 is returned:

=XLOOKUP(1,(A2:A16="Rockets")*(B2:B16="Forward"),C2:C16)

Practical Example 2: Verifying Dual Conditional Matching

Continuing with our basketball dataset, we now execute Method 2 to address a more complex requirement: locating the points scored by the first player who satisfies the dual criteria of being on the “Rockets” team and simultaneously holding the “Forward” position. This necessitates a precise match across two distinct columns.

We implement the multi-criteria XLOOKUP formula in cell E2. It is essential that both conditional tests are correctly enclosed in parentheses and then multiplied together, ensuring the creation of a unified logical array for the lookup process:

=XLOOKUP(1,(A2:A16="Rockets")*(B2:B16="Forward"),C2:C16)

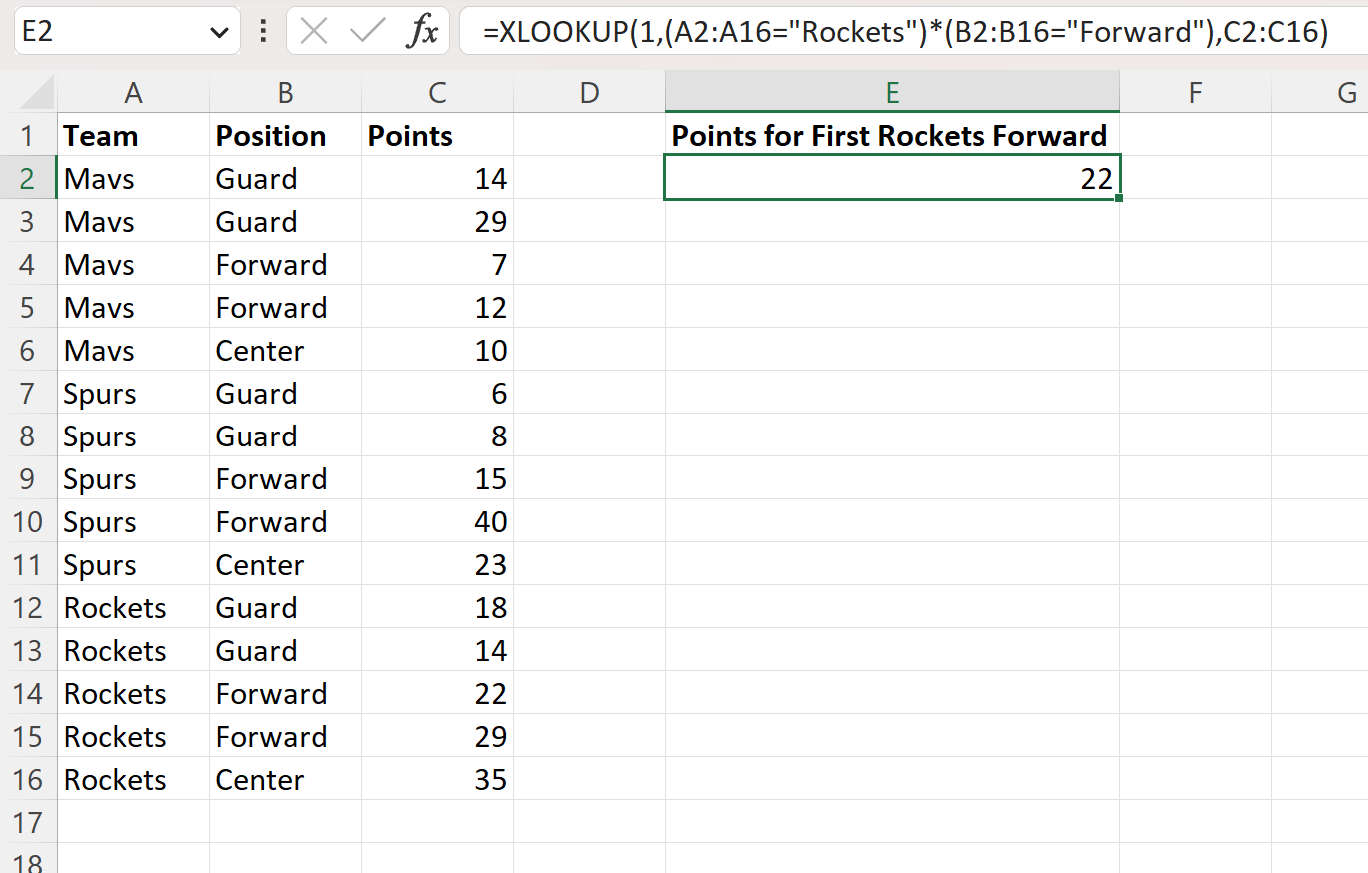

The visual output below confirms the successful application of this formula within the worksheet, clearly demonstrating the result of the complex conditional search:

The formula yields a result of 22. This value is precisely the points score associated with the first row that meets both the “Rockets” team condition and the “Forward” position condition. The underlying combined expression, (A2:A16=”Rockets”)*(B2:B16=”Forward”), generates an array where the value is 1 only when both conditions are met, and 0 otherwise. By setting the lookup_value to 1, we guarantee that the XLOOKUP function locates the very first row where this logical multiplication succeeds, providing a highly effective, modern replacement for combining an IF statement with array-based logic.

Conclusion and Next Steps for Dynamic Excel Analysis

Mastering the conditional application of XLOOKUP represents a major upgrade in your data retrieval capabilities within Excel. These innovative techniques result in cleaner, faster, and significantly more readable formulas compared to the often-convoluted legacy methods that relied on nesting IF statement structures or requiring manual array entry. This is particularly true when managing large datasets that necessitate complex multi-criteria filtering.

The true power of XLOOKUP lies in its flexibility to handle native array operations and process Boolean logic results seamlessly. By treating the lookup_array as a conditional test, we transform a simple lookup tool into a sophisticated, dynamic indexing engine. This streamlined approach to conditional lookups is essential for modern data management and analysis tasks.

To further enhance your skills and explore related functions that enable dynamic data workflows, consider reviewing these essential tutorials and concepts:

• Tutorial on INDEX and MATCH (for understanding legacy lookup limitations)
• Advanced Array Formulas (to appreciate the simplicity of XLOOKUP)
• Using the FILTER function for dynamic arrays (for returning multiple matches)
