Learn How to Use VLOOKUP Across Different Excel Workbooks

Mastering Cross-Workbook VLOOKUP in Excel

In the dynamic world of data analysis, retrieving information from various sources is a common and essential task. VLOOKUP, a powerful function in Excel, allows users to search for a specific value in one column and return a corresponding value from another column in the same row. However, its utility extends beyond a single sheet or even a single workbook. This guide will demonstrate how to effectively perform a VLOOKUP operation that spans across multiple workbooks, a technique invaluable for consolidating data and streamlining reporting processes.

The ability to pull data from an external workbook significantly enhances Excel‘s data management capabilities. Whether you are combining sales figures from different regional reports, cross-referencing product inventories, or integrating financial data, cross-workbook VLOOKUP is a fundamental skill. This tutorial will provide a clear, step-by-step approach to implementing this advanced Excel function, ensuring your data integration is both accurate and efficient.

Understanding the Cross-Workbook VLOOKUP Syntax

Performing a VLOOKUP from one workbook to another requires a specific syntax to correctly reference the external data source. The core structure of the formula remains similar to a standard VLOOKUP, but with an important modification in the table_array argument. The following syntax illustrates how to refer to data residing in a separate Excel file:

=VLOOKUP(A2,'[data2.xlsx]Sheet1'!$A$1:$B$11,2,0)

Let’s break down each component of this formula for clarity:

• A2 (lookup_value): This is the value you want to find. In this example, the formula will search for the content of cell A2 in your current workbook.
• ‘[data2.xlsx]Sheet1’!$A$1:$B$11 (table_array): This is the most critical part for cross-workbook referencing.
  • [data2.xlsx] specifies the name of the external workbook where the lookup table is located. The square brackets are essential for indicating an external file reference.
  • Sheet1 refers to the specific worksheet within data2.xlsx that contains your data.
  • !$A$1:$B$11 indicates the range of cells (the lookup table) within Sheet1. The absolute references (dollar signs) ensure that this range does not change if you copy the formula to other cells.
• 2 (col_index_num): This number specifies the column from which to retrieve the value. In this case, it’s the second column of the table_array ($A$1:$B$11).
• 0 (range_lookup): A value of 0 or FALSE indicates that you want an exact match for your lookup_value. This is almost always preferred for accurate data retrieval.

Important Note: For this formula to function correctly without specifying a full file path, both workbooks (the one containing the formula and the one with the data) should ideally be open simultaneously or saved in the same directory. If the source workbook is closed and not in the same directory, Excel will automatically insert the full file path into the formula, which can make it lengthy but still functional.

Step 1: Preparing Your Data Across Multiple Workbooks

Before implementing the cross-workbook VLOOKUP, it is crucial to prepare your data in an organized manner within each workbook. For this example, we will work with two distinct Excel files: data.1.xlsx and data2.xlsx. Both files contain related but separate information that we aim to consolidate using VLOOKUP.

Let’s assume our primary workbook, named data.1.xlsx, contains a list of team names. We want to enrich this data by pulling in additional statistics from our secondary workbook.

Here is what our primary workbook, data.1.xlsx, looks like:

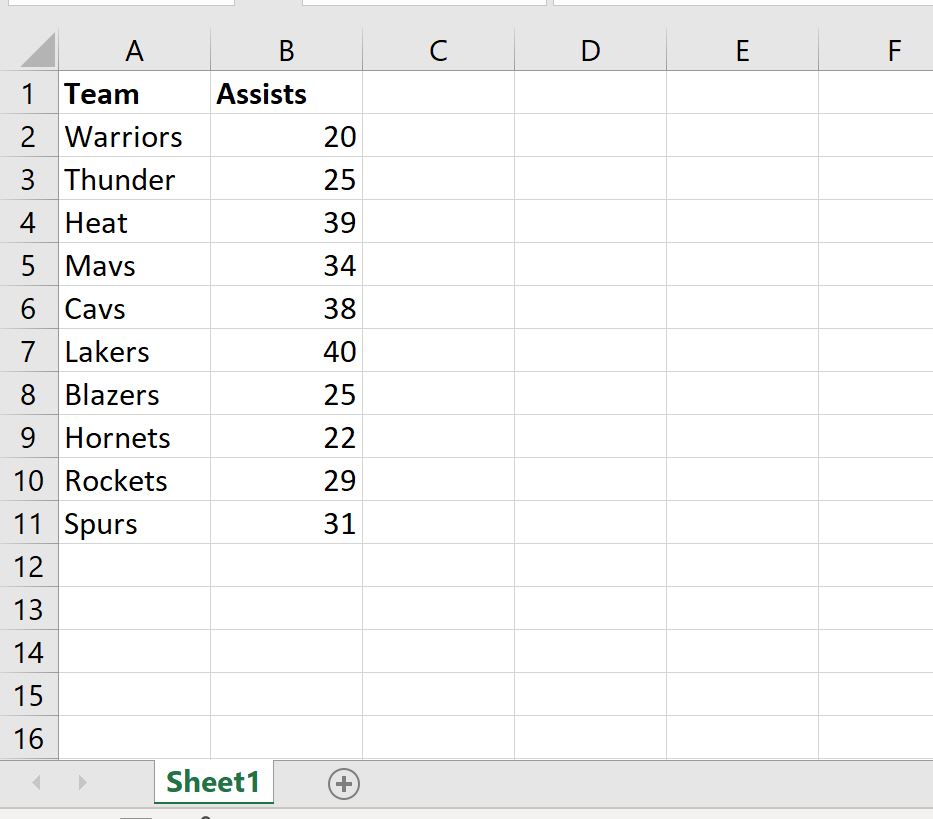

Next, we have our secondary workbook, data2.xlsx, which holds the statistical information we intend to retrieve. This workbook must contain a common identifier (in this case, “Team”) that exists in both files to serve as the lookup_value.

For the sake of simplicity and direct referencing in our formula, ensure that both workbooks, data.1.xlsx and data2.xlsx, are saved in the same directory on your computer. This practice minimizes potential issues with file pathing and makes the initial setup more straightforward.

Step 2: Implementing the VLOOKUP Formula

With our data organized in separate workbooks, the next step is to apply the VLOOKUP formula to retrieve the desired information. Our objective is to populate the “Assists” column in data.1.xlsx by looking up the team names from data2.xlsx and returning the corresponding assists value.

To achieve this, navigate to cell C2 in your first workbook (data.1.xlsx). Here, you will type the following formula:

=VLOOKUP(A2,'[data2.xlsx]Sheet1'!$A$1:$B$11,2,0)

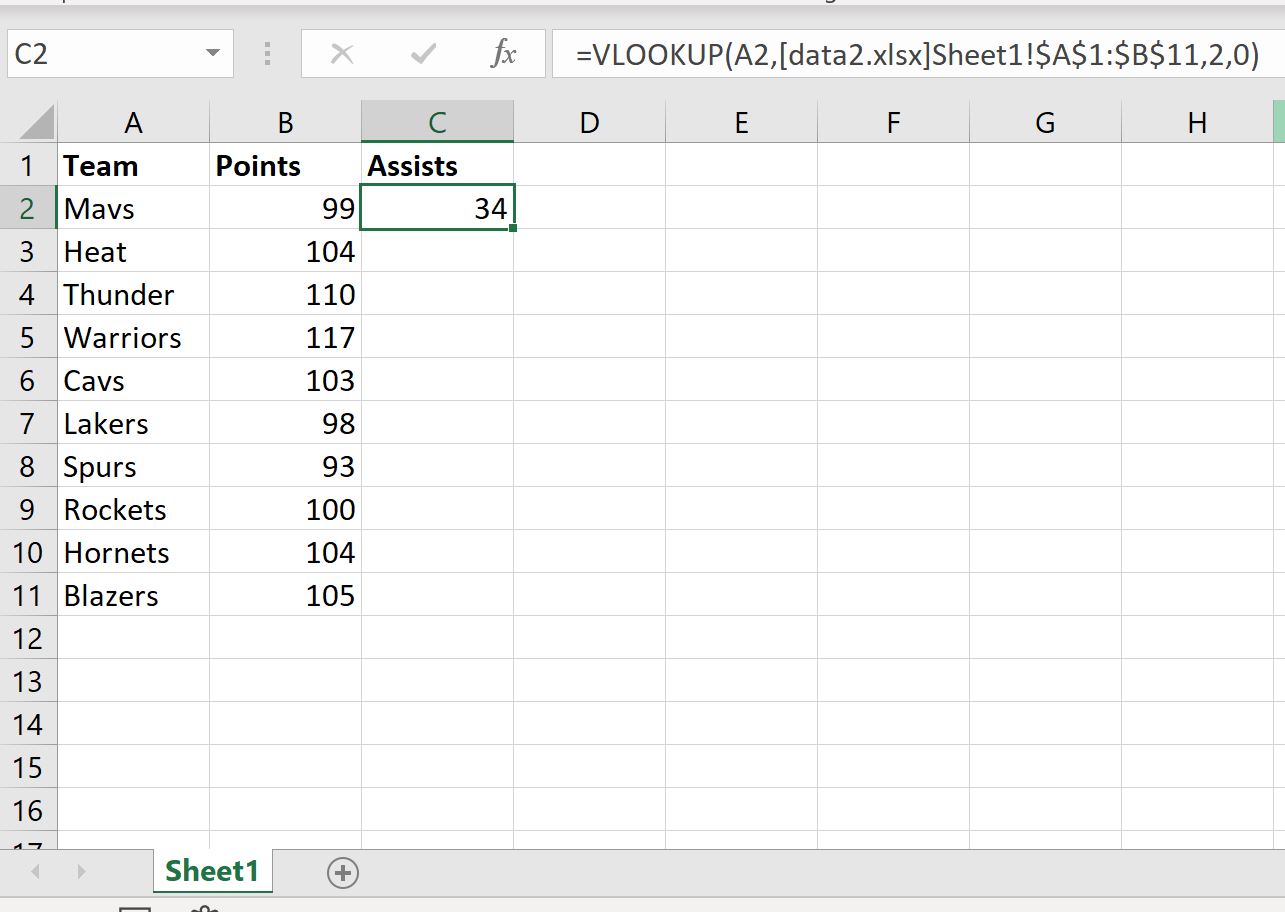

Upon entering this formula and pressing Enter, Excel will perform the lookup. It will take the team name from cell A2 (which is “Mavs”), find “Mavs” in the first column of the specified range in data2.xlsx, and then return the value from the second column (Assists) corresponding to “Mavs”. The result will instantly appear in cell C2 of data.1.xlsx.

To apply this formula to the remaining team names, simply drag the fill handle (the small square at the bottom-right corner of cell C2) down the column. Because we used absolute references ($A$1:$B$11) for the table_array, the lookup range in data2.xlsx will remain fixed, while the lookup_value (A2) will adjust dynamically to A3, A4, and so on.

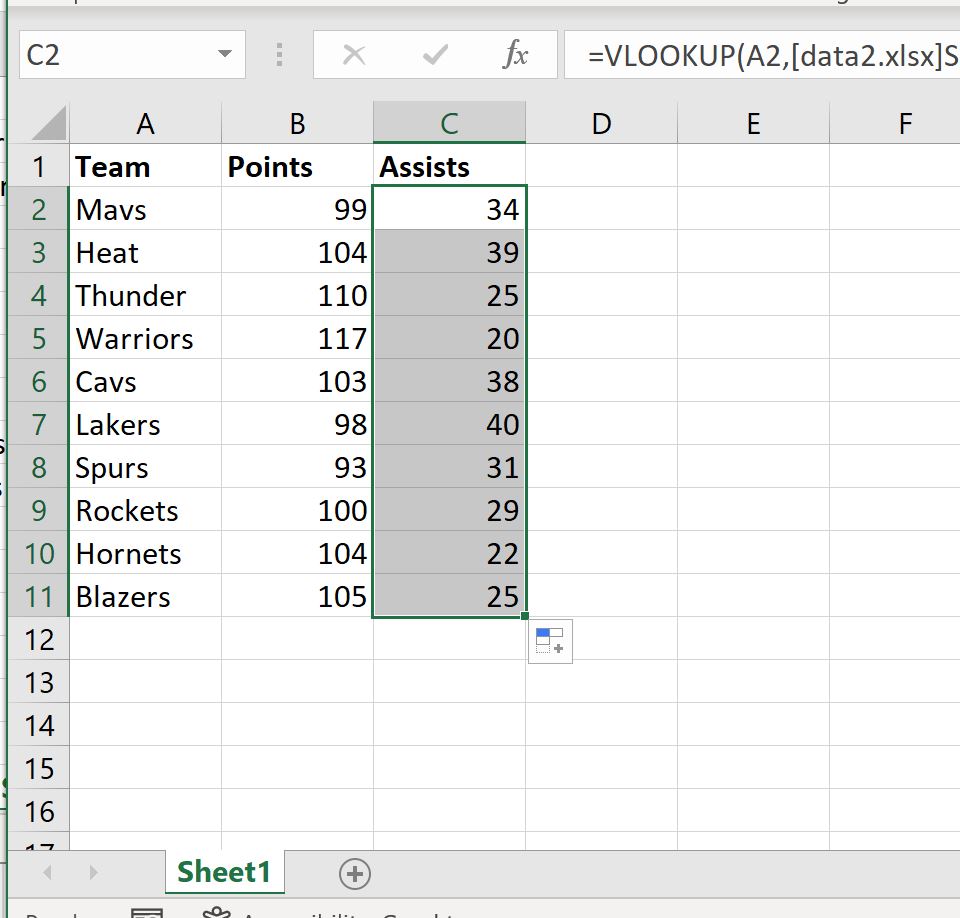

Once the formula has been dragged down, the entire “Assists” column in data.1.xlsx will be populated with the corresponding values from data2.xlsx, effectively merging your data.

As demonstrated, the values from the “Assists” column in the second workbook have now been successfully pulled into the first workbook, completing the cross-workbook VLOOKUP operation.

Step 3: Analyzing Results and Best Practices

After successfully implementing the cross-workbook VLOOKUP, it’s important to review the results and understand best practices for maintaining data integrity and formula efficiency. Your data.1.xlsx workbook should now have the “Assists” column populated with the correct values, demonstrating a successful integration of data from data2.xlsx.

Consider the following best practices when working with external links in Excel:

• Maintain File Paths: If the source workbook (data2.xlsx) is moved to a different location after the formula has been created, Excel will prompt you to update the links. It’s best practice to keep linked workbooks in a stable, accessible location.
• Performance: For very large datasets or numerous cross-workbook links, Excel‘s performance can be impacted. If speed becomes an issue, consider alternative functions like INDEX MATCH, which can be more efficient, or consolidate data into a single workbook if feasible. For modern Excel versions, XLOOKUP is often the preferred and most robust option.
• Data Type Consistency: Ensure that the lookup_value and the first column of your table_array have consistent data types (e.g., both are text, or both are numbers). Mismatched data types can lead to incorrect results or #N/A errors.

Troubleshooting Common VLOOKUP Issues

Even with careful implementation, you might encounter issues when performing cross-workbook VLOOKUP. Here are some common problems and their solutions:

• #N/A Error: This is the most frequent error, indicating that the lookup_value was not found in the first column of the table_array.
  • Check for Typos: Ensure the lookup value in your primary workbook exactly matches a value in the lookup column of the secondary workbook.
  • Leading/Trailing Spaces: Even invisible spaces can cause mismatches. Use the TRIM function on both the lookup_value and the lookup range to remove them.
  • Data Type Mismatch: As mentioned, ensure numbers are formatted as numbers and text as text in both sources.
  • Correct table_array: Double-check that your table_array covers the entire range of data, and that the lookup column is indeed the first column of this range.
• #REF! Error: This error typically occurs when a formula refers to an invalid cell or range reference.
  • Workbook Name/Path: Verify the external workbook name and sheet name are spelled correctly in the formula. If the source workbook has been moved or deleted, this error will appear. Excel usually tries to update links when you open the destination workbook.
  • Column Index Number: Ensure the col_index_num is not greater than the number of columns in your table_array.
• #VALUE! Error: This can occur if a formula argument is of the wrong data type.
  • Text vs. Numbers: Check if any of your numeric arguments (like col_index_num or range_lookup) are accidentally formatted as text.

Conclusion and Further Exploration

Mastering the art of performing a VLOOKUP from another Excel workbook is a powerful skill that significantly enhances your data integration capabilities within Excel. By understanding the specific syntax for referencing external files and adhering to best practices, you can seamlessly combine information from disparate sources into a cohesive dataset. This not only saves time but also reduces the potential for manual data entry errors, leading to more accurate and reliable analyses.

Remember the importance of proper data organization, consistent data types, and careful management of file paths to ensure your cross-workbook formulas remain robust. While VLOOKUP is a cornerstone function, exploring alternatives like INDEX MATCH or the newer XLOOKUP can further optimize your approach to complex data retrieval tasks. Continuous learning and experimentation with Excel‘s diverse functions will undoubtedly make you a more proficient data analyst.
