Learning VLOOKUP with IMPORTRANGE: Accessing Data Across Google Sheets Workbooks

Mastering Cross-Workbook Lookups in Google Sheets

While the VLOOKUP function is a cornerstone of data retrieval within a single spreadsheet, its true potential is realized when integrating external data sources. In the environment of Google Sheets, seamless cross-workbook functionality is achieved by pairing VLOOKUP with the powerful IMPORTRANGE function. This synergistic combination allows users to dynamically reference and consolidate information stored in entirely separate Google Sheets files, creating a robust, interconnected data system.

The core syntax for executing a lookup across different workbooks is highly efficient, substituting the static table array normally used in VLOOKUP with the data pulled by IMPORTRANGE. This structure is both straightforward and incredibly effective for dynamic data management:

=VLOOKUP(A2, IMPORTRANGE("1AdlE5drC", "'sheet1'!$A$1:$B$11"), 2, 0)

In the formula above, the process begins by locating the search key residing in cell A2 of your current workbook. This key is then searched for within the external data provided by IMPORTRANGE. The data source is defined by its unique spreadsheet key (1AdlE5drC) and the specific range (A1:B11). Once a match is confirmed, the formula retrieves the corresponding value from the second column of that imported external array, delivering it directly into your local sheet. This mechanism is central to dynamic data integration.

A Deep Dive into the IMPORTRANGE Function

The foundation of cross-workbook connectivity in Google Sheets rests entirely upon the IMPORTRANGE function. Its sole purpose is to securely fetch and present a specified range of cells from an external spreadsheet. A clear understanding of its operation is vital before attempting to utilize it as the data source for VLOOKUP.

The syntax for IMPORTRANGE is deceptively simple: IMPORTRANGE("spreadsheet_url", "range_string"). The first argument, the "spreadsheet_url", typically requires the unique spreadsheet key—a distinct alphanumeric identifier found within the URL of the source file. While the full URL can be used, the key itself is generally cleaner. The second argument, "range_string", meticulously defines the exact cells to be imported, usually adhering to A1 notation, for instance: "Sheet1!A1:B10".

Crucially, the initial use of IMPORTRANGE with any new external spreadsheet demands explicit authorization. When the formula is first calculated, Google Sheets will display a prompt asking you to “Allow access” to the external file. This permission must be granted. Failure to authorize the connection will inevitably result in a #REF! error, signaling that access has been denied or the link is invalid. Once this one-time authorization is completed, the connection is securely established, enabling smooth data transfer for all subsequent uses.

Structuring Source and Destination Data for Lookup

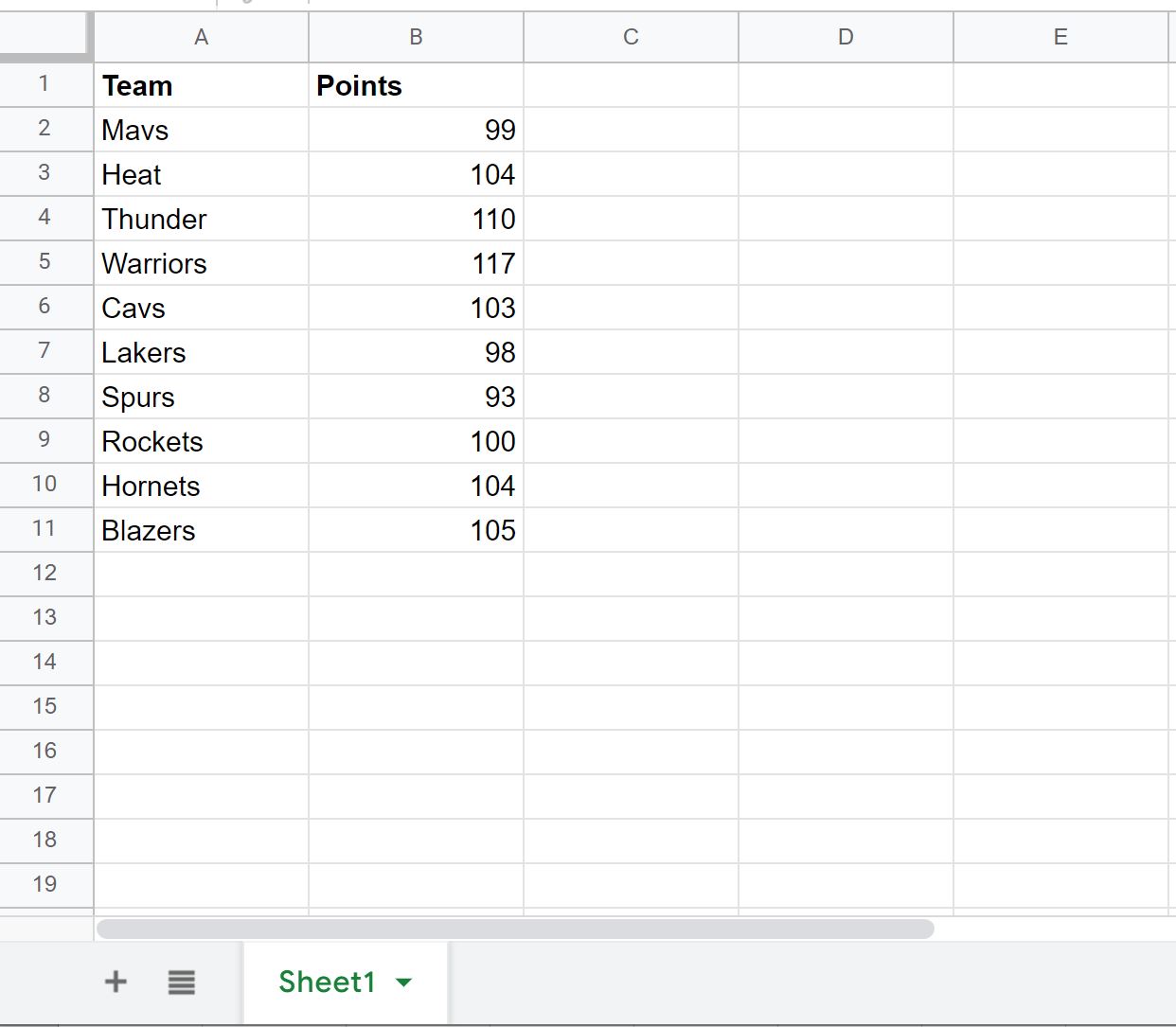

To effectively demonstrate the practical application of VLOOKUP combined with IMPORTRANGE, we must define the roles of our two separate workbooks. The first workbook functions as the primary destination sheet, where the lookup calculation will occur. Suppose this sheet contains existing data, specifically a column listing team names that need to be enriched with external statistics:

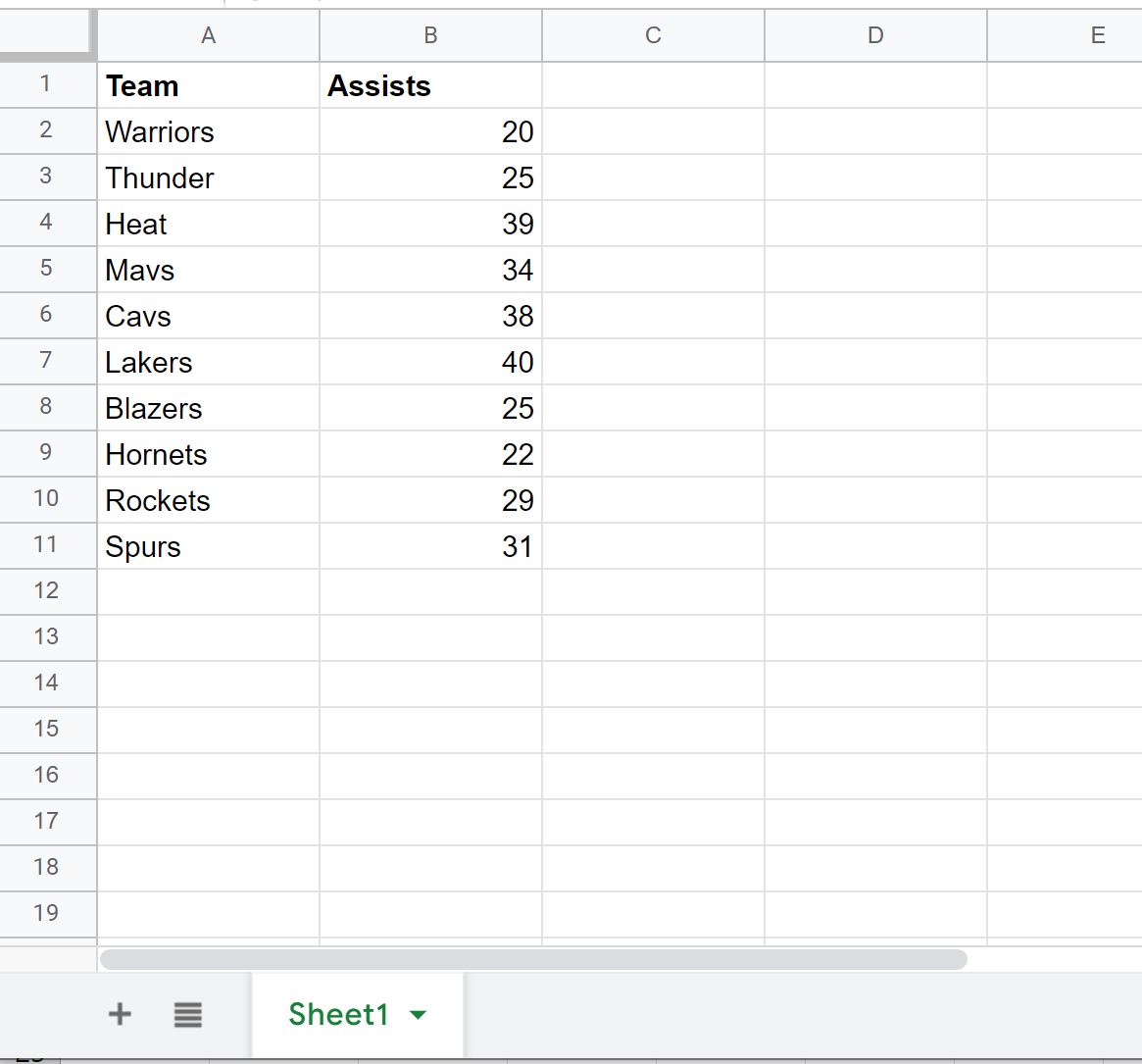

The second workbook serves as the external source. It holds the auxiliary data, such as “Assists” per team, that we aim to retrieve. A fundamental requirement for any successful lookup is the presence of a common identifier—in our case, the team names—shared by both workbooks. This ensures accurate matching. The source data is structured as follows:

It is absolutely essential to remember the core constraint of VLOOKUP: the lookup column in your source data (Team Name) must be the leftmost column within the data range you specify for IMPORTRANGE. VLOOKUP always searches exclusively within the first column of its designated array.

Locating the Source Spreadsheet Key Identifier

Before any connection can be initiated via IMPORTRANGE, the unique identifier of the source file, known as the spreadsheet key, must be extracted. This key functions as the precise address that enables Google Sheets to establish a link to the desired external data source. The spreadsheet key is always embedded within the URL of the Google Sheet.

To retrieve this key, simply navigate to the external spreadsheet in your web browser. Observe the URL displayed in the address bar; the key is the extended string of characters situated between the segments /d/ and /edit. For example, if the URL is https://docs.google.com/spreadsheets/d/1_W-W0fbIYl74Kp2y5ruaGyFjWOskrcPBdQ6Vk_t_dRQ/edit#gid=0, the key you need is 1_W-W0fbIYl74Kp2y5ruaGyFjWOskrcPBdQ6Vk_t_dRQ.

The visual representation below clearly highlights the segment of the URL that corresponds exactly to the required spreadsheet key:

It is highly recommended to copy and paste this spreadsheet key directly into your formula to prevent transcription errors. An inaccurate key string will invariably prevent IMPORTRANGE from establishing the vital link to the external data source.

Executing the Combined VLOOKUP and IMPORTRANGE Formula

With the external data structure understood and the necessary spreadsheet key obtained, the final step is to construct and deploy the complete formula. Our goal is to pull the “Assists” column data into our primary workbook. Navigate to cell C2 in the destination sheet—this is where the first lookup result will be calculated.

Insert the following formula into cell C2, ensuring you substitute the placeholder key (1_W-W0fbIYl74Kp2y5ruaGyFjWOskrcPBdQ6Vk_t_dRQ) with the unique key of your own source workbook:

=VLOOKUP(A2, IMPORTRANGE("1_W-W0fbIYl74Kp2y5ruaGyFjWOskrcPBdQ6Vk_t_dRQ", "'sheet1'!$A$1:$B$11"), 2, 0)

For clarity, we will dissect the four main components, or arguments, of this combined formula:

• A2: This serves as the search key. It specifies the value (the team name “Mavs” in this row) that VLOOKUP must locate in the external data source.
• IMPORTRANGE(...): This defines the table array. The IMPORTRANGE function dynamically pulls the specified range (A1:B11) from the external file, which then acts as the virtual lookup table.
• 2: This is the index number, instructing the formula to return the value from the second column of the imported data (the column containing “Assists”).
• 0: This final parameter mandates an exact match (equivalent to FALSE), ensuring that VLOOKUP only returns a result when an identical search key is found.

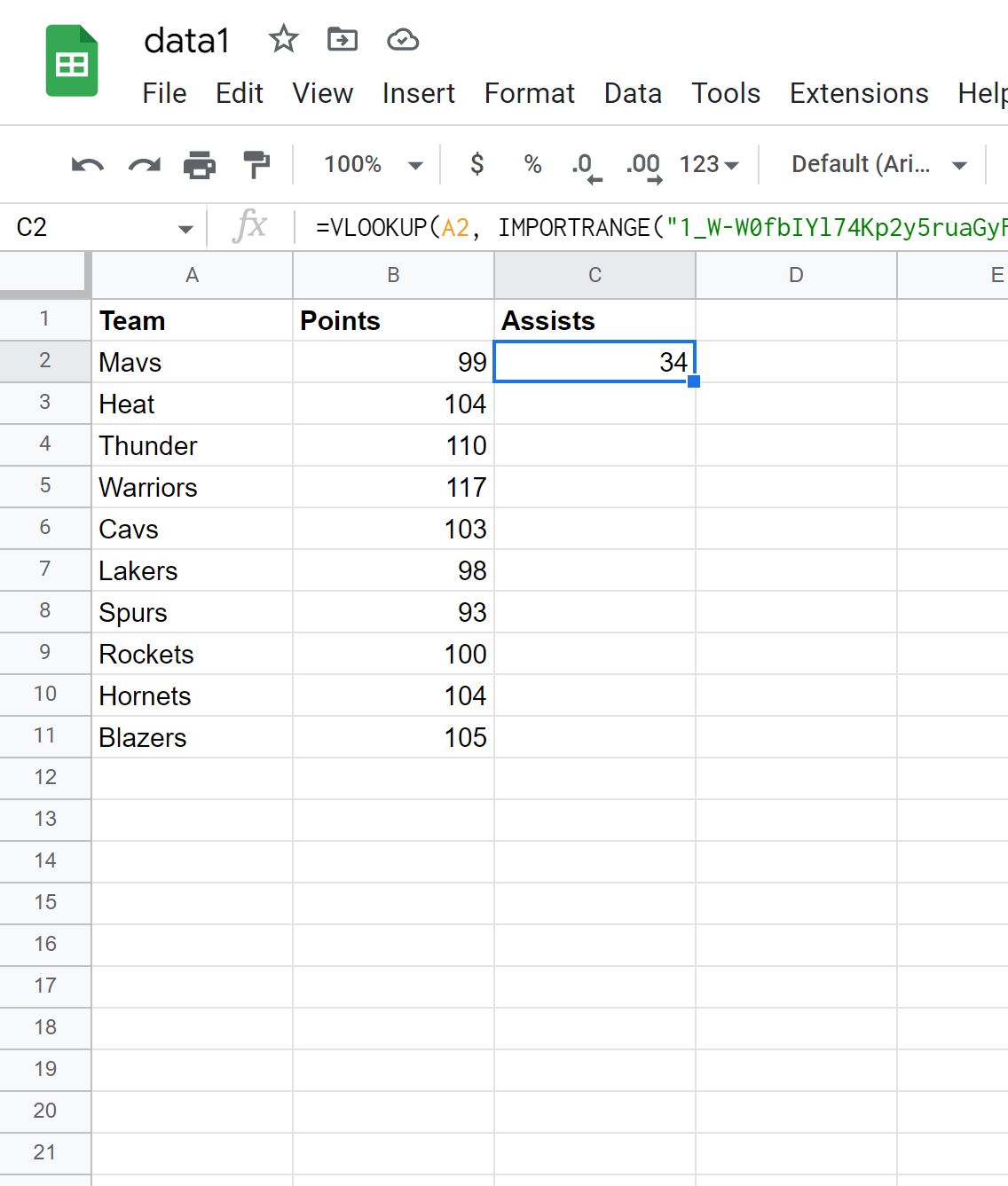

Upon execution, if this is the initial data fetch from that external source, you must click Allow access when prompted. After authorization, the formula calculates successfully, displaying the corresponding “Assists” value from the secondary workbook, completing the first step of the dynamic lookup:

Extending Functionality and Ensuring Data Synchronization

Once the formula in cell C2 has proven successful, replicating this functionality across the remainder of your dataset is simple. Click on cell C2, grab the fill handle (the small square icon at the bottom-right corner), and drag it downwards. Google Sheets automatically adjusts the relative reference A2 to A3, A4, and so on, applying the cross-workbook lookup to every row instantly.

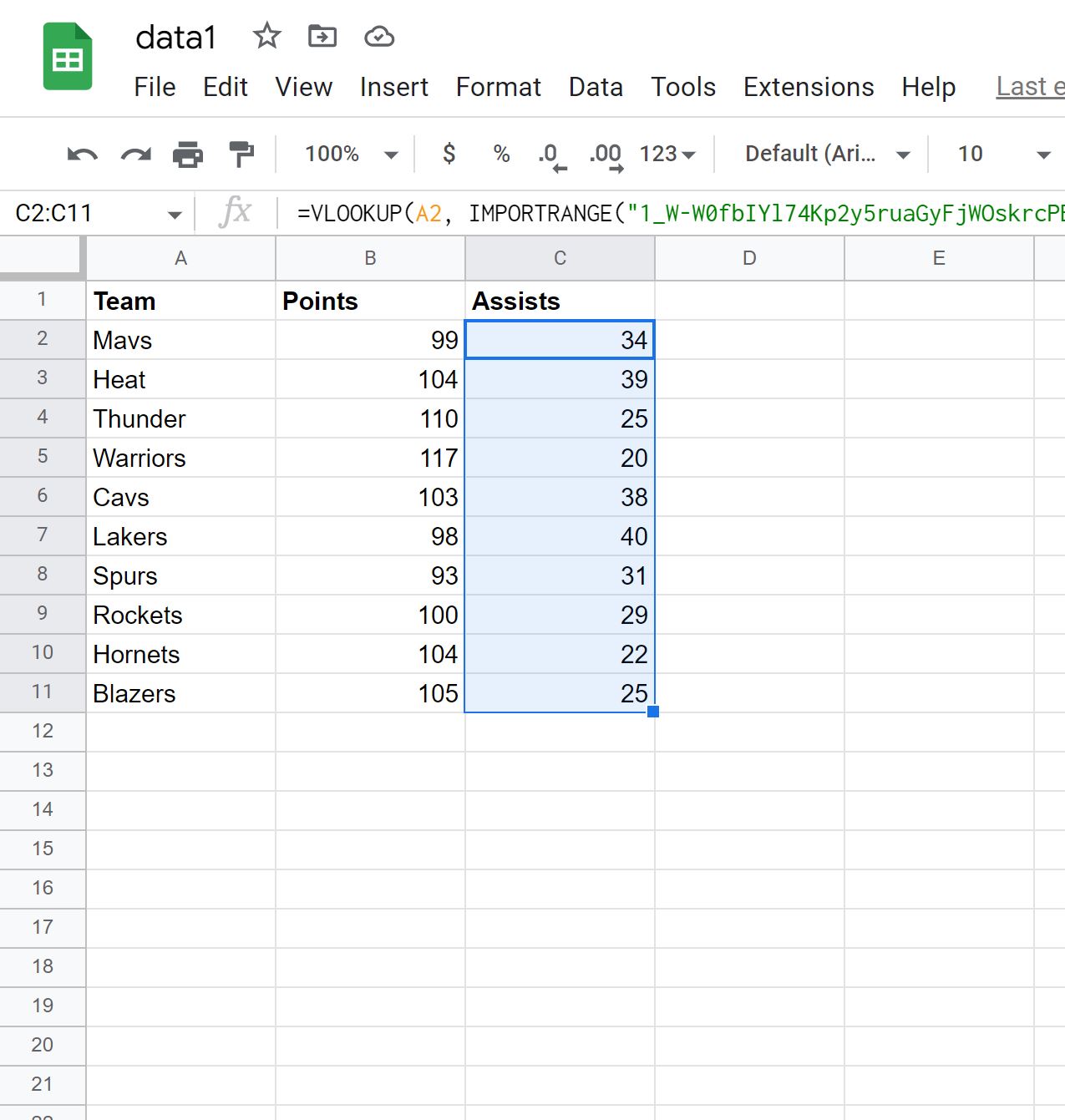

This efficient action instantly populates the entire “Assists” column in your destination workbook, utilizing data dynamically streamed from the external source. Each individual cell now holds the correct “Assists” value corresponding to its row’s team name, showcasing the immediate efficiency of this powerful lookup method:

A key advantage of integrating IMPORTRANGE is the real-time synchronization it enables. Any modifications or updates made to the source data in the second workbook will automatically propagate and reflect immediately in your primary report, provided the authorized connection remains active. This capability is invaluable for maintaining data consistency across interconnected sheets and eliminating manual reconciliation tasks.

Troubleshooting and Best Practices for Inter-Workbook Links

Integrating VLOOKUP with IMPORTRANGE offers powerful functionality, but users occasionally encounter errors. Addressing these common issues proactively ensures reliable data workflow:

• The #REF! Error: This is the most frequent issue associated with IMPORTRANGE. It signifies that Google Sheets is unable to access the external data. The primary fix is verifying authorization; ensure you have clicked “Allow access” when prompted. Secondary causes include an incorrect spreadsheet key or a syntactically invalid range string. Always meticulously check your URL and range notation.
• The #N/A Error: Familiar to all VLOOKUP users, this error confirms that the search key was not located within the first column of the imported data array. To resolve this, confirm that the lookup values in your destination workbook are an exact textual match to the values in the source spreadsheet. Even minor inconsistencies, such as leading/trailing spaces or variations in punctuation, will trigger a mismatch.
• Performance Degradation: If you are importing vast datasets or running multiple simultaneous IMPORTRANGE calls, performance may slow down. To mitigate latency, adopt the best practice of limiting the imported range to only the columns and rows absolutely required, rather than pulling entire sheets. For complex dashboards, consider using a dedicated helper sheet to consolidate external data once, then reference that helper sheet internally.

For robust data security and access management, always confirm that the user account running the IMPORTRANGE command possesses adequate sharing permissions (at least “Viewer” access) to the external file. Utilizing named ranges in the source file, rather than hard-coding A1 notation, is another recommended practice that makes formulas clearer and more resilient to structural changes in the source data.

Further Resources for Google Sheets Proficiency

Mastering data retrieval across multiple workbooks is a significant step toward advanced data management within the Google Sheets ecosystem. To continue expanding your expertise and address other complex data challenges, we recommend exploring these related tutorials:

• How to Perform an XLOOKUP in Google Sheets
• How to Use QUERY with IMPORTRANGE in Google Sheets
• How to Use INDEX MATCH in Google Sheets
• How to Calculate Weighted Average in Google Sheets
• How to Transpose Data in Google Sheets

By leveraging these resources, you can consistently build a powerful skill set, enabling you to handle increasingly sophisticated data integration and analysis tasks with confidence and efficiency.
