Revised Title: “Using VLOOKUP with Date Ranges: A Comprehensive Excel Tutorial

The VLOOKUP function in Microsoft Excel is a cornerstone tool for data retrieval, typically employed for finding exact matches within large tables. However, its true power often lies in a less frequently utilized capability: performing lookups based on date ranges or other numerical intervals. This advanced technique is indispensable when you need to categorize a specific date—such as a transaction date or a query date—and return a corresponding value, like a rate, a status tier, or, as we will demonstrate, a historical record of tenure. Mastering this method transforms VLOOKUP from a simple exact-match tool into a robust range-analysis function.

The key to unlocking range-based lookups rests entirely on the fourth argument of the VLOOKUP function, the range_lookup parameter. By setting this argument to TRUE (or omitting it, as TRUE is the default), we activate the crucial approximate match feature. This setting instructs Excel to search for the largest value in the lookup column that is less than or equal to the lookup value. When dealing with date ranges, this structure efficiently determines which predefined period a query date belongs to. Crucially, successful implementation requires a correctly structured lookup table that only uses the start date of each period in the first column.

The generic syntax for executing a date range lookup is straightforward, provided the source data is prepared correctly. The formula below serves as a template for this powerful method, enabling you to retrieve data associated with a specific date interval automatically:

=VLOOKUP(E2,$A$2:$C$7,3,TRUE)

In this construction, the function attempts to locate the date specified in cell E2 within the defined lookup table array, $A$2:$C$7. Once the correct range is identified, the formula returns the associated value found in the third column (column index 3). It is paramount to remember the non-negotiable requirement for this methodology: the first column of the lookup range (Column A in our example) must contain the start dates of the periods, and these dates must be meticulously sorted in ascending order. The subsequent sections will clarify the mechanics behind this approximate matching and detail the exact data preparation steps required for flawless execution.

Understanding the Mechanics of Approximate Date Matching

To fully appreciate how the VLOOKUP function successfully manages date range lookups, we must first understand how Excel fundamentally processes time. Unlike simple text strings, dates in Excel are stored as unique, sequential serial numbers, where January 1, 1900, is assigned the serial number 1, and every subsequent day is incremented by one whole number. This numerical representation is critical because it allows the function to perform accurate mathematical comparisons and sequential range searches, which would be impossible if dates were merely treated as text.

When the range_lookup argument is explicitly set to TRUE, VLOOKUP executes a specific search algorithm: it scans the first column of the array for the largest serial number (date) that is less than or equal to the lookup value (the query date). For example, if we are searching for 15/07/2023, VLOOKUP progresses down the list of sorted start dates until it finds a date that exceeds 15/07/2023. It then immediately backs up to the preceding row. This preceding row holds the most recent start date that is still valid for the query date, effectively identifying the correct active period.

A frequent point of confusion is the necessity of the end date column. While a complete table structure typically includes both a start date and an end date (Columns A and B), only the start date column (Column A) is strictly required for the VLOOKUP mechanism itself when using the TRUE match type. The formula operates under the assumption that a period begins on the date listed in Column A and extends indefinitely until the moment the next period begins (i.e., up to, but not including, the next date listed in Column A). Therefore, the end date column serves primarily as a valuable visual aid for human users to confirm the boundaries of the defined time periods, but it does not participate in the actual range calculation.

Prerequisites for Successful Date Range Implementation

Implementing the VLOOKUP function for date ranges requires meticulous data preparation. Ignoring these crucial prerequisites will inevitably lead to unreliable results, as the underlying approximate match logic is highly dependent on the structure of the source data. Users must focus on two primary areas: data sorting and data type integrity.

The cardinal rule for any approximate match lookup is the correct sorting of the lookup column. The column containing the start dates—which must be the absolute first column of your lookup array—must be sorted in strict ascending order (oldest to newest). If the dates are sorted randomly or in descending order, the VLOOKUP algorithm cannot function correctly. The function relies on encountering larger values sequentially; if it finds a date larger than the lookup value and then encounters a smaller date later in the list, its search logic breaks down, often returning an incorrect row or a misleading result without an error notification. Always verify your sort order before deploying the formula.

Furthermore, data integrity regarding format is essential. You must verify that all dates entered into the spreadsheet are correctly recognized by Excel as valid Excel dates, which means they are stored internally as serial numbers. Dates inadvertently stored as text strings (e.g., due to importing issues or inconsistent formatting) cannot participate in the numerical comparison required by the TRUE argument. If the dates are text, the range lookup will fail, usually yielding an error or an inaccurate match. A quick way to confirm validity is to check the cell formatting or attempt a simple arithmetic operation (like adding 1 to the date) to see if the date increments correctly.

Finally, ensure the table structure aligns with the required output. Column A must contain the sorted start date. Column B typically holds the end date (for reference). Column C (or whichever index you specify) contains the desired return value, such as a name, a commission rate, or a status code, which the formula will retrieve upon finding the correct date range.

Illustrative Example: Tracking CEO Tenure by Date

To provide a clear, practical demonstration of this technique, we will analyze a scenario common in corporate data management: tracking historical personnel changes. Our objective is to maintain a definitive historical record of the tenure of Chief Executive Officers (CEOs) for a major corporation. We need a dynamic method to input any arbitrary date and instantly identify which individual held the CEO role on that specific day.

We begin with a sample dataset structured within Excel, detailing the term limits for four different executives. Notice the careful construction of this array: Column A contains the start dates, Column B contains the end dates, and Column C contains the name of the executive. Crucially, Column A is already sorted in ascending order, fully complying with the primary technical requirement for an approximate match lookup.

Consider a stakeholder query: “Who was the CEO on April 9, 2007?” This query date must be mapped to one of the tenure ranges listed in the table. A manual review confirms that 4/9/2007 falls squarely between 1/1/2005 and 12/31/2009, corresponding to the executive named “Bob.” Our goal is to use the VLOOKUP function to automate this range assessment, providing an instantaneous and scalable solution regardless of the size of the historical data log.

Step-by-Step Implementation of the VLOOKUP Formula

The implementation process is divided into two logical steps: defining the lookup input and constructing the lookup formula itself. First, we designate cell E2 as the input cell for our query date. We enter the date we wish to check, 4/9/2007, into E2. This date, converted internally by Excel into its numerical serial number equivalent, serves as the lookup_value that VLOOKUP will attempt to match against Column A.

Next, we move to cell F2, which is where we will house our formula. The function must search the entire table array (A2:C7) and be configured to retrieve the corresponding executive’s name from the third column (Column C). The crucial step is defining the final argument as TRUE to ensure range-based, approximate matching is performed rather than a strict exact match. The complete, robust formula structure is entered into cell F2 as follows:

=VLOOKUP(E2,$A$2:$C$7,3,TRUE)

Upon execution, the formula initiates a search down Column A for the largest date serial number that is less than or equal to 4/9/2007. It successfully identifies the row starting with 1/1/2005. Since this row accurately captures the active tenure period, the function retrieves the corresponding value from the third column, which is “Bob.” Note the use of absolute referencing (the dollar signs) for the table array $A$2:$C$7; this is a recommended best practice, ensuring the reference range remains fixed if the formula is copied down to process a list of multiple query dates.

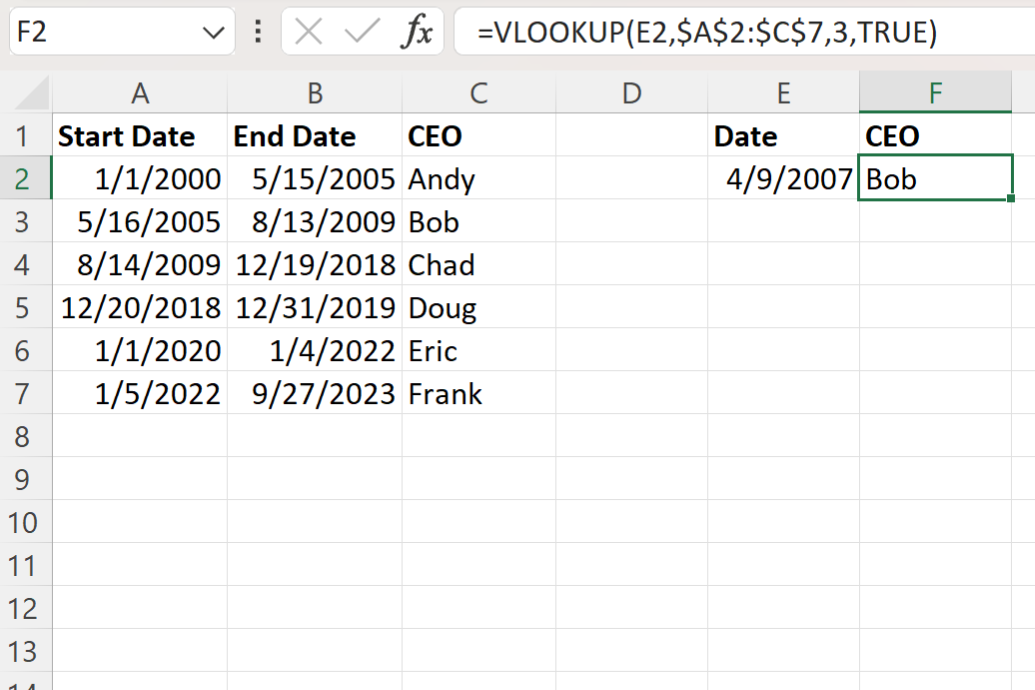

The visual confirmation below illustrates the successful outcome of the initial lookup. The formula has accurately resolved the date ambiguity by identifying the nearest preceding start date, confirming the correct historical record.

Testing Robustness and Handling Date Changes

One of the primary advantages of this VLOOKUP function setup is its inherent dynamic capability. Once the formula is correctly configured, it requires zero modification to handle new queries. The output automatically recalculates whenever the query date in cell E2 is updated, providing rapid access to historical data without any manual intervention or adjustment of the formula parameters.

To rigorously test the solution, let us modify the date in cell E2 to a date that falls into a completely different historical period, specifically 12/15/2020. The VLOOKUP function immediately re-evaluates this new lookup value against the sorted start dates in Column A. It sequentially compares the value against 1/1/2005, 1/1/2010, 1/1/2015, and 1/1/2020. Since 12/15/2020 is greater than 1/1/2020 but less than the next logical start date (which would begin a new row), the formula correctly stops at the 1/1/2020 entry, identifying that row as the active range.

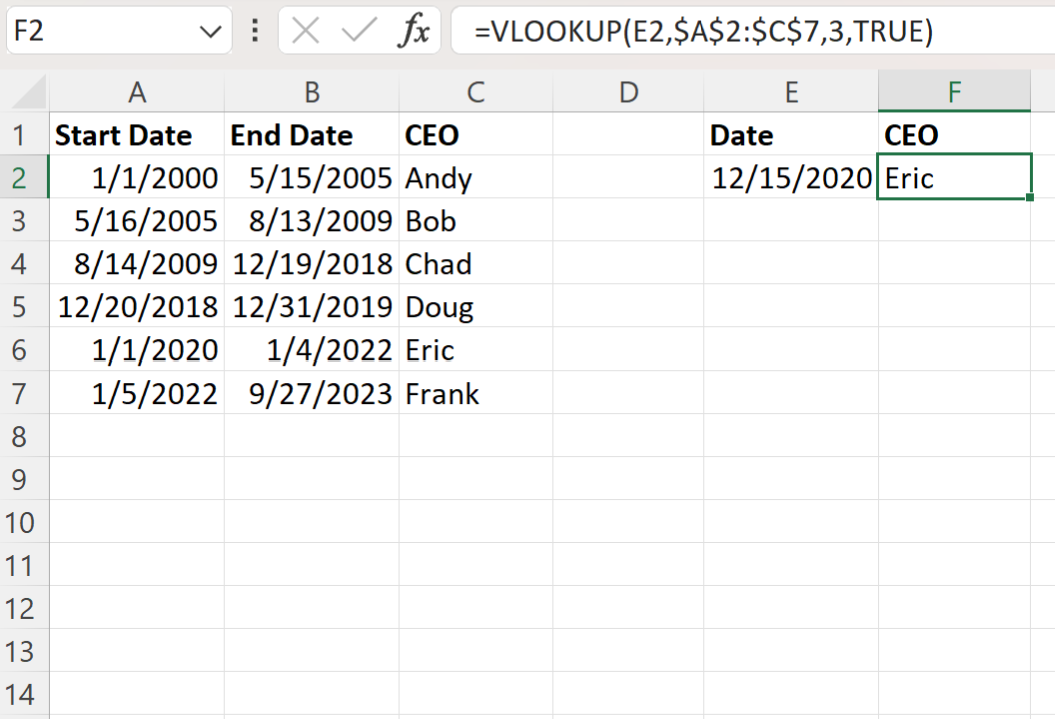

The resulting visual confirmation below clearly illustrates this dynamic update. The formula structure remains identical, yet the intelligent application of the approximate match feature ensures the output automatically adjusts to reflect the new criteria, returning the correct executive for the specified time.

The formula successfully returns Eric, confirming that he was the CEO on the specified date of 12/15/2020. This simple but powerful demonstration confirms the versatility of using the TRUE match type with sorted time-series data, making it an ideal method for managing any range-based lookup task in Excel.

Critical Caveats: Avoiding VLOOKUP Errors with Range Lookups

While utilizing VLOOKUP function for date ranges is highly effective, it is exceptionally sensitive to setup errors. Users must be aware of common pitfalls that can undermine the accuracy of the approximate match logic. The most frequent and critical error stems from improper sorting of the lookup column.

If the first column of your lookup array is not sorted in strict ascending order, the function’s internal sequential search will be compromised. When VLOOKUP encounters an unsorted date, it may stop searching prematurely, believing it has passed the relevant range when, in fact, the correct match is further down the list. This leads to the formula returning an irrelevant row or, worse, an inaccurate value without generating an error message, making the derived data highly unreliable. Always verify your sort order before deploying the formula.

Another common issue involves dates that precede the defined historical range. If the lookup date in cell E2 is earlier than the very first start date listed in the table (e.g., 1/1/2004 when the earliest record is 1/1/2005), VLOOKUP cannot find any value that is “less than or equal to” the lookup value. In this scenario, the function will correctly return the #N/A error. To mitigate this, ensure your data range comprehensively covers all query periods. For scenarios where a default value is needed for dates prior to the recorded history, you might consider adding a dummy row with a very early start date (e.g., 1/1/1900) to capture these out-of-range queries.

Finally, always confirm that data types are consistent. The mathematical comparison required by the TRUE argument demands that all dates be genuine Excel dates (serial numbers). If text-based dates are mixed with numerical dates, the comparison will fail, resulting in inconsistent outcomes. A quick check of the numerical value underlying the date (by temporarily formatting the cell as General) should confirm its status as a serial number, ensuring compatibility with the mathematical range comparison performed by the VLOOKUP function.
