Conditional Formatting in Excel: A Step-by-Step Guide to Comparing and Highlighting Cells

Leveraging Conditional Formatting for Dynamic Data Visualization

In the environment of sophisticated spreadsheet applications like Microsoft Excel, the efficiency with which users can interpret extensive data sets is directly correlated with effective decision-making. Relying solely on standard numerical tables often proves insufficient, as critical trends, performance outliers, or comparative deficiencies can become obscured within dense rows and columns. Manual inspection of thousands of data points is not only tedious but highly susceptible to human error. This challenge is precisely mitigated by the strategic use of Conditional Formatting.

Conditional Formatting is an indispensable tool that enables the application of specific visual styles—such as changes to background color, font weight, or borders—to cells that satisfy certain predefined logical criteria. While many built-in rules exist for comparing cells against static values or averages, a recurrent need in complex data analysis involves the dynamic comparison of a value in one cell against the corresponding value in an adjacent or different cell. This technique allows for highly granular, row-by-row assessment.

Comparative highlighting dramatically enhances the readability of reports, instantly drawing the user’s attention to areas requiring action, whether they indicate superior performance, budget overruns, or critical temporal differences. To implement this cell-to-cell comparison dynamically across an entire range, users must move beyond standard presets and leverage the power of a custom formula rule. This advanced feature is accessed via the Home tab, navigated through the Conditional Formatting dropdown menu, and finalized within the New Rule dialogue box. Mastering this capability is fundamental to transforming raw numerical data into powerful, actionable visual feedback.

Setting the Stage: The Need for Formula-Driven Comparison

The initial configuration of dynamic conditional formatting demands precision, particularly in defining the scope of the rule and the target range. The process begins with selecting the cells that you wish to visually modify. For instance, if we are tracking annual performance metrics, and the goal is to highlight the performance score only if it exceeds the previous year’s benchmark, we would select the range containing the current year’s scores. This separation between the *formatted* range and the *comparison* range is a key structural element.

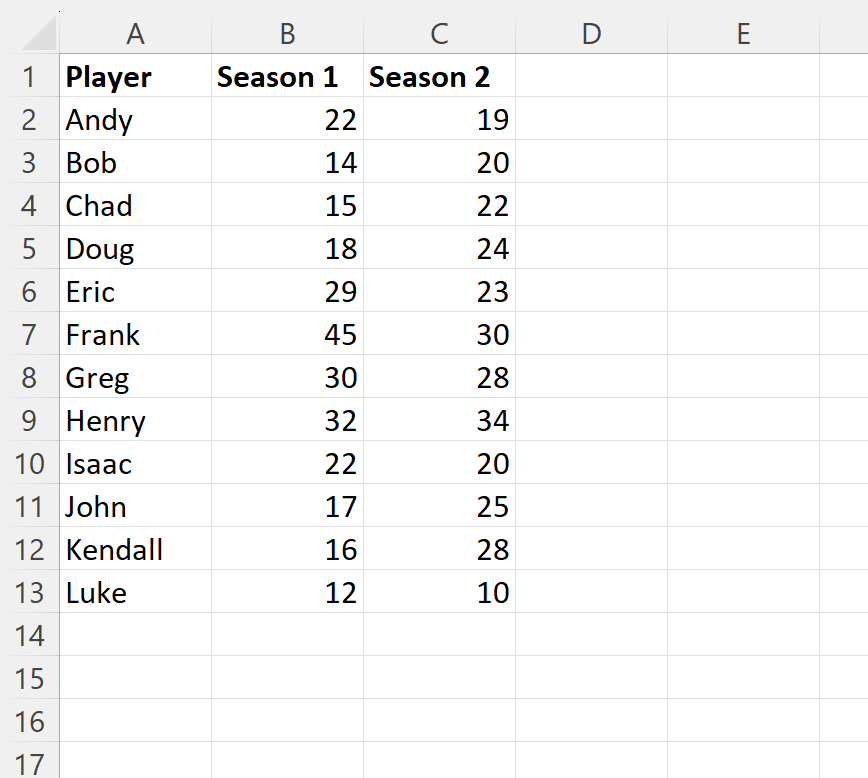

Consider a practical analytical scenario where an organization tracks basketball player statistics across two distinct seasons. The data set includes Player Name, Season 1 Points (Column B), and Season 2 Points (Column C). Our objective is specific: to quickly identify which players scored higher in Season 1 compared to Season 2. This requires a strict, row-by-row comparison: B2 must be compared only to C2, B3 only to C3, and so forth, throughout the entire list.

Crucially, the highlighting must only be applied to the Season 1 column (range B2:B13). We are not interested in highlighting both cells, only the performance figure that meets the condition of being the higher score. Because Excel’s standard rules cannot automatically handle this pairing logic across disparate columns dynamically, we must rely on the formula-based rule type. This choice unlocks the full potential of relative cell references, ensuring that every comparative pair is evaluated independently, reflecting the relative status across the entire data set without manual intervention.

The core requirement is to format cells within the range B2:B13 only if the numerical value they hold is strictly greater than the corresponding numerical value in the adjacent cell of the Season 2 column (C2:C13). The next step details the precise execution of this rule using Excel’s custom formula feature.

Constructing the Custom Rule: Step-by-Step Implementation

The successful implementation of formula-driven Conditional Formatting begins with the careful definition of the range to be formatted. This selection dictates the area where the visual change will occur. For our example, we must select the entire data range for the first season: B2:B13. It is absolutely essential that the selection starts at the first cell of the data set (B2), as this starting point dictates how relative referencing is interpreted by the conditional formatting engine for the entire range.

1. Select the Target Range: Highlight cells B2 through B13.

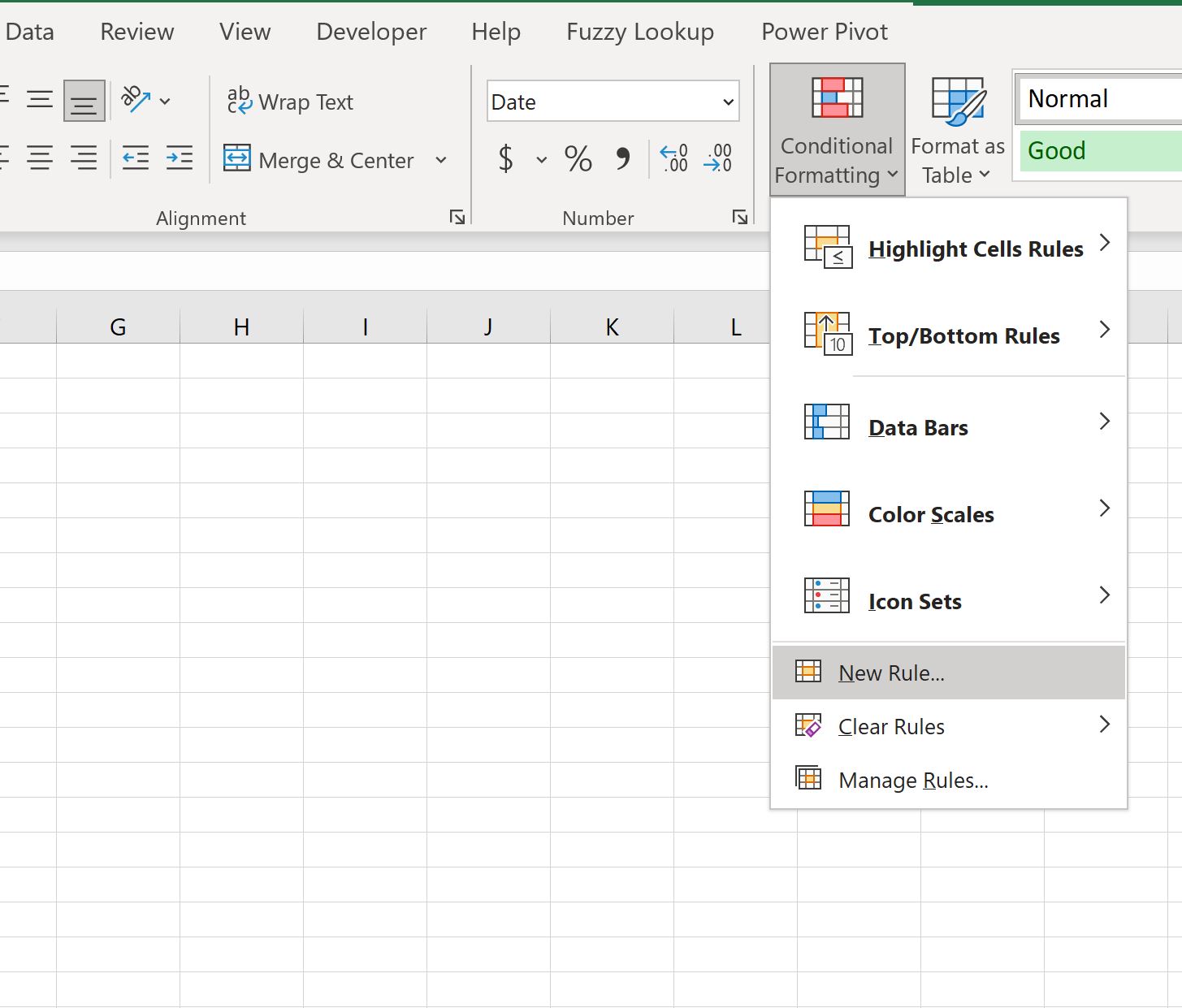

2. Access the Rule Manager: Navigate to the Home tab, click the Conditional Formatting dropdown menu, and select New Rule.

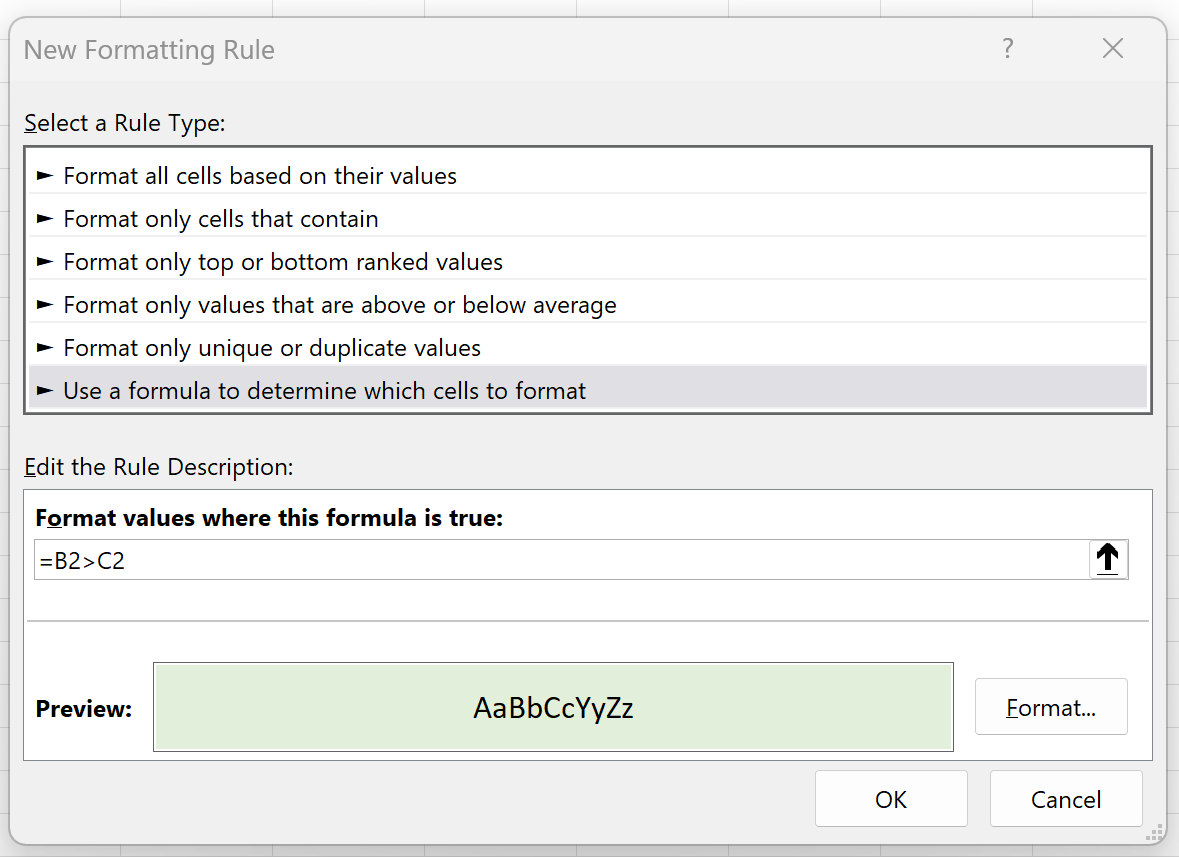

3. Choose the Rule Type: In the New Rule dialogue box, select the final option: Use a formula to determine which cells to format. This selection is necessary because the comparison involves two different, dynamic columns.

4. Input the Formula: A text box will appear for the logical test. The formula must be written from the perspective of the first cell in the selected range, which is B2. To test if the value in B2 is greater than the value in C2, the formula required is =B2>C2. Note that standard relative references (B2 and C2) are used, intentionally omitting dollar signs ($) to ensure the rule dynamically adjusts across all rows.

After entering the core logic, the final critical step is defining the visual effect. Click the Format button to open the Format Cells dialogue box. Here, you can customize the appearance—adjusting the fill color, font style, or borders. For clarity in data visualization, selecting a distinct fill color, such as a light green or a bright yellow, is recommended to instantly draw the eye to the high-performing metrics. Once the desired formatting is confirmed, click OK to close the Format Cells window, and then OK again to finalize the New Rule creation and apply the dynamic comparison logic to the selected range.

The Crux of Dynamic Rules: Understanding Relative Cell Referencing

The concept of relative referencing is the single most important aspect of mastering formula-based Conditional Formatting in Microsoft Excel. When the user defines the rule as =B2>C2, Excel does not interpret this as a fixed test against the single cells B2 and C2. Instead, because B2 and C2 are entered as relative references (meaning they do not contain dollar signs), Excel treats this formula as an instructional template for the relationship between cells.

When the rule is applied to the selected range (B2:B13), the conditional formatting engine dynamically adjusts the references for every row. For example, when the engine evaluates cell B3, the formula automatically iterates to =B3>C3. When it reaches cell B10, the rule becomes =B10>C10. This automatic, iterative adjustment is what permits a single, simple rule to govern complex, row-by-row comparisons across thousands of data points, ensuring that each cell is checked against its unique, corresponding peer.

Conversely, if the user were to mistakenly implement **Absolute Referencing** by writing the formula as =$B$2>$C$2, the results would be entirely incorrect for this scenario. The dollar signs lock the references to the starting cells. Consequently, every single cell in the B2:B13 range would only be compared against the static relationship defined by B2 being greater than C2. If B2 happened to be greater than C2, all cells in the B2:B13 range would be highlighted, regardless of the individual values in rows 3 through 13. Understanding the distinction between dynamic (relative) and static (absolute) references is therefore paramount to achieving successful dynamic data visualization.

Interpreting the Results and Verifying Accuracy

Upon successful application and confirmation, the results are instantly rendered on the spreadsheet, providing immediate analytical feedback. The spreadsheet transforms raw performance numbers into a clear visual map, isolating the specific data points that meet the defined criteria. This instant feedback loop is invaluable in complex data analysis environments where swift identification of key metrics is necessary.

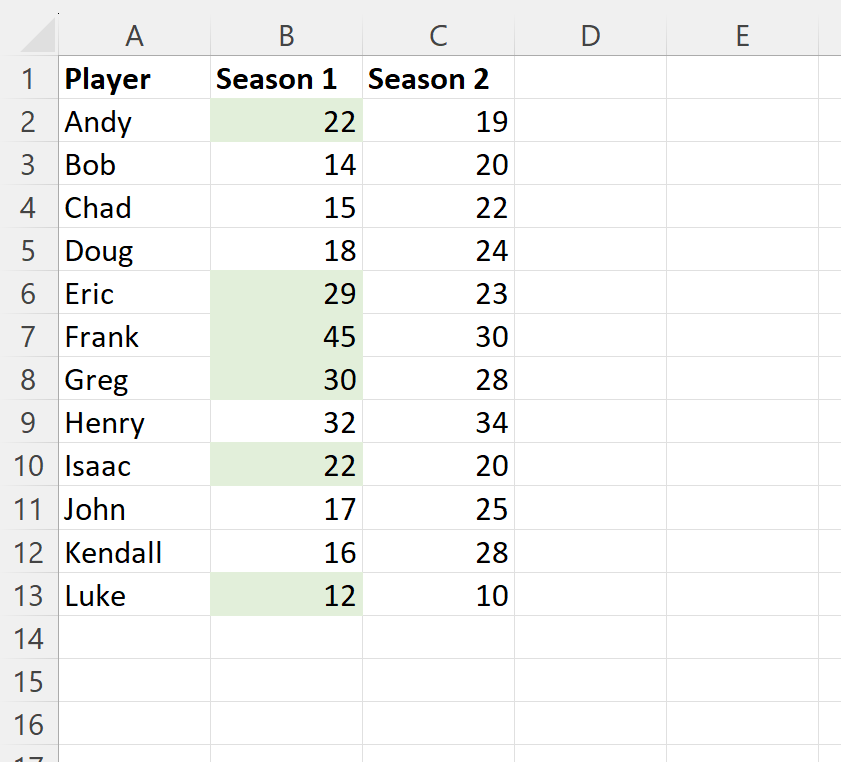

The resulting data set clearly isolates the scores in the Season 1 column that exceeded the corresponding Season 2 scores, fulfilling the objective of the visual analysis.

To solidify the understanding of the rule’s execution, we can examine specific cases based on the output displayed above:

• For the player Andy, the Season 1 score was 120, while the Season 2 score was 95. Since 120 is strictly greater than 95, the condition =B2>C2 evaluates to TRUE, triggering the highlight.

• In contrast, Bob scored 105 in Season 1 and 110 in Season 2. Since 105 is NOT greater than 110, the condition evaluates to FALSE, and the cell remains unformatted.

• If the scores were tied (e.g., 100 in Season 1 and 100 in Season 2), the strict “greater than” operator (>) would also result in a FALSE evaluation, leaving the cell unformatted.

Expanding Beyond “Greater Than”: Advanced Logical Operators

While the primary focus of this guide is the “greater than” comparison, the immense flexibility of formula-based conditional formatting allows for easy adaptation to virtually any logical scenario. The core methodology—selecting the range, applying a custom formula based on the top-left cell, and defining the formatting—remains constant. Only the logical operator within the formula string needs adjustment to handle alternative requirements.

A frequent alternative requirement is the need to highlight cells that are greater than or equal to the corresponding comparison cell. This is typically necessary when a tie counts as successfully meeting or exceeding a target. To implement this condition, the formula is simply adjusted to incorporate the equality operator: =B2>=C2. This slight modification ensures that if B2 equals C2, the cell is still highlighted, reflecting a non-regression or meeting of the previous standard. Similarly, if the objective requires highlighting instances where Season 1 performance was worse than Season 2, the formula would utilize the less than operator: =B2<C2.

For highly sophisticated criteria, standard Excel functions like AND() and OR() can be seamlessly incorporated. This enables the conditional format to test multiple criteria simultaneously. For example, if the requirement was to highlight Season 1 scores only if they were greater than Season 2 and the player scored over 100 points in Season 1, the rule would evolve into a compound logical test: =AND(B2>C2, B2>100). This ability to chain multiple logical tests within a single rule establishes conditional formatting as an exceptionally powerful instrument for advanced data interpretation and visualization.

Note on Inclusive Comparisons: If the requirement specifies highlighting cells that are greater than or equal to the comparator cell value, the formula used within the formatting rule must be precisely adjusted to use =B2>=C2.

Concluding Thoughts and Further Resources

Mastering the application of custom, formula-based conditional formatting is a crucial step for any advanced spreadsheet user. This technique shifts the relationship with data from passive review to proactive visual analysis, allowing complex comparative metrics to be communicated instantly and effectively. By understanding the foundational role of relative referencing and the flexibility offered by logical operators, users can create dynamic visualizations for virtually any comparison requirement.
