Updating Pivot Table Data Sources in Excel: A Tutorial

The ability to analyze vast quantities of data efficiently is paramount in contemporary data management and business intelligence. One of the cornerstone analytical tools within Microsoft Excel is the Pivot Table, designed to summarize, sort, reorganize, and group complex data stored across spreadsheets. However, a significant operational hurdle emerges when the underlying data source changes or expands: traditional Pivot Tables often rely on a fixed, or static range, meaning any new data records added outside the initial boundaries are ignored. This necessitates constant manual adjustments, which is inefficient and prone to error. This comprehensive guide details the professional methodology for ensuring your analytical summaries remain current by utilizing a dynamic range, achieved by converting your raw data into a structured Excel Table, thereby automating the data source update process whenever new records are introduced.

The Challenge of Static Data Sources in Analysis

When a Pivot Table is initially created from a standard selection of cells (e.g., A1:C100), Excel records that specific cell coordinate range as the source. This is a static reference. If you later append 50 new rows to the bottom of your data, the Pivot Table remains oblivious to these additions because its internal data source reference has not changed from A1:C100. This requires the user to interrupt their workflow, navigate to the Pivot Table settings, and manually update the range to A1:C150.

This manual dependency is highly undesirable in environments where data streams are continuous or where large datasets are frequently updated. Relying on fixed cell references increases the risk of analyzing incomplete or outdated information, leading to flawed conclusions. Modern data analysis demands resilience and adaptability, traits best embodied by dynamic data sources that automatically track the growth of the dataset.

The solution lies in leveraging powerful, built-in features of Excel that transform a simple collection of cells into a recognizable data object. By replacing the static cell reference with a dynamic object reference, we eliminate the need for recurrent manual range definition, streamlining the entire data lifecycle from entry to summary.

Step 1: Structuring and Preparing Your Source Data

Before any successful analytical tool, such as a Pivot Table, can be deployed, the raw data must adhere to strict tabular standards. This means the data must be clean, consistent, and structured logically: every column must represent a single, distinct variable (e.g., Player Name, Team Affiliation, Points Scored), and every row must represent a unique record or observation. This meticulous organization is foundational for ensuring that subsequent calculations, aggregations, and data manipulations performed by the Pivot Table are accurate and reliable.

To illustrate this process, we will utilize a sample dataset detailing performance statistics for basketball players. This initial dataset is currently entered as a basic cell range, specifically bounded by A1 and C11. Note the crucial structure: the first row contains clear headers that define the attributes of the data entries below them. The integrity of the final analytical output depends entirely on the quality and structure established at this foundational stage.

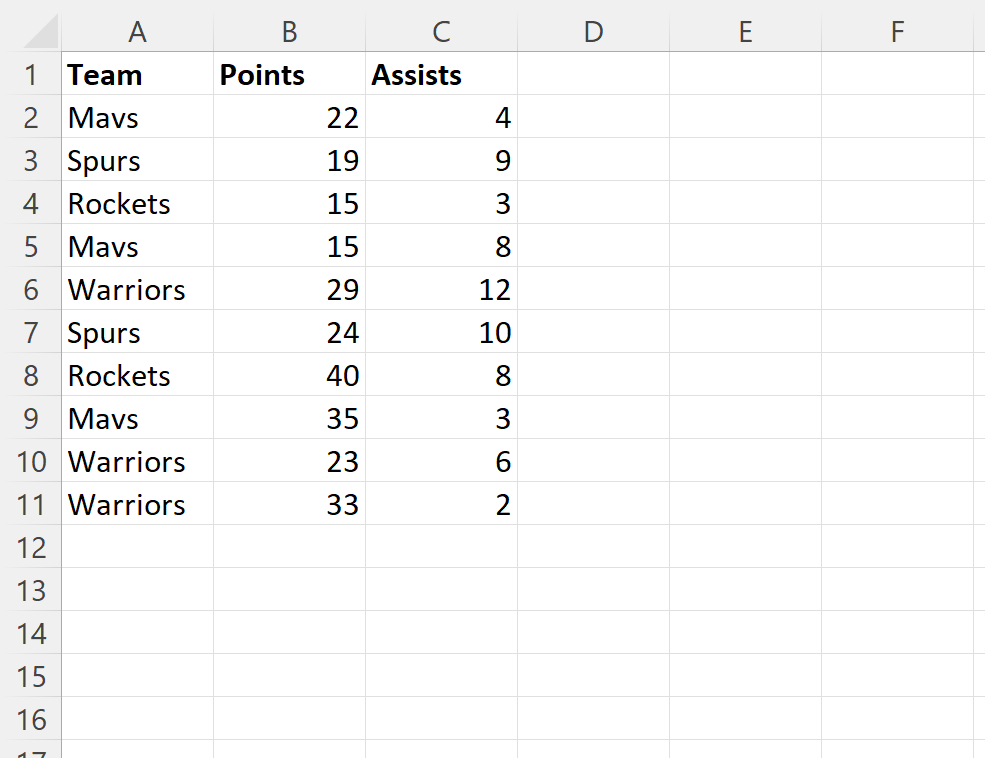

Observe the initial dataset below, which provides the foundation for our dynamic Pivot Table demonstration.

While this data is currently presented as a simple range, our goal is to convert it into a resilient object that maintains its boundaries automatically. This transition from a simple range to a formalized object is the key to creating a truly dynamic data source for advanced analysis.

Step 2: Transforming Static Ranges into a Dynamic Excel Table

The operational core of achieving automatic Pivot Table range updates lies in converting the static cell range into an Excel Table. Unlike standard ranges, an Excel Table is a formal data object designed to manage its own boundaries dynamically. When new data is entered immediately adjacent to the last row of the Table, the object automatically expands its definition to encapsulate the new records. This dynamic resizing behavior is precisely what provides the resilience required for our Pivot Table source.

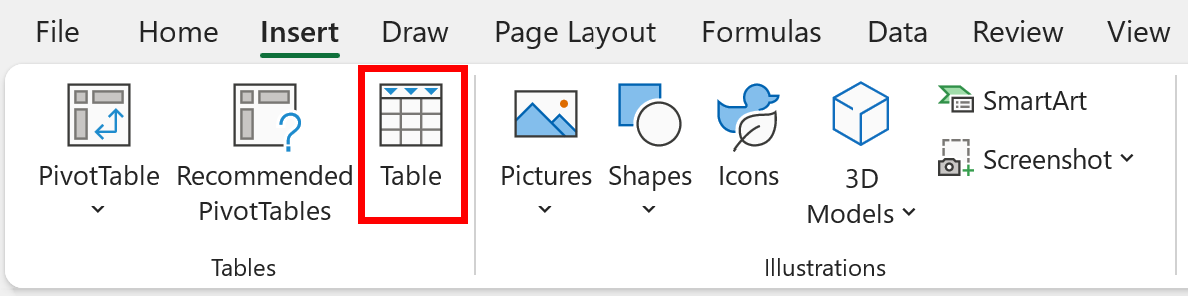

To initiate this critical conversion, first, select the entire range of the original dataset, which in this example is A1:C11. With the range highlighted, navigate to the Insert tab located on the main Excel ribbon. Within the ribbon’s options, locate and click the Table icon. This action prepares Excel to formalize the selected data into a structured object.

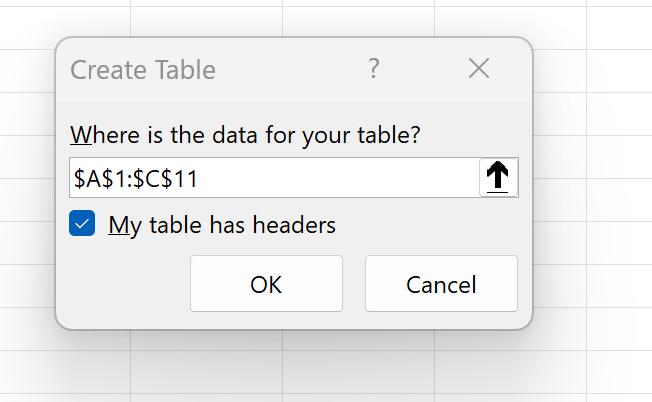

Upon clicking the icon, the “Create Table” dialog box will appear. You must confirm two crucial settings here. First, verify that the range specified is correct (it should show $A$1:$C$11). Second, and most importantly, ensure that the checkbox labeled My table has headers is selected. Since our first row (Player, Team, Points) contains meaningful column identifiers and not raw data points, activating this option ensures Excel correctly interprets the structure, preventing calculation errors.

Clicking OK completes the transformation. The original collection of cells is now a formalized Excel Table, typically styled with formatting enhancements like banded rows for improved readability. Internally, Excel assigns this object a default name, usually Table1. It is this object name—not the fixed cell range—that we will reference when creating the Pivot Table, thereby guaranteeing that all future additions to the source data are automatically included in the definition.

Step 3: Creating the Pivot Table with a Dynamic Source Reference

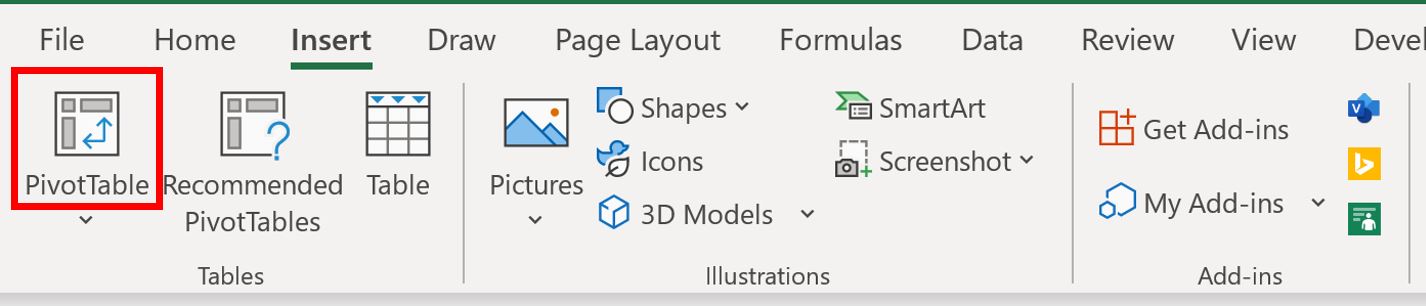

With our source data successfully organized and defined as a dynamic Table1 object, we can proceed to generate the analytical Pivot Table. Start by selecting any cell within the newly created Table (e.g., A1). Return to the Insert tab on the top ribbon, and this time, click on the PivotTable icon.

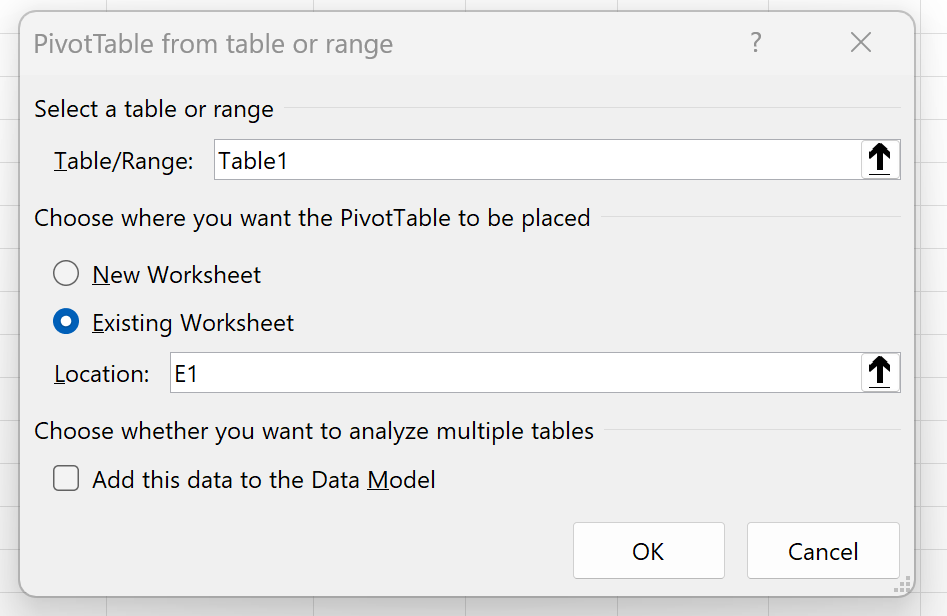

The “Create PivotTable” dialog box is where the dynamic sourcing mechanism is implemented. In the critical Table/Range input field, you must manually overwrite any suggested static range (like A1:C11) and input the exact name of your Excel Table object, which is Table1 (or the custom name you assigned). This substitution of the static cell reference with the object name is what establishes the permanent, dynamic link. For placement, selecting Existing Worksheet and choosing an output location like cell E1 allows the Pivot Table summary to display immediately next to the source data for easy comparison.

Once confirmed by clicking OK, the Pivot Table framework appears, accompanied by the PivotTable Fields panel. This panel is the control center for analysis, allowing users to drag and drop fields (Player, Team, Points) into the four key analytical areas: Rows, Columns, Values, and Filters. For this demonstration, we will configure the Pivot Table to summarize the total points scored, grouping the results by Team.

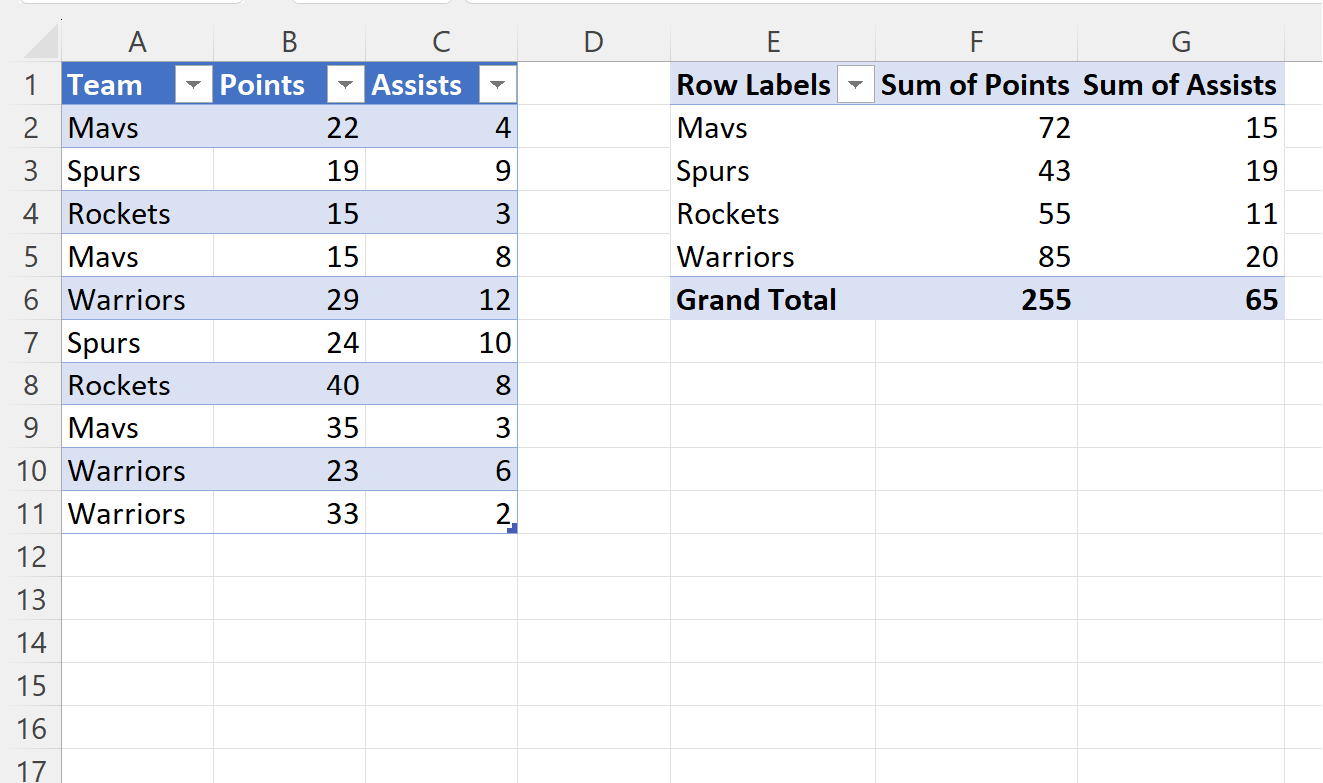

The resulting summary, based on the initial data contained in Table1, presents the aggregated points for each team, providing immediate, actionable insights based on the existing dataset.

Step 4: Handling Data Expansion and Updating Results

The true utility of using an Excel Table as the source for the Pivot Table is fully realized when new data is introduced. Imagine we receive a new record for a player from the “Celtics” team that must be incorporated into the analysis. We simply navigate to the row immediately following the current last row of the Table (row 12 in this case) and input the new data values into cells A12, B12, and C12.

The moment you confirm the entry by pressing Enter or moving the cursor, Excel’s internal Table management system recognizes the adjacent data entry. The boundaries of Table1 automatically expand to seamlessly incorporate this new row, guaranteeing the dynamic source is always comprehensive. This dynamic inclusion eliminates any manual intervention regarding the data range itself.

Crucially, although the underlying source data (Table1) has been updated successfully, the Pivot Table does not automatically reflect these changes. This behavior is deliberate; Excel caches the Pivot Table data to optimize performance, preventing resource-intensive recalculations during data entry. Therefore, a manual instruction is required to prompt the Pivot Table to check its source again.

To finalize the update process, select any cell within the Pivot Table output area (e.g., cell E2). This action activates the contextual tabs in the Excel ribbon dedicated to Pivot Table management. Navigate to the PivotTable Analyze tab (or the Options tab in older software versions). Within the Data group, locate and click the Refresh button.

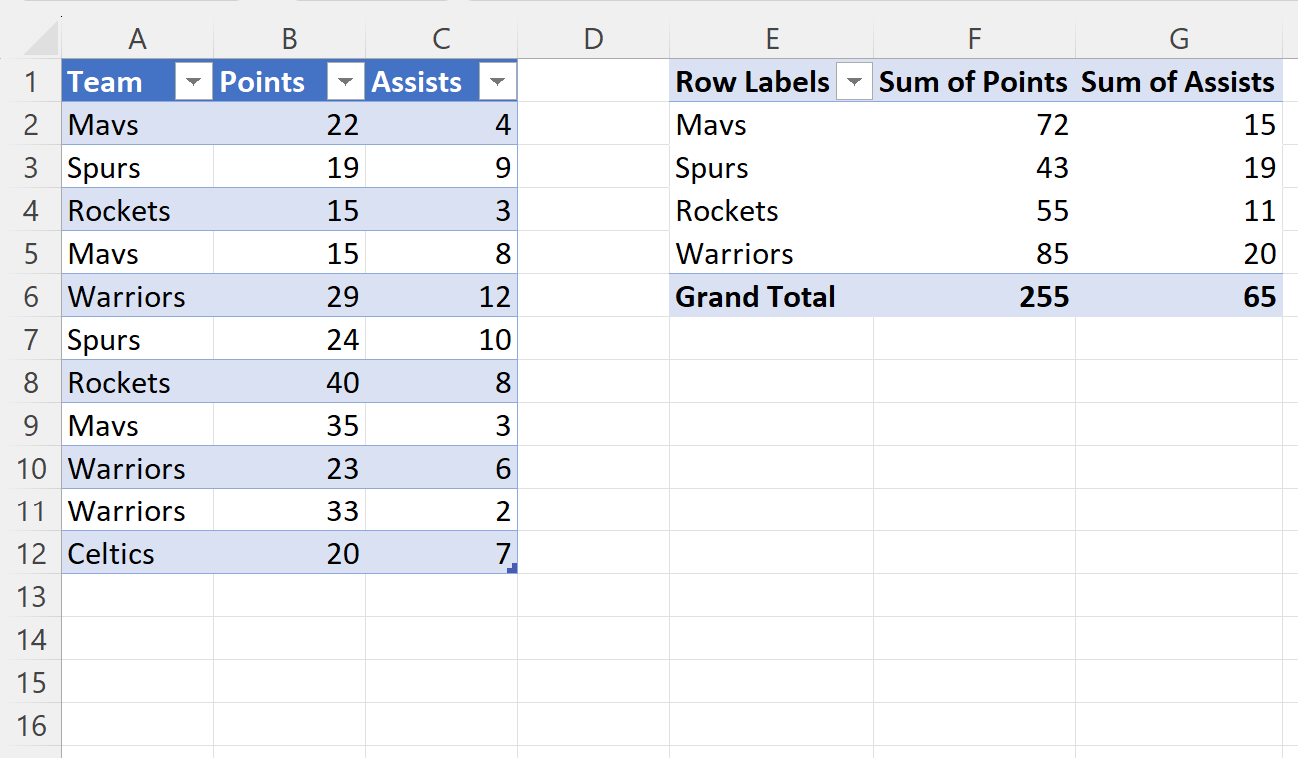

Executing the Refresh command compels the Pivot Table to query the current state of its linked source (Table1). Since Table1 now includes the newly added Celtics player data, the Pivot Table instantly updates its summary statistics, incorporating the expanded dataset into the aggregations.

Conclusion: The Efficiency of Dynamic Data Sources

The method of using an Excel Table as a source for a Pivot Table elegantly solves the chronic problem of managing expanding datasets. By establishing a dynamic link, we entirely eliminate the need to manually redefine the data range whenever new records are appended. This robust process simplifies ongoing data maintenance to a simple two-step procedure: data entry into the structured Table, followed by clicking the Refresh button on the Pivot Table. This approach represents the most efficient, scalable, and professional method for maintaining accurate and current analytical summaries over time.
