Mastering Excel XLOOKUP: A Comprehensive Guide to Cross-Sheet Data Retrieval

The XLOOKUP function is widely recognized as a pivotal leap forward in modern data retrieval within Excel. This powerful successor to legacy functions like VLOOKUP and HLOOKUP offers exceptional flexibility, enabling users to perform highly efficient lookups both horizontally and vertically. Crucially, XLOOKUP eliminates the directional constraints of its predecessors, allowing data to be retrieved from columns situated to the left or right of the search column. This feature is indispensable when managing expansive datasets and integrating information that is logically segmented across various worksheets.

Mastering the ability to perform cross-sheet lookups is not merely an advanced skill; it is fundamental for professionals engaged in complex activities such as financial modeling, detailed inventory tracking, and sophisticated database management using the spreadsheet environment. When utilizing XLOOKUP to pull data from a sheet other than the active one, the primary technical requirement is the accurate external referencing of the source sheet and its corresponding data ranges. By implementing this technique, you ensure that your formulas remain robust, dynamic, and capable of seamlessly synthesizing disparate components of information into a cohesive whole. The underlying structure remains intuitive: define the target value, specify the location of the search, and identify the data to be returned upon finding a match.

Understanding the Structural Advantages of XLOOKUP

The core advantage that positions XLOOKUP ahead of older functions lies in its simplified, yet highly functional, syntax. This design completely removes the necessity of manually counting column indices, a process that historically introduced significant errors when using functions like VLOOKUP, especially in large or frequently rearranged tables. When the requirement is to execute a lookup across different sheets, the essential mechanism involves prefixing the column or cell references with the specific sheet name, followed by an exclamation mark (e.g., Sheet2!). This explicit sheet reference clearly instructs Excel on the exact location of the source data.

This method significantly enhances overall data integrity and model reliability. By directly linking the lookup mechanism to the source sheet, the risk of formula failure due to source data reorganization or movement is greatly minimized—a critical factor in maintaining complex analytical models. Furthermore, XLOOKUP incorporates features that traditionally required cumbersome nested functions. These include native support for searching from the bottom of a list upwards, defaulting to exact matching for increased accuracy, and offering an optional argument for a customized “not found” message, making error handling straightforward.

When operating in a multi-sheet context, this inherent clarity is paramount. The formula effectively acts as an intelligent bridge, merging two distinct datasets based on a common identifier field. This is vastly more efficient and reliable than manual alternatives, such as copying and pasting data, which results in static, unlinked data copies that are instantly outdated if the source is modified. Utilizing XLOOKUP ensures that the retrieved data is always dynamically linked to the original source, promoting consistency across the entire workbook.

Defining the Essential Syntax for Cross-Sheet Lookups

To successfully execute a lookup operation that retrieves data from an external sheet, the XLOOKUP function requires three mandatory arguments. When referencing external data, the sheet name notation must be correctly applied to the lookup and return arrays. The generic framework for the function is structured as follows: =XLOOKUP(lookup_value, lookup_array, return_array, [if_not_found], [match_mode], [search_mode]). For any cross-sheet process, both the lookup_array and return_array arguments must explicitly include the name of the source sheet, followed by the requisite exclamation mark (!) and the cell references defining the data range.

Consider a practical scenario where the value being searched for is located in cell A2 of the active sheet (Sheet1), while the corresponding data arrays reside entirely on Sheet2. It is highly recommended to use absolute referencing (indicated by the dollar signs $) for the external ranges. This practice is vital for maintaining formula integrity: absolute references prevent the ranges from shifting if the formula is copied or dragged down to other rows, thereby ensuring the consistency of the lookup across the entire dataset. The following standard formula illustrates the precise mechanism required for retrieving data from Sheet2 into Sheet1:

=XLOOKUP(A2, Sheet2!$A$2:$A$11, Sheet2!$B$2:$B$11)

In the preceding example, the instruction given to the function is clear: search for the content of cell A2 from the current active sheet. The search is strictly limited to the range A2:A11 located on Sheet2. Upon identifying a successful match, Excel is directed to return the corresponding value from the designated return range, B2:B11, which is also fixed on Sheet2. This method underscores the clarity, directness, and efficiency of XLOOKUP when managing external references for dynamic data integration.

Detailed Example Setup: Preparing the Data

To fully grasp this cross-sheet functionality, let us walk through a typical business intelligence scenario involving the integration of two discrete datasets within a sports analysis context. We will work with two worksheets: Sheet1, which functions as our primary analytical and reporting dashboard, and Sheet2, which acts as a static database containing supporting metrics. Our objective is to enrich the data on Sheet1 by pulling specific metrics from Sheet2, using a shared data point—the Team Name—as the unique identifier.

Our initial worksheet, Sheet1, currently contains foundational player statistics, primarily focusing on points scored by various teams. This sheet is currently incomplete for comprehensive analysis, as it lacks essential assists data. The structure below clearly shows the Team column, which will serve as the crucial lookup value used to bridge the data gap between the two sheets:

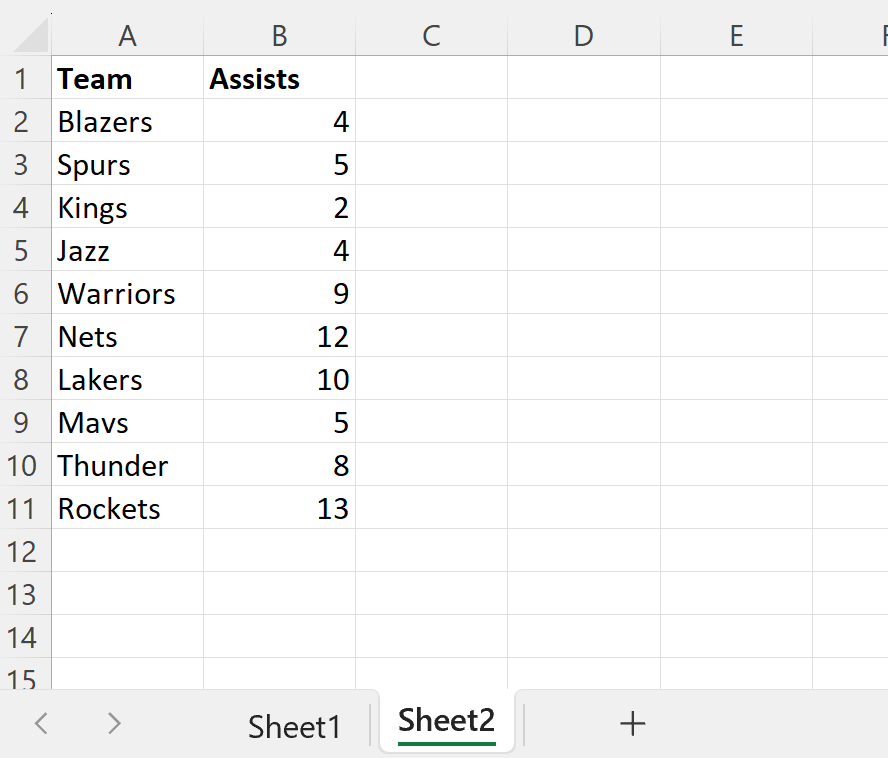

In contrast, our secondary data source, Sheet2, holds the necessary assists data. This sheet is structurally straightforward, with the Team column (Column A) perfectly aligned with the Assists column (Column B). A critical prerequisite for successful lookup execution is ensuring that the text strings in the lookup column (Team Name) on both sheets are absolutely identical. This adherence to data consistency is vital for the XLOOKUP function to achieve an exact match. This practice of separating data into specialized sheets is standard in professional spreadsheet management, allowing for better organization and maintainability, particularly when dealing with hundreds or even thousands of records.

The goal is unambiguous: we must search for the team names listed in Sheet1 within the corresponding list of team names found in Sheet2. Subsequently, we will retrieve the matching value from the Assists column in Sheet2, using the results to populate a new, empty column on Sheet1, thereby completing the required analytical view.

Implementing the XLOOKUP Formula Across Sheets

The process of initiating data retrieval begins by placing the XLOOKUP formula into the precise cell where the returned value is first expected. In our ongoing example, this cell is C2 on Sheet1, which we designate as the header for the ‘Assists’ column. The logic dictates that for the calculation in C2, the function must look up the team name specified in the corresponding row, A2.

We define the three essential and compulsory arguments using a mix of relative and absolute references:

1. Lookup Value (A2): This is the specific identifier—the team name—we are searching for. Since we intend to use the fill handle to apply this formula to all subsequent rows, this reference must remain relative (A2, which becomes A3, A4, etc.) to adapt row by row.
2. Lookup Array (Sheet2!$A$2:$A$11): This specifies the column on Sheet2 where the team names are located. We employ absolute references (the dollar signs $) to fix this external range. This ensures that the search area on Sheet2 remains constant, regardless of how many rows the formula is copied down.
3. Return Array (Sheet2!$B$2:$B$11): This defines the column on Sheet2 containing the data we aim to retrieve (the Assists count). It must also be absolutely referenced and prefixed by the source sheet name to maintain its fixed position.

The final, complete formula entered into cell C2 of Sheet1 is therefore:

=XLOOKUP(A2, Sheet2!$A$2:$A$11, Sheet2!$B$2:$B$11)

After successfully entering and confirming the formula in C2, the subsequent step is to efficiently apply this calculation to the remaining rows in Column C. This is accomplished by using the fill handle—the small square located at the bottom-right corner of cell C2. Dragging this handle downwards automatically executes the lookup for every row. This action intelligently adjusts the relative reference (A2 changes sequentially) while preserving the integrity of the fixed external references pointing to Sheet2, thereby rapidly completing the data population task across the entire required range.

Analyzing the Results and Advanced Error Handling

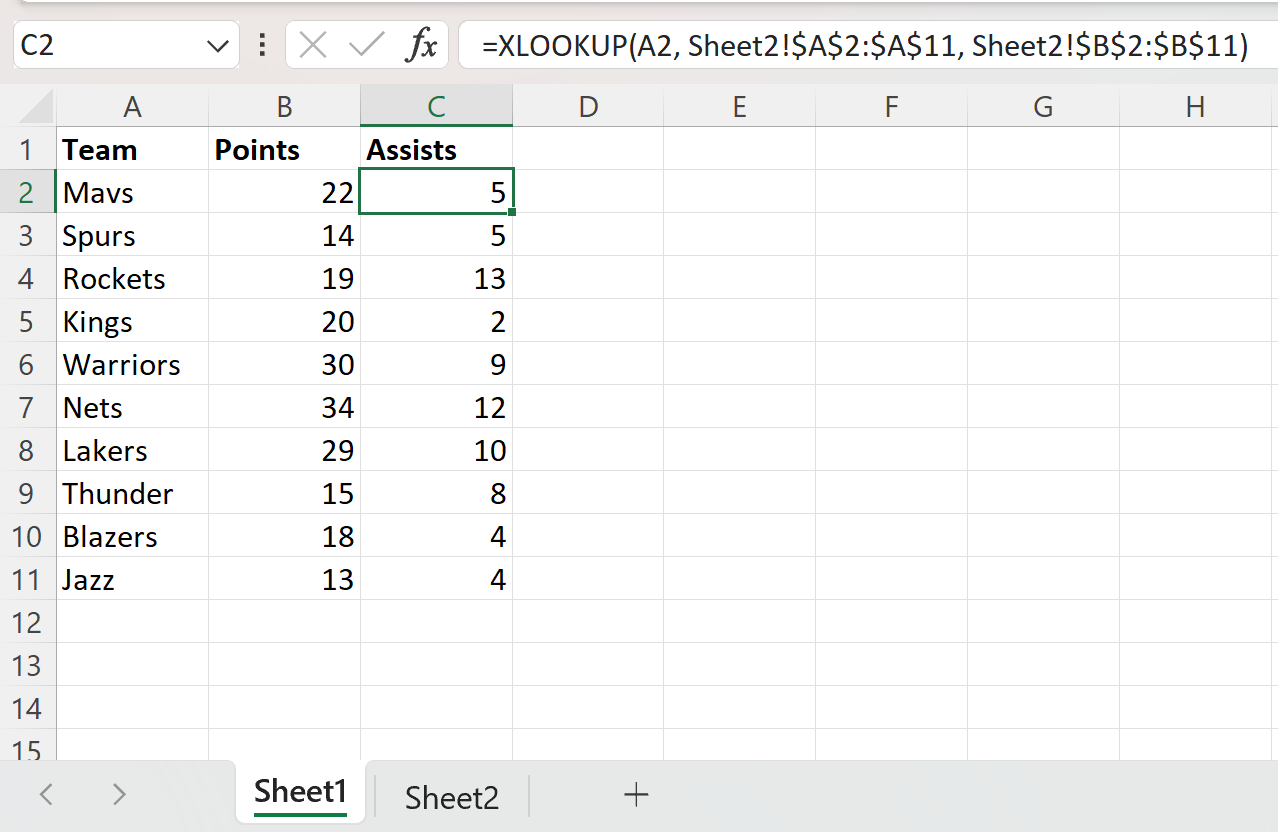

Once the formula has been dragged and executed across the dataset, the XLOOKUP function successfully completes the cross-sheet retrieval for each row. The immediate outcome is a fully populated Assists column on Sheet1, where every value corresponds precisely to the team listed in the adjacent Team column, with the data being dynamically sourced from Sheet2. This immediate visual validation confirms the reliability and efficiency achieved by correctly employing sheet references within the lookup function.

To verify the accuracy, consider the result for the team “Mavs.” The formula looks up “Mavs” within the designated search array on Sheet2!A2:A11. Upon finding a match, it returns the value from the corresponding row in the return array, Sheet2!B2:B11. A simple manual check of Sheet2 confirms that the Mavs entry aligns perfectly with the value of 5 in the Assists column. This demonstration highlights how automation significantly minimizes the potential for manual data entry errors and ensures that all subsequent analyses performed on Sheet1 are consistently based on the most current and accurate data available in Sheet2.

A crucial consideration in data retrieval is handling errors. If a lookup value cannot be located (for instance, if a team name is misspelled or missing entirely from Sheet2), XLOOKUP would, by default, return the standard #N/A error. However, a major structural benefit of XLOOKUP is its optional fourth argument, [if_not_found]. By modifying the formula to incorporate a custom text string, such as "Data Missing" or "Check Sheet2", users can replace the generic error message with something far more instructive and user-friendly, thereby enhancing the overall clarity and professionalism of the resulting report.

Best Practices: Enhancing Readability with Named Ranges

Although using direct, hard-coded cell references like Sheet2!$A$2:$A$11 is technically functional, advanced and professional Excel modeling routinely incorporates the use of Named Ranges. This technique is designed to dramatically improve both formula readability and ongoing maintenance. Instead of navigating complex, difficult-to-decipher absolute references, developers can assign highly descriptive names to the data arrays on Sheet2, such as Team_Names_DB and Assists_Values_DB.

Once these descriptive names are defined, the formula is streamlined significantly. Excel intelligently recognizes that these named ranges refer to the specified data on Sheet2, regardless of which sheet is currently active. Consequently, the cross-sheet formula simplifies to a self-explanatory structure:

=XLOOKUP(A2, Team_Names_DB, Assists_Values_DB)

This methodology provides two substantial benefits. First, the resulting syntax becomes self-documenting, making it significantly easier for collaborators or future users to instantly understand the function’s purpose without needing to manually inspect the structure of Sheet2. Second, if the underlying data ranges on Sheet2 are altered—whether expanding or contracting—updating the definition of the Named Range is a single, centralized action. In contrast, using hard-coded cell references would necessitate manually updating every single instance of the formula throughout the entire workbook, a process that is both time-consuming and prone to error.

Additional Resources for Advanced Data Retrieval Concepts

A comprehensive understanding of cross-sheet data retrieval using XLOOKUP is an essential step toward mastering complex operations within Excel. To further expand your capabilities in data manipulation and advanced modeling, we recommend exploring tutorials covering related functions and tools that complement lookup techniques:

• Tutorial on utilizing the MATCH and INDEX functions for powerful two-way lookups and complex array manipulation.
• A detailed guide to understanding and implementing dynamic array formulas, which represent the latest evolution in modern Excel calculation capabilities.
• In-depth instructions on effectively managing external data connections and constructing flexible, powerful pivot tables for summary analysis.
