Learning Absolute Cell Referencing in Excel: A Step-by-Step Guide

The Foundational Concept: Absolute vs. Relative Cell References

Before exploring the advanced referencing mechanisms utilized within formal Microsoft Excel tables, it is crucial to establish a firm understanding of traditional cell locking. In standard spreadsheet operations, when a formula is copied or dragged across multiple cells, its references automatically adjust relative to the new position. This behavior, known as a relative reference, is often desirable, but there are frequent scenarios where a reference must remain fixed, pointing to a single, constant cell regardless of the formula’s destination. To achieve this necessary fixation, users employ the dollar sign ($) syntax, converting a relative reference into an absolute reference.

The dollar sign acts as a lock on either the column letter, the row number, or both. For instance, if you reference cell A1 simply as A1, dragging the formula one cell down will change the reference to A2; this is the nature of relative adjustment. However, by changing the reference to $A$1, you create an absolute lock on both the column A and the row 1. This means that if the formula is dragged across twenty rows and ten columns, the reference will steadfastly remain fixed at A1. This functionality is vital when applying constant financial metrics, fixed rates, or universal inputs, ensuring that every calculation in a dynamic range pulls data from the correct, unchanging source cell.

Mastery of this standard locking procedure forms the essential groundwork for navigating more complex reference systems. While simple and effective for standard cell coordinates, the method of using $ signs to create absolute references does not translate directly when working within the powerful, name-based environment of Excel Tables. The shift to named columns necessitates an entirely different, specialized approach to referencing, which we will now explore.

Transitioning to Excel Tables: The Power of Structured References

When a standard data range in Excel is converted into an official Table object, the way we address data changes dramatically. Instead of using generic coordinates like B4 or D10, Excel automatically implements Structured References, which utilize the actual column headers in the formula. For example, a reference might change from C5 to [Quantity]. This feature significantly boosts the clarity and readability of complex workbooks, making formulas self-documenting and far easier to audit and maintain for any user.

Despite the inherent advantages of structured naming, this system introduces a challenge when attempting to lock a reference. The traditional method of applying the $ symbol to achieve an absolute reference is incompatible with structured column names. If a user attempts to manually insert dollar signs around a column title (e.g., Table1$[Points]$), Excel will usually return an error or fail to properly fix the reference. When constructing advanced calculations that rely on dragging a single formula horizontally across multiple columns, it is frequently necessary to fix the reference to the source column data, preventing it from shifting to adjacent columns within the table.

Therefore, to successfully anchor the reference to a specific column name within an Excel Table, we must utilize a specialized syntax that signals the absolute nature of the reference to the program. This mechanism is crucial for operations where a fixed source column must interact dynamically with multiple external inputs. This unique bracket-based structure allows developers to maintain the high readability of structured references while gaining the control previously afforded only by standard absolute cell references.

Mastering Absolute Locking Syntax for Structured References

The specialized syntax for locking a column reference in an Excel Table relies on treating the column name not just as a single entity, but as a defined range that begins and ends with itself. This self-referencing range definition is the key to creating an absolute reference within the structured system. Instead of the simple notation [ColumnName], we explicitly define the range using double square brackets: [[ColumnName]:[ColumnName]].

To illustrate, suppose we are working with an Excel Table named Table1, and our objective is to fix the reference to the column labeled Points. The correct, locked syntax is Table1[[Points]:[Points]]. The outer square brackets signify the entire structured reference component, while the inner segment [Points]:[Points] defines the range from the beginning of the Points column to its end. This rigid, self-referential structure guarantees that when the formula is copied or dragged, the reference will not shift to an adjacent column, effectively replicating the behavior of the traditional $ symbol within the context of table objects.

This technique is most commonly utilized when combining fixed table data with external, relative inputs. For example, if you need to calculate a projection by multiplying every entry in the locked Points column by a multiplier located in a standard cell, such as D1, the resulting formula utilizes both absolute structured references and relative external cell references. This powerful combination allows for the creation of flexible and highly scalable calculation models where the integrity of the source data column is always preserved.

A Practical Scenario: Locking Data for Multi-Variable Calculations

To demonstrate the utility of this specialized locking mechanism, let us consider a sample data set in Excel contained within a table named Table1. This table lists basketball players, their teams, and their corresponding Points scores. Our analytical goal is to quickly calculate projected scores by multiplying the static Points column by three distinct factors: 5, 10, and 20.

These three multipliers are positioned externally in the cells immediately above our calculation area: D1, E1, and F1. Since we plan to write a single formula and drag it horizontally from column D across to column F, we face a critical challenge. We need the reference to the multipliers (D1, E1, F1) to adjust relatively, but we need the reference to the source column (Points) within Table1 to remain absolutely fixed, preventing it from shifting to other adjacent columns like Team or Player.

The initial setup highlights the importance of fixing the source data column before performing calculations:

This requirement mandates the use of the locked Structured References syntax. The ability to lock the data source ensures that regardless of how far right we drag the formula, the calculation will always reference the correct column, thereby safeguarding the integrity of the analysis.

Step-by-Step Implementation and Verification of Results

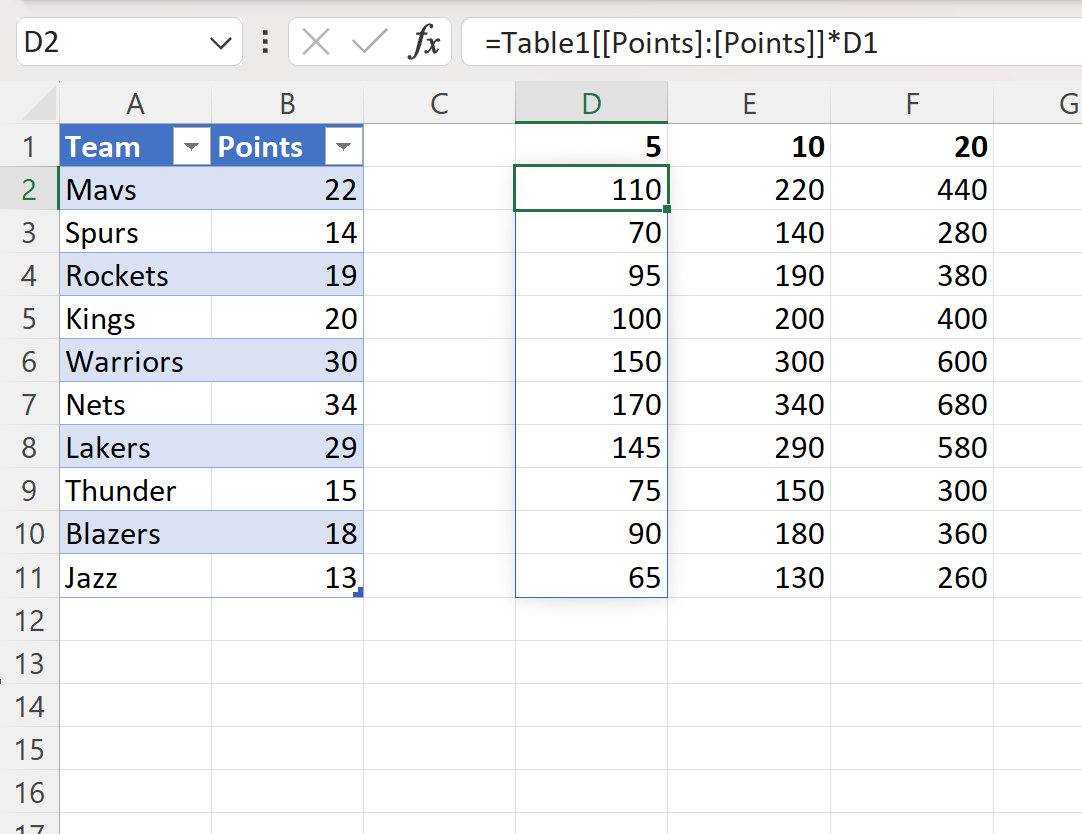

We begin the process by entering the required formula into cell D2. This formula explicitly instructs Excel to use the absolute, locked reference to the Points column within Table1, and then multiply that fixed data set by the value found in the relative cell D1, which holds the multiplier 5:

=Table1[[Points]:[Points]]*D1

Once entered, the implementation proceeds in two simple steps. First, the formula is dragged vertically down column D to calculate the projected scores for every player using the multiplier 5. Next, the formula is clicked and dragged horizontally to the right, extending the calculation into columns E and F. This horizontal copy is where the specialized locking mechanism proves its value: the reference Table1[[Points]:[Points]] remains static, correctly fixing the source data to the Points column, while the relative reference D1 automatically updates to E1 (multiplier 10) and F1 (multiplier 20) respectively.

The resulting table structure clearly demonstrates the successful application of the fixed column reference. Each new column correctly applies its corresponding multiplier to the original Points data, validating the accuracy and efficiency of the technique:

By employing the absolute structured reference syntax, we gain precise control over which components of our formula shift and which remain fixed, enabling complex, multi-variable calculations with minimal effort and maximum reliability.

Enhancing Data Integrity with Locked Structured References

The decision to utilize Structured References—and specifically their locked form—is a strategic choice that fundamentally improves the robustness and sustainability of spreadsheet models. Unlike standard A1 notation, which is fragile and prone to breaking when rows or columns are added or deleted, Excel Tables inherently manage structural changes. However, the locked syntax [[Column]:[Column]] elevates this stability further by making the reference immune to layout modifications.

For example, if the table structure is reorganized and a new column is inserted between the “Team” and “Player” columns, a standard cell references formula might fail. In contrast, the structured reference Table1[[Points]:[Points]] remains completely valid because it relies on the column’s semantic name, not its physical address. This resilience significantly reduces maintenance overhead and minimizes the risk of introducing critical calculation errors during future updates, ensuring long-term data integrity.

Furthermore, the clarity provided by structured naming is paramount for auditing and collaborative work. Seeing the word Points clearly represented in the formula, rather than an ambiguous column letter, combined with the guarantee that this source reference is fixed, simplifies the logical flow of the entire spreadsheet. In essence, mastering the locked structured reference technique is essential for any professional seeking to leverage the full power of Excel Tables while ensuring formulas are both readable and resistant to structural changes.
