Learn How to Calculate the Intersection Point of Two Lines in Google Sheets

Finding the point of intersection of two lines is a core requirement in analytical geometry and serves as a crucial tool across disciplines—from determining economic equilibrium to solving complex engineering problems. Identifying where two distinct linear trends converge provides powerful, actionable insights into relationships between variables. Fortunately, sophisticated spreadsheet applications like Google Sheets integrate specialized functions that automate this typically complex mathematical calculation, making advanced data analysis accessible to everyone.

This authoritative guide is designed to provide a comprehensive walkthrough for calculating the precise intersection point of two straight lines using native functions within Google Sheets. We will meticulously explore the fundamental mathematical principles underpinning linear relationships, define the specific purpose of the necessary functions, and conclude with a practical, step-by-step tutorial using sample data. By mastering these techniques, you will gain the proficiency required to accurately determine both the x-coordinate and y-coordinate of the convergence point, thereby significantly enhancing your ability to analyze and interpret linear models effectively.

Understanding the Core Concepts of Linear Intersection

Before implementing any formulas in a spreadsheet, a firm grasp of the underlying mathematical concepts governing straight lines is essential. A straight line is conventionally defined in a two-dimensional Cartesian coordinate system by a linear equation. The most common and useful representation is the slope-intercept form: y = mx + b. In this standard formulation, y and x are the variables representing the coordinates of any point along the line, m signifies the slope (which dictates the line’s steepness and direction), and b is the y-intercept. The y-intercept specifically marks the point where the line crosses the vertical y-axis, meaning the point where x = 0.

When two distinct straight lines are visualized on the same plane, there are only two possible outcomes: they are either parallel, meaning they maintain a constant distance and never meet, or they intersect at exactly one unique location. This critical shared location is known as the intersection point. At this specific point, both lines share the identical x-coordinate and y-coordinate. Algebraically, this implies that the y and x values simultaneously satisfy both linear equations. Consequently, identifying this point requires solving a system of two linear equations concurrently to find the unique pair of x and y values that holds true for both lines.

The ability to calculate this convergence point is highly valuable in numerous practical scenarios. For instance, in financial modeling, it often pinpoints the break-even point where total revenue equals total costs. In physical sciences, it might define the precise moment two moving objects meet. Therefore, the foundational step toward calculating this point efficiently within Google Sheets involves accurately modeling each line by determining its unique slope and y-intercept from the available data.

Leveraging Google Sheets’ SLOPE and INTERCEPT Functions

To simplify the process of defining the linear equations from raw data, Google Sheets furnishes specialized functions designed to automatically calculate the key parameters of a linear relationship. These tools significantly reduce the potential for manual calculation errors and increase efficiency when dealing with large sets of data points. The two essential functions for this calculation are SLOPE and INTERCEPT.

The SLOPE function calculates the slope (the ‘m’ value) of the line derived from the linear regression of a given dataset. Its syntax is straightforward: SLOPE(data_y, data_x). Here, data_y must represent the range containing the dependent y-values, and data_x must contain the corresponding independent x-values. This function is fundamental because it provides the essential rate of change for each line in the y = mx + b formula.

Similarly, the INTERCEPT function determines the y-intercept (the ‘b’ value)—the point at which the calculated regression line crosses the y-axis. Its syntax precisely mirrors that of the SLOPE function: INTERCEPT(data_y, data_x). By leveraging both the SLOPE and INTERCEPT functions, we can effectively and accurately define the complete linear equation for each line directly from its respective data arrays stored within Google Sheets, preparing us for the intersection calculation.

Deriving Formulas for the Intersection Point

With the ability to extract the slope and y-intercept for any dataset, we can now construct the necessary formulas to pinpoint the intersection. Consider two lines, Line 1 and Line 2, defined by their respective parameters:

• Line 1: y1 = m1*x + b1
• Line 2: y2 = m2*x + b2

At the precise point of intersection, the y values and x values for both lines must be identical, meaning y1 = y2. Setting the two equations equal allows us to solve for x: m1*x + b1 = m2*x + b2. Rearranging this equation yields the generalized formula for the x-coordinate of the intersection. Once x is found, substituting this value back into either line’s equation will yield the corresponding y-coordinate.

Formula to Find the X-Coordinate of Intersection:

=(INTERCEPT(y2,x2)-INTERCEPT(y1,x1))/(SLOPE(y1,x1)-SLOPE(y2,x2))

This formula directly calculates the x-coordinate where the two lines converge. Here, x1 and y1 represent the respective data arrays (coordinates) for the first line, and x2 and y2 for the second line. The underlying algebra calculates the difference between the two y-intercepts and divides it by the difference between the two slopes. A critical consideration here is ensuring that the slopes of the two lines (SLOPE(y1,x1) and SLOPE(y2,x2)) are not equal. If they are identical, the lines are parallel, and the denominator will be zero, resulting in a division by zero error, confirming that no single intersection point exists.

After successfully determining the x-coordinate, the process of finding the corresponding y-coordinate is simplified through substitution. Because the intersection point satisfies both equations, we can substitute the calculated x-value back into the slope-intercept form of either Line 1 or Line 2. The resulting y-value will be the same regardless of which line is chosen. The following formula utilizes the parameters of Line 1 to complete the coordinate pair.

Formula to Find the Y-Coordinate of Intersection:

=SLOPE(y1,x1)*x_intercept+INTERCEPT(y1,x1)

In this expression, x_intercept refers specifically to the cell containing the x-coordinate calculated in the previous step. The terms SLOPE(y1,x1) and INTERCEPT(y1,x1) represent the calculated slope and y-intercept of the first line. Utilizing this two-step calculation ensures complete accuracy and provides the full coordinate pair for the exact location where the two linear models intersect within Google Sheets.

Practical Application: Setting Up Data in Google Sheets

To demonstrate the practical execution of these formulas, we will now proceed with a detailed, step-by-step example. The essential first stage involves correctly structuring the raw data within the Google Sheets environment, as accurate referencing of data arrays is crucial for correct outcomes.

Step 1: Organizing Your Data for Two Lines

Start by opening your spreadsheet and entering the (x, y) coordinates that define your two distinct lines. It is best practice to allocate separate, non-overlapping columns for each line’s data. For instance, dedicate columns A and B to the x-values and y-values of Line 1, and columns D and E for Line 2. This clear separation facilitates easy and unambiguous referencing in subsequent formulas. Our example uses the following data points to define the two lines:

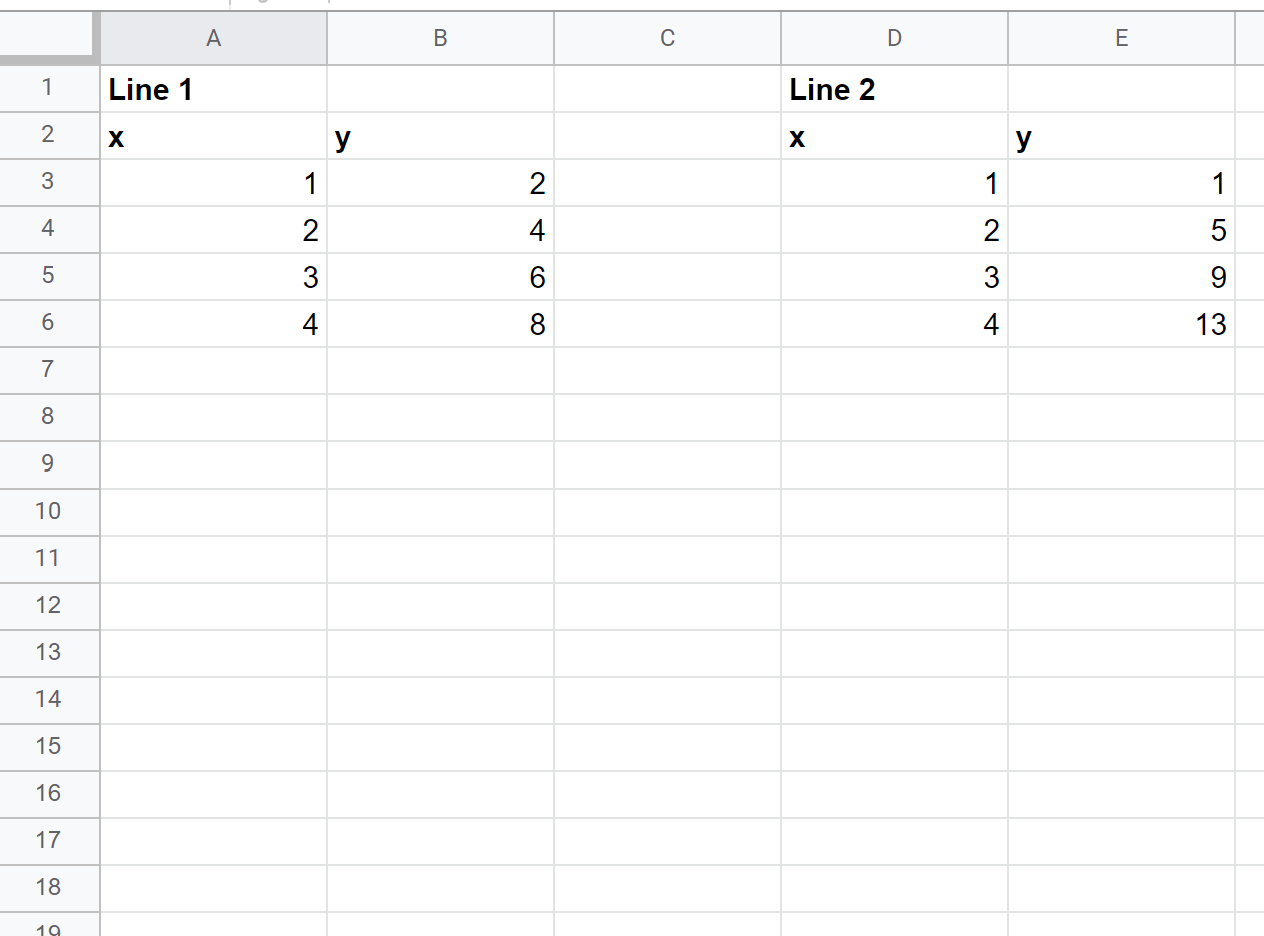

As illustrated, Line 1’s x-values are in the range A3:A6, and its y-values are in B3:B6. Line 2’s x-values are in D3:D6, and its y-values are in E3:E6. These specific cell ranges will serve as our x1, y1, x2, y2 variables in the intersection formulas.

Step 2: Calculating the X-Coordinate of Intersection

Next, we implement the primary formula for the x-coordinate. Select an empty cell where you wish the result to appear (e.g., cell B10). Carefully input the comprehensive formula, substituting the generic range placeholders (x1, y1, x2, y2) with the specific cell ranges defined in Step 1. Ensure meticulous attention to the order of arguments—data_y followed by data_x—within the SLOPE and INTERCEPT functions.

=(INTERCEPT(E3:E6,D3:D6)-INTERCEPT(B3:B6,A3:A6))/(SLOPE(B3:B6,A3:A6)-SLOPE(E3:E6,D3:D6))

After entering this complex formula and pressing Enter, Google Sheets executes the calculation. The denominator ensures that the difference between the slopes is used, and the result is the precise x-coordinate where the lines meet.

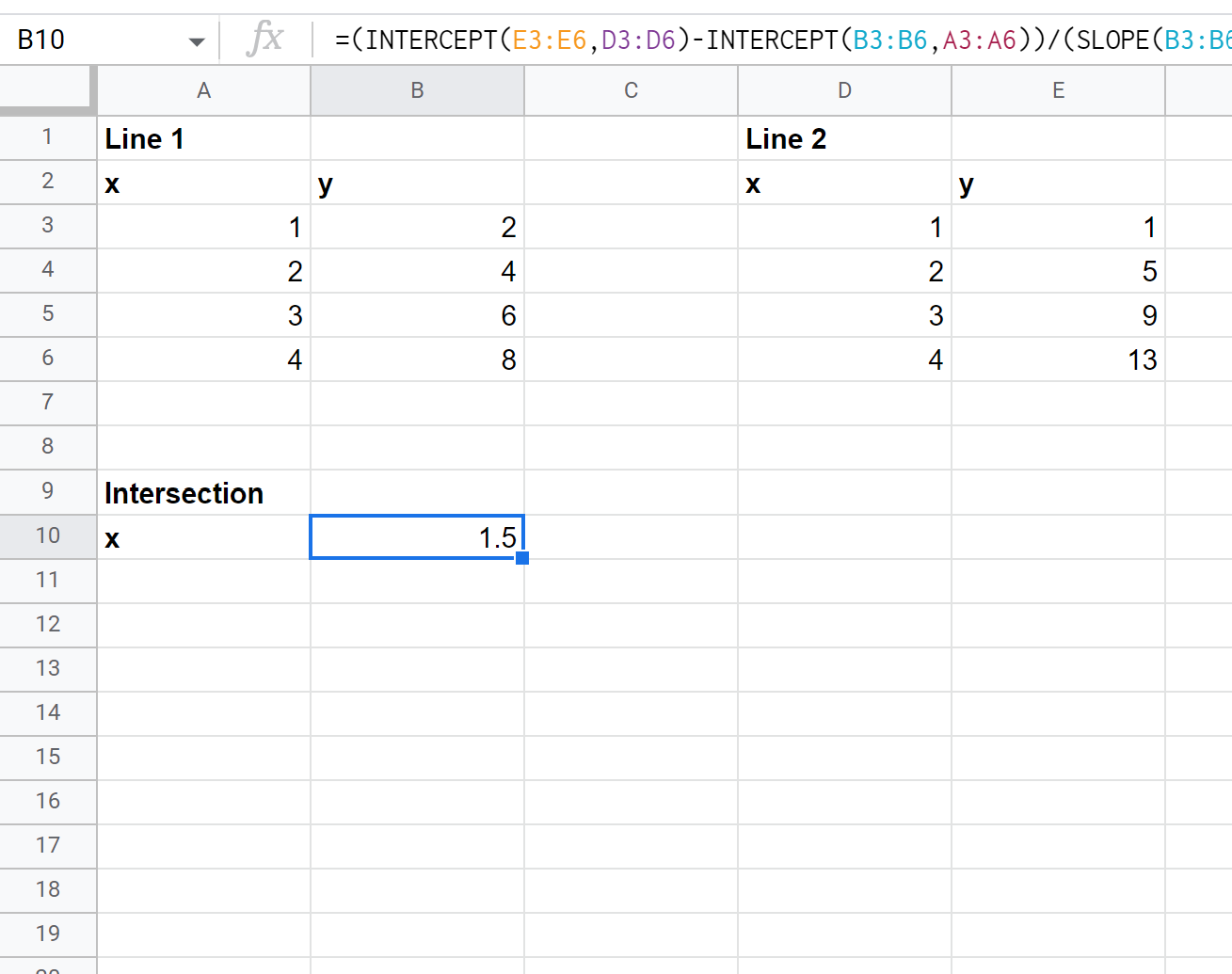

The following screenshot illustrates the formula successfully entered into cell B10, yielding the horizontal position of the intersection:

As observed, the calculated x-coordinate for the intersection point is 1.5. This value represents the horizontal location on the graph where the convergence occurs.

Calculating and Verifying the Intersection Coordinates

With the horizontal position confirmed, the next logical step is to determine the vertical position. Finding the corresponding y-coordinate completes the full coordinate pair for the intersection point. We will then proceed to visually confirm the accuracy of our numerical results using a chart.

Step 3: Determining the Y-Coordinate of Intersection

To calculate the y-coordinate, select an adjacent empty cell (e.g., cell B11) and input the substitution formula. It is crucial here to reference the cell containing the previously calculated x-coordinate (B10). We will use the slope and y-intercept parameters derived from Line 1’s data (A3:A6 and B3:B6) for this calculation.

=SLOPE(B3:B6,A3:A6)*B10+INTERCEPT(B3:B6,A3:A6)

Once the formula is entered and executed, Google Sheets computes the resulting y-coordinate. This value, combined with the x-coordinate, finalizes the precise location of the intersection point.

The screenshot below confirms the formula entry in cell B11 and reveals the resulting y-coordinate:

The calculated y-coordinate of the intersection point is 3. Therefore, the exact location where our two lines intersect is the coordinate pair (1.5, 3). This confirms that at an x-value of 1.5, both lines share a common y-value of 3.

Step 4: Visualizing the Intersection Point for Confirmation

While numerical solutions offer precision, graphical visualization provides an immediate, intuitive confirmation of the results. By plotting both sets of data points on a scatter chart in Google Sheets, we can visually verify that the lines cross precisely at the calculated coordinates. This step serves as an excellent diagnostic check against potential data entry or formula construction errors and solidifies the conceptual understanding.

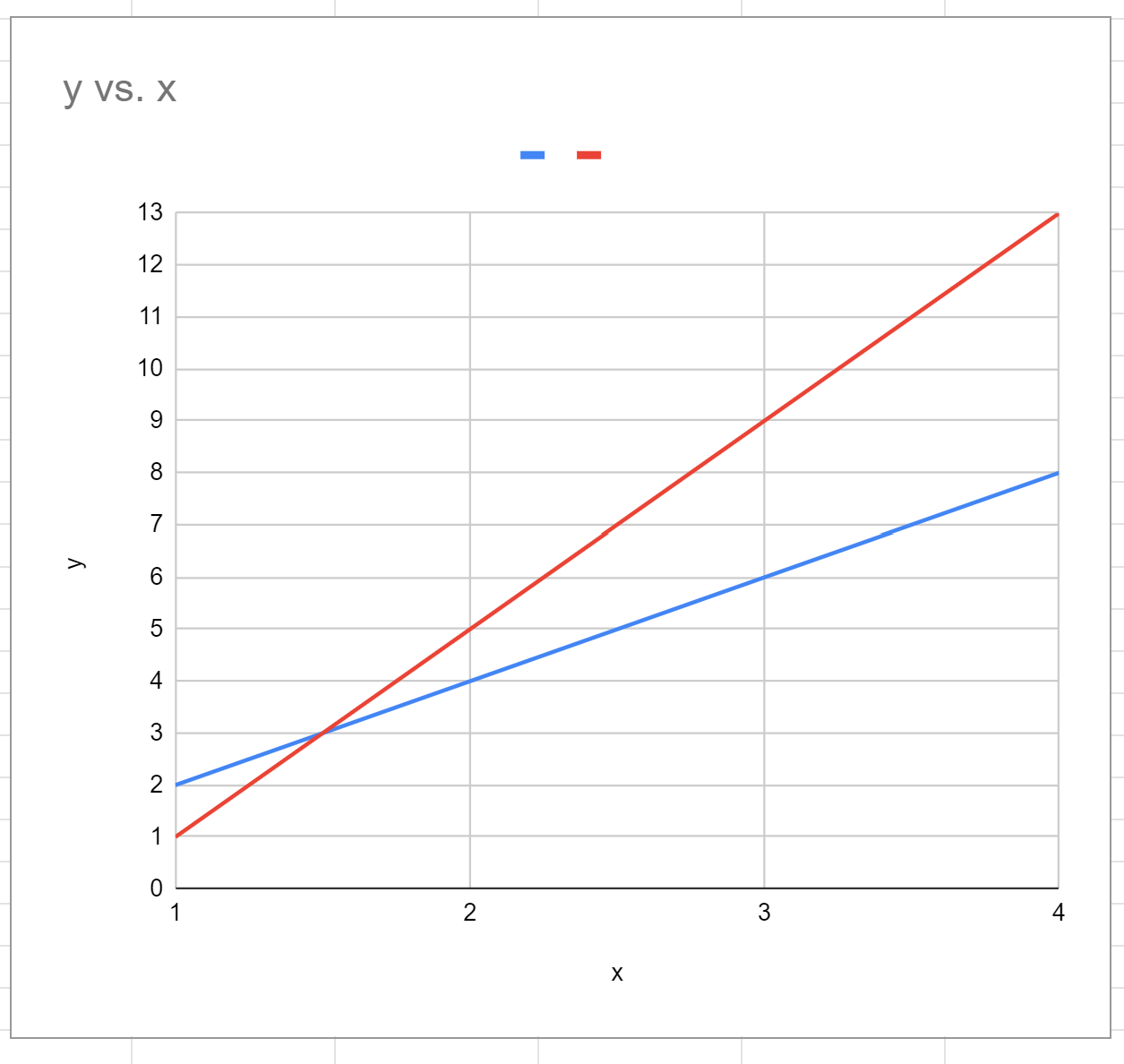

After inserting a chart that includes both Line 1 and Line 2, observe the convergence point. The calculated coordinates (1.5, 3) should align perfectly with the visual crossing point of the two trendlines.

As clearly demonstrated in the plot, the two lines intersect exactly at the coordinates (1.5, 3), which precisely validates the numerical results for the x-coordinate and y-coordinate. This graphical verification confirms the accuracy of our methodology and showcases the power of using Google Sheets to solve systems of linear equations derived from empirical data.

Conclusion and Expanding Your Google Sheets Skills

Successfully mastering the calculation of the intersection point of two lines in Google Sheets is an invaluable addition to any data analyst’s toolkit. By combining a clear understanding of fundamental mathematical concepts—such as linear equations, slope, and y-intercept—with the powerful automated capabilities of Google Sheets’ SLOPE and INTERCEPT functions, analysts can precisely determine where two linear relationships converge. This capability is essential for generating reliable insights across various real-world applications, from finance to scientific research.

The detailed, step-by-step example provided here emphasizes the necessity of accurate data structure and careful formula application, while the visual confirmation through charting reinforces the validity of the computed results. As you grow more comfortable utilizing these techniques, you can begin applying them to more sophisticated analytical models and seamlessly integrate intersection calculations into larger, complex spreadsheet projects.

To further enhance your data proficiency, consider exploring additional analytical functions and statistical tools available within Google Sheets. The mastery of functions like SLOPE and INTERCEPT is merely the beginning; the platform offers a comprehensive suite of resources designed to elevate your quantitative analysis skills and solve a diverse array of data challenges.
