Learn How to Calculate the Intersection of Two Lines Using Excel

Determining the exact point of intersection between two straight lines is a cornerstone of analytical geometry, crucial for fields ranging from engineering and physics to financial modeling and trend analysis. When two lines representing different data sets converge, that intersection signifies a critical point of equilibrium, a break-even point, or a moment where two trends meet.

While this calculation can be tedious when done manually, Microsoft Excel offers sophisticated, built-in statistical functions that automate this complex mathematical process. By leveraging these functions, users can swiftly and accurately pinpoint the coordinates where two linear equations cross on a graphical plane, transforming abstract mathematical concepts into practical, spreadsheet-driven results.

This comprehensive guide serves as your definitive resource, detailing the derivation and application of the necessary formulas. We will provide a crystal-clear, step-by-step example, ensuring you gain the confidence and technical expertise required to handle any line intersection problem within your data analyses.

The Mathematical Foundation of Intersection

To pinpoint the precise coordinates of the point where two lines meet, we must first understand how a straight line is mathematically defined. Every straight line can be expressed using the familiar slope-intercept form: Y = mX + b, where ‘m’ is the slope (gradient) and ‘b’ is the y-intercept (the point where the line crosses the Y-axis).

The point of intersection occurs where the Y and X values for both lines are identical. Therefore, the core mathematical challenge is to solve the system of two linear equations simultaneously. By finding the slope and y-intercept for each line, we establish their distinct mathematical identities, allowing us to equate them and solve for the unknown X and Y variables.

Excel simplifies this process dramatically by providing two essential statistical functions: the INTERCEPT function and the SLOPE function. These tools analyze a provided range of known X and Y data points (an array) and instantly calculate the necessary ‘m’ and ‘b’ values for any given line.

Formula for Calculating the X-Coordinate

The first step in solving the system of equations is isolating the X-coordinate. If we define Line 1 as Y1 = m1*X + b1 and Line 2 as Y2 = m2*X + b2, then at the intersection, Y1 = Y2. By setting the equations equal (m1*X + b1 = m2*X + b2) and algebraically solving for X, we derive the robust formula used in Excel.

This derived formula requires inputting the slope and intercept of both lines. Within Excel, we replace the abstract m and b variables with the specific functions calculated from our data ranges. The resulting structure, shown below, efficiently computes the horizontal position of the convergence point.

=(INTERCEPT(y2,x2)-INTERCEPT(y1,x1))/(SLOPE(y1,x1)-SLOPE(y2,x2))

In this formula, x1 and x2 represent the data ranges (or arrays) containing the x-values for the first and second lines, respectively. Likewise, y1 and y2 designate the corresponding y-value arrays. Precision in defining these ranges is paramount; any error in range selection will result in an inaccurate calculation of the x-coordinate.

Formula for Calculating the Y-Coordinate

Once the x-value of the intersection has been calculated, determining the corresponding y-value becomes a simple matter of substitution. Since the intersection point lies on both lines, substituting the calculated X value into the linear equation of either line (Line 1 or Line 2) will yield the correct Y value.

We typically use the parameters of the first line for this calculation, combining its slope and y-intercept with the newly found x-value. The resulting formula mirrors the standard slope-intercept form (Y = mX + b), using the calculated X-value as the input for X.

=SLOPE(y1,x1)*x_intercept+INTERCEPT(y1,x1)

Here, x_intercept is not a range but a direct cell reference to the calculated x-value from the previous step. This ensures that the computed y-value is perfectly aligned with the horizontal position where the lines converge, thus completing the full set of Cartesian coordinates for the intersection point. Mastering these two sequential calculations allows for precise mathematical modeling within your spreadsheet.

Step 1: Preparing and Structuring the Line Data

The practical application of these formulas begins with meticulous data organization. To define the paths of the two straight lines, you must have several coordinate pairs (x, y) for each line. These pairs provide the raw data necessary for Excel to calculate the underlying linear parameters (slope and intercept) accurately.

Start by entering the X and Y coordinate pairs for both Line 1 and Line 2 into adjacent columns in your Excel worksheet. Clear labeling is essential for avoiding confusion when defining the formula ranges. Recommended labels include “Line 1 X,” “Line 1 Y,” “Line 2 X,” and “Line 2 Y.” This structure ensures that the data arrays are easily identifiable and correctly referenced in subsequent formula entries.

The example below illustrates an optimal way to structure the input data. Note how the vertical arrangement of coordinates clearly defines the ranges that will be used by the statistical functions.

By investing time in this initial organizational step, you significantly mitigate the risk of calculation errors, setting a strong foundation for accurate intersection determination. Ensure that the coordinate pairs used truly represent the linear trends you intend to analyze.

Step 2: Executing the X-Coordinate Calculation

With the data properly structured, we now proceed to the first critical calculation: finding the x-value of the intersection point. This step utilizes the complex composite formula that relies on the INTERCEPT and SLOPE functions to resolve the horizontal crossing position.

In our running example, the formula for the X-coordinate is entered into cell H2. It is crucial to pay attention to the order of arguments within the `SLOPE` and `INTERCEPT` functions: they always require the known Y-values first, followed by the known X-values (e.g., `SLOPE(Known_Y’s, Known_X’s)`). The formula must precisely differentiate between the data ranges of Line 1 and Line 2 to ensure mathematical accuracy.

=(INTERCEPT(E3:E6,D3:D6)-INTERCEPT(B3:B6,A3:A6))/(SLOPE(B3:B6,A3:A6)-SLOPE(E3:E6,D3:D6))

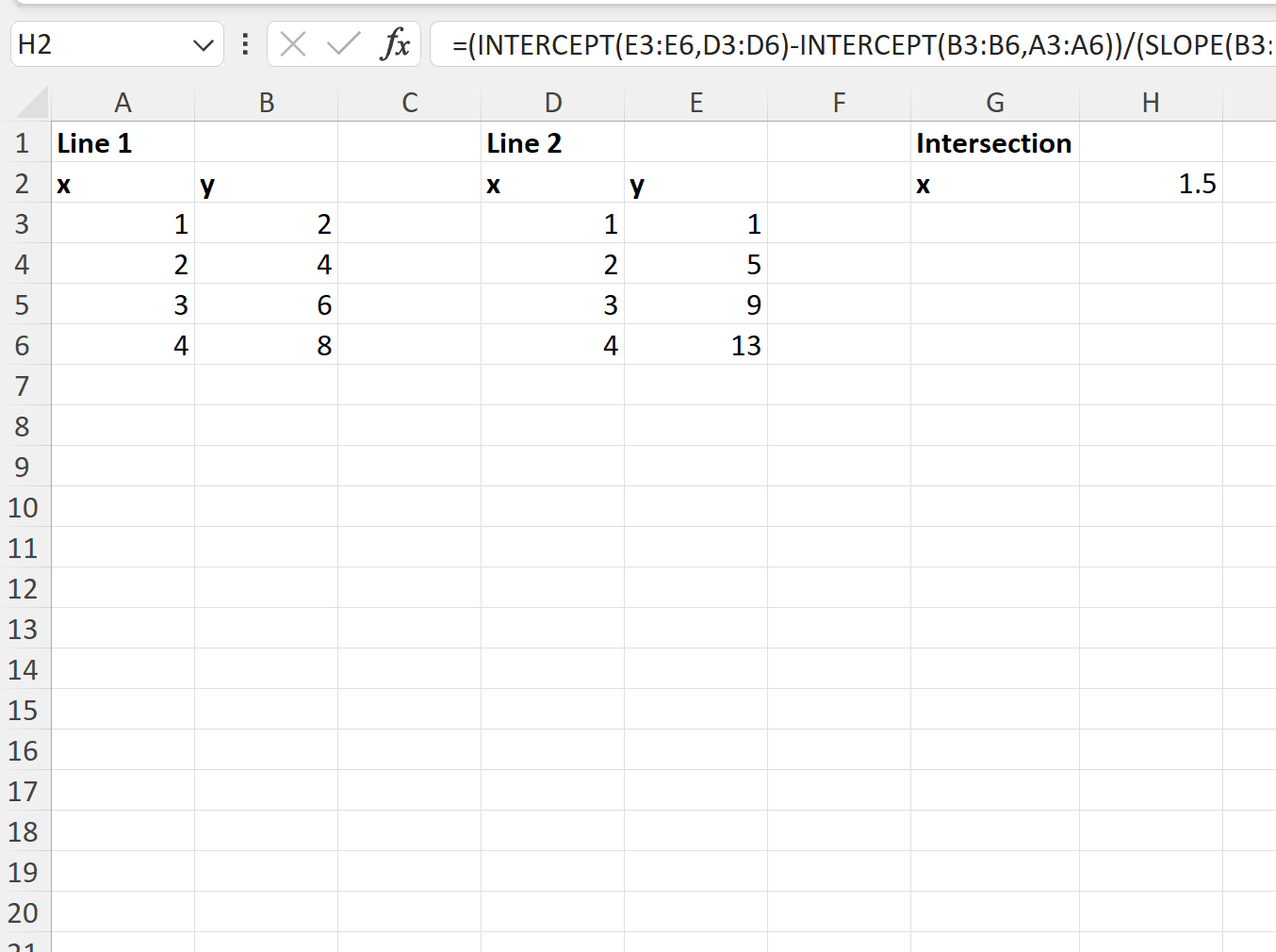

Upon pressing Enter, Excel computes the result. As demonstrated in the image below, the formula correctly references the data ranges (A3:A6 for Line 1 X, B3:B6 for Line 1 Y, etc.) to produce the X-coordinate.

The calculated x-value of 1.5 provides the first half of our solution, defining the exact horizontal location where the two lines intersect. This successful computation confirms that the underlying linear equations have been correctly derived from the raw data.

Step 3: Calculating the Corresponding Y-Coordinate

The final step in determining the complete coordinate pair is calculating the y-value. This step uses the simpler, linear equation form, relying on the x-value calculated in cell H2. Since the point of intersection satisfies both Line 1’s equation and Line 2’s equation, we only need to use the parameters from one line.

We enter the following formula into cell H3. Notice that this formula utilizes the SLOPE and INTERCEPT of Line 1, multiplying the slope by the cell reference H2 (our calculated X-coordinate), and then adding the y-intercept.

=SLOPE(B3:B6,A3:A6)*H2+INTERCEPT(B3:B6,A3:A6)

The visual reference below highlights the crucial link between the two steps: H2 is the dynamic input that ensures the Y calculation is performed exactly at the convergence point. The ranges B3:B6 (Y-values) and A3:A6 (X-values) are the parameters for Line 1.

The result of 3 confirms the vertical position. Combining the results from H2 and H3, we conclusively determine that the exact coordinates of the intersection point are (1.5, 3). This robust, two-step method is highly reliable for solving linear systems.

Step 4: Visualization and Verification Through Charting

While the mathematical calculation provides the precise answer, visualization is a vital component of data analysis. Plotting the lines on a graph serves as the final and most powerful step in verifying the accuracy of your formulas and communicating the results effectively.

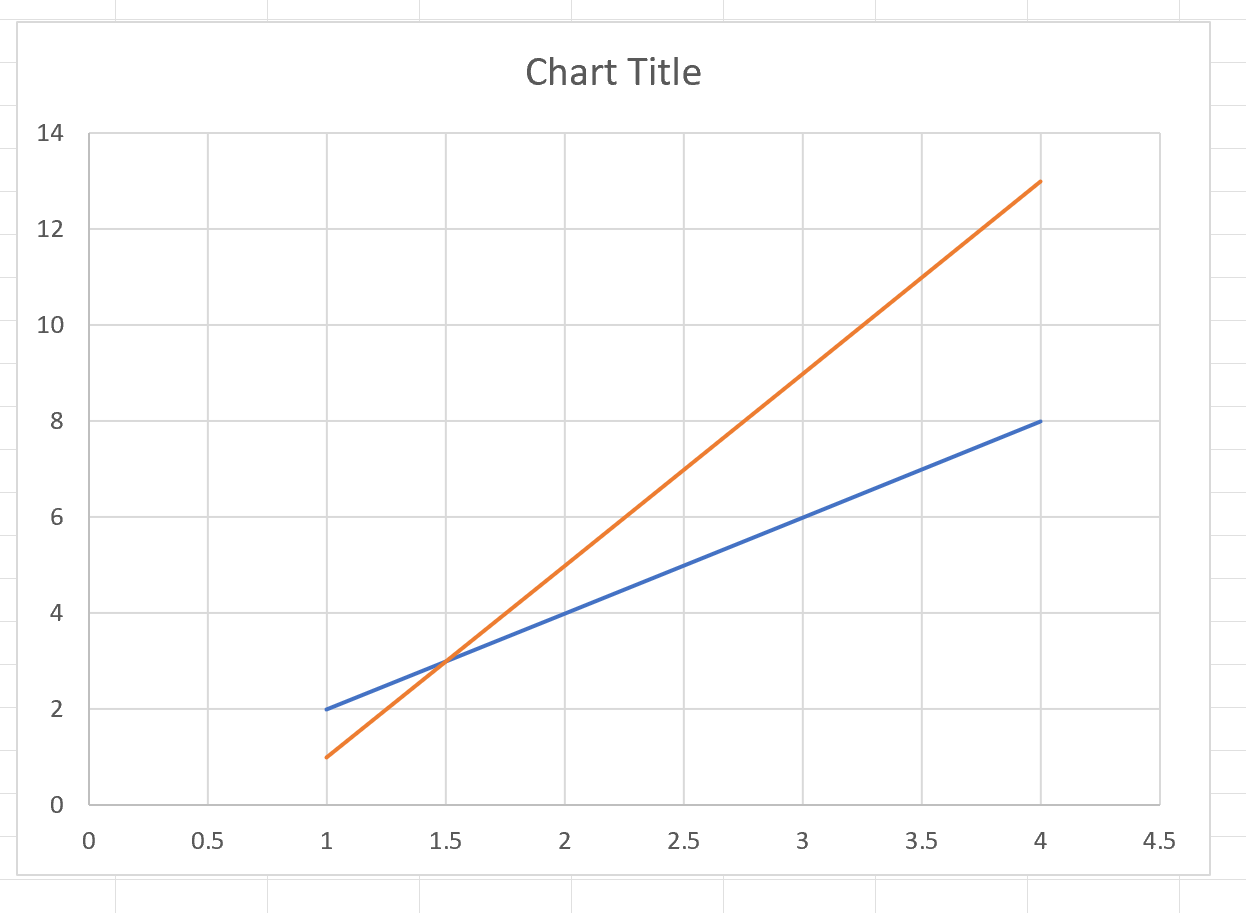

To visualize the intersection, use Excel’s charting capabilities, specifically a Scatter with Smooth Lines chart, which is ideal for plotting coordinate data. Input the X and Y data arrays for both Line 1 and Line 2 into the chart source data. This will generate a visual representation of their paths across the plane.

The resulting chart must clearly show the convergence. If your calculations are correct, the point where the two plotted lines cross will align perfectly with the calculated coordinates of (1.5, 3). Any significant visual discrepancy between the plotted intersection and the calculated coordinates indicates an error, likely stemming from incorrect range referencing in the initial formulas.

This graphical verification reinforces trust in the numerical results and provides an undeniable, intuitive demonstration that the calculated coordinates represent the true point where the linear trends converge. This technique is indispensable for presenting analytical findings.

Expanding Your Analytical Toolkit in Excel

Successfully finding the intersection of two lines is an excellent demonstration of the power inherent in Excel’s statistical and mathematical functions. This specific skill is transferable to a wide range of more complex analytical tasks, forming the basis for advanced modeling and forecasting.

To truly elevate your data proficiency and harness the full potential of spreadsheet analysis, it is highly recommended to explore additional tutorials focused on related functions. Expanding your knowledge beyond basic arithmetic enables you to tackle multivariate analysis, statistical inference, and complex data modeling with confidence.

Continue your professional development by diving into resources that explain the mechanics of regression analysis and conditional calculations. Mastering these techniques transforms Excel from a simple data entry tool into a comprehensive analytical engine, providing deeper insights and more robust decision-making capabilities.
