Understanding the Mode of a Histogram: A Step-by-Step Guide

In the field of statistics, the concept of the mode serves as a crucial measure of central tendency. It is defined as the value that occurs most frequently within a given dataset. While identifying the mode in raw, ungrouped data is straightforward—simply counting the occurrences—the process becomes more nuanced when dealing with data presented visually in a histogram.

Histograms present data aggregated into intervals, or bins, rather than listing individual values. This grouping means that the exact, singular mode cannot be precisely determined; instead, we must employ a specific graphical technique to derive the best possible estimate. This estimation process is vital for analysts who rely on visual interpretation to understand the distribution and concentration of data.

This comprehensive guide details a clear, step-by-step methodology for accurately estimating the mode of a dataset when it is visualized using a histogram format. This technique, rooted in geometric construction, allows us to pinpoint the peak frequency density, which is particularly essential in areas such as data science, engineering, and financial modeling where continuous or grouped data distributions are routinely analyzed.

The methodology requires a series of precise graphical constructions focused on the tallest bar—the modal class. By executing these steps carefully, we can triangulate the point within that interval where the density of observations is highest, thereby providing a reliable and visually robust estimate for the mode of the grouped data distribution.

Systematic Method to Estimate the Mode from a Histogram

Estimating the mode from a histogram involves a methodical approach designed to isolate the point of maximum frequency within the class interval that contains the mode. This graphical approach standardizes the estimation process, ensuring consistency across various data distributions.

The following ordered steps must be performed sequentially, focusing exclusively on the tallest bar and its immediate neighbors:

1. Identify the Modal Class: Locate the bar in the histogram that possesses the greatest height on the y-axis (frequency axis). This bar defines the modal class, which is the interval containing the highest frequency.

2. Construct the First Diagonal: Draw a straight line connecting the top-left corner of the modal class bar to the top-left corner of the bar situated immediately to its right (the succeeding class).

3. Construct the Second Diagonal: Draw a straight line connecting the top-right corner of the modal class bar to the top-right corner of the bar situated immediately to its left (the preceding class).

4. Project the Intersection: Determine the exact point where these two constructed diagonal lines intersect. From this intersection, drop a vertical line straight down to the x-axis. The value on the x-axis where this projection lands is the estimated mode.

The subsequent sections will utilize a practical example to demonstrate how to execute each of these graphical steps precisely, leading to the final estimation of the mode for the given histogram.

Step 1: Identify the Tallest Bar (The Modal Class)

The estimation process begins with the most fundamental element: identifying the bar that represents the highest concentration of observations. This bar is known as the modal class. Its height on the frequency axis (y-axis) surpasses all others, signifying the class interval where the data points are most densely packed.

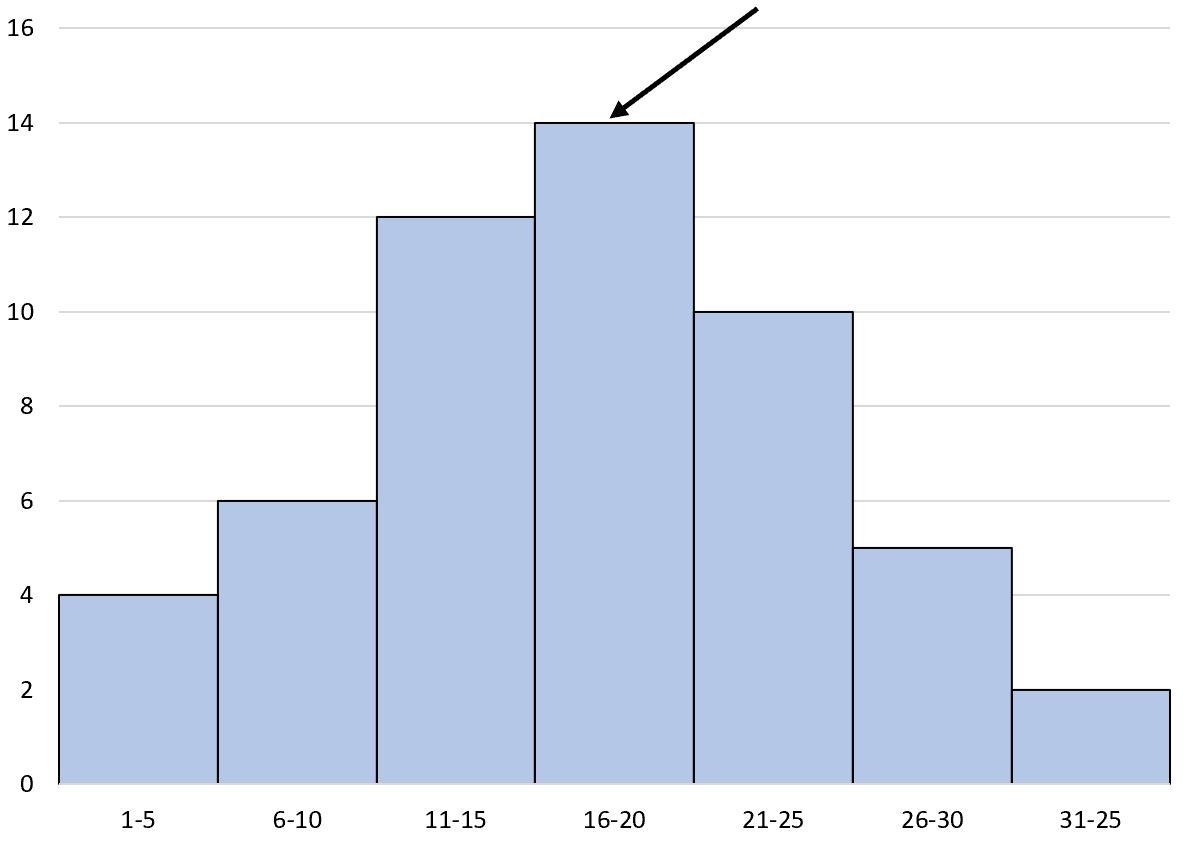

In the provided illustrative example, a careful visual assessment of the histogram reveals that the highest frequency corresponds to the interval spanning from 16 to 20. This specific bin range is the focal point of our analysis because the estimated mode must necessarily fall within these boundaries. The identification of this modal class is not merely a preliminary step; it dictates the coordinates for all subsequent graphical constructions.

Understanding the concept of the modal class is vital. It confirms that the greatest likelihood of finding the true mode lies within this interval. If the histogram were perfectly symmetrical, the mode would simply be the midpoint of this bar. However, because most real-world data distributions are skewed, we must perform the triangular estimation technique to adjust for any asymmetry in the neighboring frequencies.

Step 2: Construct the First Diagonal Line

Once the modal class is clearly defined, the next task is to draw the first of two critical diagonal lines. This line specifically addresses the descending slope of the data distribution immediately following the peak frequency. It is drawn by connecting the top-left vertex of the tallest bar (the modal class) directly to the top-left vertex of the bar that immediately follows it to the right.

This graphical construction is essential because it captures the transition from the highest frequency interval to the next lower frequency interval. The slope of this line helps to mathematically define how quickly the frequencies drop off after the peak, contributing a crucial component to the triangulation process. If the following bar is significantly shorter, this line will be steeper, indicating a rapid decline in observation density.

As depicted in the accompanying image, this diagonal acts as the first guide for locating the intersection point. It visually traces the boundary of the modal class relative to the class interval that succeeds it. This construction ensures that our estimation accounts for the influence of the right-hand side of the distribution on the position of the estimated mode.

Step 3: Construct the Second Diagonal Line

The third step involves complementing the previous construction by defining the ascending slope leading up to the peak. This second diagonal line is drawn from the top-right corner of the tallest bar (the modal class) to the top-right corner of the bar located immediately preceding it on the left.

This line provides vital information regarding the frequency distribution before the maximum concentration is reached. It visually represents the boundary shared between the class interval immediately preceding the modal class and the modal class itself. Just as the first diagonal line defined the descent, this line defines the ascent, reflecting the rate at which frequencies increased leading into the peak.

When combined with the first diagonal, this second line completes the geometric framework necessary for estimation. The intersection point of these two diagonals is the key output of the entire procedure, as it effectively triangulates the point of highest frequency density within the grouped data presented in the histogram. Observing the visual representation confirms how these two lines frame the modal class, accounting for the frequency weight of the adjacent bins.

Step 4: Pinpoint the Intersection and Determine the Mode

The final and most decisive step is to identify the precise intersection of the two diagonal lines constructed in Steps 2 and 3. This intersection point graphically represents the estimated apex of the frequency distribution curve within the modal class interval. The horizontal position of this point must then be translated onto the data scale.

To finalize the estimation, a perfectly vertical line is drawn straight down from the intersection point, extending until it meets the horizontal x-axis of the histogram. The numerical value on the x-axis where this vertical projection lands provides the most reliable graphical estimate for the mode of the underlying dataset.

The method’s robustness stems from its ability to adjust the mode estimate away from the simple midpoint of the bar if the distribution is skewed. For instance, if the preceding bar is much taller than the succeeding bar, the intersection point will shift toward the right-hand boundary of the modal class, reflecting the greater influence of the preceding data. This adjustment ensures that the visual approximation accurately reflects the density changes around the peak.

In our running illustration, after successfully executing all steps, the vertical line projecting down from the intersection point clearly lands at a value of approximately 17. This result confirms our initial identification, as 17 falls within the modal class interval of 16 to 20, providing a statistically sound estimate derived purely from the visual properties of the grouped data.

Important Considerations for Mode Estimation

It is essential for anyone performing this analysis to recognize the inherent limitations imposed by using a histogram. When data is grouped into bins or class intervals, the granular detail of individual data points is lost. Consequently, the exact, true value of the mode—which is defined as the single, most frequent observation—cannot be ascertained.

The graphical method detailed here is not designed to find the precise mode; rather, it is designed to provide the best possible estimate of the mode (sometimes referred to as the “modal value for grouped data”). This technique is universally accepted in statistical analysis and serves as a powerful practical tool for visual interpretation, especially when rapid approximation of central tendency is required without access to the original raw data.

Furthermore, the choice of bin width can significantly influence the appearance of the histogram and, subsequently, the estimated mode. A change in bin size can shift the modal class or alter the shape of adjacent bars, slightly modifying the intersection point. Therefore, analysts must ensure that the histogram construction itself follows best practices to yield a representative distribution and a reliable mode estimate. This process forms a fundamental part of visual data analysis.

Additional Resources for Histogram and Data Analysis

For those looking to deepen their expertise beyond mode estimation, histograms are versatile tools used in a wide array of statistical applications. Mastering histogram analysis involves understanding not only central tendency but also concepts like skewness, kurtosis, and distribution shape.

The following areas represent natural extensions of the knowledge gained from estimating the mode. Exploring these resources will provide a more comprehensive mastery of data visualization and statistical interpretation, preparing you for more advanced tasks in statistical modeling and descriptive analysis:

• Understanding the process of histogram construction and the impact of bin size selection on visual interpretation.

• Calculating other measures of central tendency from grouped data, such as the median and the mean, using interpolation formulas.

• Utilizing histograms to identify the underlying probability distribution (e.g., normal, uniform, skewed) of a dataset.

These skills ensure you can confidently interpret and present data distributions, moving beyond simple visualization to robust statistical inference.
