Understanding Symmetric Histograms: Definition and Examples for Data Analysis

The Role of Histograms in Data Visualization

In the expansive fields of statistics and data visualization, the histogram is indispensable. It functions as a powerful graphical method used to summarize the distribution of a continuous, quantitative variable. By organizing raw data points into predefined intervals, this visual representation allows analysts to quickly grasp the underlying frequency structure of a dataset, providing vital clues regarding its shape, variability, and primary tendency.

A key distinction sets the histogram apart from a simple bar chart: while a bar chart typically compares counts across distinct, categorical groups, a histogram is purpose-built to illustrate the distribution of a continuous variable. It achieves this by dividing the entire range of observed values into contiguous, non-overlapping intervals, commonly referred to as bins. The vertical height of each bin then corresponds precisely to the count—or frequency—of data points falling within that specific interval. This methodology immediately highlights where the data values are most concentrated and how they spread across the measurement scale.

Interpreting the overall shape of a histogram is perhaps the most crucial step in exploratory data analysis. Different shapes—such as skewed, uniform, or multimodal—signal different underlying processes at play. For instance, a skewed distribution suggests that values are heavily concentrated at one extreme, whereas a balanced form implies an equal likelihood of deviation from the center. Among these shapes, the perfectly balanced structure known as the symmetric histogram offers particularly valuable insights into the data’s inherent stability and central structure.

The Definitive Characteristics of a Symmetric Histogram

A symmetric histogram possesses a defining characteristic: perfect or near-perfect balance around its central axis. If one were to draw an imaginary vertical line through the precise center of the distribution, the resulting left and right halves would be exact mirror images. This remarkable balance is a powerful indicator that data values are distributed equally above and below the center point, reflecting a stable underlying process where variations are consistently balanced.

Statistically, the importance of symmetry is underscored by the relationship between the key measures of central tendency. In a perfectly symmetric distribution, the mean (average), the median (middle value), and the mode (most frequent value) all coincide at the exact center of the distribution. This convergence simplifies data interpretation significantly, as a single value effectively summarizes the “typical” observation. It implies that extreme positive deviations from the average are perfectly counterbalanced by corresponding extreme negative deviations.

While the concept of symmetry is singular, the visual forms that exhibit this balance can vary. The overall shape, particularly the number of peaks, dictates how we classify a symmetric distribution. We primarily distinguish between two major types of symmetric histograms, each telling a different story about the composition and clustering within the data:

• Unimodal symmetric histogram: Characterized by a single, dominant peak located squarely at the center of the distribution, representing the most common type of balanced data structure.
• Bimodal symmetric histogram: Displays two distinct, separate peaks, suggesting the presence of two unique subgroups or modes within the overall dataset, yet maintaining collective symmetry around the distribution’s true center.

A detailed examination of these two characteristic shapes, complete with visual examples, is essential for truly appreciating the nuanced insights offered by perfectly balanced data distributions.

Unimodal Symmetric Histograms: The Classic Bell Shape

The unimodal symmetric histogram is the most iconic representation of balanced data, often immediately recognizable due to its classic bell-shaped curve. Derived from the prefix “uni” (meaning one), this histogram features a single, prominent peak where the data is most heavily concentrated. The frequencies then decrease smoothly and symmetrically as the values extend away from this central peak in both the positive and negative directions. This pattern is often observed in measurements related to natural phenomena, such as physical dimensions, measurement errors, or standardized test scores.

The illustration below provides a clear visual example of a unimodal symmetric histogram:

As evident in the image, the highest bar is positioned centrally, signifying the convergence of the mean, median, and mode. The subsequent bars diminish in height in a perfectly calibrated manner on both sides. This shape is strongly associated with the normal distribution (or Gaussian distribution), a cornerstone of inferential statistics. In these cases, the vast majority of data points cluster tightly around the central average, confirming that the process driving the data is stable and subject only to random, equally likely variation.

To further solidify the concept, consider the effect of drawing a vertical line precisely through the middle of the distribution. The visual confirmation, as shown in the second figure, reinforces the perfectly mirrored quality of the data structure. This mirror-image property is the definitive hallmark of ideal symmetry, confirming that the spread (or variance) of the data is equally distributed around the central point, making statistical analysis based on the mean highly reliable.

Bimodal Symmetric Histograms: Analyzing Dual Peaks

A fascinating contrast to the single-peaked structure is the bimodal symmetric histogram, characterized by the presence of two distinct high-frequency regions, or modes. The prefix “bi” (meaning two) directly references these twin peaks. Crucially, despite having two separate clusters, the overall collection of data bars maintains perfect symmetry around the distribution’s absolute center. This means the shape of the entire left half is the mirror image of the entire right half, even though the overall central axis might fall in a valley between the two peaks.

The following example visually demonstrates this dual-peak structure:

The appearance of two modes is often a strong signal that the dataset is not homogeneous but is instead composed of two distinct subgroups that have been merged. For example, a bimodal distribution might arise when measuring heights in a mixed population of men and women, where each gender group forms its own central tendency. The symmetry in this context implies that the two subgroups are equally balanced in their spread and magnitude relative to the distribution’s midpoint.

Visualizing the central balance remains key. If we apply the vertical centerline test to the bimodal structure, the resulting image confirms that the left and right portions are identical, despite the unusual central valley. This observation is vital for data analysis, as identifying bimodal symmetry encourages researchers to investigate the possible existence of two separate populations driving the data, leading to more accurate modeling and interpretation.

Bridging Theory and Practice: Recognizing Roughly Symmetric Histograms

While theoretical symmetric histogram definitions require absolute mirror-image perfection, empirical datasets collected in the real world seldom achieve this ideal precision. Consequently, in applied statistics, we frequently work with distributions classified as roughly symmetrical histograms. These distributions exhibit a strong visual balance—the two sides of the central axis are highly similar, though minor variations in bin heights or slight skewness may exist due to natural variability or measurement limitations.

The concept of “roughly symmetrical” is critically important because it validates many fundamental statistical assumptions. Numerous parametric tests, such as t-tests and ANOVA, rely on the assumption that the data is drawn from a symmetric probability distribution, most often the normal distribution. Recognizing that a histogram is approximately symmetric allows analysts to proceed with these powerful statistical methods, knowing that the mean is a reliable measure of the center and that the data is not unduly influenced by extreme outliers on one side.

Deviations from perfect symmetry arise from inherent complexities in biological, economic, and social phenomena, or simply from the randomness of sampling. Despite these minor irregularities, identifying a roughly symmetric pattern remains a foundational step in understanding the underlying data generation process. It suggests a process where factors causing higher values are generally balanced by factors causing lower values, confirming the dataset’s stability and its suitability for many standard inferential procedures.

Real-World Case Studies of Symmetric Distributions

The practical utility of understanding roughly symmetric histograms extends across diverse disciplines, providing crucial context for decision-making and forecasting. One compelling example is found in medicine and biology: the distribution of birth weight among newborn babies. Across large populations, birth weights naturally cluster around a population average (typically around 7.5 pounds). While individual weights vary, the overall pattern exhibits a strong, roughly unimodal symmetry, demonstrating that deviations below and above the average occur with comparable frequency and magnitude.

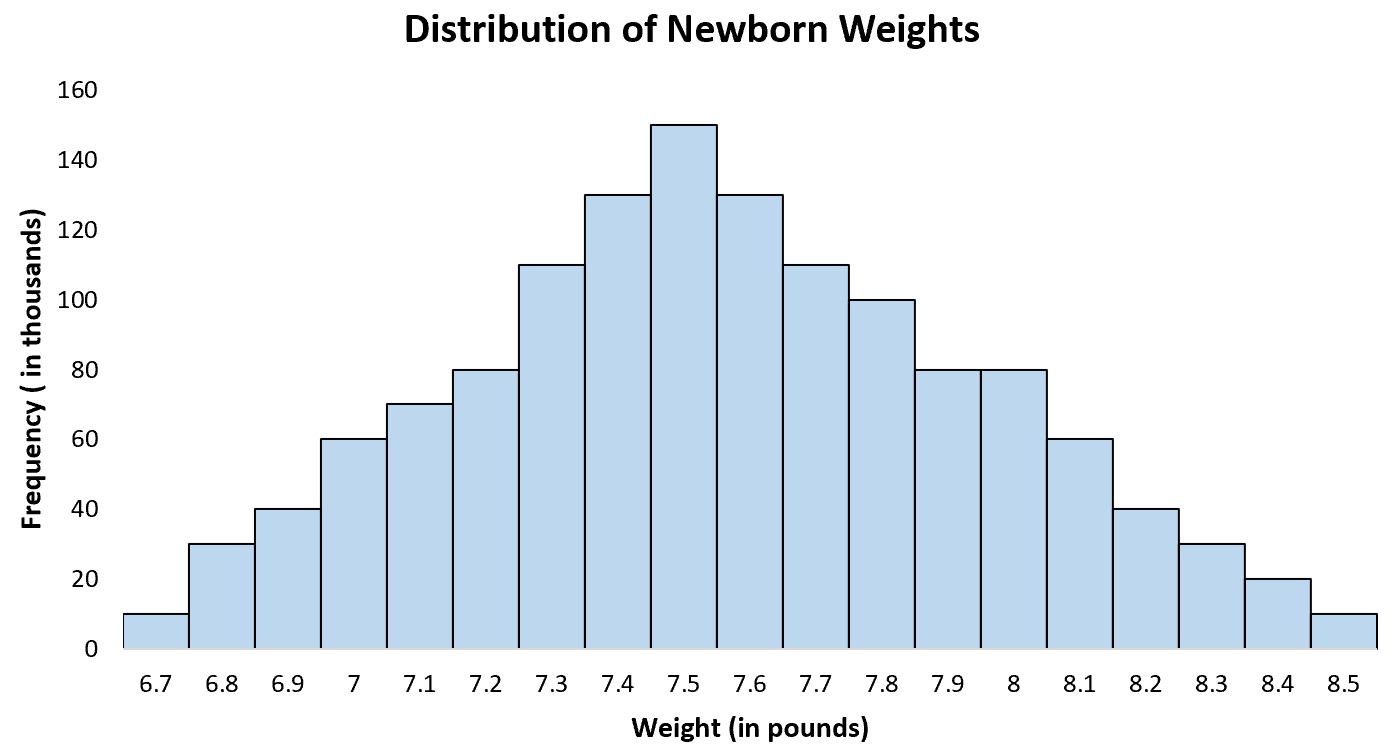

Visualizing this data using a histogram clearly shows this balanced trend:

The strong resemblance between the left and right sides of this graph confirms the approximate symmetry. For medical professionals, interpreting this balanced distribution is essential for defining normal ranges and identifying babies whose weights are statistically rare (outliers), which often signals necessary medical attention. This natural symmetry reflects the stable biological mechanisms governing fetal development.

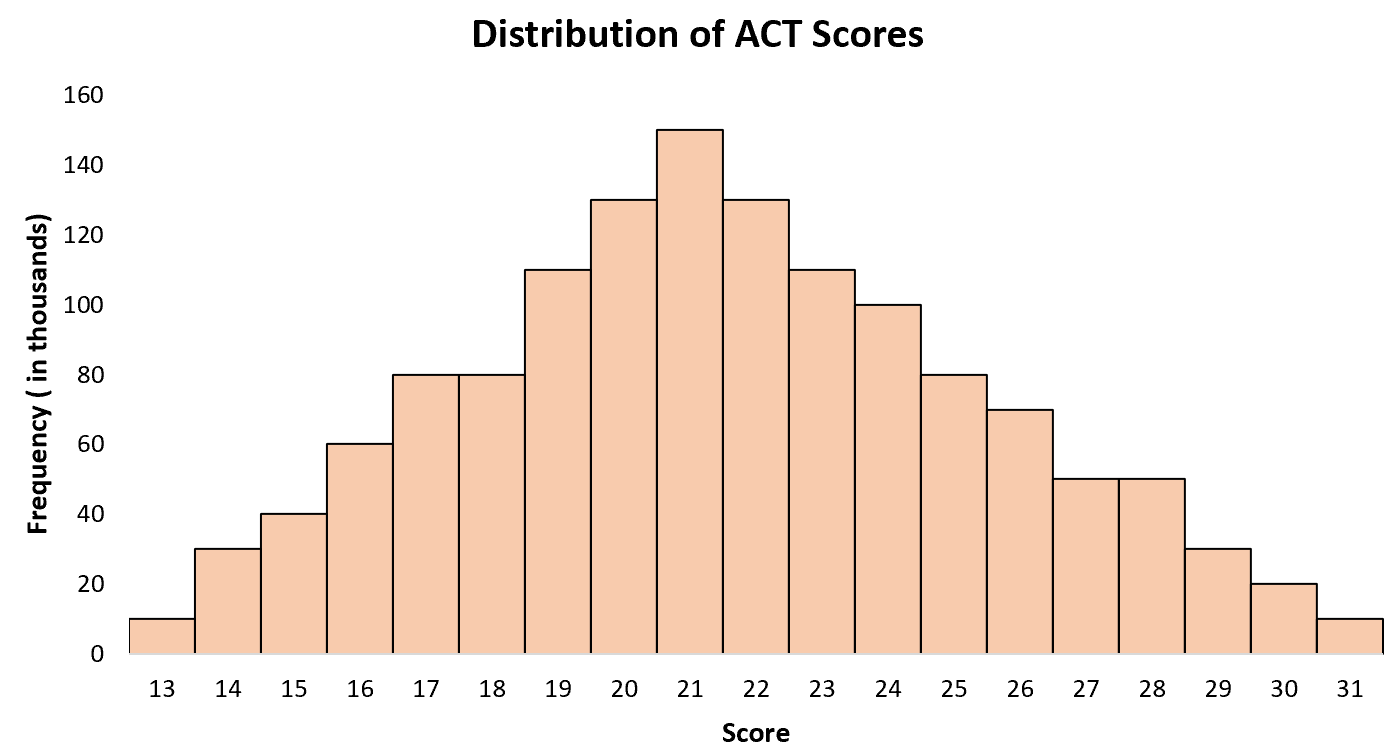

Another excellent illustration comes from educational assessment, specifically the distribution of scores on the ACT standardized test. When analyzing the scores of a massive cohort of students, the resulting histogram generally displays a single peak centered around the national average score. Scores decrease in frequency as they move toward the extremes (very low or very high scores). This pattern generates a distribution that is strikingly roughly symmetric, confirming a relatively balanced spread of academic achievement across the measured population.

These real-world examples solidify the concept that while perfect symmetry is a mathematical ideal, approximate symmetry is a common and meaningful descriptor for complex empirical data. Recognizing this pattern allows researchers to confidently apply statistical models that assume balance, moving from visual inspection to formal inferential conclusions.

Conclusion and Further Exploration

Mastering the interpretation of symmetric histograms, whether perfectly balanced or only roughly so, is a vital skill that underpins effective data analysis and statistical inference. These visualizations offer immediate, intuitive insights into the clustering, spread, and balance of data values. The ability to identify symmetry helps analysts rapidly assess data normality, confirm the presence of single or multiple modes, and select the most appropriate statistical tests for hypothesis testing.

The principles discussed here—the alignment of mean, median, and mode in symmetric data, the distinction between unimodal and bimodal shapes, and the acceptance of rough symmetry in empirical measurements—serve as a cornerstone for deeper statistical understanding. From optimizing business processes to conducting rigorous scientific research, interpreting histogram shapes empowers data practitioners to communicate findings with clarity and make statistically sound, informed decisions.

For those eager to expand their knowledge of graphical data representation and statistical distributions, exploring tutorials on topics such as measures of dispersion (variance and standard deviation) and tests for normality will provide essential complementary information:
