Understanding Standard Deviation in Probability Distributions

A probability distribution is a cornerstone concept in modern statistics, serving as a comprehensive map that outlines the likelihood of every possible outcome for a specific random variable. While knowing the expected outcomes and their likelihoods is vital, this information only tells half the story. To truly understand a system, we must quantify the consistency, or lack thereof, in the data. This measure of spread, known as variability, indicates how far the individual outcomes typically stray from the central tendency.

Quantifying this variability is essential across fields ranging from finance to engineering. For instance, consider the performance of a sports team. The following distribution table illustrates the probability that a specific soccer team scores a certain number of goals during any single game. Although we can easily see the likely outcomes (e.g., 1 or 2 goals), we need a standardized metric to describe how volatile or predictable their scoring is.

The single most important metric used to quantify the dispersion of a distribution is the standard deviation (symbolized as $sigma$). It provides a tangible value that represents the average amount of dispersion away from the distribution’s central point, the mean ($mu$). Calculating this value allows analysts to assess the risk, reliability, or consistency inherent in the data set described by the probability distribution.

The Standard Deviation Formula Explained

To accurately assess the dispersion of a discrete probability distribution, we rely on a precise mathematical definition. The standard deviation ($sigma$) measures the typical distance between the observed values ($x_i$) and the expected value ($mu$). This calculation provides the quantitative measure needed to evaluate the level of risk or predictability associated with the distribution’s outcomes.

The formal mathematical formula used to find the standard deviation of a discrete probability distribution involves finding the square root of the weighted sum of squared differences. This weighting ensures that outcomes with a higher likelihood contribute more significantly to the final measure of spread.

$sigma = sqrt{sum (x_i-mu)^2 cdot P(x_i)}$

Understanding each element within this formula is critical for accurate application. The process fundamentally involves calculating the difference between each outcome and the mean, squaring that difference, and then multiplying the result by the likelihood of that outcome occurring. This method appropriately penalizes extreme outcomes that are far from the center.

• $x_i$: Represents the $i^{th}$ value, or the specific outcome of the random variable being measured. In the soccer example, these are the possible number of goals scored (0, 1, 2, 3, 4).
• $mu$: Denotes the mean (or expected value) of the distribution. This is the long-run average outcome if the experiment were to be repeated indefinitely.
• $P(x_i)$: Stands for the probability associated with the $i^{th}$ value. A crucial rule of probability distributions is that the sum of all $P(x_i)$ must always equal 1.
• $sum$: Represents the summation notation, instructing us to sum the calculated component across all possible values ($x_i$).

The internal calculation, $sum (x_i-mu)^2 cdot P(x_i)$, yields the variance ($sigma^2$), which is expressed in squared units. Taking the square root of this value converts the measurement back into the original units of the data, resulting in the standard deviation ($sigma$), which is much easier to interpret practically.

Step-by-Step Calculation: The Soccer Goal Example

To demonstrate the calculation of the standard deviation, we will apply the formula to the initial probability distribution for the soccer team’s goals. This process is systematically divided into two main stages: first, determining the mean ($mu$), and second, using that mean to calculate the weighted squared deviations, ultimately yielding the standard deviation ($sigma$).

We begin with our original probability distribution detailing the goals scored and their respective probabilities:

The first critical step is determining the expected value, or the mean number of goals ($mu$). The mean is calculated by multiplying each outcome ($x$) by its corresponding probability $P(x)$ and then summing these products across all possible outcomes. This calculation reveals the team’s long-run average scoring performance:

$$mu = (0 cdot 0.18) + (1 cdot 0.34) + (2 cdot 0.35) + (3 cdot 0.11) + (4 cdot 0.02) = mathbf{1.45} text{ goals.}$$

Once the mean ($mu = 1.45$) is established, we proceed to calculate the standard deviation using a structured table format. This table organizes the complex intermediate steps required by the formula $sum (x_i-mu)^2 cdot P(x_i)$, making the process transparent and manageable. This systematic approach ensures that the deviation of each outcome is correctly weighted by its probability of occurrence.

The sum of the values in the far right column (the third column in the image above) represents the total weighted squared deviation, which is the variance ($sigma^2$) of the distribution. The final step to obtain the standard deviation is taking the square root of this variance. Based on the original data, the variance sum is 0.9475:

Standard deviation ($sigma$) = $sqrt{0.9475} = mathbf{0.9734}$.

The resulting standard deviation of 0.9734 goals provides a clear interpretation: the typical deviation we expect from the team’s average score of 1.45 goals is approximately 0.97 goals. This single metric effectively quantifies the consistency of the team’s scoring performance.

Practical Applications in Risk and Performance Analysis

The standard deviation of a probability distribution is a powerful tool used in practical scenarios to quantify risk, assess reliability, and forecast performance consistency. We can explore its application through two distinct examples: assessing product reliability and analyzing sales performance predictability.

Example 1: Standard Deviation of Vehicle Failures (Reliability Assessment)

Engineers and product managers use standard deviation to measure the reliability of components. Consider a scenario involving vehicle battery performance, where the following probability distribution outlines the likelihood of a specific vehicle model experiencing a certain number of battery failures over a decade:

To determine the consistency of reliability across the fleet, we first calculate the expected number of failures ($mu$). This is done by multiplying the number of failures ($x$) by its respective probability $P(x)$ and summing the results:

$$mu = (0 cdot 0.24) + (1 cdot 0.57) + (2 cdot 0.16) + (3 cdot 0.03) = mathbf{0.98} text{ failures.}$$

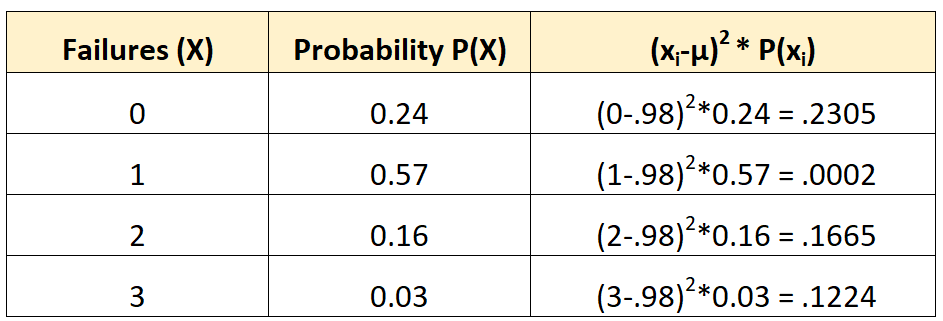

With the mean established at 0.98, we construct the calculation table to determine the sum of the weighted squared deviations, which is the variance ($sigma^2$):

The total sum of the values in the final column is $sigma^2 = 0.5196$. To find the standard deviation, we take the square root of this sum: $sqrt{0.5196} = mathbf{0.7208}$. This result confirms that, on average, the number of battery failures deviates by approximately 0.72 failures from the expected mean of 0.98 over the 10-year span, providing a clear measure of reliability consistency.

Example 2: Standard Deviation of Sales Performance (Predictability)

In business forecasting, the standard deviation is crucial for evaluating the predictability of performance metrics. A high standard deviation in sales suggests volatile, unpredictable performance, whereas a low value suggests stability. Let’s analyze the expected performance of a salesman, where the distribution indicates the likelihood of achieving a certain number of sales in the upcoming month:

We start by determining the expected number of sales ($mu$):

$$mu = (10 cdot 0.24) + (20 cdot 0.31) + (30 cdot 0.39) + (40 cdot 0.06) = 2.4 + 6.2 + 11.7 + 2.4 = mathbf{22.7} text{ sales.}$$

The average expected performance is 22.7 sales. Next, we use this mean to calculate the deviations, square them, and weight them by probability, as shown in the table below to find the variance:

The sum of the final column is the variance ($sigma^2 = 79.71$). Taking the square root yields the standard deviation: $sqrt{79.71} = mathbf{8.928}$. A standard deviation of 8.928 sales suggests that the salesman’s actual monthly sales are typically within approximately 8.9 units of the expected 22.7 sales, indicating a moderate, quantifiable level of variability in performance.

Understanding the Relationship Between Variance and Standard Deviation

It is important for any statistics practitioner to recognize the fundamental link between variance ($sigma^2$) and standard deviation ($sigma$). The variance is the required intermediate step in the calculation; it represents the sum of the products of the squared difference between each outcome and the mean, multiplied by its probability.

In the soccer example discussed earlier, the calculated sum before the final square root was the variance:

$$text{Variance } (sigma^2) = 0.9475$$

The standard deviation is, by definition, the positive square root of the variance. Conversely, the variance is the standard deviation squared. This relationship is always true for any probability distribution:

$$text{Variance } (sigma^2) = (0.9734)^2 = mathbf{0.9475}$$

While variance is preferred in advanced mathematical and inferential statistical formulas because it avoids the complexity of the square root, it suffers from a significant drawback in interpretation: it is expressed in squared units (e.g., “goals squared” or “failures squared”). These squared units lack meaningful real-world context.

By taking the square root, the standard deviation successfully returns the measure of spread to the original units of the data (e.g., goals, failures, sales). This critical transformation makes the standard deviation the universally preferred metric for describing and interpreting data variability in practical applications and reporting, as it directly relates the measure of dispersion back to the scale of the original observations.
