Understanding Multimodal Distributions: A Guide for Data Analysis

Understanding the Core Concept: What Defines Multimodality?

A multimodal distribution is a highly specific type of probability distribution encountered frequently in advanced statistical analysis and data science. Its defining characteristic is the presence of two or more distinct peaks, which are formally referred to in statistics as modes. This structure is fundamentally important because it immediately signals that the dataset under examination is likely not homogeneous, suggesting complexity or the blending of multiple distinct populations or processes.

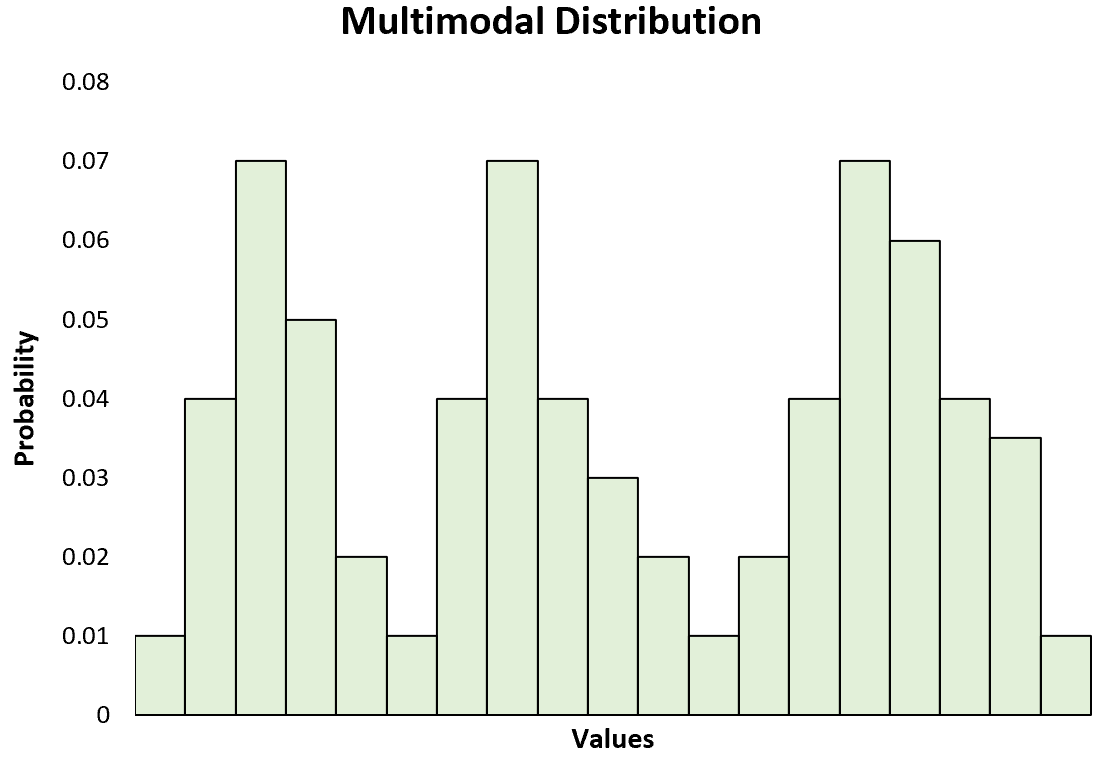

In data visualization, the detection of multimodality is usually straightforward. When analysts construct a histogram of the data, the multimodal nature becomes visually apparent through the multiple, separated peaks. Each peak represents a significant concentration or cluster of data points, indicating values that occur with high frequency. Recognizing these clusters is the first critical step toward understanding the underlying mechanisms that generated the data.

Distinguishing Distribution Types: Unimodal, Bimodal, and Multimodal

Multimodal distributions exist on a spectrum defined by the number of peaks present. If a distribution exhibits exactly two modes, it is categorized as a bimodal distribution. Bimodality is arguably the most common subtype of multimodality encountered in applied statistics and is often the easiest structure to identify and interpret. While all bimodal structures are technically multimodal, using the term “bimodal” provides a precise quantitative descriptor of the data’s inherent grouping.

This multiple-peaked structure contrasts sharply with the more commonly taught unimodal distribution, which possesses only a single, central peak. In a unimodal dataset, the data clusters around one primary central value, implying a single, consistent underlying process. The classic example of a unimodal distribution is the Normal distribution (or Gaussian distribution), a cornerstone of introductory statistics that assumes data centralization and symmetry.

Although simplified statistical teaching often emphasizes unimodal examples, proficiency in real-world data analysis requires the ability to recognize and correctly model multimodal structures. Ignoring multimodality can lead to highly inaccurate interpretations and flawed predictive models, especially when relying on traditional measures of central tendency.

Real-World Manifestations: Case Studies of Multimodal Data

Multimodal data typically arises in scenarios where disparate populations or distinct environmental factors contribute to a single measured variable. Examining specific examples helps solidify the conceptual understanding of how these clustered structures emerge across various disciplines.

Example 1: Distribution of Academic Performance

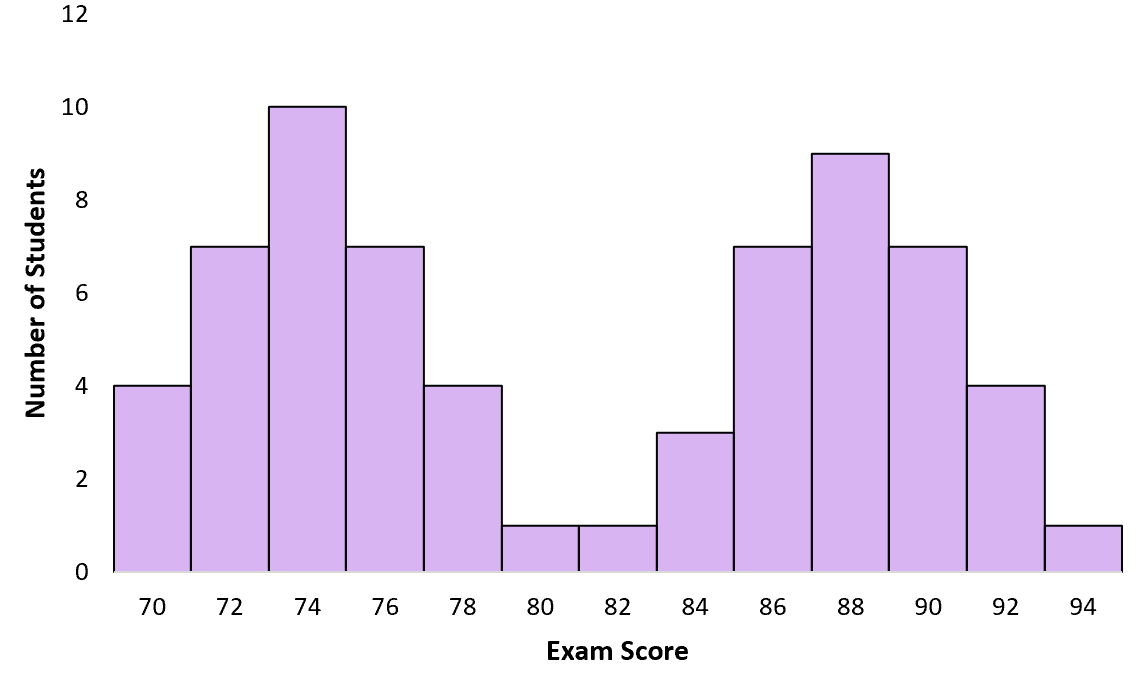

Consider the scenario of analyzing exam scores in a large, diverse university course. If student preparation levels vary drastically—perhaps some students are highly motivated and others minimally engaged—a histogram of the final scores might reveal a clear bimodal pattern. One peak would correspond to the lower scores achieved by the unprepared group, while the second, distinct peak would represent the higher scores of the diligent group. In this case, the two modes indicate two distinct academic populations performing within the same environment.

Example 2: Biological Measurements and Species Heterogeneity

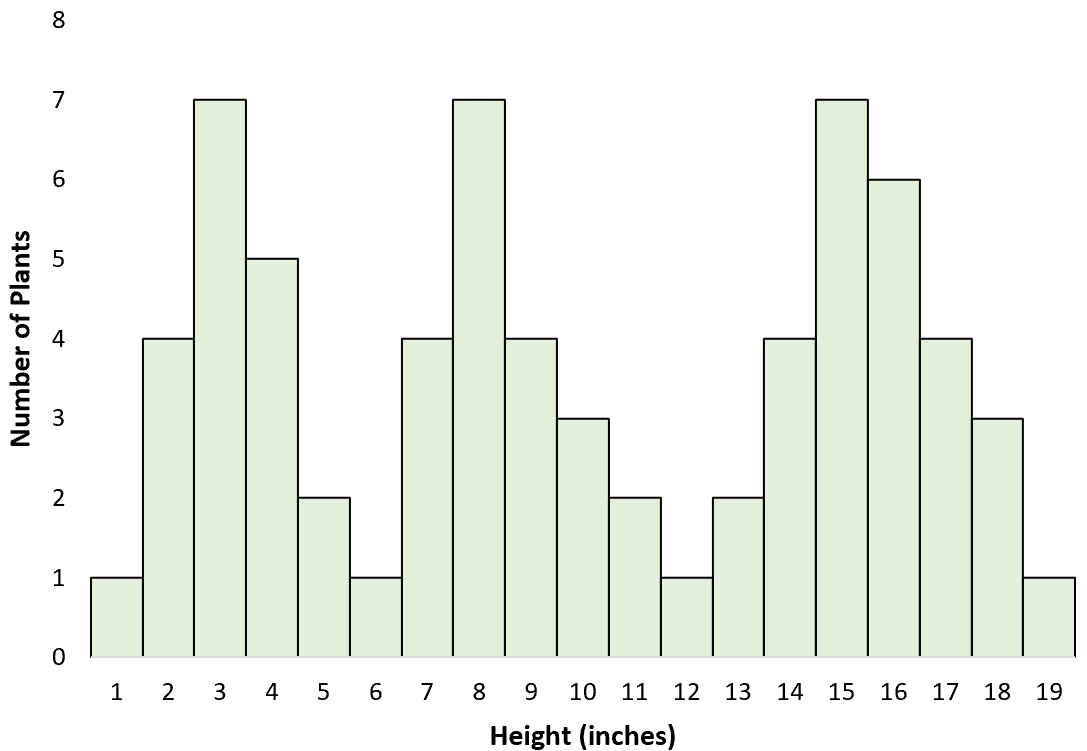

Imagine a field biologist measuring the height of all plants within a specific quadrant, but unknowingly sampling three distinct species—a naturally tall species, a medium-height species, and a short, ground-covering species. The overall distribution of heights will be highly multimodal (specifically, tri-modal). Each of the three peaks precisely represents the characteristic average height of one of the underlying species. Without proper segmentation, the overall dataset obscures the biological reality of the three distinct groups.

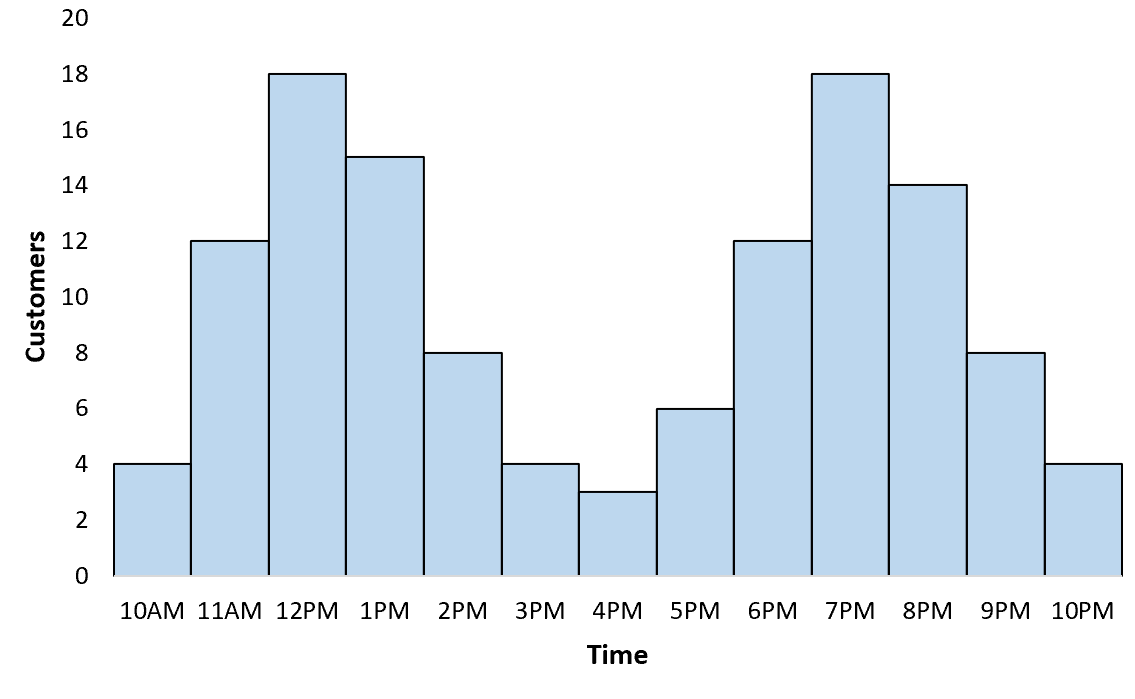

A final, business-oriented example involves tracking customer flow in a restaurant throughout the day. The owner typically finds that the distribution of customer visits per hour is distinctly bimodal. One peak occurs reliably during the primary lunchtime rush (e.g., 12:00 PM), and a second, often larger, peak occurs during the dinner service (e.g., 7:00 PM). This pattern is driven by the fixed schedules and behavioral habits of the customer base.

Identifying the Root Causes of Multiple Modes

The sudden appearance of multiple peaks in a dataset serves as a statistical alert that the data generating process is not monolithic. For analysts, identifying the specific cause of multimodality is crucial, as the interpretation and subsequent modeling techniques depend entirely on whether the modes represent separate populations or inherent temporal patterns.

The two primary causes can be classified as follows:

1. Non-Homogeneous Populations Are Combined.

   This is the most frequent cause. It occurs when data originating from several distinct, non-uniform subpopulations are inadvertently merged into a single dataset. If these constituent groups possess differing central tendencies (i.e., different averages), merging them will inevitably produce distinct peaks corresponding to each group’s mode. The example of the plant scientist measuring three different species perfectly illustrates this scenario; the resulting complexity demands subsequent data segmentation for proper analysis.

2. The Presence of Inherent Processes or Phenomena.

   Alternatively, multimodality can be driven by inherent, fixed factors—such as physical laws, biological cycles, or established human behavioral patterns—that naturally create clusters in the data over time or space. These underlying factors impose structure on the data collection. For instance, the previously mentioned bimodal pattern observed in restaurant customer traffic is dictated by societal norms regarding meal times. This fixed behavioral pattern results in two distinct periods of high activity, thereby producing a dual-peaked probability distribution.

Understanding which cause is at play guides the analysis. If it is Cause 1, the solution is often to separate the groups. If it is Cause 2, the multimodality itself becomes a key feature to model and explain.

Analytical Strategies: Moving Beyond Simple Central Tendency

When analyzing distributions, traditional summary statistics—such as the mean (average) and the median (midpoint)—are fundamental measures of central tendency. However, their reliability and interpretability diminish drastically when applied to multimodal data. A single measure of central tendency fails entirely to capture the complex, underlying structure when multiple populations are present.

To illustrate this failure, consider the bimodal exam score distribution where scores clustered around 74 and 88. Calculating the overall arithmetic mean might yield a value of 81. This figure is highly misleading because very few students actually scored near 81; rather, the score of 81 falls into the low-frequency valley between the two peaks. Relying solely on this mean suggests an average performance that literally represents almost no one in the dataset.

The recommended and most effective strategy for interpreting a multimodal distribution is to first visualize the data (typically using a histogram) and then proceed to effectively segment the data into its constituent, unimodal groups. Once the data is broken down based on the identified modes—for example, dividing the exam scores into “low scores” and “high scores”—analysts can calculate meaningful summary statistics for each subgroup individually.

Analyzing these subgroups separately allows for the accurate calculation of metrics relevant to that specific population, such as the group mean and standard deviation. This segmentation provides a far clearer, actionable picture of the data’s behavior than any single metric applied to the aggregated data. Ultimately, failing to recognize a multimodal distribution before applying summary statistics guarantees skewed or unrepresentative conclusions, highlighting the necessity of visualization as a mandatory prerequisite for robust data analysis.
