Freeze Panes Using VBA (With Examples)

For professionals managing extensive datasets in Microsoft Excel, the ability to maintain visibility of critical headers or identifiers while scrolling is paramount for efficient data analysis. The native Freeze Panes feature addresses this need, locking specific rows or columns into place. While Excel’s manual controls are functional, using VBA (Visual Basic for Applications) offers a far more powerful, automated, and dynamic solution. This is essential for developers creating standardized reports, managing complex worksheets, or needing to apply freeze settings conditionally. This comprehensive guide details the required VBA syntax and provides practical, reusable examples to help you master the programmatic control of the freezing functionality.

Decoding the VBA Syntax for Pane Control

To programmatically implement or modify the Freeze Panes feature, all actions are directed through the ActiveWindow object. This object represents the window currently being viewed by the user and provides the necessary properties to manipulate its visual layout, including splitting and freezing. The fundamental approach involves defining the exact point where the split should occur, and then executing the freeze command.

The core syntax relies on three critical properties: .SplitColumn and .SplitRow define the vertical and horizontal boundaries of the freeze, respectively, while the .FreezePanes property acts as the final toggle switch. It is important to note that the split properties define the number of rows/columns to be frozen, not the cell reference itself. For instance, setting .SplitRow = 2 freezes the first two rows.

A crucial best practice in any macro dealing with window manipulation is to first clear any pre-existing frozen panes. If this step is omitted, new freeze commands might interact unexpectedly with previous settings. By setting .FreezePanes = False initially, we ensure a clean, predictable state before applying the desired configuration. The following VBA subroutine structure illustrates this essential sequence, which you will adapt for specific scenarios:

Sub FreezeCertainPanes()

With ActiveWindow
    If .FreezePanes Then .FreezePanes = False
    .SplitColumn = 0 ' Set to 0 for no frozen columns initially
    .SplitRow = 1    ' Set to 1 for one frozen row initially (example default)
    .FreezePanes = True
End With

End Sub

In-Depth Look at Core ActiveWindow Properties

A detailed understanding of the properties available within the ActiveWindow object is necessary for achieving precise programmatic control over the worksheet’s display. These properties are utilized exclusively to determine the exact boundaries of the frozen area before the final command is issued.

• .FreezePanes: This Boolean property serves as the primary activator for the feature. When set to True, it locks the specified rows and columns defined by the split properties. Conversely, setting it to False immediately clears all existing frozen panes. The initial conditional check (If .FreezePanes Then .FreezePanes = False) is vital for ensuring that the window is reset before applying new settings, thus avoiding configuration conflicts.
• .SplitColumn: This property accepts an integer value that determines the number of columns to be fixed on the left side of the window. Setting this value to 0 signifies that no columns should be frozen. If, for instance, a value of 2 is used, the first two columns (Column A and Column B) will remain visible when the user scrolls horizontally, making it invaluable for maintaining visibility of key identifiers.
• .SplitRow: Similar to its column counterpart, this property specifies the number of rows to be frozen at the top of the window. A value of 0 indicates no frozen rows. Typically, this property is set to 1 to freeze the top header row, ensuring contextual information is always present as the user scrolls down through potentially thousands of data records.

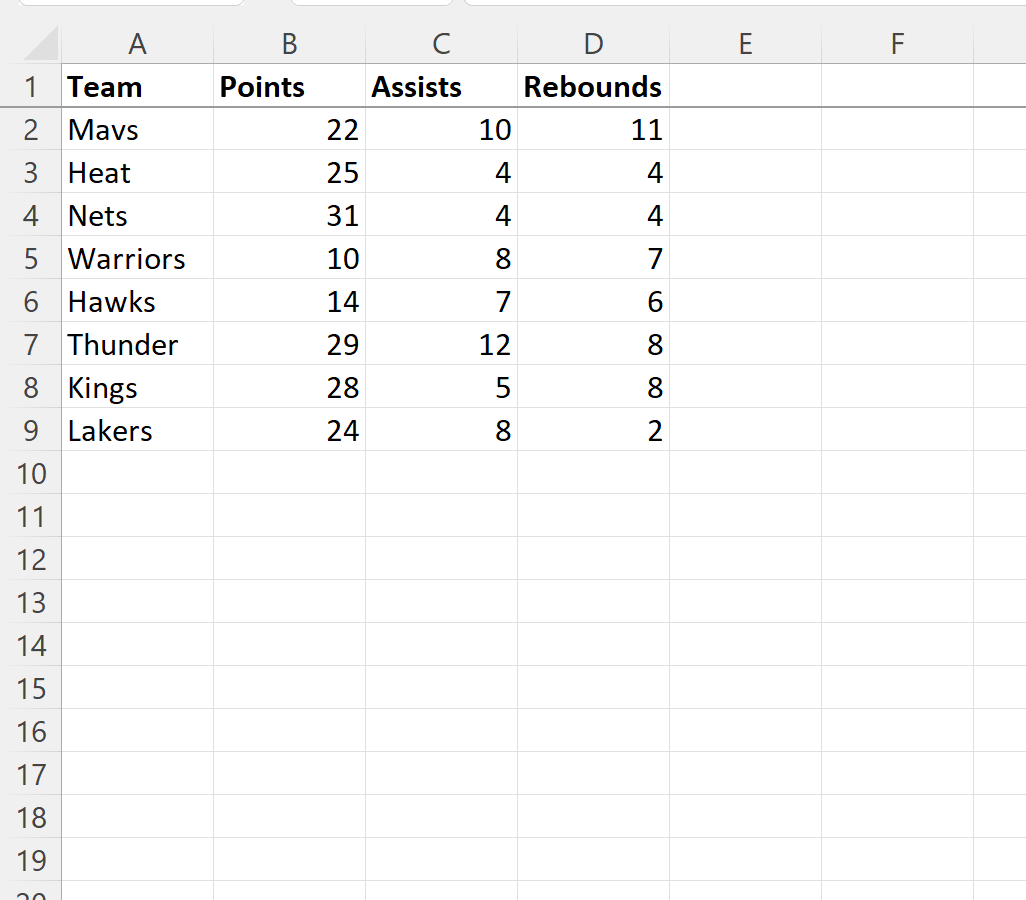

By dynamically setting these properties within your macro, you gain the ability to customize the viewing experience based on the specific requirements of the data or the user. Below is the sample Excel sheet we will use throughout the following examples to visually demonstrate the results of each VBA operation:

Example 1: Locking the Primary Header Row

One of the most frequent uses of the Freeze Panes feature is preserving the visibility of column headers. In virtually every large dataset, the first row contains labels that define the data below. Ensuring this row is always visible prevents users from losing context when navigating lengthy tables, thereby significantly enhancing data interpretation speed and accuracy.

To achieve this specific outcome using VBA, we must configure the code to freeze one row while ensuring zero columns are locked. This is accomplished by setting .SplitRow to 1 and .SplitColumn to 0. The structure of the VBA code is as follows, maintaining the essential reset step at the beginning:

Sub FreezeFirstRow()

With ActiveWindow
    If .FreezePanes Then .FreezePanes = False
    .SplitColumn = 0
    .SplitRow = 1
    .FreezePanes = True
End With

End Sub

After executing this macro, the first row is successfully locked. This configuration ensures that column labels, such as “Employee ID” or “Transaction Date,” remain constantly in view, irrespective of vertical scrolling. This visual anchoring vastly improves data correlation and navigation efficiency.

The illustration clearly demonstrates the effect: as the view scrolls down, the header row remains fixed at the top, facilitating continuous readability and minimizing the need to scroll back up to confirm column meanings.

Example 2: Fixing the Identifier Column

When dealing with spreadsheets that extend far to the right, often containing dozens of data fields, keeping the initial identifier column (such as a unique key, name, or index number) visible becomes essential. This reference column provides the necessary context for the corresponding data fields, regardless of how far the user scrolls horizontally across the worksheet.

To implement a freeze on the first column only, we must reverse the configuration from the previous example. Here, .SplitColumn is set to 1 (to freeze one column), and .SplitRow is set to 0 (to ensure no rows are frozen). This targeted approach allows the user to scroll vertically through the rows normally, but fixes the leftmost column during horizontal navigation.

The following VBA code is used to execute this single-column freeze:

Sub FreezeFirstColumn()

With ActiveWindow
    If .FreezePanes Then .FreezePanes = False
    .SplitColumn = 1
    .SplitRow = 0
    .FreezePanes = True
End With

End Sub

Upon running this powerful macro, the first column of the spreadsheet is locked firmly into place. This is invaluable for wide tables where data fields far to the right must still be associated with the corresponding record identifier in Column A, dramatically improving user workflow and minimizing errors in data cross-referencing.

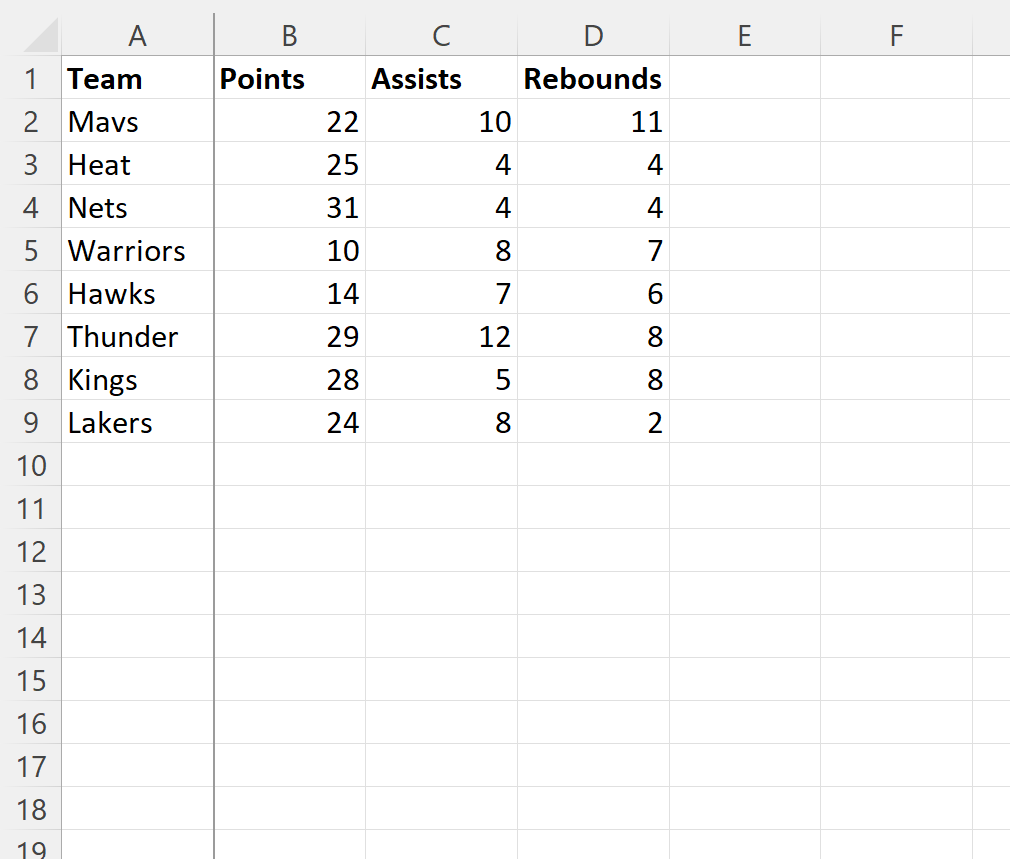

As depicted, the first column remains static, greatly improving navigation and data correlation when working with extensive data fields.

Example 3: Combined Freezing for Complex Layouts

Many real-world data models feature multi-row headers (e.g., titles, subtitles, units) combined with multiple identifier columns (e.g., ID, name, department). In these scenarios, freezing only the first row or column is insufficient. We require simultaneous freezing of a specific block of rows and columns, creating a stable viewing frame in the top-left corner of the worksheet.

This advanced application of the Freeze Panes functionality involves setting both .SplitColumn and .SplitRow to values greater than one. To illustrate, we will demonstrate how to lock the first 3 rows (for a multi-level header) and the first 2 columns (for dual identifiers) simultaneously.

The following VBA code achieves this precise dual freeze:

Sub FreezeMultiplePanes()

With ActiveWindow
    If .FreezePanes Then .FreezePanes = False
    .SplitColumn = 2
    .SplitRow = 3
    .FreezePanes = True
End With

End Sub

Executing this robust macro applies a horizontal and vertical split, locking rows 1 through 3 and columns A through B. This creates four distinct panes in the window, where the top-left pane (Rows 1-3, Columns A-B) remains completely static, serving as a comprehensive reference point for all data manipulation, regardless of the direction of scrolling.

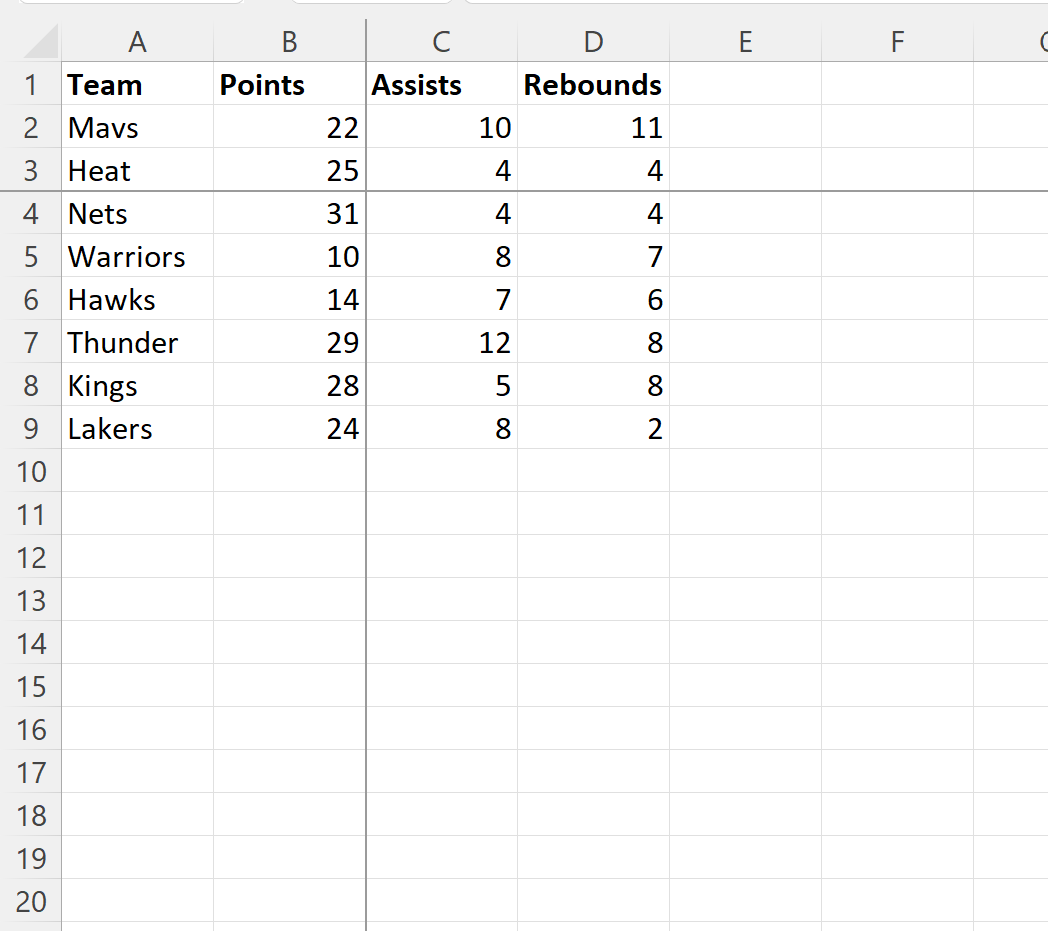

This image clearly illustrates how both the designated rows and columns remain anchored, providing a stable reference point for navigating even the most complex and expansive datasets.

Best Practices and Advanced Considerations

While the core syntax for automating pane freezing is straightforward, implementing these features within a production environment requires attention to several best practices to ensure stability, reliability, and a good user experience. These guidelines help transition your basic scripts into professional, robust solutions.

• The Necessity of Resetting Panes: This cannot be overstated: always begin your code block by attempting to unfreeze any existing panes. The line If .FreezePanes Then .FreezePanes = False is mandatory. If you attempt to set .SplitRow or .SplitColumn while .FreezePanes is already True, Excel may behave unpredictably or fail to apply the new settings correctly. Resetting ensures that every execution starts from a known, neutral state.
• Handling User Interactivity: Remember that even after your macro has executed, the end-user retains full manual control over the Excel interface. They can manually unfreeze or move the split lines. If your business process requires the panes to be frozen in a specific way, consider attaching the macro to an event (like opening the workbook or activating the sheet) or providing a dedicated button for users to easily re-apply the standardized settings.
• Implementing Robust Error Handling: For advanced applications, particularly those distributed to multiple users or integrated with other systems, incorporating error handling is highly recommended. Errors such as runtime 1004 (Application-defined or object-defined error) can occur if the sheet is protected, preventing the macro from modifying the window properties. Using statements like On Error Resume Next or defined error traps allows your code to fail gracefully or inform the user of the issue, rather than crashing.

Conclusion and Further Learning

Programmatically controlling the Freeze Panes functionality via VBA represents a significant step in automating and standardizing the visualization of large datasets in Excel. By utilizing the ActiveWindow object and mastering the interaction between its .SplitColumn, .SplitRow, and .FreezePanes properties, you can ensure that essential contextual data is always accessible to users, regardless of how deep or wide the spreadsheet may be. This automation streamlines data entry, verification, and analysis workflows, making your spreadsheets far more user-friendly.

To further enhance your skills in Excel automation and VBA development, we recommend exploring these authoritative resources:

• The Excel VBA Object Model Reference: Essential documentation for understanding the hierarchy and methods of Excel’s programmable objects, including the Worksheet and Workbook.
• Managing Macros in Excel: A guide covering the fundamental steps for creating, accessing, modifying, and deleting your VBA procedures within the Excel environment.
• The Window Object Documentation: Provides deep technical details on all properties and methods related to controlling the view settings of the Excel window, extending beyond just pane freezing.
