VBA: Select Range from Active Cell

The Power of Dynamic Range Selection Using VBA

The automation of repetitive processes within Microsoft Excel is fundamental to maximizing workplace efficiency. At the heart of this automation capability lies VBA (Visual Basic for Applications). While simple tasks can rely on static, hardcoded cell references, professional data analysis and manipulation frequently require methods that adapt instantly to datasets of varying sizes. This necessity leads us to dynamic range selection, a crucial technique for building truly robust and flexible macros. This article provides an in-depth exploration of VBA methods designed to select continuous cell ranges starting precisely from the currently active cell and extending dynamically in the four cardinal directions.

Leveraging the ActiveCell object as the anchor point is a cornerstone of adaptable programming. This approach prevents macro failure when data is inserted, deleted, or shifted, ensuring that your code always targets the correct boundaries of a data block. These dynamic selections are engineered using the powerful Range object in combination with the vital End property. Understanding how these elements interact allows developers to intelligently identify the limits of continuous data, mirroring the functionality of Excel’s built-in keyboard navigation shortcuts.

For any user aspiring to move beyond basic recorded macros, mastering these techniques is non-negotiable. By utilizing the ActiveCell as a flexible starting coordinate, you gain granular and precise control over which segments of data are processed. We will systematically dissect four distinct methods, each tailored to select a range in a specific direction—down, up, right, and left—by employing Excel’s predefined xlDirection constants.

Method 1: Extending the Selection Downward (xlDown)

Selecting a range downwards from the active cell is arguably the most common requirement for processing column data, especially when working with lists where new entries are frequently appended. This technique ensures that regardless of the number of rows currently occupied by data, the entire contiguous block below the starting point is selected. The End property, coupled with the xlDown constant, programmatically replicates the action of pressing the Ctrl + Down Arrow keyboard shortcut in the Excel interface.

The mechanism is encapsulated within the expression: Range(ActiveCell, ActiveCell.End(xlDown)). The first parameter, ActiveCell, clearly designates the starting point of the selection. The critical second parameter, ActiveCell.End(xlDown), directs Excel to navigate vertically downwards from the active cell until the first subsequent empty cell is encountered. The cell immediately preceding that empty cell is then identified as the dynamic endpoint of the range.

Once this range is precisely defined, the .Select method is executed, highlighting all cells between the active cell and the calculated endpoint. This approach guarantees that your macro automatically adjusts to expanding or contracting data tables, always capturing the full extent of the relevant column data below the initial starting point, thereby enhancing the resilience of your code.

Sub SelectActiveDown()
Range(ActiveCell, ActiveCell.End(xlDown)).Select
End Sub

Method 2: Extending the Selection Upward (xlUp)

While downward selection is intuitive for processing data flow, the ability to extend a range upwards from the active cell is equally vital for specific scenarios. This method is indispensable when your starting point is located within or at the bottom boundary of a data block, and you need to select all contiguous cells leading toward the header or top entry. The End property, used in conjunction with the xlUp constant, provides this capability, simulating the user action of pressing Ctrl + Up Arrow.

The required syntax for upward selection maintains structural similarity: Range(ActiveCell, ActiveCell.End(xlUp)). Here, the active cell serves as the lower boundary of the selection. The ActiveCell.End(xlUp) component instructs the application to move vertically upwards from the active cell until it encounters either an empty cell or the very top of the worksheet (Row 1), thereby identifying the first non-empty cell above the starting point.

This technique is particularly effective when dealing with processes where data is entered sequentially from the bottom up, or when a calculation needs to be applied only to the historical data above a certain reference point. The resulting selection reliably includes the active cell and all contiguous cells above it up to the dynamically determined upper boundary.

Sub SelectActiveUp()
Range(ActiveCell, ActiveCell.End(xlUp)).Select
End Sub

Method 3: Extending the Selection Rightward (xlToRight)

Moving beyond vertical movements, VBA facilitates dynamic horizontal range selection using the xlToRight constant. When combined with the End property, this constant enables the selection of all contiguous cells to the right of the active cell within the current row. This action is the programmatic equivalent of pressing Ctrl + Right Arrow in Excel.

The command structure, Range(ActiveCell, ActiveCell.End(xlToRight)), defines the active cell as the leftmost boundary of the selection. The ActiveCell.End(xlToRight) element commands Excel to traverse horizontally rightwards from the starting cell until it detects the first non-data cell, thus marking the column index of the last non-empty cell in that continuous block of row data.

This method proves invaluable for processing row-based records, such as selecting all fields associated with a single database entry or efficiently identifying the full width of a data table across various columns. It ensures that the macro remains entirely functional and accurate, even if the schema of your data table changes and columns are added or removed over time.

Sub SelectActiveRight()
Range(ActiveCell, ActiveCell.End(xlToRight)).Select
End Sub

Method 4: Extending the Selection Leftward (xlToLeft)

The final directional method covers the ability to extend a range to the left from the active cell. This is crucial when the cursor is positioned at the rightmost boundary or within a horizontal data block, and the objective is to select all contiguous cells preceding it in the same row. Using the End property alongside the xlToLeft constant mirrors the behavior of the Ctrl + Left Arrow shortcut.

The corresponding VBA command is Range(ActiveCell, ActiveCell.End(xlToLeft)). In this specific operation, the active cell establishes the rightmost limit of the selection. The ActiveCell.End(xlToLeft) instruction guides Excel to move leftwards until it encounters the first empty cell or the worksheet’s leftmost edge (Column A), thereby designating the first non-empty cell in the row’s continuous data segment to the left.

This technique is exceptionally useful for tasks that require selecting an entire record backwards from its last data point, or when navigating within complex, horizontally structured reports. It guarantees that the entire contiguous range to the left of the active cell is included in the selection, ensuring precise automation regardless of the row’s data width.

Sub SelectActiveLeft()
Range(ActiveCell, ActiveCell.End(xlToLeft)).Select
End Sub

Practical Demonstrations: Applying Directional Macros

To effectively illustrate the utility and precision of these four dynamic selection methods, we will now walk through practical scenarios using a representative dataset. These examples will clearly show how each defined macro determines the range boundaries dynamically based solely on the starting active cell and the specified direction.

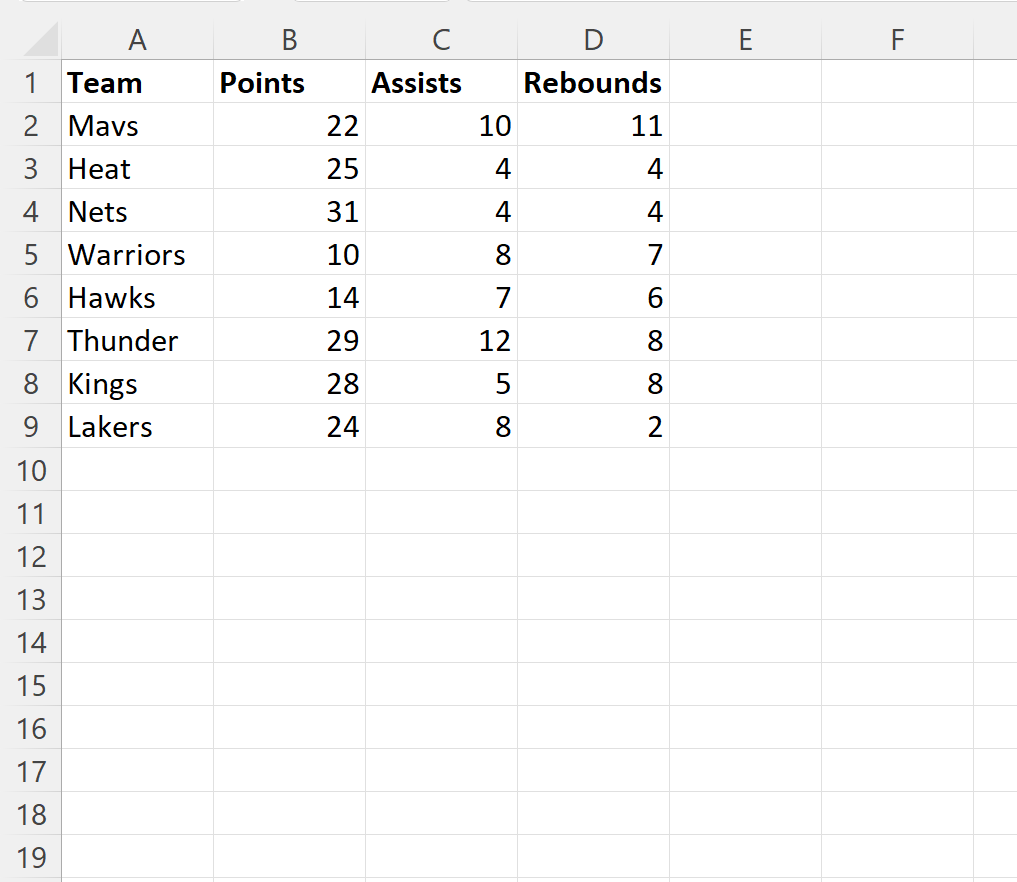

We will reference the following sample Excel sheet for all subsequent demonstrations:

Example 1: Extending Selection Downward

For the first case, assume that cell C3 is the currently selected cell in our worksheet. Our goal is to select all continuous data entries from C3 downwards within Column C. This is the standard procedure when a data processing task needs to start mid-column and capture all subsequent records.

By executing the Sub procedure SelectActiveDown, the code identifies C3 as the anchor. It then utilizes ActiveCell.End(xlDown) to intelligently locate the last non-empty cell in column C, which, according to the sample image, is cell C6. Consequently, the range spanning from C3 to C6 is selected automatically.

Sub SelectActiveDown()
Range(ActiveCell, ActiveCell.End(xlDown)).Select
End Sub

Running this macro results in the following visual selection, clearly illustrating the efficiency of this dynamic downward extension:

As demonstrated, the range initiated at cell C3, our active cell, down to cell C6, the boundary of the contiguous data block, is successfully highlighted.

Example 2: Extending Selection Upward

Next, consider a scenario where cell C6 is currently selected. The objective is to select all contiguous data from this point upwards within Column C. This is a powerful technique when you need to process data back toward the list header or apply calculations to a segment of data immediately above the current position.

We achieve this using the SelectActiveUp Sub procedure. With C6 designated as the active cell, the macro executes ActiveCell.End(xlUp) to dynamically identify the first non-empty cell above C6 in the same column, which is cell C3.

Sub SelectActiveUp()
Range(ActiveCell, ActiveCell.End(xlUp)).Select
End Sub

The execution of this macro produces the range selection shown below, confirming the accurate upward extension:

The selected range spans from cell C6, the starting active cell, upward to cell C3, the upper limit of the contiguous segment. This confirms the efficacy of the xlUp constant for reverse vertical selections.

Example 3: Extending Selection Rightward

We now pivot to horizontal selection. Assume cell B2 is the currently selected cell. Our objective is to capture all contiguous data from B2 extending to the right within Row 2. This is extremely valuable for processing individual records across many fields, where the number of columns (fields) is subject to change.

By executing the SelectActiveRight Sub procedure, B2 is established as the active cell. The macro uses ActiveCell.End(xlToRight) to dynamically locate the last non-empty cell in row 2 to the right of B2, which in the provided data set is cell D2.

Sub SelectActiveRight()
Range(ActiveCell, ActiveCell.End(xlToRight)).Select
End Sub

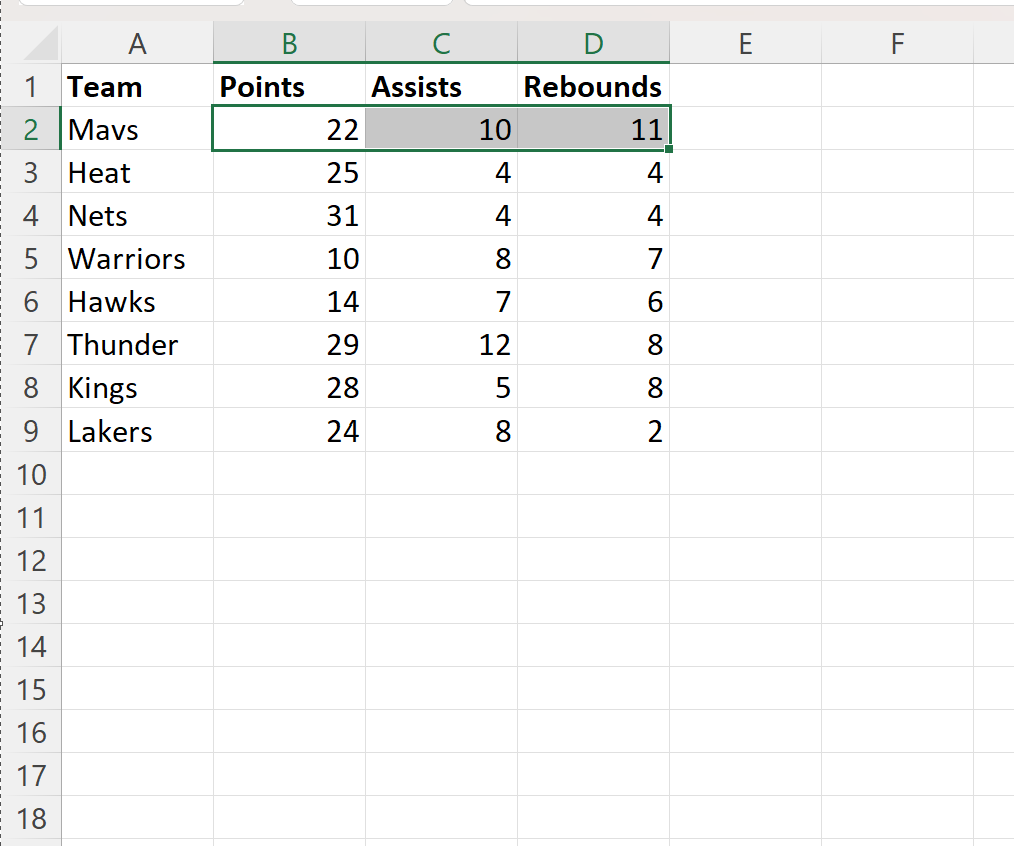

The resulting automatically selected range clearly demonstrates the horizontal extension:

The range from cell B2, our initial active cell, extending dynamically to cell D2, the row’s continuous endpoint, is successfully selected, confirming the robust nature of the xlToRight constant.

Example 4: Extending Selection Leftward

Lastly, we examine the selection of a range to the left. Suppose cell D6 is currently selected. Our goal is to select all contiguous data from D6 extending leftward within Row 6. This is particularly useful for validating or manipulating a complete record when the cursor is positioned at the record’s end.

We accomplish this by utilizing the SelectActiveLeft Sub procedure. With D6 serving as the active cell, the macro employs ActiveCell.End(xlToLeft) to find the first non-empty cell in row 6 to the left of D6, which is cell B6.

Sub SelectActiveLeft()
Range(ActiveCell, ActiveCell.End(xlToLeft)).Select
End Sub

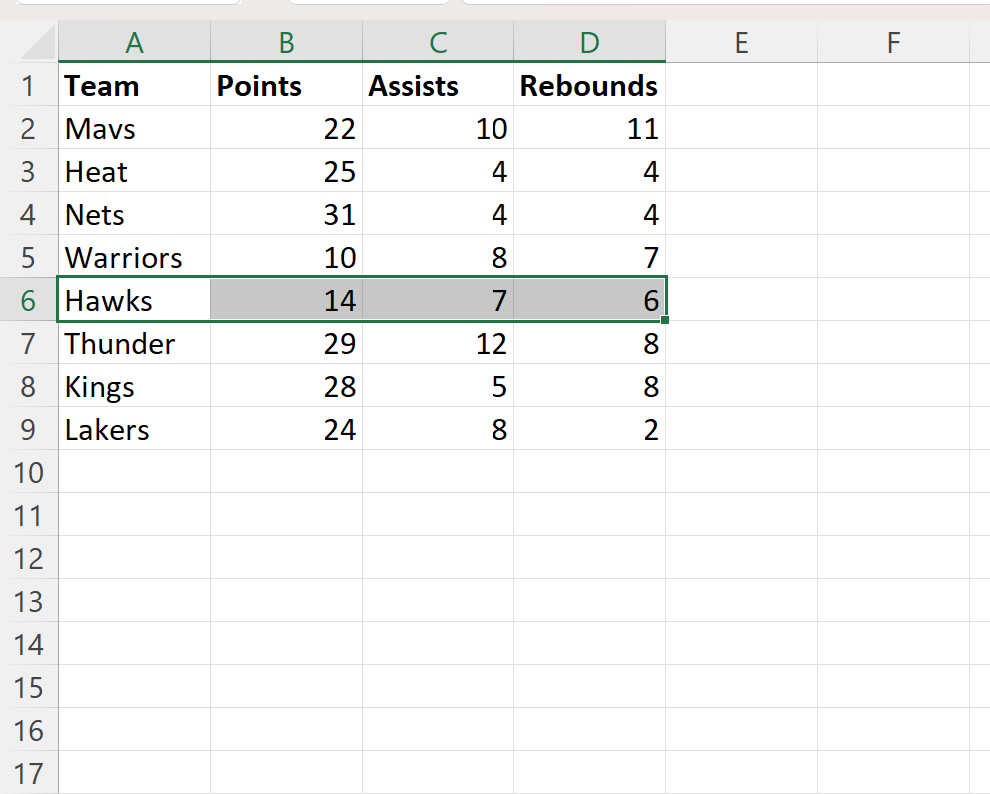

Upon running this macro, the following range is automatically selected, visually confirming the leftward extension:

As depicted, the range starting from cell D6, our chosen active cell, extends left to cell B6, the beginning of the contiguous data segment in that row. This successfully demonstrates the utility of the xlToLeft constant for reverse horizontal selections.

Conclusion and Next Steps for VBA Mastery

The mastery of dynamic range selection, initiated from the active cell, represents a crucial step in evolving from a casual user to a proficient VBA developer working within Excel. The four primary methods detailed—leveraging the End property with xlDown, xlUp, xlToRight, and xlToLeft—provide highly effective means to construct flexible and robust automation solutions. By eliminating the reliance on static cell references, these techniques ensure that your macros remain resilient and adaptable regardless of how the underlying data structure evolves.

The ability to dynamically identify the boundaries of continuous data blocks streamlines many common spreadsheet tasks, including data extraction, batch processing, conditional formatting, and generating reports. Whether you are managing datasets that fluctuate in size or simply need to process specific data segments starting from an arbitrary point, these VBA methods offer a precise and efficient path forward.

We strongly recommend implementing these dynamic macros in your own projects. Experiment with positioning the active cell in different locations (e.g., in the middle of a column, at the edge of a table, or next to blank cells) to fully grasp how the selection logic adapts. This hands-on application will profoundly deepen your technical understanding and unlock significant new possibilities for automating your daily Excel workflows.

For those seeking to further advance their Excel automation skills and VBA programming knowledge, consider expanding your studies into related concepts that build upon the foundation of range manipulation.

• Working with other Range object properties and methods, such as Offset and Resize.
• Understanding the hierarchy and interaction between Worksheet and Workbook objects for project-level control.
• Implementing structured error handling routines (On Error) within VBA macros to manage unexpected data breaks.
• Exploring the creation of user-defined functions (UDFs) for custom, repeatable calculations.
