Learning to Generate Random Colors for Matplotlib Plots

Introduction: Automating Color Assignment in Matplotlib

The efficacy of modern data visualization hinges significantly on the strategic use of color. Color serves not merely an aesthetic purpose, but is fundamental for differentiating complex datasets, highlighting critical outliers, and enhancing overall clarity. When developing automated scripts, managing large-scale data analyses, or executing repetitive tasks where visual variation is mandatory, manually defining colors quickly becomes an insurmountable obstacle. This necessity drives the technique of generating truly random colors programmatically within the Matplotlib environment.

Matplotlib, recognized as the foundational plotting library in the Python ecosystem, provides a vast toolkit for color customization. While predefined color maps and standard named colors (e.g., ‘green’, ‘purple’) are useful for static plots, generating random colors unlocks infinite possibilities for dynamic visualizations. This technique is especially powerful when creating plots iteratively or when a firm guarantee is needed that every single category or data element will receive a unique, visually distinctive hue.

The methodology relies fundamentally on the principles of the RGB color model, which defines color through the intensity combination of Red, Green, and Blue components. In Python plotting libraries like Matplotlib, these intensities are universally represented by floating-point numbers restricted to the range of 0.0 (minimum intensity) to 1.0 (maximum intensity). By harnessing the robust statistical capabilities of the NumPy library, we can effortlessly generate these three random floating-point values, thereby defining a mathematically unique color triplet.

Core Mechanisms: Generating RGB Tuples and Arrays

Programmatically generating a random color requires constructing a three-element data structure—either a tuple or an array—composed of random floating-point numbers. The specific data structure required depends directly on the plotting function and whether the goal is to color a single plot element consistently or to apply unique colors to numerous independent elements.

For scenarios involving a single element, such as plotting a line or a histogram bar, we define a color variable (typically col) as a tuple containing three random floats. We rely heavily on the random functions provided by the NumPy module to ensure that the generated values are uniformly distributed between 0 and 1. This resulting three-value tuple is then passed directly to the color argument (usually c or color) accepted by the relevant Matplotlib plotting function.

Method 1: Single Random Color Assignment (Line Plots)

This approach is the perfect solution when the entire plot element—such as a data line across time or a curve representing an equation—must maintain one consistent, yet randomly determined, color. To construct this color tuple, we must call the NumPy function three separate times to obtain independent random values for the Red, Green, and Blue components.

col = (np.random.random(), np.random.random(), np.random.random())

plt.plot(x, y, c=col)

The code snippet above first computes a single random color tuple and subsequently applies it using the standard plt.plot() function. Crucially, every time this segment of code is executed, the rendered line will adopt a completely new color. This mechanism provides essential dynamic visual feedback, eliminating any need for manual color specification during development or analysis.

Method 2: Multi-Color Array Generation (Scatterplots)

Scatterplots frequently necessitate that each individual marker be colored differently, either to reflect an underlying continuous variable or simply to underscore the distinctness of observations. To facilitate this, supplying a single color tuple is inadequate; instead, we must provide Matplotlib with an array of colors where the number of rows is equal to the total number of data points (N), and the three columns represent the R, G, and B components for each point.

For generating such large arrays of uniformly random values, we utilize np.random.rand(). This function is highly optimized for generating matrices of random floats. If our dataset contains N points (corresponding to len(x)), we instruct NumPy to generate an N x 3 array. The fixed dimension of 3 ensures that we have a complete and valid RGB triplet assigned to every single data point in the visualization.

plt.scatter(x, y, c=np.random.rand(len(x),3))

When plt.scatter() receives this multi-dimensional color matrix via the c parameter, it intelligently maps each row—which constitutes a unique RGB triplet—to its corresponding (x, y) data point. This powerful capability allows for unparalleled flexibility, enabling the creation of highly complex visualizations where distinguishing individual markers is a critical requirement.

Practical Example: Dynamic Line Plot Coloring

We now walk through a complete, executable demonstration that illustrates the process of defining input data, generating the random color tuple, and applying it to a basic line plot using standard Matplotlib and NumPy libraries. This example showcases the essential setup for reliable single-color random generation.

The process begins with importing the necessary modules, adhering to the standard convention of importing matplotlib.pyplot as plt and numpy as np. After defining simple lists for our x and y coordinates, the core step is defining the color variable col. This requires three distinct calls to the np.random.random() function, thereby guaranteeing three independent random values for the Red, Green, and Blue components.

import matplotlib.pyplot as plt
import numpy as np

# Define sample data for the line plot
x = [1, 2, 3, 4, 5]
y = [7, 12, 15, 19, 25]

# Define the random color tuple (R, G, B)
col = (np.random.random(), np.random.random(), np.random.random())

# Create line plot applying the random color
plt.plot(x, y, c=col)

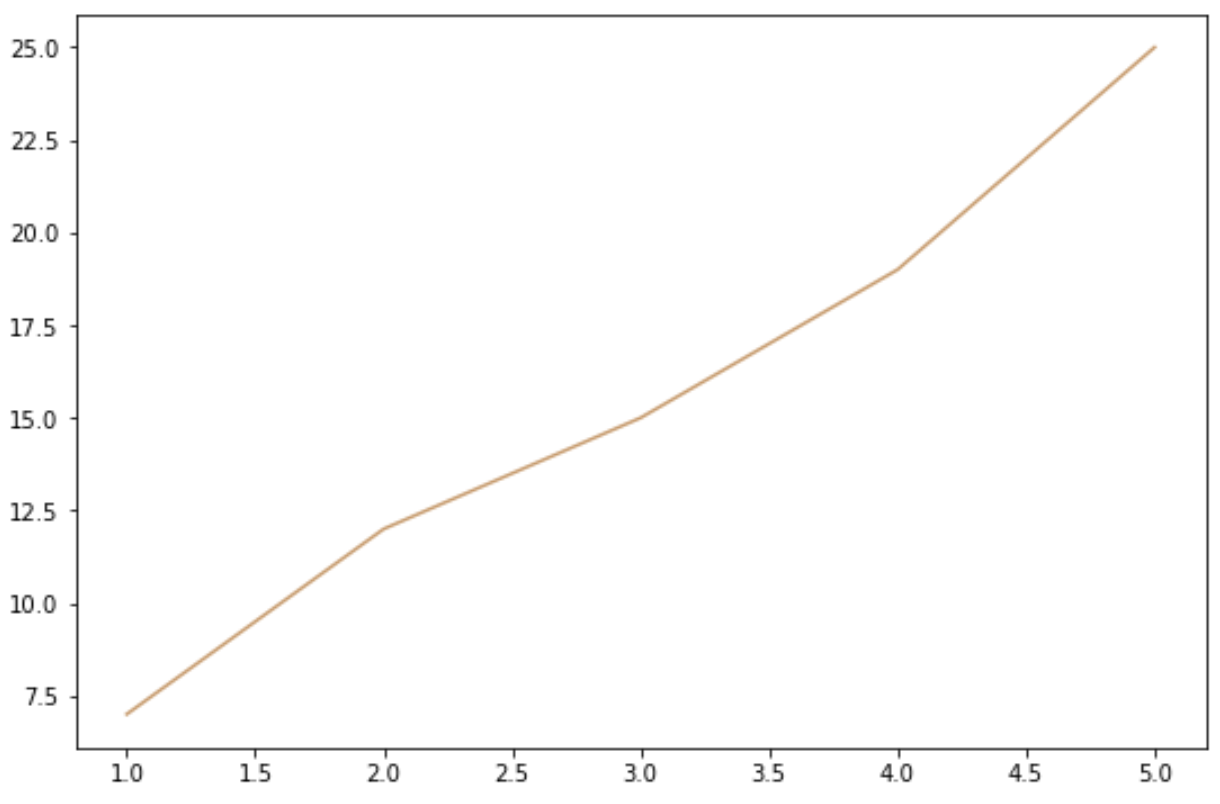

Executing the code above yields a standard line plot where the line’s color is determined entirely by the random tuple generated. This provides immediate, non-deterministic visual differentiation. Below is the outcome of the first execution:

The true value of this dynamic method becomes clear upon re-execution. If the exact same script is run again, the random state of the system changes, resulting in an entirely new RGB triplet being generated. Consequently, the resulting line plot is rendered in a completely different, unpredictable color, confirming the robust dynamic nature of the color assignment technique.

Practical Example: Unique Marker Coloring in Scatterplots

When visualizing the relationship between two variables using a scatterplot, it is often essential to assign unique colors to each marker. This might be used to simulate a continuous color map or to prepare the data for more complex multivariate analysis where every observation must be distinguishable. This scenario mandates the generation of a color array that precisely matches the dimensionality of the data points being plotted.

We begin with the standard imports and data definitions. The crucial difference here lies in the generation of the color array. Instead of producing a single (1×3) tuple, we leverage np.random.rand(len(x), 3) to produce an N x 3 matrix (in this case, 5×3). This matrix effectively provides five distinct RGB triplets, ensuring one unique color for each coordinate pair (x, y) in the visualization.

import matplotlib.pyplot as plt
import numpy as np

# Define sample data
x = [1, 2, 3, 4, 5]
y = [7, 12, 15, 19, 25]

# Create scatterplot with random colors for each point
plt.scatter(x, y, c=np.random.rand(len(x),3))

The result of this initial execution is a scatterplot where each of the five markers is rendered in its own unique, randomly generated color. This highly diversified visual representation is essential for highlighting the individuality of each data point.

Consistent with the line plot example, rerunning this code generates a completely new set of random colors for every data point displayed. This capability is extremely useful for simulations, exploratory analysis, or anytime the goal is to emphasize that each observation is distinctly separate. It powerfully showcases the seamless integration between NumPy’s random generation features and Matplotlib’s highly flexible color handling.

Technical Deep Dive: Uniform Distribution and the NumPy Random Functions

The core mechanism enabling the generation of these dynamic colors is entirely reliant on the underlying functionality provided by the NumPy library. While Matplotlib accepts colors in various formats (hex codes, color names), the floating-point triplet (R, G, B) representation offers the greatest versatility for precise programmatic control.

Specifically, we utilize the functions np.random.random() and np.random.rand(). Both functions are designed to generate random floating-point numbers drawn from a uniform distribution over the half-open interval [0.0, 1.0). This specific range is critical because it perfectly aligns with the standard color intensity scale used in the RGB color model: 0.0 signifies minimum intensity (resulting in black if all components are zero), while a value approaching 1.0 signifies maximum intensity.

While np.random.random() is useful for single calls to construct a tuple for a line plot, np.random.rand() is typically preferred for generating large arrays of colors, such as those needed for scatterplots, because it allows the user to specify the desired shape of the output array directly (N x 3 matrix). It is imperative to understand that these random number generators operate independently. Unless the random seed is explicitly fixed, every execution of the script will result in a different state, leading to the unpredictable and dynamic color changes that define the generation of truly random colors for Matplotlib plots.

Advanced Applications and Considerations

Beyond simple line and scatterplots, generating random colors provides immense value in highly complex data visualization scenarios, such as mapping dozens of distinct categories or plotting multiple lines on a single graph.

For instance, if a project involves plotting fifty different time series, manually selecting fifty visually distinct colors that maintain high contrast is an impractical, if not impossible, task. By iterating through the data and generating a new random RGB triplet for each series using the Method 1 approach, we ensure that every line automatically receives a unique color, maximizing visual separation without manual effort. However, a known limitation of purely random generation is the occasional production of two colors that appear visually similar (e.g., two slightly different shades of cyan), which reduces contrast.

For situations demanding maximum perceptual contrast, developers might introduce constraints into the generation logic—such as restricting the range of values or ensuring the sum of the RGB components falls within certain bounds to prevent overly dark or light colors. While using built-in perceptual colormaps is often recommended for large categorical datasets, the simple NumPy approach remains the fastest and most robust technique for dynamic, unique coloring in exploratory analysis.

For a complete explanation of the mechanics and parameters involved in generating random values, refer to the official documentation for the NumPy random() function. Understanding these technical specifications ensures you can customize the randomness to suit specific visualization requirements.
