Understanding Pearson Residuals: A Guide with Examples for Chi-Square Analysis

When researchers analyze categorical data, especially in tests designed to explore relationships between variables, such as the Chi-Square Test of Independence, the overall test result often tells only half the story. While the test determines if a significant relationship exists, it does not specify which particular groups or observations are driving that significance. This is precisely where the concept of Pearson residuals becomes an essential diagnostic tool for statistical analysis.

A Pearson residual is a standardized measure that quantifies the difference between the actual frequency observed in a data category (the observed count) and the frequency that would be theoretically expected if the variables were completely independent (the expected count). By standardizing this difference, residuals help analysts pinpoint specific cells within a contingency table that contribute most substantially to the overall test statistic and, consequently, to the model’s lack of fit.

The Definition and Calculation of Basic Pearson Residuals

The fundamental purpose of the Pearson residual is to provide a standardized metric for assessing deviation at the cell level. Unlike raw residuals, which simply calculate the difference (Observed – Expected), the Pearson formulation standardizes this difference by dividing it by the square root of the expected count. This standardization ensures that the residuals are comparable across cells, regardless of the magnitude of their expected frequencies.

The formula for calculating the basic Pearson residual (r_ij) in a specific cell is defined as follows:

r_ij = (O_ij – E_ij) / √E_ij

The notation used in this formula corresponds to the following components of the contingency table:

• r_ij: Represents the Pearson residual for the cell situated at the intersection of the i^th column and j^th row.
• O_ij: Denotes the observed value (the actual collected data count) for the cell.
• E_ij: Denotes the expected value (the count predicted under the assumption of the null hypothesis) for the cell.

Why Standardized Pearson Residuals Are Preferred

While the basic residual defined above is a good starting point, it does not fully account for the structural constraints imposed by the fixed row and column totals within the analysis. For more rigorous statistical inference, especially when determining if a specific cell deviates significantly from the expected count, analysts utilize the Standardized (or adjusted) Pearson residual.

The standardized version enhances the basic calculation by incorporating terms related to the marginal probabilities of the rows and columns. This adjustment effectively corrects for the fact that the expected counts are derived from the same data set’s marginal totals. The result is a more robust and reliable measure of deviation that is crucial for hypothesis testing.

The formula for the Standardized Pearson residual integrates the marginal constraints (p_i+ and p_+j, representing row and column marginal probabilities, respectively):

r_ij = (O_ij – E_ij) / √E_ij(1-n_i+)(1-n_+j)

The key advantage of the Standardized Pearson residuals is their distributional property: they are approximately normally distributed with a mean of 0 and a standard deviation of 1. This characteristic allows analysts to use standard Z-score cutoffs (e.g., 2 or 3) to judge the significance of a cell’s contribution to the overall model discrepancy.

Example: Analyzing Political Preference and Gender

To demonstrate the practical application and interpretation of these residuals, let us consider a classic research scenario: investigating whether or not a person’s gender is statistically associated with their political party preference. This association is typically tested using the Chi-Square Test of Independence.

A study sampled 500 registered voters, categorizing them by gender (Male/Female) and political affiliation (Republican, Democrat, or Independent). The resulting contingency table summarizing the observed counts (O_ij) is shown below:

Step 1: Calculating Expected Counts

The foundational step in calculating any residual is determining the expected count (E_ij) for every cell. The expected count is the count that we would anticipate observing if the two variables—gender and political preference—were entirely independent, which is the premise of the null hypothesis.

The formula used to derive the expected value for any cell relies on the marginal totals: E_ij = (Row Total × Column Total) / Grand Total.

For example, the expected count for the cell representing Male Republicans is calculated by multiplying the total number of Republicans (230) by the total number of Males (250), and then dividing the product by the grand total sample size (500). The calculation is: (230 × 250) / 500 = 115. This means that if gender and party preference were independent, we would expect 115 male voters to be Republican.

Applying this process to all cells yields the following table of expected counts:

Step 2: Calculating Basic Pearson Residuals

With both the observed counts (O_ij) and the expected counts (E_ij) now available, we proceed to calculate the basic Pearson residual (r_ij) for each cell using the formula: r_ij = (O_ij – E_ij) / √E_ij. A positive residual indicates that the observed count is higher than expected, while a negative residual indicates it is lower than expected.

Focusing on the cell for Male Republicans (O_ij = 120, E_ij = 115), the calculation is detailed as follows:

• r_ij = (120 – 115) / √115
• r_ij = 5 / 10.7238
• r_ij ≈ 0.466

The resulting residuals for the entire table show the magnitude and direction of deviation for each category:

Step 3: Calculating Standardized Pearson Residuals

For definitive interpretation and hypothesis testing, we move to the Standardized Pearson residual. This adjustment is vital because it corrects for the dependencies inherent in the data structure, specifically the requirement that the residuals sum to zero across rows and columns.

To calculate the standardized residual for Male Republicans, we first establish the marginal probabilities based on the grand total (N=500):

• p_i+ (Row total probability for Male) = 250 / 500 = 0.5
• p_+j (Column total probability for Republican) = 230 / 500 = 0.46

We then apply these probabilities to the denominator of the standardized formula:

• r_ij = (O_ij – E_ij) / √E_ij(1-p_i+)(1-p_+j)
• r_ij = (120 – 115) / √115(1-0.5)(1-0.46)
• r_ij = 5 / √115 × 0.5 × 0.54
• r_ij ≈ 0.897

Once computed for all cells, the table of standardized residuals provides the final measure for diagnostic interpretation:

Interpreting the Diagnostic Results

The power of the Pearson residuals lies in their ability to translate deviations into a standard scale. Since the standardized residuals are approximately normally distributed, we can treat them similarly to Z-scores. A common rule of thumb is that any standardized residual whose absolute value exceeds 2 (or sometimes 3, depending on sample size and rigor) signifies a cell that contributes substantially to the overall discrepancy between the observed data and the expected data under the assumption of independence.

In our example, the largest absolute standardized residual is 0.897 (found in the Male Republican and Female Republican cells). Since this value is significantly lower than the typical critical threshold of 2, we conclude that none of the individual cells in the contingency table show an exceptionally large deviation. This implies that the observed counts are quite close to the expected counts, suggesting a lack of strong association between gender and political preference.

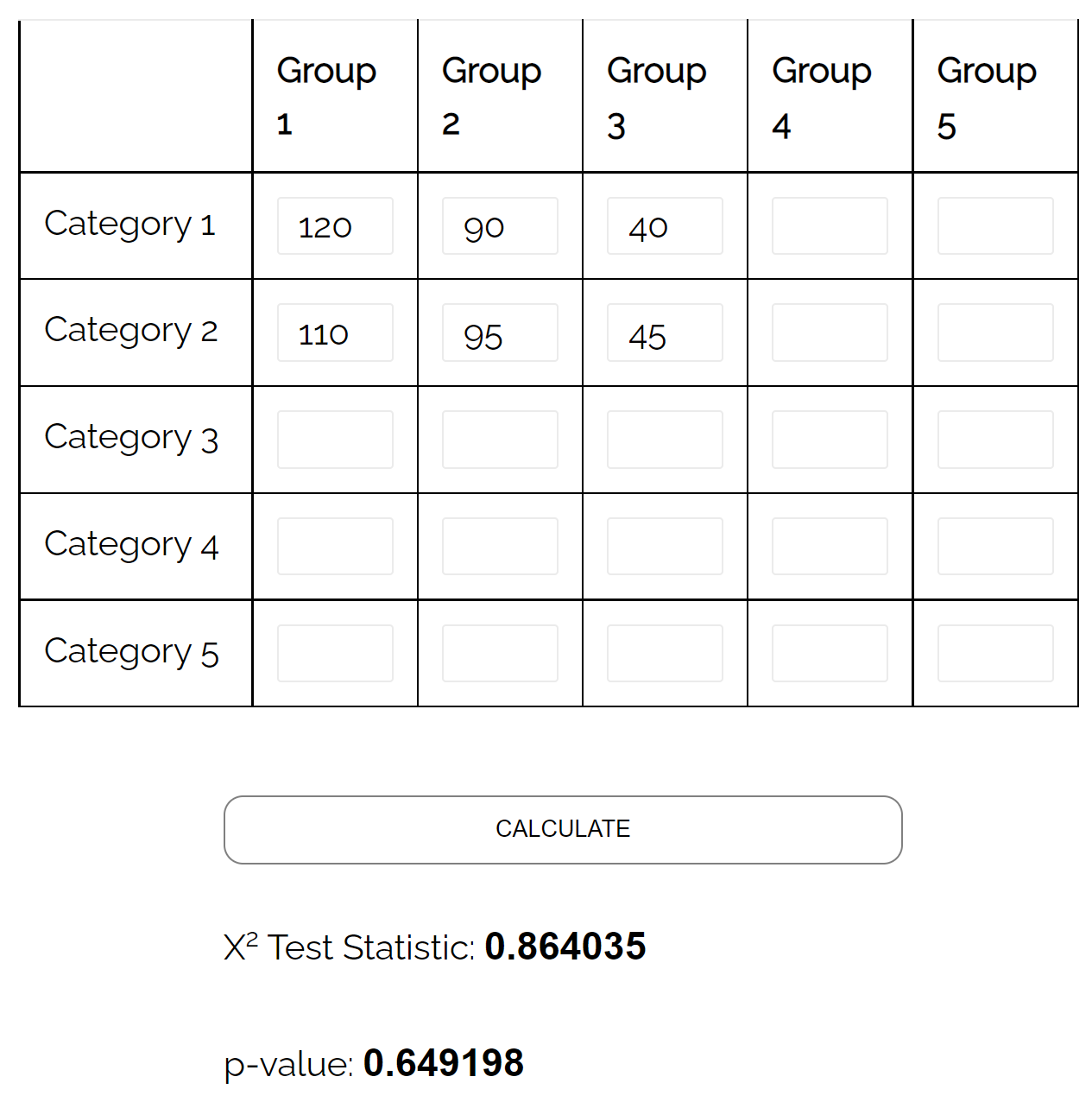

If we were to formally execute the Chi-Square Test of Independence using statistical software, the resulting p-value would be 0.649198.

Because this p-value (0.649198) is much greater than the conventional significance level of 0.05, we fail to reject the null hypothesis. The conclusion drawn from the residual analysis—that no single cell contributed significantly to a lack of fit—is thus confirmed by the overall test statistic. In simple terms, there is insufficient statistical evidence to claim a statistically significant association between gender and political party preference in this sample population.
