Make Barplots with Seaborn (With Examples)

The barplot is an indispensable component of modern data visualization, serving as the cornerstone for comparing aggregated numerical measurements across discrete groups. It fundamentally differs from tools like histograms, which focus on frequency distributions for continuous data. Instead, a barplot typically illustrates a measure of central tendency—such as the mean or median—or a simple count derived from distinct categorical variables.

This comprehensive tutorial explores the practical application of the powerful Python visualization library, Seaborn, for generating statistically robust and aesthetically pleasing barplots. Throughout our examples, we will utilize Seaborn’s pre-loaded tips dataset, which provides rich context for analyzing tipping behavior based on factors like time, day, and party size.

To initiate our analysis, it is mandatory to load the required libraries and perform an initial inspection of the dataset structure. This crucial preliminary step guarantees an understanding of the structure and data types available for plotting, ensuring that we correctly map categorical and numerical fields:

import seaborn as sns

#load tips dataset
data = sns.load_dataset("tips")

#view first five rows of tips dataset
data.head()

total_bill	tip	sex	smoker	day	time	size
0	16.99	1.01	Female	No	Sun	Dinner	2
1	10.34	1.66	Male	No	Sun	Dinner	3
2	21.01	3.50	Male	No	Sun	Dinner	3
3	23.68	3.31	Male	No	Sun	Dinner	2
4	24.59	3.61	Female	No	Sun	Dinner	4

Establishing the Essential Barplot Structure in Seaborn

The fundamental step in creating any barplot in Seaborn involves the use of the primary function, sns.barplot(). This function is explicitly designed to simplify the process of aggregating data before plotting. At a minimum, it requires three explicit arguments: the column designated for the x-axis, the column for the y-axis, and the source data frame itself.

By default, Seaborn automatically computes the mean of the numerical variable (assigned to the y-axis) for every unique level defined within the categorical variable (assigned to the x-axis). This aggregation efficiency is one of the library’s key strengths, allowing analysts to immediately visualize summary statistics without manual calculation.

For our inaugural example, our objective is to visually compare the average tip amount received during different times of the day—specifically “Lunch” versus “Dinner.” We achieve this by mapping the categorical field, time, to the x-axis, and the numerical variable, tip, to the y-axis. The height of the resulting bars directly correlates with the calculated mean tip value for each corresponding time slot, providing immediate insight into dining habits.

sns.barplot(x="time", y="tip", data=data)

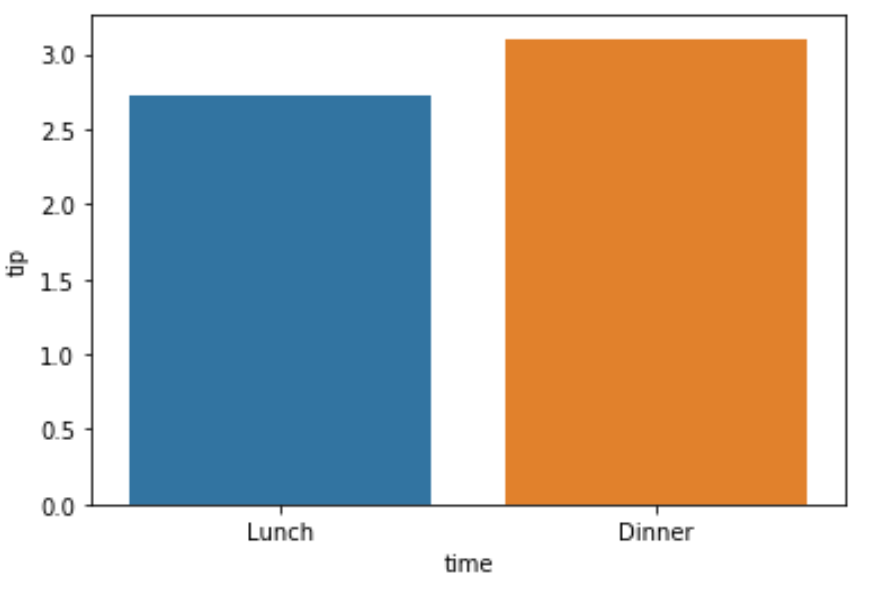

Controlling Statistical Uncertainty: Confidence Intervals and Error Bars

A critical statistical feature of Seaborn‘s barplot is the automatic inclusion of error bars. By convention, these bars represent the 95% confidence interval (CI) around the mean estimate. This visual addition is essential for responsible data visualization, as it communicates the precision and variability of the calculated mean for each category.

While statistically important, error bars can sometimes complicate visualizations intended for a general audience or when the primary focus is simply the point estimate. To simplify the plot and remove these measures of uncertainty, we utilize the argument ci=None within the barplot function call. The ci parameter offers control over the type and size of the interval drawn.

By specifying ci=None, the resulting plot focuses solely on the height of the bar, representing the mean tip amount. This makes direct visual comparison of the mean values straightforward, but it inherently removes the crucial context of statistical reliability. Analysts must consciously choose whether to include or exclude error bars based on the specific goals of their data presentation.

sns.barplot(x="time", y="tip", data=data, ci=None)

Furthermore, the flexibility of the ci parameter extends beyond simple removal. It can be utilized to display the standard error of the mean (SE) by setting ci='se'. This allows for tailored statistical representation depending on the analytical requirements of the project.

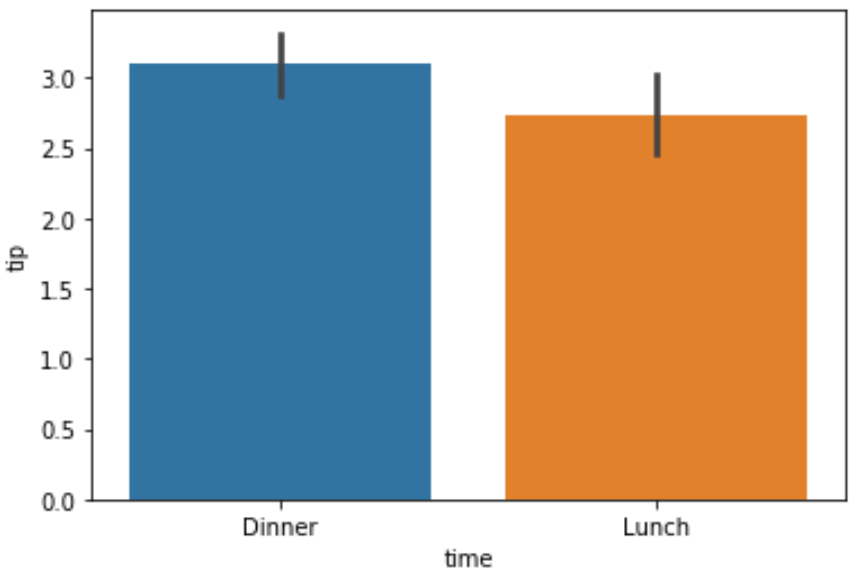

Customizing Order and Introducing Grouped Comparisons

When displaying categorical variables, the default ordering (usually alphabetical) is rarely the most effective narrative choice. For clarity and impact, we often need to impose a specific, logical sequence. The order argument provides granular control, allowing us to dictate the exact order in which the bars appear along the categorical axis.

If, for example, we wish to prioritize “Dinner” data by ensuring it appears before “Lunch” on the x-axis, we simply pass a Python list containing the desired sequence of categories to the order parameter. This capability is essential for aligning the visual structure of the barplot with the analytical story we intend to convey.

sns.barplot(x="time", y="tip", data=data, order=["Dinner", "Lunch"])

Creating Complex Grouped Barplots using the hue Argument

To transition from univariate comparisons to exploring multivariate relationships, we introduce the hue parameter. This powerful argument allows us to incorporate a third categorical dimension, generating a grouped barplot where bars are split and color-coded based on the values of the hue variable. This feature is invaluable for examining interactions or assessing differences between relevant subgroups within the primary categories.

In practice, if we want to dissect the mean tip based on the time of day (x-axis) and simultaneously differentiate the results by the customer’s sex, we assign the sex column to the hue argument. Seaborn efficiently handles the complex logistics of bar positioning, grouping, and automatic legend generation, creating a single, coherent plot.

sns.barplot(x="time", y="tip", hue="sex", data=data)

This resulting visualization enables immediate parallel comparisons: we can readily compare the average tips for males versus females during lunch, and then track how those averages shift during the dinner period.

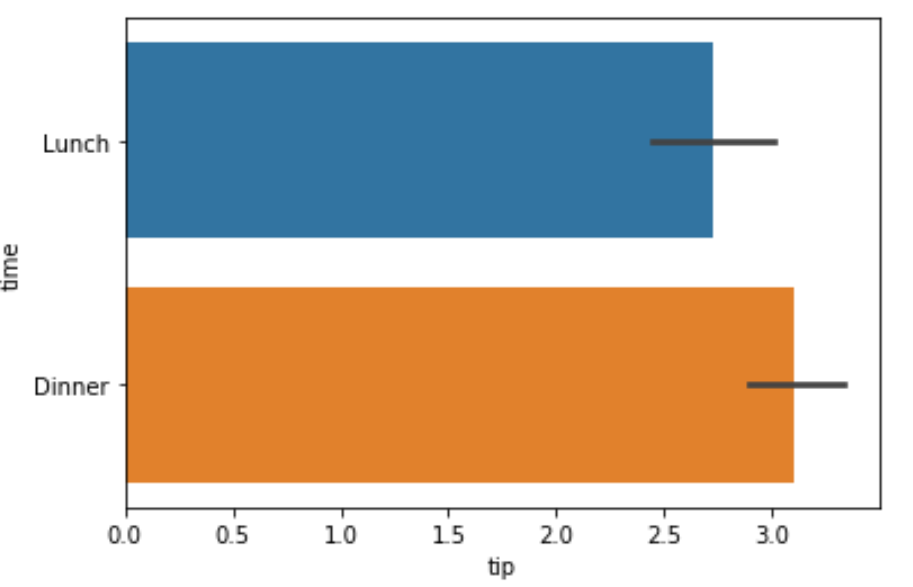

Adjusting Barplot Orientation: Horizontal for Enhanced Readability

The conventional barplot places categories along the horizontal (x) axis and the numerical measurement along the vertical (y) axis. While standard, this orientation can lead to significant problems—such as cramped or overlapping labels—when category names are particularly lengthy or when the dataset includes numerous unique groups. In these scenarios, switching to a horizontal barplot is essential for maintaining legibility and effective communication.

One of the elegant simplifications offered by Seaborn is that it does not require a separate function call for horizontal plots. Instead, the orientation is determined implicitly by the data types assigned to the axes. To create a horizontal visualization, the analyst simply ensures that the categorical variable (e.g., time) is passed to the y argument, and the numerical variable (e.g., tip) is passed to the x argument.

This reversal flips the entire visualization, positioning the categories vertically and the measurable values horizontally. This technique is highly effective when visualizing rankings or when complex labels require ample space for clear presentation.

sns.barplot(x="tip", y="time", data=data)

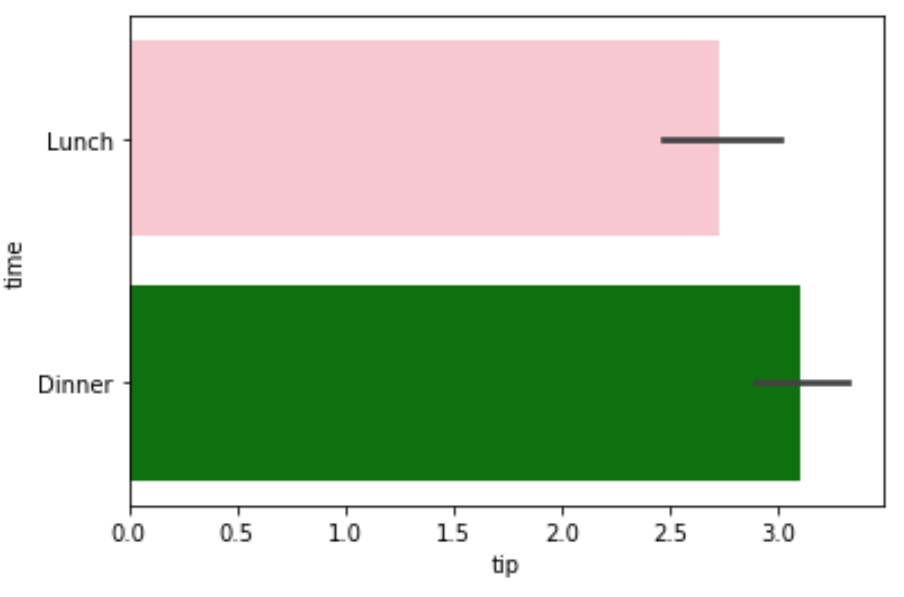

Modifying Colors and Aesthetics with Custom Palettes

The aesthetic appeal and clarity of a chart are paramount for effective data visualization. Seaborn provides extensive control over color schemes, primarily managed through the versatile palette argument. This capability allows users to move beyond the default blue scheme, applying specific colors that align with organizational branding, visual hierarchy, or accessibility best practices.

To implement custom colors, one can pass a Python list of color definitions—which can be standard CSS names (e.g., ‘pink’, ‘green’) or specific hex codes—directly to the palette argument. These colors are then applied sequentially to the bars based on their defined order in the dataset or as specified by the order argument.

When utilizing custom palettes, it is crucial to ensure that the number of colors provided precisely matches the number of unique categories being plotted. If, for instance, there are two time slots (‘Lunch’ and ‘Dinner’), supplying exactly two colors ensures clarity and consistency in the visual output. Furthermore, the palette argument can accept the name of any pre-defined Seaborn or Matplotlib color map, facilitating the use of sophisticated, perceptually uniform color schemes designed for statistical accuracy.

sns.barplot(x="tip", y="time", palette=["pink", "green"], data=data)

Summary of Barplot Best Practices

The barplot remains a foundational and highly effective tool for comparing aggregated numerical values across distinct groups. To ensure your visualizations are both effective and statistically sound, adherence to the following best practices is recommended:

• Always Include Context: Unless dictated by presentation constraints, retaining the confidence interval (CI) is vital, as it communicates the statistical reliability of your mean estimate. If the CI is removed, ensure the audience is aware that the bars represent only the point estimate.
• Order Matters for Narrative Flow: Utilize the order argument to logically sequence your categorical variables. Ordering categories by magnitude (e.g., highest mean to lowest mean) often results in the most intuitive and easy-to-read visual comparisons.
• Choose Orientation Wisely: If category labels are lengthy or if you are plotting ten or more unique groups, prioritize switching to a horizontal plot (y=category, x=numerical value) to drastically improve readability and label space management.
• Use Grouping Sparingly: While the hue parameter is powerful for grouped comparisons, excessive layering (e.g., attempting to group by more than three hue variables) can quickly lead to an overly complex and difficult-to-interpret visualization.

Mastering these basic techniques allows data analysts to leverage Seaborn to create clear, statistically informative, and visually appealing barplots, forming a foundational skill in modern Python-based data reporting.
