Make Heatmaps with Seaborn (With Examples)

A heatmap stands as an indispensable tool in modern data visualization. By leveraging varying shades of color intensity across a two-dimensional matrix, heatmaps efficiently communicate the magnitude of numerical data. This powerful visual representation allows data analysts to rapidly uncover crucial information—such as underlying patterns, strong correlations, and statistical outliers—that might otherwise be hidden within complex raw tabular data. They are particularly effective for displaying correlation matrices, identifying missing data points, or, as we demonstrate here, visualizing time-series aggregates broken down by specific categories.

This comprehensive tutorial guides you through the process of constructing high-quality heatmaps using the Python data science ecosystem. Our focus is specifically on Seaborn, a specialized library designed for statistical visualization. Seaborn significantly simplifies the creation of attractive and informative graphics by providing a high-level interface built upon the robust foundation of Matplotlib. We will utilize a standard, readily available built-in dataset to explore the core features, customization options, and best practices necessary for generating truly effective heatmaps.

Data Preparation: Loading and Pivoting the Dataset

The first critical step in generating any heatmap is ensuring the input data is correctly structured. Heatmaps fundamentally require data to be organized in a matrix format, where one variable defines the rows (index) and the other defines the columns. To illustrate this process, we will load the classic “flights” dataset, which documents the monthly number of airline passengers over a span of years.

Since the initial format of the “flights” data is long (month, year, passenger count), we must employ a reshaping operation. We use the powerful pivot function—a standard technique in Python data manipulation—to transform the data. In this transformation, the ‘month’ column will become the index (rows), the ‘year’ column will define the columns, and the ‘passengers’ column will supply the numerical values that the color gradient represents. This pivot operation is essential for translating sequential data into the necessary matrix structure for visualization.

The code block below provides the necessary sequence of commands: importing the Seaborn library, loading the dataset, executing the pivot operation to achieve the desired matrix, and finally, inspecting the resulting structure using the data.head() method to confirm the successful transformation.

# Import the Seaborn library, essential for statistical plotting
import seaborn as sns

# Load the built-in "flights" dataset
data = sns.load_dataset("flights")
# Pivot the data into a matrix suitable for heatmap plotting
data = data.pivot("month", "year", "passengers")

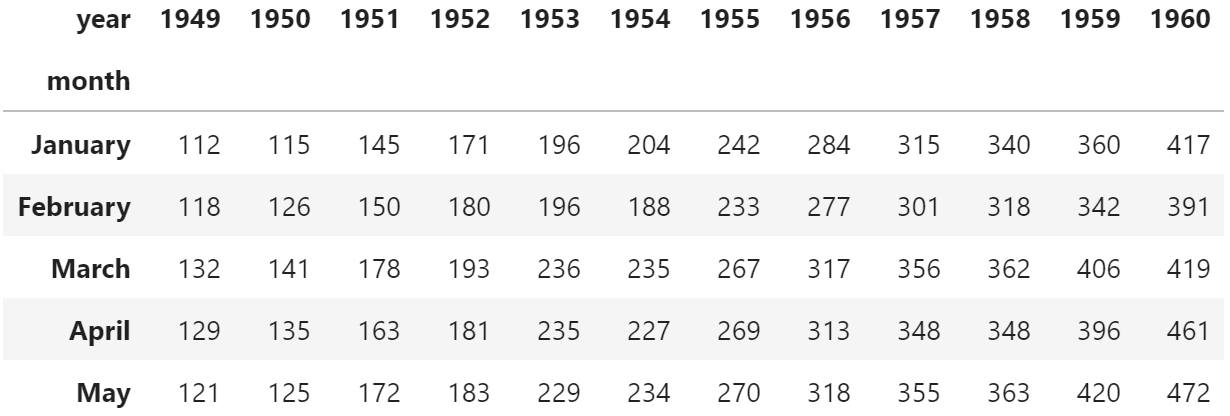

# Display the transformed matrix structure (first five rows)
data.head()

Generating the Initial Heatmap

Once the data is successfully transformed into the appropriate matrix format—a Python DataFrame that resembles a pivot table—the creation of the initial heatmap is exceptionally simple using Seaborn. The library’s high-level API requires only one primary function call: sns.heatmap(). This function automatically takes the prepared data matrix as its sole mandatory argument and immediately renders a default visualization.

The default visualization automatically inherits its axis labels from the index (rows) and columns of the input DataFrame. It applies a standard color mapping scheme, which provides an immediate, albeit unrefined, visual insight into the data distribution. This ease of use demonstrates why Seaborn is a favored tool for rapid statistical plotting.

The minimal syntax required to visualize the passenger traffic across months (y-axis) and years (x-axis) is shown here:

sns.heatmap(data)

In this basic output, the vertical axis represents the month, the horizontal axis denotes the year, and the intensity of color within each cell directly correlates with the number of passengers. Conventionally, darker shades indicate lower passenger volume, while lighter shades correspond to higher traffic volumes, although this relationship is dependent upon the specific default color palette selected by the library.

Adjusting the Size and Layout of the Visualization

While the default heatmap is functional, its size is often inadequate for detailed analysis or professional publication, especially when dealing with large datasets where labels risk overlapping. Since Seaborn is fundamentally an extension of Matplotlib, controlling the overall dimensions of the plot requires leveraging Matplotlib’s figure management capabilities.

To modify the dimensions, we must explicitly call the plt.figure() function before generating the heatmap. We specify the desired width and height (in inches) using the figsize argument. Increasing the figure size is a crucial step for improving the clarity and readability of the final image, preventing axis labels from becoming cluttered and ensuring individual cell visibility is maintained.

For demonstration, we will significantly enlarge the plot to 12 units wide by 8 units high. Note the required import of matplotlib.pyplot to access these figure management tools before setting the dimensions:

# Import Matplotlib for figure control
import matplotlib.pyplot as plt
# Define the desired figure size (width=12, height=8)
plt.figure(figsize = (12,8))

# Create the heatmap within the newly sized figure
sns.heatmap(data)

Enhancing Clarity by Customizing Color Schemes (cmap)

The choice of color map (or palette) is arguably the most impactful customization decision when creating a heatmap, as it directly influences how magnitude differences are perceived. If the default color scheme does not suit the data’s characteristics or the required aesthetic, the cmap argument within the sns.heatmap() function provides flexibility to specify nearly any color map available in the Matplotlib ecosystem.

For instance, utilizing the "Spectral" color map introduces a vibrant and diverging palette. Diverging palettes are designed to highlight data ranges that transition through a neutral point, making them excellent for emphasizing broad spectrums of values, such as the minimum and maximum passenger counts across the years. This sharp contrast enhances the visual identification of trends and extremes.

sns.heatmap(data, cmap="Spectral")

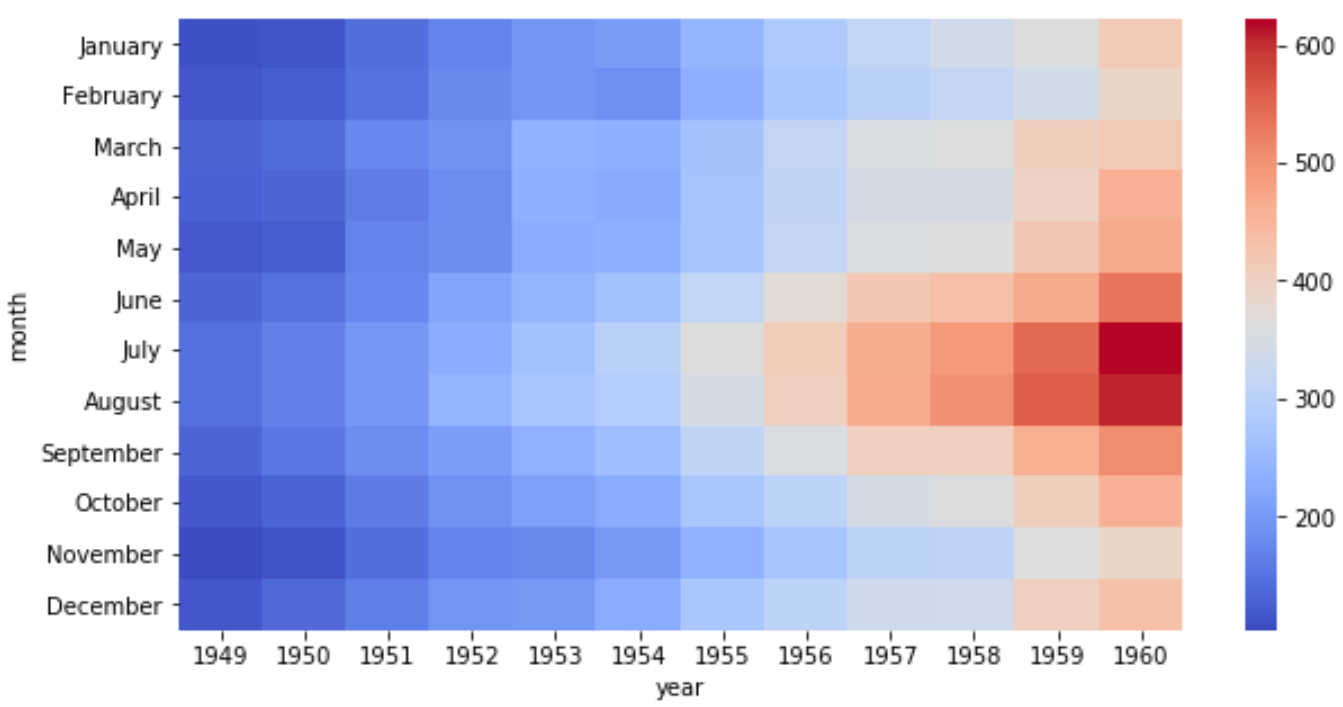

Alternatively, the "coolwarm" palette is a classic choice for showcasing deviation from a central point. This scheme smoothly transitions from cool blues (low values) to warm reds (high values), often passing through white or gray in the middle. Selecting an appropriate cmap based on the analytical goal—whether sequential (for ordered data), diverging (for deviation), or categorical—is key to effective visualization. A comprehensive list of available Matplotlib colormaps, including those optimized for accessibility, is available in the official documentation.

sns.heatmap(data, cmap="coolwarm")

Annotating the Heatmap for Precision

While color gradients provide excellent relative comparisons, displaying the exact numerical value within each cell of the heatmap is often necessary for precision. This feature, known as annotation, is activated by setting the annot argument to True within the sns.heatmap() function.

When annotations are enabled, meticulous control over the number formatting is essential for readability. This is managed using the fmt argument, which accepts standard Python string formatting codes. For our passenger count data, using "d" ensures that the values are displayed as clean integers (digits), preventing unnecessary decimal places or confusing scientific notation. This attention to formatting significantly improves the clarity of discrete count data.

Furthermore, the annot_kws argument provides fine-grained control over the appearance of the annotation text itself. We can pass a dictionary of keyword arguments to adjust properties such as font size, color, or style. In the example below, we set the font size to 13, ensuring the numbers are easily legible even within the confines of smaller cells, balancing the visual impact of the color with the precision of the numerical data.

sns.heatmap(data, annot=True, fmt="d", annot_kws={"size":13})

Streamlining the Visualization: Modifying the Colorbar

The colorbar serves a crucial purpose by mapping color intensity back to the precise data values, acting as the legend for the heatmap. However, there are scenarios where the colorbar may be redundant or visually distracting—for instance, when the heatmap is already fully annotated (as in the previous step), or when the range of values is clearly established elsewhere in the report.

The visibility of this legend is managed via the cbar argument within the sns.heatmap() function. By default, cbar is set to True. To achieve a streamlined, matrix-style visualization that focuses exclusively on the relative color differences between cells, we can simply set cbar to False.

sns.heatmap(data, cbar=False)

Removing the colorbar results in a cleaner graphical output, freeing up valuable space. Analysts must always ensure that if this component is omitted, the audience possesses adequate context—such as descriptive statistics or clear numerical annotations—to accurately interpret the range of values represented by the colors.

Conclusion and Further Exploration

Mastering these fundamental customization options is key to leveraging the full potential of Seaborn. By effectively utilizing parameters such as figsize (via Matplotlib), cmap for color selection, annot for numerical clarity, and cbar for aesthetic control, users can move beyond basic default plots to create sophisticated and highly informative heatmaps tailored precisely to their analytical needs.

These techniques are fundamental skills for anyone serious about statistical analysis, data science, or professional graphical presentation using the Python programming language. Effective visualization transforms complex data into accessible insights, driving informed decision-making.

To deepen your knowledge of advanced statistical graphics and explore more intricate visualization techniques, we strongly recommend consulting the official documentation for both Seaborn and Matplotlib. These resources offer a wealth of detailed tutorials designed to transition users from basic plotting concepts to professional-grade statistical reporting.

Find more Seaborn tutorials on the official documentation site.
