Learning to Order Boxplots on the X-Axis Using Seaborn

When constructing statistical visualizations, particularly those involving categorical comparisons using the powerful Seaborn library in Python, the arrangement of elements is paramount to clarity. By default, Seaborn often organizes categories alphabetically along the x-axis when generating boxplots. However, this arbitrary ordering rarely offers the most insightful view into data distributions, potentially obscuring crucial trends or relationships that span multiple groups. To maximize the impact and interpretability of your visual data presentation, mastering the control over this categorical sequence is essential.

The ability to customize the display order is not merely a stylistic choice; it is a fundamental component of effective data visualization. For instance, ordering by chronological sequence, inherent hierarchy, or a calculated performance metric can immediately transform a complicated plot into a clear narrative. This guide provides a comprehensive exploration of the two most robust and flexible methods available within Seaborn for achieving precise control over your boxplot arrangement: implementing a static custom sequence or generating a dynamic sequence based on statistical aggregation.

We will demonstrate how to leverage both explicit lists and calculated values, enabling you to tailor your visualizations to any analytical requirement. Understanding these techniques empowers data practitioners to move beyond default settings and produce graphs that are not just accurate, but also optimally structured for drawing meaningful conclusions and communicating complex information efficiently to an audience.

The Analytical Power of Boxplots

A boxplot, sometimes referred to as a box-and-whisker plot, serves as an indispensable tool for summarizing the distribution of a continuous variable across one or more categories. It condenses complex data variability into a concise visual representation derived from a powerful five-number summary. These five numbers include the minimum value, the first quartile (Q1, representing the 25th percentile), the median (Q2, the 50th percentile), the third quartile (Q3, the 75th percentile), and the maximum value, excluding extreme outliers. The structure of the plot immediately reveals the central tendency (via the median line) and the spread of the middle 50% of the data, which is contained within the box itself, known as the Interquartile Range (IQR).

Crucially, the whiskers extend outward to capture the remaining data points that are not considered outliers, offering a view of the overall range and symmetry of the distribution. Any points falling outside the whiskers are typically plotted individually, clearly identifying potential anomalies that warrant further investigation. Because boxplots are so effective at simplifying these distributional properties, they are frequently used in comparative data analysis to quickly gauge differences in location, spread, and skewness between distinct groups.

When multiple categories are present, the logistical ordering of these comparative boxplots on the x-axis becomes critical. An unsorted or alphabetically ordered plot may force the viewer to jump between disparate categories, hindering direct comparison. Conversely, a systematic arrangement—such as ordering by increasing median value or chronological progression—immediately structures the comparison, allowing the audience to perceive trends, identify top performers, or trace evolutionary changes effortlessly. This methodical approach elevates the plot from a mere presentation of statistics to a compelling analytical tool.

Preparing the Data Environment in Pandas

Before diving into Seaborn plotting methods, we must establish a foundational dataset using the pandas library, which is the standard mechanism for data manipulation in Python’s data science ecosystem. The dataset we will use for demonstration purposes simulates quantitative data—specifically, points scored by athletes—categorized across three distinct teams (A, B, and C). This scenario provides a perfect, practical setting to showcase how various ordering strategies impact the visualization of performance differences across categorical variables.

The first step involves importing pandas and constructing our example structure, ensuring the data is properly formatted into a two-column pandas DataFrame. One column (‘team’) represents the categorical variable we wish to order on the x-axis, and the second column (‘points’) holds the continuous numerical data whose distribution we intend to visualize using boxplots. This setup is typical for comparative statistical plotting.

import pandas as pd

# Create the sample DataFrame simulating points scored by teams
df = pd.DataFrame({'team': ['A', 'A', 'A', 'A', 'A', 'B', 'B', 'B',
                            'B', 'B', 'C', 'C', 'C', 'C', 'C'],
                   'points': [3, 4, 6, 8, 9, 10, 13, 16, 18, 20, 8, 9, 12, 13, 15]})

# Displaying the initial structure of the DataFrame
print(df.head())

  team  points
0    A       3
1    A       4
2    A       6
3    A       8
4    A       9

The resulting output confirms the successful creation of the pandas DataFrame, which now contains the necessary ‘team’ and ‘points’ variables. This dataset provides the necessary foundation for demonstrating how Seaborn interacts with the categorical variable’s sequencing. The default alphabetical order would display the teams as A, B, C; however, the following methods will show how to override this behavior using both manual and programmatic approaches.

Method 1: Implementing Custom, Explicit Ordering

The first and most direct technique for controlling the category sequence is through explicit custom ordering. This method is invaluable when the logical arrangement of categories is predefined, often dictated by external business rules, chronological sequence, or a specific hierarchy that does not correspond to numerical values or alphabetical names. Utilizing this approach guarantees that the visual narrative aligns perfectly with a predetermined presentation requirement.

Within the sns.boxplot() function, this control is managed by the order parameter. This parameter accepts a standard Python list containing the exact names of the categories from your dataset, specified precisely in the sequence you desire them to appear from left to right on the x-axis. If a category is omitted from this list, it will be excluded from the final visualization, providing an additional layer of data control.

sns.boxplot(x='group_var', y='values_var', data=df, order=['A', 'B', 'C'])

To illustrate this approach, let us assume an analytical context where Team C needs to be compared against the performance of Team A and Team B, requiring it to be placed first in the visualization sequence. We define the custom order as [‘C’, ‘A’, ‘B’] and pass this list directly to the order argument within the sns.boxplot() call. This manual specification offers absolute certainty regarding the final layout, regardless of the underlying data values or intrinsic alphabetical structure.

import seaborn as sns

# Create boxplots with custom order [C, A, B]
sns.boxplot(x='team', y='points', data=df, order=['C', 'A', 'B'])

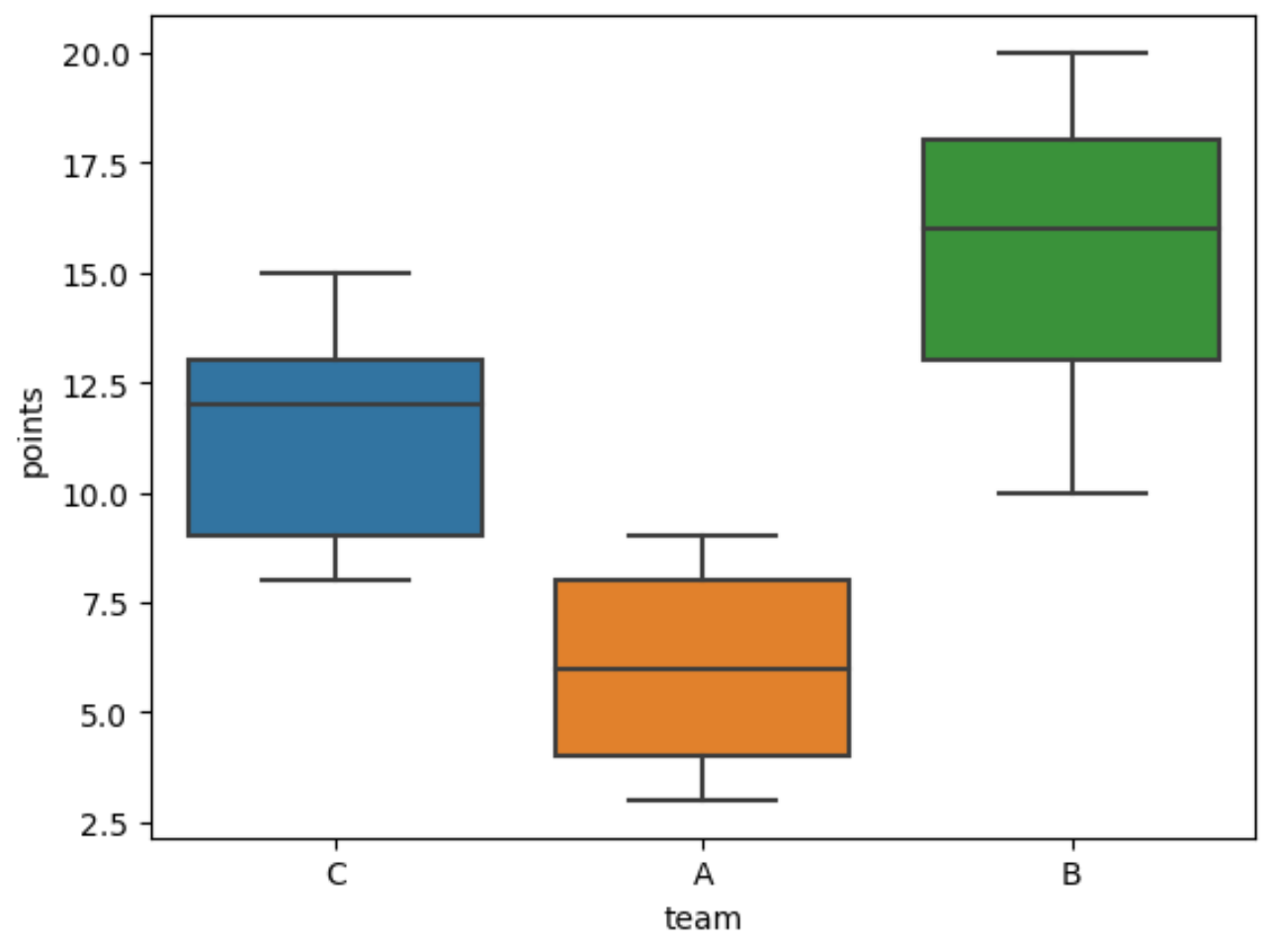

As clearly demonstrated in the resulting plot, the boxplot for Team C now occupies the leftmost position, followed precisely by Team A and then Team B. This confirms the efficacy of the order parameter in enforcing a static, non-data-driven sequence. This method is exceptionally useful for reports and presentations where the visual flow must adhere to a specific organizational structure defined outside the scope of statistical computation.

Method 2: Dynamic Ordering Based on a Statistical Metric

The second, more analytical method for ordering boxplots involves leveraging a statistical metric to dynamically determine the sequence. This technique is highly effective for exploratory data analysis, as it automatically ranks categories based on their performance or central tendency, such as the mean, median, or summation. By ordering the plot based on a calculated value, you enable the visualization to immediately convey a ranking, making it effortless to identify the highest or lowest performing groups.

Implementing dynamic ordering requires a preliminary step using pandas to calculate and sort the desired metric. This involves grouping the DataFrame by the categorical variable using groupby(), applying an aggregation function (like .mean()), and then sorting the resulting values using .sort_values(). The index of the resulting sorted Series, which contains the category names in the correct ranked order, is then passed to the order parameter of sns.boxplot().

group_means=df.groupby(['group_var'])['values_var'].mean().sort_values(ascending=True)

sns.boxplot(x='group_var', y='values_var', data=df, order=group_means.index)

Applying this logic to our team points data, we first calculate the mean points for each team and sort them in ascending order. This preparation ensures that the boxplots will be arranged from the team with the lowest average score to the team with the highest average score, providing an immediate visual ranking based on central tendency. This programmatic approach scales effortlessly, making it superior for datasets containing dozens or hundreds of categories where manual ordering would be impractical.

import seaborn as sns

# calculate mean points by team and sort ascending
mean_by_team = df.groupby(['team'])['points'].mean().sort_values(ascending=True)

# create boxplots ordered by mean points (ascending)
sns.boxplot(x='team', y='points', data=df, order=mean_by_team.index)

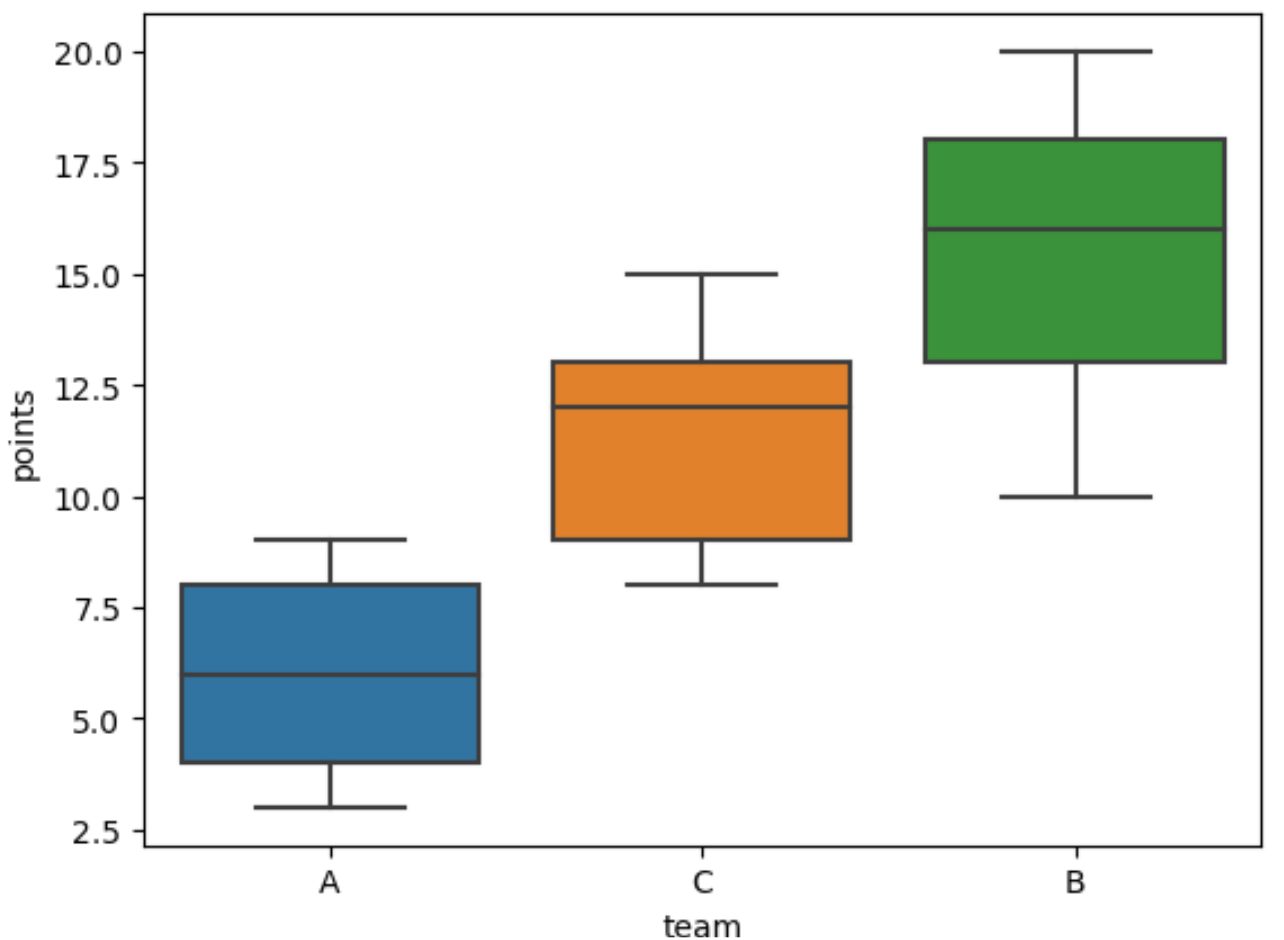

The visualization generated above clearly reflects the dynamic ordering, with teams ranked sequentially based on their average performance. If the objective is to highlight the top performers first, the sorting direction can be easily reversed by setting the ascending parameter to False during the .sort_values() operation, demonstrating the high degree of flexibility offered by this programmatic approach.

import seaborn as sns

# calculate mean points by team and sort descending
mean_by_team = df.groupby(['team'])['points'].mean().sort_values(ascending=False)

# create boxplots ordered by mean points (descending)
sns.boxplot(x='team', y='points', data=df, order=mean_by_team.index)

With the sorting parameter adjusted, the boxplots are now arranged in descending order of the mean points, presenting the highest performing teams on the left of the x-axis. Furthermore, this dynamic ordering method is entirely adaptable; to order by the median, which is often preferred due to its robustness against outliers, one simply replaces the .mean() aggregation function with .median() within the pandas calculation step. This versatility ensures that your visualization always aligns with the most analytically relevant central tendency measure.

Strategic Selection of Ordering Techniques

The choice between custom and metric-based ordering hinges upon the primary objective of your visualization. Each technique offers distinct communicative advantages that should be carefully weighed based on whether your goal is narrative presentation or exploratory discovery. Understanding these trade-offs is crucial for maximizing the effectiveness of your data visualization efforts.

Custom ordering is the superior choice when the categorical variable possesses an inherent structure that must be maintained, such as sequential time periods (e.g., quarters, fiscal years), natural size gradients (small, medium, large), or established organizational hierarchies. While it demands manual input, its strength lies in absolute control, ensuring that the visual display reinforces a known external structure or a specific argument. This method is generally favored in final reporting stages where the sequence must be static and predictable for consistency across multiple charts or documents.

In contrast, dynamic, metric-based ordering excels in scenarios involving exploratory data analysis, where the primary goal is to uncover and highlight performance trends. By sorting categories based on a calculated value like the median or mean, the plot instantly ranks the groups, allowing analysts to quickly identify high-impact categories or anomalies. This programmatic approach is significantly more efficient and scalable for large datasets or analyses that involve iterative changes, ensuring the visual sequence remains analytically sound even as the underlying data evolves.

Conclusion and Further Exploration

Achieving deliberate control over the arrangement of boxplots on the x-axis is an indispensable skill for generating sophisticated and impactful Seaborn graphs. Whether you choose the deterministic precision of a custom list or the dynamic ranking capabilities of a metric-based calculation, both methods provide the flexibility necessary to transform raw data plots into insightful comparative narratives. By thoughtfully applying these techniques, data practitioners can dramatically improve the interpretability of their visualizations, ensuring that key comparisons and distributional differences are immediately apparent to the audience.

We strongly recommend practicing these ordering methodologies across diverse datasets, experimenting with different metrics like the median versus the mean to observe how the visual ranking shifts. A deep understanding of how to manage categorical order is a cornerstone of robust data analysis, ensuring your boxplots serve as powerful and accurate tools for distributional assessment and group comparison.
