Learning to Identify and Remove Outliers in Seaborn Boxplots

The Critical Role of Outliers in Statistical Graphics

In the realm of data visualization, tools like the boxplot (or box-and-whisker plot) stand out as fundamental instruments for summarizing the distribution of quantitative data. A boxplot efficiently displays key statistical measures, including the median, the spread defined by the quartiles, and crucially, the presence of potential extreme values. These extreme values, known as outliers, are data points that deviate significantly from other observations, often falling outside the expected range of variability within the dataset.

The mathematical definition of an outlier in the context of a boxplot is rigorous. Data points are typically flagged as outliers if they lie beyond 1.5 times the IQR (Interquartile Range) above the third quartile (Q3) or below the first quartile (Q1). The IQR itself represents the middle 50% of the data (Q3 – Q1). While outliers can sometimes signal valuable phenomena, such as peak performance or rare events, they frequently result from measurement errors, data corruption, or genuine anomalies that skew the overall statistical picture.

Because outliers can dramatically impact statistical summaries and visual perception, data analysts must possess precise control over how these points are displayed. An extreme outlier, for instance, might force a visualization package to compress the central box and whiskers, making it nearly impossible to observe subtle variations within the main body of the data. This is where advanced libraries like Seaborn, built on the strength of Python’s Matplotlib ecosystem, provide essential parameters for customizing visual output, allowing us to manage the prominence of these extreme observations effectively and produce a cleaner, more focused data narrative.

Total Suppression: Controlling Outlier Visibility with showfliers

When the primary objective of a statistical graphic is to emphasize the central tendency and dispersion of the majority of the data, completely removing the visual representation of outliers becomes necessary. The Seaborn library provides a straightforward and powerful mechanism for this purpose: the showfliers argument within the seaborn.boxplot() function. By leveraging this boolean parameter, analysts can dictate whether or not data points identified as statistical outliers should be rendered on the plot.

Setting showfliers to False instructs Seaborn to calculate the location of the whiskers based on the 1.5 * IQR rule, but it intentionally omits drawing the individual markers (often diamonds or circles) that represent observations outside these boundaries. The default value is True, meaning outliers are shown unless explicitly disabled. This removal cleans up the graphic, ensuring that the visual scale is optimized for the central distribution—the box and whiskers—and preventing distant points from compressing the visualization’s core components. This method is particularly recommended when dealing with datasets where anomalies are so far removed from the norm that their inclusion renders the main data structure almost illegible.

The implementation is simple, requiring only the addition of this parameter to the function call. This modification transforms the boxplot into a representation purely focused on the quartiles and the range contained within the whiskers, delivering immediate visual clarity regarding the typical spread of the variables under study.

The following snippet illustrates how to utilize this argument within a typical Seaborn plotting sequence, resulting in a boxplot visualization devoid of any discrete outlier markers:

sns.boxplot(x='variable', y='value', data=df, showfliers=False)

Granular Control: Adjusting Outlier Appearance with fliersize

While complete removal of outliers using showfliers=False solves the issue of visual compression, there are analytical situations where acknowledging the existence of these extreme values remains paramount, even if they shouldn’t dominate the graphic. For this nuanced requirement, Seaborn offers the fliersize parameter. This argument allows the user to adjust the physical size of the marker used to represent the outlier data points in the boxplot.

The fliersize argument accepts an integer input, which corresponds directly to the size (in points) of the marker used for the extreme values. By default, this value is set to 5, which usually results in highly visible, standard-sized markers. By reducing this value—for instance, setting it to 3 or even 1—the outliers become subtle background cues rather than prominent features. Conversely, increasing the fliersize can be used to intentionally draw greater attention to particularly critical extreme observations. This level of customization allows the data scientist to manage the visual hierarchy of the plot, ensuring that the central distribution receives the necessary focus while still preserving the integrity of the full dataset display.

This flexibility is crucial for exploratory data visualization where the analyst needs to confirm whether outliers exist without letting them distort the scale. Using fliersize offers a middle ground between total suppression and default prominence, enabling a visualization that is both accurate and aesthetically balanced.

The code below demonstrates how to decrease the size of the outlier markers, making them less visually disruptive while ensuring their presence is still registered by the viewer:

sns.boxplot(x='variable', y='value', data=df, fliersize=3)

Implementation Example: Preparing Data for Boxplot Visualization

To solidify the understanding of these parameters, we will walk through a complete, hands-on example using the Python data science stack. Our scenario involves analyzing hypothetical performance data, specifically points scored by players across three distinct competitive teams (A, B, and C). The goal is to compare the distribution of scores for these teams using boxplots and demonstrate the impact of outlier management.

Before visualization can commence using Seaborn, the data must be correctly structured. Seaborn’s functions, especially those designed for comparing distributions across multiple categories (like boxplot), typically require the input data to be in a long format. This format mandates that all numerical observations (Points) reside in a single column, and the corresponding categorical labels (Team) reside in another column. If the source data is provided in a “wide” format (where each column represents a team), transformation is necessary.

We utilize the powerful pandas DataFrame structure for data handling and employ the melt() function to perform this crucial reshaping operation. The melting process takes the columns representing teams (A, B, C) and stacks them into a single variable column (‘variable’) and a single value column (‘value’), ensuring the data is ready for multi-group plotting in Seaborn. Note the deliberate inclusion of extreme scores in our initial data to guarantee the presence of clear outliers.

The following Python code executes the creation of the wide DataFrame and then transforms it into the necessary long format using the melt function:

import pandas as pd

#create DataFrame with intentional outliers
df = pd.DataFrame({'A': [5, 7, 7, 9, 12, 78],
                   'B': [8, 8, 9, 13, 15, 17],
                   'C': [1, 2, 2, 4, 5, 60]})

#melt data frame into long format suitable for Seaborn
df_melted = pd.melt(df)

#view head of DataFrame to confirm structure
print(df_melted.head())

  variable  value
0        A      5
1        A      7
2        A      7
3        A     19
4        A     22

After preparing the data, we establish a visual baseline by creating the default boxplot. This initial plot, generated without any specific outlier arguments, will clearly display all identified outliers, allowing us to appreciate the visual contrast once we apply our suppression or resizing techniques.

import seaborn as sns

#create boxplot to visualize distribution of points by team (Default: includes all outliers)
sns.boxplot(x='variable', y='value', data=df_melted)

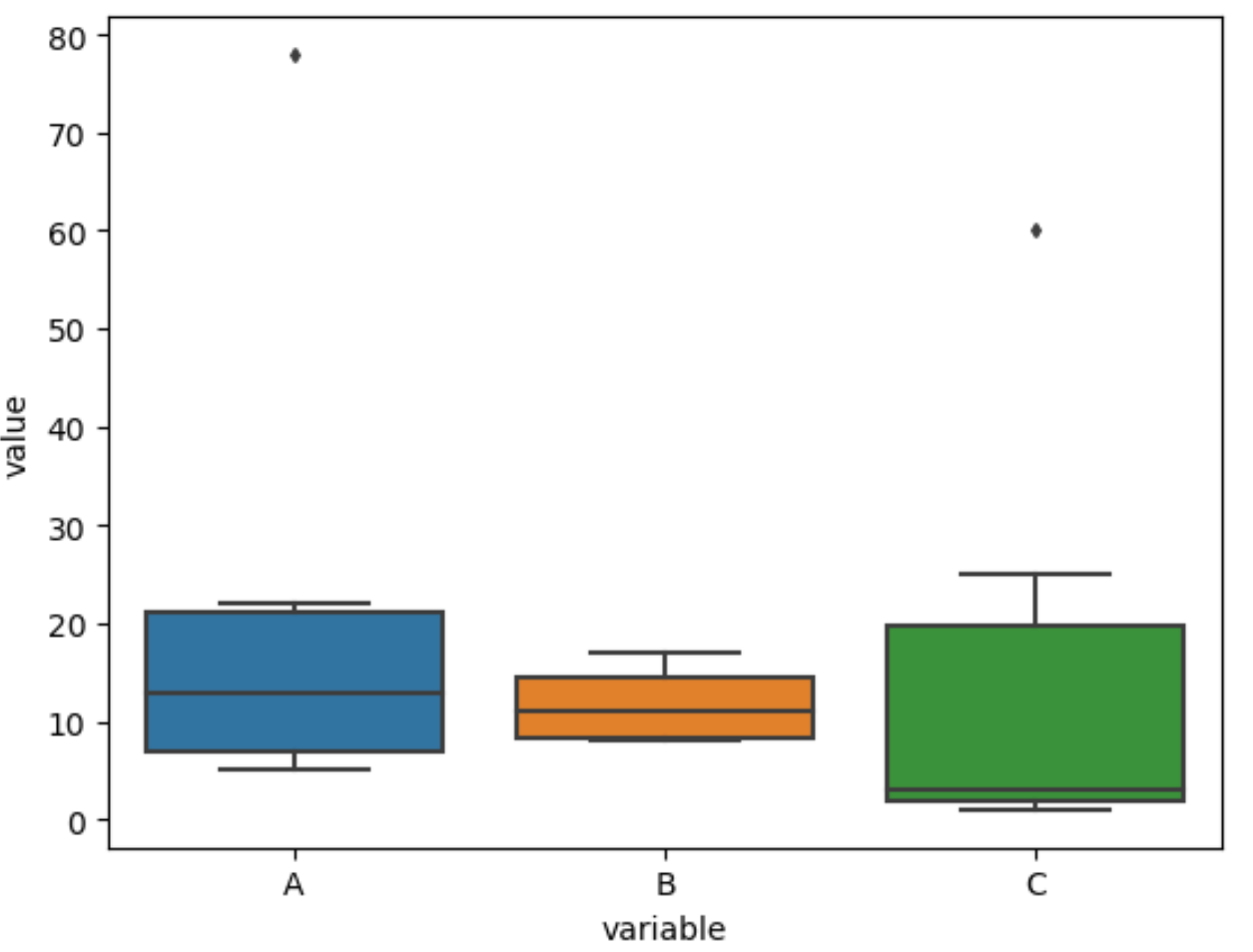

As demonstrated in the initial figure, Seaborn uses distinct marker shapes to isolate observations that fall outside the standard whisker length (1.5 times the IQR). In our example, both Team A and Team C exhibit significant outliers, which, if left unmodified, might visually overshadow the core statistical differences between the teams.

Step-by-Step Outlier Management

Our first operational step is to completely suppress the rendering of the identified outliers. This technique is invaluable when presenting data to a non-technical audience or when the variation within the main dataset is the primary focus. By setting showfliers to False, we instruct Seaborn to calculate the whiskers based on the traditional IQR rule but simply refrain from plotting the extreme points themselves.

This modification has a profound effect on the resulting visualization. The vertical scale of the plot adjusts automatically to encompass only the range from the lowest whisker to the highest whisker, excluding the distant outliers. This scaling change often results in a visually expanded central boxplot, making it easier to compare the medians and the subtle differences in the interquartile ranges across the groups. This action effectively filters the visual noise caused by extreme values, promoting a cleaner interpretation of the typical data distribution.

The implementation is shown below, followed by the resulting graphic:

import seaborn as sns

#create boxplots and remove outliers using showfliers=False
sns.boxplot(x='variable', y='value', data=df_melted, showfliers=False)

The resulting plot confirms that all previously visible outlier markers have been eliminated. Notice how the vertical axis automatically rescales, allowing the viewer to focus entirely on the tight clustering and spread of the non-extreme data points for Teams A, B, and C. This methodology is paramount when the goal is to define the “normal” operating range of a system or process.

Alternatively, if total suppression is too aggressive for your analytical needs, the alternative is to minimize the visual weight of the outliers using fliersize. This approach maintains the integrity of the full dataset display while ensuring the extreme values do not dominate the visual field. We will adjust the marker size from the default value of 5 down to 3.

By setting fliersize=3, the diamond markers become noticeably smaller and less saturated, allowing the box and whiskers to take visual precedence. Importantly, unlike showfliers=False, using fliersize does not alter the vertical axis scale; the plot must still accommodate the maximum and minimum values, including the outliers. Therefore, while the markers are less intrusive, the overall scale may still be stretched if the outliers are extremely distant. This technique is often preferred in peer-reviewed publications or internal reports where data transparency requires all calculated points to be represented.

import seaborn as sns

#create boxplots and adjust markers for outliers to be smaller (fliersize=3)
sns.boxplot(x='variable', y='value', data=df_melted, fliersize=3)

In this modified boxplot, you can observe that the marker sizes for the outliers are significantly smaller compared to the default. This allows them to remain visible without drawing excessive attention away from the core distribution of points for each team. You are free to adjust the value for the fliersize argument to any integer that best suits your visualization needs, making the markers as subtle or as prominent as desired.

Conclusion: Achieving Visual Balance in Statistical Reporting

Effective data visualization hinges on the ability to present complex statistical information clearly and without unnecessary visual distortion. In the context of boxplots, managing the representation of extreme values is perhaps the most critical customization task. Whether the analytical goal demands the complete removal of these data points using the showfliers=False parameter to optimize the scale, or requires a subtler representation achieved through adjusting the fliersize, the Python ecosystem and its powerful statistical libraries offer comprehensive control.

Mastery of these simple yet impactful arguments empowers data professionals to tailor their graphics precisely to their audience and analytical objectives. By preventing extreme scores from visually skewing the central distribution, we ensure that the focus remains on the typical patterns and underlying variability within the majority of the data. This flexibility is essential for creating highly customized, insightful, and authoritative statistical graphics that drive better decision-making.

For more in-depth information, including details on customizing marker shape, color, and advanced styling options within the boxplot function, users should consult the complete documentation provided by the official developers:
seaborn.boxplot() Official Documentation.
