Chi-Square Test of Independence in Excel: A Step-by-Step Guide

The Chi-Square Test of Independence stands as a cornerstone in statistical analysis, widely employed across diverse disciplines such as social sciences, medical research, and market analysis. Its primary purpose is to rigorously determine if an association exists between two distinct categorical variables. In essence, this powerful tool allows researchers to assess whether the classification or outcome of one variable is statistically dependent upon the classification of the other.

This test becomes essential when working with frequency data that is neatly organized into a contingency table, where observations are distributed across mutually exclusive categories. Before commencing the practical calculations within Microsoft Excel, it is vital to grasp the core principle: the Chi-Square test operates by comparing the actual observed frequencies collected from the sample data against the frequencies that would be theoretically expected if the two variables were truly independent within the population.

This comprehensive tutorial is designed to provide a step-by-step methodology for executing a complete Chi-Square Test of Independence using only Excel’s native formulas and functionalities. While dedicated statistical software packages often automate this process, understanding the underlying manual steps in Excel offers invaluable insight into the statistical principles at play, ensuring accuracy and confidence when manipulating raw data. We will utilize a robust, practical example to meticulously illustrate each stage of the analysis, starting from hypothesis formation and culminating in the interpretation of the resulting p-value.

A Practical Case Study: Investigating Association Between Categorical Data

To clearly demonstrate the practical application and utility of the Chi-Square test, we will analyze a common scenario faced in survey research: investigating whether a voter’s gender is statistically associated with their preferred political party. We are testing the hypothesis that there might be a significant dependency between these two specific categorical variables. To conduct this analysis, a simple random sample of 500 eligible voters was surveyed regarding their political affiliation, categorized into Republican, Democrat, and Independent.

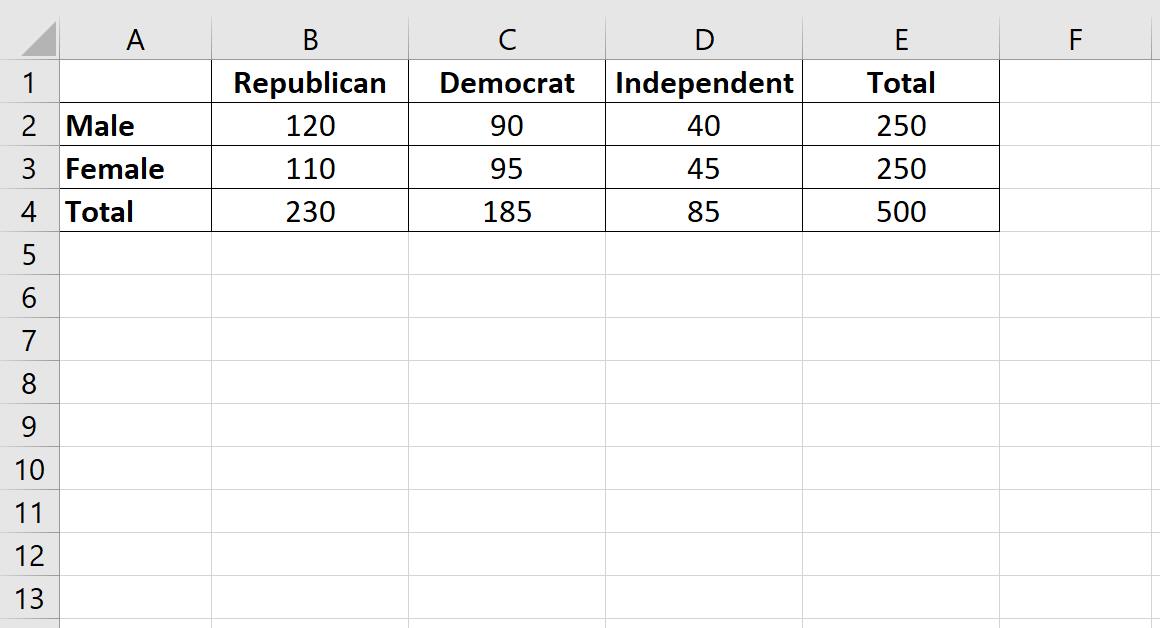

The outcomes of this survey are systematically summarized below in a standard contingency table. This table, which presents the raw counts or observed frequencies, serves as the fundamental bedrock for our entire statistical analysis. It is from these counts that we derive our expected values and ultimately calculate the test statistic. Analyzing these observed counts allows for an initial visual inspection of potential trends before the data is subjected to the rigorous process of statistical scrutiny required by the Chi-Square method.

The subsequent five-step methodology provides a detailed roadmap for performing the Chi-Square test of independence directly within Excel, enabling us to formally determine if gender and political party preference are statistically associated.

Step 1: Establishing the Statistical Hypotheses

The initial and perhaps most crucial step in any inferential statistical analysis is the formal establishment of the null and alternative hypotheses. These two statements precisely articulate the relationship, or lack thereof, that we intend to test. The eventual outcome of the Chi-Square calculation will determine whether we possess sufficient statistical evidence to reject the foundational assumption of independence that the test begins with.

In the specific context of our political preference survey example, the hypotheses are clearly structured as follows. They represent two mutually exclusive possibilities regarding the relationship between gender and party affiliation:

• H₀ (Null Hypothesis): Gender and political party preference are entirely independent. This posits that there is no meaningful association or relationship between the two variables within the broader population.
• H₁ (Alternative Hypothesis): Gender and political party preference are not independent. This is the conclusion reached when there is sufficient evidence to suggest a statistically significant association exists between the two variables.

The statistical decision to reject or fail to reject H₀ hinges entirely upon the calculated p-value (Link 2/5). Should the p-value fall below the predetermined significance level (conventionally denoted as α = 0.05), we reject the Null Hypothesis in favor of the Alternative Hypothesis, thereby concluding that the variables exhibit a genuine association.

Step 2: Calculating the Expected Frequencies

Once the hypotheses are formally defined, the next necessary phase involves calculating the expected values (E) for every cell in the contingency table. The expected value represents the frequency count we would theoretically anticipate observing if the null hypothesis (H₀) of perfect independence were strictly true. These calculated values serve as the critical statistical benchmark against which our actual observed data (O) will be meticulously compared.

The calculation of the expected frequencies requires the use of marginal totals—the row sums and column sums—in conjunction with the grand total (the overall sample size). The formula used for every cell is universal and straightforward:

Expected value = (Row Total × Column Total) / Grand Total.

For example, to determine the expected number of Male Republicans in our sample, we must multiply the total number of Males surveyed (Row Sum = 230) by the total number of Republicans (Column Sum = 250) and subsequently divide the product by the total sample size (Table Sum = 500). This calculation yields the result: (230 × 250) / 500 = 115. It is imperative that this exact process be repeated systematically across all cells in the table to construct a complete matrix of expected frequencies.

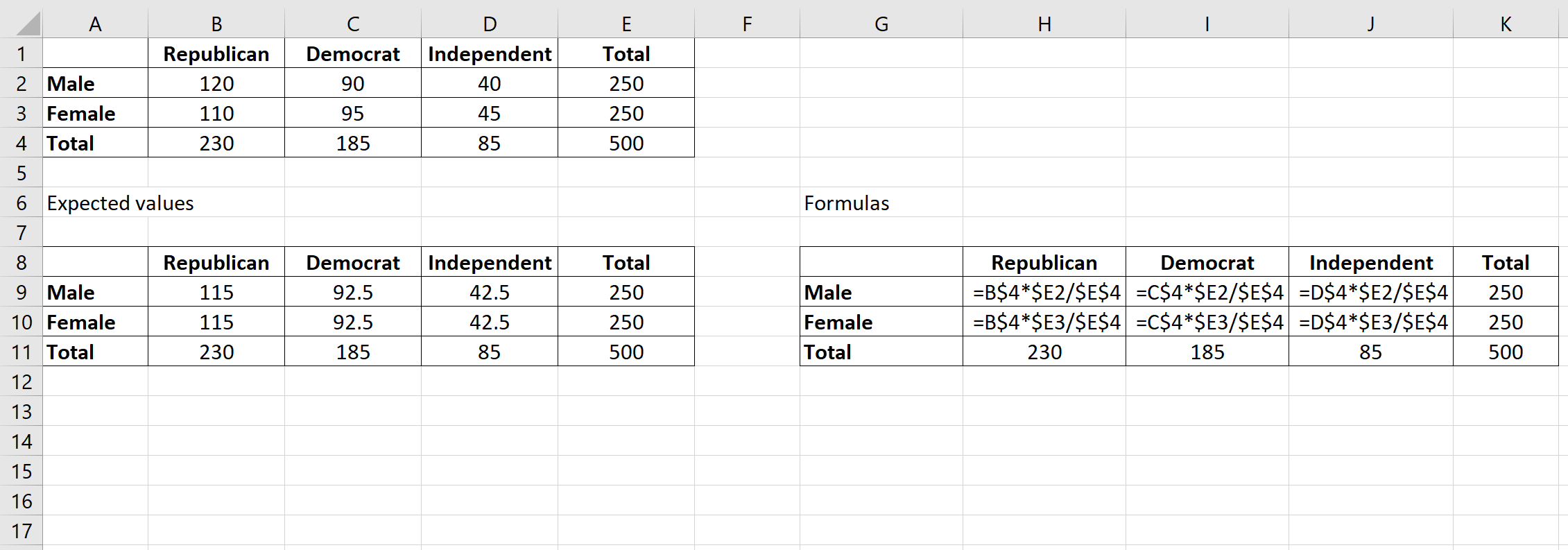

The efficient generation of the full expected frequency table using Excel is demonstrated below, highlighting the software’s ability to manage these calculations rapidly. It is important to note a crucial mathematical property of the Chi-Square test: the marginal totals (row and column sums) for the expected table must always precisely match the corresponding totals for the observed table.

Step 3: Quantifying the Difference Between Observed and Expected Values

The mathematical heart of the Chi-Square test statistic relies in quantifying the magnitude of the discrepancy between the observed frequencies (O) and the expected frequencies (E). A substantial difference between O and E suggests that the observed sample data deviates markedly from the pattern predicted by independence, thereby accumulating strong evidence against H₀. Conversely, minimal differences indicate support for the null hypothesis.

To measure and standardize this discrepancy for each individual cell, we calculate the standardized squared difference, which is defined by the following formula: (O – E)² / E. The operation of squaring the difference ensures that all discrepancies contribute positively to the final total statistic, regardless of whether the observed frequency (O) is greater or smaller than the expected frequency (E). Furthermore, dividing by E serves to standardize the difference, preventing cells that inherently possess larger expected counts from disproportionately inflating the final test statistic.

In this crucial stage, we must meticulously calculate the contribution of every cell within the contingency table to the overall final Chi-Square value. For each calculation, we need to clearly identify two components:

• O: The original observed value taken directly from the sample data collected.
• E: The corresponding expected value calculated in the preceding Step 2, under the assumption of perfect independence.

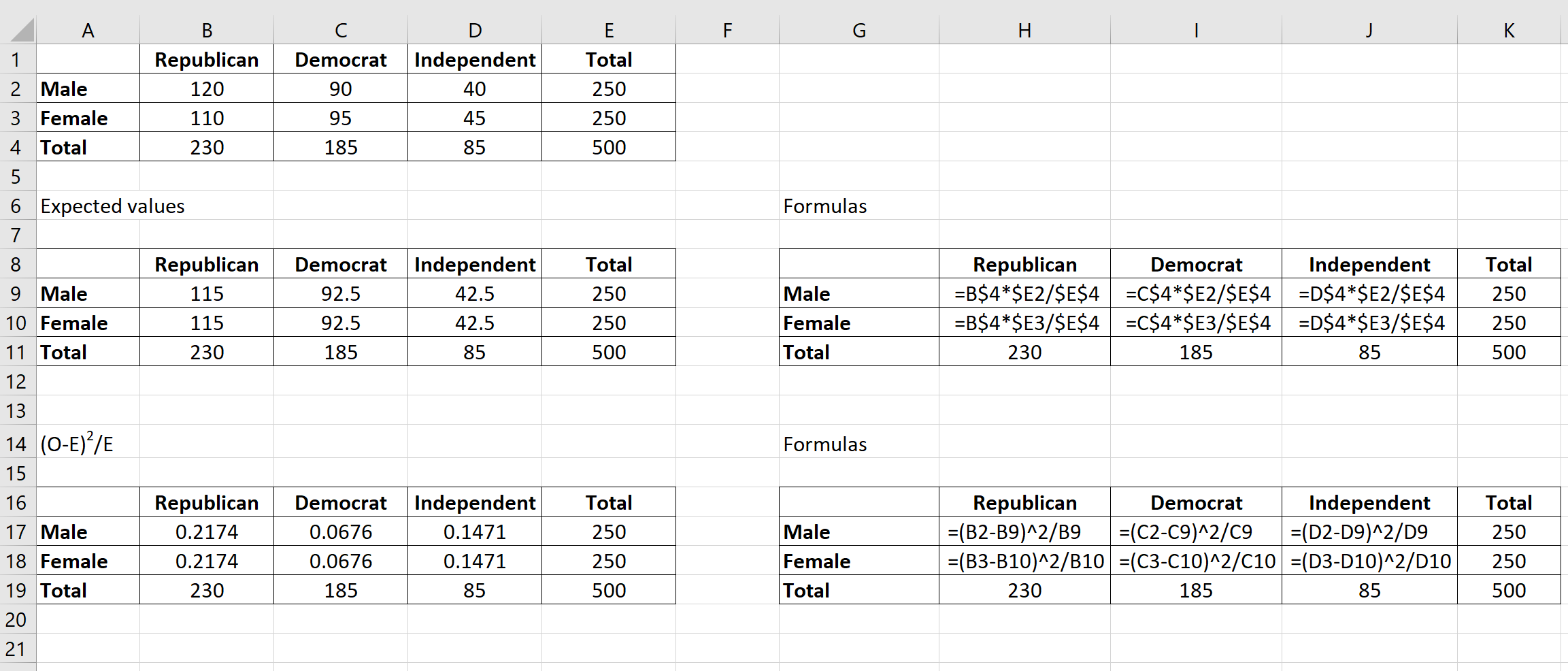

By systematically applying the (O – E)² / E formula across all applicable categories, we generate the individual component values that will be subsequently summed to produce the overall test statistic. This derived matrix effectively illustrates the magnitude of deviation from independence for each gender/party combination, which is essential for determining where the primary sources of statistical difference are located.

Step 4: Calculating the Test Statistic (X²) and the P-Value

The test statistic X² (Link 2/5) represents the culmination of all the previous calculations. It is simply derived by calculating the sum of all the individual cell contributions: Σ [(O – E)² / E]. This single aggregate value effectively summarizes the total divergence between the observed data and the data that would be expected if the assumption of independence were true. Consequently, a higher X² value signifies a greater magnitude of association between the variables being tested.

Once the X² value has been accurately determined, the next essential step is to calculate the corresponding p-value (Link 3/5). The p-value provides the probability of observing a test statistic as extreme as (or more extreme than) our calculated X², assuming that the null hypothesis (H₀) is, in fact, true. To find this probability, we must reference the Chi-Square distribution, which necessitates both the calculated X² value and the appropriate degrees of freedom.

In Excel, the p-value is calculated efficiently and reliably using the dedicated statistical function CHISQ.DIST.RT. This function specifically computes the right-tailed probability associated with the Chi-Square distribution, which is the required standard for proper hypothesis testing using this method:

=CHISQ.DIST.RT(x, deg_freedom)

Where the arguments are defined as:

• x: Represents the calculated Chi-Square test statistic X² (Link 3/5).
• deg_freedom: Represents the degrees of freedom (Link 2/5), which are calculated based on the precise dimensions of the contingency table using the formula: (#Rows – 1) × (#Columns – 1).

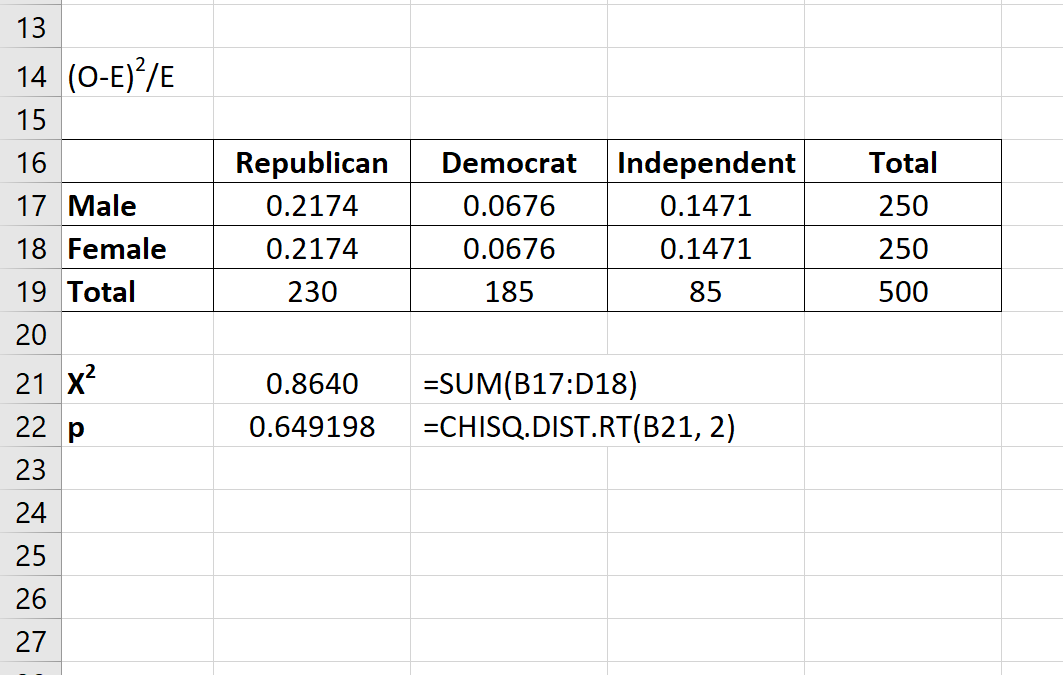

For our specific 2 × 3 contingency table (2 genders and 3 political parties), the degrees of freedom calculation is (2 – 1) × (3 – 1) = 2. Applying the required formulas in Excel yields the final statistical results. We determine the test statistic X² to be 0.8640, and the corresponding p-value is calculated as 0.649198.

Step 5: Drawing a Statistical Conclusion and Interpretation

The final and most crucial stage of the Chi-Square Test of Independence involves formulating a definitive conclusion based on the relationship between the calculated p-value and our predetermined significance level (α), which is typically set at 0.05. This decision determines the outcome of the hypothesis test regarding the initial assumption of independence.

In our analysis, the calculated p-value is 0.649198. We must compare this result directly against the standard significance threshold, α = 0.05. Since 0.649198 is substantially greater than 0.05, our statistical decision dictates that we fail to reject the null hypothesis (H₀). This failure to reject the foundational assumption of independence is the primary finding derived from the test.

Interpreted statistically, failing to reject H₀ signifies that the sample data does not provide adequate evidence to conclude that a significant association exists between gender and political party preference within the broader voter population. The minor differences observed in the raw frequencies are highly likely attributable merely to random sampling variation, rather than reflecting a genuine underlying dependency between the variables.

In practical and unambiguous terms, the test strongly suggests that, regardless of whether a voter identifies as male or female, the statistical probability distribution of their political preference (Republican, Democrat, or Independent) remains statistically similar. This analysis solidifies the conclusion that the two categorical factors (Link 2/5)—gender and party affiliation—are indeed independent (Link 2/5).

Note on Alternative Methods: While this tutorial provided a detailed focus on the manual calculation steps in Excel to foster a deeper understanding of the statistical mechanism, modern practice often relies on automation. Researchers frequently utilize dedicated functions or specialized statistical software. Alternatively, the entire test can be performed instantly by using a reliable Chi-Square Test of Independence Calculator, which dramatically simplifies the process by requiring only the direct input of the observed contingency table.
