Understanding Polynomial Regression Analysis with Excel

The Foundation and Limitations of Linear Regression Analysis

Regression analysis stands as a cornerstone of modern statistical modeling, providing essential tools to quantify and map the relationships between multiple factors. Its primary objective is to build predictive models by determining how one or more independent factors, often termed explanatory variables, systematically influence a dependent outcome, known as the response variable. This quantitative understanding is critical not only for accurate forecasting across diverse fields—ranging from finance and economics to biology and engineering—but also for rigorously testing hypotheses in both experimental and observational contexts. The success of any regression effort hinges fundamentally on selecting a model that accurately reflects the true shape of the relationship inherent in the data.

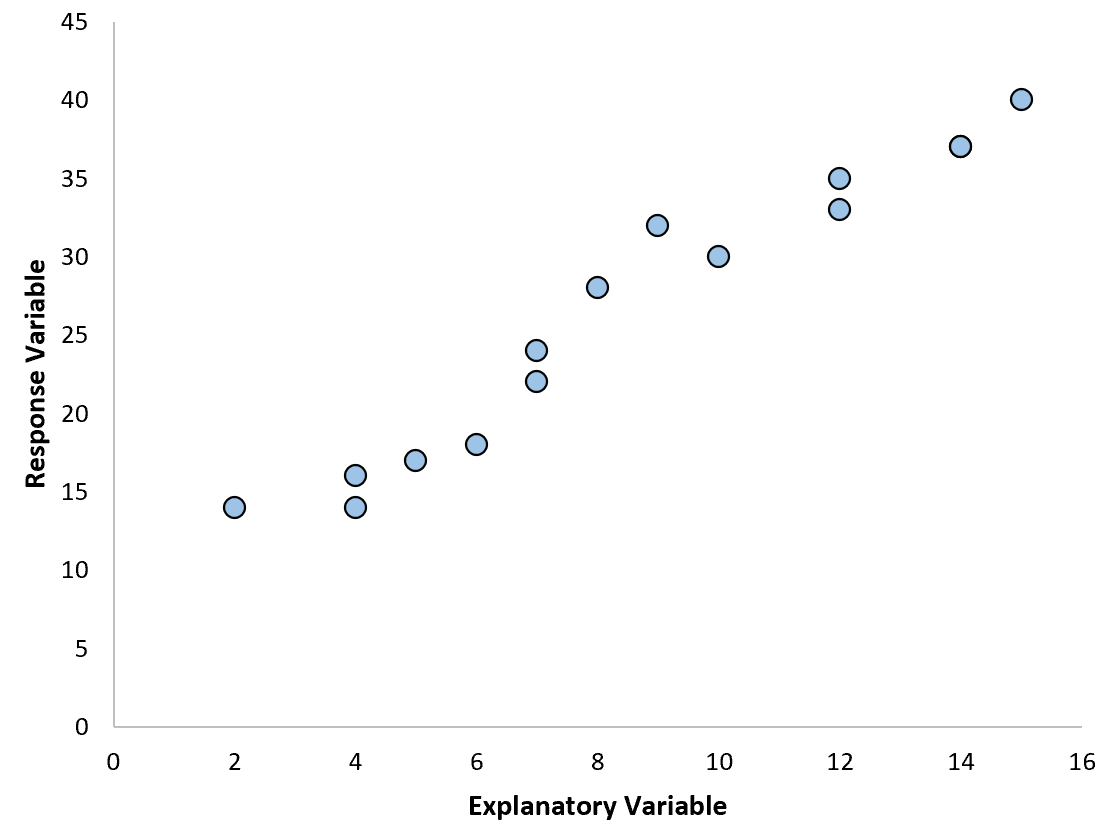

The most widely taught and utilized form of this modeling strategy is simple linear regression. This model assumes an unchanging, straight-line association between a single explanatory variable ($X$) and the response variable ($Y$). When this assumption holds, the relationship is elegantly defined by the formula $Y = beta_0 + beta_1 X + epsilon$, where $beta_0$ is the intercept, $beta_1$ is the constant slope, and $epsilon$ represents the error term. While linear models are mathematically tractable and simple to interpret, relying exclusively on them often proves inadequate in complex, real-world scenarios. Many natural and economic phenomena exhibit behaviors that are inherently curved, fluctuating, or accelerating, displaying nuances that a simple straight line cannot capture, thereby necessitating more flexible and sophisticated modeling techniques to ensure predictive accuracy.

Identifying Nonlinear Relationships in Data

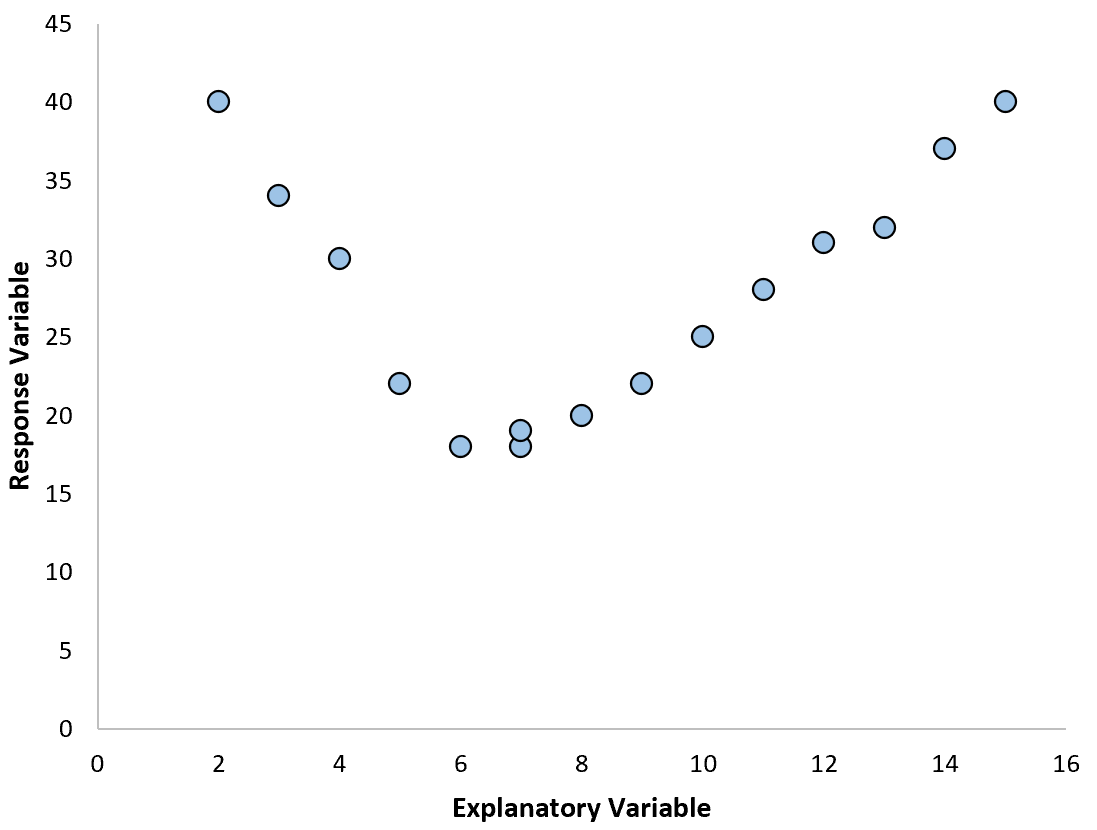

Although the simplicity and interpretability of linear models are compelling, they become statistically insufficient when the underlying association between variables is distinctly nonlinear. A preliminary visual inspection, such as generating a scatterplot, frequently reveals patterns that bend, curve, or even reverse direction. Such curvature signals that the marginal effect of the explanatory variable is not constant; rather, its influence on the response variable changes as its value increases. For example, an initial increase in an input (X) might lead to a rapid increase in the output (Y), followed by a gradual leveling off, or perhaps a subsequent decline—a classic signature of diminishing returns or optimal resource allocation in many applied sciences.

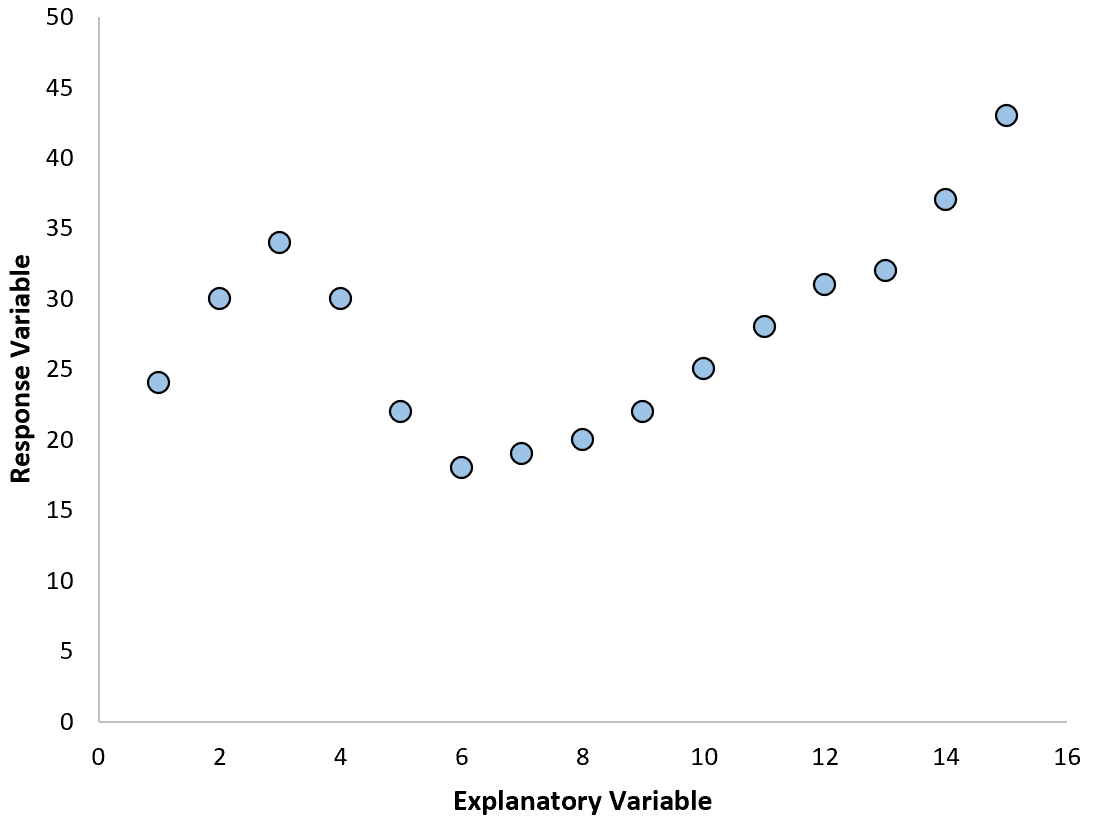

When data points visibly trace a parabolic (U-shaped or inverted U-shaped) or S-shaped path, forcing a straight line through them will inevitably result in a fundamentally flawed model. A poor fit leads to several critical statistical problems: the model coefficients may be biased, prediction errors will be excessively high, and the model will fail to explain a large proportion of the observed variance. Crucially, a violation of the linearity assumption is often evident not just in the curve itself, but in the pattern of the residuals—the differences between the observed data and the model’s predictions. In a poorly fitted linear model, these residuals typically display a systematic, non-random pattern (e.g., clustered high at the ends and low in the middle), serving as a powerful diagnostic indicator that a more complex, nonlinear approach is required.

The Fundamentals of Polynomial Regression Modeling

Once exploratory data analysis confirms a significant nonlinear association, the analyst must transition to a method capable of conforming to the observed curvature. This is precisely where polynomial regression proves invaluable. Polynomial regression is technically classified as a specialized form of multiple linear regression because, while it captures a curve, it maintains linearity in its parameters (the coefficients, $beta$). It achieves flexibility by including the independent variable ($X$) raised to powers greater than one. By introducing squared terms ($X^2$), cubic terms ($X^3$), and potentially higher-order terms, the model gains the necessary structural components to bend and align with the complex patterns observed in the data, thereby substantially improving the goodness-of-fit compared to a simple straight line.

The general mathematical form that defines a polynomial regression equation is comprehensive: $Y = beta_0 + beta_1 X + beta_2 X^2 + dots + beta_k X^k + epsilon$. In this formulation, $k$ denotes the degree or order of the polynomial. A second-order polynomial ($k=2$), also known as a quadratic model, is sufficient to capture a single bend, modeling parabolic curves. Conversely, a third-order polynomial ($k=3$), or cubic model, possesses the capability to capture up to two distinct bends, offering enhanced flexibility for S-shaped or undulating curves. The power of polynomial regression lies in this flexibility, allowing researchers to model intricate relationships without resorting to more complicated, non-linear estimation techniques.

The selection of the appropriate order ($k$) is a critical decision that balances model complexity against interpretability. While increasing the order will almost always improve the model’s fit to the existing training data, it simultaneously increases the significant risk of overfitting. An overfitted model perfectly traces the noise and random fluctuations specific to the training set but performs poorly when generalizing predictions to new, unseen data points. Therefore, the choice of polynomial order is typically guided by a combination of factors: careful visual assessment of the scatterplot (determining the minimum number of necessary bends), sound domain knowledge about the variables (which may constrain the feasible shape), and objective statistical measures such as the adjusted $R^2$ or the use of cross-validation techniques.

Practical Implementation: Setting up Data in Excel

This tutorial focuses on a streamlined, step-by-step methodology for executing and interpreting a polynomial regression analysis using Microsoft Excel. While advanced statistical software packages offer greater detail and diagnostic capabilities, Excel’s built-in charting and trendline features provide a quick, intuitive, and highly accessible way to visualize the data, fit a curve, and extract the necessary regression equation. This approach is particularly suitable for preliminary data exploration, educational purposes, or when a rapid assessment is needed without relying on specialized statistical add-ins.

To demonstrate the entire process, we will utilize a hypothetical dataset specifically constructed to illustrate a complex, nonlinear relationship exhibiting a cubic pattern. Our objective is to derive the optimal third-order polynomial equation that precisely describes this relationship. This derived equation will then serve as our predictive model, allowing us to forecast the response variable ($Y$) based on any new input value of the explanatory variable ($X$) within the observed data range.

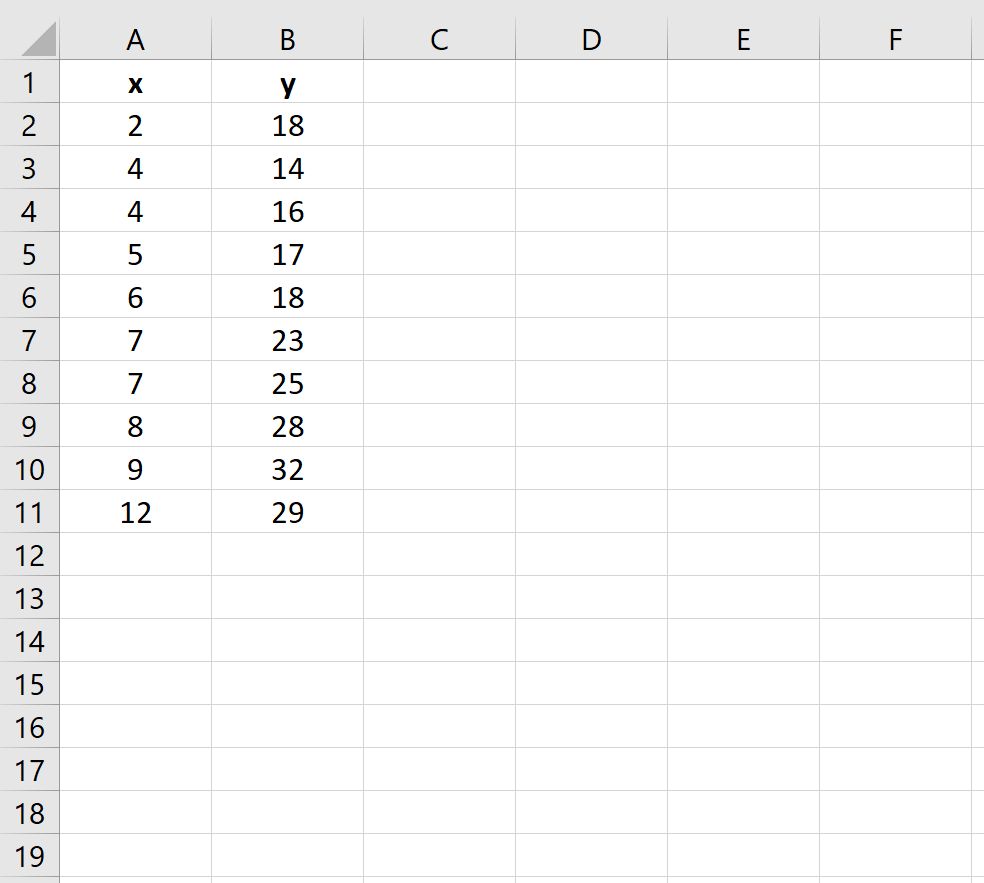

We begin by assuming the sample data has been accurately transcribed into an Excel worksheet. The data should be organized into two adjacent columns: the first column dedicated to the independent variable (X), and the second column containing the corresponding observed values of the dependent variable (Y). This structured dataset is the foundation upon which all subsequent analysis, visualization, and model fitting steps within the spreadsheet environment will rely.

The following procedure details the exact steps required to fit the polynomial regression model to this dataset using Excel’s graphical tools. By adhering to this sequential process, we ensure the resulting model is correctly configured to account for the pronounced curvature observed in the data.

Step 1: Visualizing Data with a Scatterplot

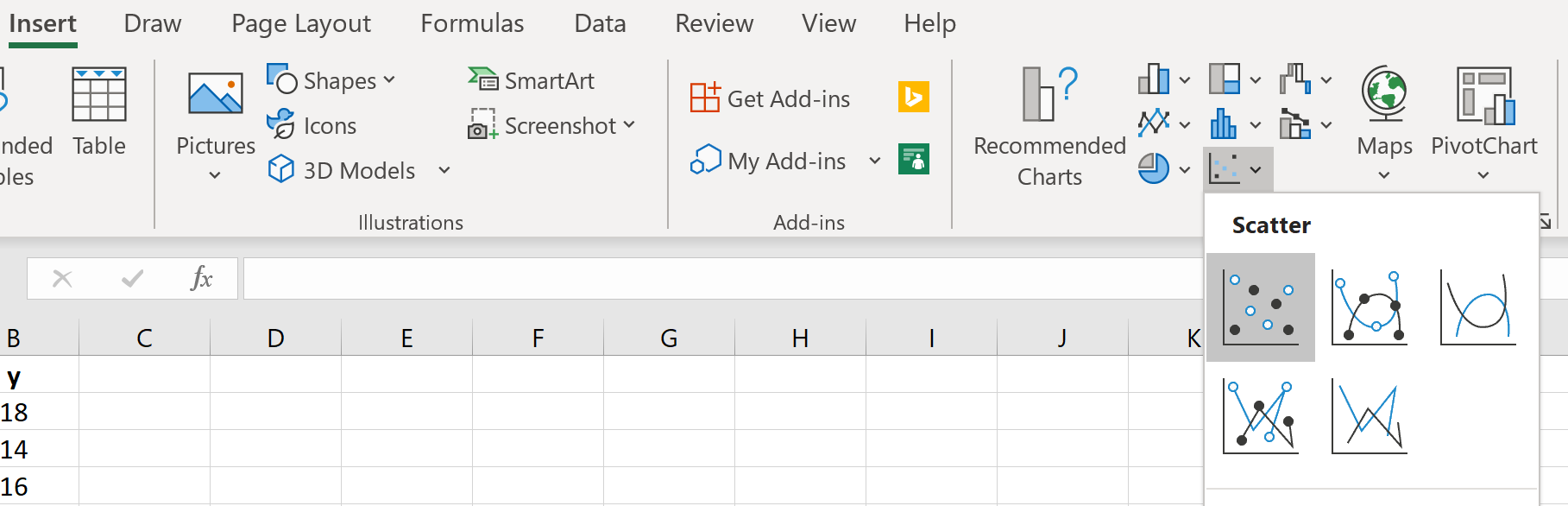

The initial and arguably most vital step in any regression modeling endeavor, particularly when nonlinearity is suspected, is the generation of a visual representation. This is accomplished by creating a scatterplot, which graphically maps each (X, Y) pair as a distinct marker. To initiate this process, select the entire dataset, encompassing both the X and Y columns. Navigate to the Insert tab located on the Excel ribbon interface, then locate the Charts group. Click the icon corresponding to the scatter chart, typically the option that displays only individual markers without connecting lines.

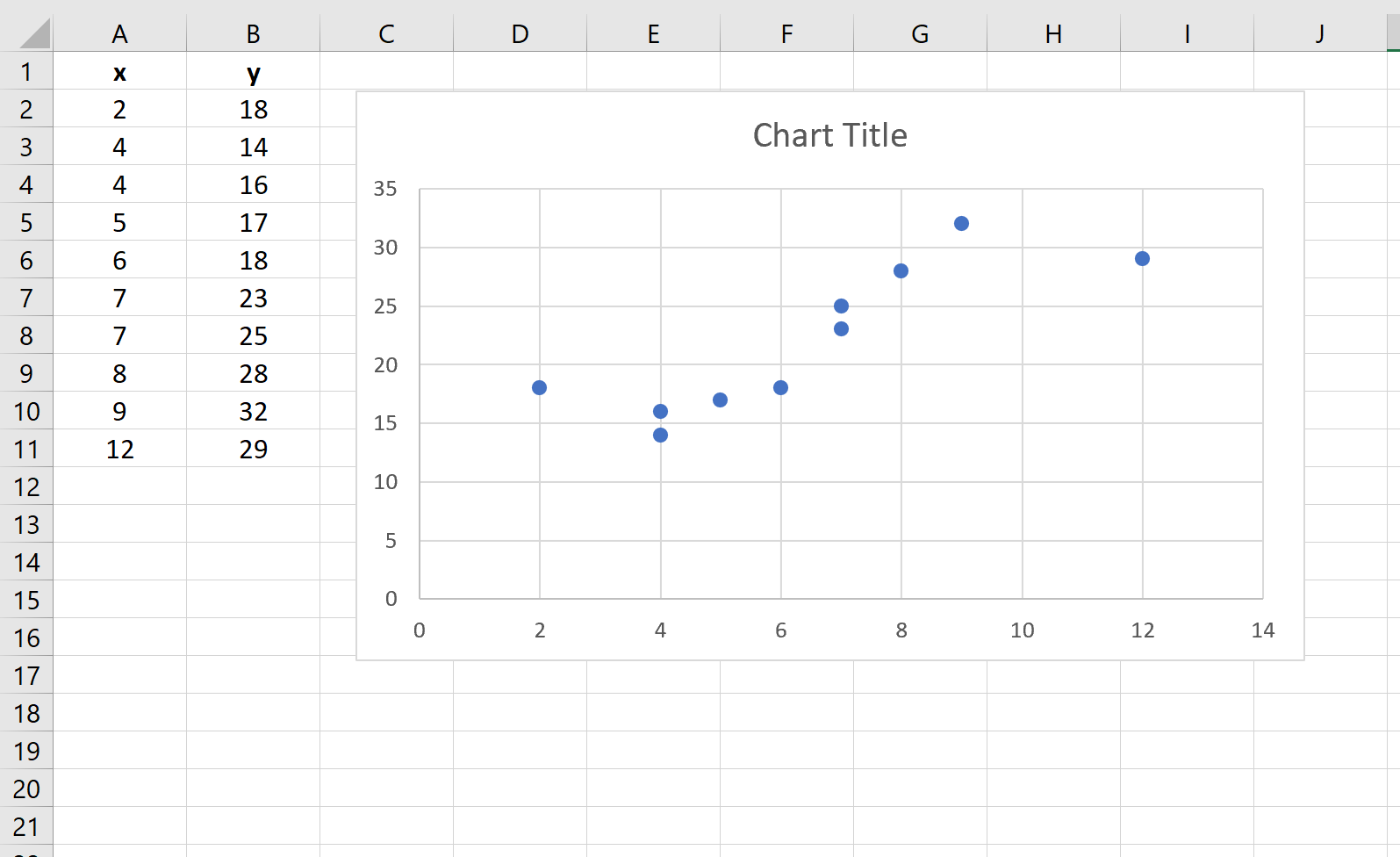

Once selected, Excel automatically generates the scatterplot, immediately revealing the relationship between the two variables. A careful, trained inspection of this chart is paramount, as it visually confirms the necessity of using a polynomial model. In our specific example, the data points clearly deviate from a straight trajectory, instead tracing a distinct curvilinear path. The pattern observed is an S-shape, characteristic of a cubic relationship, bending first upward, then downward, and finally trending upward again. This unambiguous visual confirmation dictates that we must select an order of at least three for our polynomial model in the subsequent fitting stage.

Step 2: Configuring and Fitting the Polynomial Trendline

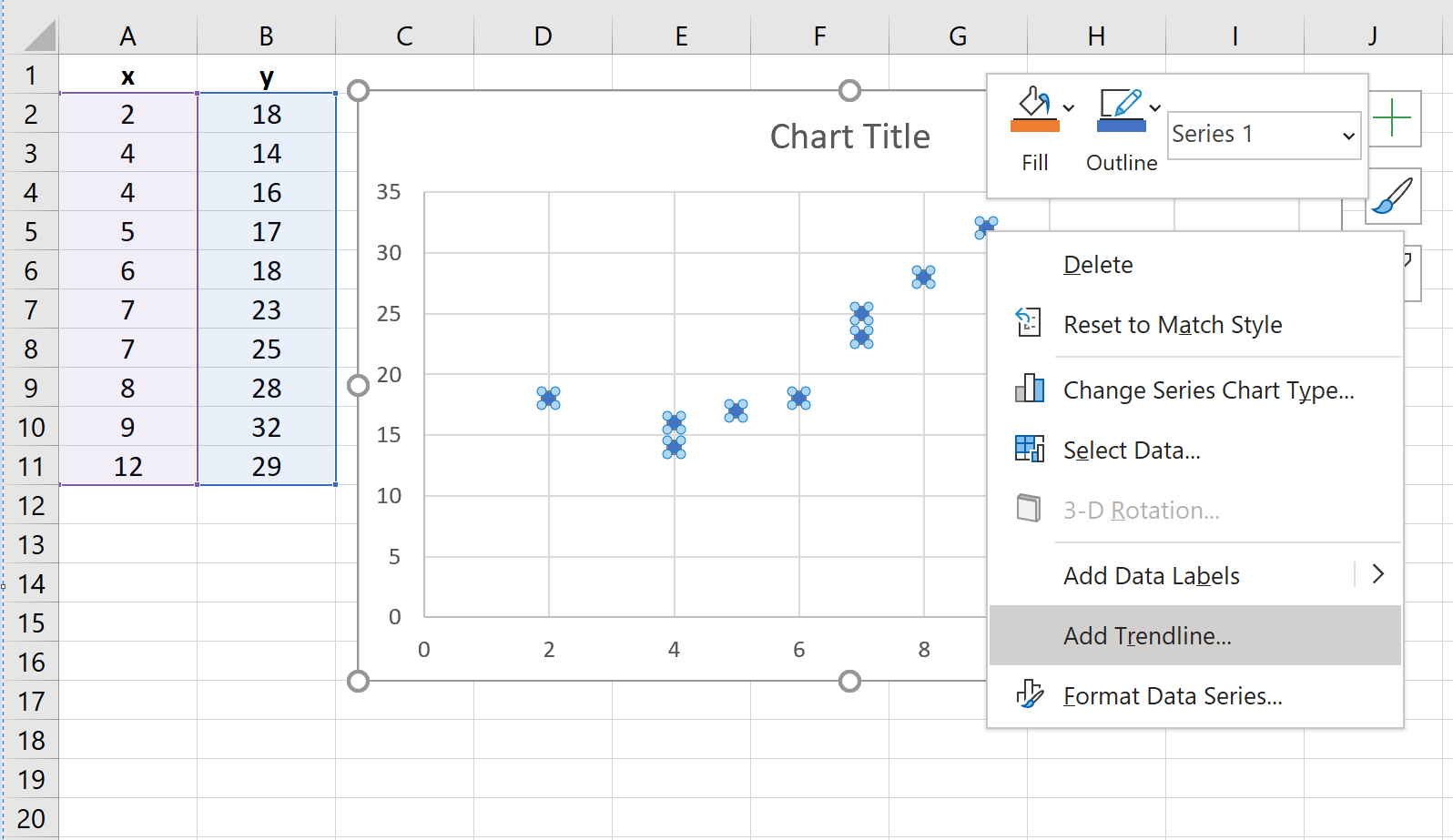

With the scatterplot successfully generated, the next necessary procedural step is to overlay the statistically calculated model onto the visual data by adding a trendline. To access the trendline configuration options, first click directly on any of the data points within the scatterplot; this action selects the entire data series. Next, right-click on the selected point, which will bring up a context menu. From this menu, select the option labeled Add Trendline… This command opens a dedicated formatting pane (or dialogue box, depending on the Excel version) specifically designed for configuring the regression model type.

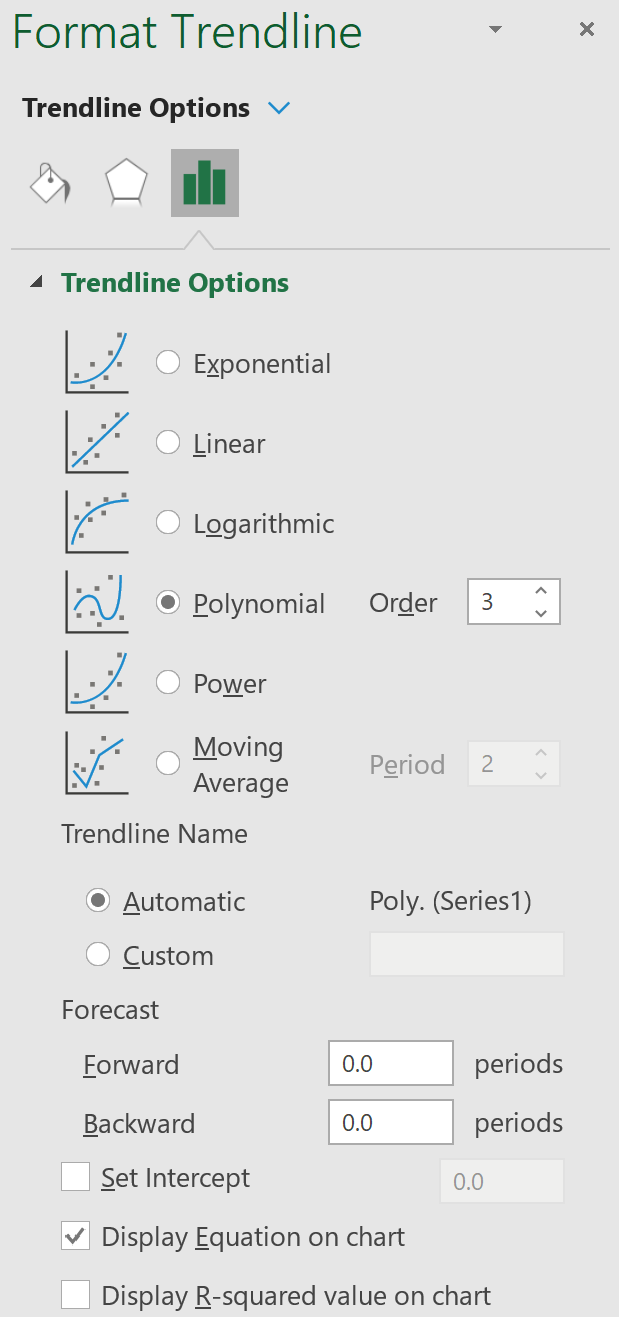

Within the Format Trendline pane, the user is presented with several model types, including Exponential, Linear, and Logarithmic. At this critical juncture, it is essential to select the Polynomial option. After activating the Polynomial selection, the user must explicitly define the Order of the model. Consistent with the visual evidence gathered in Step 1, a third-order model is required to accurately capture the cubic curvature; therefore, the Order field must be set to 3. To extract the mathematical definition of the fitted model, ensure that the checkbox labeled Display Equation on chart is activated toward the bottom of the configuration pane. It is also highly recommended to check the box for “Display R-squared value on chart” to gain an immediate quantitative measure of the model’s goodness-of-fit.

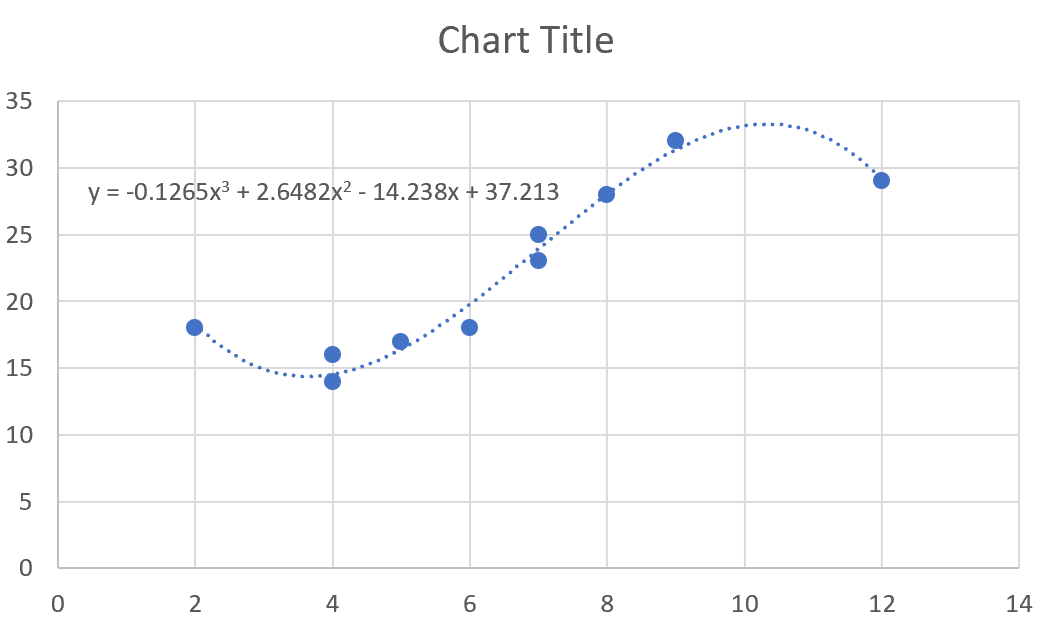

Upon final configuration and closing the Format Trendline pane, Excel instantaneously superimposes the calculated third-degree polynomial curve onto the scatterplot. Additionally, the precise regression equation derived using the least squares method, alongside the coefficient of determination ($R^2$), appears directly on the chart area. This fitted curve represents the statistically optimal cubic fit for the observed data points, offering compelling visual confirmation that the model effectively captures the nonlinear trend. The close proximity of the fitted curve to the majority of the data points strongly validates the appropriateness of the chosen third-order polynomial regression model.

Step 3: Interpreting the Fitted Equation and Making Predictions

The final stage of the analysis involves carefully interpreting the mathematical output generated by Excel. For our specific cubic example, the displayed equation mathematically defines the estimated relationship between X and Y based on the third-order polynomial fit. The equation, as precisely derived and presented on the chart, is:

y = -0.1265x³ + 2.6482x² – 14.238x + 37.213

This polynomial equation now serves as the complete predictive model. The numerical coefficients (including the intercept, 37.213) represent the estimated influence of the various powers of the explanatory variable on the response variable. It is crucial to note that, unlike in simple linear regression, the individual coefficients in a polynomial model cannot be interpreted as simple, constant slopes. Instead, the equation must be viewed and used holistically. Its primary utility is to calculate the expected value for $y$ for any given value of the explanatory variable $x$ that falls within the domain of the original observed data (interpolation). Researchers must exercise extreme caution when using this model for extrapolation outside this range, as the curve’s predictive power often degrades rapidly.

To illustrate the practical application of this derived statistical model, let us demonstrate how to predict the expected value of the response variable, $y$, when the explanatory variable, $x$, is equal to 4. We substitute $x=4$ into the derived third-order polynomial regression equation and execute the necessary arithmetic calculations. This computation involves ensuring that each term is correctly raised to its corresponding power (cubic, squared, or linear) before performing multiplication and summation.

The prediction calculation proceeds as follows:

y = -0.1265(4)³ + 2.6482(4)² – 14.238(4) + 37.213

y = -0.1265(64) + 2.6482(16) – 56.952 + 37.213

y = -8.096 + 42.3712 – 56.952 + 37.213

y = 14.5362.

The resulting value, 14.5362, represents the model’s statistically best prediction for the response variable when the input variable is 4, effectively completing the polynomial regression analysis using the visual and computational tools available in Excel.
