Learning the Chow Test: A Step-by-Step Guide in R

The Chow test is an essential statistical technique designed to assess the stability of linear regression relationships across different data segments. Its primary purpose is to rigorously determine if the sets of coefficients derived from two distinct subsets of data are statistically equivalent. This powerful methodology offers crucial insight into whether the underlying data generation process has changed, making it indispensable in modern statistical analysis.

Historically, the Chow test holds significant importance, particularly within the discipline of econometrics. It is routinely deployed when analyzing time series data to identify the presence of a sudden, fundamental alteration in the model parameters, commonly referred to as a structural break. Identifying such a break is not merely academic; if a structural change has occurred, fitting a single regression model to the entire dataset will inevitably lead to biased, inconsistent, and ultimately unreliable parameter estimates.

This comprehensive tutorial provides an expert, step-by-step guide on how to correctly execute and interpret the results of a Chow test within the powerful R statistical environment. We will utilize a carefully simulated dataset to demonstrate the entire workflow, starting from initial data construction and necessary visualization, through to the formal statistical testing and final interpretation of the results.

Understanding the Chow Test and Structural Breaks

The theoretical foundation of the Chow test rests on comparing the overall fit of a pooled model against the combined fit of two segmented models. Specifically, it compares the sum of squared residuals (SSR) from three distinct linear regression analyses: first, a model fitted using the complete, full dataset; and second, two separate models fitted to the data subsets defined by the hypothesized breakpoint. The resulting test statistic quantifies the efficiency gained by modeling the two segments separately.

The central premise of the Chow test is formalized by the null hypothesis, which posits that the regression coefficients remain stable and equal across the two specified data subsets. Consequently, rejecting this null hypothesis provides strong statistical confirmation that a structural break has indeed taken place. This rejection signifies that the fundamental relationship between the independent and dependent variables is statistically different before and after the designated breakpoint.

It is crucial to emphasize a key practical requirement of the classical Chow test: the researcher must explicitly specify the exact location of the potential breakpoint

a priori

. This specification is not arbitrary; it is typically informed either by strong theoretical considerations (e.g., the date of a major policy change, the onset of a financial crisis, or a known market shock) or, as we will illustrate in this guide, through careful preliminary visual inspection of the raw data patterns.

Preparing the Data Environment in R

To ensure that our demonstration is clear, replicable, and provides conclusive evidence, the initial step involves generating a synthetic dataset specifically designed to exhibit a clear structural change after a certain observation point. This methodology allows us to definitively test the efficacy and sensitivity of the Chow procedure. We will create two variables, x (independent) and y (dependent), simulating a linear relationship where both the slope and the intercept intentionally change around the tenth observation.

The creation of the standard data frame is efficiently handled using base R functions. We meticulously define the sequence of observations for the independent variable (x) and the corresponding values for the dependent variable (y). This ensures that the data structure is correctly formatted and optimized for subsequent standard linear modeling techniques and statistical testing within the R environment.

The following R code snippet executes the necessary data frame creation and displays the initial observations, confirming the successful structure and integrity of our simulation before proceeding with the analysis:

#create data
data <- data.frame(x = c(1, 1, 2, 3, 4, 4, 5, 5, 6, 7, 7, 8, 8, 9, 10, 10,
                         11, 12, 12, 13, 14, 15, 15, 16, 17, 18, 18, 19, 20, 20),
                   y = c(3, 5, 6, 10, 13, 15, 17, 14, 20, 23, 25, 27, 30, 30, 31,
                         33, 32, 32, 30, 32, 34, 34, 37, 35, 34, 36, 34, 37, 38, 36))

#view first six rows of data
head(data)

  x  y
1 1  3
2 1  5
3 2  6
4 3 10
5 4 13
6 4 15

Visualizing Data Patterns with Scatterplots

Prior to engaging in any formal statistical hypothesis testing, adhering to the principle of visual data inspection is always considered a best practice in quantitative analysis. A well-constructed scatterplot serves as a powerful initial diagnostic tool, allowing analysts to quickly identify potential data irregularities, such as non-linearities, influential outliers, and, most critically for the Chow test, observable shifts or changes in the relationship between the independent variable (x) and the dependent variable (y).

For generating professional-quality, highly informative visualizations within R, we strongly recommend utilizing the industry-standard ggplot2 package. This package implements the “grammar of graphics” concept, providing a flexible, systematic, and exceptionally powerful framework for creating complex and easily interpretable plots tailored to specific analytical needs.

The R code below first loads the required visualization package and then proceeds to generate a simple yet highly effective scatterplot. This plot maps the independent variable x to the horizontal axis and the dependent variable y to the vertical axis, allowing for immediate visual identification of patterns:

#load ggplot2 visualization package
library(ggplot2)

#create scatterplot
ggplot(data, aes(x = x, y = y)) +
    geom_point(col='steelblue', size=3)

Identifying the Potential Breakpoint and Executing the Test

A thorough analysis of the resulting scatterplot is paramount, as visual evidence often provides the strongest intuition for setting the parameters of the Chow test. In practical time series analysis, this visual identification of a shift can significantly streamline the process compared to brute-forcing the test across all potential dates.

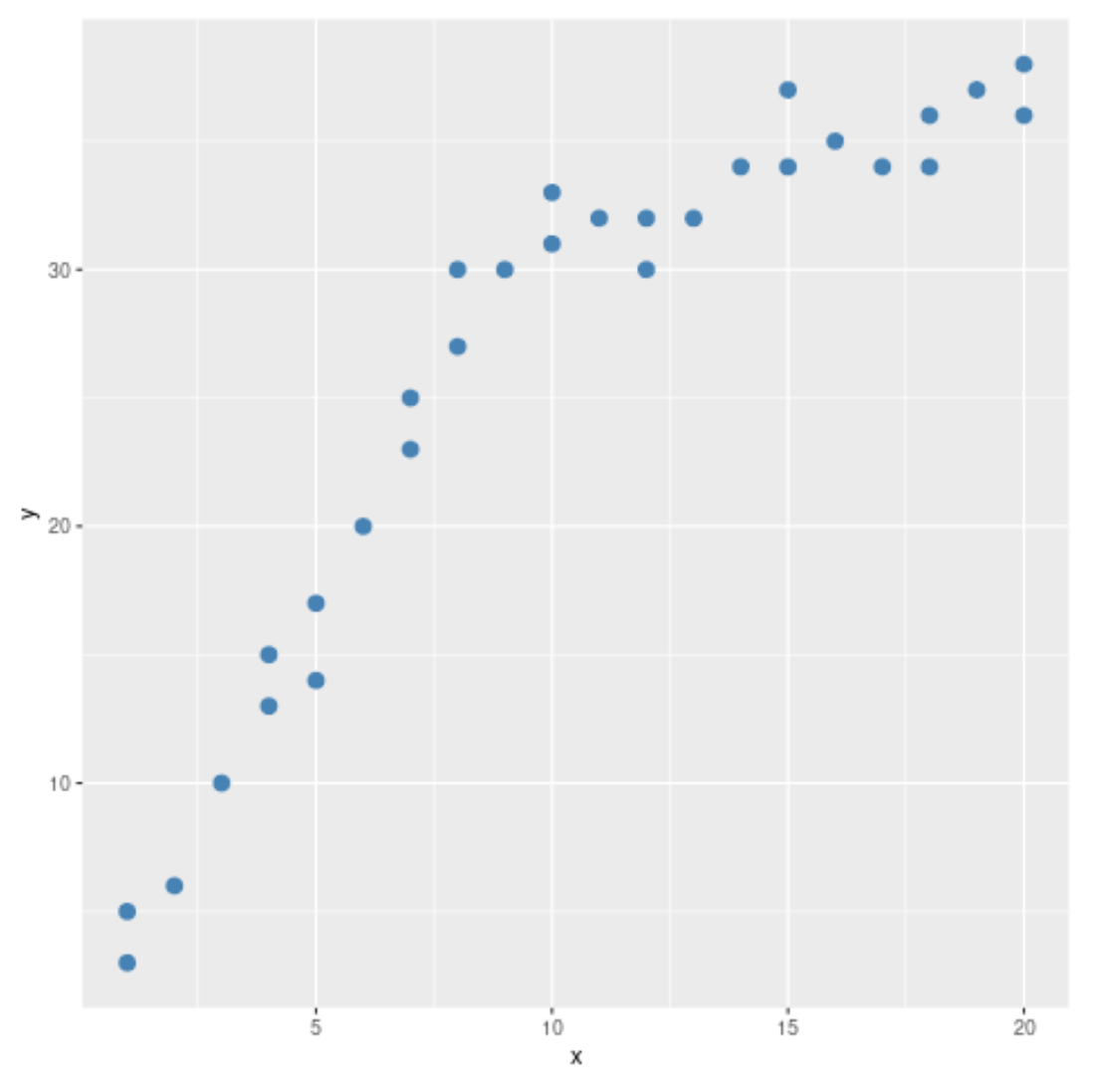

Reviewing the scatterplot above, a distinct pattern discontinuity is immediately apparent: the positive slope relating x and y appears steep and robust up until approximately x = 10. Subsequent to this point, the relationship visibly flattens or even weakens, suggesting a clear reduction in the responsiveness of y to increments in x. This distinct visual change strongly suggests that the observation where x equals 10 is an excellent candidate for the structural break point.

Based on this compelling visual confirmation, we establish our formal hypothesis for the Chow test: we hypothesize that the data is generated by two fundamentally distinct linear models, cleanly separated at the point where the independent variable x reaches the value of 10. The Chow test now provides the necessary statistical rigor to confirm or definitively deny this visually derived hypothesis.

To execute the Chow test in the R environment, we rely on the specialized and highly regarded package strucchange, which is specifically designed for detecting and testing for structural change in linear models. This package provides the essential sctest() function needed for our analysis.

The sctest() function requires three primary arguments: the regression formula (data$y ~ data$x), the specific type of test to be performed (which we set to type = "Chow"), and crucially, the exact index point where the break is hypothesized to occur (point = 10, corresponding to the 10th observation in our dataset).

The code segment below demonstrates the necessary steps: loading the package and performing the Chow test using the predetermined breakpoint of 10:

#load strucchange package
library(strucchange)

#perform Chow test
sctest(data$y ~ data$x, type = "Chow", point = 10)

	Chow test

data:  data$y ~ data$x
F = 110.14, p-value = 2.023e-13

Interpreting the Results and Drawing Conclusions

The output produced by the sctest() function contains all the necessary statistical metrics required to formally evaluate our structural change hypothesis. Our analysis must focus intently on two specific values: the calculated F-statistic and its corresponding p-value. These metrics are the decisive factors in determining whether the observed differences between the two data segments are statistically significant at standard confidence levels.

From the direct output of the Chow test performed in R, we extract the following critical findings:

• F test statistic: 110.14
• p-value: 2.023e-13 (This value is exceptionally close to zero.)

The F-statistic itself serves as a measure of the relative improvement in explanatory power gained by utilizing two separate, segmented regression models compared to relying on a single, pooled model fitted across the entire dataset. An extremely large F-statistic, such as the observed value of 110.14, provides powerful initial evidence suggesting a highly substantial difference exists between the estimated coefficients of the pre-break and post-break segments.

The p-value represents the probability of observing an F-statistic of this magnitude or larger, assuming that the null hypothesis (which states there is no structural break) is actually true. Given that our calculated p-value (2.023e-13) is vastly smaller than the conventional alpha significance level of 0.05, we possess overwhelming statistical evidence to decisively reject the null hypothesis.

In conclusion, the Chow test robustly confirms the presence of a statistically significant structural break point in our simulated data precisely at the observation where x = 10. This rigorous finding validates the initial intuition derived from our visual inspection and confirms that the underlying relationship between the variables x and y underwent a fundamental change at that specific point. Consequently, any future statistical modeling, forecasting, or inference based on this data should mandatorily employ separate models for the two distinct periods to ensure the resulting parameter estimates are both accurate and unbiased.
