Learning to Detrend Time Series Data: A Comprehensive Guide

Defining and Understanding Time Series Detrending

The fundamental statistical procedure of “detrending” involves systematically isolating and removing the persistent, long-term directional movement inherent within time series observations. This underlying movement, known formally as the trend component, represents a sustained upward or downward drift over the entire observation period. If left untreated, this dominant trend can severely obscure other crucial patterns, making accurate forecasting and meaningful statistical inference nearly impossible.

Effective detrending serves a critical purpose in modern data analysis: achieving stationarity. A stationary series is one whose statistical properties—such as mean and variance—do not change over time. Most powerful forecasting models, including those in the ARIMA family, assume stationarity. Therefore, removing the long-term upward or downward drift allows analysts to focus exclusively on the remaining, often more volatile, components of the data, such as short-term fluctuations, cyclical patterns, or seasonal effects.

In essence, detrending is a data preparation step that transforms a non-stationary dataset into one that is mathematically suitable for advanced modeling. By neutralizing the influence of the overall direction, we gain the necessary clarity to accurately measure the true magnitude and frequency of the short-term fluctuations that drive immediate change in the observed phenomenon.

Why Detrending is Essential for Data Analysis (Visualizing the Trend Mask)

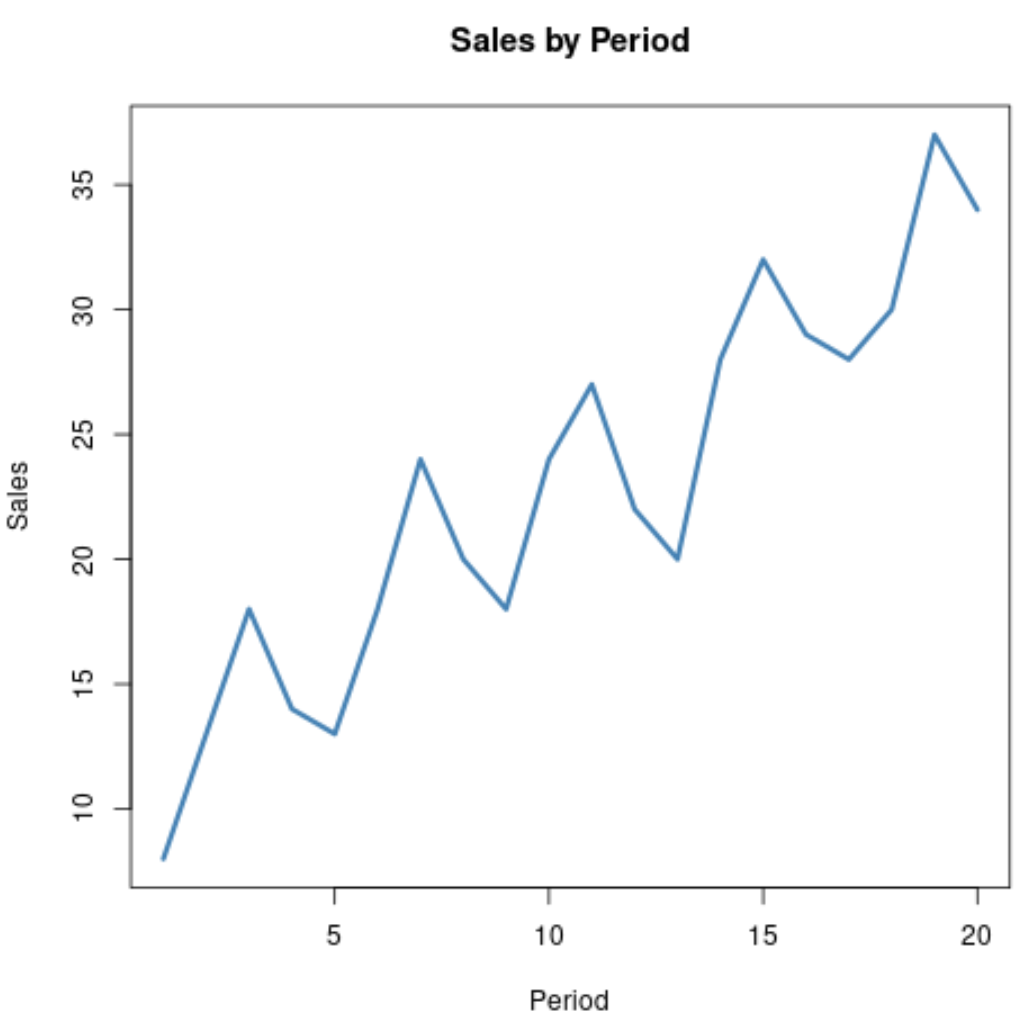

To grasp the necessity of this transformation, consider a practical, real-world scenario involving a dataset tracking a company’s total sales figures over twenty consecutive reporting periods. When the raw data is plotted, the visualization is overwhelmingly dominated by a strong, positive upward trajectory. While this growth trajectory is valuable information in itself, it simultaneously hides the more complex internal dynamics of the business cycle.

As illustrated above, the general increase in sales over time is undeniable. However, upon closer inspection, subtle, repetitive “waves” or cyclical movements are faintly visible beneath the heavy influence of the main upward trend. These waves often represent crucial market mechanisms, such as a predictable seasonal trend or a multi-period business cycle. Analyzing these smaller, yet vital, fluctuations is extremely challenging when they are masked by the magnitude of the long-term growth.

To gain an accurate and quantifiable view of this inherent cyclicality, we must statistically isolate it. Detrending the data achieves this by mathematically flattening the long-term trajectory. This statistical manipulation effectively removes the slope, leaving only the fluctuations—the residuals—around the generalized trend line. The resulting data plot provides an unbiased canvas for scrutinizing the cyclical and irregular components necessary for precise operational planning and forecasting.

Core Methodologies for Trend Removal

Statisticians and data analysts leverage two primary and time-tested techniques to effectively extract the trend component from a time series. The selection between these methodologies is typically dictated by two factors: the mathematical nature of the trend itself (e.g., is it linear, exponential, or highly complex?) and the specific analytical goal intended for the resulting detrended series.

The most common approaches are distinguished by their mathematical simplicity versus their modeling flexibility. While one method relies on basic arithmetic differences, the other utilizes sophisticated statistical estimation:

• Detrending by Differencing: This is the simplest and most direct mathematical transformation, focusing on calculating the point-to-point change in the series rather than the absolute values.
• Detrending by Model Fitting: This approach is based on regression analysis, where a statistical model is explicitly fitted to estimate the trend, and the resulting error terms (residuals) become the detrended series.

The following detailed sections will thoroughly explain and illustrate the operational mechanics of each method, highlighting their strengths and appropriate applications in diverse analytical contexts.

Method 1: Achieving Stationarity Through Differencing

Differencing stands as perhaps the most straightforward and often employed technique for removing a trend and achieving a stationary time series. This method generates a completely new dataset where every observation is calculated as the arithmetic difference between the current value and the immediately preceding observation in the original series. This process effectively isolates the rate of change between periods, neutralizing the cumulative effect of a sustained overall trend.

When the original data exhibits a consistent, constant upward or downward slope—a linear trend—the application of first-order differencing will result in a detrended series that hovers closely around zero. This outcome mathematically confirms that the overall trend has been successfully eliminated, leaving only the residual short-term fluctuations. This makes differencing an exceptionally powerful tool when dealing with data that exhibits random walk characteristics or simple growth patterns.

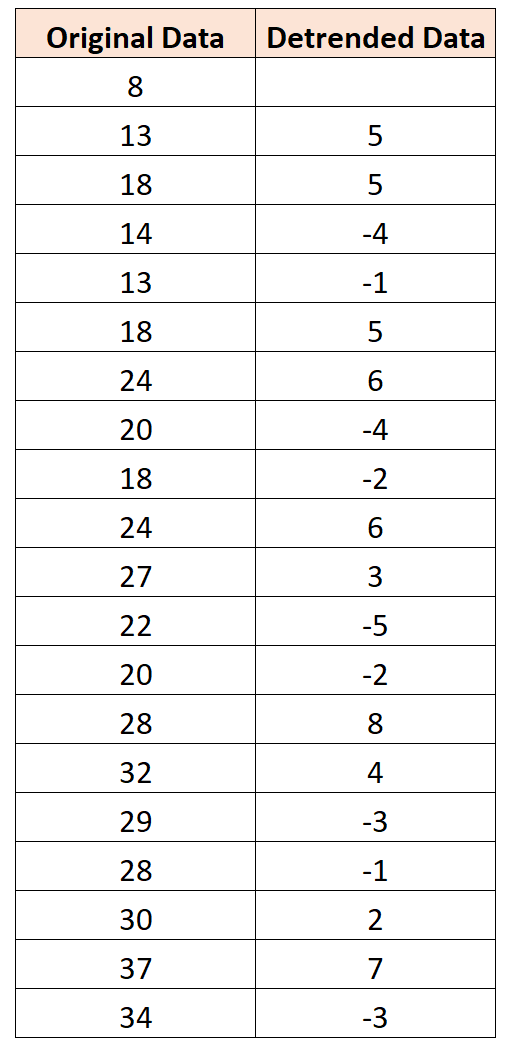

To illustrate the operational sequence, consider a small segment of a growing time series. The process involves a sequential application of subtraction across the series:

1. The initial differenced value is determined by subtracting the prior observation (8) from the current observation (13), yielding a difference of 5.
2. The subsequent value is derived by calculating the difference between 18 and 13, which also results in 5.
3. This straightforward calculation is repeated systematically for every observation point in the dataset following the first one, generating the complete detrended series.

Visualizing the Results of Differencing

The true impact of differencing becomes immediately clear when we compare the original plot to the detrended result. Recall the original series, where the strong upward trajectory masked all underlying patterns:

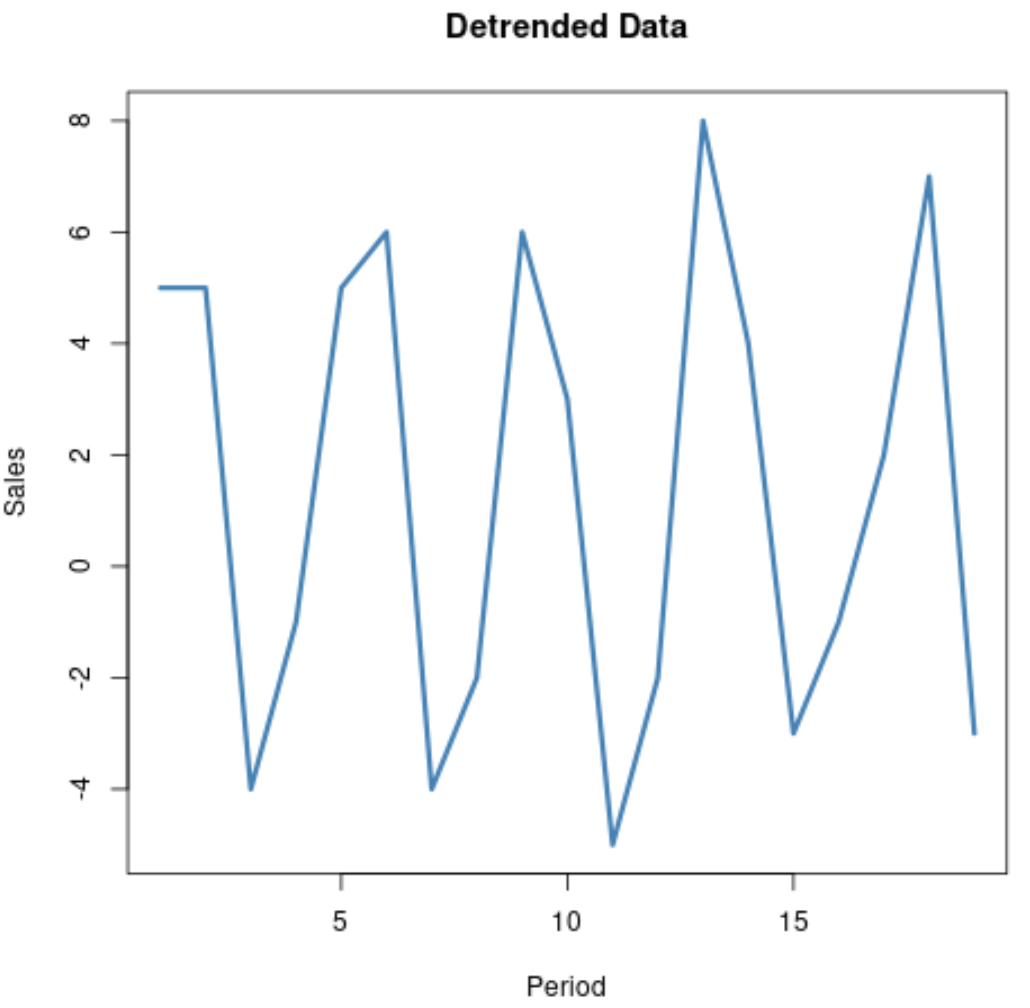

The detrended plot, which now represents the rate of change rather than absolute magnitude, dramatically simplifies the visualization. The cyclical patterns, which were previously obscured by the long-term growth, are now isolated and highly prominent. The resulting series is centered around zero, demonstrating that the systematic trend component has been neutralized.

This enhanced visual clarity is indispensable for subsequent analytical tasks. Crucially, the detrended data is now stationary, fulfilling a prerequisite for applying powerful time series forecasting methodologies such as ARIMA (Autoregressive Integrated Moving Average) models, which rely on the absence of a trend component for accurate parameter estimation and prediction.

Method 2: Detrending via Statistical Model Fitting

When the trend component is more complex than a simple linear drift, or when a more precise, smooth trend estimate is required, detrending through statistical regression model fitting offers a superior and more flexible alternative to differencing. This approach requires explicitly modeling the long-term trajectory using a function of time.

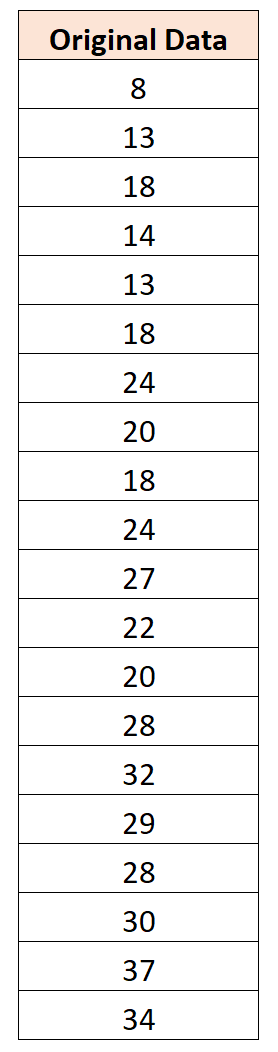

The methodology begins by defining the time variable (or the period number) as the independent variable and the observed data values as the dependent variable. An appropriate regression function is then fitted to the data to estimate the mathematical curve that best describes the overall trend. For instance, if we revisit our sales dataset across its time periods:

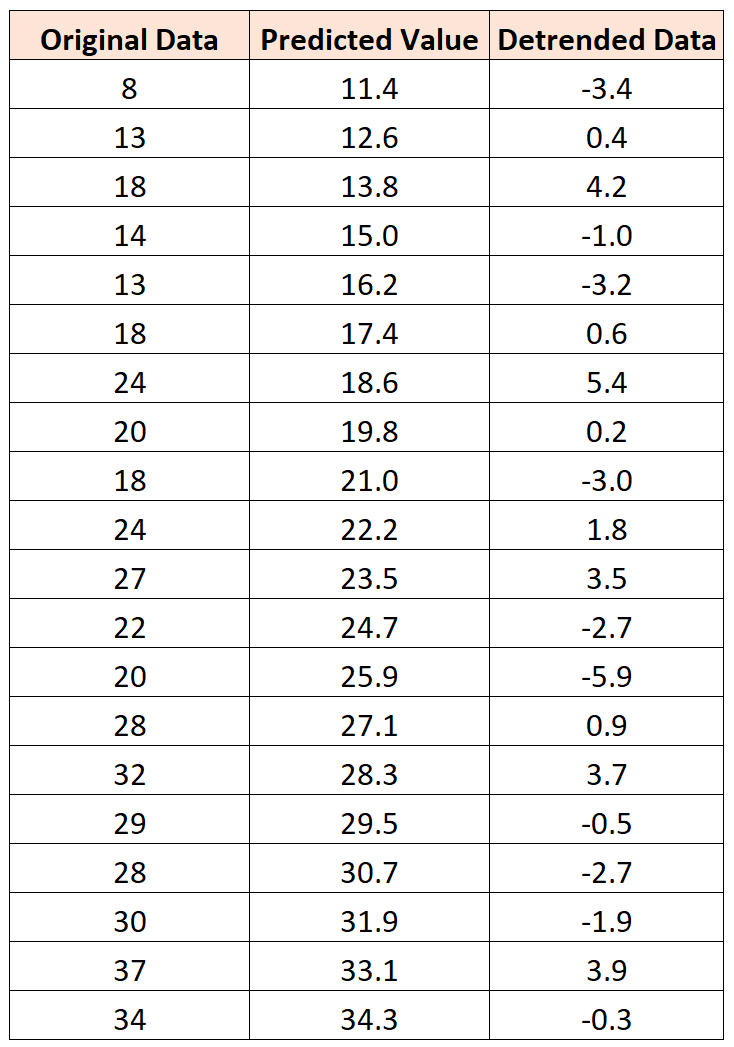

Assuming a stable growth rate, fitting a simple linear regression model to this data yields a series of predicted values. These predicted values effectively represent the smooth, estimated trend line—the component we wish to remove. The core of the detrending process then involves calculating the difference between the actual observed values and these corresponding predicted values generated by the model.

These differences are formally known as the residuals of the regression. By definition, residuals represent the portion of the data that the trend model could not explain; consequently, they contain the pure cyclical, seasonal, and irregular components of the original time series, completely free from the modeled trend.

Flexibility and Choosing the Right Regression Model

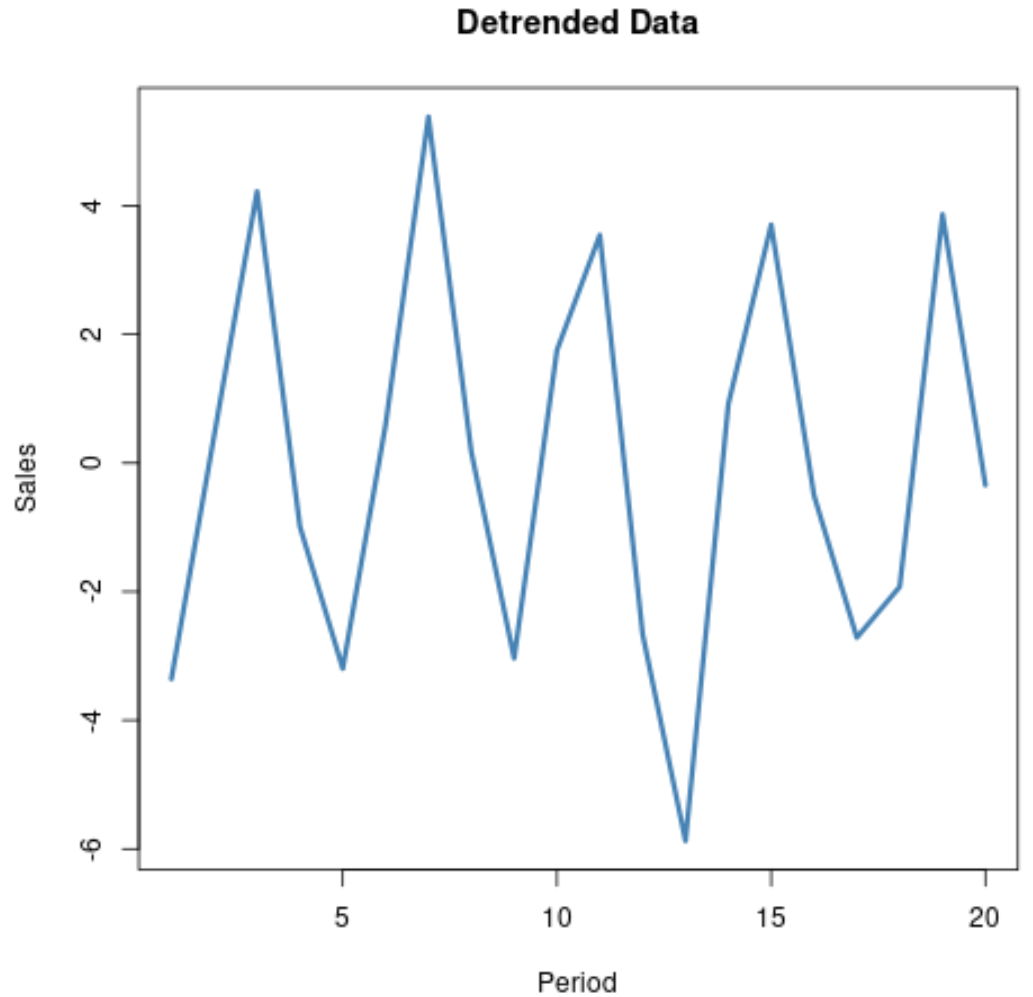

Plotting the residuals derived from the model-fitting process provides a definitive visualization of the remaining patterns in the data, similar to the results obtained through differencing, but often with a smoother baseline:

A key advantage of the regression method is its inherent adaptability. While linear regression suffices for trends that change at a constant rate, real-world data frequently exhibits non-linear behavior. For example, a startup’s growth might accelerate rapidly (exponential trend) or sales might decelerate as a market matures (logarithmic trend).

In situations where the original data displays an accelerating or decelerating pattern—such as an exponentially increasing series—it is crucial to select a more sophisticated modeling technique. Methods like exponential regression, polynomial fitting, or even non-parametric approaches should be employed. By accurately capturing the non-linear trend component through the correct model selection, the analyst ensures that the resulting residuals are a truthful and unbiased representation of the series’ underlying cyclical and irregular fluctuations, maximizing the potential for accurate predictive modeling.
