Learning Grouped Regression Analysis and Visualization with ggplot2 in R

Understanding Grouped Regression Visualization in R

Visualizing the relationship between two continuous variables is a cornerstone of effective data visualization and statistical analysis. When the underlying data is segmented into distinct categories or groups, it becomes imperative to determine if the relationship between the predictor and response variables changes across these subgroups. The highly versatile ggplot2 package, part of the R ecosystem, offers an elegant and robust framework for plotting multiple regression lines concurrently within a single graphical output. This technique allows analysts to move beyond simple aggregate trends and explore the nuanced conditioning effects of a categorical variable.

This sophisticated approach enables researchers to conduct a visual comparison of the trends, slopes, and intercepts derived from various linear (or potentially nonlinear) models, one for each specific subgroup. By differentiating these calculated trends using distinct colors, we gain immediate and powerful insights into how a designated grouping variable, often a nominal or ordinal factor, mediates the association between the independent and dependent variables. Such differentiation is critical for identifying potential interaction effects or simply confirming that relationships behave differently across populations.

The objective of this comprehensive tutorial is to meticulously detail the necessary methodology for generating such a highly informative visualization. Our focus will center specifically on leveraging the powerful layering system inherent to ggplot2, paying close attention to how we must map the group-specific aesthetic mapping to ensure the final output is not only clear and interpretable but also strictly adheres to established best practices for statistical graphics and data presentation.

Essential Syntax for Grouped Regression Lines

The foundational requirement for plotting separate regression lines based on a grouping factor lies in the correct specification of that factor within the primary aesthetic mapping function, typically represented as aes(). By strategically assigning the desired grouping variable to the color aesthetic within this mapping, we explicitly instruct ggplot2 to calculate, fit, and subsequently display a unique regression line corresponding to every single unique level or category found within that specified variable.

The following syntax block illustrates the standard, three-part structure required for achieving this visualization. This structure demands initializing the plot by calling ggplot() and supplying the dataset, followed by adding the raw data points using the geom_point() layer. The crucial final step involves incorporating the smoothing element via geom_smooth(), where we typically specify the use of a standard linear model (method = "lm") for trend estimation.

To plot a separate regression line for each group, the R visualization package requires the following basic structure:

ggplot(df, aes(x = x_variable, y = y_variable, color = group_variable)) +
  geom_point() +
  geom_smooth(method = "lm", fill = NA)

It is important to note the inclusion of the fill = NA argument within the geom_smooth() layer. By default, this function generates a graphical representation of the standard error ribbon around the fitted line, which indicates the uncertainty of the estimate. While useful in univariate plots, when plotting multiple lines in close proximity, this ribbon can often lead to visual clutter and overlapping elements. Setting fill = NA effectively suppresses this ribbon, yielding a significantly cleaner and more easily interpretable visualization, particularly when comparing several distinct trends simultaneously.

Setting Up the Example Dataset in R

To effectively demonstrate the mechanics of this grouped visualization technique, we will first establish a manageable, hypothetical dataset focused on the domain of student academic performance. This sample data is constructed to include three essential variables for 15 hypothetical students, allowing us to investigate how the choice of a specific study technique influences the relationship between the number of hours studied and the final resulting exam score.

This hypothetical scenario involves tracking the following three key pieces of information for each of the 15 participants:

• The total Number of hours studied (the predictor variable).
• The final Exam score received (the response variable).
• The Study technique used (categorized as either A, B, or C), which serves as our critical grouping variable.

The subsequent R code snippet is used to generate this specific sample data frame, which we will name df. Observe the efficient use of the rep function, which allows us to assign exactly five observations to each of the three study techniques (A, B, and C). This deliberate construction ensures we are working with a balanced dataset, which is ideal for the purposes of a clear and comparative visualization demonstration.

#create dataset
df <- data.frame(hours=c(1, 2, 3, 3, 4, 1, 2, 2, 3, 4, 1, 2, 3, 4, 4),
                 score=c(84, 86, 85, 87, 94, 74, 76, 75, 77, 79, 65, 67, 69, 72, 80),
                 technique=rep(c('A', 'B', 'C'), each=5))

#view dataset
df

   hours score technique
1      1    84         A
2      2    86         A
3      3    85         A
4      3    87         A
5      4    94         A
6      1    74         B
7      2    76         B
8      2    75         B
9      3    77         B
10     4    79         B
11     1    65         C
12     2    67         C
13     3    69         C
14     4    72         C
15     4    80         C

The resulting data frame, df, now clearly contains our independent variable (hours), the dependent variable (score), and the critical categorical grouping variable (technique). Having successfully prepared the input data, we are fully equipped to proceed with generating the visualization that will explicitly reveal the specific impact of studying time on exam performance, conditional on the choice of study technique.

Implementing the Basic Grouped Regression Plot

With the necessary data successfully loaded into the R environment, the immediate next step involves loading the ggplot2 library itself and constructing the initial visualization. The core logic of the plotting code maps hours to the horizontal (X) axis and score to the vertical (Y) axis. The essential step is mapping the technique variable to the color aesthetic within the aes() function. This ensures that both the underlying scatter points and the resulting fitted regression line are visually differentiated based on the specific study technique employed.

The following R code demonstrates the implementation required to plot a unique regression line capturing the relationship between hours studied and exam score for each of the three distinct study techniques (A, B, and C):

#load ggplot2
library(ggplot2)

#create regression lines for all three groups
ggplot(df, aes(x = hours, y = score, color = technique)) +
  geom_point() +
  geom_smooth(method = "lm", fill = NA)

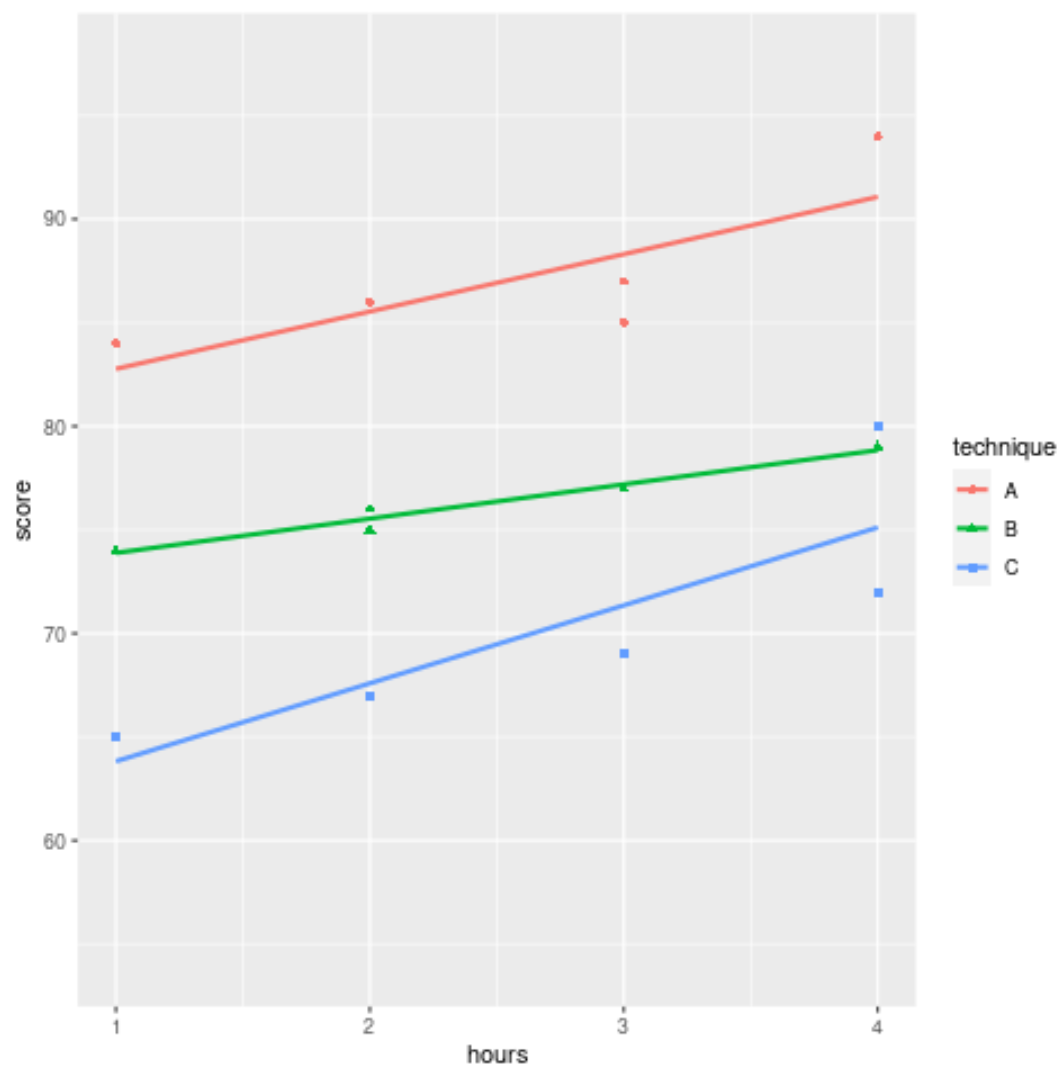

Upon execution, the resulting image clearly displays three visually distinct regression lines, each uniquely corresponding to techniques A, B, and C. A critical immediate observation that can be drawn from this visual evidence is that Technique A appears to consistently yield the highest scores for any given number of hours studied. This is followed sequentially by Technique B, and then Technique C, which exhibits the lowest scores. This compelling visual evidence strongly supports the conclusion that there is a differential effectiveness among the various study methods, an insight that would be obscured if only a single, overall regression line were calculated.

Exploring Alternative Smoothing Methods

In the preceding example, we deliberately utilized the argument method = "lm" within the geom_smooth() function. This instruction directed ggplot2 to fit a traditional linear model (lm) to the specific subset of data points associated with each group. The resulting line is mathematically a straight line, which fundamentally represents an assumption of a constant rate of change in the response variable relative to the predictor variable.

However, it is a statistical reality that not all underlying relationships observed in real-world data adhere strictly to a linear form. If initial exploratory data analysis or theoretical knowledge strongly suggests the presence of a curved, accelerating, decelerating, or non-monotonic trend, it becomes statistically essential to utilize a smoothing method that is appropriately designed for capturing such nonlinear trends. Failure to do so can lead to misleading conclusions based on an incorrect model assumption.

Within geom_smooth(), while method = 'lm' specifies a straight, linear trend, users have access to several other powerful smoothing techniques. These alternatives include "glm" (Generalized Linear Model), "loess" (Locally Estimated Scatterplot Smoothing), or "gam" (Generalized Additive Model), all of which can be employed to accurately capture complex nonlinear trends inherent in the data. For instance, the “loess” method is a highly flexible non-parametric technique frequently deployed when the true relationship is complex and lacks a simple, predefined mathematical form. Similarly, "gam" is a potent choice for fitting highly flexible, complex curves while maintaining interpretability. Selecting the correct smoothing method ensures that the visualized trend accurately and reliably reflects the underlying statistical relationship being studied.

Enhancing Visualization with Aesthetic Mappings (Shapes)

While the use of color is highly effective for separating and distinguishing the various regression lines, relying solely on color as the differentiating factor can introduce significant accessibility issues. Specifically, viewers who have color vision deficiency (color blindness) may struggle to interpret the plot accurately, and the clarity of the graphic is entirely lost when the visualization is printed or displayed in a grayscale format. A robust and inclusive data visualization strategy therefore dictates the use of multiple, redundant aesthetic mappings to differentiate groups.

We can significantly enhance the clarity and accessibility of our scatter plot by mapping the grouping variable (technique) not only to the color aesthetic but simultaneously to the shape aesthetic. This technique ensures that the individual data points belonging to each study technique are visually distinguishable not just by their hue, but also by their geometric form (e.g., circles, triangles, squares).

The code below demonstrates how to incorporate this redundant mapping, using different shapes to display the exam scores for each of the three study groups:

ggplot(df, aes(x = hours, y = score, color = technique, shape = technique)) +
  geom_point() +
  geom_smooth(method = "lm", fill = NA)

By simply including shape = technique within the primary aes function, ggplot2 automatically handles the assignment of a unique symbol to the points of each group. This crucial redundancy dramatically improves the overall accessibility and interpretability of the final visualization, making it significantly easier for all members of the audience to correctly connect the individual data points to their respective fitted regression lines, regardless of printing format or visual impairment.

Conclusion and Best Practices

Plotting grouped regression lines utilizing the capabilities of ggplot2 represents a straightforward yet immensely powerful statistical technique. This method allows analysts to visually dissect complex statistical relationships that are fundamentally conditioned on the presence of a categorical variable. By employing strategic and careful use of essential aesthetic mappings, such as color and shape, we are able to construct high-quality, maximally informative plots that communicate statistical findings with precision and clarity.

The central methodological takeaway is the correct assignment of the grouping variable within the primary aesthetic mapping function (aes). This critical step guarantees that both the raw data points and the smoothing layers are calculated, fitted, and rendered entirely separately for every category defined by the grouping factor. Whether the analyst needs to fit a simple linear model (lm) or opts for a more statistically sophisticated nonlinear curve using methods like LOESS or GAM, ggplot2 provides the necessary flexibility and control for generating detailed, professional-grade statistical visualizations within the R programming environment.

We strongly encourage practitioners to continue exploring the extensive features and capabilities of ggplot2 to further customize plot elements, including themes, labels, and legends, ensuring that the resulting graphs meet the rigorous standards required for publication and high-level professional reports.
