Learning Exponential Regression: A Step-by-Step Guide Using the TI-84 Calculator

Exponential regression represents a fundamental and powerful statistical technique deployed whenever the relationship between two observed variables demonstrates a non-linear pattern. This method is specifically designed to model data that exhibits rapid growth or swift decay at a compounding rate, making it distinctly different from standard linear regression, which assumes a constant, straight-line relationship. The exponential model is therefore indispensable for accurate analysis across countless scientific, biological, and financial disciplines where change is multiplicative rather than additive.

The core utility of this type of regression lies in its ability to accurately fit data that shows significant curvature. We typically employ it to analyze scenarios characterized by two distinct patterns of change: exponential growth and exponential decay. Recognizing the specific data structure and understanding when to apply this model is the critical preliminary step required for effective and reliable data analysis and forecasting.

The accessibility of sophisticated data modeling tools, such as the built-in functions on a graphing calculator like the TI-84 calculator, democratizes complex statistical procedures. This guide offers a precise, step-by-step walkthrough detailing how to implement and interpret an exponential regression model using the calculator’s dedicated statistical capabilities, ensuring that users can derive meaningful insights without relying on advanced statistical software.

Understanding the Context and Patterns of Exponential Models

The mathematical structure of the exponential model is uniquely suited for situations where the instantaneous rate of change is directly proportional to the current quantity present. This proportionality is what drives the characteristic curve of exponential relationships, leading to dramatically accelerating or decelerating outcomes that are frequently encountered in real-world data collection.

Before diving into the calculation on the TI-84 calculator, it is essential to distinguish between the two primary outcomes this model addresses: growth and decay. These two concepts represent opposing yet mathematically linked behaviors that dictate the interpretation of the final regression coefficients.

Exponential Growth

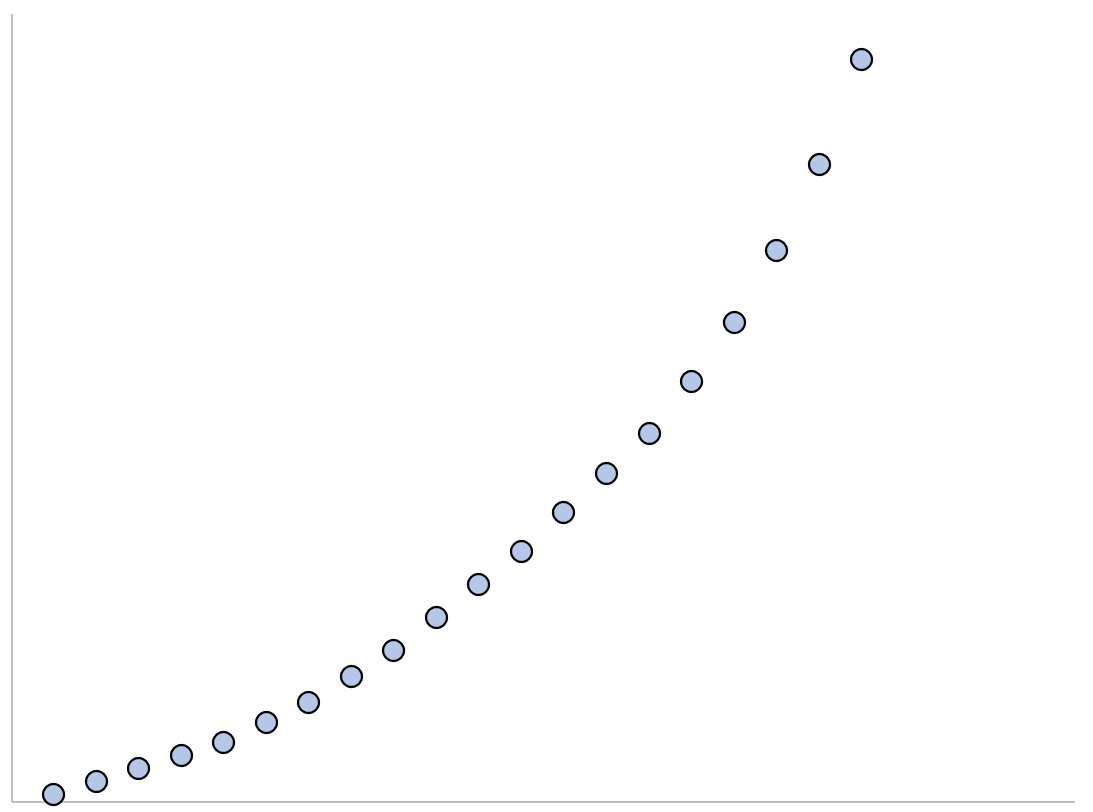

Exponential growth describes a dynamic situation where the initial rate of increase is relatively slow, but as the quantity accumulates, the rate of acceleration increases rapidly without any theoretical upper limit. This pattern is characteristic of many natural and economic phenomena, including the unchecked reproduction rate of biological populations, the compounding returns on investments due to interest, and the early stages of the spread of certain infectious diseases throughout a susceptible population.

Understanding the trajectory of growth allows for critical forecasting, particularly in fields requiring projections of resources or population demands.

Exponential Decay

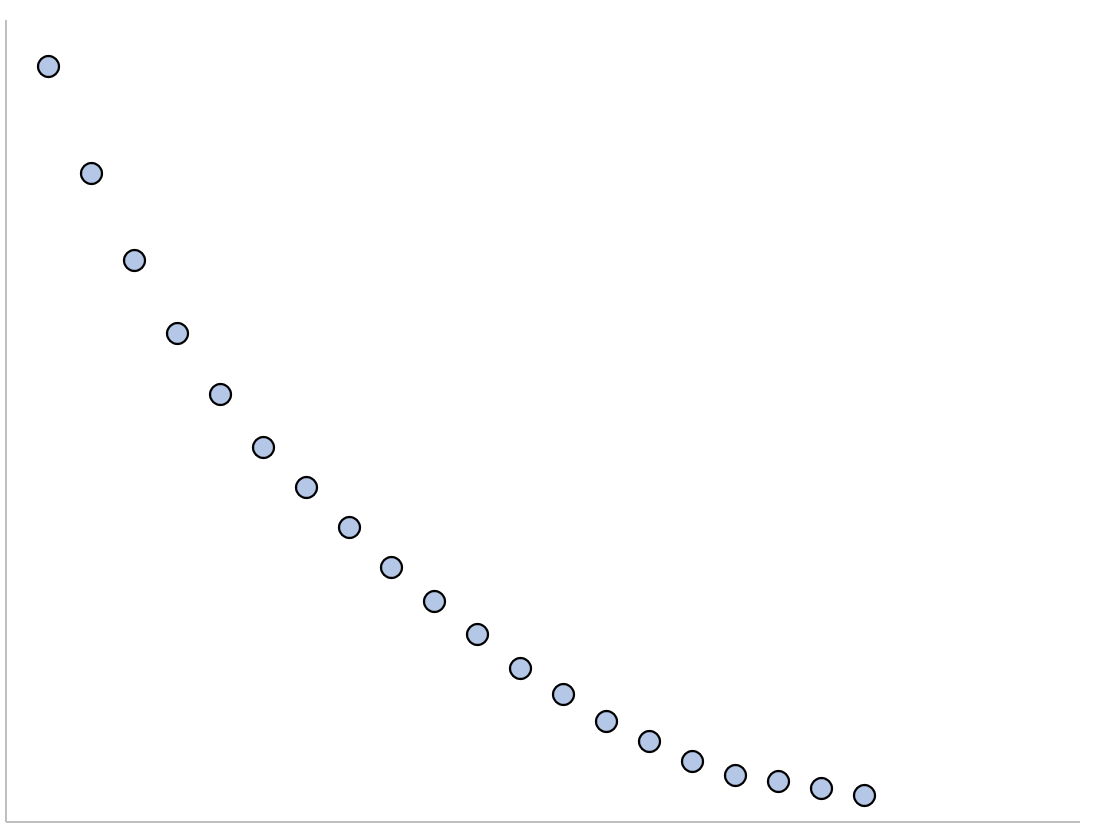

Conversely, exponential decay models processes where the decline begins rapidly and then slows down gradually, approaching zero asymptotically. This behavior means the quantity never truly reaches zero in a fixed time, but the rate of loss diminishes over time. Classic examples of decay include the calculation of radioactive half-life, the dissipation of drug concentration within the bloodstream following administration, or the cooling of an object toward ambient temperature as described by Newton’s law of cooling.

Accurate modeling of decay is vital in fields such as nuclear physics, pharmacology, and forensic science, where precise time-dependent predictions are required.

The Mathematical Framework: The Exponential Regression Equation

The fundamental mathematical form of an exponential regression model is crucial for understanding the output generated by the TI-84. Unlike linear models (y = mx + b), the exponential function places the independent variable, or input, in the exponent, establishing the characteristic curvilinear relationship between the variables.

The standard form of the exponential regression equation is defined as:

y = ab^x

The parameters within this formulation carry specific statistical meanings that must be correctly understood for a valid interpretation of the fitted model. The regression process itself involves iteratively calculating the optimal values for the coefficients a and b that result in a curve that minimizes the sum of the squared residuals (the vertical distance between the curve and the actual data points).

• y: Represents the response variable (or dependent variable). This is the output value that the model attempts to predict, explain, or forecast based on the input.
• x: Represents the predictor variable (or independent variable). This is the input value used by the model to drive the prediction of y.
• a: The initial value or y-intercept. Statistically, this is the predicted value of the response variable y when the predictor variable x is equal to zero.
• b: The growth or decay factor. This is a critical regression coefficient that quantitatively determines the rate of change. The interpretation is simple: if b is greater than 1 (b > 1), the model indicates growth; if b is between 0 and 1 (0 < b < 1), the model indicates decay.

The entire objective of executing the exponential regression function on the TI-84 is to derive these coefficients, a and b, from the input dataset.

Step 1: Setting Up and Inputting Data for Analysis

Before any calculation can be performed, precise data entry into the calculator’s statistical memory lists is mandatory. We must ensure that the input data (x) and the output data (y) are correctly paired and organized. We will use a small dataset here, representing a hypothetical scenario where the value of y increases exponentially as x increases.

The following dataset will be used to demonstrate the process of fitting the exponential regression model:

To begin, proper preparation of the calculator is crucial. It is highly recommended to clear any residual statistical data from previous analyses to prevent contamination. To access the data entry environment, press the STAT key, which opens the main statistical menus. Then, select the EDIT option (typically the first choice) to enter the list editor interface.

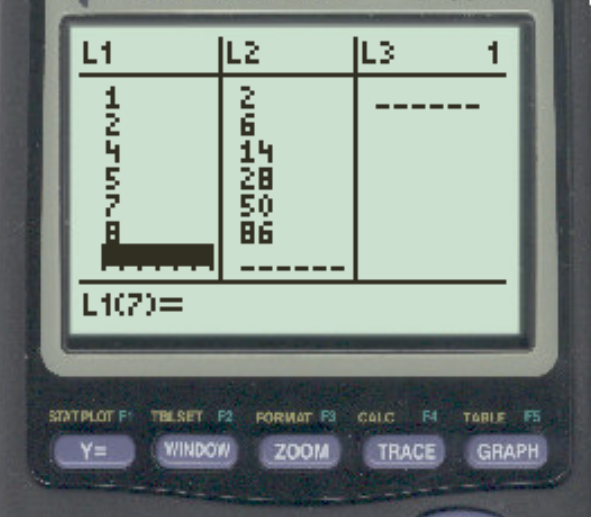

The next requirement is meticulous data transcription. Enter the x-values (the predictor variable) into the first column, designated as L1. Subsequently, enter the corresponding y-values (the response variable) into the second column, L2. Absolute accuracy is paramount; ensure that each pair of (x, y) coordinates aligns horizontally across L1 and L2, as a single transcription error can significantly compromise the calculated model.

Step 2: Executing the Exponential Regression Function

Once the data has been accurately entered and verified in L1 and L2, the next phase involves commanding the calculator to compute the exponential model based on these stored lists. The TI-84 automates the complex mathematical process of finding the line of best fit.

To initiate the calculation, press the STAT key once more. Use the right arrow key to navigate over to the CALC menu, which lists all available regression and statistical tests.

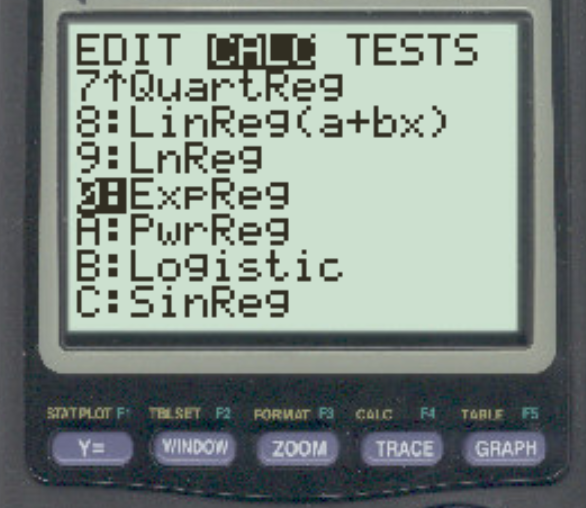

Within the list of regression options, scroll down until you locate option 0: ExpReg (Exponential Regression). Select this option and press ENTER. Modern TI-84 Plus CE models will present a prompt screen allowing verification of the data lists (Xlist: L1, Ylist: L2) and the option to Store RegEQ. For standard procedures, accepting the default settings for L1 and L2 is correct.

Finally, select Calculate and press ENTER. The calculator will efficiently process the data points and display the resulting regression coefficients.

The final output screen provides the essential parameters a and b, which define the exponential curve. Depending on the calculator’s diagnostic settings (which should be enabled via the CATALOG menu), the display may also include the correlation coefficient (r) and the coefficient of determination (r²), vital measures for assessing the quality of the fit.

Step 3: Analyzing and Interpreting the Final Results

The numerical output generated by the TI-84 is the foundation of the predictive model. The crucial final step is translating these calculated values back into the standard mathematical format to create the specific exponential equation for the analyzed dataset.

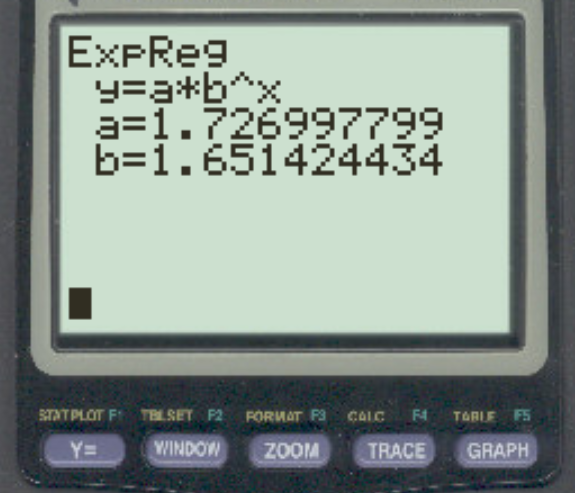

Based on the results displayed on the calculator screen (as shown in the accompanying image), the computed parameters are approximately:

• a ≈ 1.727
• b ≈ 1.651

By substituting these coefficients into the general form (y = ab^x), we formally derive the specific fitted exponential model for our input data:

y = 1.727 * 1.651^x

This equation now holds concrete statistical meaning. The coefficient a (1.727) represents the predicted initial value when the predictor variable x is set to zero. Since b (1.651) is significantly greater than 1, this confirms that the dataset exhibits strong exponential growth. More specifically, the response variable is increasing by approximately 65.1% for every single unit increase in the input variable x.

Application: Using the Fitted Model for Prediction

The core purpose of developing any regression model is to leverage the discovered relationship to make informed predictions regarding future or unobserved outcomes (a process known as interpolation or extrapolation). With the derived equation, we are now equipped to estimate the value of the response variable, y, for any given value of x that is within or reasonably close to the range of our initial data.

As a practical example, suppose we wish to predict the value of the response variable, y, when the predictor variable, x, is equal to 4. We substitute x = 4 directly into our fitted exponential equation:

y = 1.727 * 1.651⁴

The calculation proceeds by first raising the growth factor to the fourth power, and then multiplying by the initial value:

y = 1.727 * 7.429

y ≈ 12.83

Therefore, based on the exponential trend established by the observed data, we predict that when x = 4, the corresponding y value will be approximately 12.83. This successful execution demonstrates the robustness of exponential regression as a tool for accurately modeling and forecasting non-linear trends.

Further Considerations and Resources

While the coefficients a and b define the model, it is crucial to assess the goodness-of-fit before utilizing the equation for critical predictions. This assessment relies on the correlation coefficient (r) and the coefficient of determination (r²). These metrics indicate how well the calculated exponential curve truly represents the scatter of the input data points; an r-value close to +1 or -1 (and an r² value close to 1) signifies a highly reliable model.

Bonus Resource: For those seeking to verify their manual calculations or explore sensitivity analysis outside of the TI-84, numerous online calculators are available that can automatically compute the exponential regression equation for a given predictor and response variable dataset.

Mastering exponential regression on the TI-84 provides a practical skill set for handling real-world data that defies simple linear analysis, empowering users to move beyond basic statistics into more complex predictive modeling.
