Learning Logarithmic Regression: A Step-by-Step Guide for TI-84 Calculators

Understanding Logarithmic Regression and its Applications

Logarithmic regression is a fundamental statistical technique utilized to model relationships between two variables where the rate of change is inherently non-constant. This model is indispensable for analyzing phenomena characterized by rapid initial shifts, followed by a gradual slowing or “plateauing” effect over time. Unlike simpler linear models, which presuppose a fixed, steady rate of change across the entire dataset, logarithmic modeling accurately captures this specific asymptotic behavior, making it a powerful tool in predictive analysis.

The practical applications of this model span diverse fields, including the natural sciences, economics, and finance. For instance, processes such as the diminishing returns on capital investment, the saturation of a market after initial rapid adoption, or the decay of radioactive isotopes often exhibit a clear logarithmic curve. A thorough understanding of how to execute and interpret this model is essential for generating accurate forecasts and achieving robust statistical analysis, particularly when dealing with variables where the impact of the predictor variable lessens as its magnitude increases.

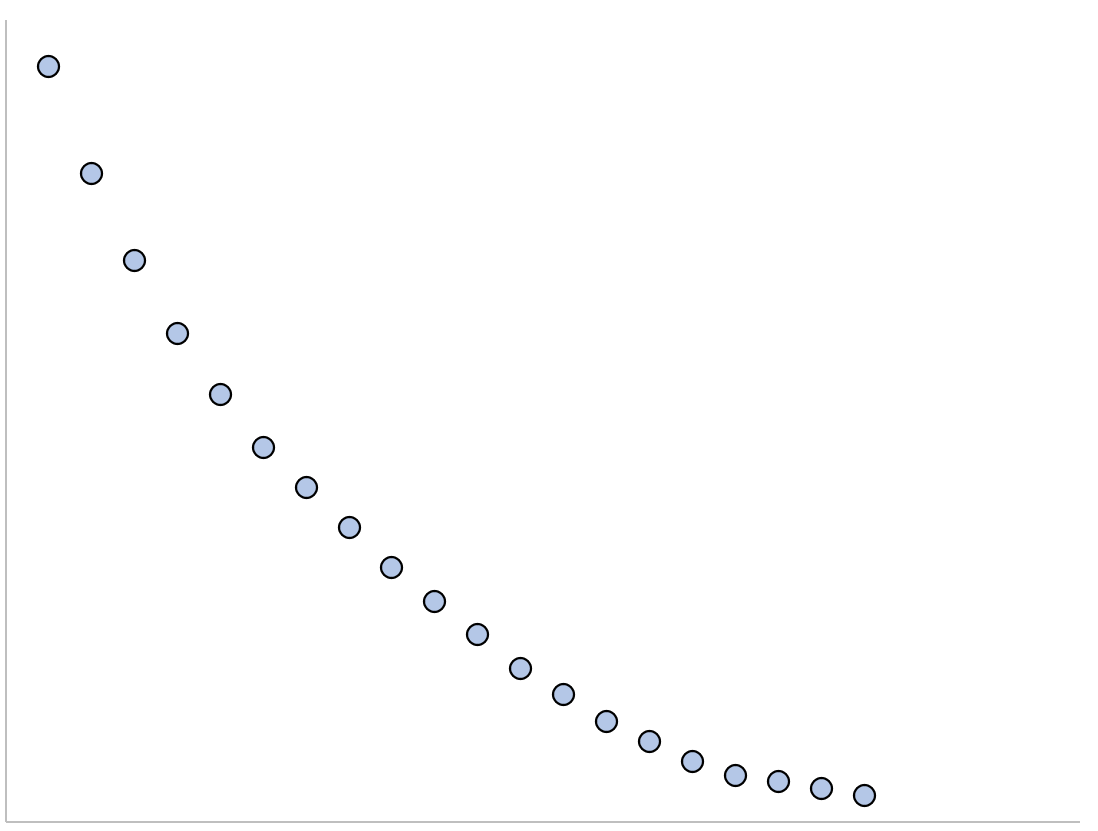

To visualize this concept, consider a typical scenario of logarithmic decay. In the plot below, we can clearly observe how the decline in the response value is quite steep when the predictor variable (x) is low, but the curve gradually flattens out, or approaches a limit, as the x-values become larger. When empirical data exhibits this specific asymptotic trend—approaching a limit but never mathematically reaching it—the relationship between the predictor and the response variables can be effectively modeled using logarithmic regression. This comprehensive guide provides a detailed, step-by-step tutorial for performing this critical analysis using the widely accessible TI-84 calculator.

The Core Mathematical Structure: y = a + b*ln(x)

Before we delve into the practical keystrokes on the calculator, it is crucial to establish a firm grasp of the fundamental mathematical structure of the logarithmic model we intend to fit. This model is fundamentally distinct from exponential or power models because it specifically incorporates the natural logarithm of the independent variable, transforming the non-linear relationship into a form that can be estimated using linear methods applied to the transformed variable.

The standard mathematical equation for a logarithmic regression takes the following general form. The primary objective of the regression analysis is to determine the optimal values for the coefficients a and b that minimize the distance between the observed data points and the fitted curve:

y = a + b*ln(x)

Interpreting the output generated by the TI-84 calculator requires a clear understanding of each component of this equation:

• y: Represents the response variable, which is the outcome or dependent variable we are attempting to predict or explain based on changes in x.
• x: Represents the predictor variable, or the independent variable. It is crucial to note that the natural logarithm function (ln) is applied directly to this variable, which is the defining characteristic of this model.
• a, b: These are the calculated regression coefficients. Coefficient a typically serves as the intercept (the predicted value of y when ln(x) equals zero), and b quantifies the change in y associated with a unit change in the natural logarithm of x. These coefficients collectively define the precise shape and position of the logarithmic curve relative to the data.

A critical mathematical constraint must be strictly observed when utilizing the natural logarithm function: the predictor variable x must always be a positive value (x > 0). If your empirical dataset contains any non-positive x-values (zero or negative numbers), logarithmic regression is mathematically impossible and inappropriate. In such cases, data transformation or the selection of an alternative regression model, such as exponential or power regression, would be necessary.

Prerequisites and Dataset Preparation

Before initiating the calculation on the TI-84 calculator, the dataset must be prepared and organized appropriately. To clearly illustrate the entire procedure, we will use a small, representative dataset that visibly displays a strong logarithmic relationship. This dataset mimics a common experimental or observational scenario where the impact of an increase in the predictor variable quickly diminishes.

The following step-by-step example utilizes this specific set of paired data points, where X represents the values of the predictor variable and Y represents the corresponding values of the response variable. Note the rapid drop in Y values as X increases from 1 to 2, and the subsequent slower decline:

Accuracy during data entry is paramount, as even a minor transcription error can significantly skew the resulting regression coefficients and invalidate the predictive model. While the TI-84 regression functions are generally robust across various standard settings, it is always advisable to ensure that the calculator’s memory lists are cleared of previous data to prevent accidental mixing of datasets. Once the data is verified, we can proceed to load this information systematically into the calculator’s designated memory lists, L1 and L2.

Step 1: Inputting Data into the TI-84 Lists (L1 and L2)

The initial and most crucial step in performing any statistical analysis on the graphing calculator is the precise input of the raw data. This prepares the paired variables for the subsequent computational analysis performed by the built-in statistical functions.

To access the statistical editor interface, press the STAT button, typically located below the navigational arrows. Next, select the EDIT option, which is usually option 1 on the menu. This action opens the list editor screen, which displays columns labeled L1, L2, L3, and so forth, designed to hold variable data.

Carefully enter all x-values (the independent variable data) from the dataset into column L1. Following this, enter the corresponding y-values (the dependent variable data) into column L2. It is absolutely essential that each pair of (x, y) observations aligns perfectly across the lists; the first entry in L1 must correspond precisely to the first entry in L2, and so on. Use the arrow keys and the ENTER key to navigate and confirm each entry.

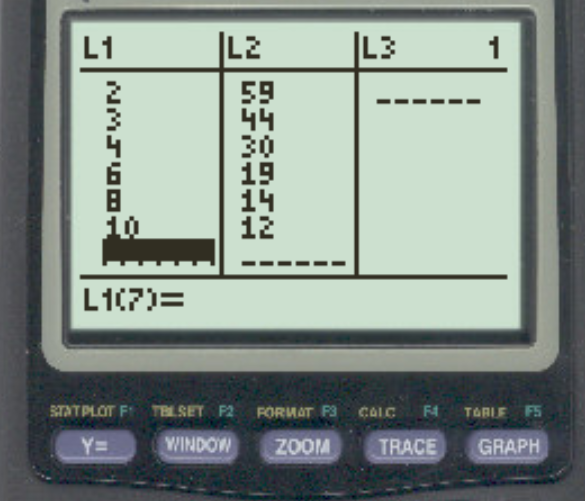

Upon successful completion of data entry for our example dataset, your calculator screen should display the data organized in the list editor, resembling the image below:

Before moving to the calculation phase, double-check that the total number of entries in L1 exactly matches the number of entries in L2. A common error that leads to a “DIM MISMATCH” error message when attempting to run regression models on the TI-84 is mismatched list lengths. Correcting these dimension errors proactively saves significant time during the analysis process.

Step 2: Executing the Logarithmic Regression Function (LnReg)

Once the data is accurately stored in L1 and L2, the next phase involves commanding the calculator to compute the specific logarithmic regression model. The TI-84 family of calculators provides a specialized, dedicated function for this purpose, significantly simplifying the computational requirements for the user.

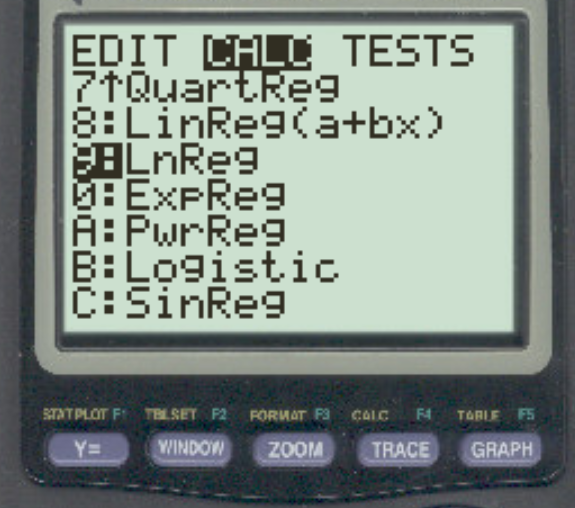

To access the calculation menu, press the STAT button once more. Use the right arrow key to scroll horizontally until the CALC menu tab is highlighted. This menu contains all the pre-programmed statistical procedures, including various regression functions necessary for modeling data.

Within the CALC menu, navigate down the extensive list of options until you locate the function labeled LnReg (Logarithmic Regression). This function is hard-coded to fit the required y = a + b*ln(x) model to your input data. Select this function by pressing ENTER.

If you are using a newer operating system on the TI-84 Plus CE, a prompt screen will appear requesting configuration details. Ensure that Xlist is correctly set to L1 and Ylist is set to L2. You may also be prompted to choose a location to store the regression equation (Store RegEQ), which is useful for graphing but optional for calculation. Scroll down to the final option, Calculate, and press ENTER to execute the computation. Users with older operating systems may find that simply selecting LnReg and pressing ENTER twice automatically runs the calculation using L1 and L2 as the default lists.

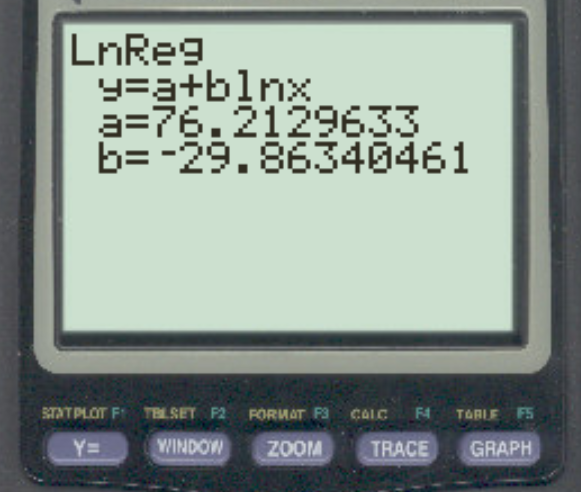

The calculator processes the lists and then displays the results screen, providing the calculated values for the regression coefficients a and b, along with diagnostic statistics such as the correlation coefficient (r) and the coefficient of determination (r²). These coefficients mathematically define the specific functional relationship observed between the natural log of x and y for your dataset.

Step 3: Interpreting Coefficients and Forming the Model Equation

The output provided by the TI-84 in Step 2 is the foundation for constructing the final fitted logarithmic regression equation. These calculated values serve to quantify the specific statistical relationship observed within the empirical dataset, moving the analysis from raw data points to a precise mathematical model.

Based on the coefficients displayed on the calculator screen (a ≈ 76.2130 and b ≈ -29.8634), we substitute these precise values back into the general logarithmic model form (y = a + b*ln(x)). This substitution yields the unique, specific fitted equation that best describes our input data:

y = 76.21296 – 29.8634 * ln(x)

The interpretation of these regression coefficients is key to understanding the underlying data pattern. Crucially, the negative sign associated with the coefficient b (-29.8634) signals an inverse relationship: as the predictor variable x increases, the response variable y decreases. This confirms the visual observation of logarithmic decay noted earlier in the plot, indicating that increasing the independent variable leads to a drop in the dependent variable, though the rate of that drop diminishes over time.

Utilizing the Model for Prediction and Further Analysis

The fitted equation derived in the previous step is the primary analytical tool for making informed predictions. We can now use this algebraic expression to accurately estimate the value of the response variable, y, for any given positive value of the predictor variable, x, provided that x falls within or reasonably near the range of the original input data (avoiding excessive extrapolation).

For example, if the goal is to predict the response when the predictor variable x is equal to 8, we simply substitute this value into our derived equation:

y = 76.21296 – 29.8634 * ln(8)

The subsequent calculation involves determining the natural logarithm of 8 (which is approximately 2.07944), multiplying it by the coefficient b, and then subtracting the result from the intercept a:

Calculation: 76.21296 – 29.8634 * (2.07944) ≈ 76.21296 – 62.0999

y ≈ 14.11

Consequently, the logarithmic model predicts that if the independent variable x reaches a value of 8, the corresponding value of the dependent variable y would be approximately 14.11. This predictive capability is invaluable for forecasting outcomes based on observed non-linear trends. To further refine the analysis, especially when working outside the TI-84, utilizing advanced statistical software can provide additional diagnostic checks, such as detailed analysis of variance (ANOVA) tables and residual plots, which are necessary to confirm the quality of the model fit.
