Learning Linear Interpolation with R: A Step-by-Step Guide

Introduction to Linear Interpolation

Linear interpolation is a foundational numerical technique utilized extensively across data science and engineering disciplines. Its primary purpose is to accurately estimate an unknown value that falls precisely within the range defined by two adjacent, known data points. This methodology relies on the straightforward principle of determining a point along the straight line segment that connects these two given observations. This approach is highly effective for tasks such as filling gaps in missing time series data, smoothing complex curves, or generating necessary intermediate data points when direct measurement or observation is either impractical or entirely impossible.

The core mathematical premise underlying linear interpolation is the assumption that the unknown data point maintains a linear relationship with its two closest neighbors. By assuming the point lies on the straight line formed by the bracketed data, the estimation process becomes significantly simplified. This simplicity results in a computationally efficient and easily interpretable method. While it may not be suitable for modeling highly complex, non-linear dependencies, linear interpolation provides a practical and often sufficiently precise solution for numerous real-world applications, especially when the recorded data points are relatively dense or the underlying function exhibits local linearity over short intervals.

Within the sphere of statistical computing and advanced data analysis, particularly when working in specialized environments like the R programming language, linear interpolation emerges as an indispensable tool for data preparation. It empowers analysts and researchers to manage incomplete datasets effectively and gracefully, thereby guaranteeing that subsequent analytical pipelines can proceed without the interruption caused by sporadic or systematic missing values. A thorough understanding of its operational mechanics and proper implementation strategies is absolutely essential for any professional dealing with numerical data integrity.

Understanding the Linear Interpolation Formula

To effectively estimate the corresponding y-value for any intermediate x-value, we rely on a specific mathematical formula, given two known reference points, (x₁, y₁) and (x₂, y₂). This formula precisely calculates the new point’s position along the line segment defined by the known points, factoring in its relative horizontal distance from the initial point.

The standardized formula used for linear interpolation is mathematically expressed as:

y = y₁ + (x – x₁) * (y₂ – y₁) / (x₂ – x₁)

To fully grasp the logic and derivation of this calculation, we can break down the individual components of the formula:

• (x₁, y₁) and (x₂, y₂): These coordinates define the two known data points that must successfully bracket the unknown target x-value. It is a strict requirement that x₁ is less than x₂, and the value being interpolated, x, must fall directly between them.
• x: This represents the specific x-coordinate for which the corresponding y-value needs to be accurately estimated.
• (y₂ – y₁) / (x₂ – x₁): This critical term calculates the slope of the straight line connecting the two known points. The slope quantifies the rate of change in y relative to the change in x across the interval defined by (x₁, y₁) and (x₂, y₂).
• (x – x₁): This term isolates the horizontal distance measured from the first known point (x₁) up to the specific target x-value.
• y₁ + (x – x₁) * slope: By multiplying the calculated horizontal distance by the slope, we determine the required vertical change relative to y₁. Adding this calculated change back to y₁ yields the estimated y-value for the target point x.

The result of applying this formula is an estimated point (x, y) that lies precisely on the straight line segment between the two reference points, thereby fulfilling the fundamental linear assumption inherent in the interpolation method.

Applications and Advantages of Linear Interpolation

The inherent simplicity, coupled with high computational efficiency, makes linear interpolation an exceptionally valuable technique utilized in countless practical scenarios across diverse professional fields. Its primary utility is derived from its robust ability to seamlessly fill crucial data gaps or generate smoother, more continuous transitions between discrete, individual observations.

Key sectors and common applications benefiting from this technique include:

• Data Preprocessing and Cleansing: It is routinely used for imputing missing values within comprehensive datasets, including sporadic sensor readings, historical financial time series, or critical experimental measurements, ensuring a complete dataset for subsequent rigorous analysis.
• Computer Graphics and Animation: Linear interpolation is fundamental for estimating intermediate color values, texture coordinates, or object positions between defined keyframes to produce smooth, fluid animations and accurate, realistic rendering.
• Signal Processing: Applications involve resampling digital signals to adjust their frequency, performing upsampling on audio data, or reconstructing missing samples within a complex waveform structure.
• Engineering and Scientific Modeling: It is essential for estimating unknown values in derived calibration curves, complex experimental results, or geographically mapped data, such as determining elevation between established contour lines.
• Financial Analysis: Analysts utilize this method to interpolate interest rates, sovereign bond yields, or stock prices for specific dates where no direct market observations are readily available.

The practical advantages associated with implementing linear interpolation are substantial and contribute significantly to its popularity:

• Efficiency and Speed: It demands minimal computational resources, making it ideally suited for high-speed, real-time applications or processing extraordinarily large datasets efficiently.
• Ease of Use: The underlying mathematical formula is straightforward, and ready-made, dedicated functions are widely available in most modern programming languages and statistical software packages, simplifying implementation dramatically.
• Interpretability: The resulting estimate is easy to comprehend, as it directly represents a position along a straight line, which often permits intuitive visual validation of the result.
• Accuracy in Local Context: When the source data points are closely packed or when the underlying relationship is known to be approximately linear over short intervals, linear interpolation provides results that are typically sufficiently accurate for the required analysis.

Performing Linear Interpolation in R

The R programming language is renowned for providing exceptionally robust tools designed for complex numerical tasks, and facilitating linear interpolation is one of its core strengths. R features the powerful, built-in function, approx(), which is specifically engineered for this exact purpose. It offers a highly efficient and direct mechanism for estimating intermediate values based on a supplied set of existing data points.

The approx() function operates by taking the existing vectors of x and y coordinates and requires the user to specify a vector of new x-values (using the xout argument) for which the corresponding y-values must be calculated. Crucially, the function applies the standard linear interpolation formula directly between every pair of adjacent points provided in the source data. This makes approx() the definitive choice for common tasks like effectively filling in missing data records or generating a denser, more detailed set of observations from data that was originally collected sparsely.

It is worth noting that while R also supports more advanced and complex interpolation methods, such as spline interpolation (available via functions like spline() or splinefun()), the linear approach remains highly favored due to its fundamental simplicity and guaranteed computational efficiency. Linear interpolation proves particularly effective when the underlying functional relationship between your variables is expected to be relatively smooth and is not characterized by sharp, abrupt non-linear changes occurring between the observed points. The following detailed example will demonstrate the effective and practical usage of the approx() function.

Step-by-Step Example: R Implementation and Visualization

To provide a clear illustration of how to execute linear interpolation within R, let us analyze a typical practical scenario. Imagine we possess a dataset representing a sequence of measurements, where the variable x denotes time and y represents an observed physical quantity. Our goal is to derive an estimated value of y for an arbitrary x-value that falls precisely between our existing recorded observations.

Our initial step involves defining and structuring our dataset. We will construct a data frame in R to contain our known pairs of x and y values. This structured data frame will serve as the essential foundation for our interpolation process. The data.frame() function is the standard mechanism used to build this tabular structure, which is the most common and organized way to store datasets within R.

The following R code snippet outlines how to define our example data frame and subsequently displays its contents for verification:

#define data frame
df <- data.frame(x=c(2, 4, 6, 8, 10, 12, 14, 16, 18, 20),
                 y=c(4, 7, 11, 16, 22, 29, 38, 49, 63, 80))

#view data frame
df

    x  y
1   2  4
2   4  7
3   6 11
4   8 16
5  10 22
6  12 29
7  14 38
8  16 49
9  18 63
10 20 80

The resulting data frame, conventionally named df, now encompasses 10 distinct pairs of (x, y) values, clearly establishing a sequence of increasing magnitude for both the input and output variables. Before moving directly to numerical interpolation, best practice dictates visualizing the data first. A proper visualization helps in understanding the underlying pattern and allows us to visually confirm that a linear assumption for local intervals is indeed a reasonable choice.

Visualizing Data and Performing Interpolation

Prior to executing the numerical estimation, visualizing the existing data points is highly recommended. A simple scatterplot provides immediate insight into the relationship between the x and y variables, confirming whether a linear trend is an appropriate starting point for interpolation. This initial graphical representation serves as essential context and allows for a rapid visual validation of the data structure.

The following R commands generate a basic scatterplot of our data points. We invoke the standard plot() function, explicitly defining df$x and df$y as the required coordinates. The argument col='blue' assigns the color blue to the points, and pch=19 ensures that the points are rendered as solid, clearly discernible circles on the plot.

#create scatterplot
plot(df$x, df$y, col='blue', pch=19)

Observing the scatterplot confirms a clear positive association: as the x variable increases, the y variable consistently rises. Although the path appears slightly curvilinear overall, the close spacing of points suggests that linear interpolation will yield highly reasonable estimates for any values requested within this established range.

We can now proceed to the core task of interpolation. Our specific objective is to determine the estimated y-value corresponding to a new input x-value of 13. This value sits perfectly within the observed range of our existing x data (from 2 to 20), making it an ideal candidate for internal estimation. We use the approx() function, which requires the existing x and y vectors, and the xout vector containing the value 13.

A note on methodology: the original code included an lm() command to fit a linear regression model. It is crucial to understand that the approx() function performs true linear interpolation—connecting adjacent data points—and does not rely on a globally fitted regression model for its calculation. While fitting a model is a related concept, it is not required for the accurate functioning of approx() in this specific context.

#fit linear regression model (for context, not used by approx())
model <- lm(y ~ x, data = df)

#interpolate y value based on x value of 13
y_new = approx(df$x, df$y, xout=13)

#view interpolated y value
y_new

$x
[1] 13

$y
[1] 33.5

The output generated by approx() is conveniently returned as a list structure containing two named elements: $x and $y. The $x component confirms the specific input x-value we requested (13), and the $y component delivers the calculated interpolated y-value. In this successful operation, the estimated y-value for x=13 is 33.5. This figure is mathematically derived by locating the point on the straight line segment connecting the two closest known data points in our frame: (12, 29) and (14, 38).

To finalize our analysis, we integrate this newly calculated point (13, 33.5) into the existing scatterplot. This step offers a vital visual check, confirming that the interpolated point is consistent with the general trend of the original data. A correctly estimated point should lie perfectly on the straight path between its two closest neighbors. We use the points() function to overlay this new data point, coloring it red to clearly differentiate it from the original blue observations.

#create scatterplot
plot(df$x, df$y, col='blue', pch=19)

#add the predicted point to the scatterplot
points(13, y_new$y, col='red', pch=19)

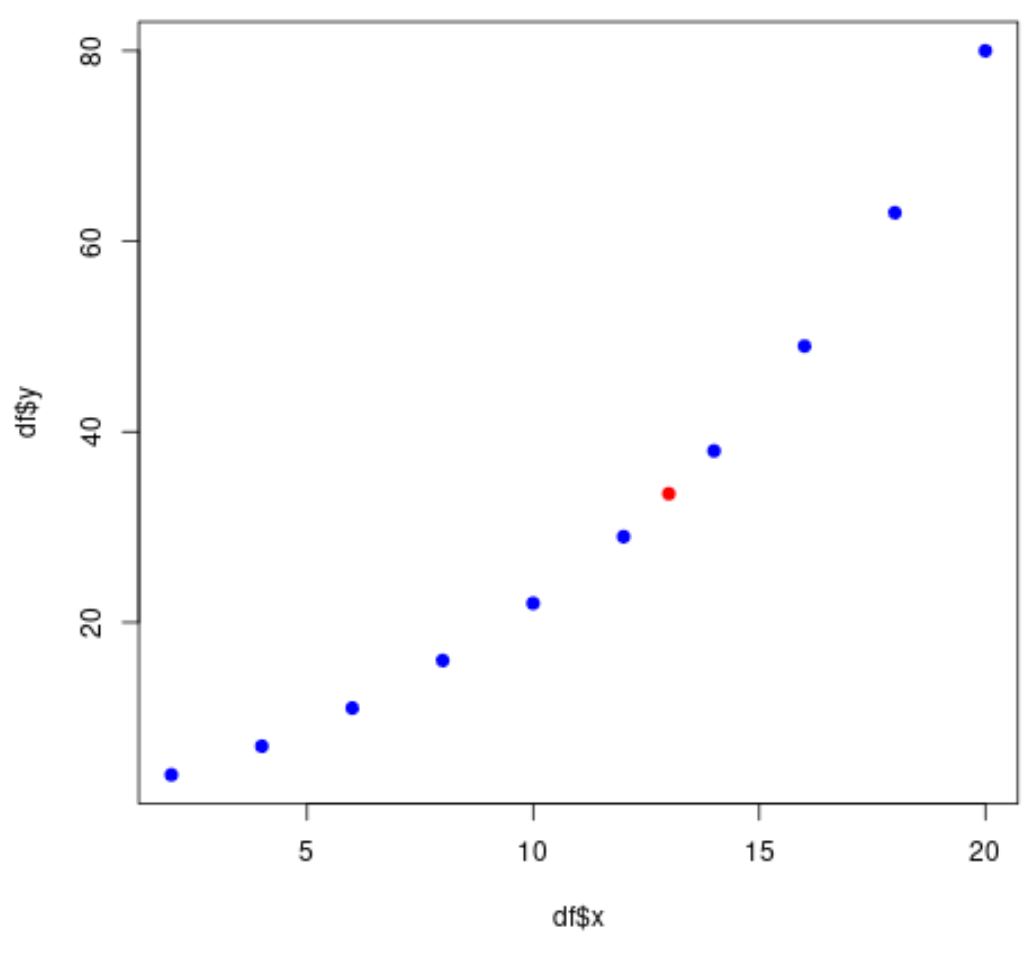

As is evident in the updated visualization, the red point, which represents the interpolated value (13, 33.5), falls precisely onto the trajectory suggested by the surrounding blue data points. This visual confirmation powerfully validates our linear interpolation result, demonstrating that the R approx() function successfully estimated a value that is fully consistent with the local trend and structure of our dataset.

Considerations and Limitations of Linear Interpolation

While linear interpolation is a highly accessible and powerful data tool, practitioners must remain aware of its inherent assumptions and limitations to ensure correct application and meaningful interpretation of the resulting estimates. Ignoring these factors can lead to significant analytical errors.

The most crucial considerations when employing this method include:

• The Linearity Assumption: The most significant caveat is the assumption that the underlying relationship between the two bounding known points is perfectly linear. If the true function is substantially curvilinear within this interval, the linear interpolation result will provide a poor and potentially misleading approximation.
• Dependence on Data Density: The resulting accuracy of the interpolated value is heavily determined by the density and spatial distribution of the known data points. Accuracy is generally high when points are tightly spaced but diminishes considerably when points are far apart or when the true underlying function is characterized by rapid changes.
• Sensitivity to Outliers: If either of the two data points used to bracket the target x-value is itself an outlier or erroneous observation, the resulting interpolated value will be unduly skewed toward that anomaly, leading to an inaccurate estimate.
• Non-Smoothness of the Result: Since linear interpolation connects points using straight line segments, the resulting interpolated curve is piecewise linear. This means the curve will exhibit sharp “corners” or points of non-differentiability exactly at the locations of the original data points. This characteristic makes the method unsuitable for advanced applications that strictly require smooth (continuously differentiable) curves, such as certain types of physics simulations or computer-aided design.

Furthermore, it is absolutely essential to maintain a clear distinction between interpolation and extrapolation. Interpolation estimates values that fall *within* the established range of the known data points, while extrapolation attempts to estimate values *outside* the observed data boundaries. Linear interpolation is generally unreliable and should be avoided for extrapolation purposes, as the assumption of linearity rarely holds true outside the range where data was actually observed. Extrapolation using a simple linear model frequently yields highly unreliable and misleading predictions because the actual trend beyond the observed data is fundamentally unknown and often rapidly non-linear.

For situations where the linear assumption proves inadequate, more sophisticated alternative interpolation techniques are available. These include polynomial interpolation (such as methods based on Lagrange polynomials) or advanced spline interpolation. These methods possess the capability to capture complex, non-linear relationships and generate smoother resulting curves. However, they come with the trade-off of increased computational complexity and the risk of overfitting the data if not applied judiciously. The selection of the most appropriate interpolation method must always be guided by the inherent nature of your data and the specific requirements of the intended analysis.

Conclusion and Resources for Further Study

In summation, linear interpolation stands as an exceptionally straightforward yet remarkably effective mathematical technique for accurately estimating unknown data values that are positioned between two known data points. Its characteristic simplicity, undeniable computational efficiency, and streamlined implementation within the R environment collectively establish it as an invaluable resource for data scientists and analysts globally. The built-in R function approx() offers the most direct and efficient mechanism for executing this operation, as clearly demonstrated throughout our practical, step-by-step implementation example.

By thoroughly mastering both the fundamental mathematical formula and its practical application in a statistical environment, you gain the capability to effectively leverage linear interpolation to fill critical missing data points, smooth datasets for better visualization, and reliably generate intermediate values. This ultimately enhances both the completeness and analytical utility of your dataset for any subsequent processing. It is paramount to always visually inspect your data and critically evaluate the underlying assumption of linearity to fully ensure the validity, reliability, and accuracy of your final interpolated results.
