Learning LOESS Regression in R: A Step-by-Step Guide with Examples

In the realm of statistical modeling, the capacity to accurately model and interpret complex patterns within data is essential. While traditional regression models, such as ordinary least squares, are adept at capturing straightforward linear relationships, many real-world datasets exhibit intricate, non-linear trends that these methods fail to adequately describe. This limitation is precisely why LOESS regression, an acronym for Local Estimated Scatterplot Smoothing (or simply local regression), has become an indispensable tool. LOESS is a robust, non-parametric technique specifically designed to fit a smooth curve to a scatterplot by focusing on localized subsets of the data rather than assuming a single functional form for the entire distribution.

Unlike global parametric methods that impose rigid assumptions on the underlying data structure, LOESS constructs the regression surface adaptively. It achieves this flexibility through a series of local polynomial regressions. The fundamental principle involves fitting a low-degree polynomial (often linear or quadratic) to data points situated within a defined neighborhood around the prediction point. Crucially, these neighboring points are weighted based on their proximity: points closer to the estimation point receive greater weight, ensuring that the local fit is primarily influenced by the data immediately surrounding it. This approach allows LOESS to seamlessly adapt to varying data densities and complex curves, making it powerful for exploratory data analysis and visualization.

This comprehensive tutorial serves as a practical guide to implementing LOESS regression using the powerful statistical capabilities of the R programming language. We will systematically cover the necessary steps, starting with data preparation, moving through the fitting of multiple LOESS models with varied parameters, and culminating in advanced techniques for model optimization. Specifically, we will demonstrate how to leverage K-fold cross-validation to objectively identify the optimal model configuration, ensuring the resulting curve is both smooth and representative of the true underlying trend. By the conclusion of this guide, you will be equipped with a clear methodology for implementing and interpreting LOESS regression effectively in your own statistical work.

The Mechanics of LOESS: Understanding Key Parameters

Before transitioning to the R environment, a solid understanding of the theoretical underpinnings of LOESS regression is crucial. The algorithm operates based on the principle of weighted least squares applied within a moving window across the dataset. For every point where a smoothed value needs to be estimated, a distinct localized regression is performed. The points within the specified neighborhood contribute to this regression, but their influence is modulated by a weight function (typically tricube) that rapidly diminishes as the distance from the target point increases. This mechanism guarantees that the fitted line at any given location truly reflects the characteristics of the data immediately surrounding it.

The single most critical parameter governing the behavior of the LOESS algorithm is the span parameter (often denoted as α or f). This value dictates the exact proportion of the total dataset that will be included in the local neighborhood for each individual regression calculation. Manipulating the span directly controls the trade-off between the complexity and the smoothness of the resulting curve. A smaller span value incorporates fewer data points, leading to highly localized fits. This generally results in a more volatile, “wiggly” curve that closely tracks individual data fluctuations, potentially capturing noise.

Conversely, selecting a larger span parameter forces the local regression to incorporate a larger fraction of the data. This broader averaging effect produces a much smoother curve that effectively captures general trends but may overlook fine, local details. This choice directly encapsulates the fundamental statistical challenge known as the bias-variance trade-off. A span that is too small risks high variance (overfitting the training data), while a span that is too large risks high bias (underfitting or smoothing away important local structure). Therefore, identifying the optimal span is paramount for constructing a robust and generalizable regression model, a task for which objective methods like cross-validation are essential.

Step 1: Preparing Your Data in R

The foundation of any meaningful data analysis rests on meticulous data preparation. When working with LOESS regression in R, the standard structure for housing the variables is the data frame. A data frame organizes data into a tabular structure where variables are represented by columns (which can hold different data types) and observations are represented by rows. For our demonstration, we will construct a simple data frame containing two numeric variables: x, representing the independent variable, and y, representing the dependent variable, exhibiting a clear non-linear relationship suitable for LOESS smoothing.

We create this structure in R using the efficient data.frame() function, combining vectors of equal length into a single, coherent object. To effectively illustrate the utility of LOESS regression, the sample data we define below is designed to follow a curve rather than a straight line. This ensures that the benefits of the non-parametric smoothing technique are clearly visible when compared to linear alternatives.

The following R code snippet initializes our sample data frame. We then use the head() function to inspect the first few observations, which is a standard practice to confirm that the data has been loaded and structured correctly before proceeding to the modeling phase.

# Create a new data frame with example x and y values
df <- data.frame(x=c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14),
                 y=c(1, 4, 7, 13, 19, 24, 20, 15, 13, 11, 15, 18, 22, 27))

# Display the first six rows of the created data frame to verify its content
head(df)

  x  y
1 1  1
2 2  4
3 3  7
4 4 13
5 5 19
6 6 24

Step 2: Fitting and Visualizing LOESS Models

With our data prepared, the next logical step is to fit multiple LOESS models and visually assess the impact of varying the crucial span parameter. In R, the primary tool for this operation is the built-in loess() function. This function requires a model formula (e.g., y ~ x), the data frame to be used, and the specified span value. By systematically testing different span values, we can generate a spectrum of fitted curves, ranging from highly flexible to overly smooth.

After successfully fitting a LOESS model using loess(), we must generate the smoothed estimates. This is accomplished using the predict() function, which calculates the predicted y values based on the local regression performed by the model for each of the original x values. These predicted values form the estimated regression line. Visual comparison of these lines against the original scatterplot is arguably the most intuitive method for understanding the influence of the span parameter on the model’s fidelity to the data.

The following R code block demonstrates the process: we fit three distinct LOESS models using span values of 0.5, 0.75, and 0.9. We then generate a scatterplot of the raw data and overlay the predicted regression lines from each model. This visual juxtaposition provides immediate and clear insight into how the bias-variance trade-off is manifested through the selection of the span parameter.

# Fit several LOESS regression models to the dataset, each with a different span parameter
loess50 <- loess(y ~ x, data=df, span=.5)
smooth50 <- predict(loess50)

loess75 <- loess(y ~ x, data=df, span=.75)
smooth75 <- predict(loess75)

loess90 <- loess(y ~ x, data=df, span=.9)
smooth90 <- predict(loess90)

# Create a scatterplot of the original data points
plot(df$x, df$y, pch=19, main='Loess Regression Models',
     xlab='X-values', ylab='Y-values')

# Overlay each LOESS regression line onto the scatterplot with distinct colors
lines(smooth50, x=df$x, col='red', lwd=2) # Span 0.5
lines(smooth75, x=df$x, col='purple', lwd=2) # Span 0.75
lines(smooth90, x=df$x, col='blue', lwd=2) # Span 0.9

# Add a legend to differentiate the regression lines based on their span values
legend('bottomright', legend=c('Span = .5', 'Span = .75', 'Span = .9'),
        col=c('red', 'purple', 'blue'), lty=1, lwd=2, title='Smoothing Span')

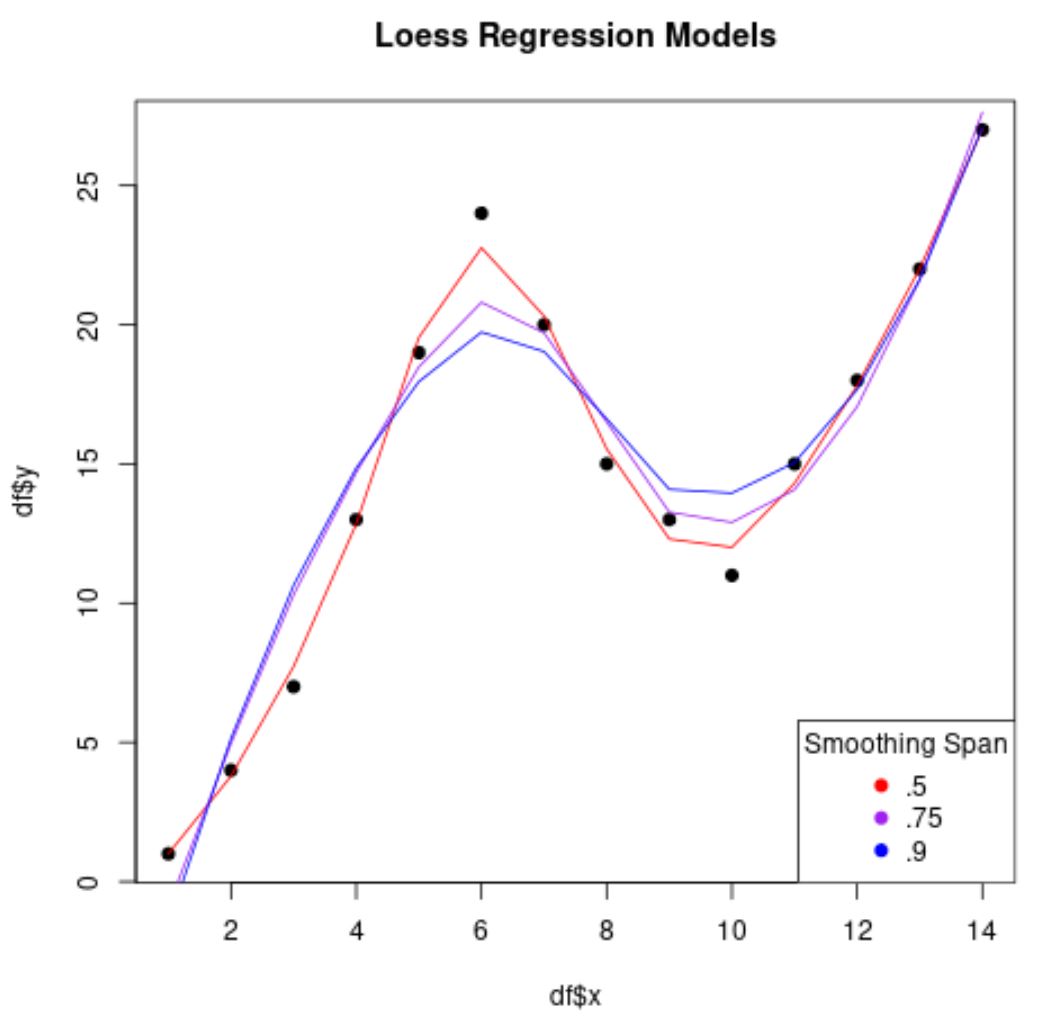

The visualization clearly confirms that the selection of the span value is the primary determinant of the LOESS curve’s smoothness. The red line, corresponding to the lowest span value (0.5), is highly jagged and attempts to pass extremely close to almost every individual data point. This high degree of local fitting suggests that the model is highly sensitive to noise and exhibits high variance, a common symptom of overfitting. Conversely, the blue line, generated by the largest span (0.9), is excessively smooth. While it captures the overall parabolic shape of the data, it averages so broadly that it smooths away significant local deviations, potentially leading to a high-bias model that underfits the data. The purple line (span 0.75) offers a balance, appearing smoother than the red line but more responsive than the blue line. This visual analysis profoundly highlights why a careful, objective selection of the span is mandatory for effective LOESS modeling.

Step 3: Optimizing the LOESS Model with K-Fold Cross-Validation

While visual assessment offers valuable intuition, relying solely on graphical inspection is subjective and insufficient for model validation. A rigorous, objective method is required to pinpoint the ideal span parameter that minimizes generalization error. This is where K-fold cross-validation proves its worth. Cross-validation is a robust resampling technique that estimates how well a model will perform on an independent dataset, thereby providing a reliable measure of model performance and safeguarding against overfitting.

The K-fold process involves randomly dividing the entire dataset into K equally sized partitions (folds). The procedure is then iterated K times: in each iteration, one fold is reserved as the validation set (testing data), and the remaining K-1 folds are combined to form the training set. After K repetitions, every data point has been used exactly once for validation. The performance metrics from all K trials are then averaged to yield a single, stable estimate of the model’s performance. For LOESS, this technique enables us to test a range of span values and evaluate their resulting predictive accuracy on data they have not yet seen.

To execute K-fold cross-validation for LOESS model tuning in R, we utilize the comprehensive caret package (Classification And Regression Training). We first define our cross-validation strategy, specifying the number of folds (K=5 in our case) using the trainControl() function. Next, we define the specific grid of span values to be tested using expand.grid(). Finally, the central train() function executes the cross-validation, automatically fitting and evaluating LOESS models (using the gamLoess method) across every combination of parameters defined in our grid.

library(caret)

# Define the k-fold cross-validation method: 5-fold cross-validation
ctrl <- trainControl(method = "cv", number = 5)

# Define a grid of span values to evaluate, ranging from 0.5 to 0.9
grid <- expand.grid(span = seq(0.5, 0.9, len = 5), degree = 1)

# Perform cross-validation using the 'gamLoess' method which fits LOESS models
model <- train(y ~ x, data = df, method = "gamLoess", tuneGrid=grid, trControl = ctrl)

# Print the detailed results of the k-fold cross-validation
print(model)

14 samples
 1 predictor

No pre-processing
Resampling: Cross-Validated (5 fold)
Summary of sample sizes: 12, 11, 11, 11, 11
Resampling results across tuning parameters:

  span  RMSE       Rsquared   MAE
  0.5   10.148315  0.9570137   6.467066
  0.6    7.854113  0.9350278   5.343473
  0.7    6.113610  0.8150066   4.769545
  0.8   17.814105  0.8202561  11.875943
  0.9   26.705626  0.7384931  17.304833

Tuning parameter 'degree' was held constant at a value of 1
RMSE was used to select the optimal model using the smallest value.
The final values used for the model were span = 0.7 and degree = 1.

Interpreting the Optimal LOESS Model

The output generated by the caret package after performing K-fold cross-validation provides a clear, quantitative basis for model selection. The summary table displays performance metrics—specifically RMSE (Root Mean Squared Error), R-squared, and MAE (Mean Absolute Error)—for each tested span parameter value. For regression tasks, RMSE is the standard metric for assessing prediction error; it measures the average magnitude of the errors and places a higher penalty on large mistakes, making it ideal for identifying the most generalizable model.

Analyzing the results, we observe the pattern of RMSE values corresponding to the spans tested (0.5 to 0.9). The RMSE starts high (10.148 at span 0.5), decreases to a minimum, and then rises sharply (to 26.705 at span 0.9). The lowest RMSE value recorded in the table is 6.113610, which corresponds precisely to a span value of 0.7. The caret output explicitly states that RMSE was used to select the optimal model using the smallest value, confirming 0.7 as the best choice.

This objective determination means that, among the tested parameters, a span of 0.7 strikes the optimal balance between flexibility (fitting the data well) and stability (generalizing effectively to new, unseen data). By minimizing the cross-validated error, we mitigate the risk of both overfitting (seen at span 0.5) and severe underfitting (seen at span 0.9). Consequently, the final, optimized LOESS regression model for our dataset should utilize 0.7 as the value for the span argument in the loess() function.

Conclusion and Next Steps for Exploration

This tutorial has successfully guided you through the entire workflow for performing and optimizing LOESS regression within the R environment. We established that LOESS, as a non-parametric smoothing technique, offers superior flexibility in modeling complex, non-linear relationships without the restrictive functional assumptions required by traditional methods. The power of LOESS lies primarily in the precise control afforded by the span parameter, which allows the practitioner to navigate the critical trade-off between model complexity and smoothness.

We demonstrated that visual fitting, while instructive, is best supplemented by rigorous statistical validation. By implementing K-fold cross-validation using the robust caret package, we moved beyond subjective visual judgments. This process allowed us to objectively measure the out-of-sample performance for various span values and confidently select the model that yielded the lowest RMSE, ensuring our final LOESS curve is the most reliable representation of the true underlying data patterns.

We strongly encourage continued experimentation. While we focused on the span, the loess() function offers other parameters, such as degree (controlling the polynomial degree of the local fits), which can further refine the model’s behavior. Understanding the subtle interplay between these parameters will significantly enhance your skills in leveraging LOESS for advanced data analysis and visualization. Consult the official R documentation for deeper insights into these parameters and explore other types of regression models to broaden your analytical toolkit.
